Beyond S1000 IP65 LED Moving Strobe Light
Beyond S1000 IP65 LED Moving Strobe Light
Technical Parameters
Light Source: 24pcs 10W white led + 24pcs 8W RGBS 4in1 led in the middle; 360pcs 1W RGBA 4in1 led on both sides
LED Lifetime: ≥ 50000H
Power Consumption: 490W±5%, power factor PF≥0.95; standby power: 13W;
Power Voltage: AC100-240V, 50-60Hz
Optical system: 120°
Color system: W+RGBS 4in1 LED+RGBA 4in1 LED
Control Modes: DMX512、Auto、Sound、Master、Manual、RDM
DMX Channel: 26/33/41/62/82/88 Channel
Protection Rating: IP65
Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched
Power Socket: Power-Con in/ out
Data In/Out Socket: 3-pin XLR sockets
Tilt: Tilt 190°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°, using magnetically sensitive reset system
MAX. Connection: 5 units（240V，50Hz） 1.5mm² power cable; 3 units（240V，50Hz） 1.5mm² power cable
Security protection: Overcurrent, overvoltage, and overheat protection
Working position: Install in any safe location
Working temperature: -10℃～45℃
Electronic control technology: Menu or console control light reset; 0-100% dimming; constant current drive mode; temperature sensor detection, intelligent adjustment of light source power; lamp information query; intelligent fan speed regulation

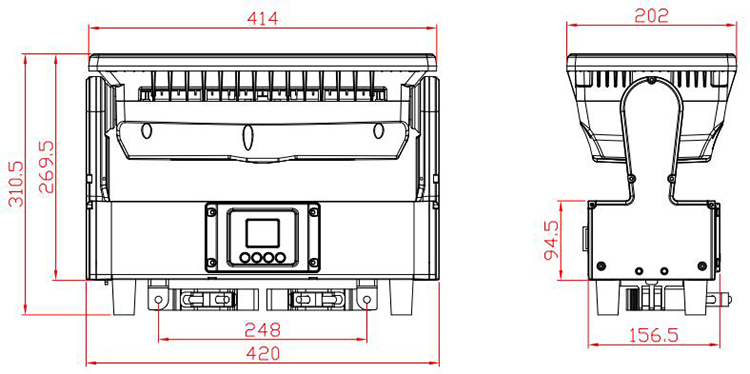

Dimension: 420mm*163mm*347mm
Net Weight: 13.51kg
Carton Package: 505mm*390mm*280mm 1in1 GW：16.1KG
Flight Case: 950mm*605mm*550mm 4in1 GW：87.23KG
Features: Full range dimming, 256-level dimming accuracy; fast strobe 1~25Hz; the middle LED is divided into six zones, and the two side LEDs are divided into 12 zones; integrated with coloring, strobe, and other effects; preset multiple effect macro functions
Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;

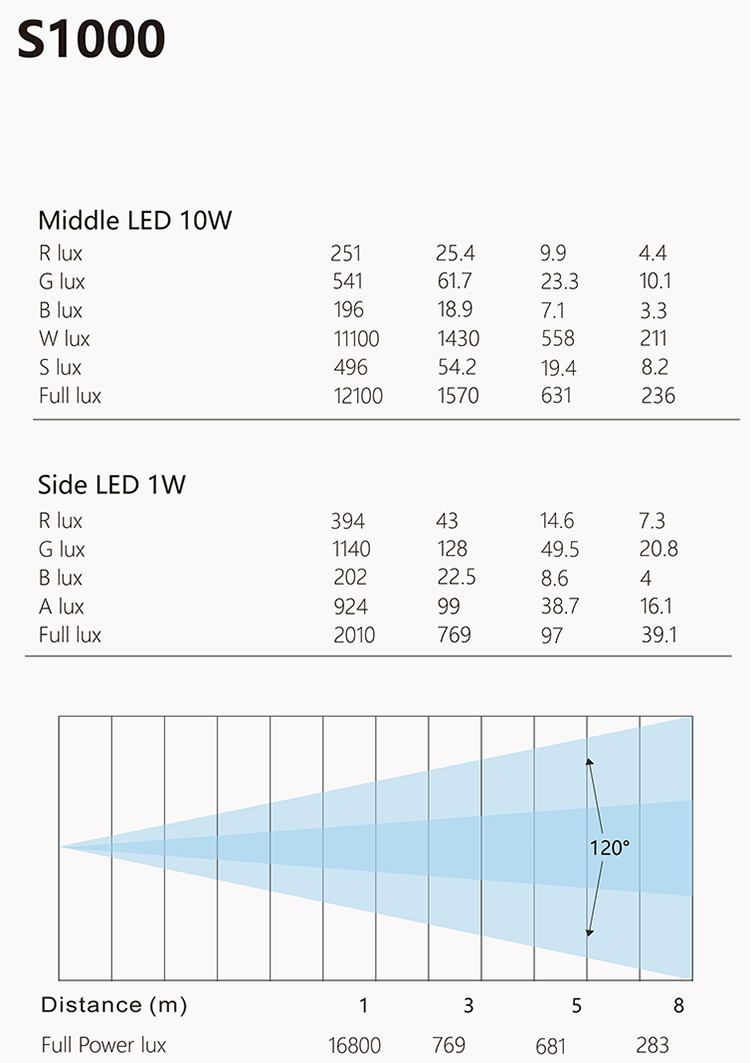

Beyond S1000 LUX Date:

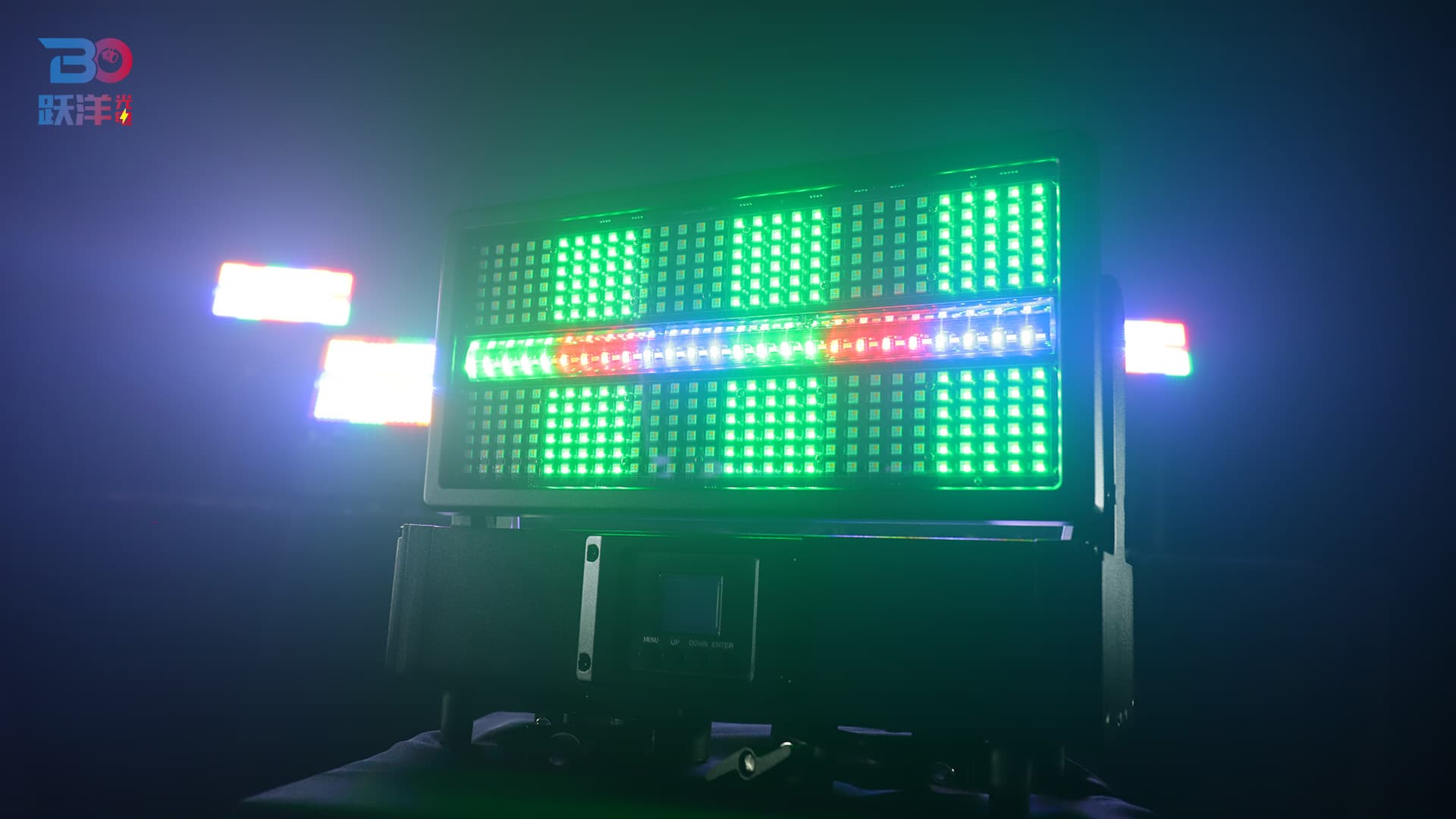

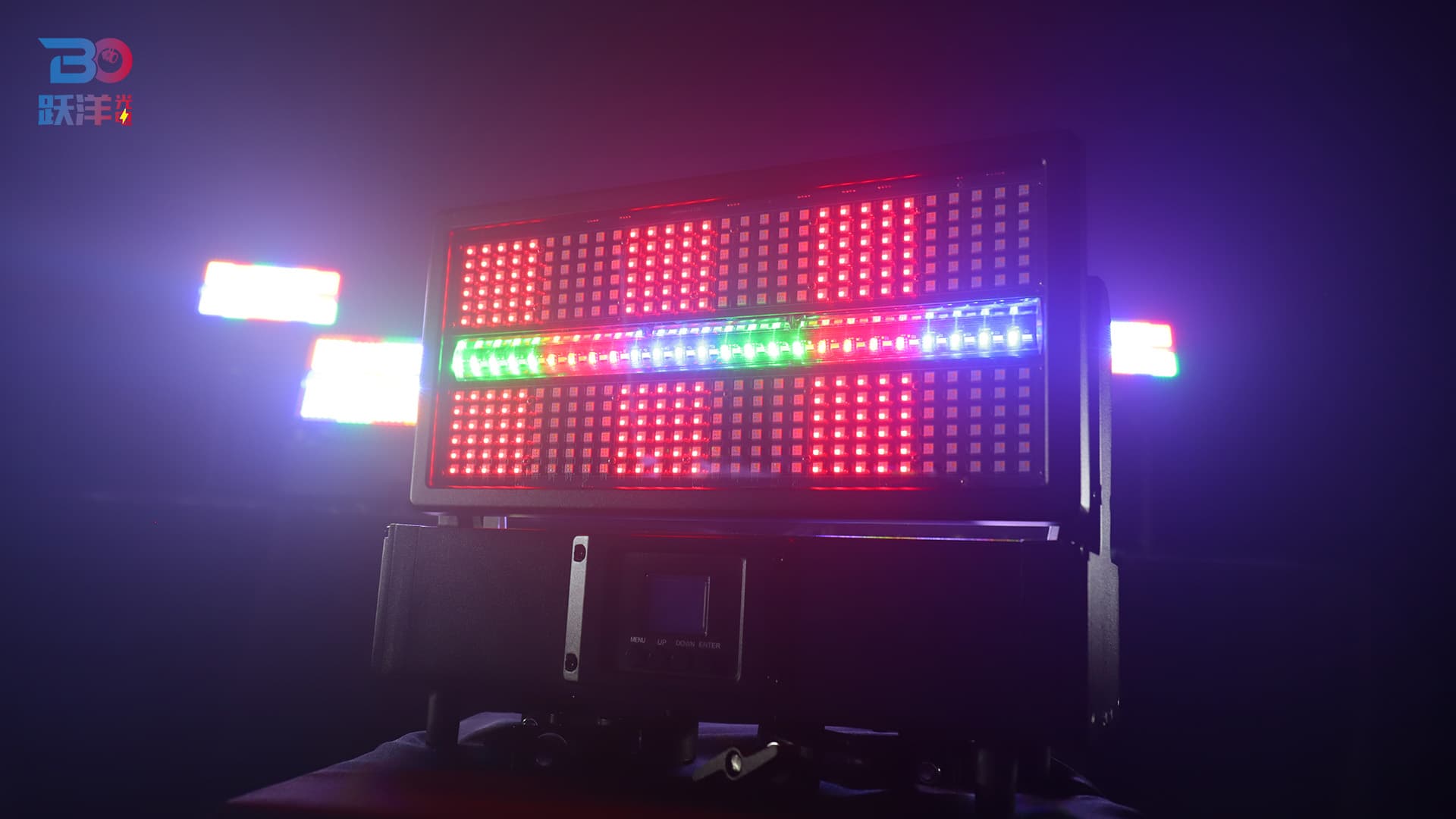

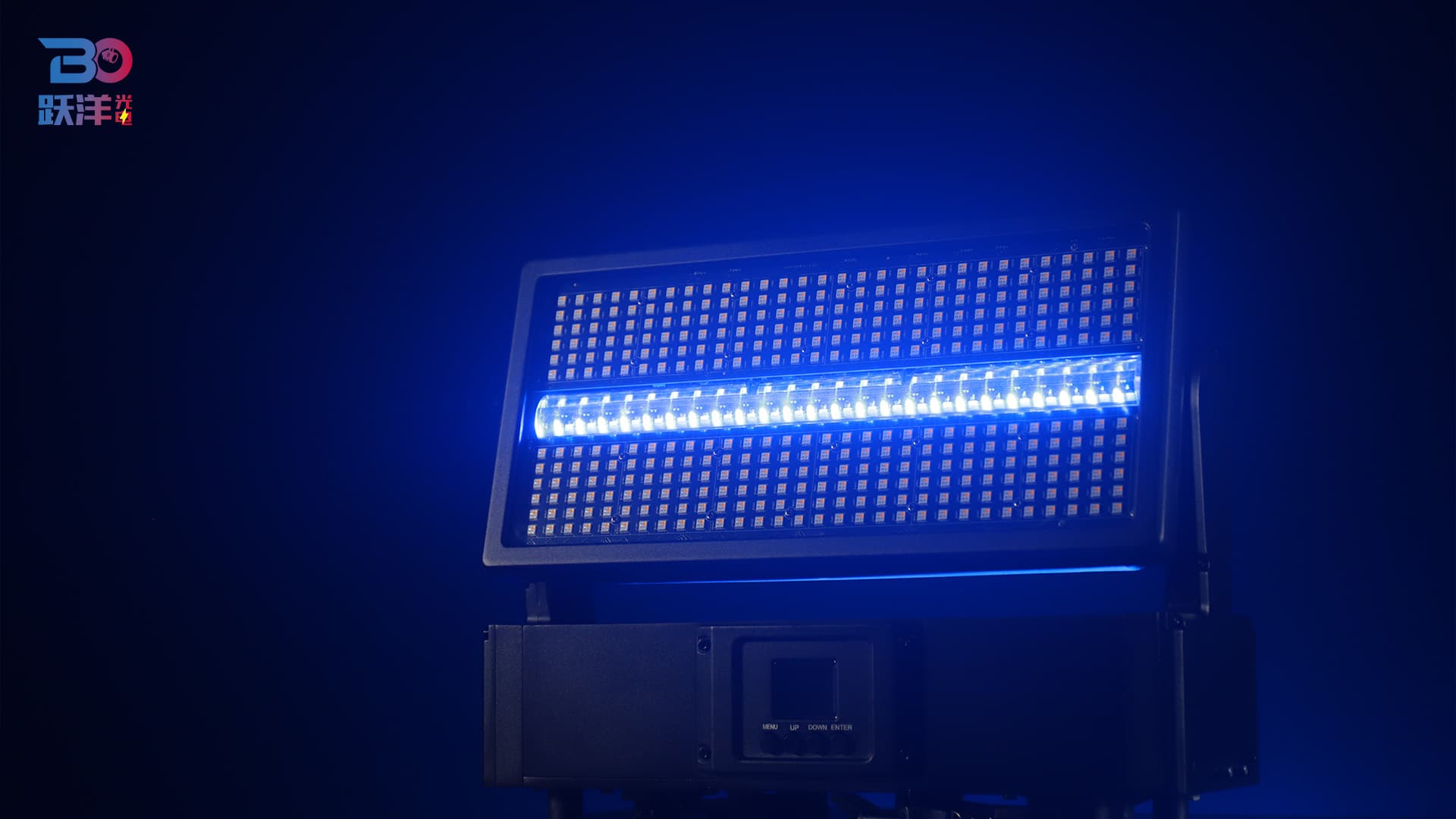

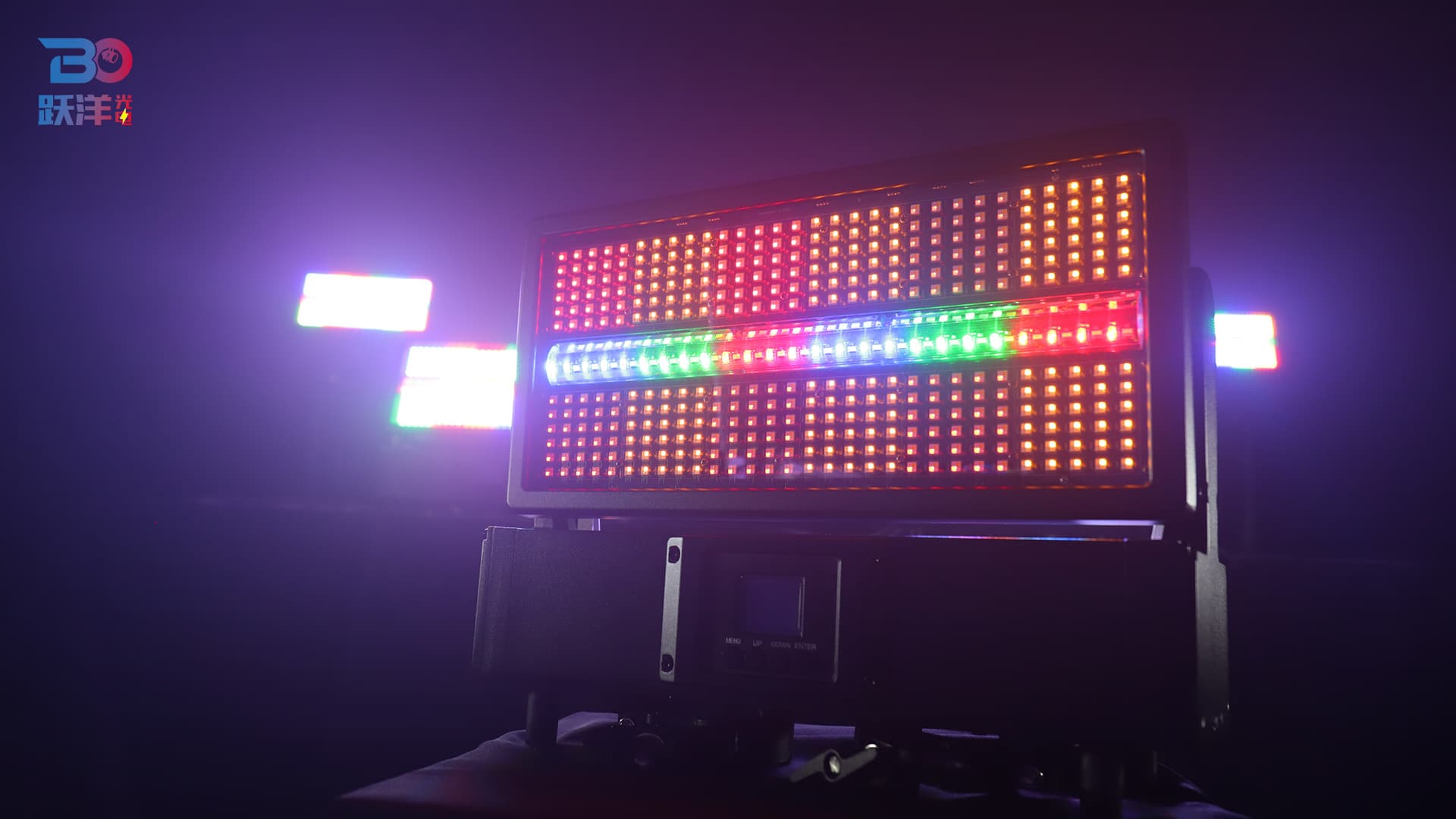

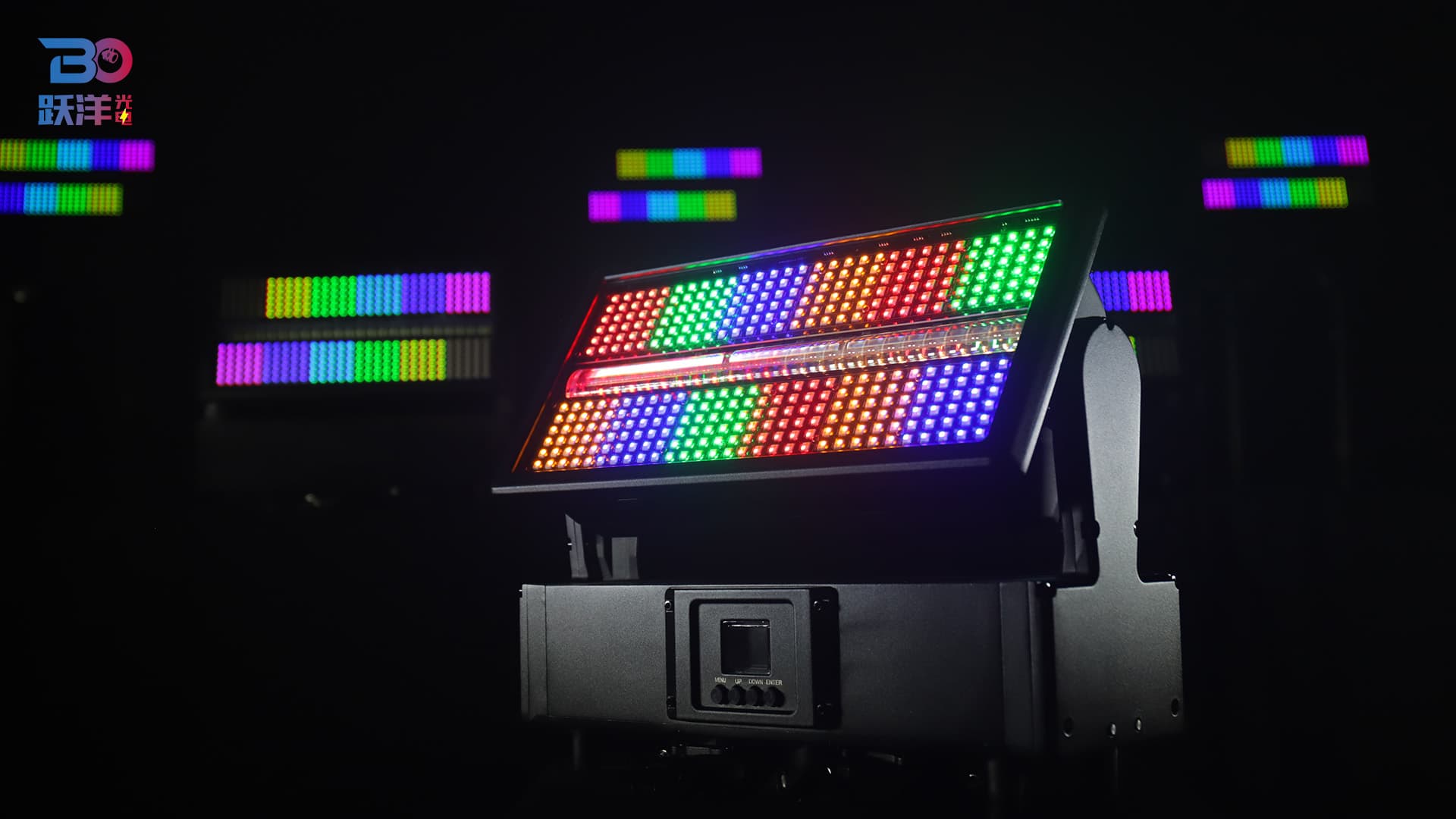

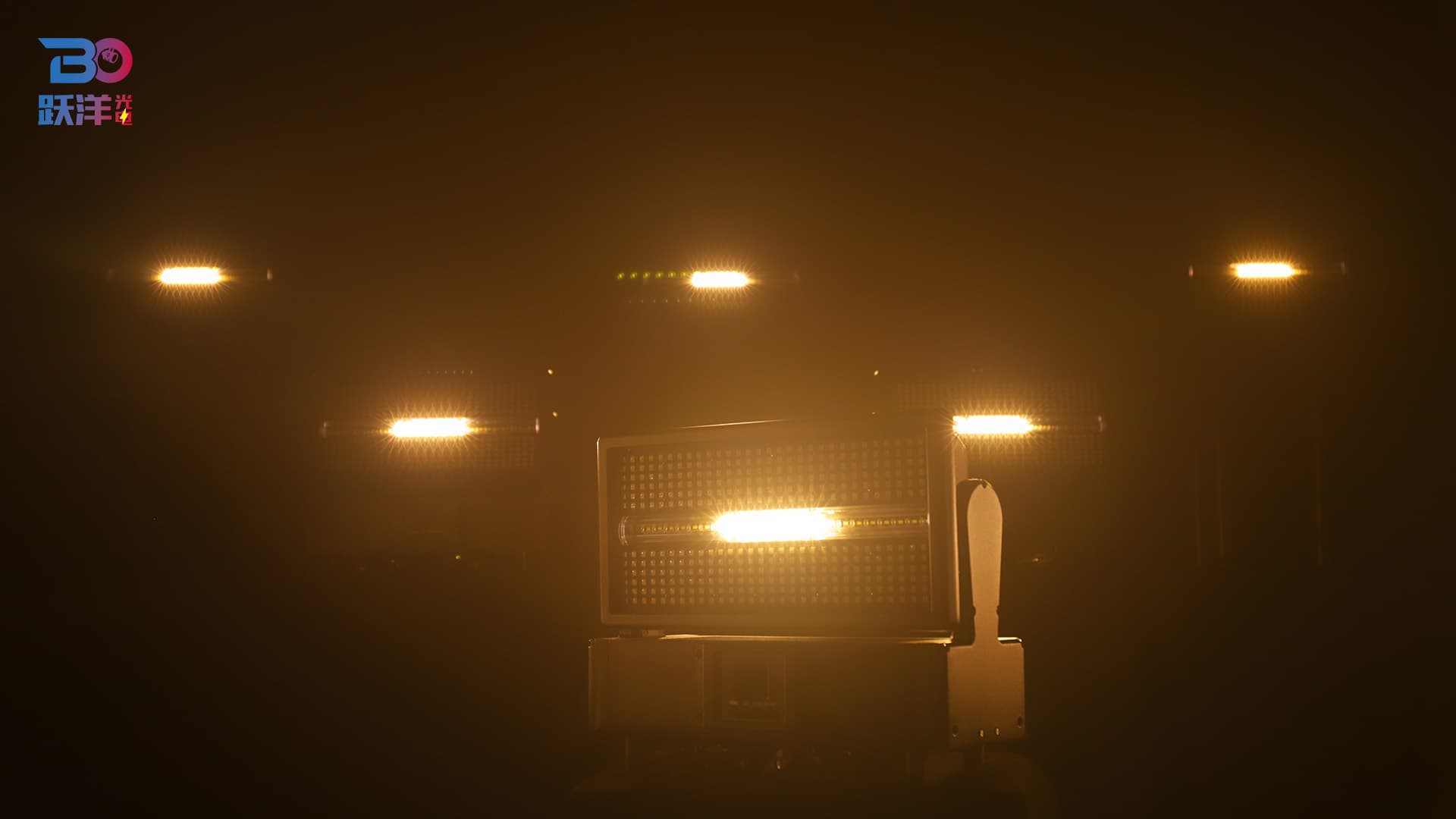

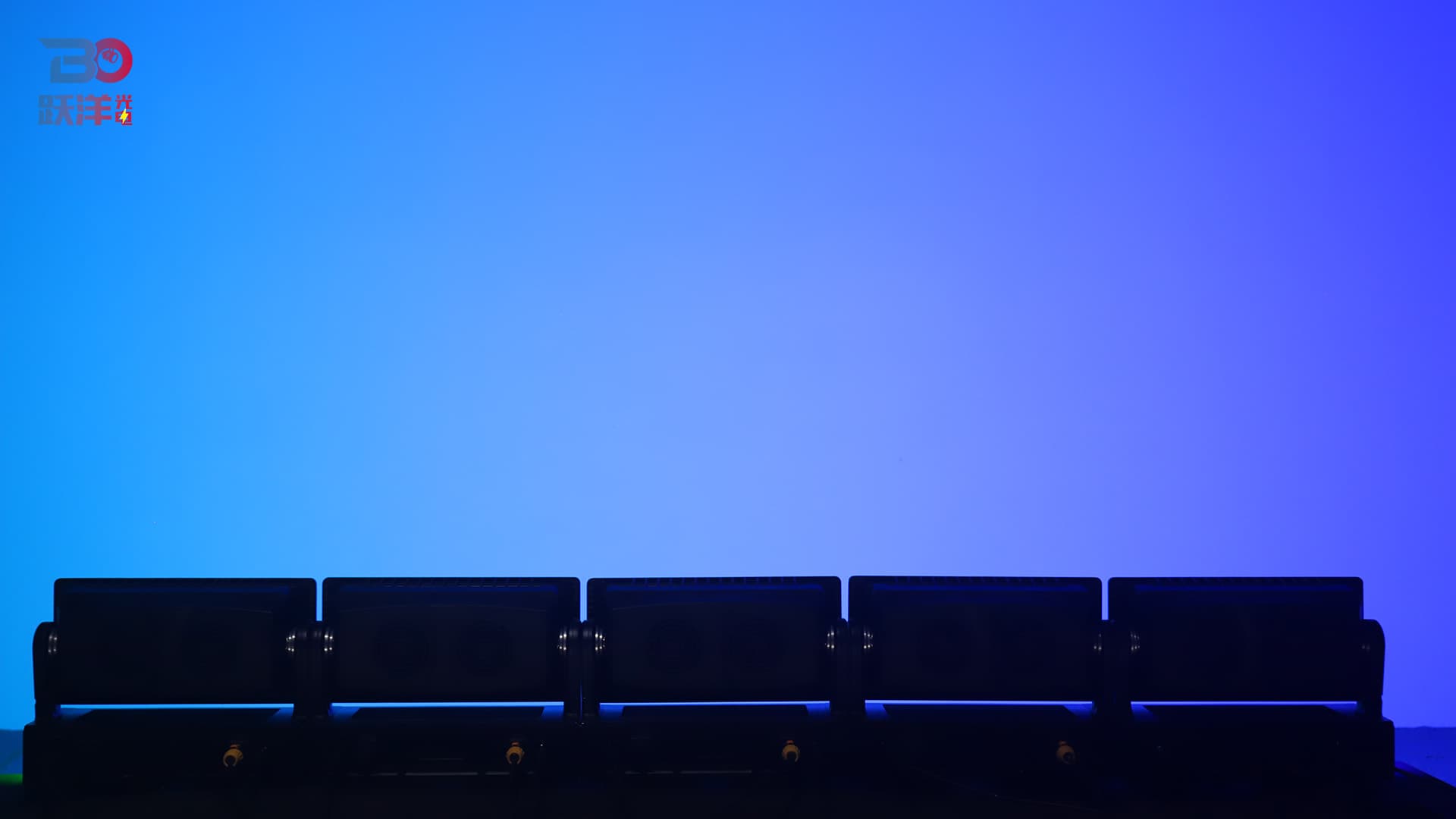

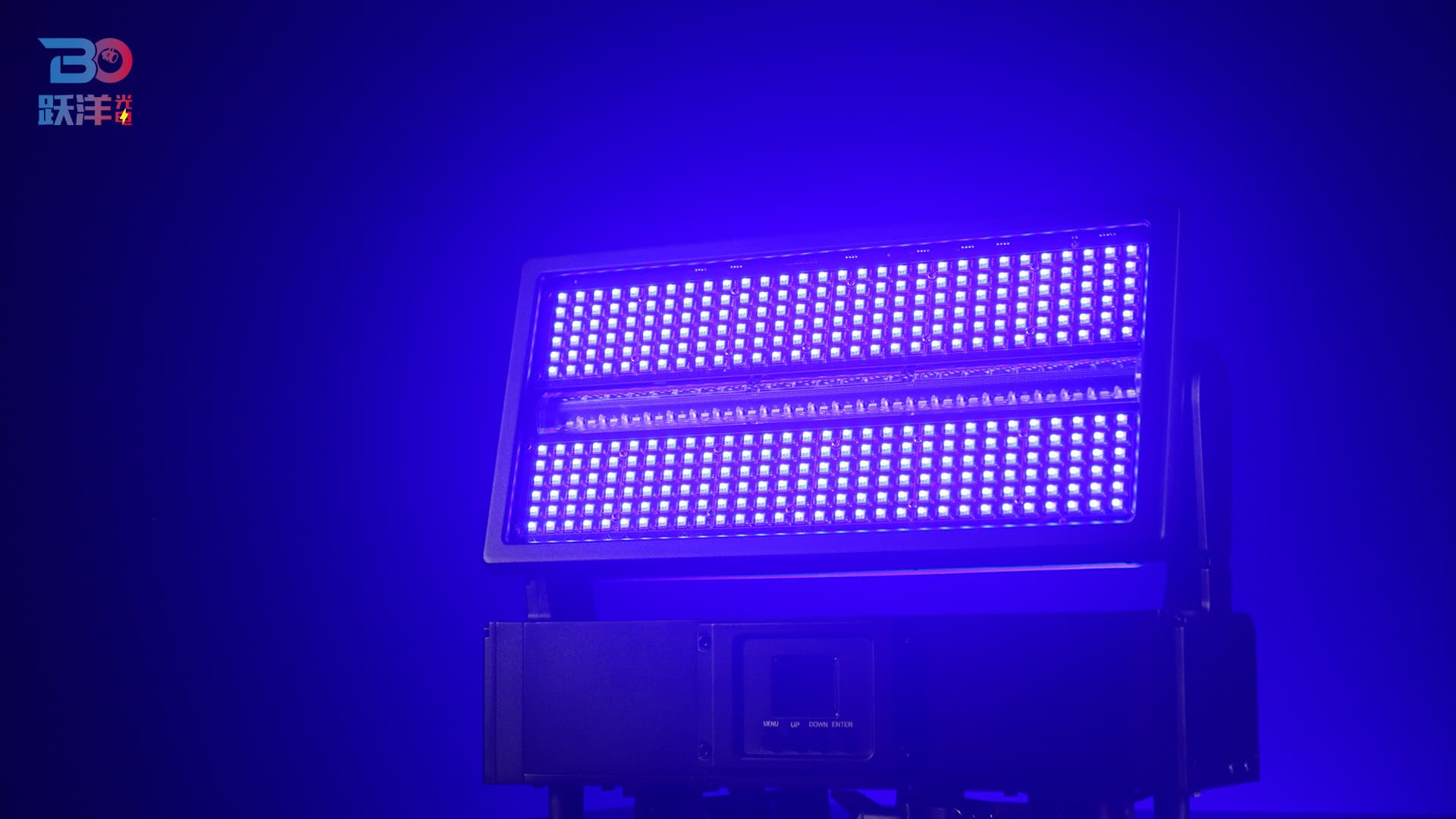

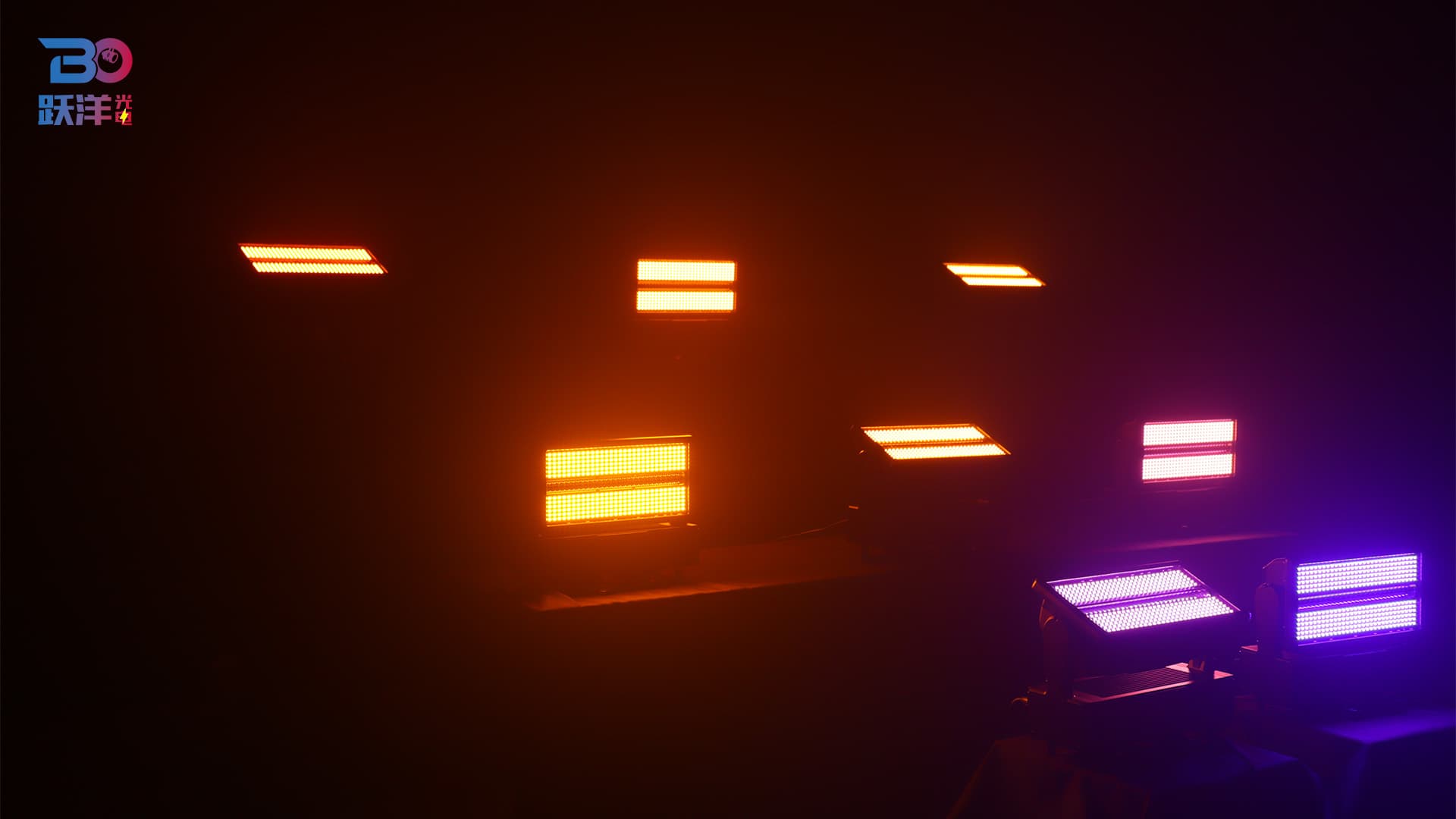

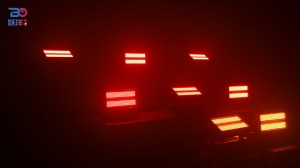

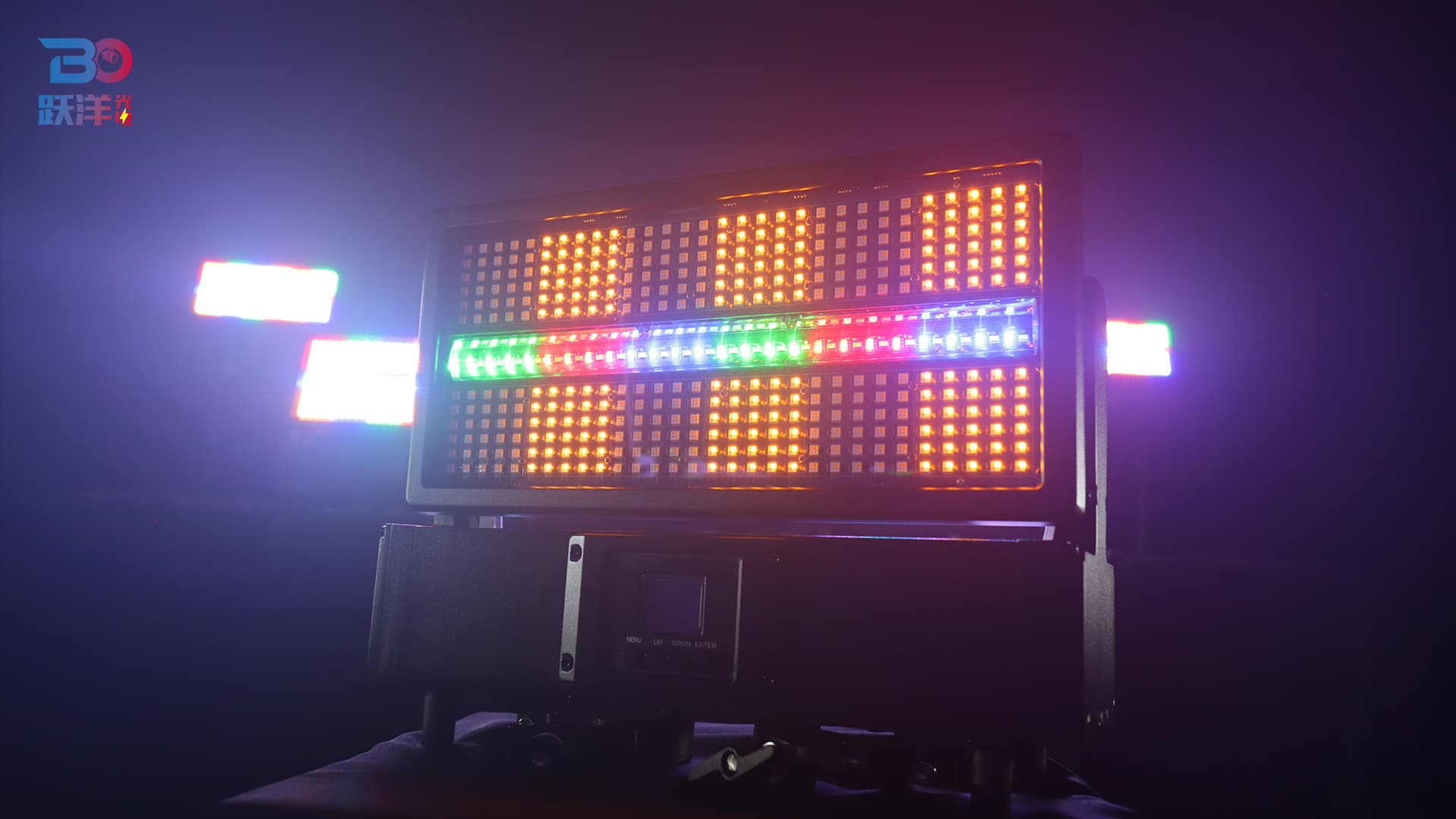

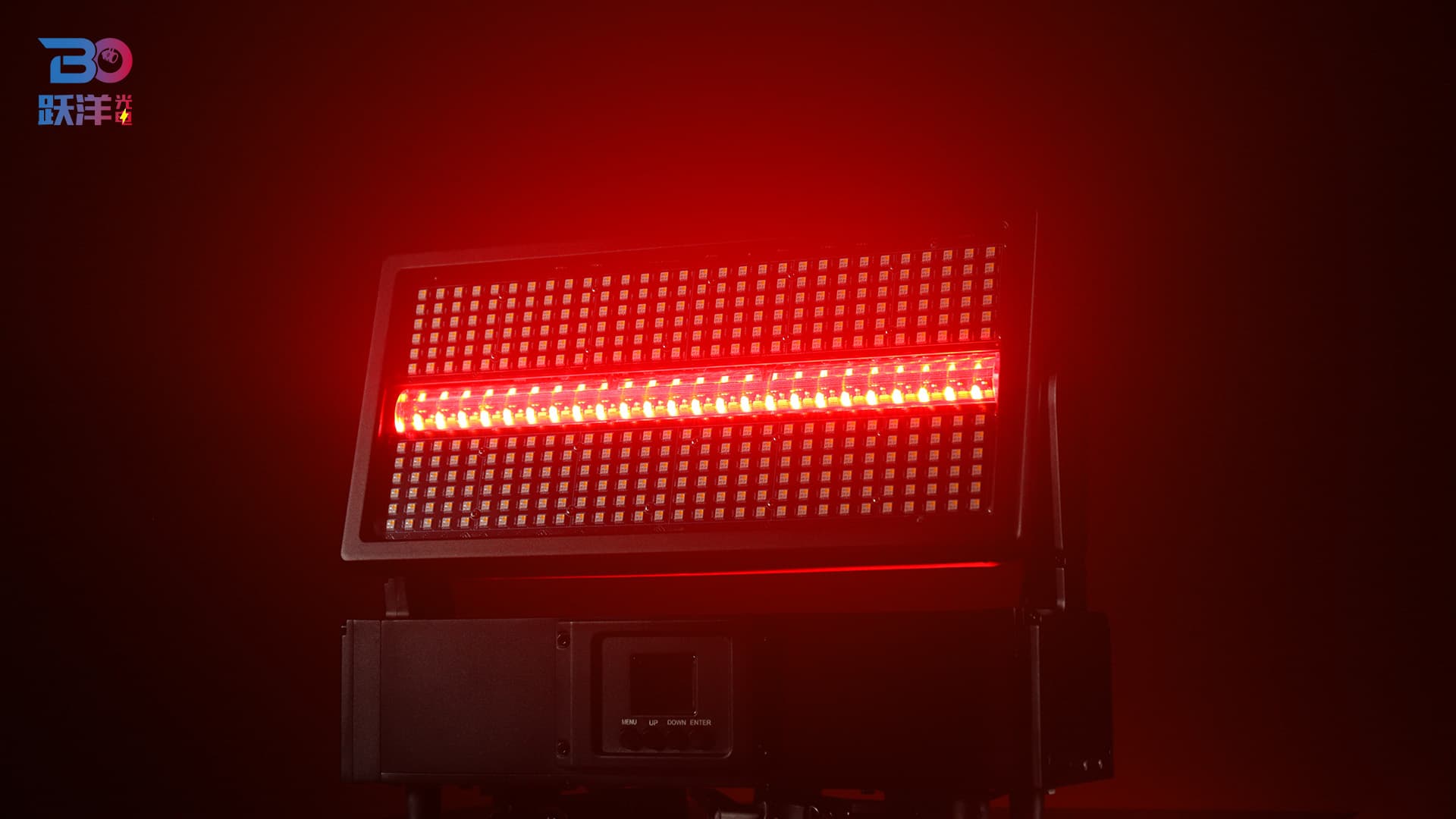

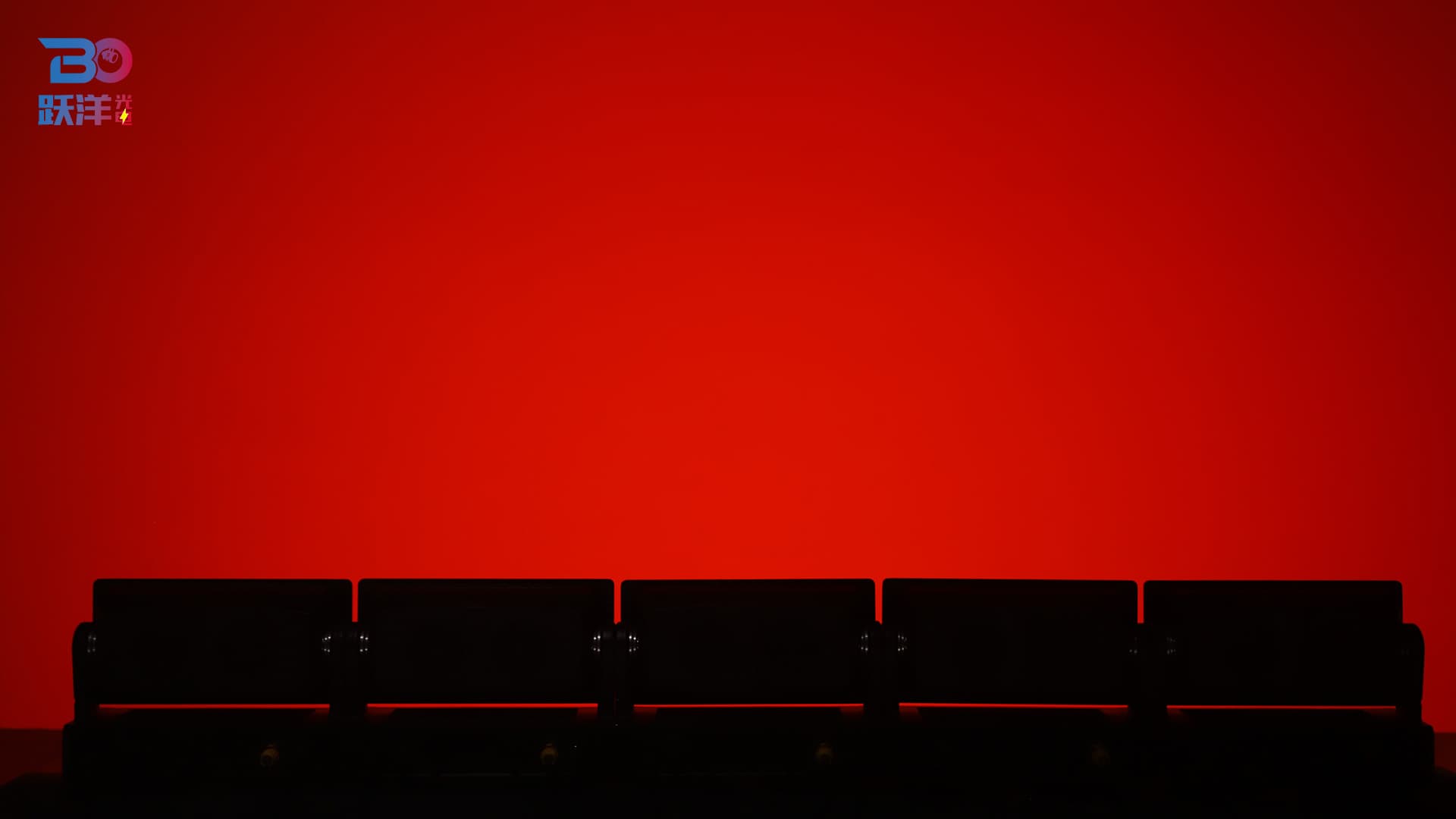

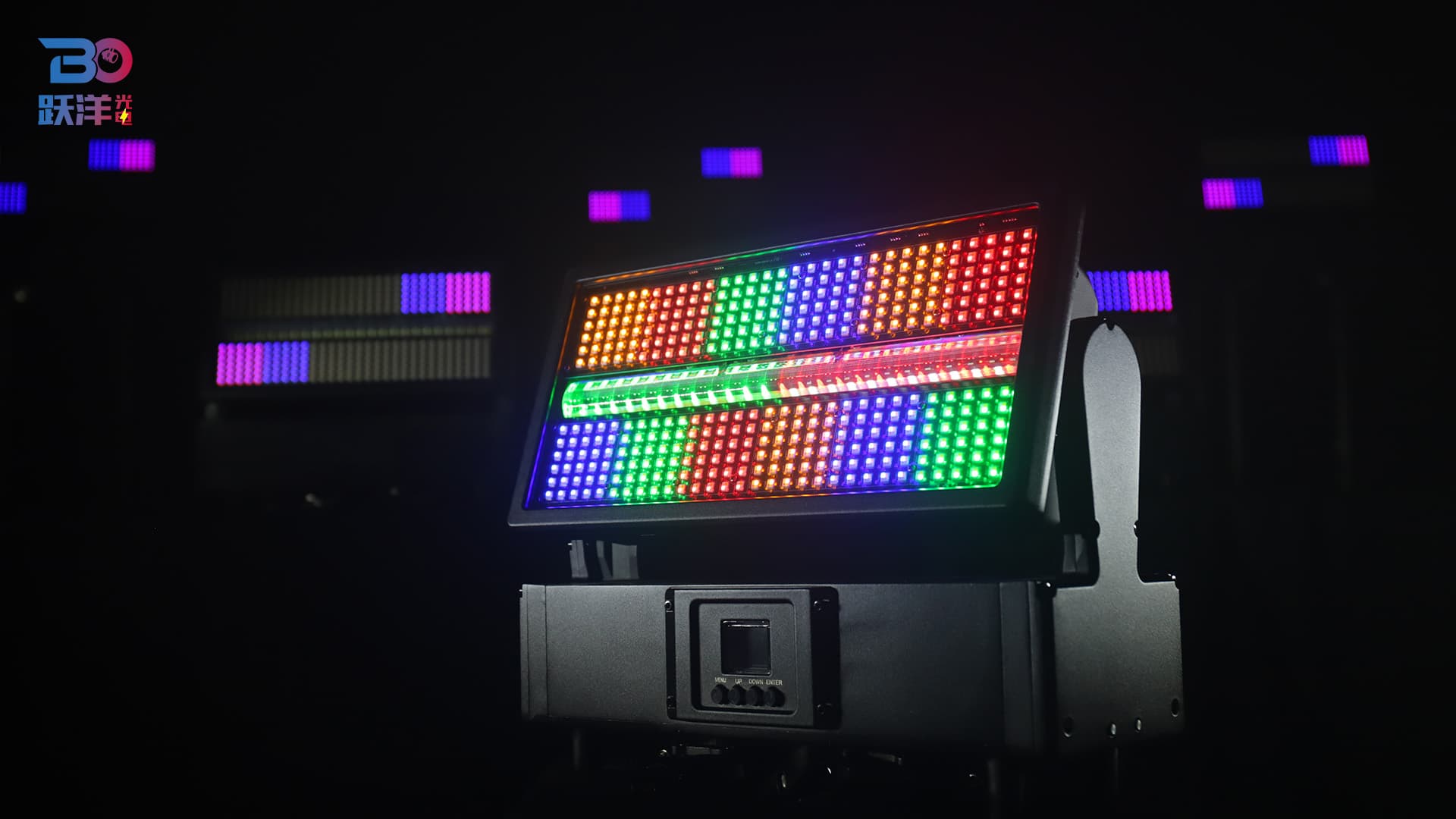

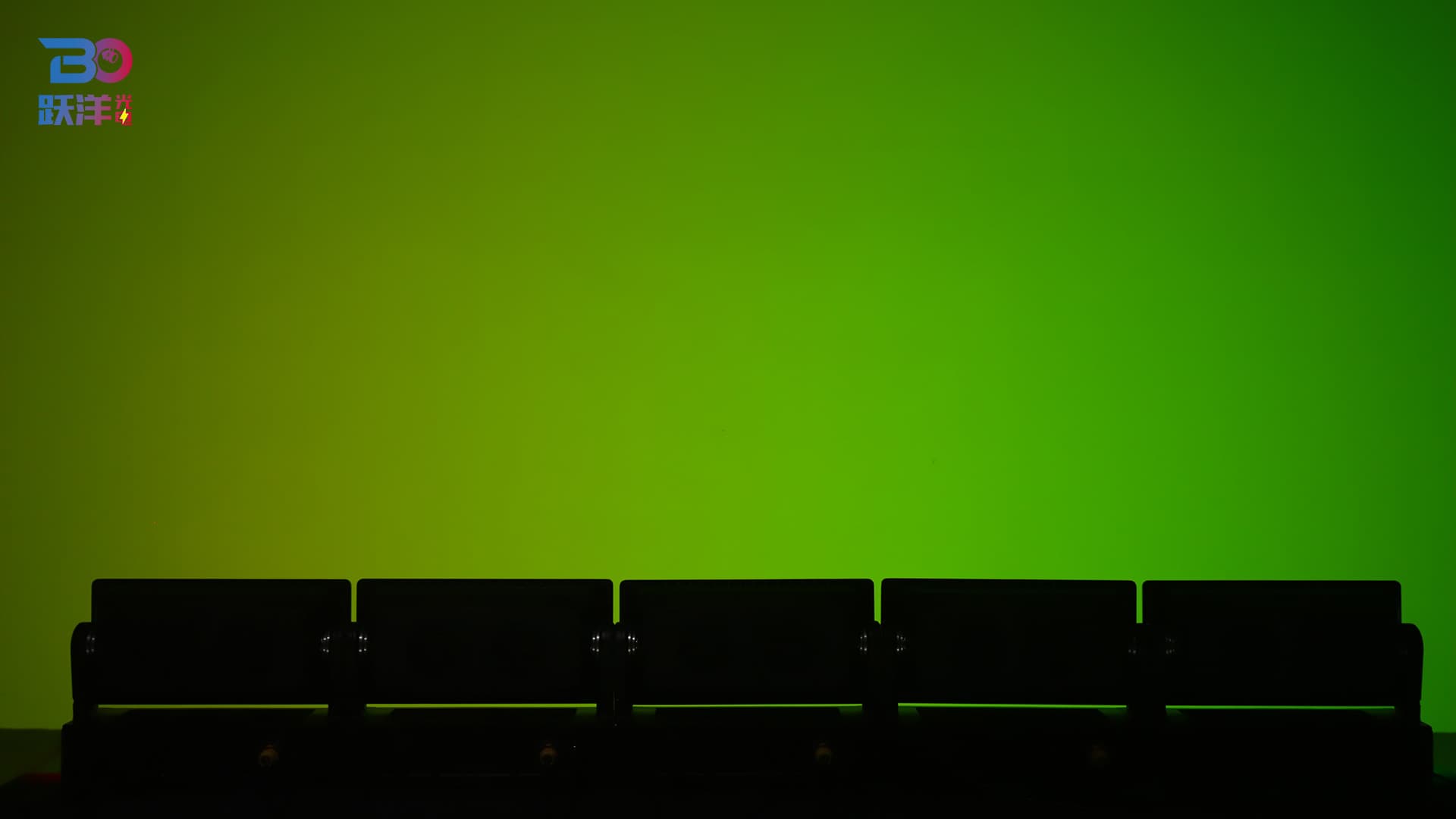

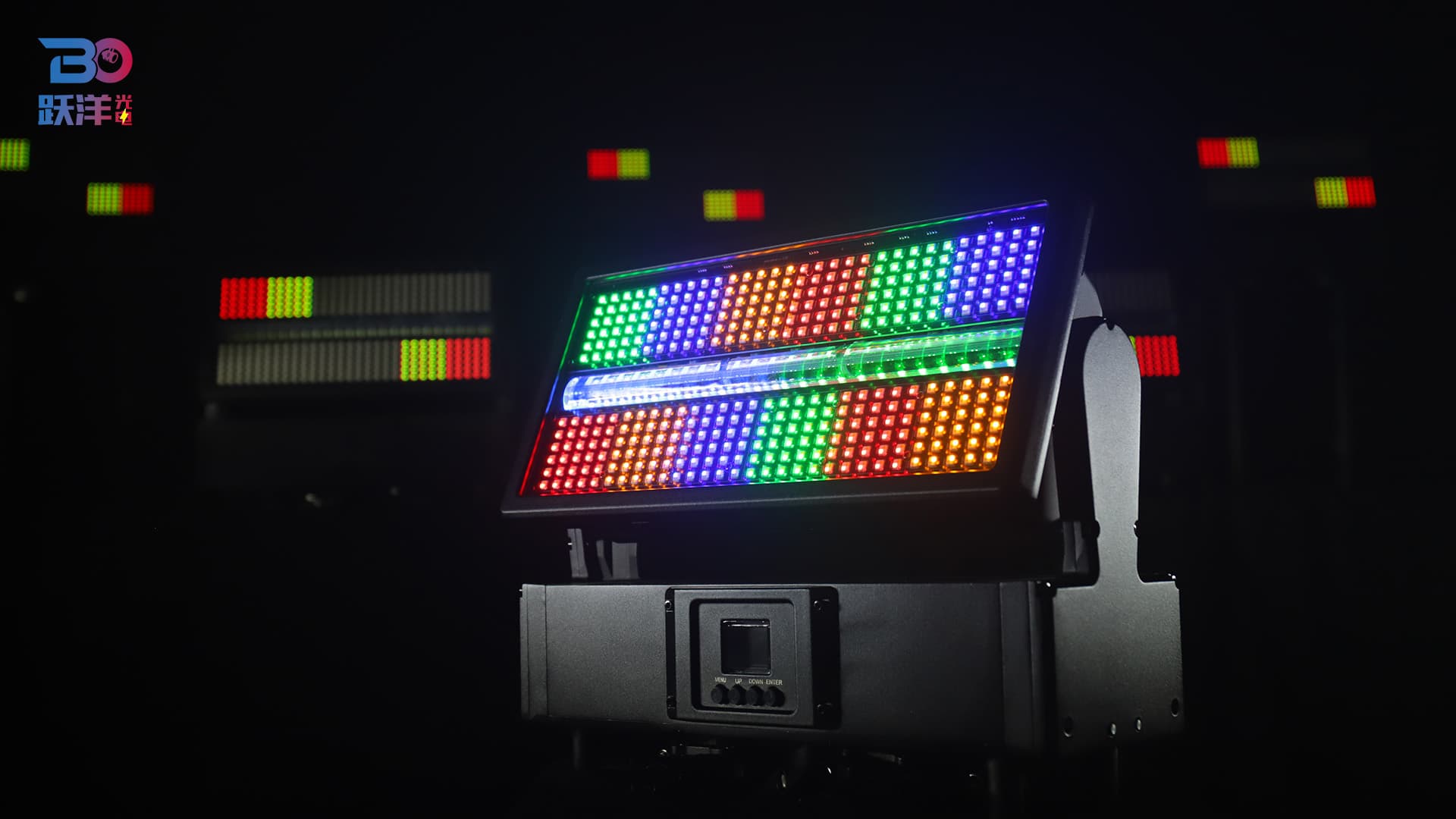

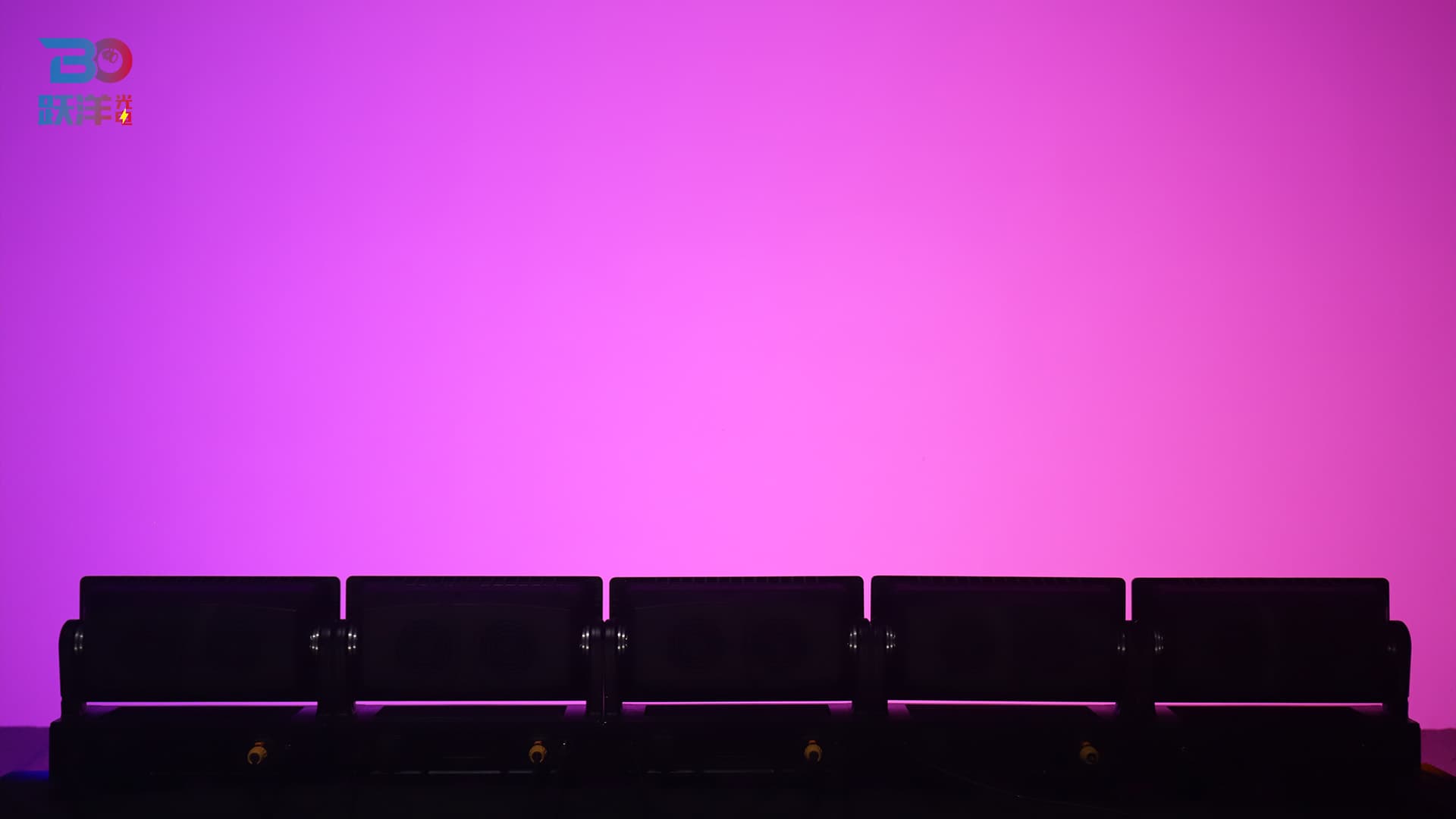

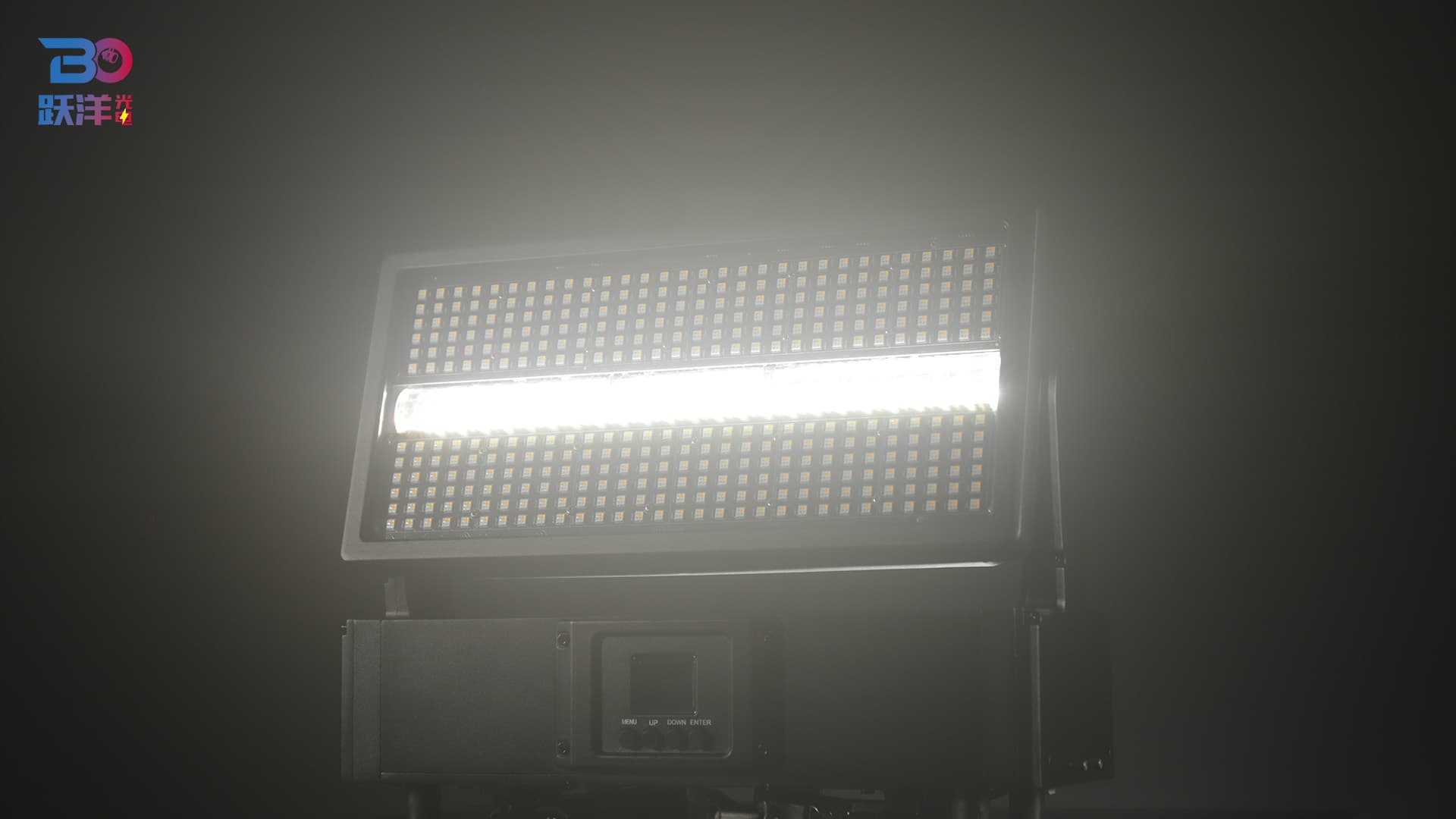

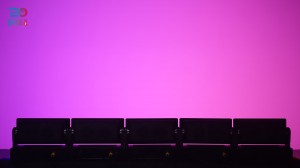

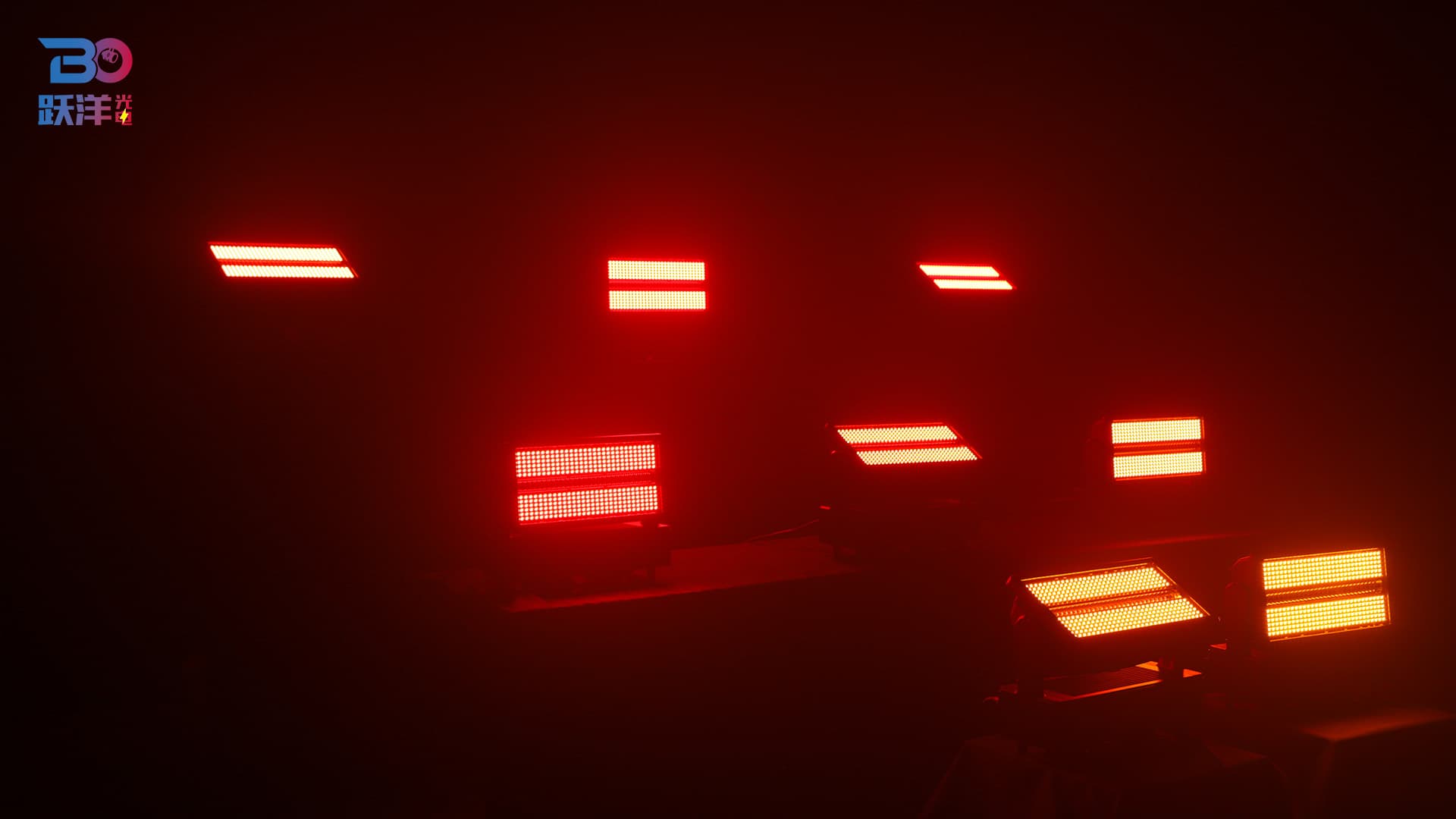

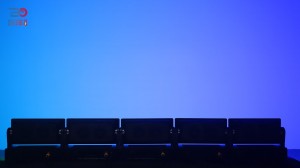

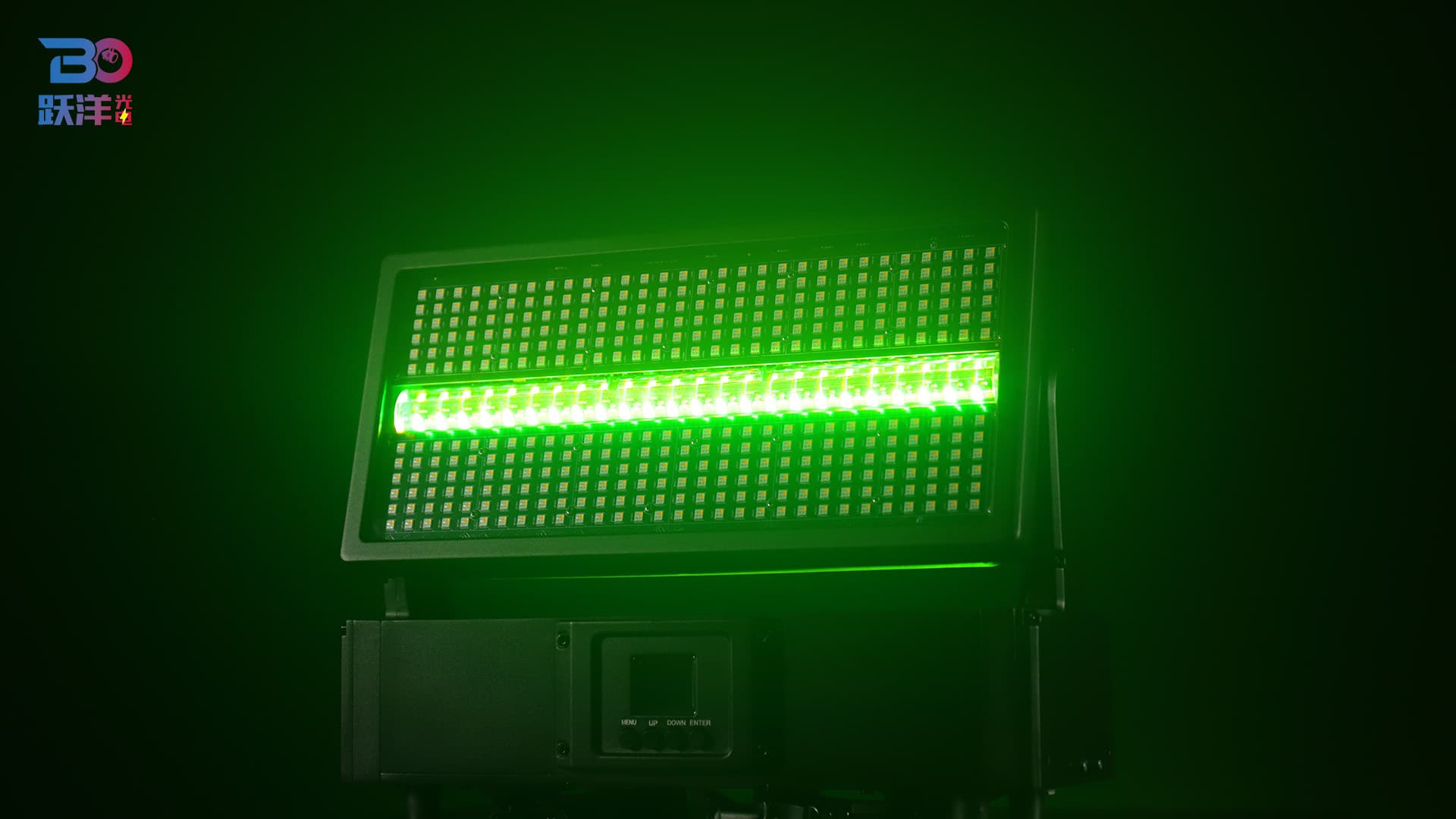

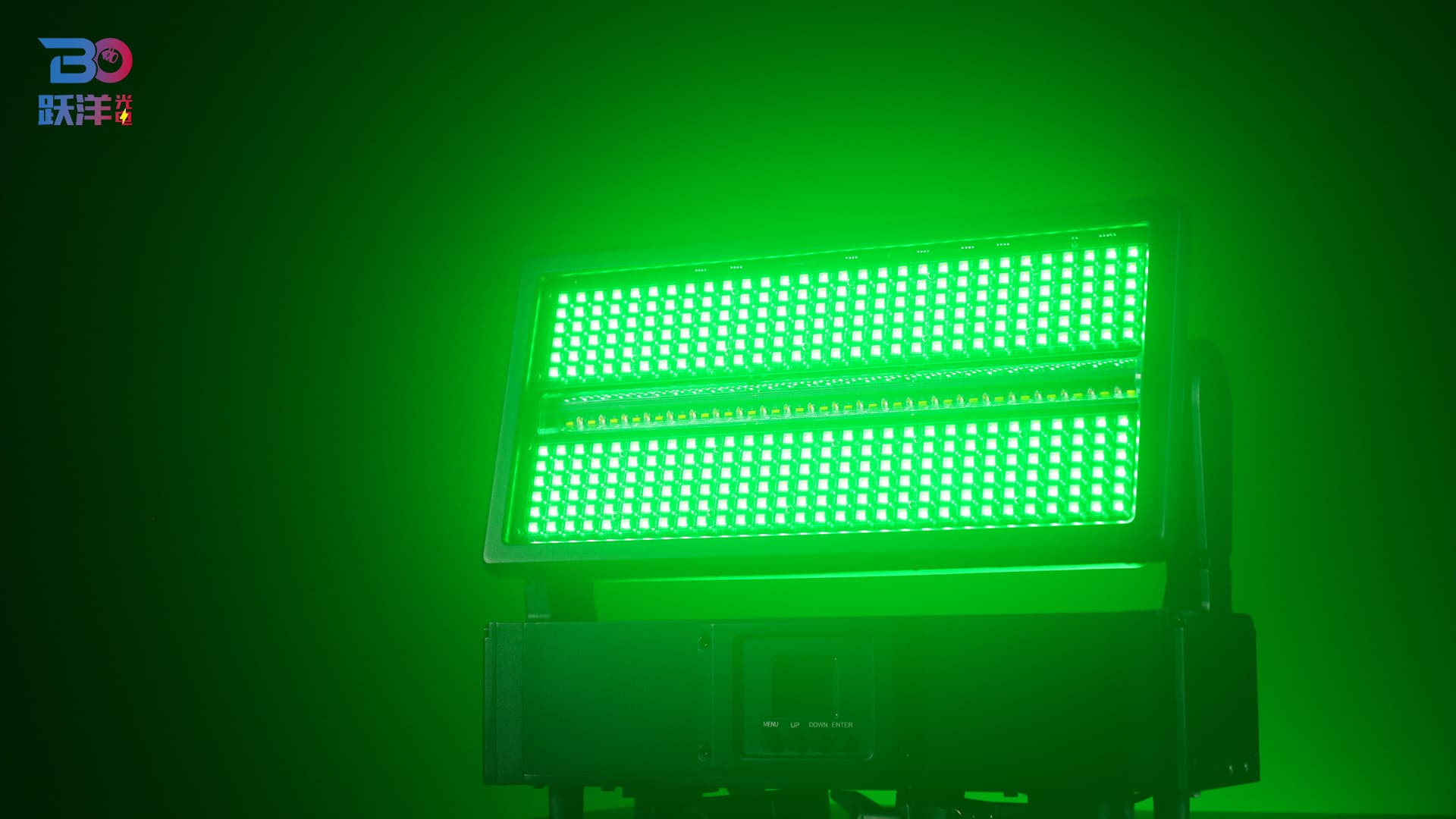

Beyond S1000 Lighting Show
