Beyond 1060Z 10x60W Zoom Moving Head Lights

Short Description:

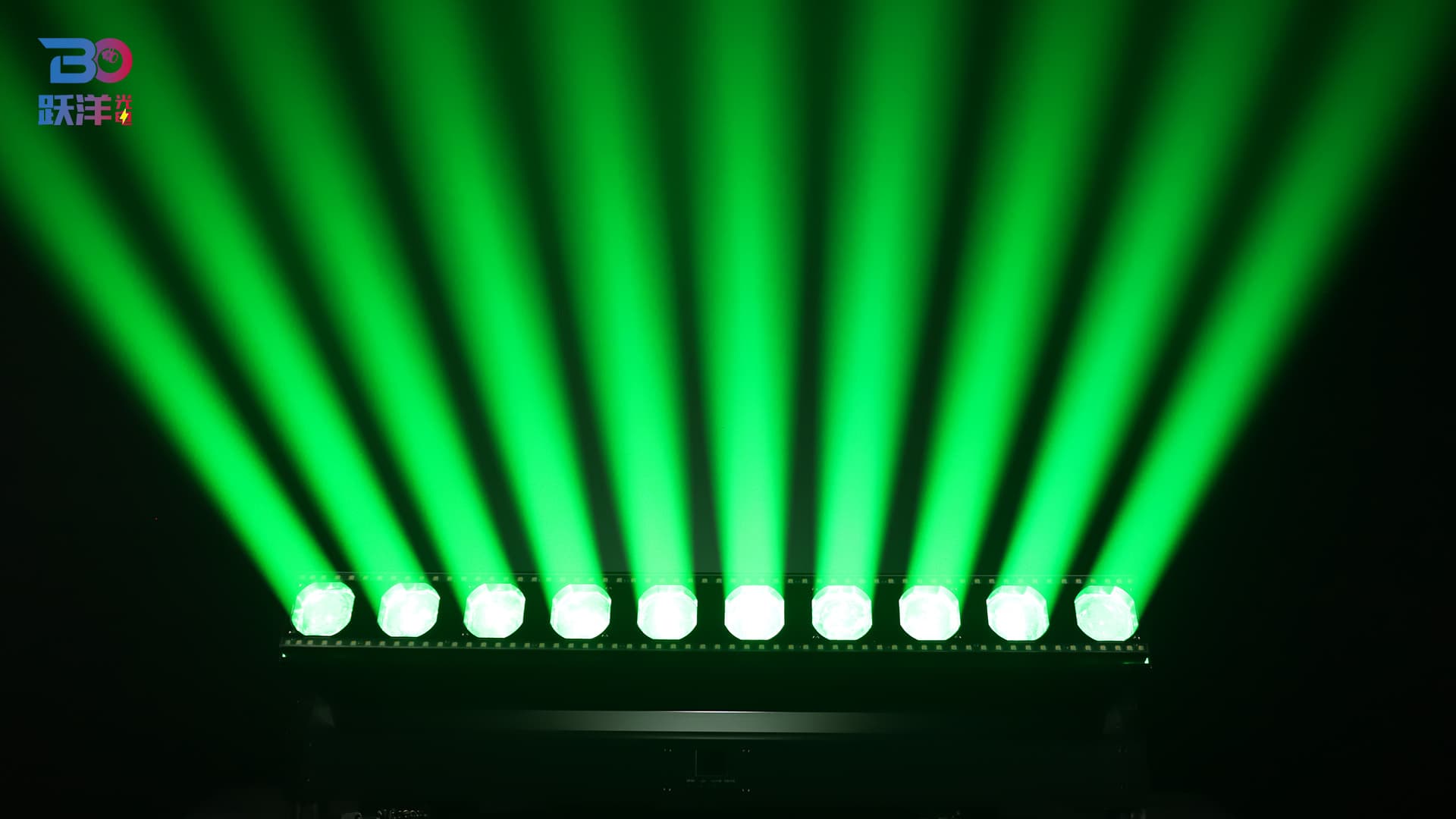

Beyond 1060Z 10x60W Zoom Moving Head Lights combines super strong Beam with Wash Zoom + Side Pixel Effect. It uses 10x60W RGBW 4in1 LED with Pixel Control, 120*1W RGBA 4in1 with 20 sections control total. The beam angle is from 4.5 to 45 degrees with a perfect Beam & Wash effect. The Tilt movement is up to 200 degrees.
Super strong effect and low noise running to meet with many kinds of working environments.

Brand: Beyond

Model: 1060Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat:: +86 13922297736

Send email to us

Product Detail

Beyond 1060Z 10x60W Zoom Moving Head Lights

Technical Parameters

Light Source: 10*60W 4IN1 RGBW LED 120*1W RGBW 4in1 LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 680W±5%, power factor PF≥0.95; standby power: 25W

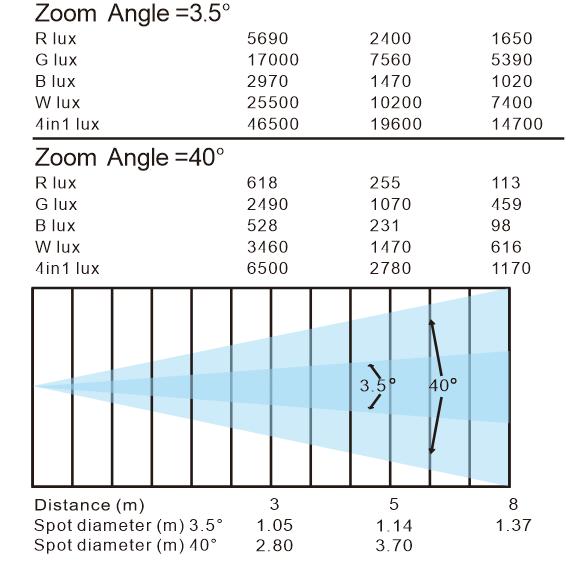

Beam Angle: 4°-45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 26/ 35/ 43/ 91/ 125/ 129/ 120 Channel

Protection Rating: IP20

Display: TFT 1.8-inch color display; Chinese and English languages can be switched at will, and the font can be reversed 180°

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS flame retardant + nylon high temperature resistant engineering plastics

Tilt: Tilt 200°, accuracy 1.2°/step, fine-tuning accuracy: 0.0034°;adopts magnetic reset system

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（230V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

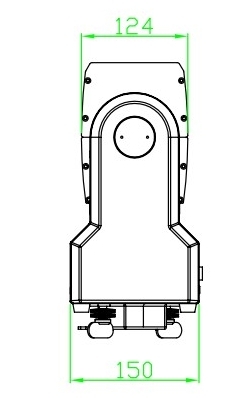

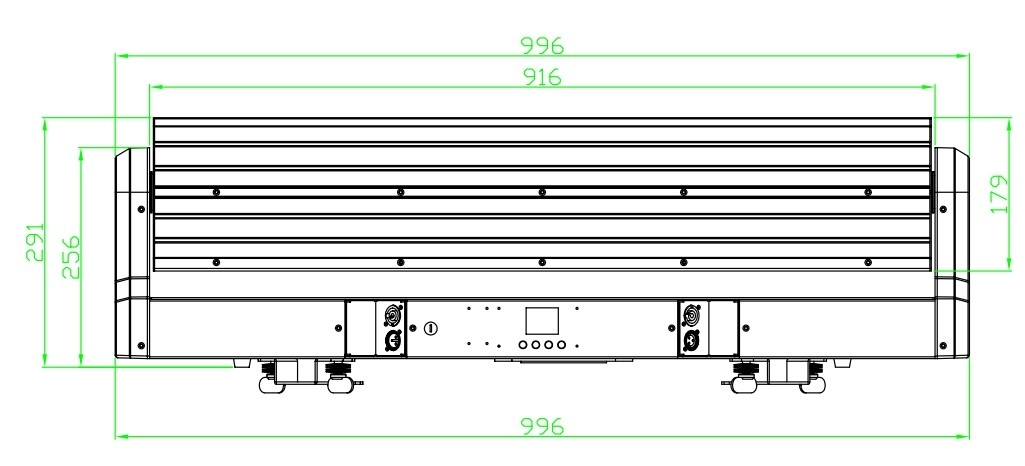

Dimension: 1000*129.4*281.4mm

Net Weight: 18.72 kg

Carton Package: 1085*225*375mm 1in1 GW: 24.2 kg;

Flight Case: 1080*730*510mm 3in1 GW: 97.5 kg;

Features: Full light range dimming, 65536-level dimming accuracy; fast strobe 1-25Hz; single-point control of the middle lamp bead, 20-segment control on both sides; three-in-one effect of dyeing, beam, and strobe; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
