Waterproof 7x40W LED Bee Eye Moving Head IP65

Short Description:

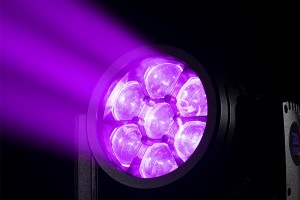

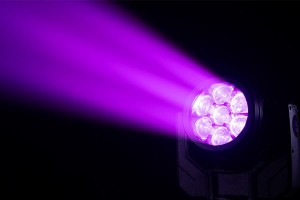

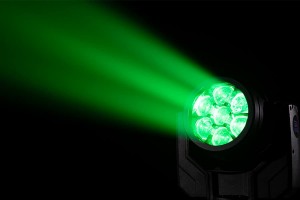

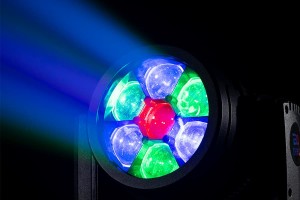

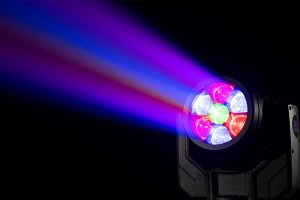

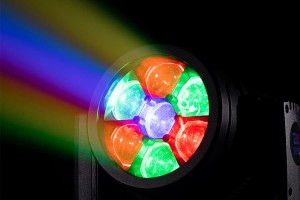

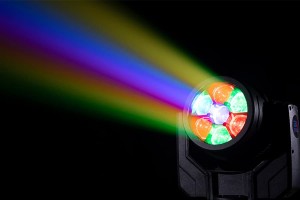

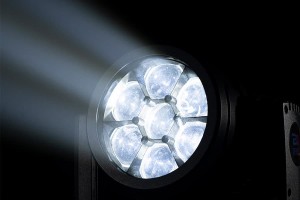

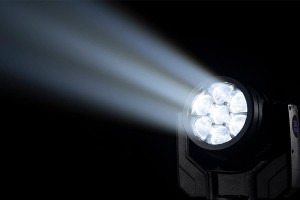

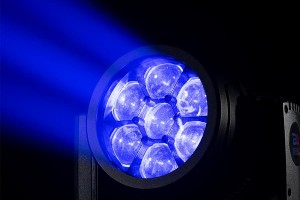

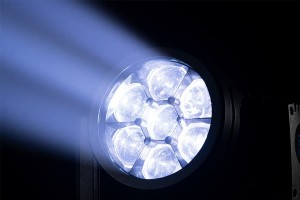

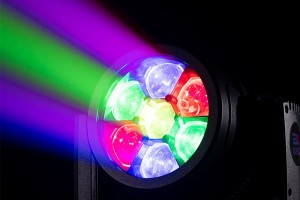

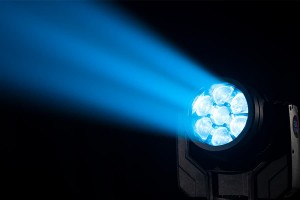

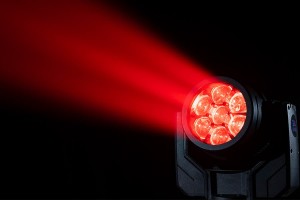

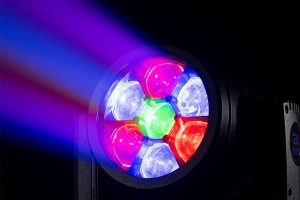

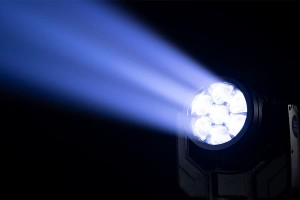

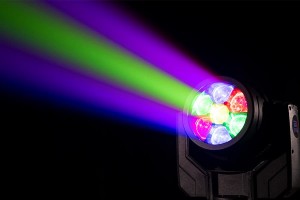

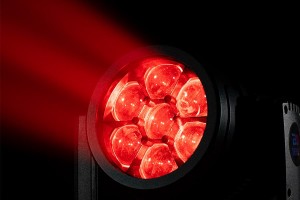

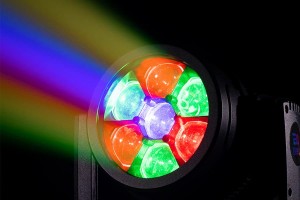

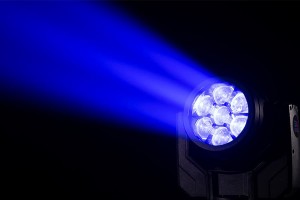

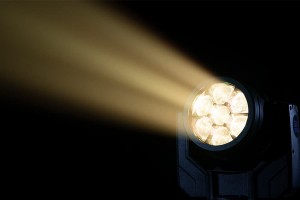

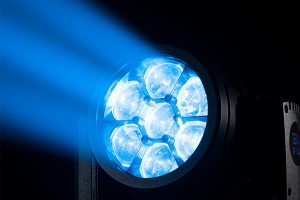

740BW is a compact design waterproof bee eye moving head light with a net weight of only 11.3 kg. A versatile stage lighting fixture that integrates beam, wash, and zoom versions. The motorized linear zoom system of 4-45 degrees. Equipped with 7 high-brightness 40W RGBW LEDs. Each LED can be controlled individually and the lens disk can rotate, so it can create brilliant lighting effects for your stage, also called the bee eye effect.

The protection rating is IP65, suitable for both indoor and outdoor performances. Pan and tilt adopt an 8/16-bit photoelectric reset system for accurate positioning. 100% linear dimming with a flicker-free, evenly wash illumination effect. The moving head light fixture supports multiple control modes, including DMX512, Master-Slave, AutoRun, Sound, and RDM.

Brand: Beyond

Model: 740BW

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

Waterproof 7x40W LED Bee Eye Moving Head IP65

Power: AC100-240V,50/60Hz;

Power Consumption: 250W;

Light Source: 7x40W RGBW LED;

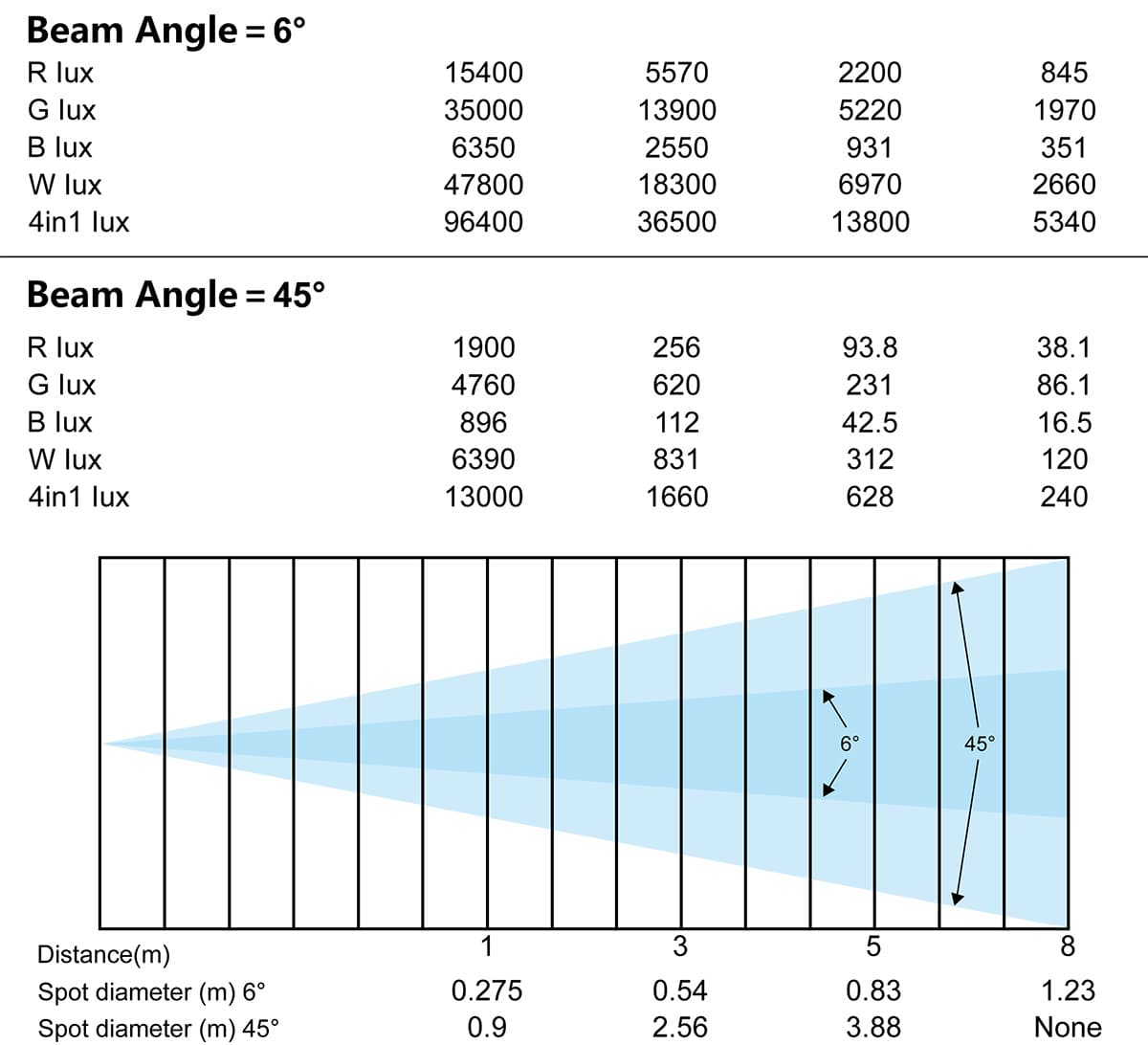

Zoom Range: 4°-45;

Movement:

Pan: 540°;
Tilt: 270°;
Accuracy: 16-bit;
Correction: Automatic position correction after step loss

Control:

Channel Mode: 21/24/32/60CH，10+28CH(DMX+Art Net);
Control Protocol: DMX512 / RDM / Art-Net(optional);
Software Upgrade: Supports firmware update via DMX

Structure:

Display: Reversible 1.8-inch TFT;
Data Connector: 3-pin XLR socket(5-pin optional) / RJ45 optional;
Power Connector: PowerCON in/ out; 16A in/ out(optional);
Protection Rate: IP65

Features:

7 × 40W LEDs with individual pixel control;
Smooth 0–100% dimming with various strobe effects at different speeds;
CTO color temperature adjustment from 2800K to 8000K;
Uniform RGBW color mixing system with rainbow effects;
Motorized zoom system;
Integrated beam, wash, honeycomb, and other effect functions in one fixture;
Temperature sensor detection with intelligent light source power adjustment and smart fan speed control;

Environment Temperature: operates in ambient temperatures from -20°C to 45°C;

Installation: Can be inverted suspended, horizontally mounted on truss, or placed on a flat horizontal surface. Always use and install a safety cable as a safety precaution;

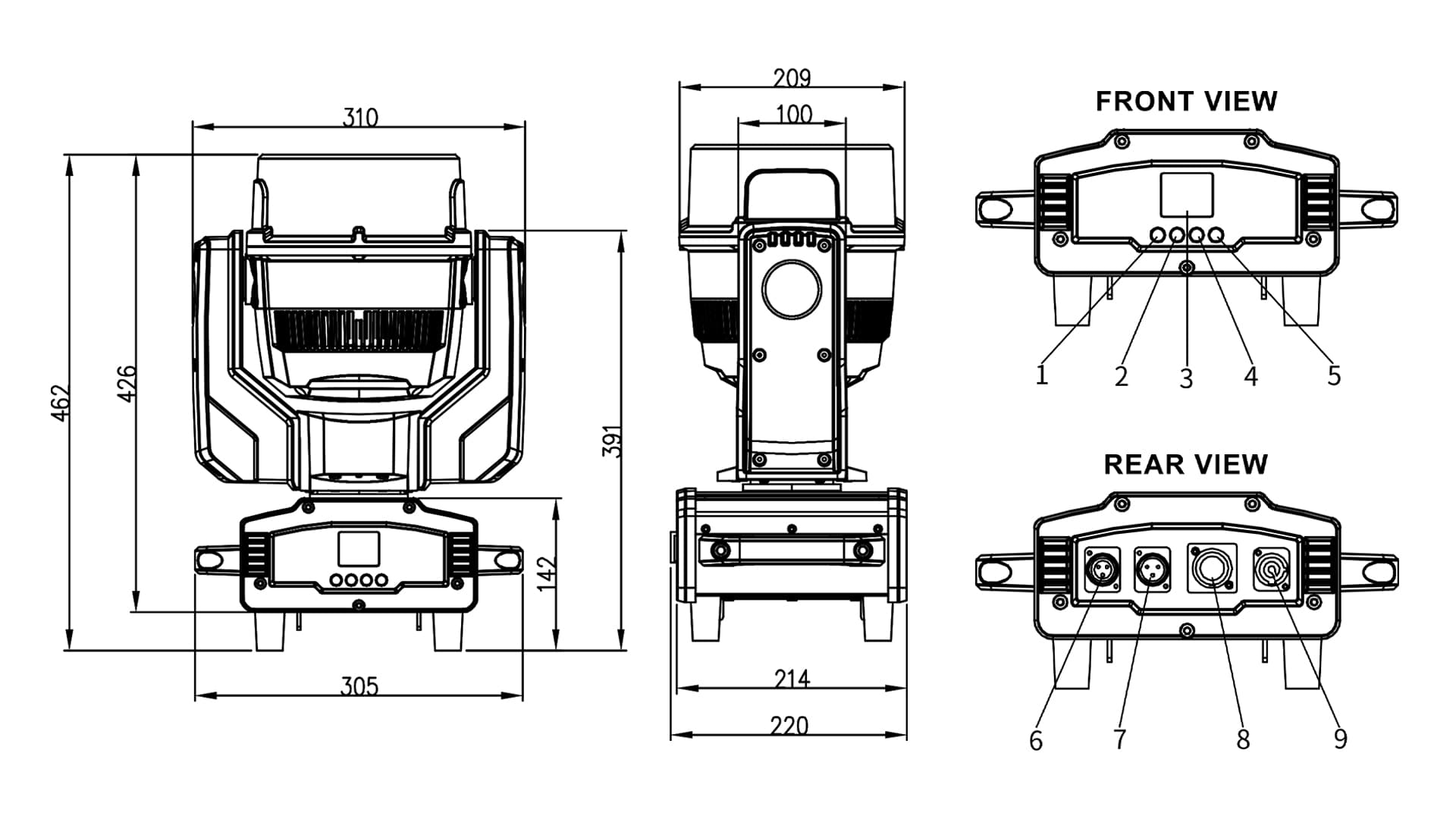

Dimension / NET Weight:
