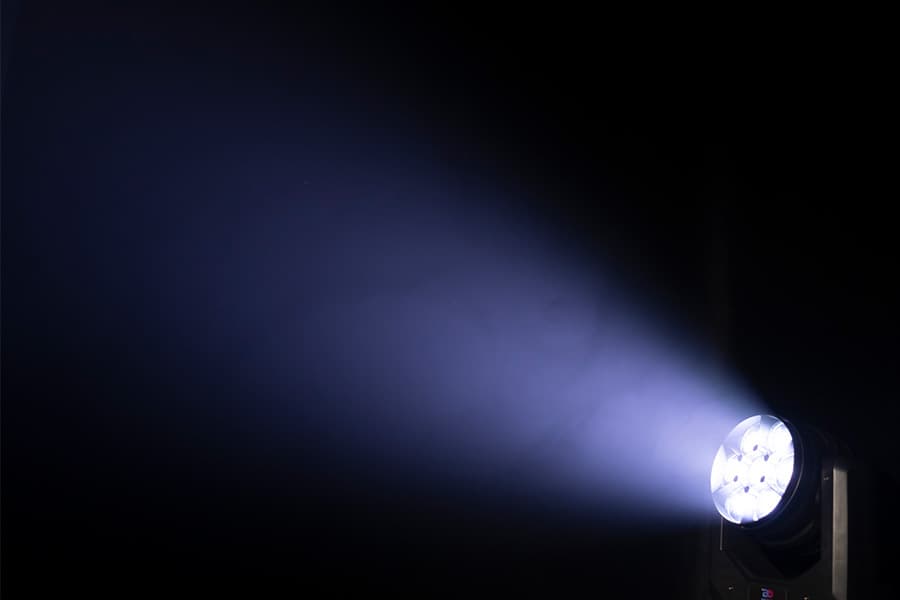

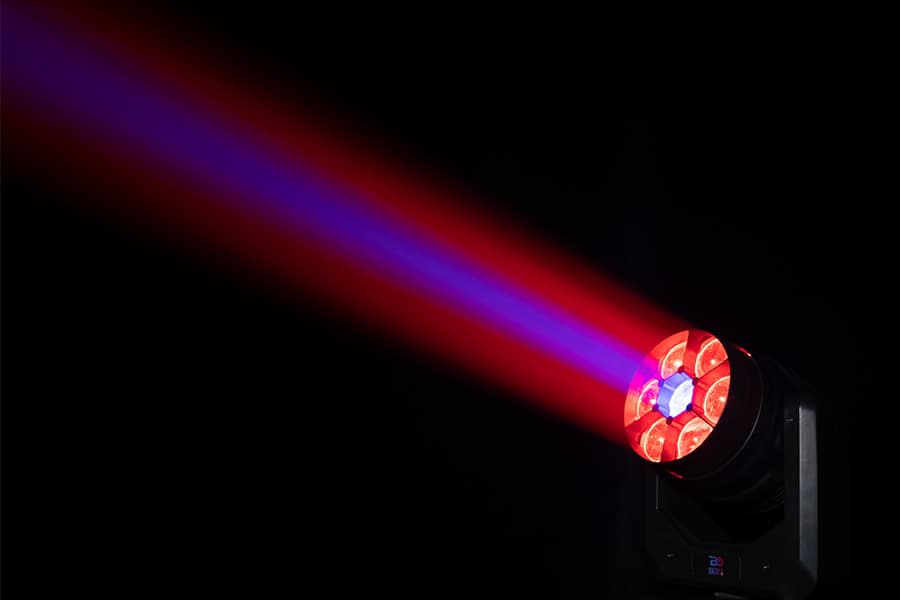

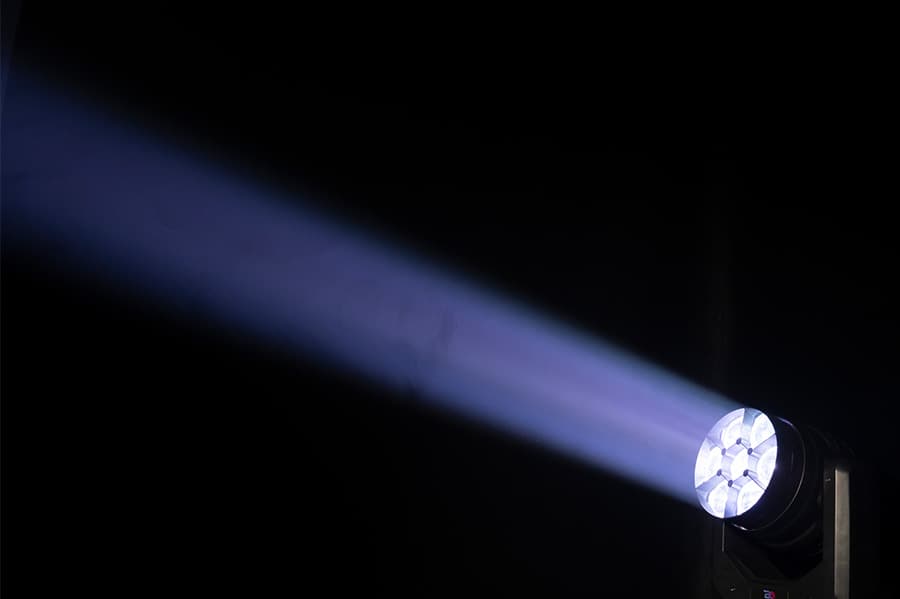

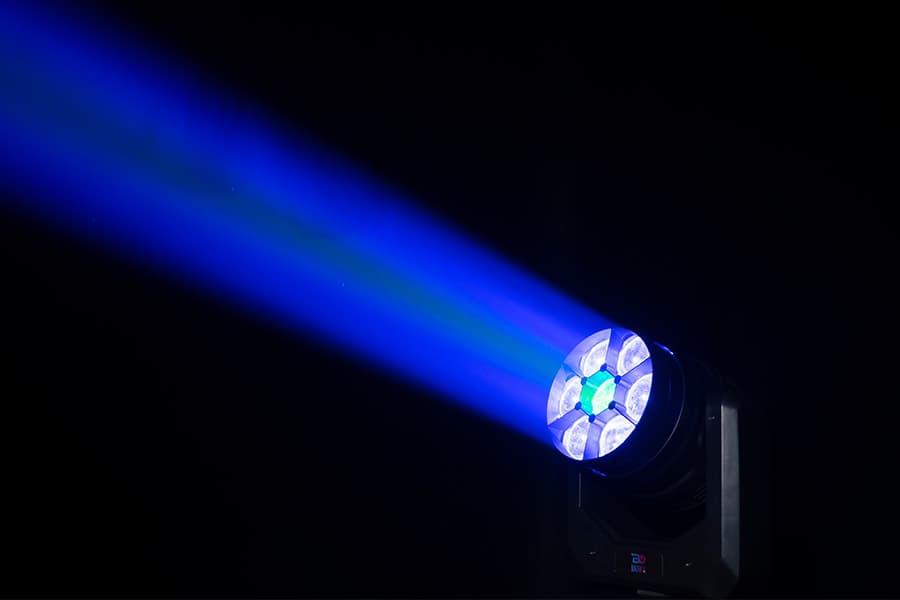

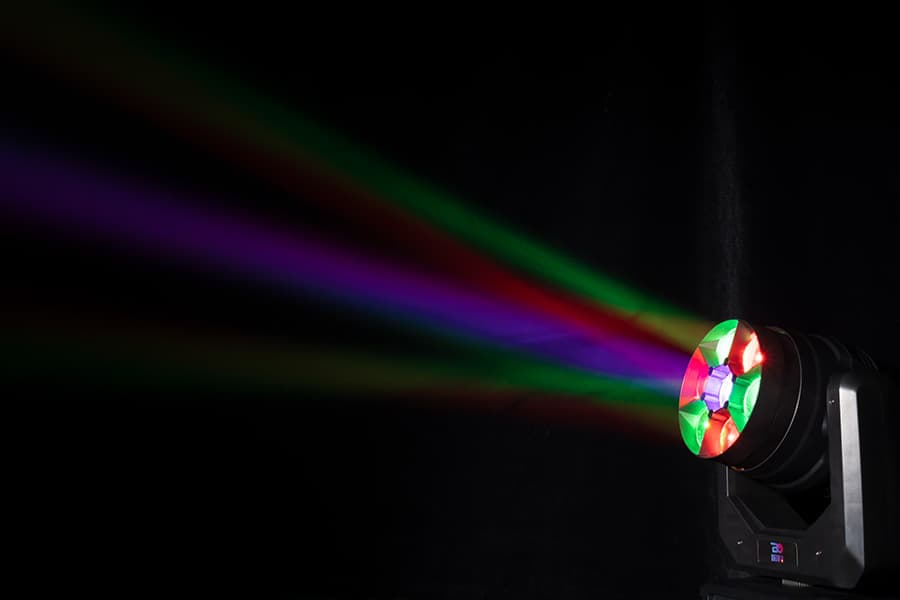

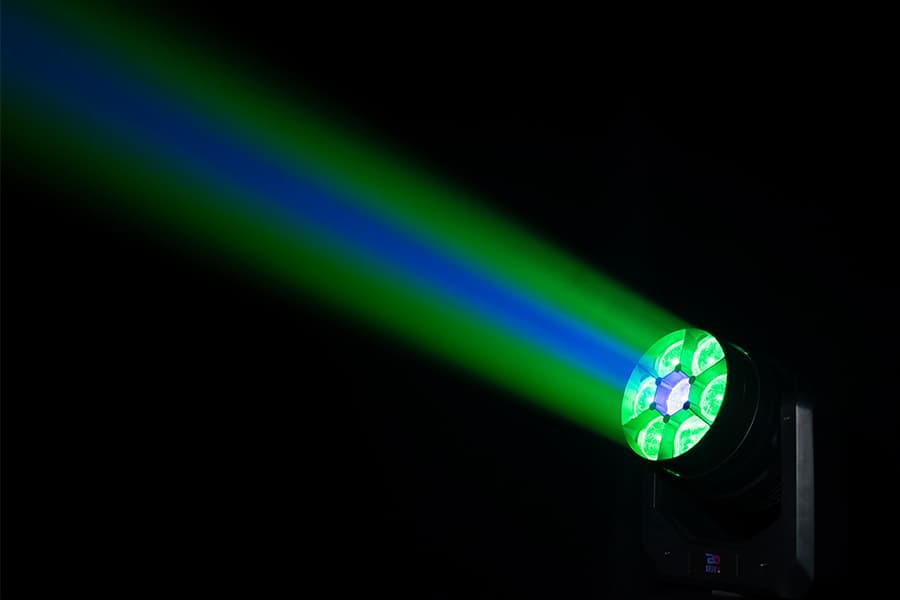

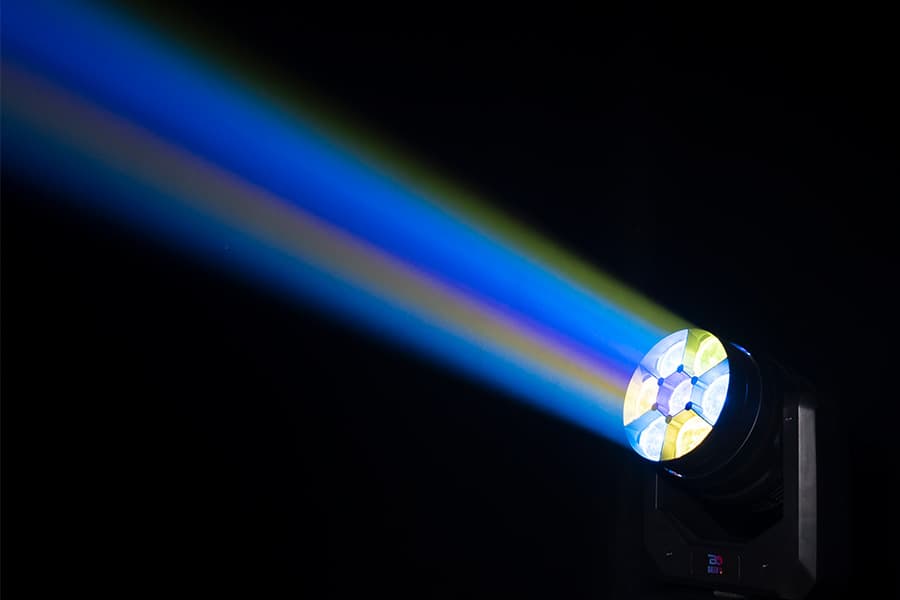

Beyond 740B 7x40W Mini Bee Eye Moving Head

Short Description:

Beyond 740B is an innovative lighting fixture that offers both wash mini LED moving head and bee eye moving head functionalities.

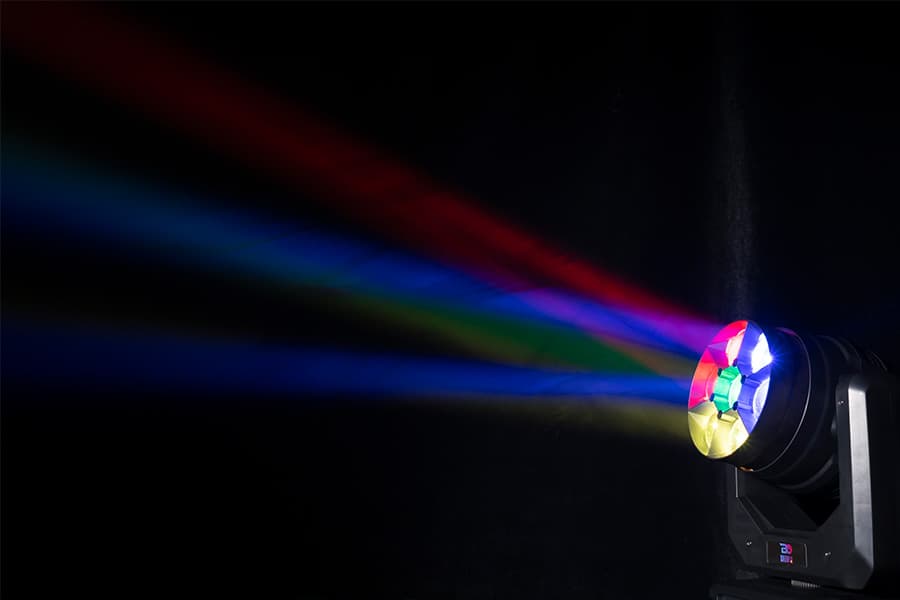

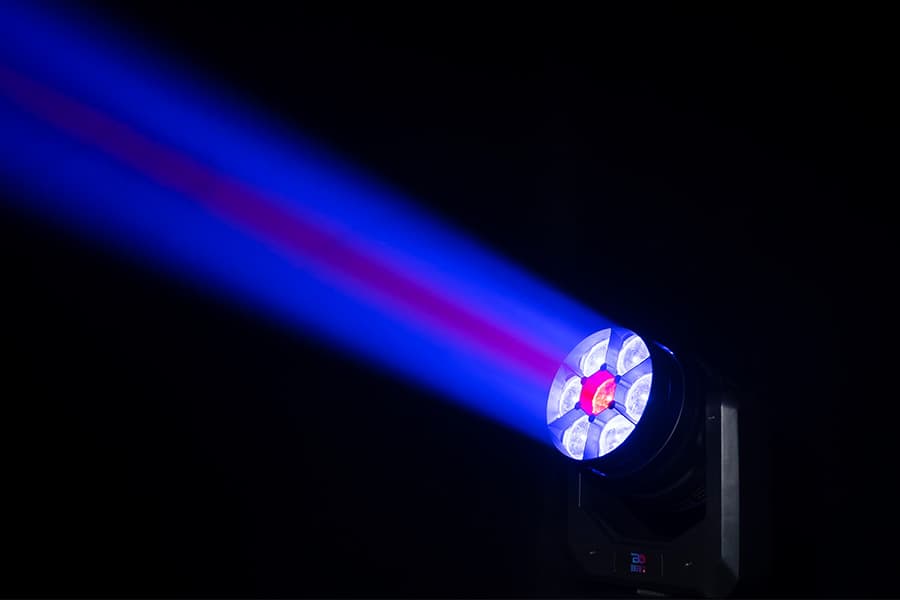

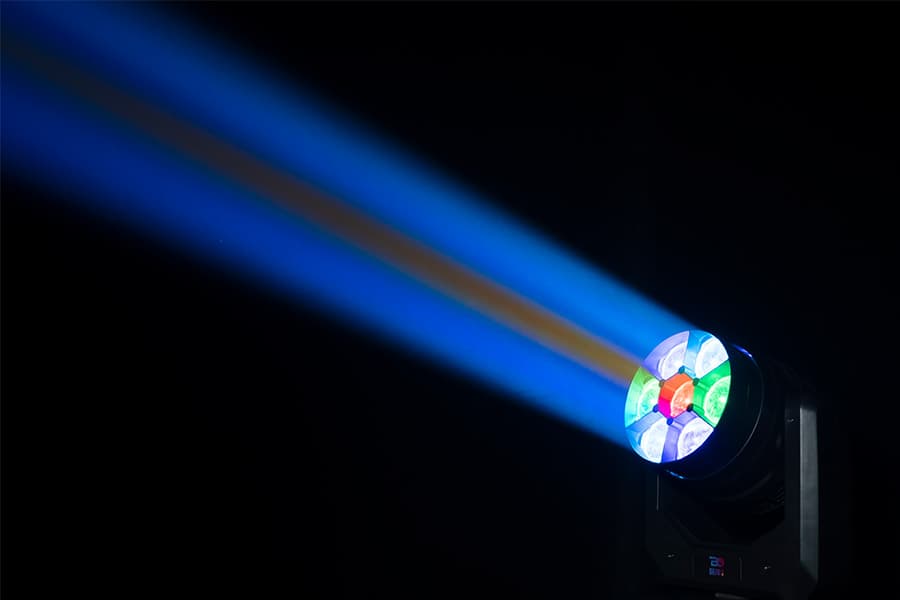

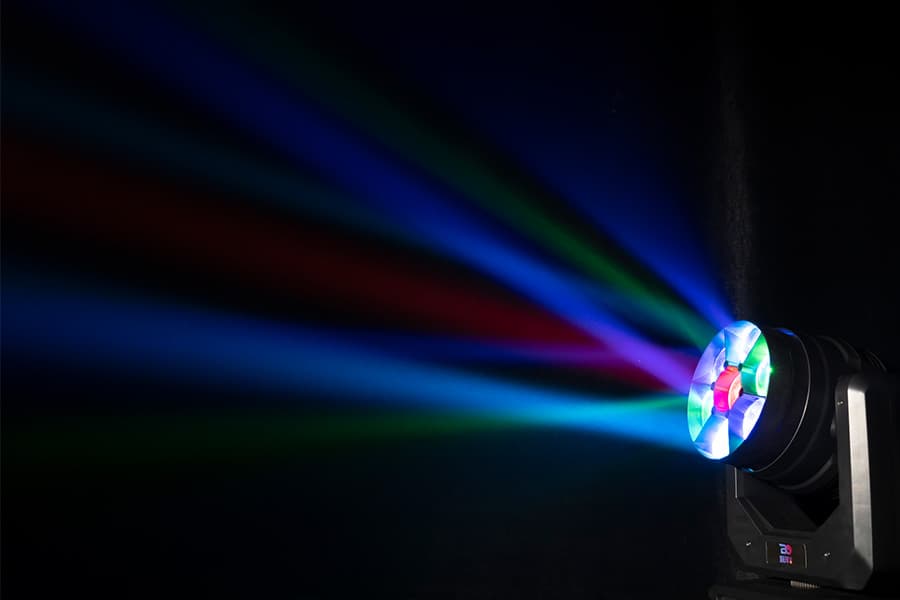

• Features 7 40W RGBW mixed color LEDs, allowing for individual control of each LED and the ability to rotate the front lens, resulting in brilliant light effects. Additionally, the Beyond 740B includes built-in macro functions, providing a wider range of lighting effect choices and automated motion control, enhancing the overall lighting performance.

• It has a compact design ( 195x179x333 mm ) and a net weight of only 5.6 kg, which can reduce space occupation and your transportation costs.

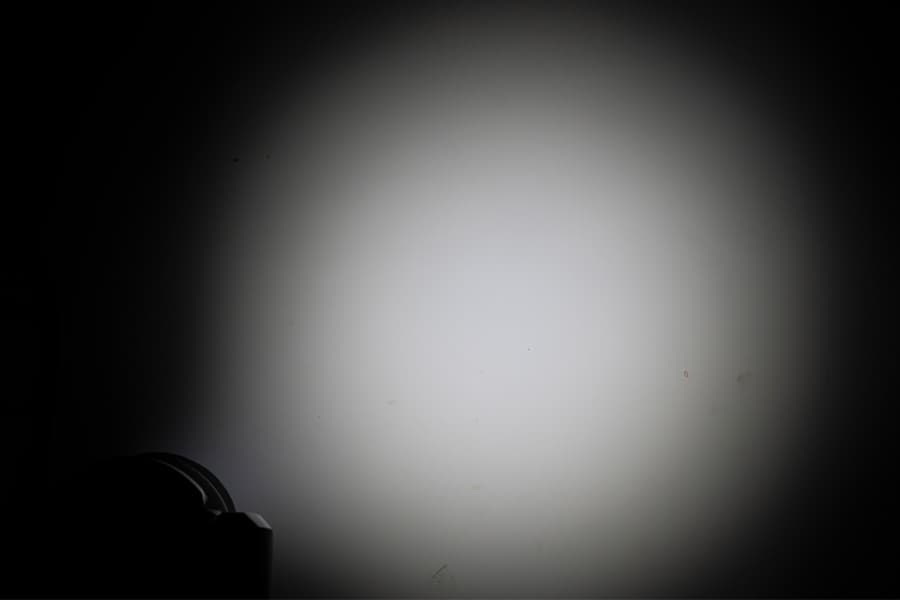

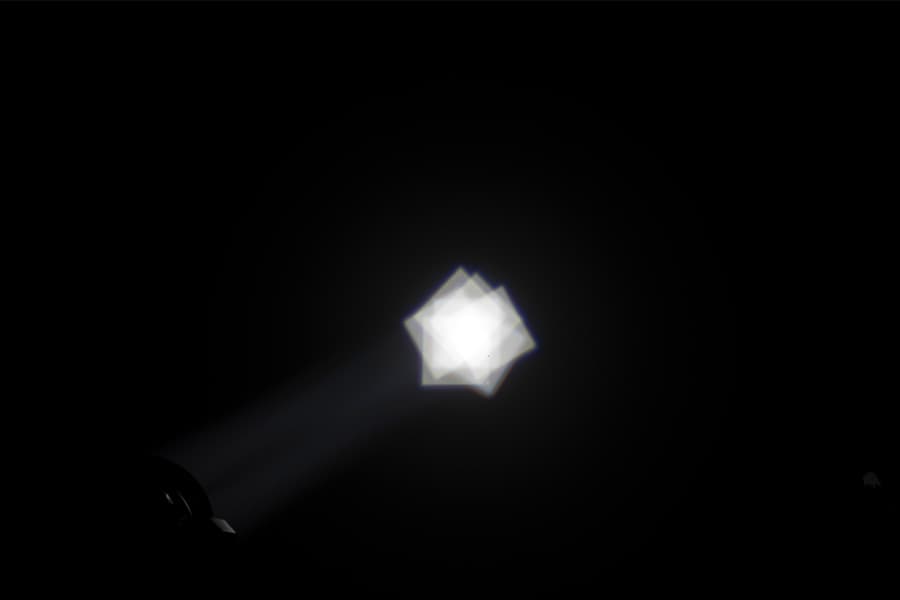

Beyond 740B features a motorized zoom range of 3.5-45°, ensuring a pure and even tint wash on the stage. This narrow beam effect, similar to beam lights, has gained significant popularity in the market.

Brand: Beyond

Model: 740B

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

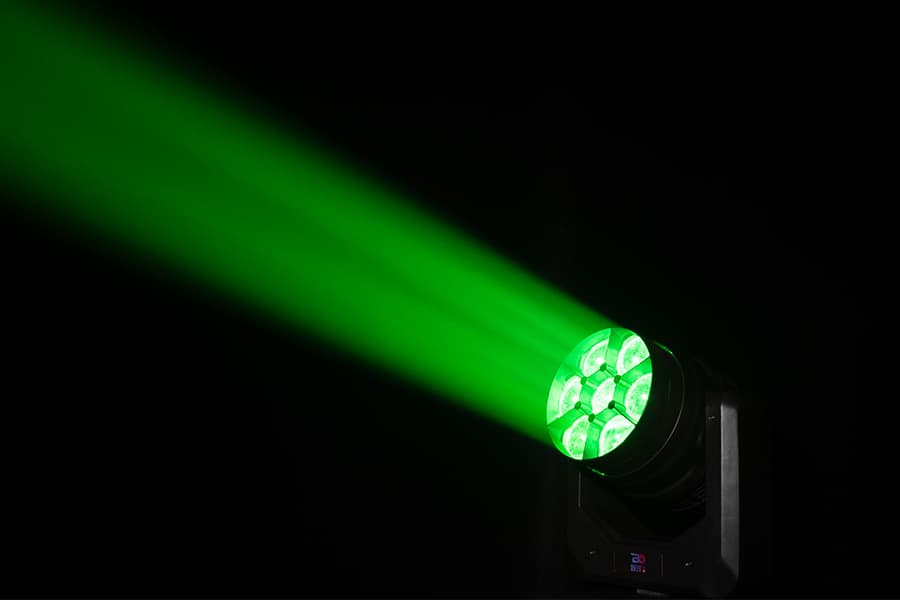

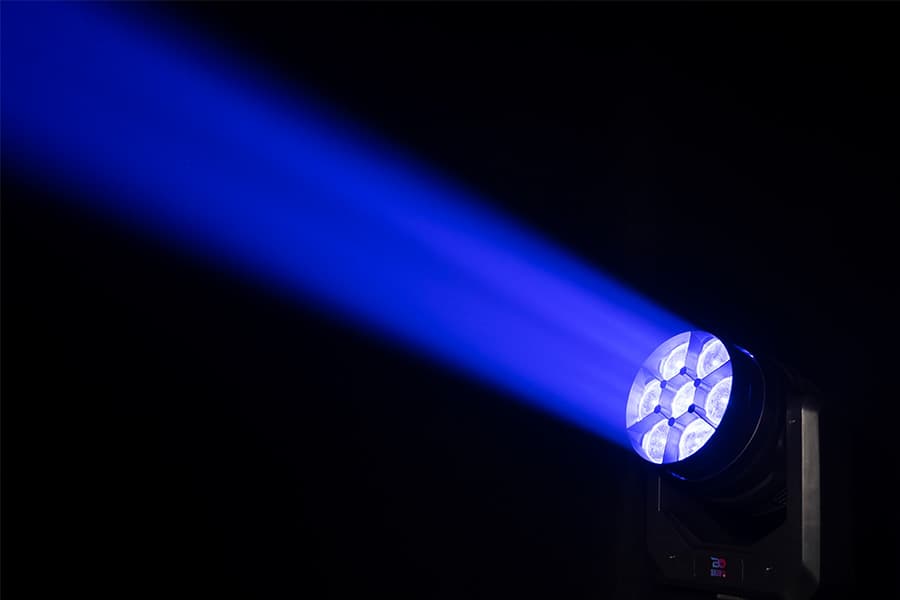

7x40W Mini Bee Eye Moving Head

Optics
• Light Source: 7x40W RGBW LED

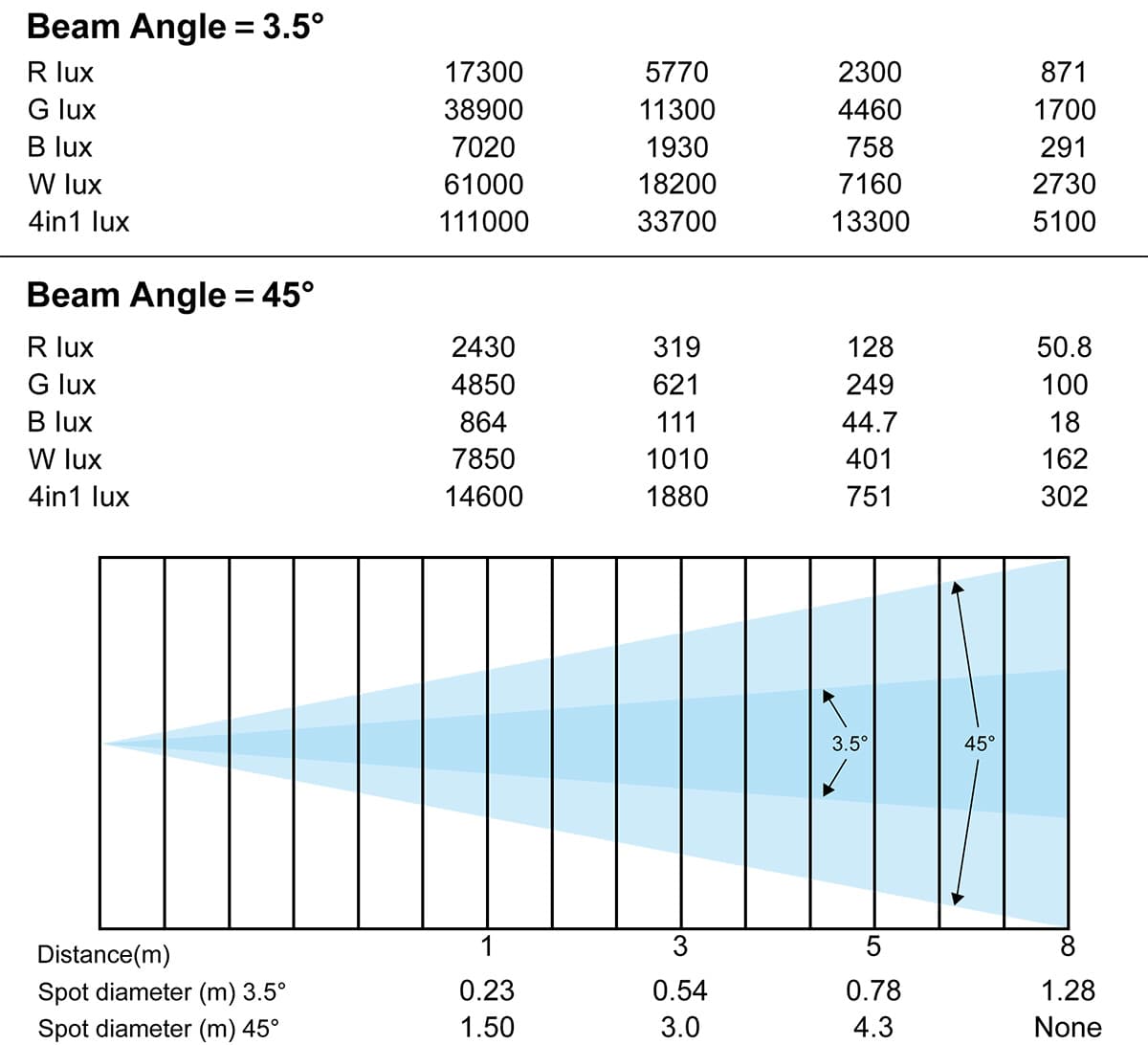

• Zoom Angle: 3.5-45 Degrees
• Power Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 250W

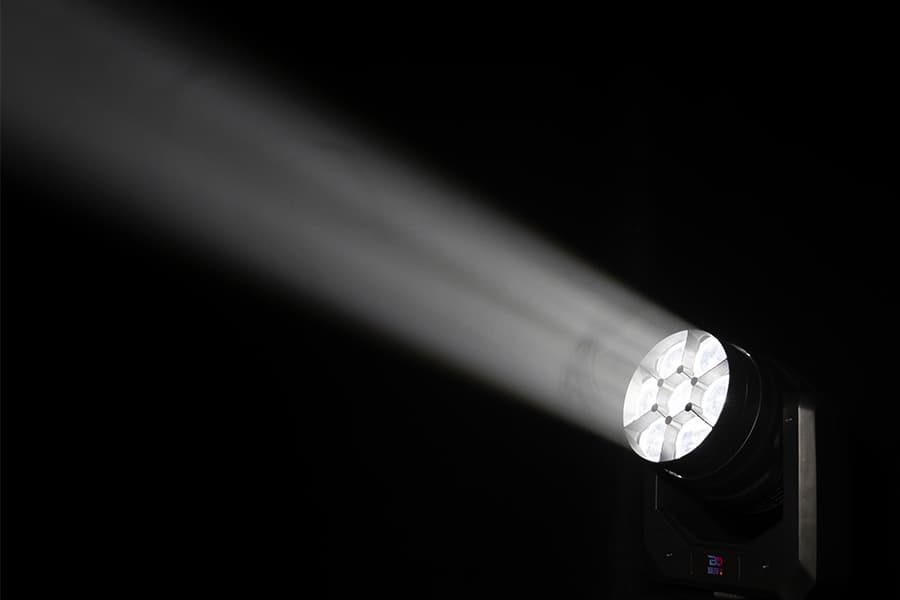

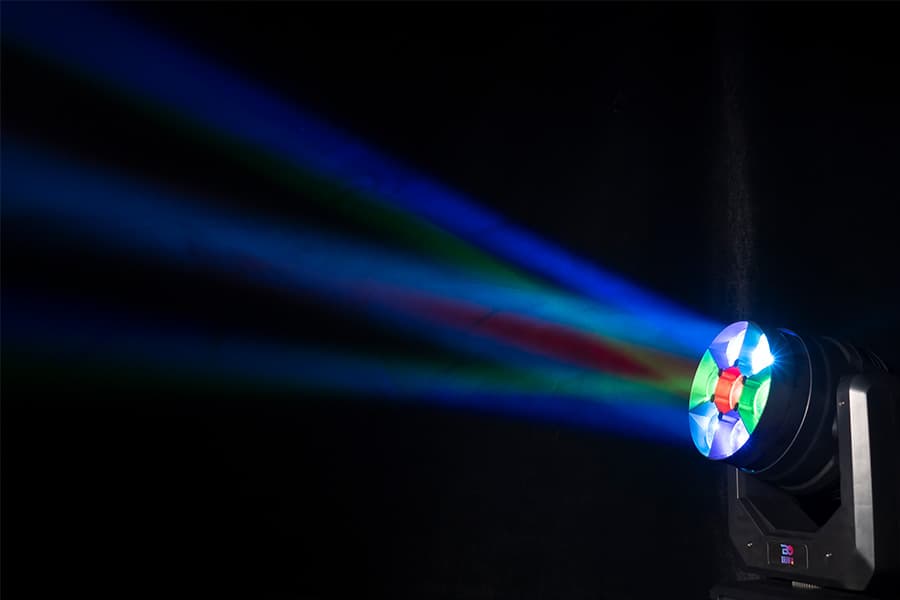

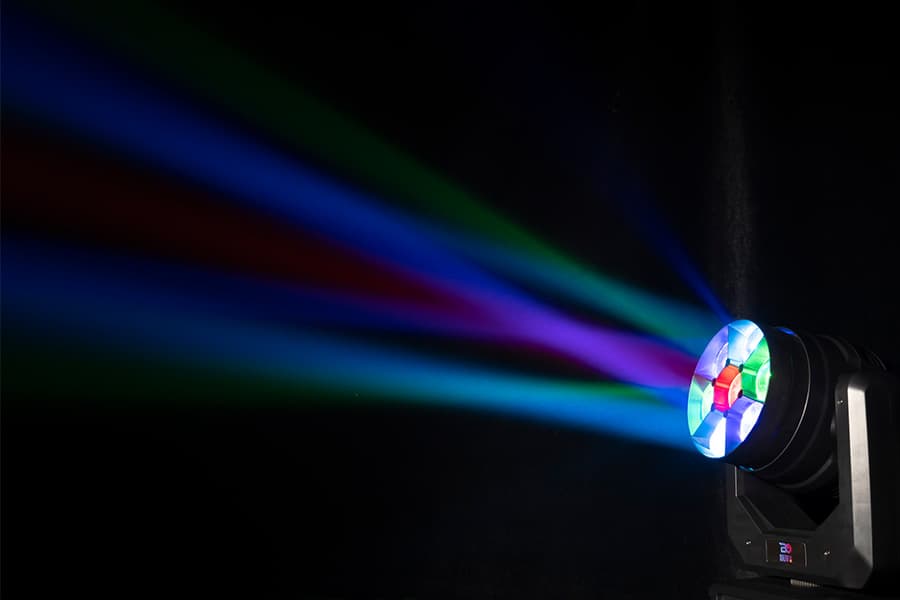

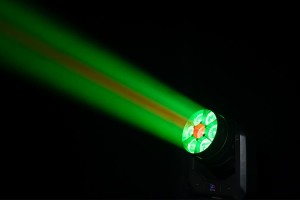

• Effect Configuration: full-light dimming, 65536-level dimming precision; fast strobe 1~25Hz; single control of lamp beads; three-in-one effect of wash, beam, and bee eyes; preset multi-color macro functions; preset set a variety of effect macro functions.

Control
• DMX Channel: 21/24/32/60 Channel
• Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM

Pan/Tilt
• Pan/Tilt: 540°/270°
• Pan/Tilt Resolution: 8/16 bit

Construction
• Display: LCD Display
• Data In/Out socket: 3-pin XLR sockets
• Power Socket: Power con in/out
• Protection Rating: IP20
• Housing Material: ABS high temperature resistant engineering plastics

Dimensions & Packaging

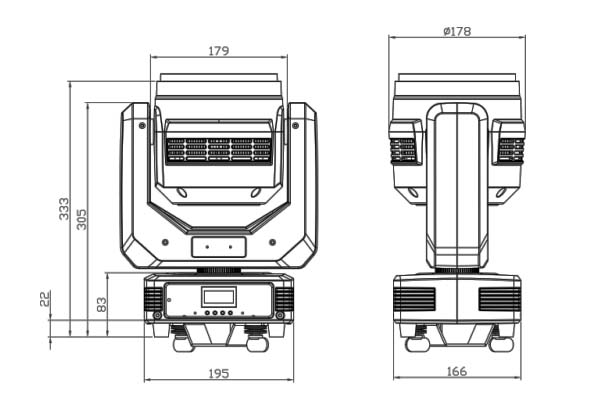

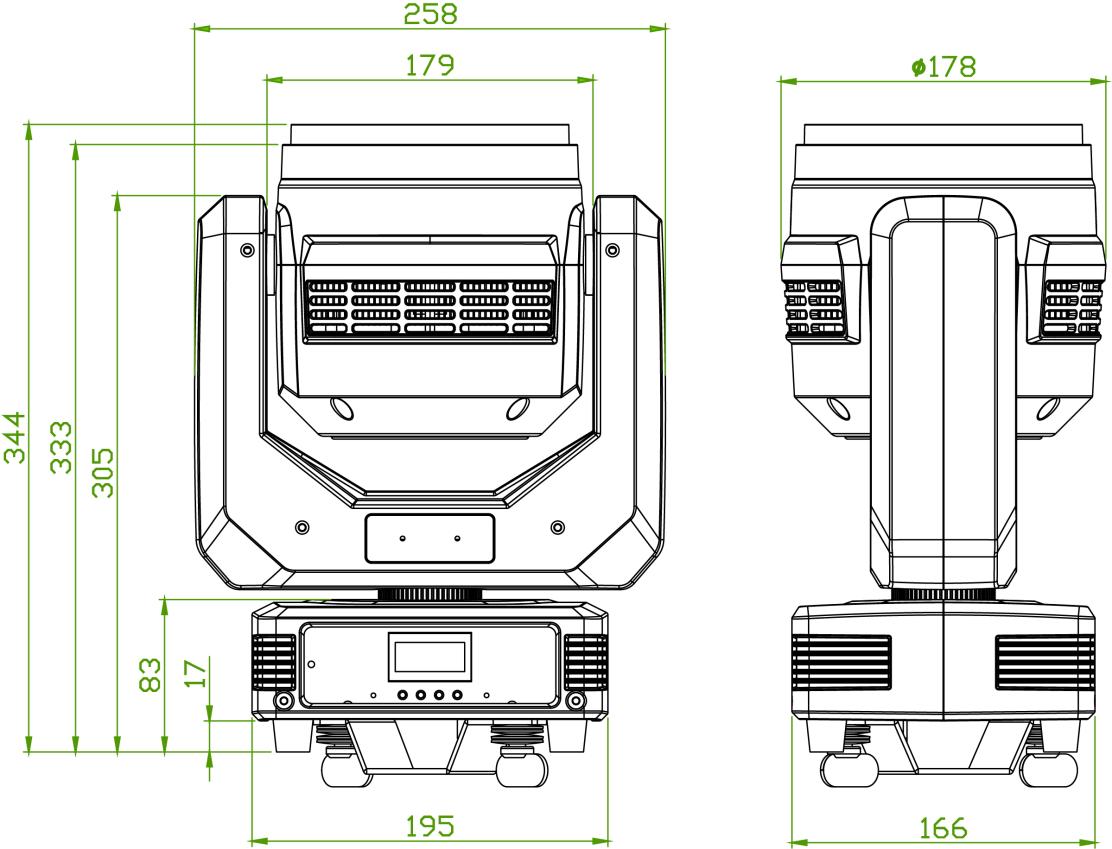

• Dimension: (unit: mm)

• Net Weight: 5.6 Kg

• Carton Packing(1 in 1): 310x230x420mm
• Gross Weight: 6.5 Kg

• Carton Packing(4 in 1): 655x495x445mm
• Gross Weight: 27.5 Kg

• Flight Case Packing(4 in 1): 620x560x540mm
• Gross Weight: 47 Kg

Features
• Motorized Liner Zoom System, Zoom Range: 3.5°~45°
• Pixels control
• Outstanding color macro effect
• Dimmer: 0~100% smooth dimming
• Variable strobe effects
• Fast, quiet operation and flicker free
