660Z-6x60W Pixel Control Beam Zoom Wash Moving Head LED Bar

Short Description:

660Z-6x60W pixel control moving head bar is an innovative light in high power LED moving head. Linear head with fast infinite rotating, 6 pixels give tight 3.5° beam and widely 45° beam, the intense beam is perfectly combined with the high brightness wash. Both pan and tilt are equipped with a fixed lock to prevent the moving head bar from being damaged during transportation or installation.
Over a 13-month R&D cycle, the Beyond technical team has solved the solution of uniform heat dissipation and balanced-based weight distribution. Each LED can be controlled individually, no matter work as a wash light, effect light, stage outline light, or foreground light, it can be wonderful showed.


  • Brand: Beyond
  • Model: 660Z
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

    6x60W LED Pixel Control Beam Zoom Wash Moving Head Bar

    As soon as this moving head bar was launched on the market, it was warmly loved by customers. It has 6 pieces of high-brightness LED with a super narrow 3.5° angle, giving a wonderful blade beam effect. Fast movement and pan & tilt is 360° infinite rotation, can program dazzling effects on stage. Max 45°widely beam angle has a good wash effect. It suits beam, wash, pixel light, or effect light.

    moving head bar

    Technical Parameters

    Optics
    • Light Source: 6x60W 4IN1 RGBW LED
    • Zoom Angle: 3.5°- 4
    • Power Consumption: 380 W
    • Power Voltage: AC 100-240 V, 50/60 Hz

    Control
    •
    DMX Channel: 25/45 Channels

    • Control Modes: DMX512/Master-Slave/AutoRun/Music

    Pan/Tilt
    •
    Pan / Tilt: Infinite Rotation

    • Pan/Tilt Resolution: 8/16 bit

    Construction
    •
    Display: 180° reversible TFT Display

    • Data In/Out socket: 3-pin & 5-pin XLR sockets
    • Power Socket: Powercon in & out
    • Protection Rating: IP20
    • Net Weight: 17.5 kg

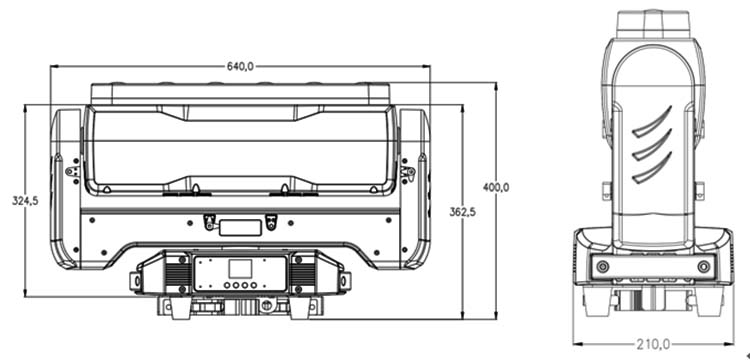

    • Dimensions: 640 mm x 210 mm x 400 mm

    moving head bar

    • Carton Package 1 in 1 Size: 735 mm x 505 mm x 300 mm
    • Gross Weight: 23 kg

    • Flight Case 2 in 1 Size: 720 mm x 640 mm x 600 mm
    • Gross Weight:  70.5 kg

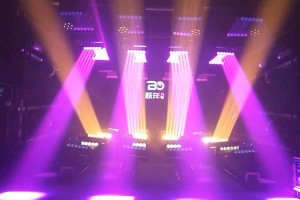

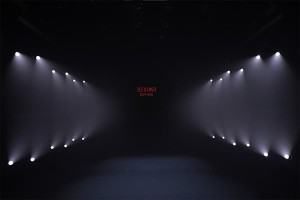

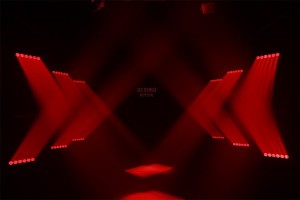

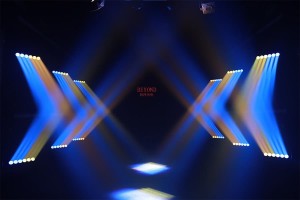

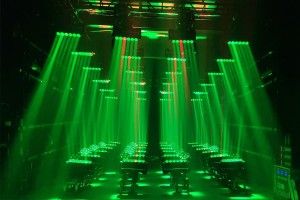

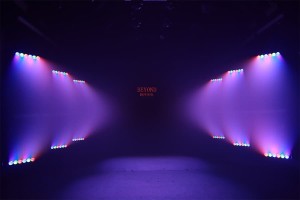

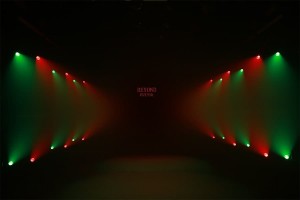

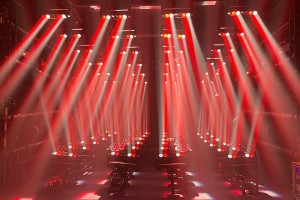

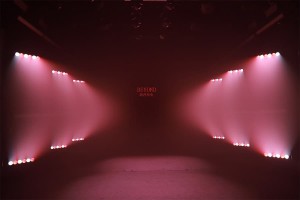

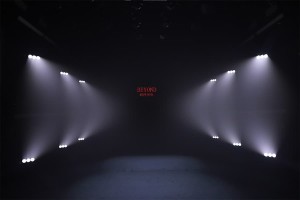

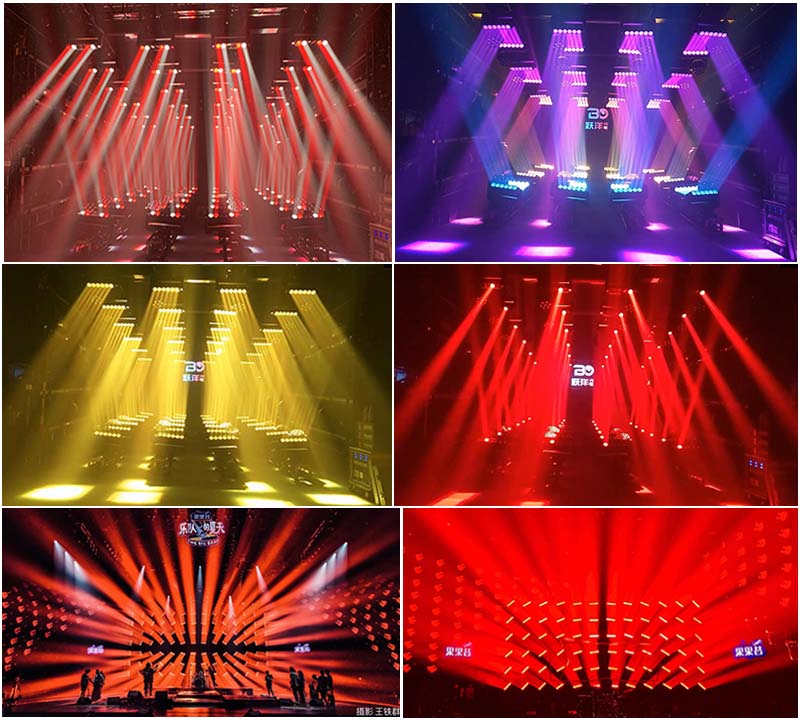

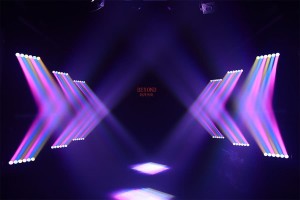

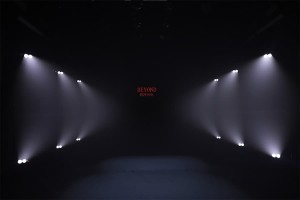

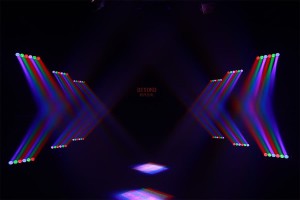

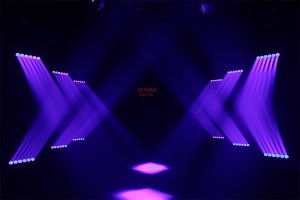

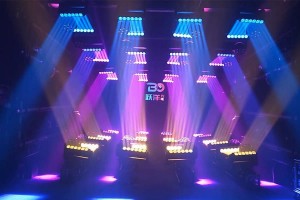

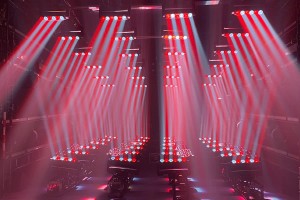

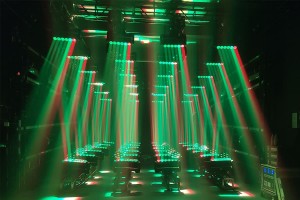

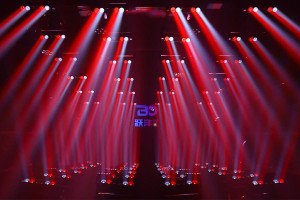

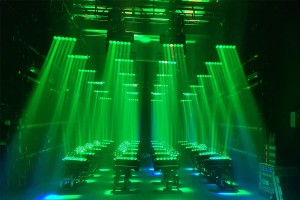

    Product Effect

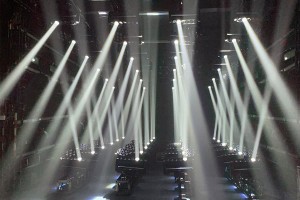

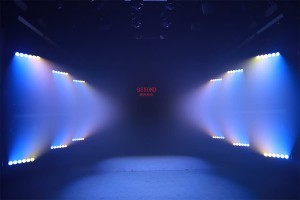

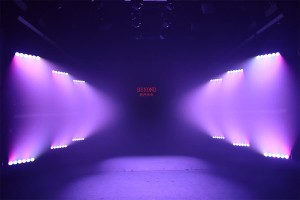

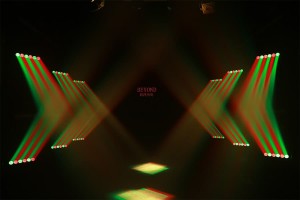

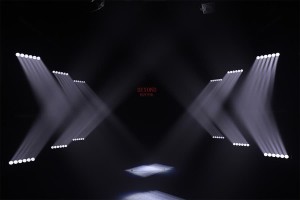

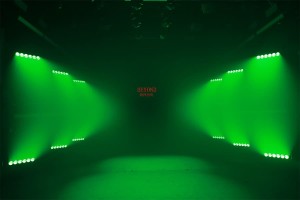

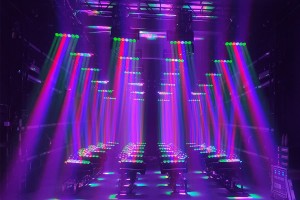

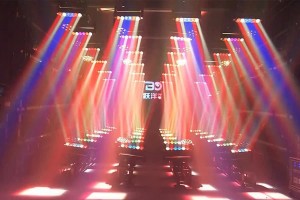

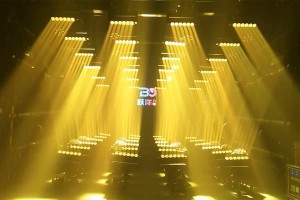

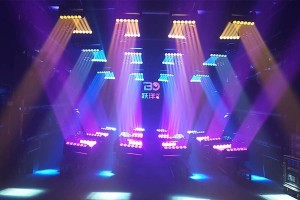

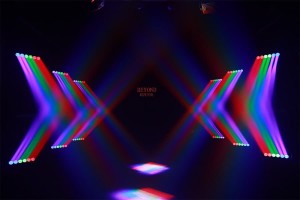

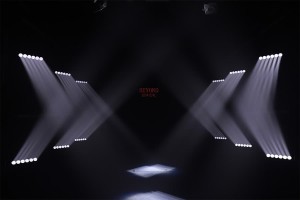

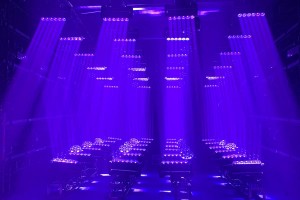

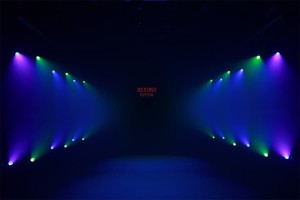

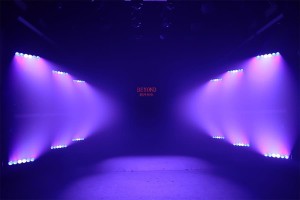

    660z effect

    FAQ

    Q: I do not saw your products before, how can I believe your quality?

    Re: Our factory has already been in the stage lighting industry for more than 10 years, at the beginning of our founding, we start to do product R&D and focus on led source stage lights, especially in wash moving heads. So if our quality is not ok, we are impossible to grow up.

    Q: Where is your factory?

    Re: We are located in the Baiyun district of Guangzhou City in China

    Q: Do you have an agent or office in my other countries?

    Re: No, we do directly factory sales, in this way to support people at the best prices.
