Professional Stage Lighting 1200W LED Moving Strobe Lights

Short Description:

6200H-768×0.5W&96x10W LED strobe moving head light professional stage lighting, is a new type strobe light developed by us. In current market mostly of high power strobe lights are static light, we are the first factory in China to make the high brightness strobe effect lighting into the form of moving head lights. Benefit from our more than 10 years of LED stage lighting product development experience, we can design it a good cooling system to achieve high brightness but small size.This professional strobe light takes around 1 years in R & D, passed many type test and finished mass production before launched into market. LED combine by two parts, middle is 96 pieces 10W white LED, two side are total 768 pieces 0.5W RGB 3in1 LED. Middle white LED area is divided into 4 sections. RGB colorful LED area is divided into 12 sections, control with DMX512, RDM protocol. High powerful brightness and strobe ability, full optical domain dimming, Preset 56 kinds of effect Marco function. Fast strobe 1-25 Hz/S.


  • Brand: Beyond
  • Model: 6200H
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

    Beyond Lighting 1200W LED Moving Head Strobe

    It is 2021 new arrival lights, independently developed by beyond lighting. Before the R&D of this high brightness LED strobe moving head, 3 years ago we already developed and produced outdoor strobe lights and got good sales and feedback from the market.

    This new type of LED strobe moving head, not only solves the problem of standard strobe lights that brightness is not enough or colors is not rich enough but also solves the problem that can not set the different direction of static strobe light on the stage.

    This strobe light it's a color system combined with highly powerful RGB 3in1 LED + White LED.

    White LED combined by 96*10W LED, 4 Sections effect.

    RGB 3in1 LED combined by 768*0.5W LED, 12 sections effect.

    Its pan and tilt use 3 phase step motors and give fast, smooth, precision positioning, and quiet operation. High-performance heat dissipation and high brightness and powerful strobe ability. Also, preset 56 kinds of effect Marco function makes it a very rich effect.

    strobe moving head
    moving head strobe

    Technical Parameters

    Optics:
    ● Light Source: 768x0.5W RGB 3-in1 LED, 96x10W White LED (6000K)
    ● Lamp Life ≥ 50000 Hours
    ● Input Voltage: AC100-240 V, 50-60 Hz
    ● Full Power: 1200 W, Power Factor PF≥0.95
    Beam Angle: 130 Degrees
    Color System: RGB 3-in-1 + White LED

    Control
    ●
    DMX Channel: 10/15/25/29 CH

    ● Control Modes: DMX512/Master-Slave/AutoRun/Music/RDM

    Pan/Tilt
    ● Pan/:540°, accuracy 2.11°/step, fine-tuning accuracy: 0.008°;
    ● Tilt:270°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
    ● Using a magnetic-coded reset system

    Construction
    ●
    Menu Display: 1.8-inch TFT color display; Chinese and English can be switched at will, and the font can be reversed 180° display;

    ● Data In/Out Socket: 3-pin & 5-pin XLR sockets
    ● Protection Rating: IP20
    ● Working temperature: -10℃45℃
    ● Net Weight: 18.5 kg

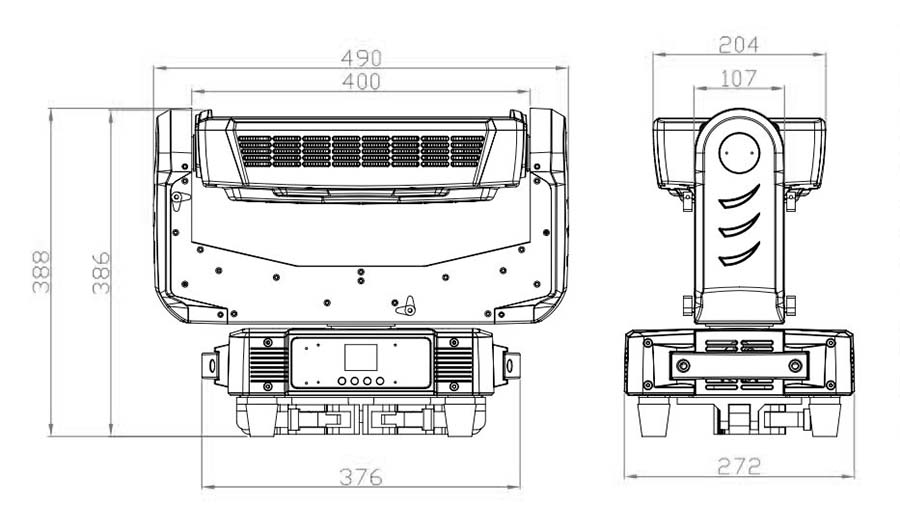

    ● Dimensions: 272 mm x 490 mm x 388 mm

    moving strobe lights

    ● Carton Package 1in1 Size: 600 mm x 500 mm x 380 mm
    ● Gross Weight: 22.5 kg

    ● Flight Case 1in2 Size: 770 mm x 590 mm x 670 mm
    ● Gross Weight: 70 kg

    Electronic Control Technology:
    ● Menu or console control lamp reset;
    ● 0-100% dimming;
    ● Constant current drive mode;
    ● Temperature sensor detection, intelligent adjustment of light source power;
    ● Lamp information query;
    ● Intelligent fan speed control

    Effect Configuration:
    ● Full optical domain dimming, 65536-level dimming accuracy;
    ● Fast strobe 1~25Hz;
    ● White light is divided into 4 areas to control, and the color is divided into 12 areas to control;
    ● Preset 56 kinds of effect macro function

    LUX Date

    lux data moving strobe light

    FAQ

    Q: Please advise if your products have CE approval or if you are planning to get approval soon.

    RE: All products certificated with CE & RoHS, have EMC & LVD reports

    Q: May I get a free sample?

    Re: Thanks for your intention to try and check our lights, we appreciate it a lot, while a free sample can not be provided as its high value, thanks for your understanding. but surely I will try my best to give you a good price in official order according to your quantity.

    Q: Whats your MOQ for this product?

    Re: 1 piece, as we understand customers may like to try samples first sometimes.

    Q: How about the guarantee?

    RE: 2 years warranty. During warranty, if lights happen any problems we will check with you and clear the issues then send freely replace parts asap. If the warranty runs out, we will give technical guidance and send spare parts in charge.

    Q: When I place an order, can I get some spare parts in FOC?

    Re: 1% free spare parts can be provided if in mass order, small amount we do not provide free spare parts.

    Factory goods delivery
