IP Moving Frost Strobe

Short Description:

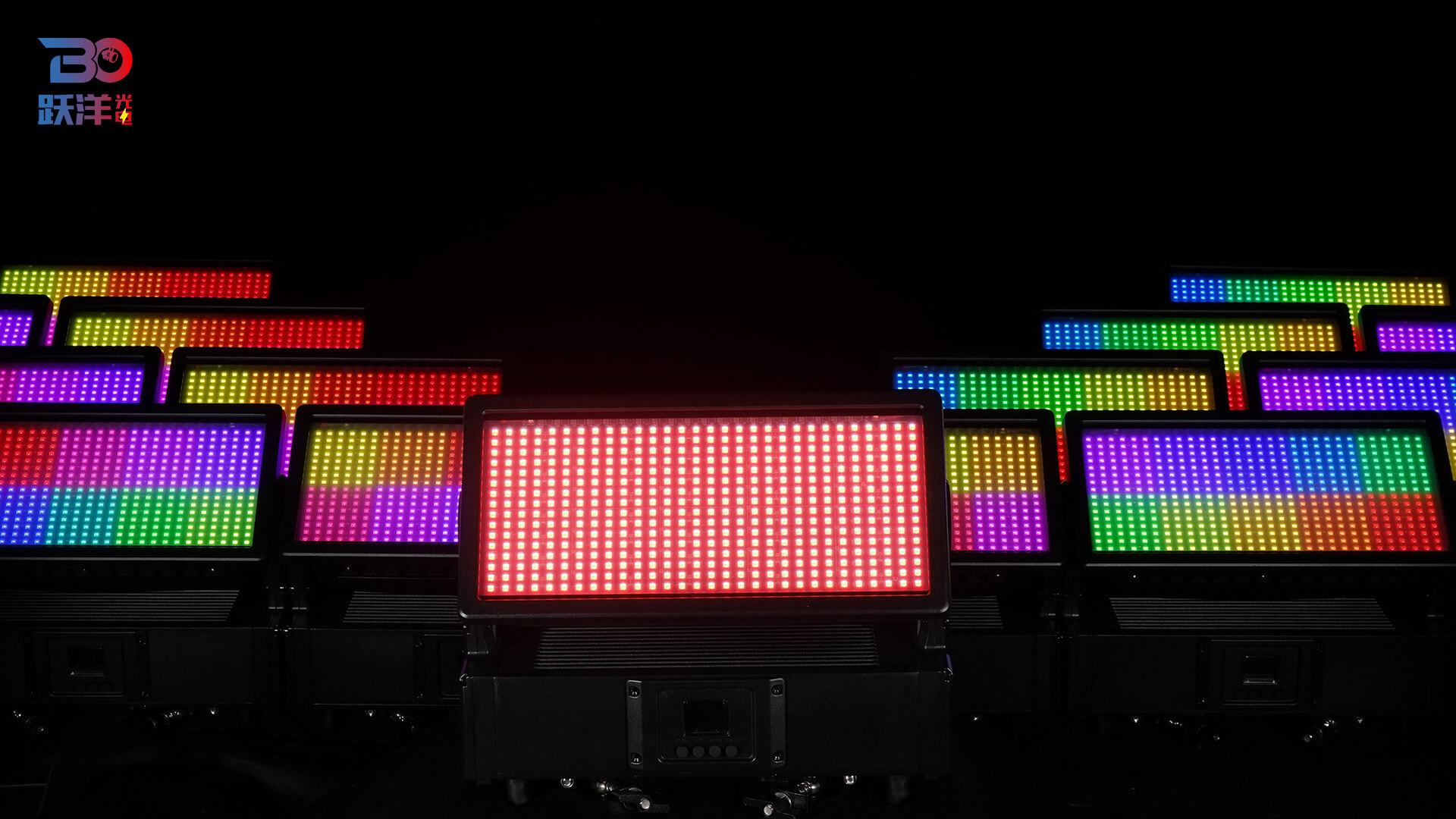

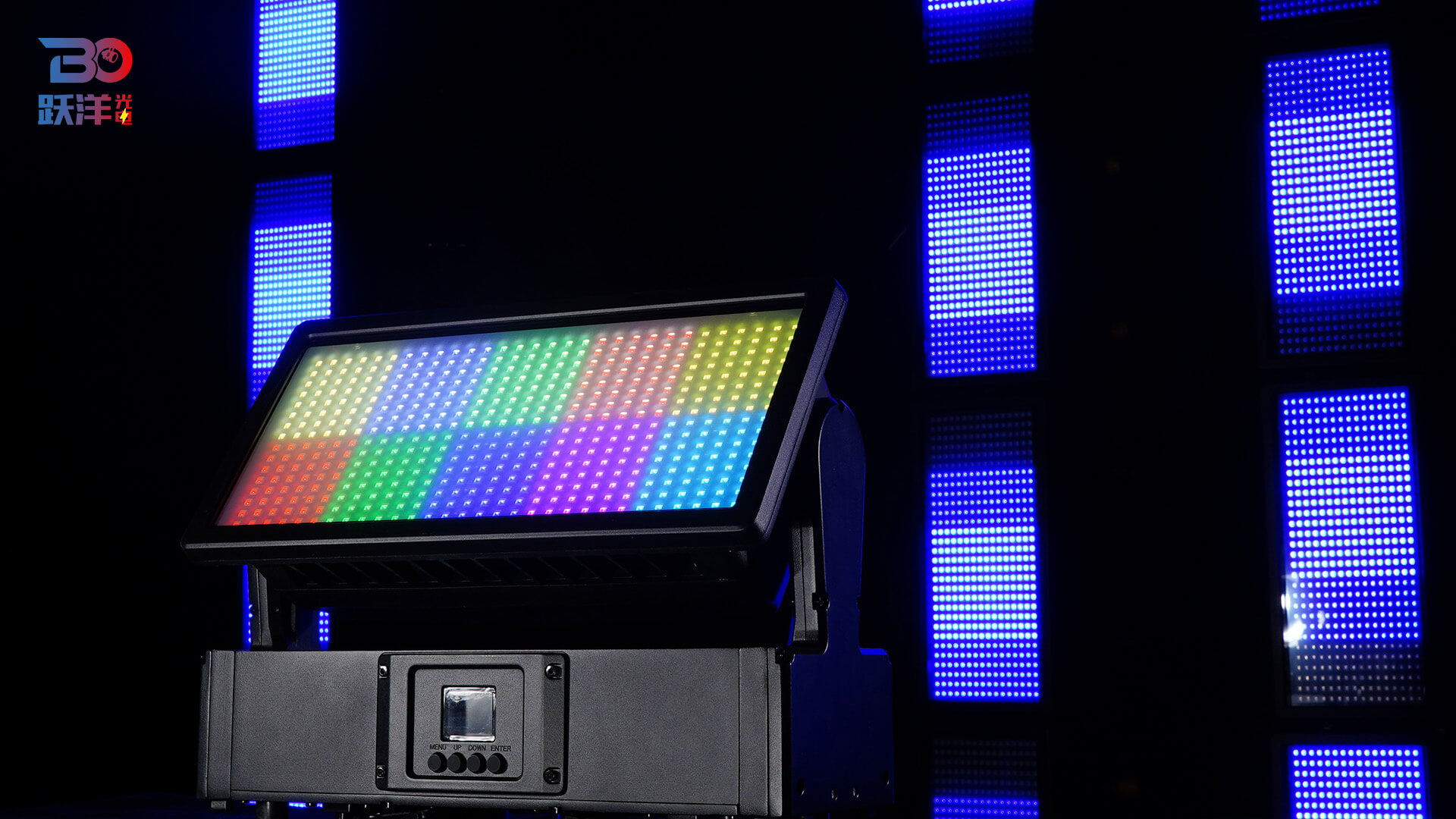

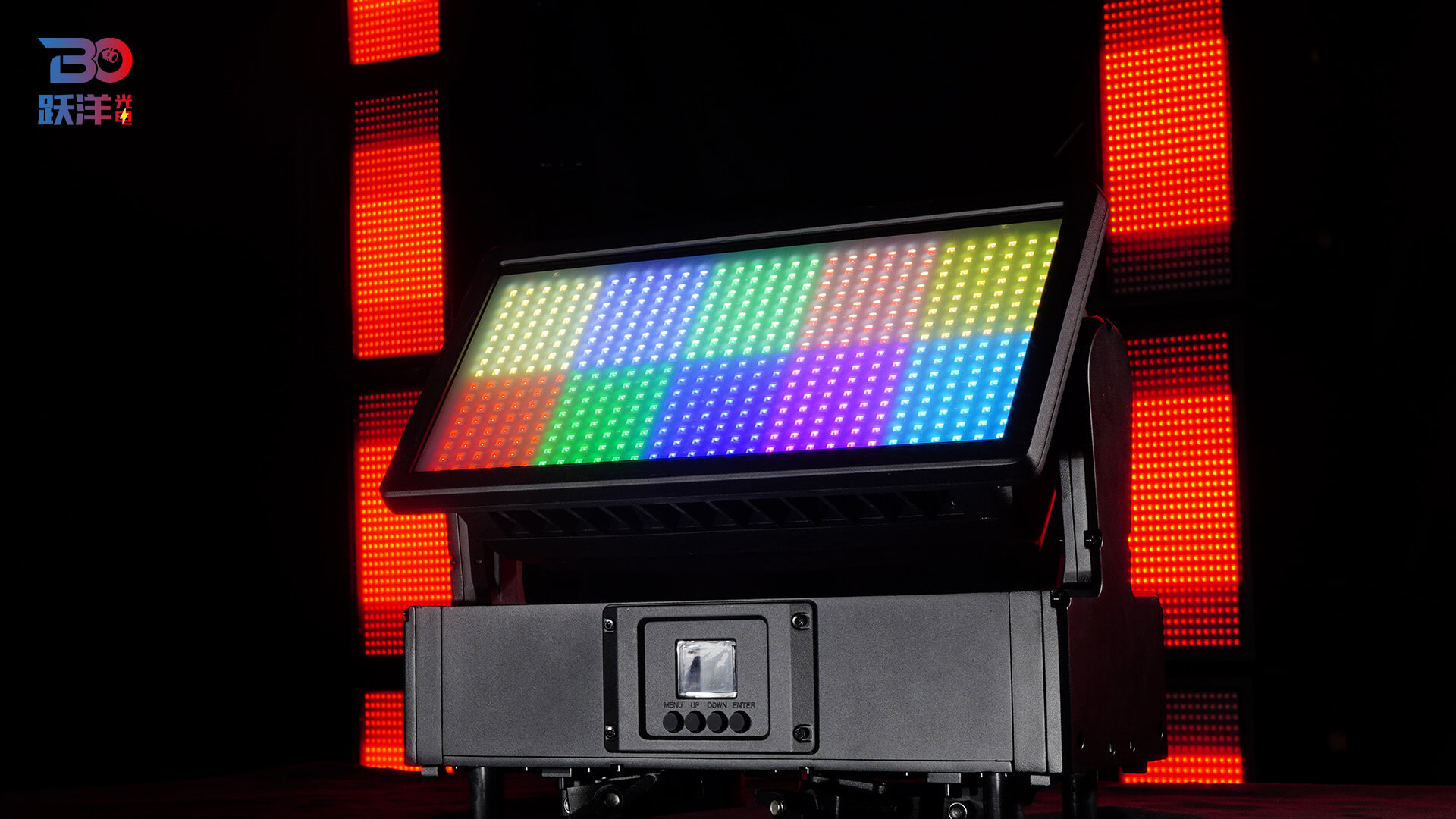

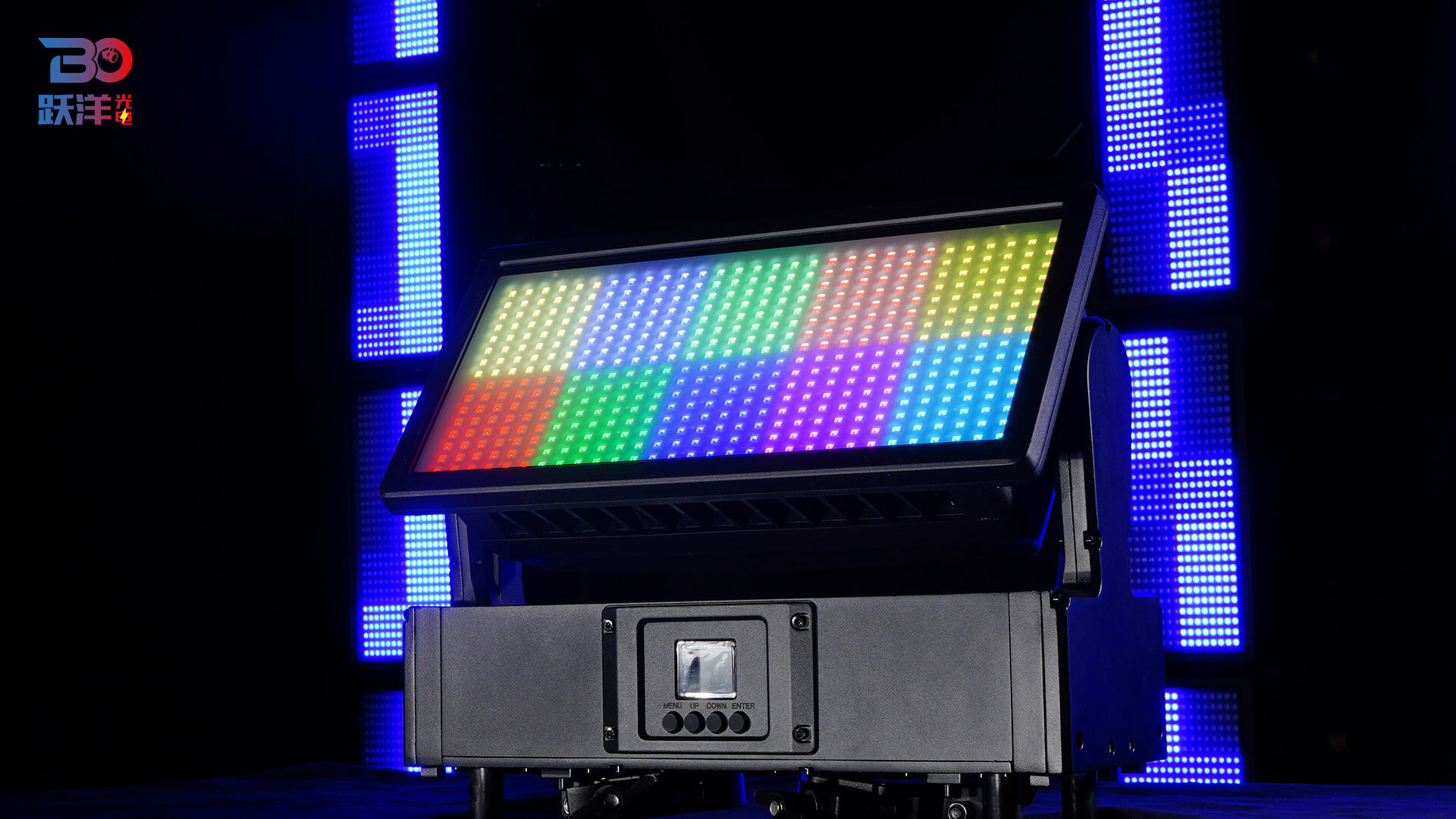

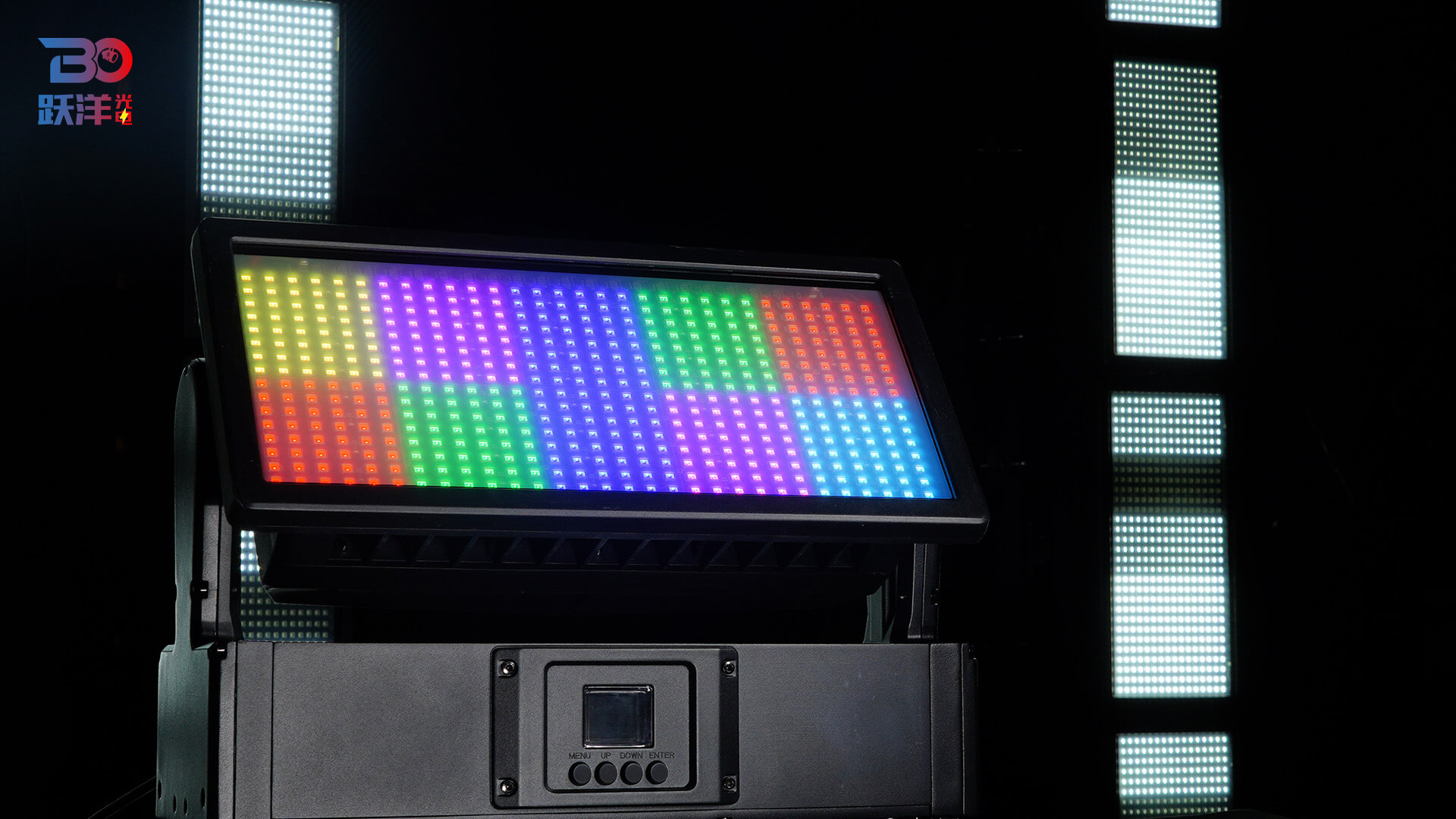

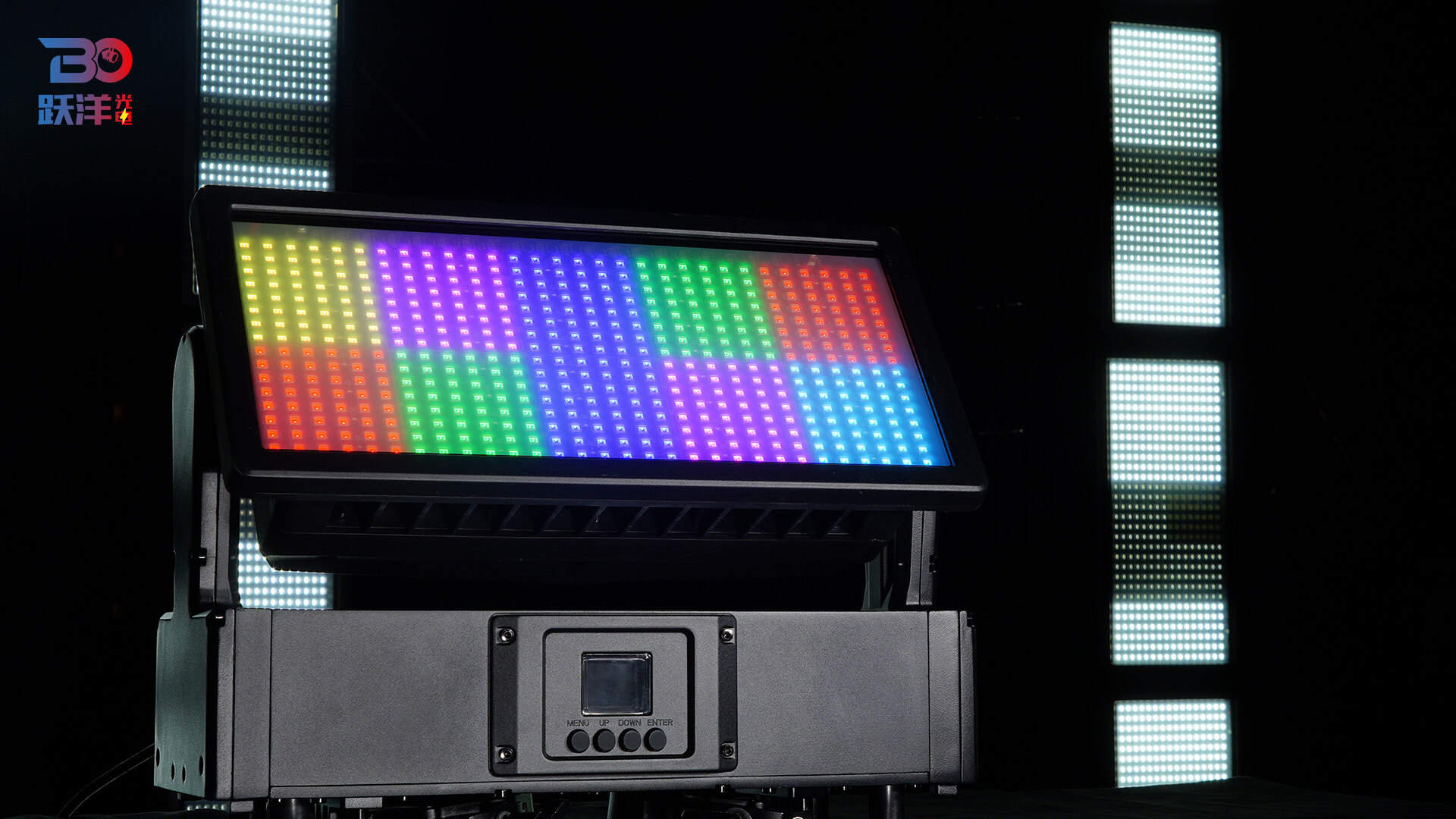

Bring bold color and motion to any outdoor production with the IP65 480W RGBW LED Batten Light.

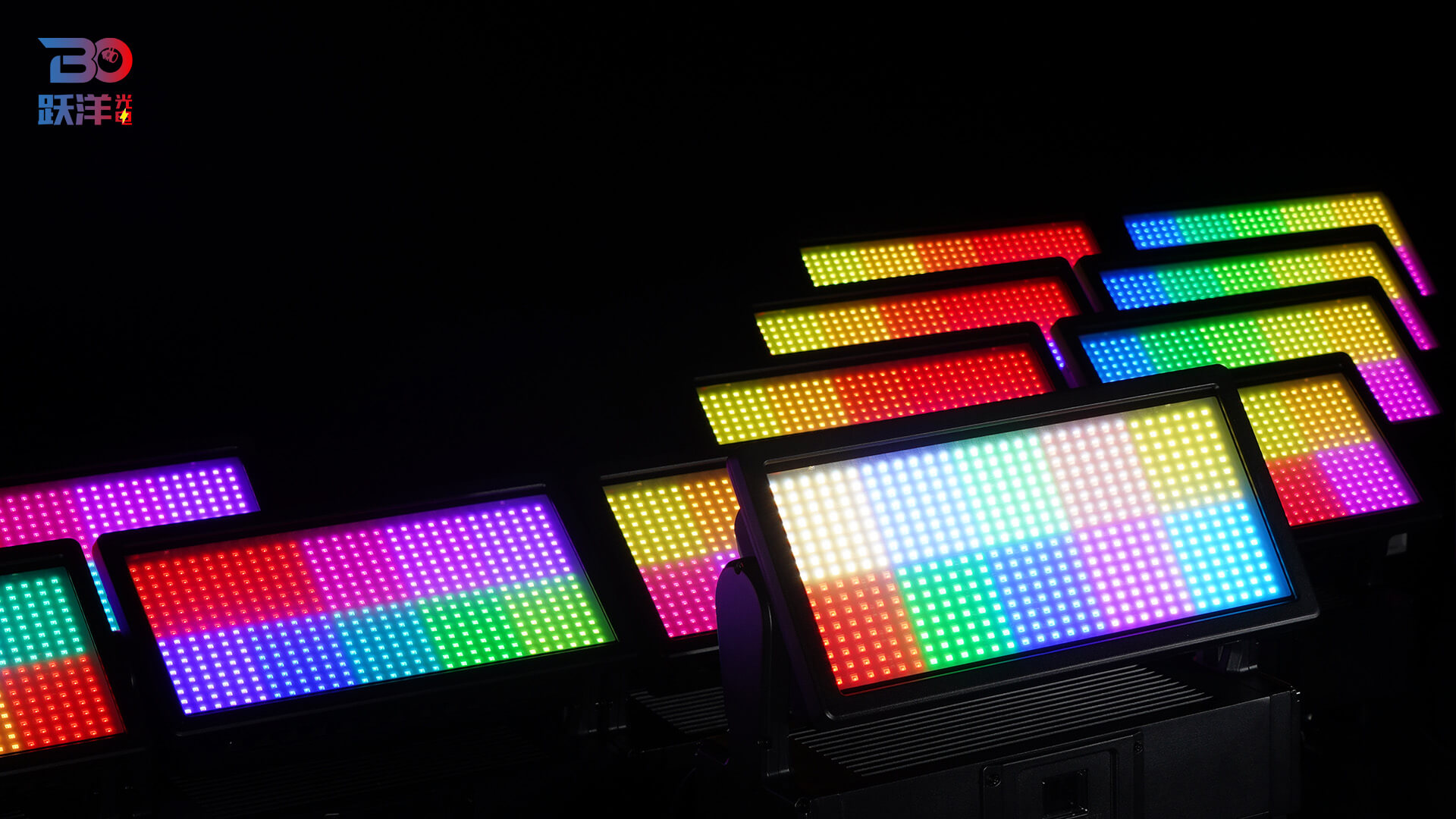

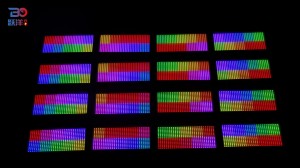

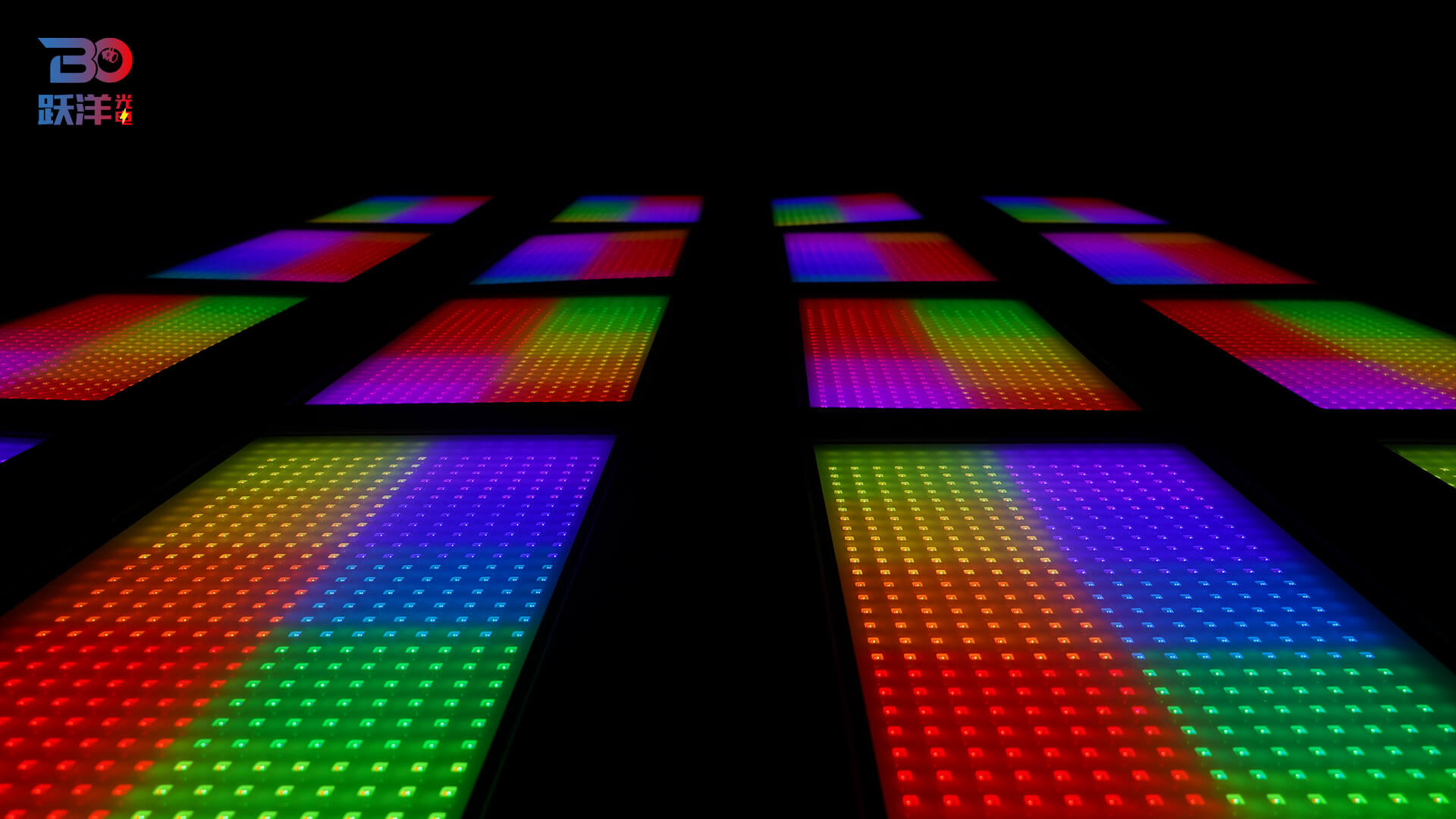

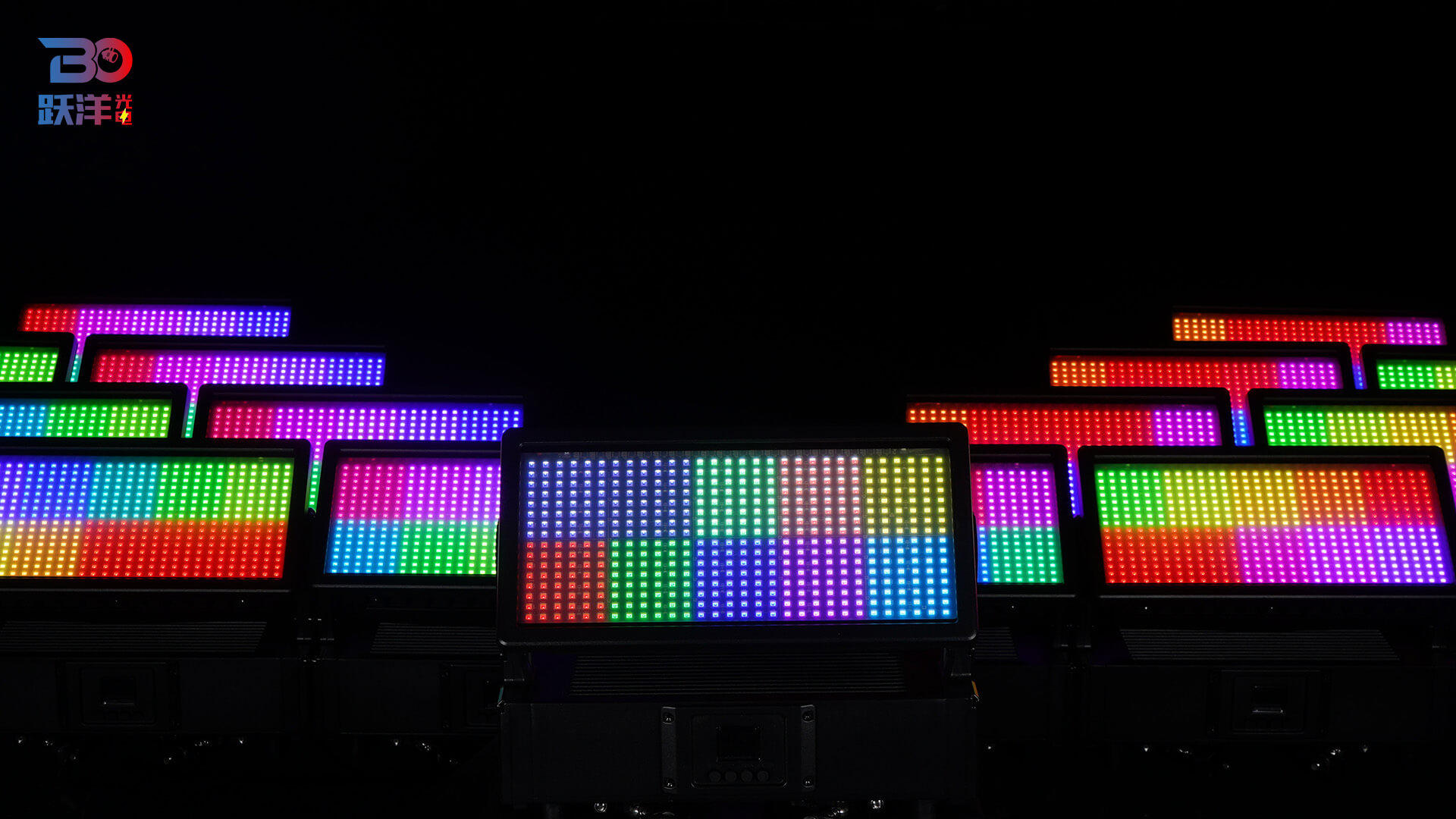

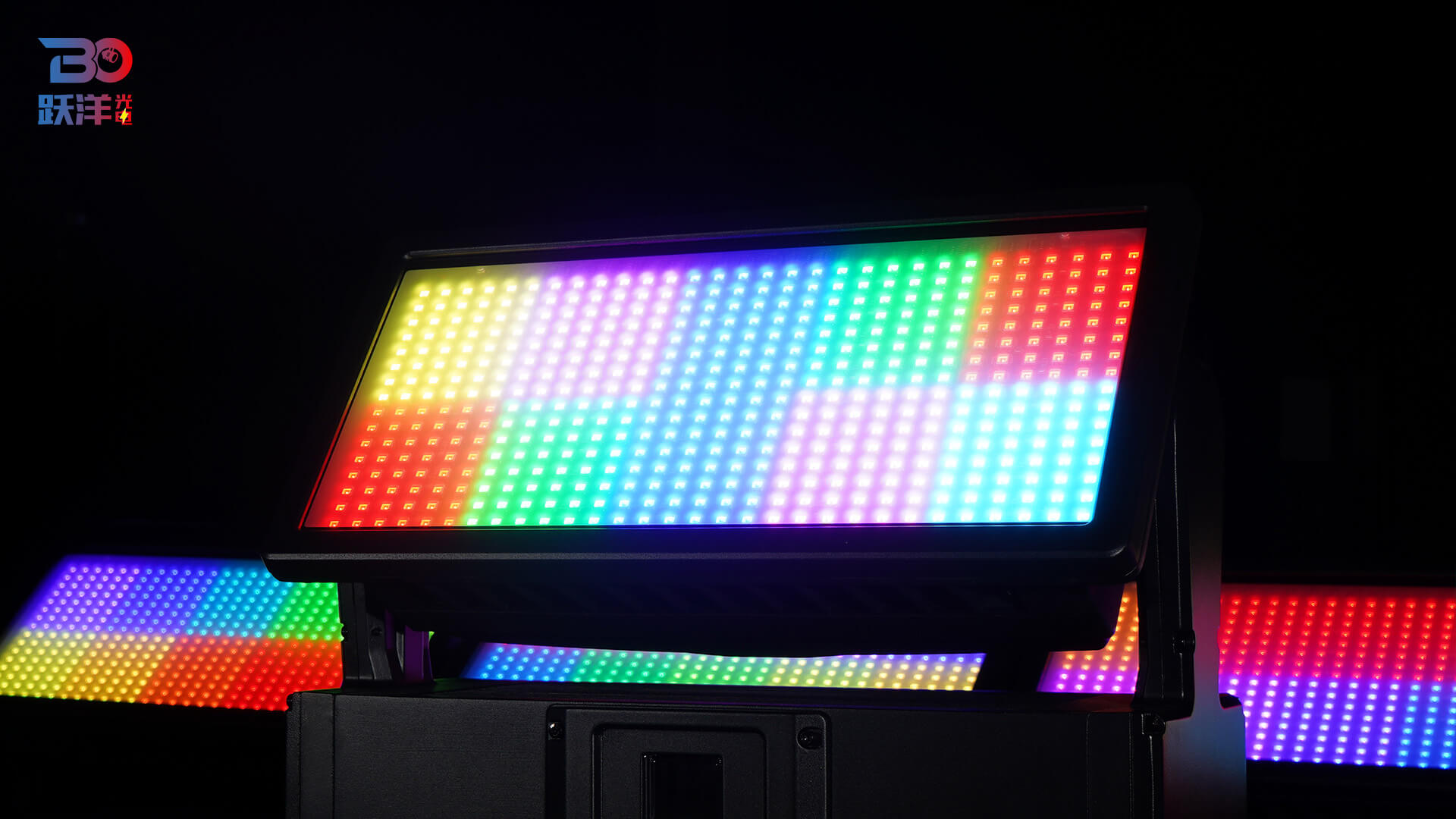

Powered by 480 × 1W RGBW LEDs, it produces a wide 120° wash with rich color mixing, smooth electronic frost, and eye-catching pixel effects across 10 independently controlled segments.

Its 190° 16-bit tilt adds dynamic movement, while built-in color and effect macros make it easy to create washes, chases, strobes, and layered visual effects.

Choose DMX512, RDM, or optional Art-Net for flexible control, and rely on intelligent temperature management and IP65 protection for stable performance in rain, dust, and demanding outdoor conditions.

Send email to us Product Manual

Product Detail

S1200 Video

S1200 Parameter

Light Source: 480pcs 1W RGBWLED(lifetime≥50000H)

Input Voltage: 100-240VAC 50/60Hz

Power Consumption: 550W±5%, PF≥0.95

Beam Angle: 120°, Electronic frosted glass

Tilt: 190°, 16-bit accuracy

Control Protocol: DMX512/ Art-Net(optional)/ RDM

Electronic Control
1. Fixture Reset: The fixture can be reset via the onboard menu or lighting console.
2. Constant-Current Drive: Constant-current driving technology is adopted.
3. Temperature Monitoring: The temperature sensor monitors the fixture temperature and automatically adjusts the light source power.
4. Fixture Information: Supports viewing fixture operating information and parameters.
5. Intelligent Fan Control: The fan speed is automatically adjusted according to the fixture temperature.

DMX Channel: 10/ 16/ 23/ 28/ 48/ 8+40CH (DMX+Art-Net)

IP Rated: IP65

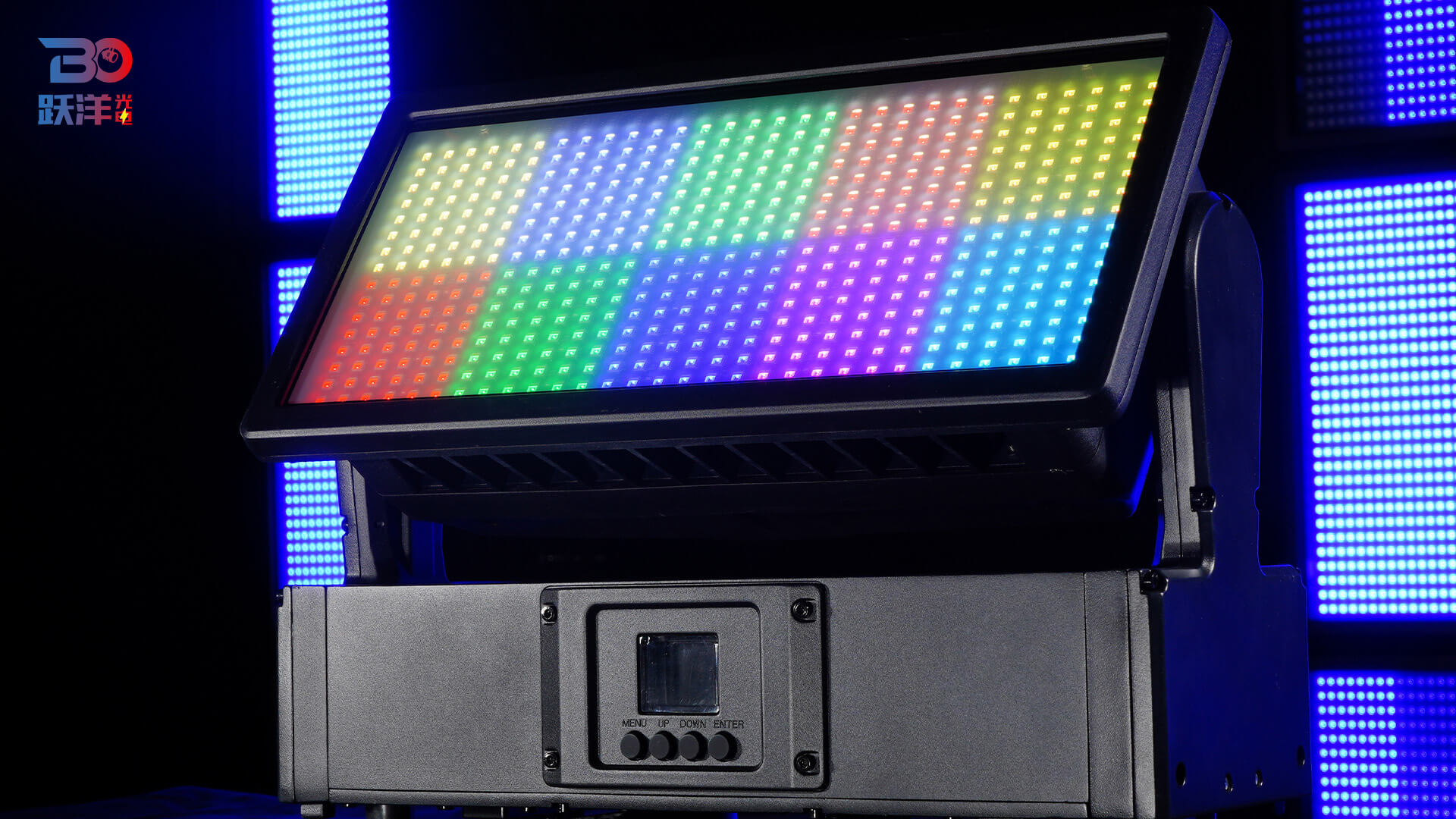

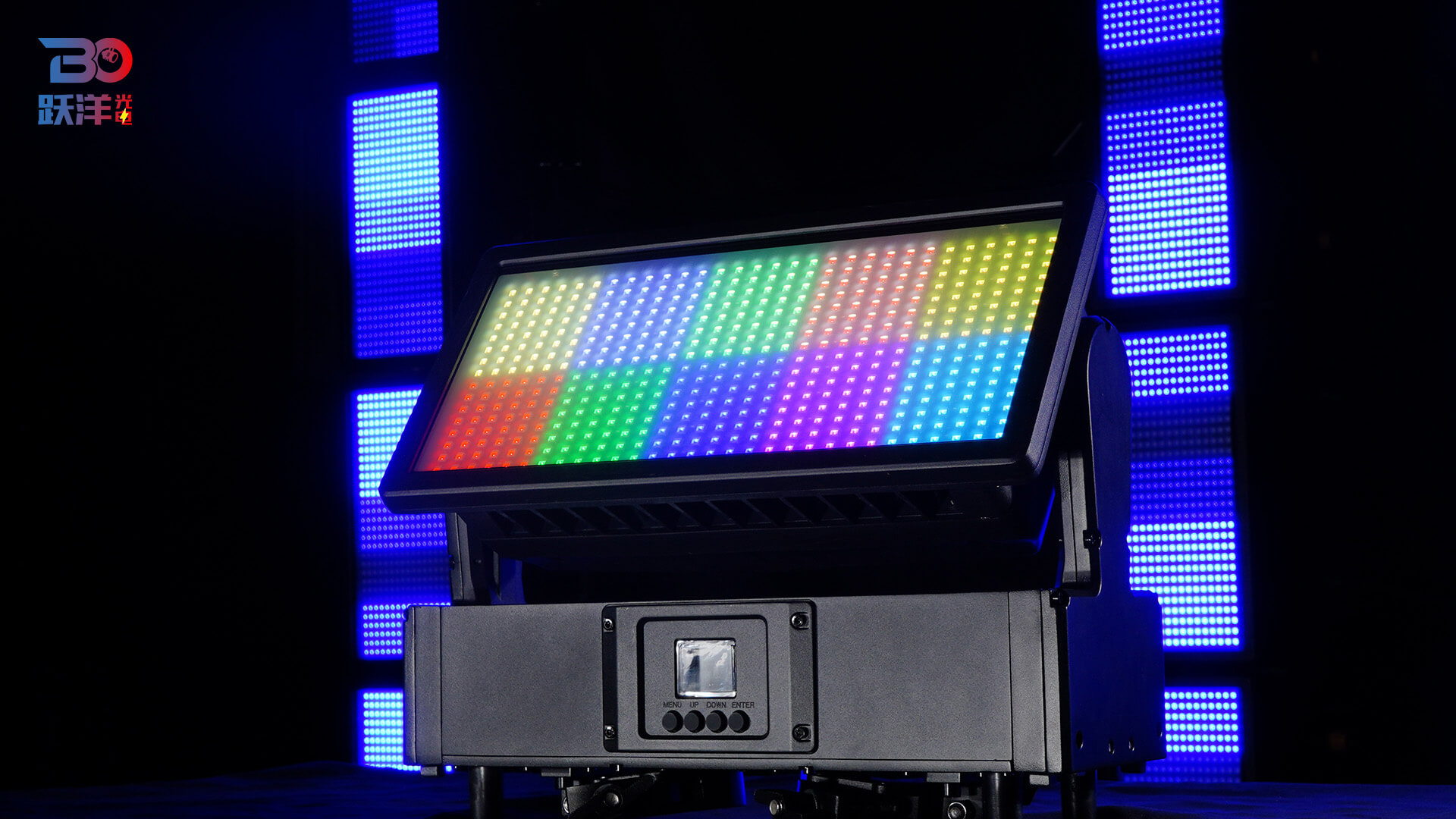

Display: TFT 1.8-inch display, 180° reversible

Data In/ Out: 3-pin XLR/ 5-pin(optional)

Safety Protection: Over-current protection, over-voltage protection, over-temperature protection, Safety Cable

Installation: Floor Standing or Suspended/Hanging Installation.

Operating Temperature: -20℃～55℃

Power Linking: 2.5mm² cable–230V 6pcs MAX., 110V 3pcs MAX.

Weight& Dimension: N.W. 12.9KG, 420*163*347mm

Carton Package: 50.5*39*28CM, 1in1，G.W.: 15 KG

Flight Case: 94*60*56 CM, G.W.: 86.4 KG

Functions:
16-bit accuracy;
Fast strobe 1~25Hz;

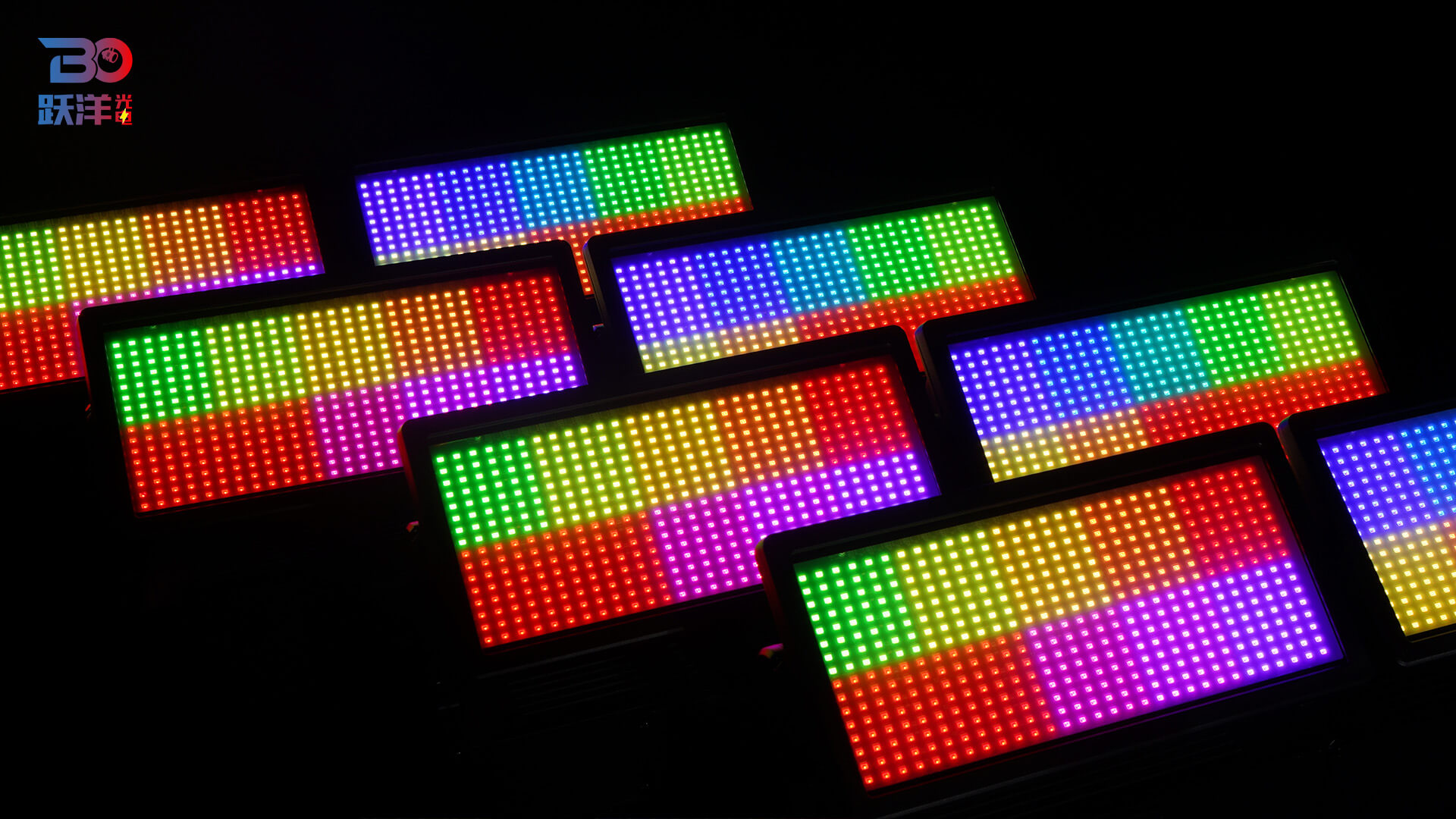

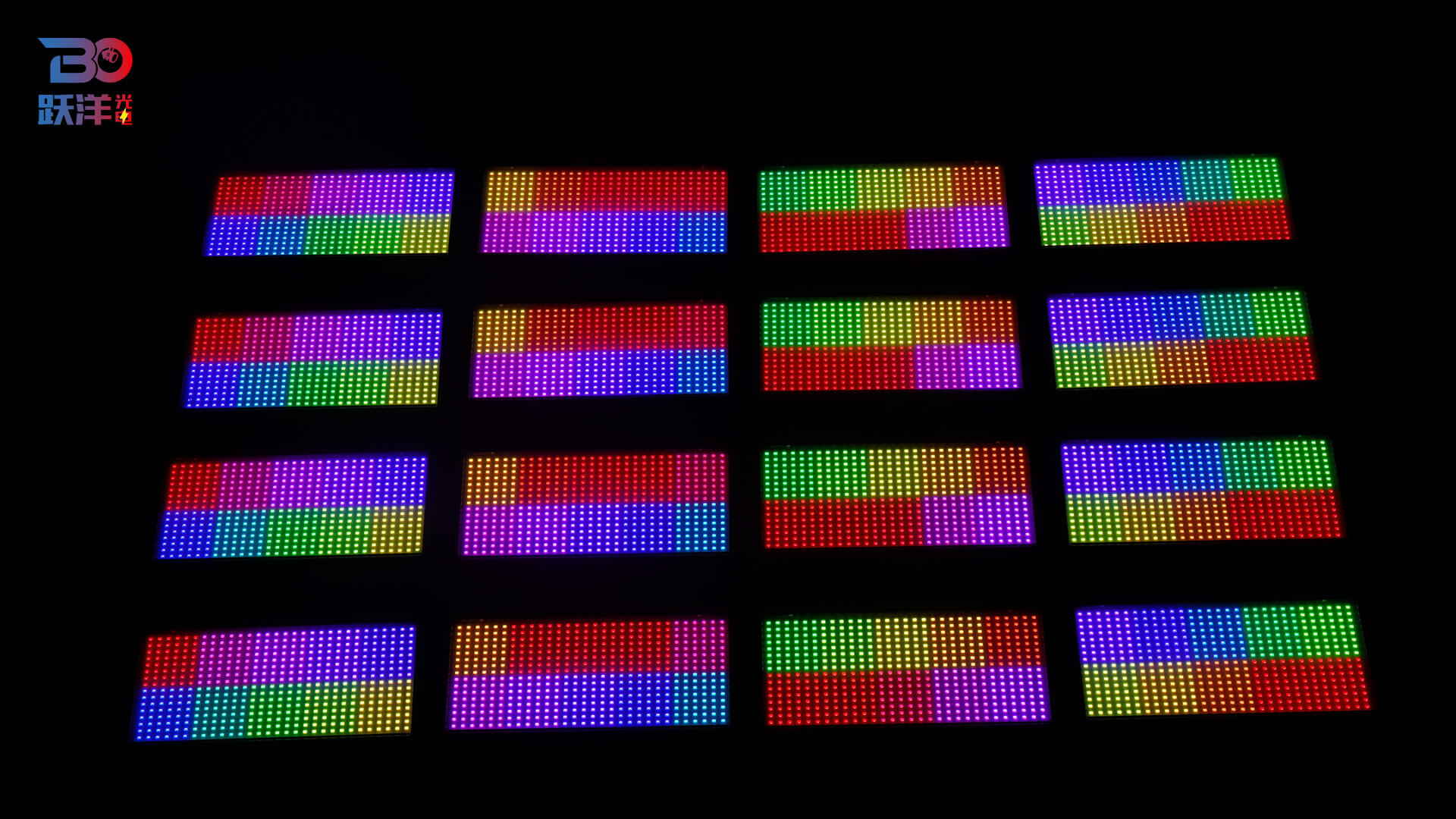

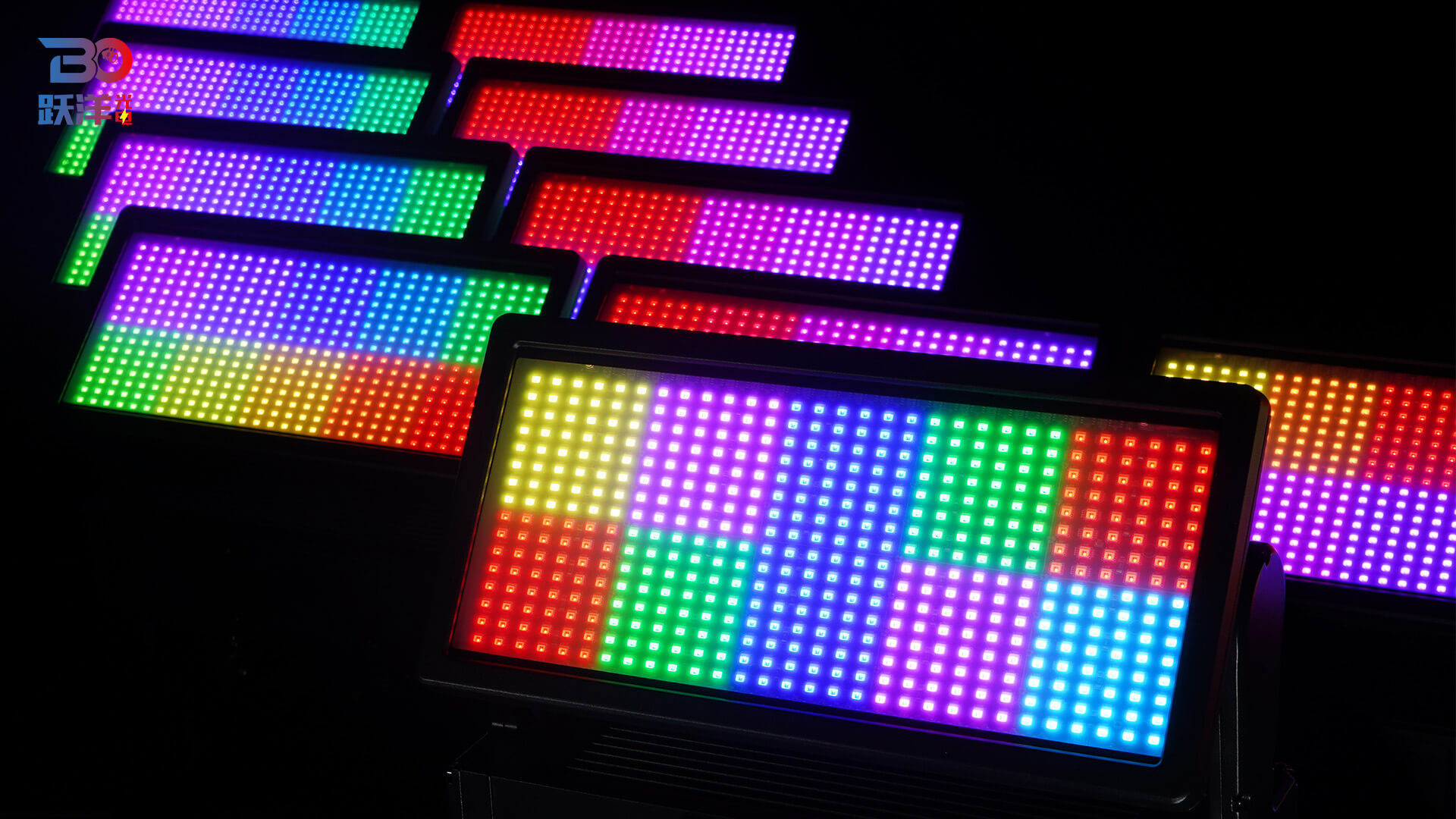

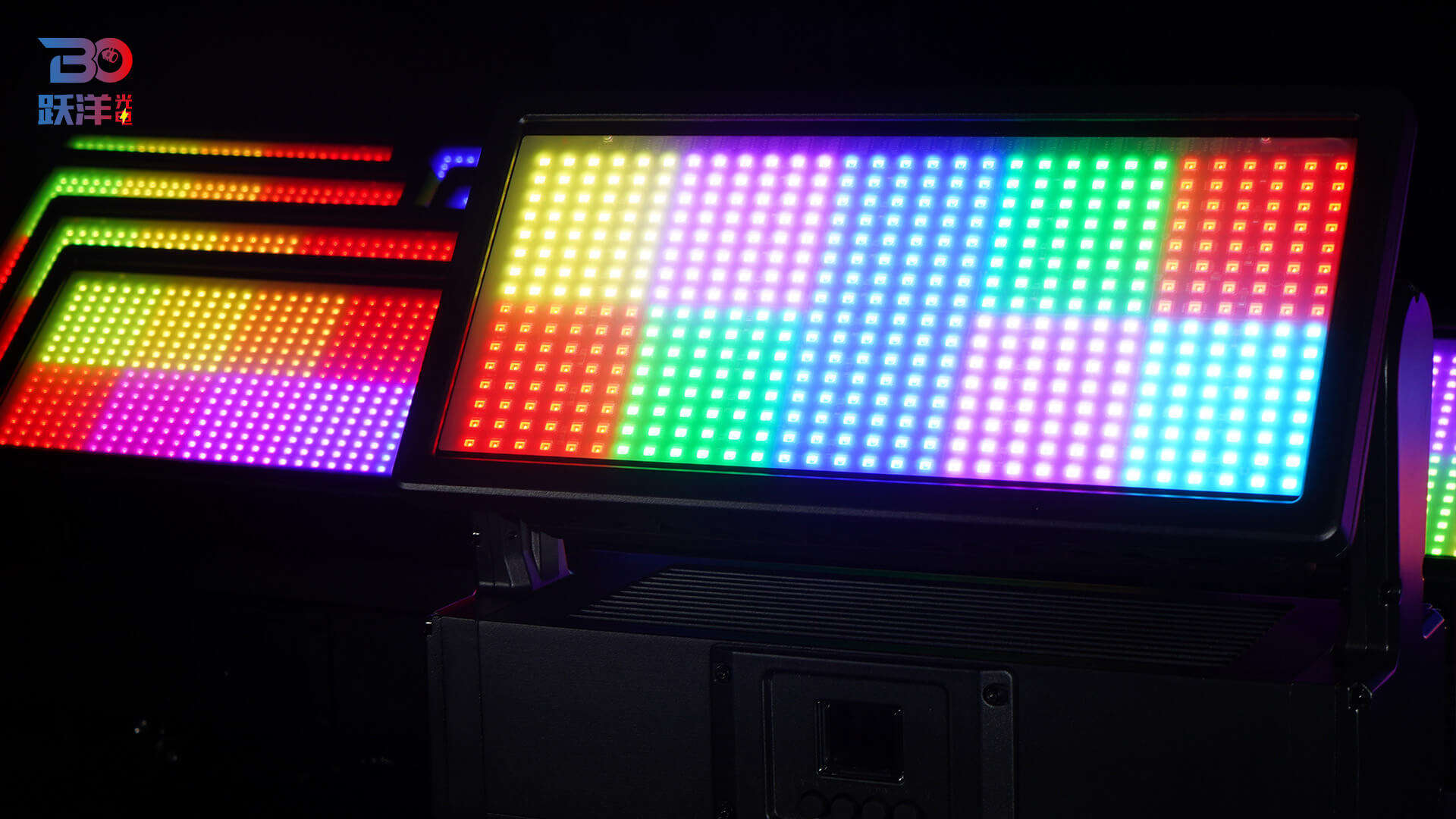

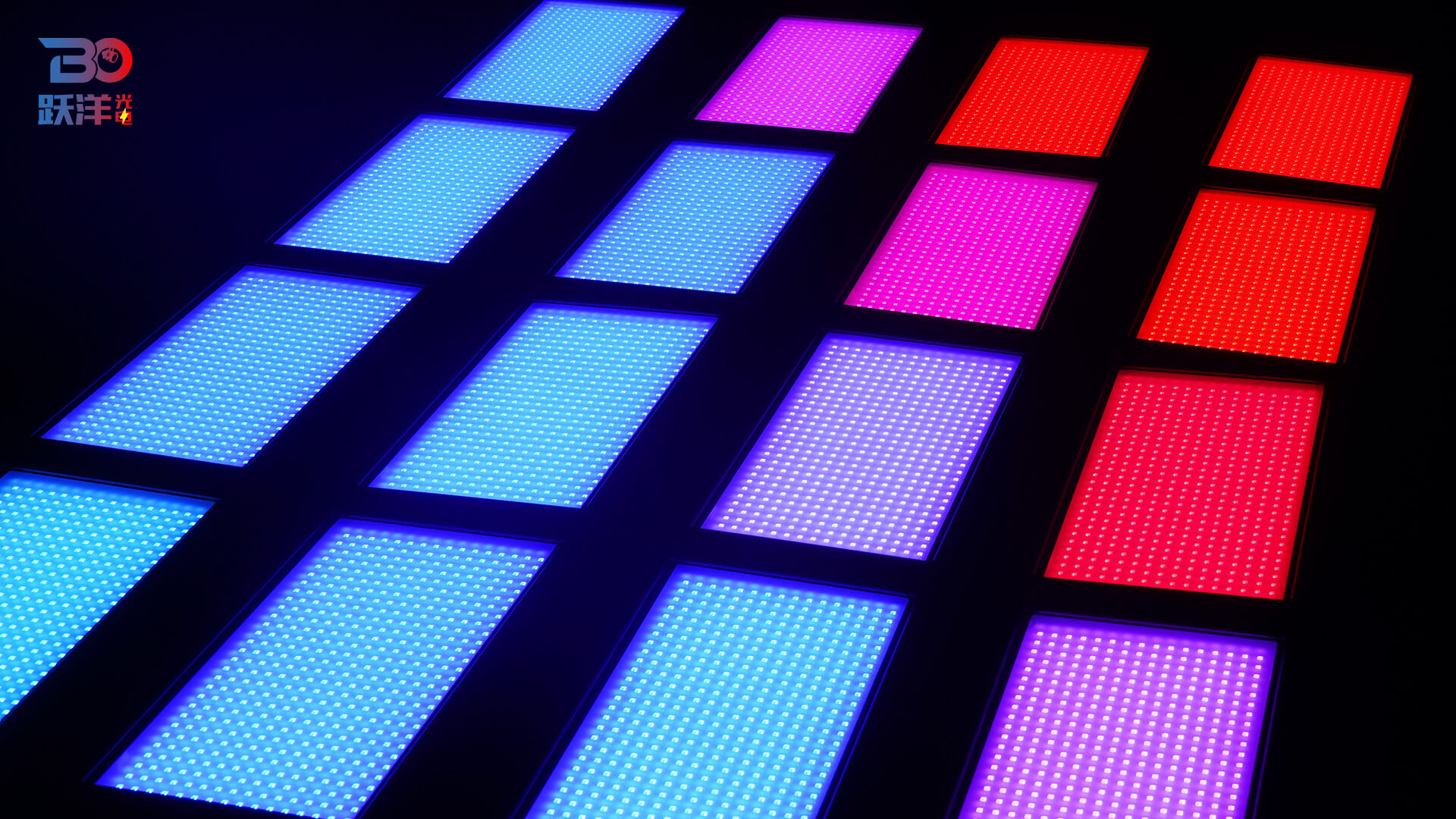

10-segment control, preset color macros;
Preset effect macros(WASH, segment control, strobe)
