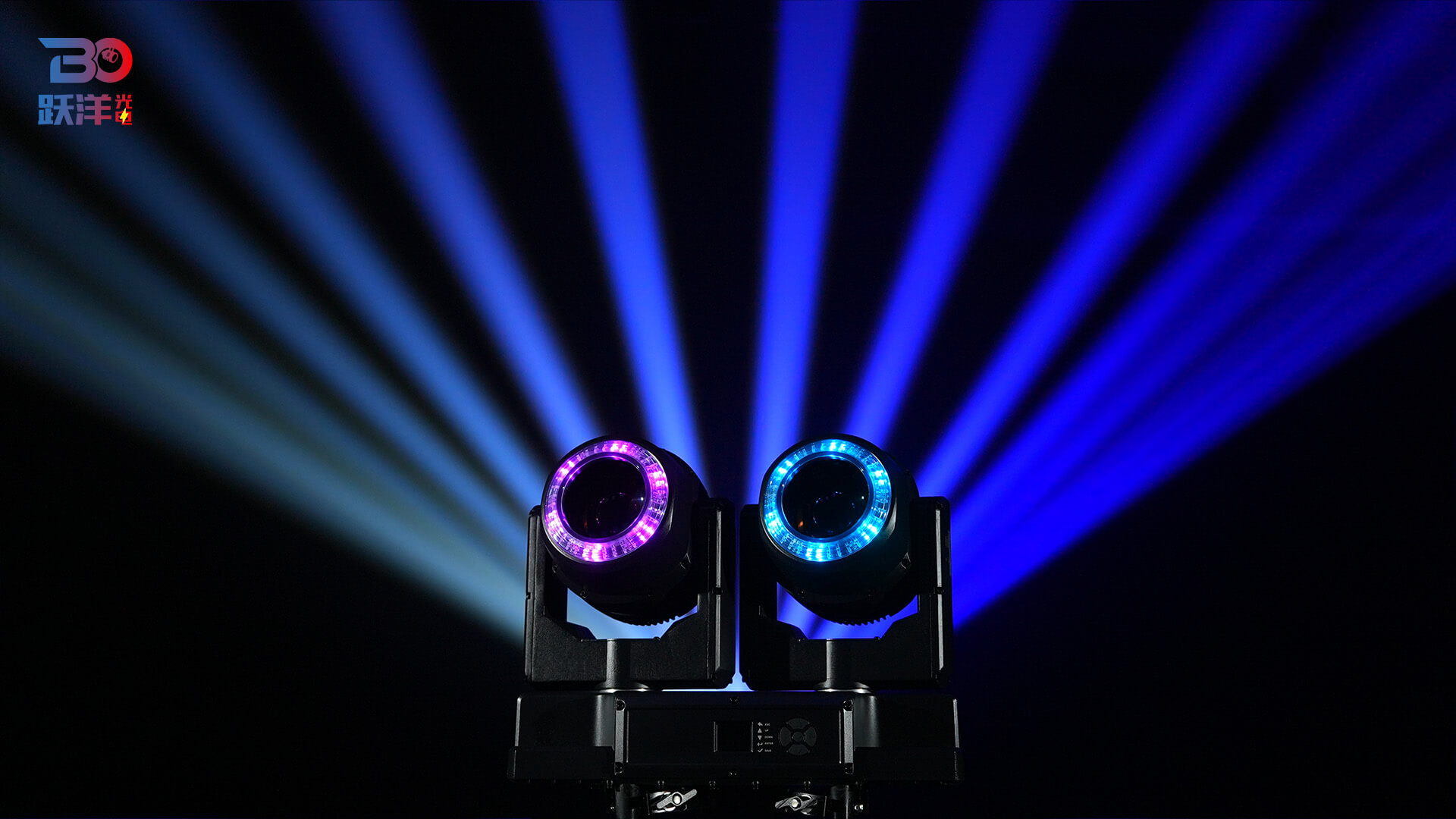

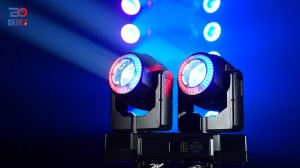

IP66 2x260W Double Head Splicable Moving Light

Short Description:

“Small Footprint, Massive Impact: The IP66 Dual 260W Workhorse”

Engineered for the fast-paced world of touring, this compact powerhouse delivers elite performance without the bulk. By pairing dual high-intensity 260W RGBW engines with a mesmerizing 72-LED Aura matrix, it creates a multi-layered visual signature that defines the modern stage. From a sharp 2.3° piercing beam to a saturated 17° wash, its agile motorized zoom adapts instantly to any lighting plot. Encased in a battle-ready IP66-rated chassis and weighing only 14.5KG, it offers the perfect balance of rapid deployment and total weather reliability. With Linear CTO and 16-bit dimming, it brings high-end studio precision to the most demanding outdoor festivals.

Brand: Beyond

Model: 200IP

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86-13922297736

Send email to us Product Manual

Product Detail

200IP Parameter

Power: AC100-240V, 50/60Hz;

Power Consumption: 600W;

Light Source: 2x260W RGBW LED, 2x36x0.5W RGB LED;

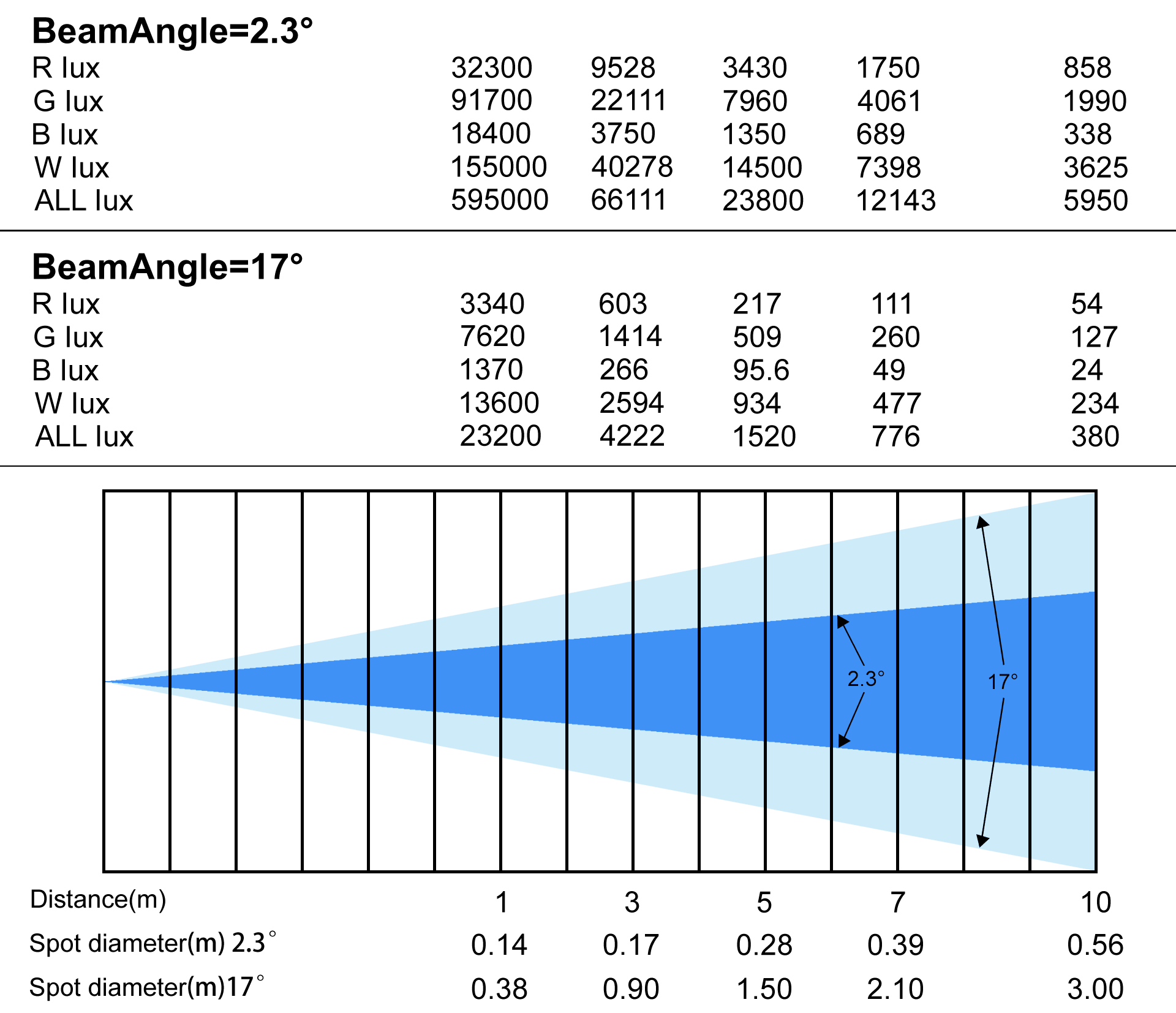

Beam Angle: 2.3°-17°;

Movement:
Pan: 540°;
Tilt: 250°;
Accuracy: 16-bit;
Correction: Automatic position correction after step loss;

Control:
Channel Mode: 22/43/47/51/57CH, 23+14CH(DMX+Art Net);
Protocol: DMX512 / RDM / Art-Net(optional) / sACN(optional);
Software Upgrade: Supports firmware update via DMX;

Structure:
Display: Reversible 1.8-inch TFT;
Data Connector: 3-pin XLR socket(5-pin optional) / RJ45 optional;
Power Connector: PowerCON in/ out, 16A in/ out(optional)

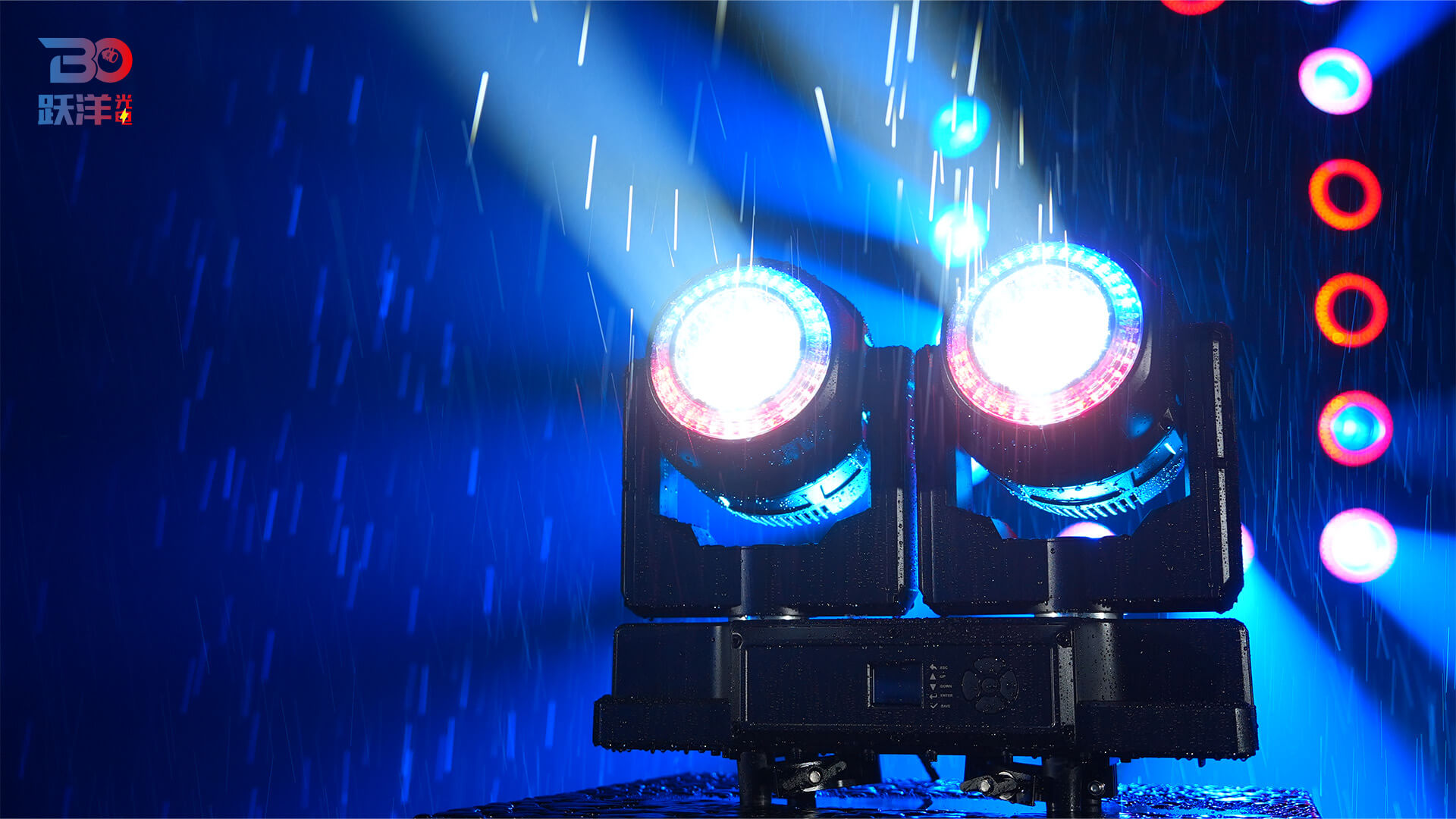

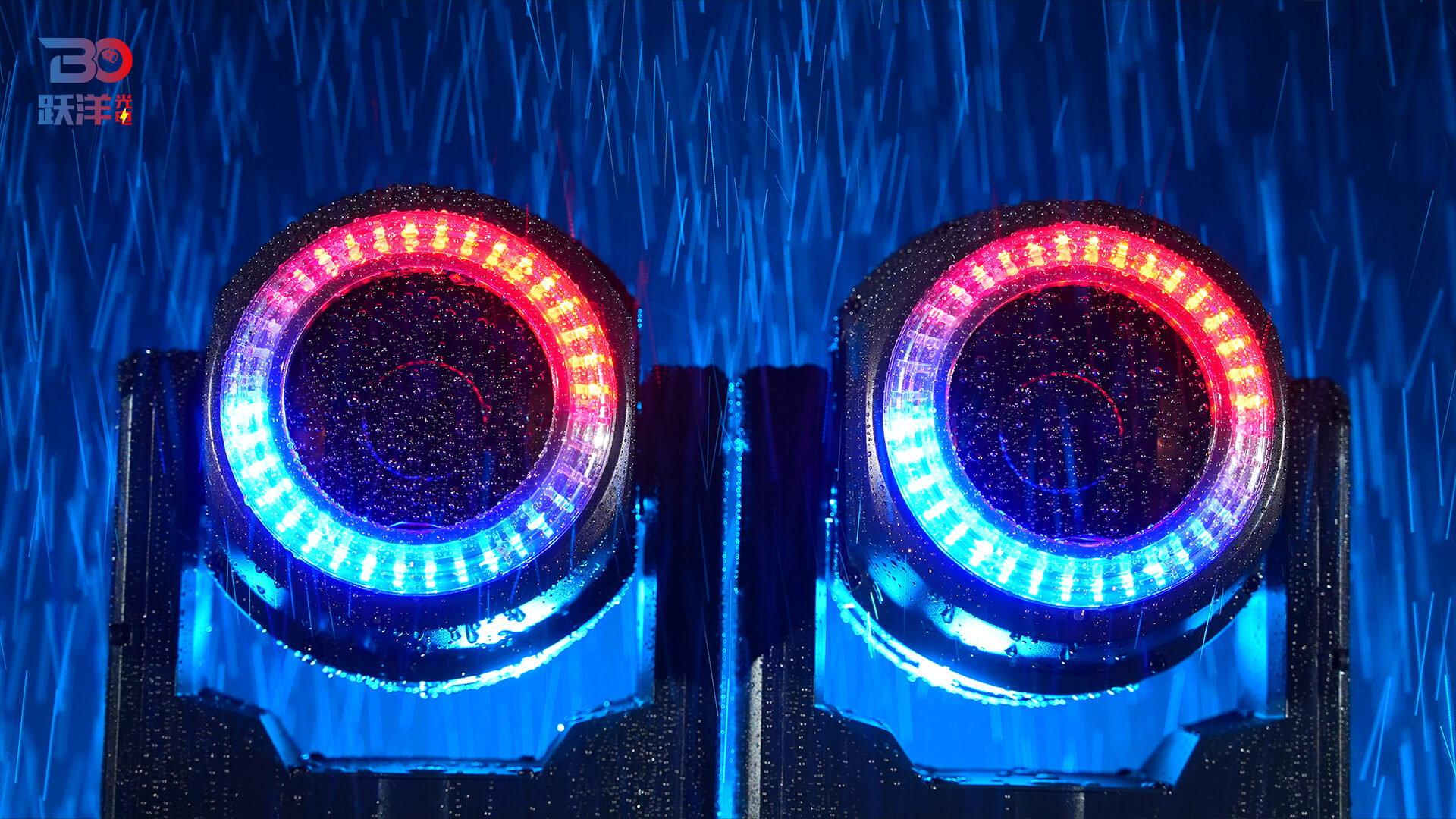

Protection Rate: IP66

Features:

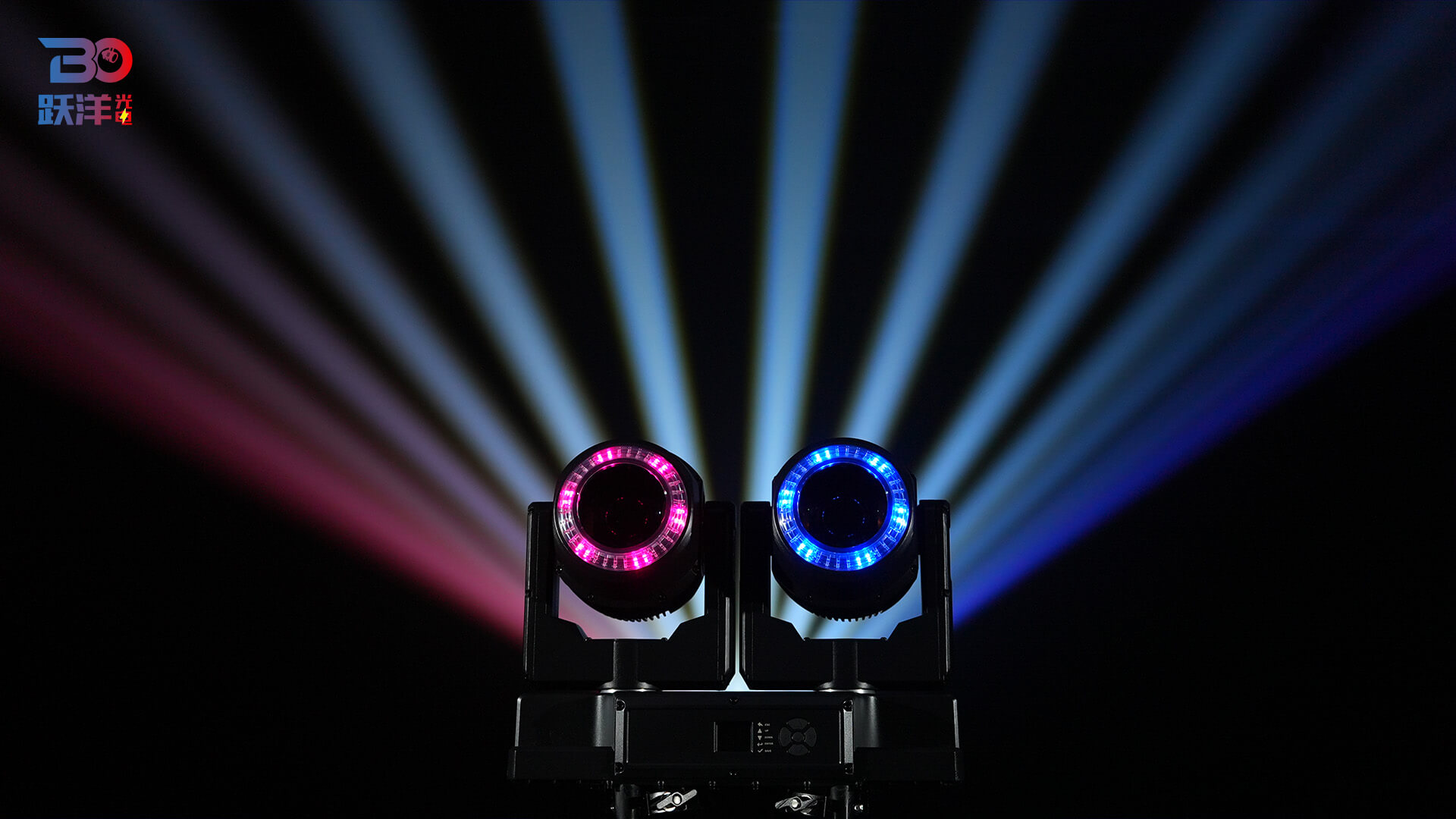

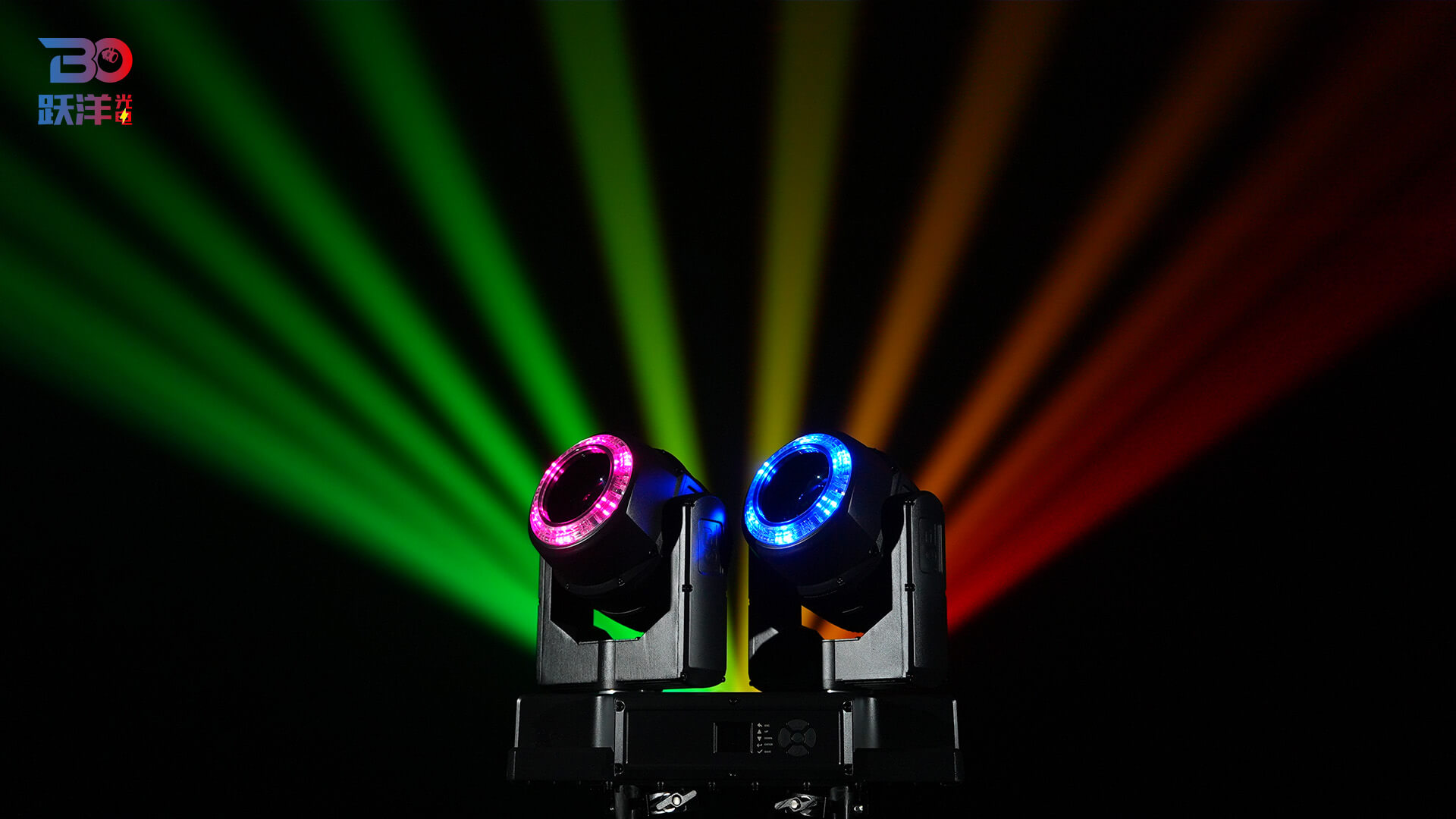

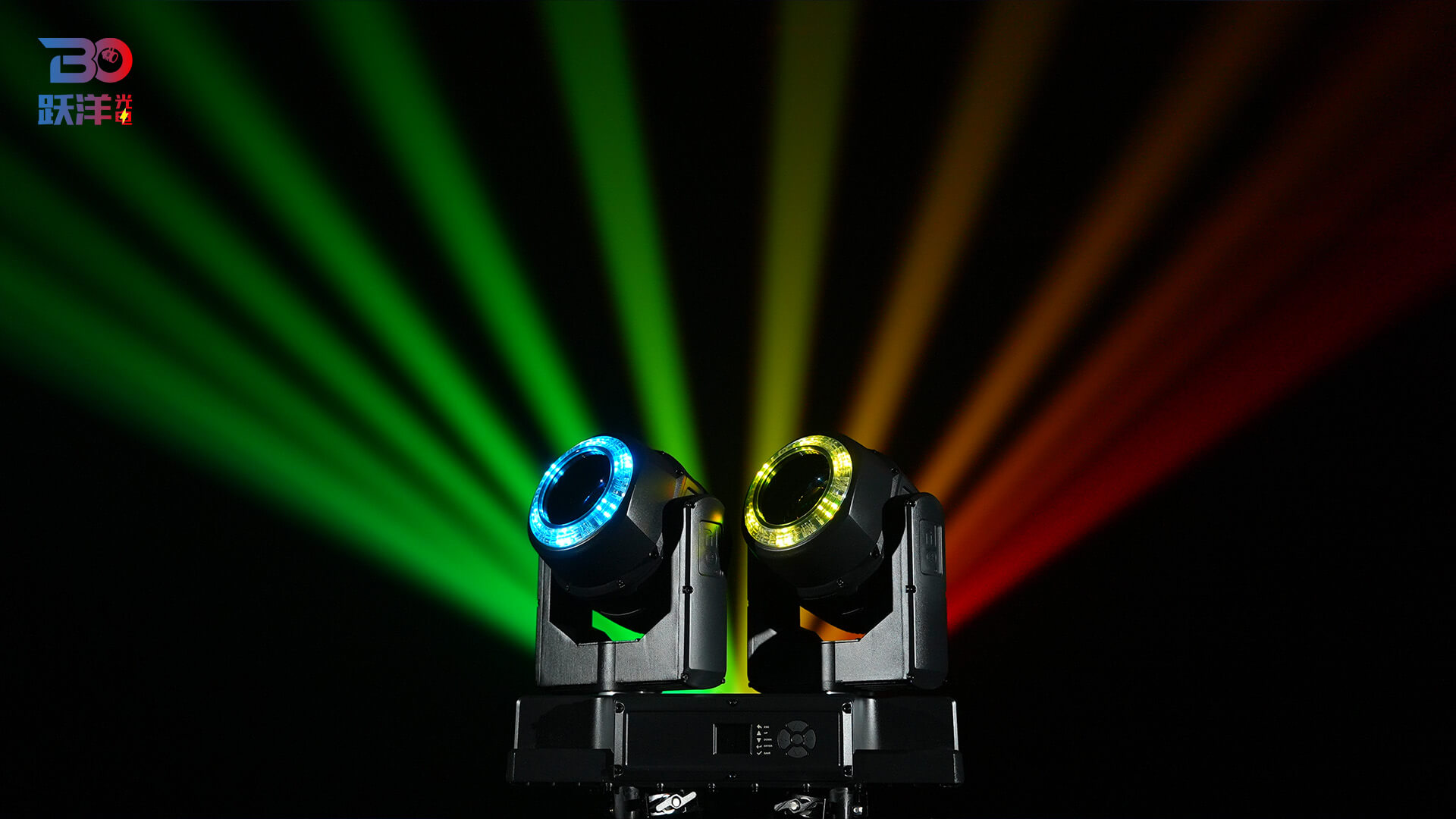

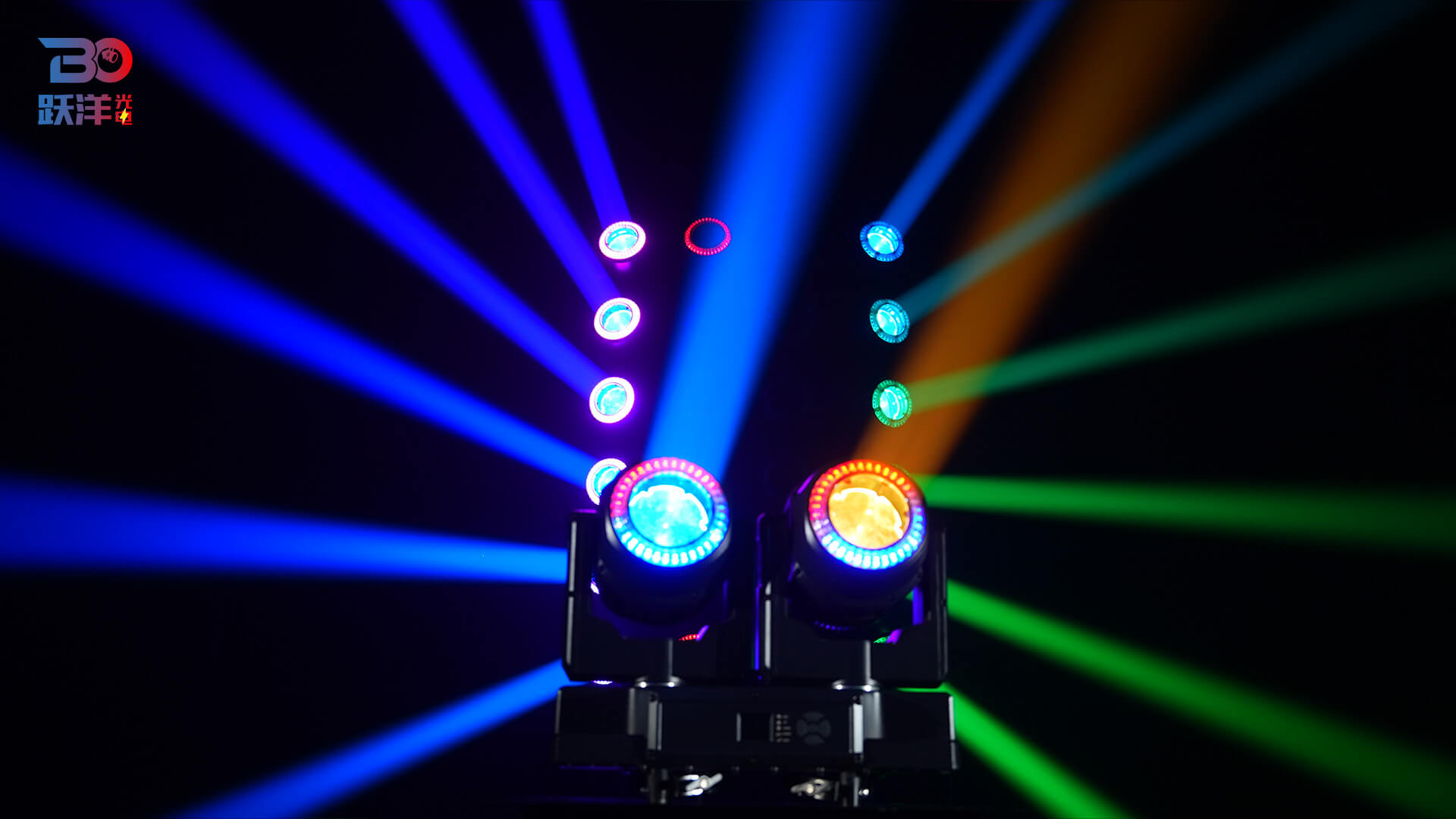

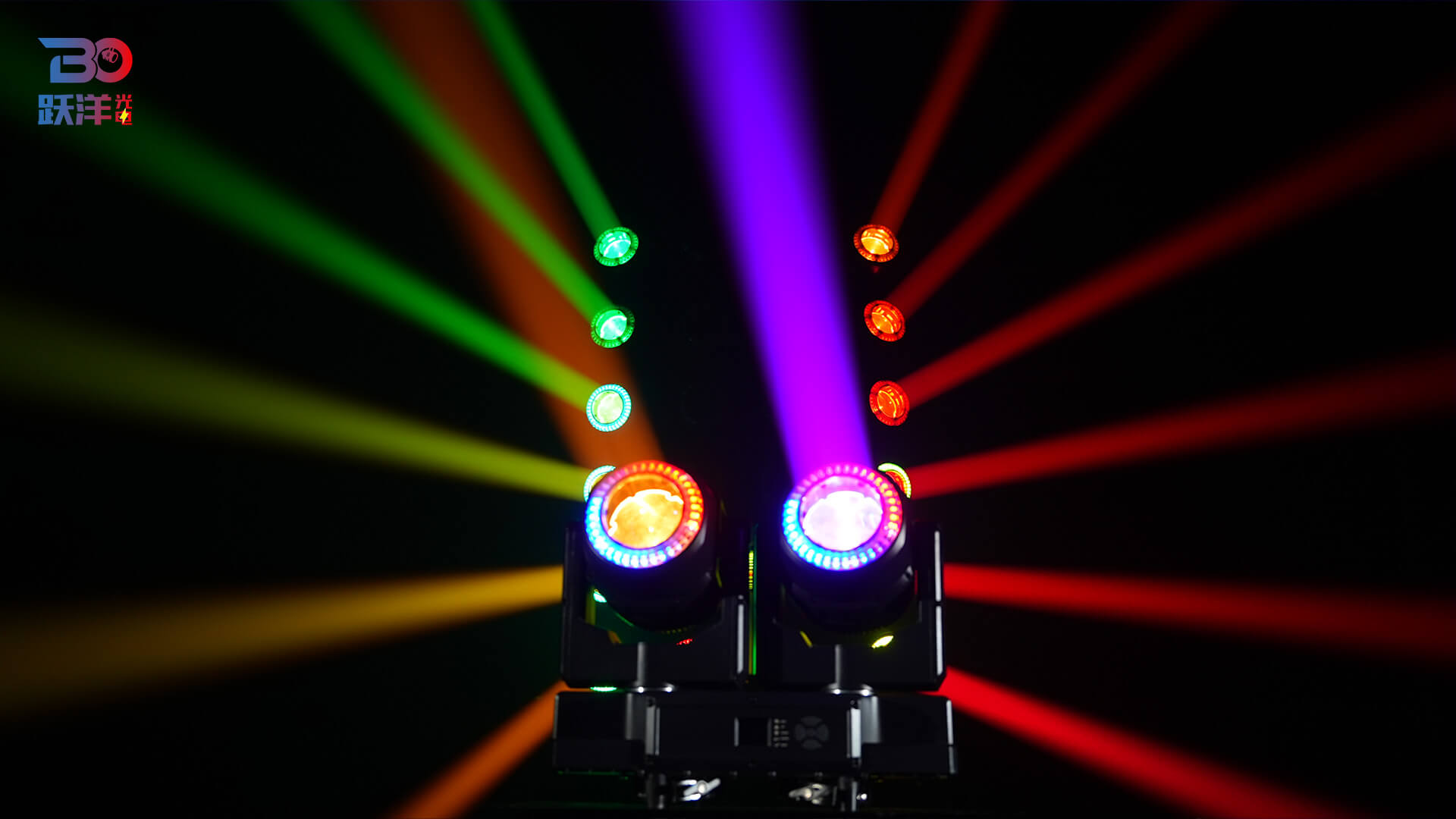

2 independent main light heads;

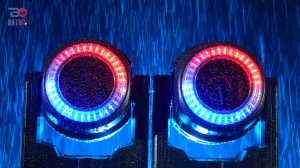

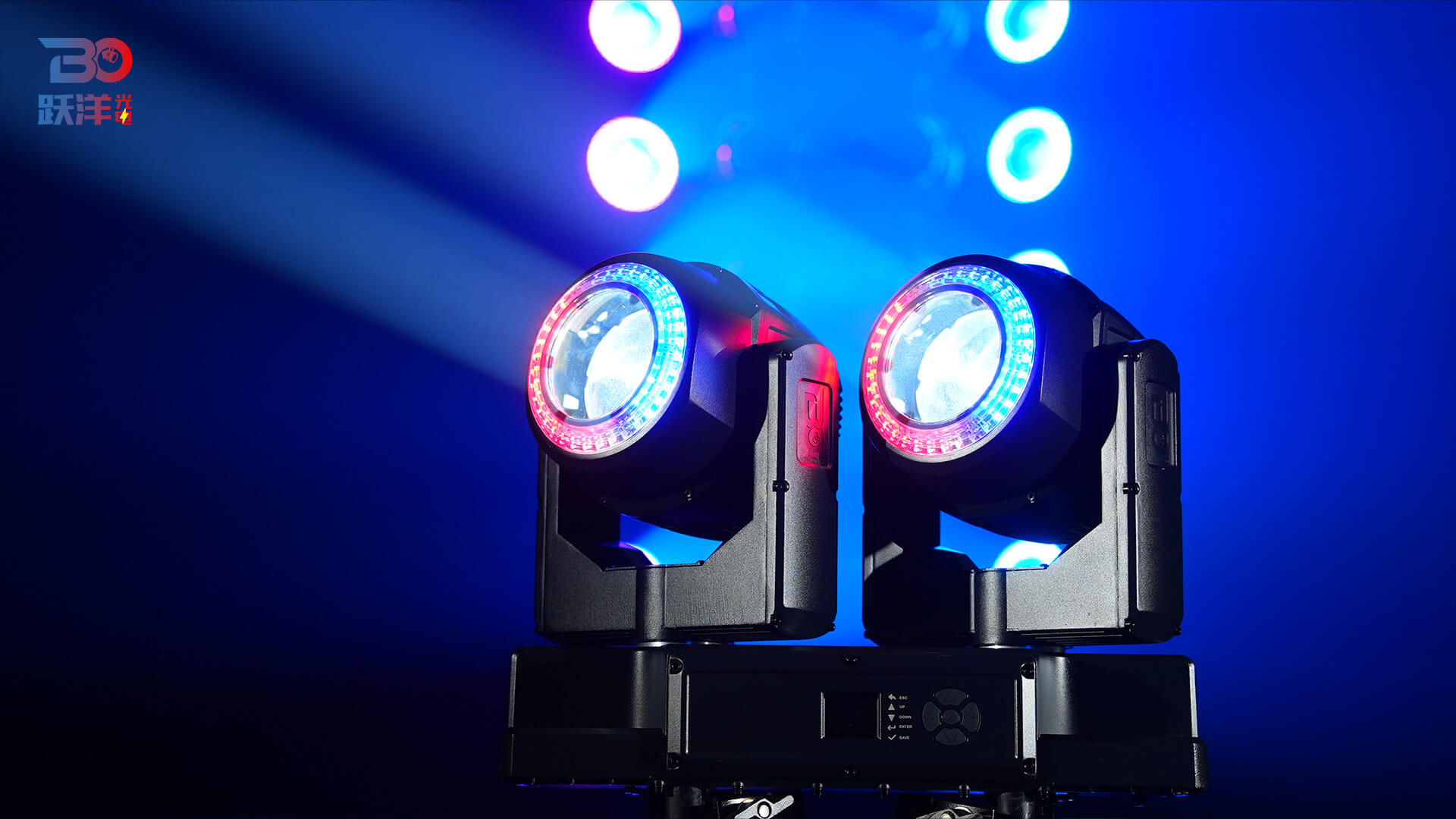

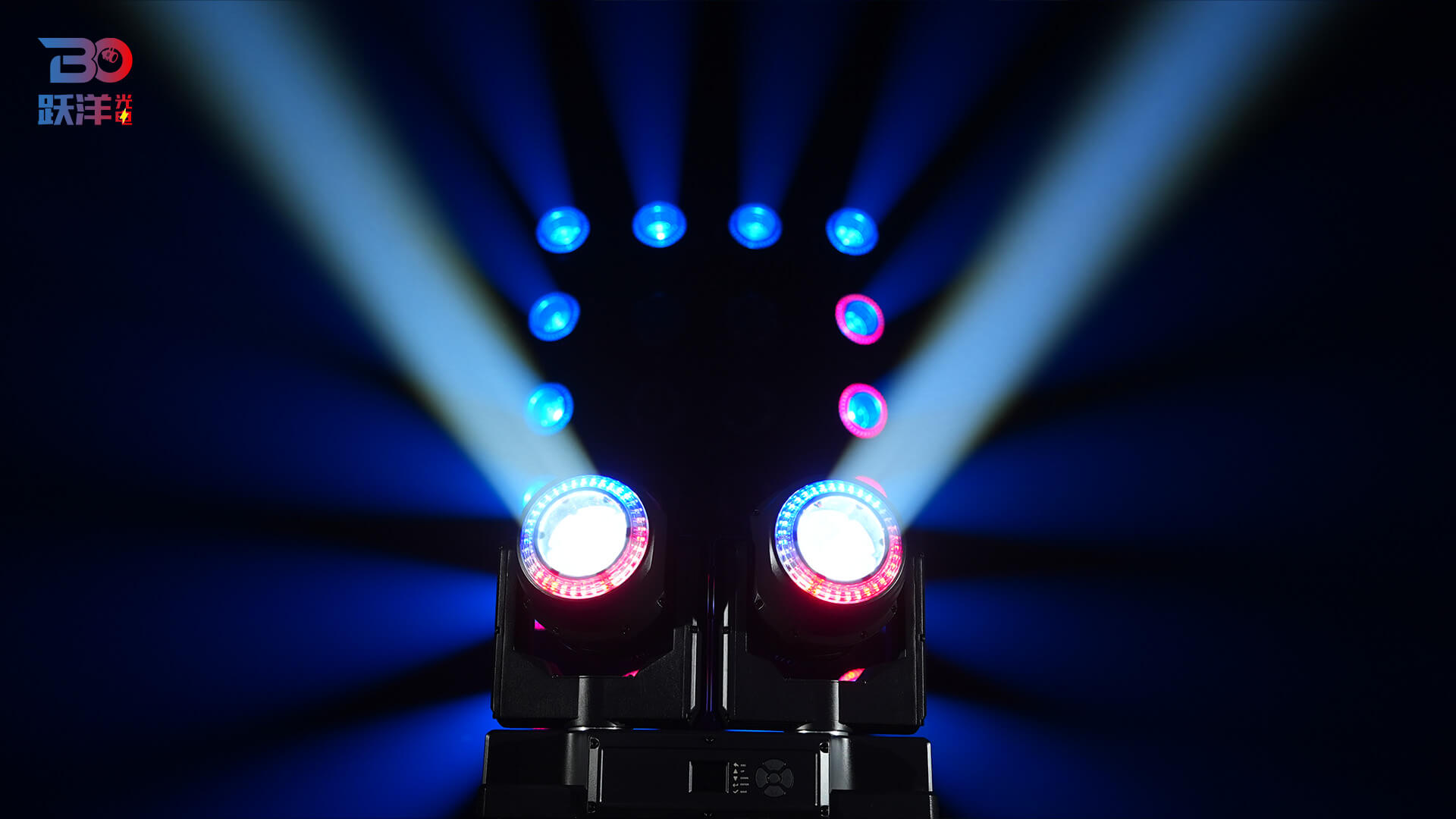

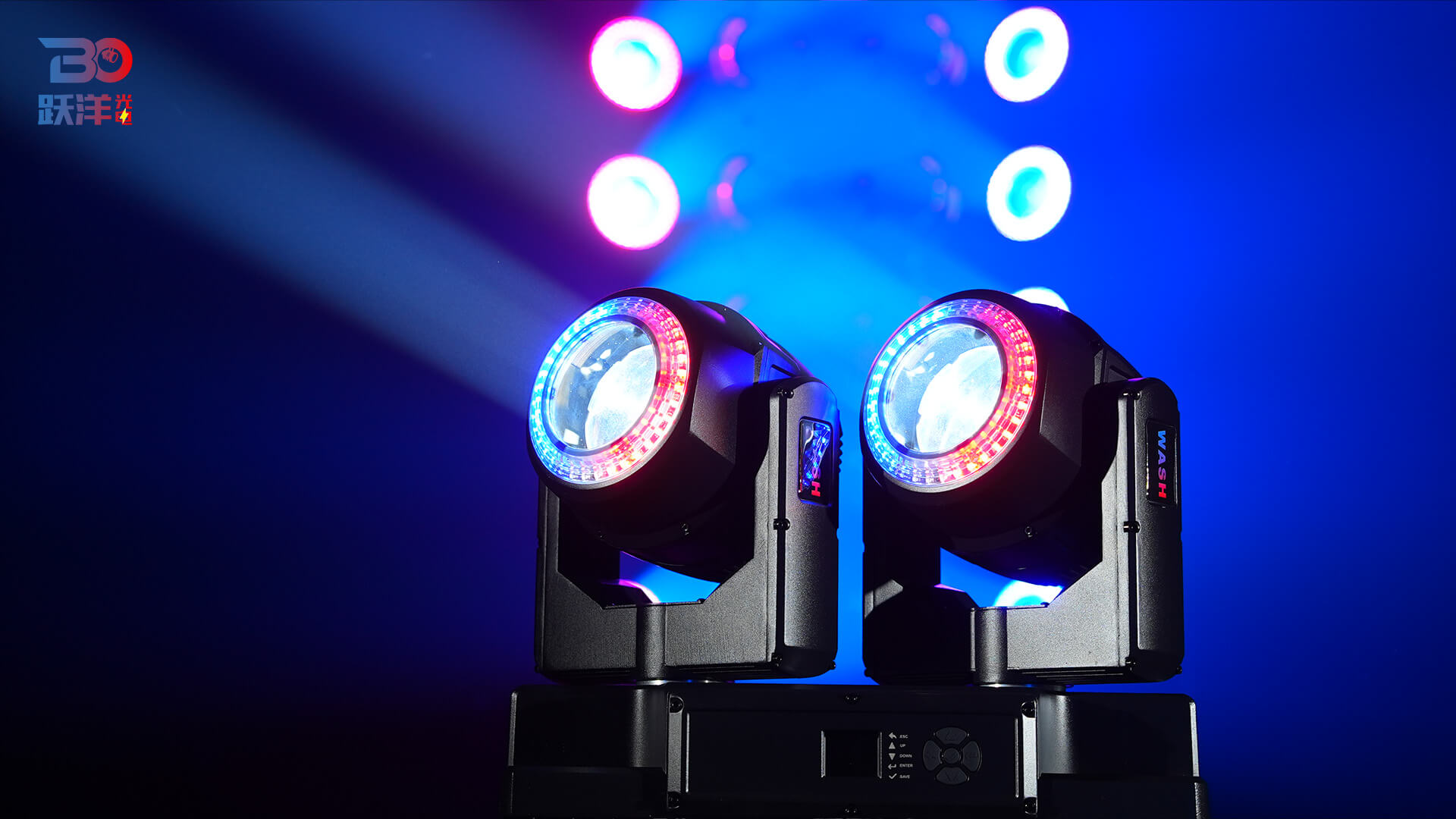

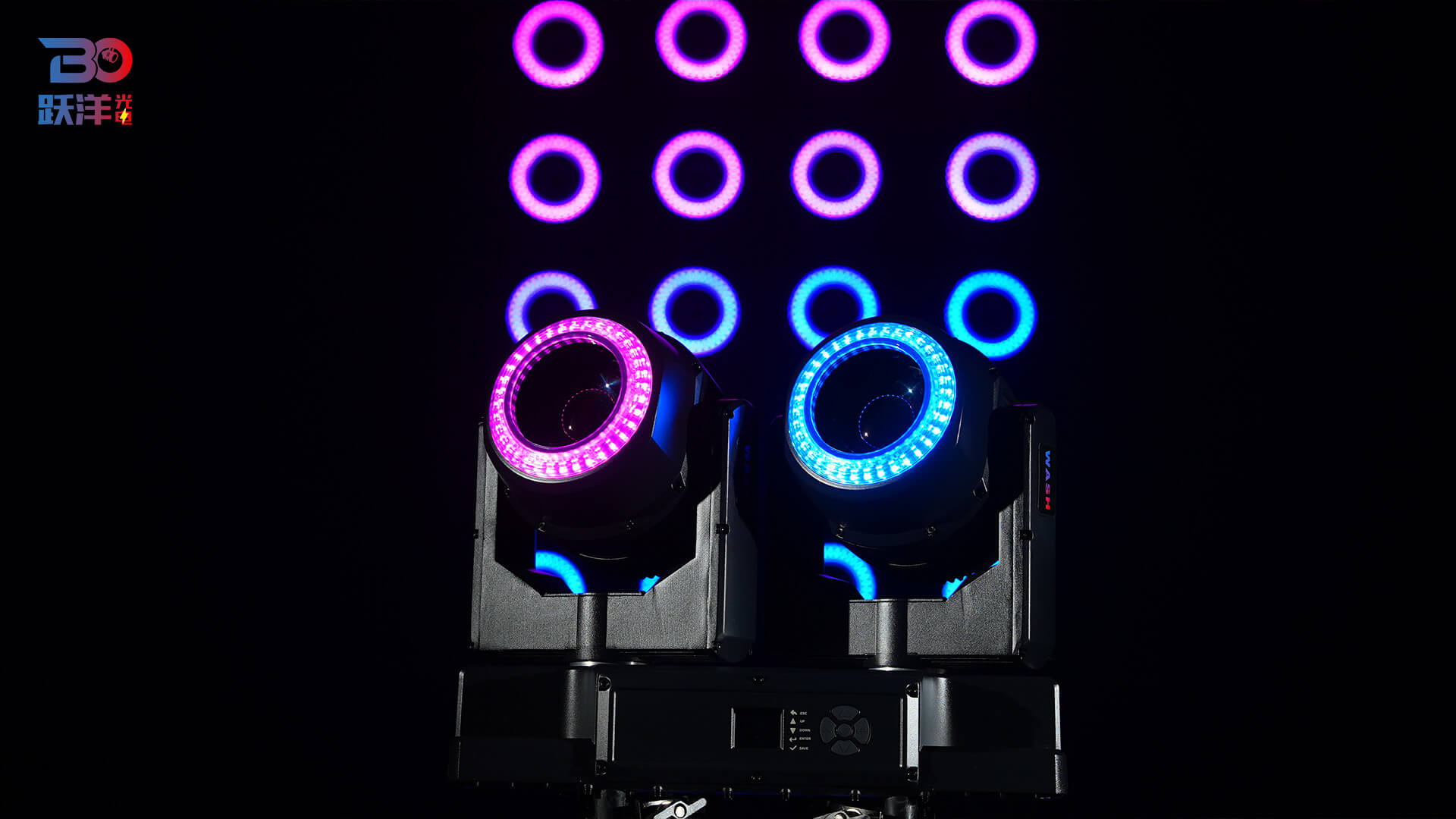

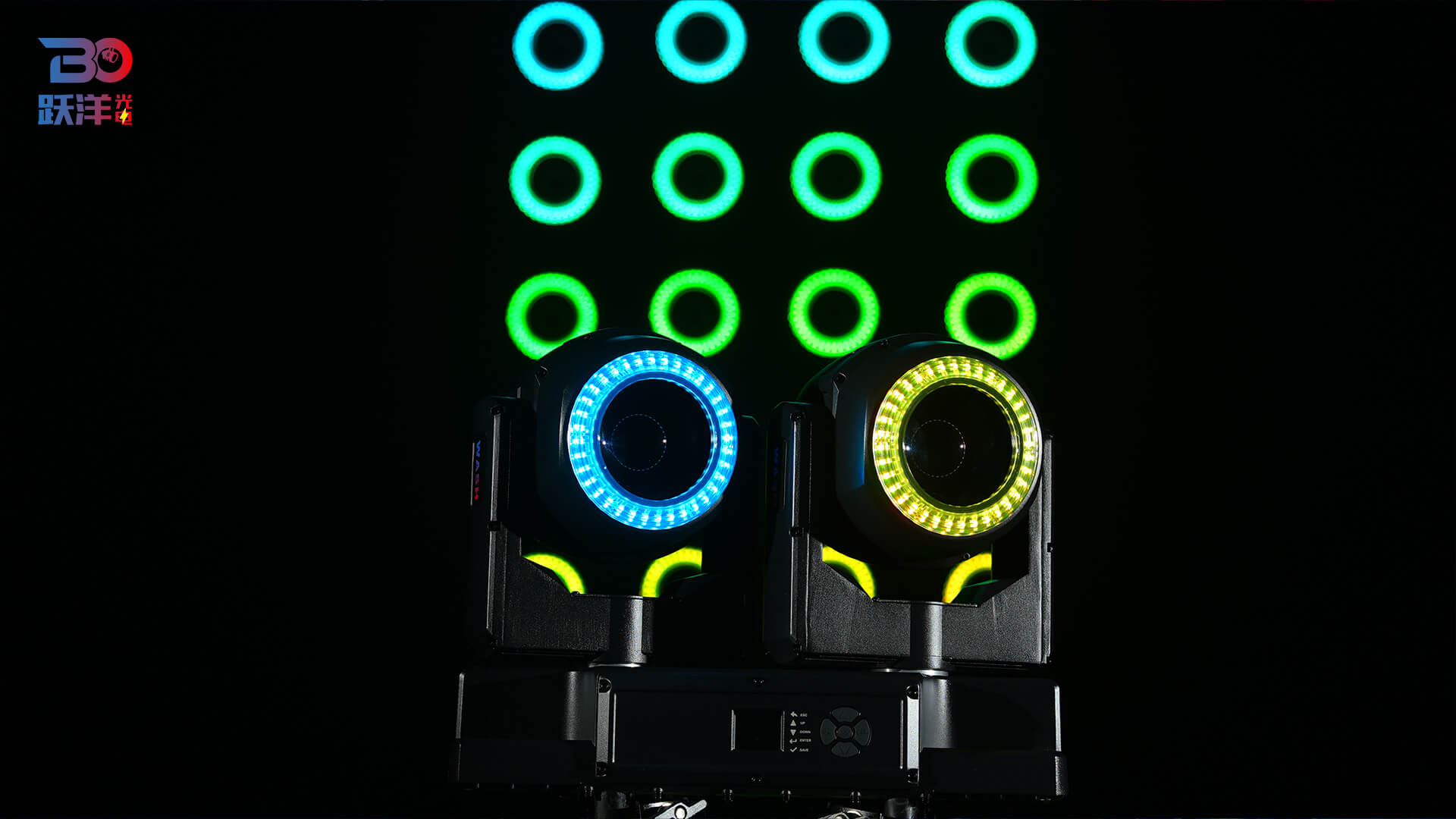

36 RGB LEDs around each head ring;
Smooth 0–100% dimming with various strobe effects at different speeds;
4 dimming curves;
Linear CTO color temperature adjustment from 2300K to 10000K;
Excellent color macro effects;
Motorized zoom system;
Temperature sensor detection with intelligent light source power adjustment and smart fan speed control.

Environment Temperature: operates in ambient temperatures from -10°C to 40°C.

Installation: Can be inverted suspended, horizontally mounted on truss, or placed on a flat horizontal surface. Always use and install a safety cable as a safety precaution.

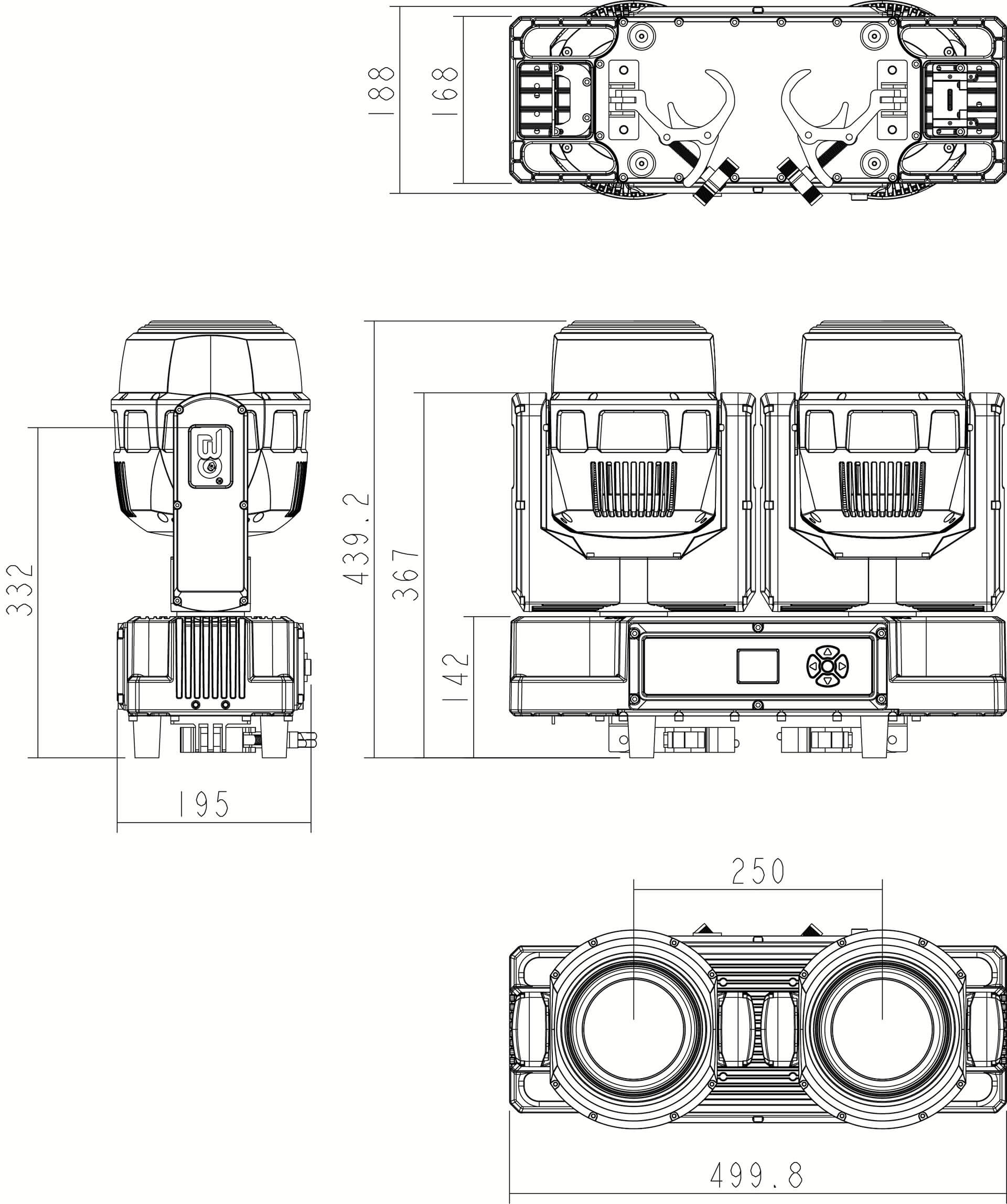

Dimension: 499.8*188*439.2mm;

NET Weight: 14.5KG;
