IP66 1500W Full Spectral LED Moving Profile

Power: AC100-240V,50/60HZ

Power Consumption: 1500W

Light Source: 1200W LED Module

Color Temperature: 7500K± 300K

CRI: Ra ≥ 93

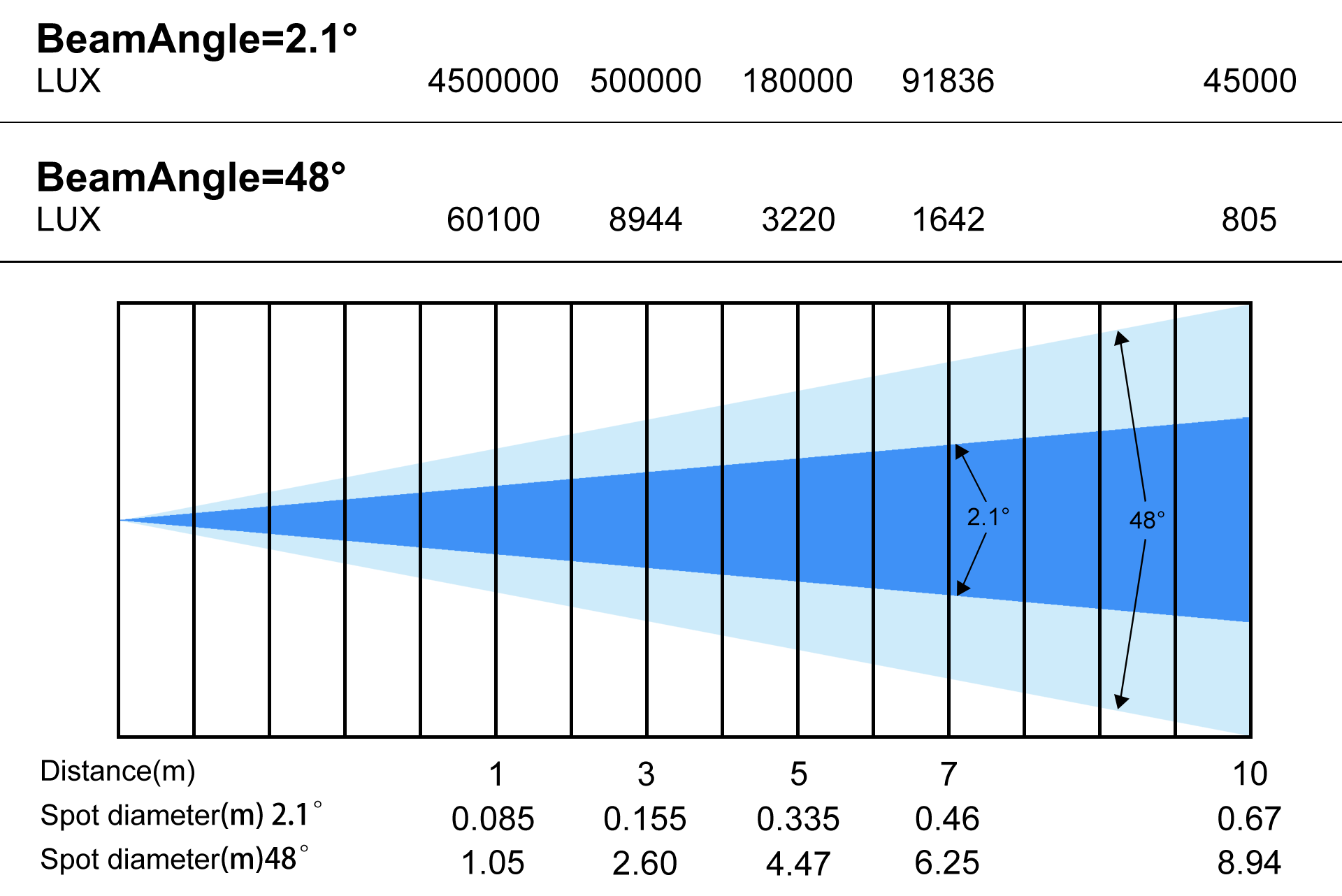

Zoom Range: 2.1° – 48°

Color Wheel: 6+ white

Gobo Wheel

• Static: 6+ CRI+ open
• Rotating: 7+ open

Movement

• Pan: 540°
• Tilt: 270°
• Accuracy: 16-bit
• Correction: Automatic position correction after step loss
• Lock: Pan/Tilt Lock

Control

• DMX Mode: 35/ 39/ 53CH
• Control Protocol: DMX512 / RDM / Art-Net optional / sACN optional / WirelessDMX optional
• Software Upgrade: Supports firmware update via DMX

Structure

• Display: 2.8-inch TFT
• Data in/ Out: 3-pin/ 5-pin XLR sockets / RJ45 optional
• Power Socket: PowerCON in/Out; built-in power cable optional; 16A connector optional

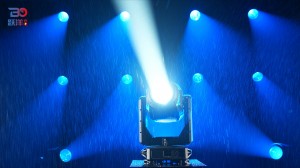

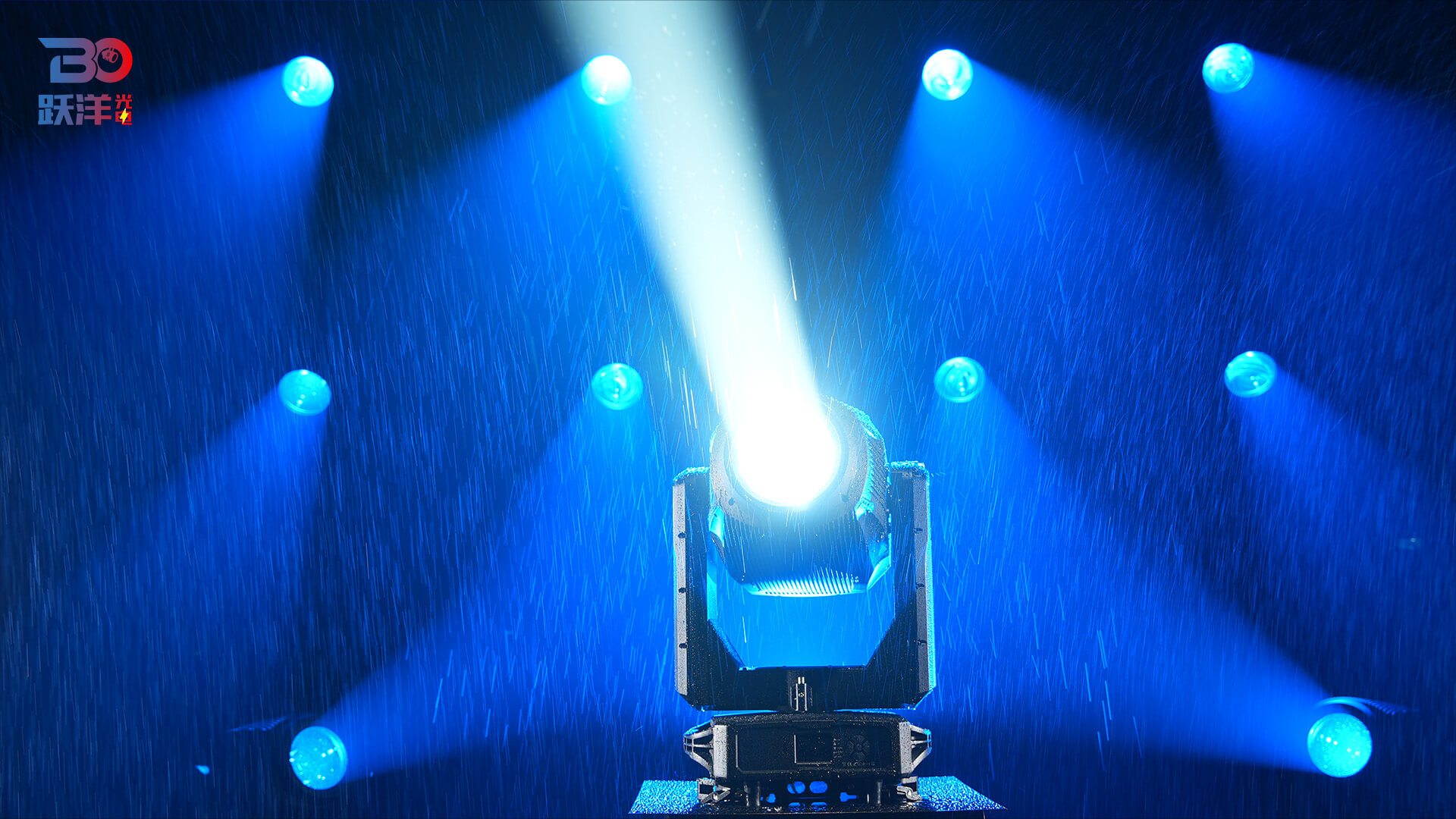

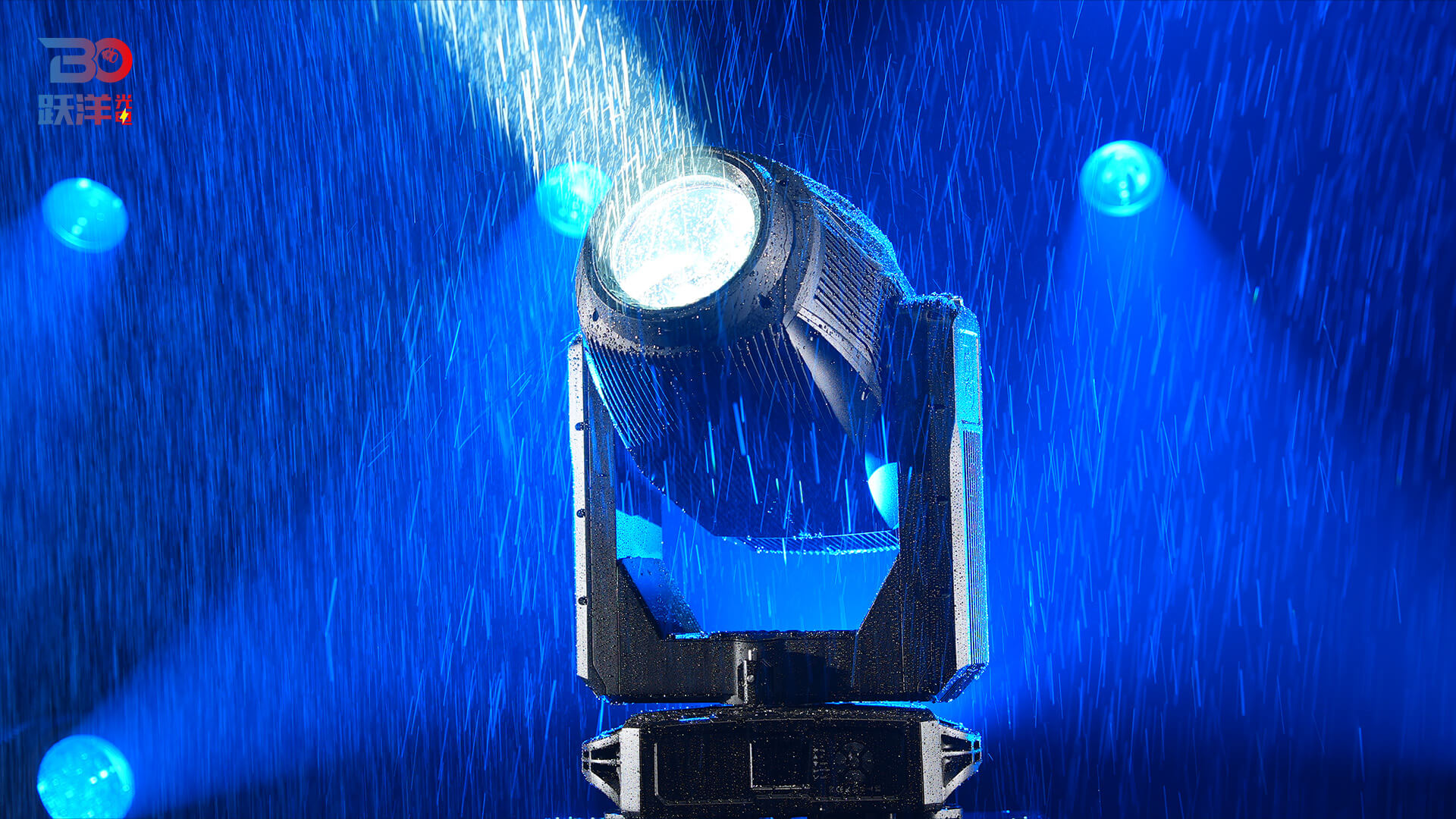

• IP Rated: IP 66

Features

• 0–100% smooth dimming with variable-speed strobe effects
• Linear CMY color mixing system and linear CTO correction(2700K–7000K)
• Switchable High Output / High CRI mode, CRI Ra ≥ 93
• 1 effect wheel with impressive water wave effects
• Mechanical linear iris
• 1 rotating 4-facet prism and 1 rotating linear 4-facet prism, both bi-directionally rotatable
• Dual high-transmission frost filters (Light Frost & Medium Frost) with linear insertion for smooth diffusion and enhanced brightness in frost mode
• Motorized zoom system
• Electronic linear focus system
• 4-blade framing system with independent position and angle control for each shutter
• Equipped with 2 folding clamps for 40–60mm truss installation

Working Temperature: -20℃ to 45℃.

Installation: Can be inverted, suspended, or placed on a flat horizontal surface.  Always use and install a safety cable as a safety precaution

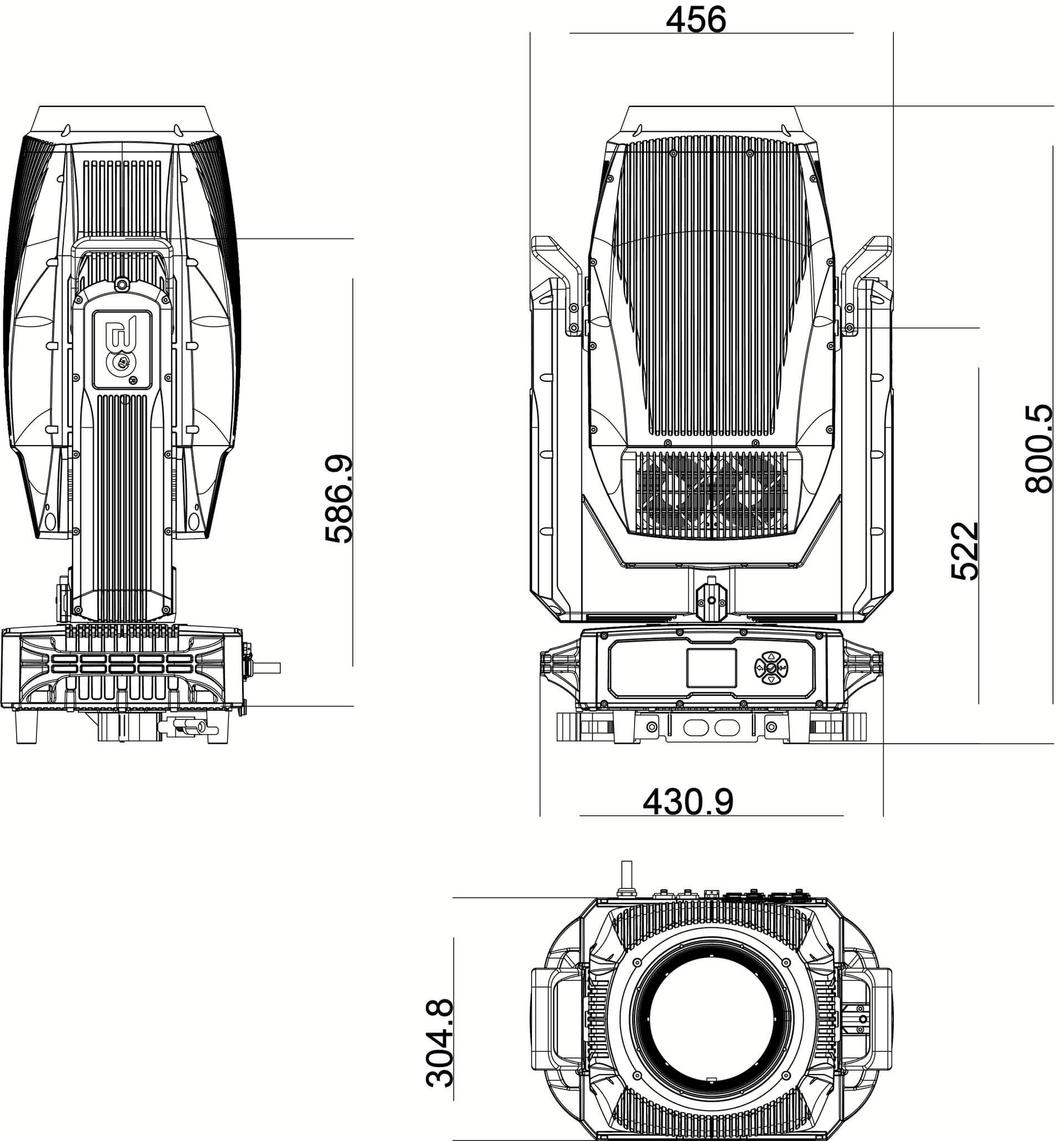

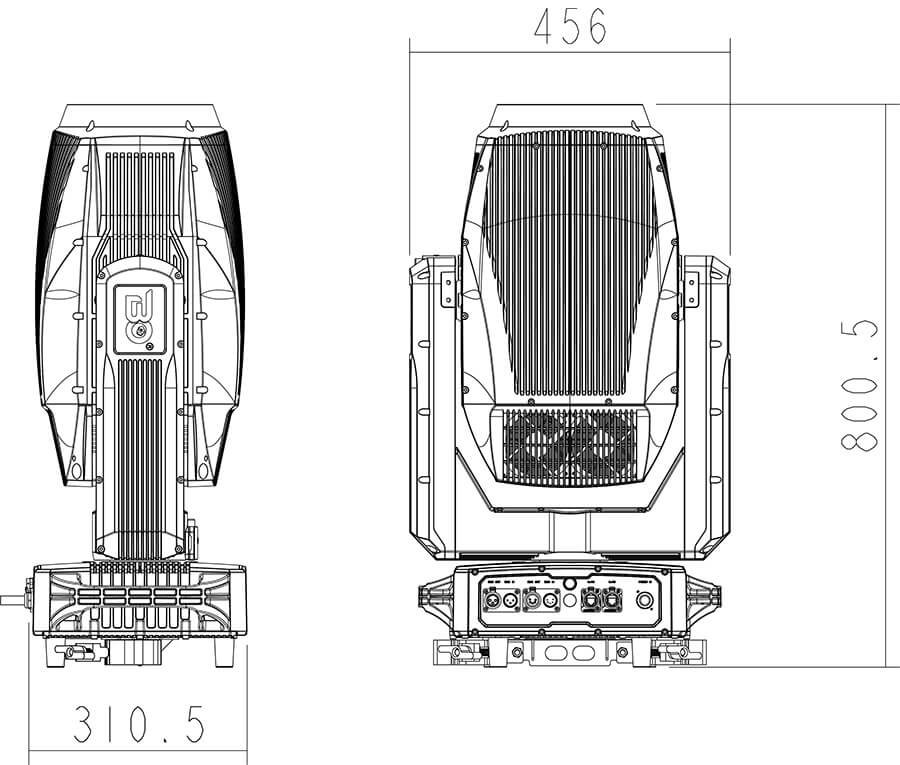

Dimension: 430.9*456*800.5mm

Weight: N.W. 42KG
