Beyond Phantom IP65 580W Pro Strobe Bar

Short Description:

Comprehensive dimming capabilities with 256 levels of precision;
Rapid strobe options from 1 to 25Hz;
576*1W LEDs divided into 12 segments, 96*10W LEDs also in 12 segments, and 6*40W LEDs with individual control;
Includes various preset color macro functions;
Features multiple preset effect macros (WASH, pixel control, segment control, strobe).

Brand: Beyond

Model: S1400

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

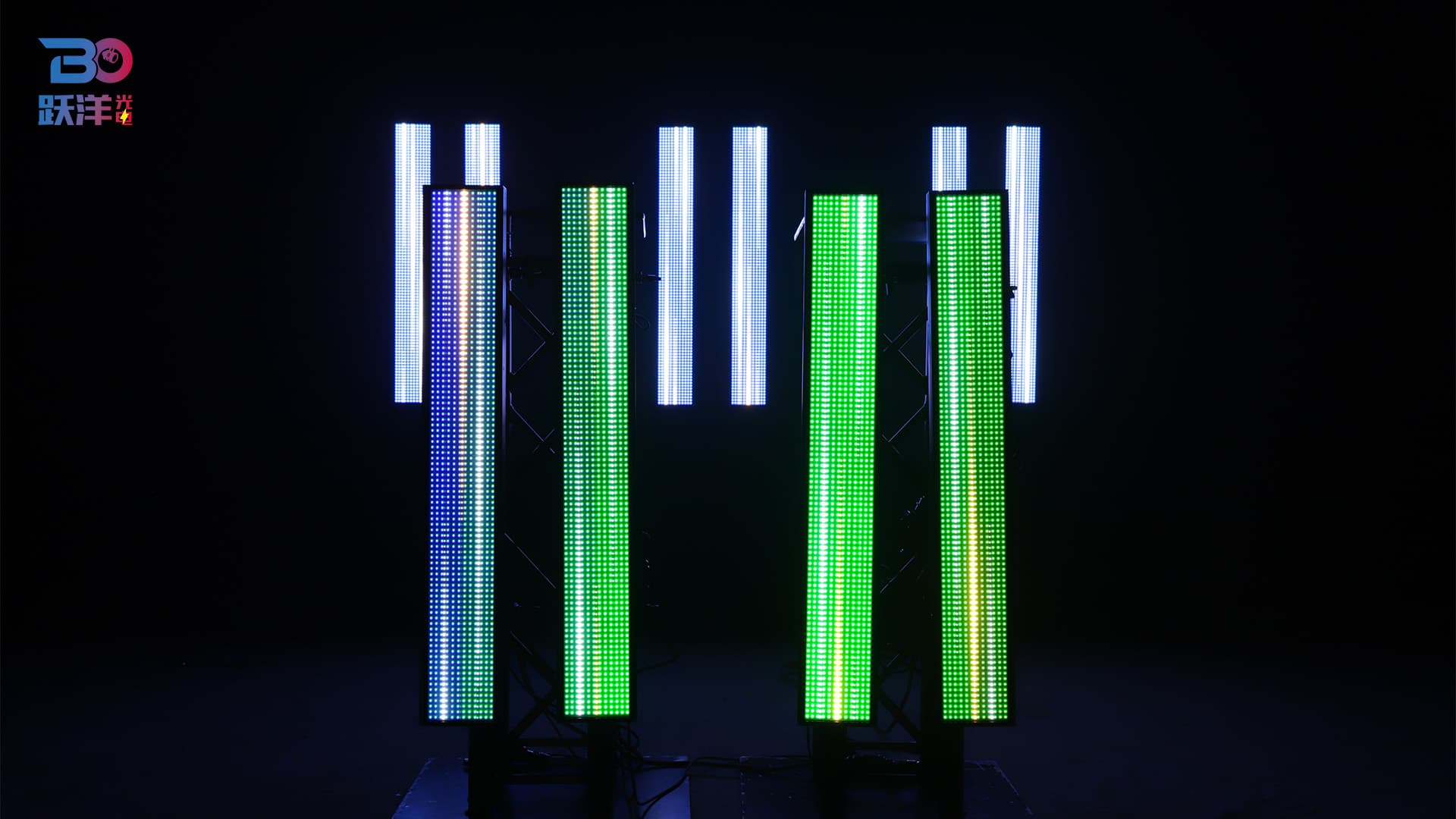

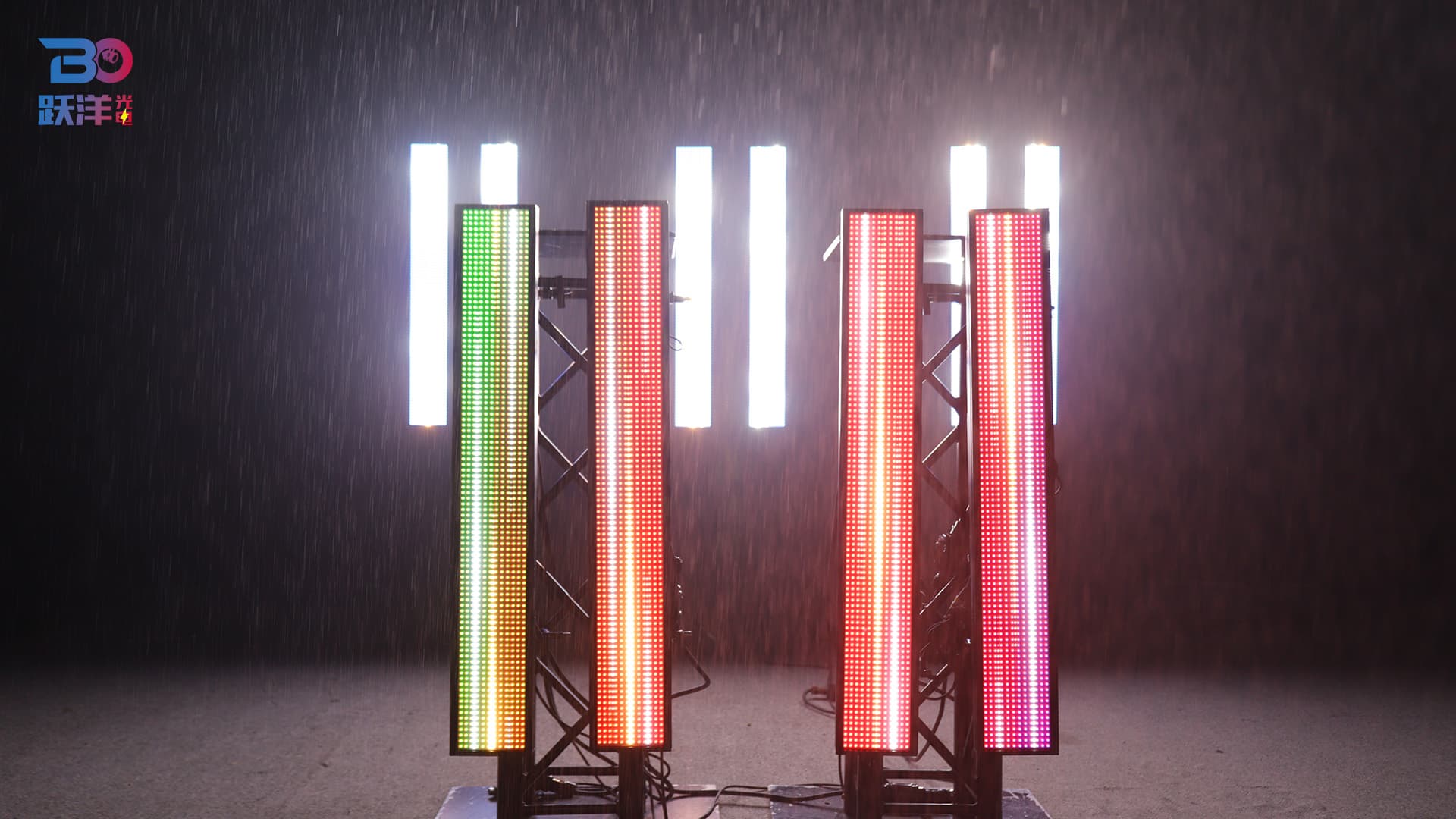

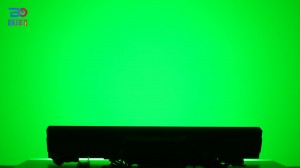

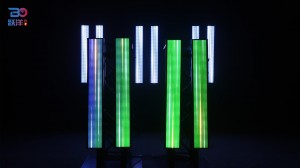

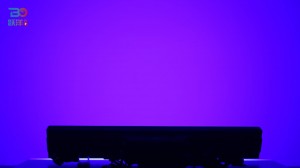

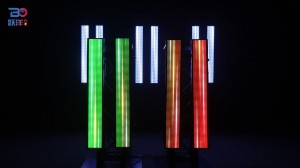

Beyond S1400 Phantom IP65 580W Pro Strobe Bar

S1400 Technical & Specification

Light Source: 1152*1W RGBW LED+192*3 W White LED + 96*3W Amber LED ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 580W, Power factor PF≥0.95; MAX Power 680W;

Beam Angle: Flat angle 120°; electronic atomized glass lens

Control Modes: DMX 512/ Master-Slave/ Auto Run/ Music/ RDM/ Artnet

DMX Channel: Master control mode： 9/17/27/36,

Pixel mode: 26/50/101/104/57/177/182,

DMX+Artnet pixel mode: 2+24/2+48/2+96/5+96/8+96/13+44/6+176/1+176

Protection Rating: IP65

Display: TFT 1.8-inch color display; Chinese and English languages can be switched at will, and the font can be reversed 180°

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: Die-cast aluminum

MAX. Connection: 9units（230V, 50Hz） 2.5mm² power cable; 4 units（100V,60Hz） 2.5mm² power cable

Dimension: 997mm*148mm*156mm

Net Weight: 11kg

Carton Package: 1085mm*250mm*250mm 1in1 GW: 14.8kg

Flight Case: 1070mm*740mm*555mm 8in1 GW: 127.6kg

Features: Full light range dimming, 256-level dimming accuracy; fast strobe 1~25Hz; 1152 1W divided into 32 segments, 192 3W divided into 32 segments, 96 3W divided into 16 segments; preset multiple color macro functions; preset multiple effect (dyeing, pattern, segment control, strobe) macro functions;

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
