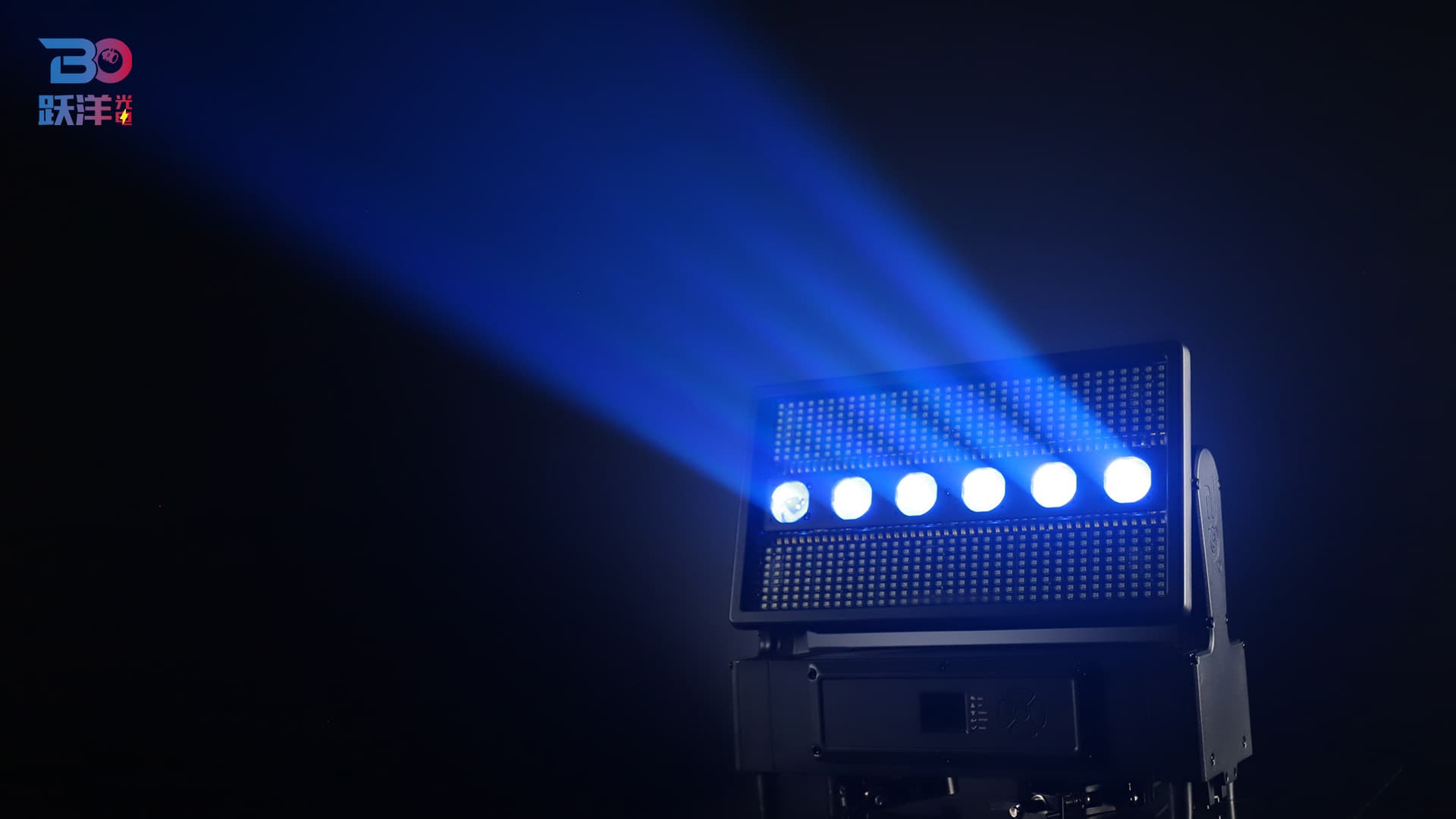

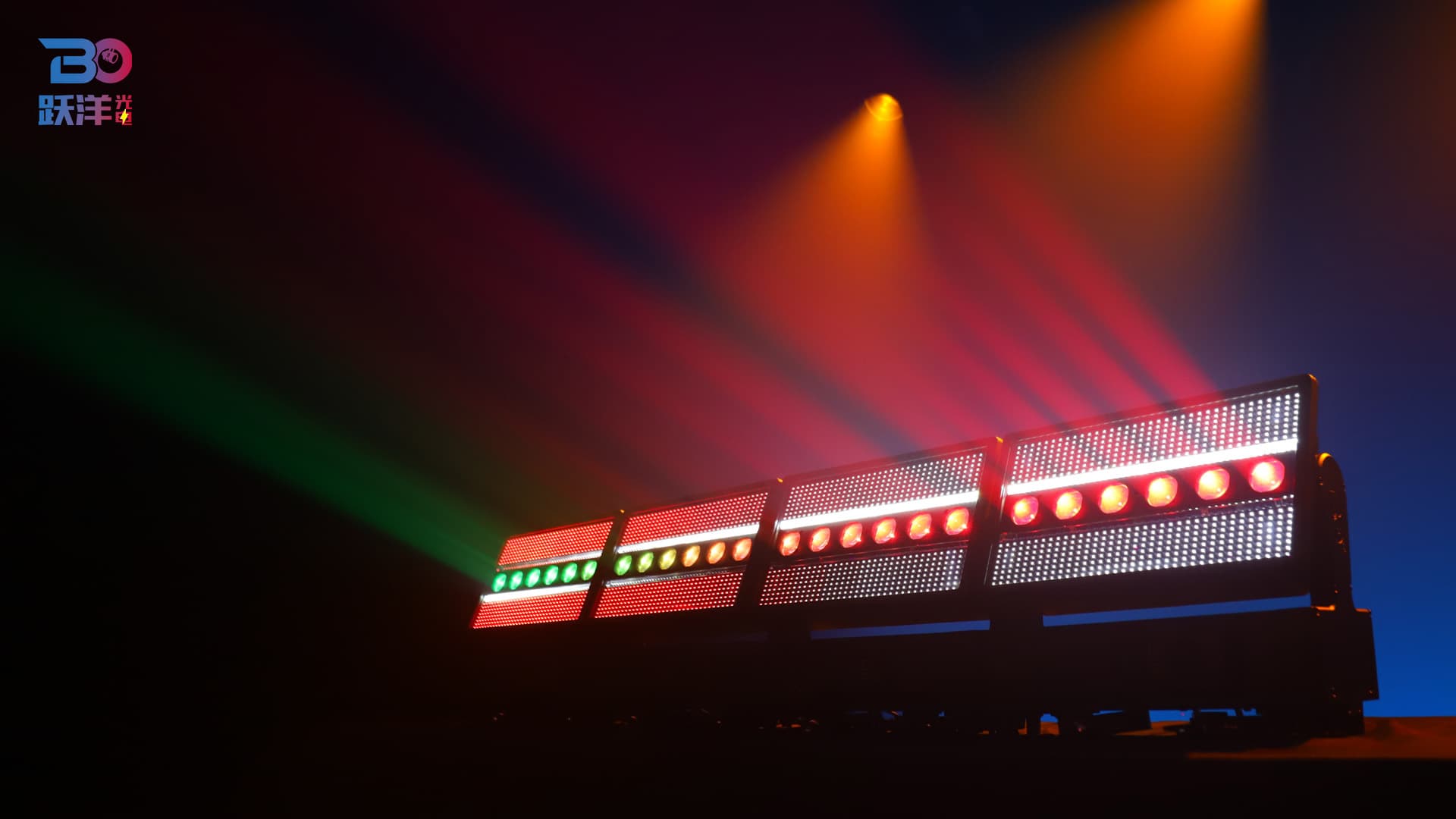

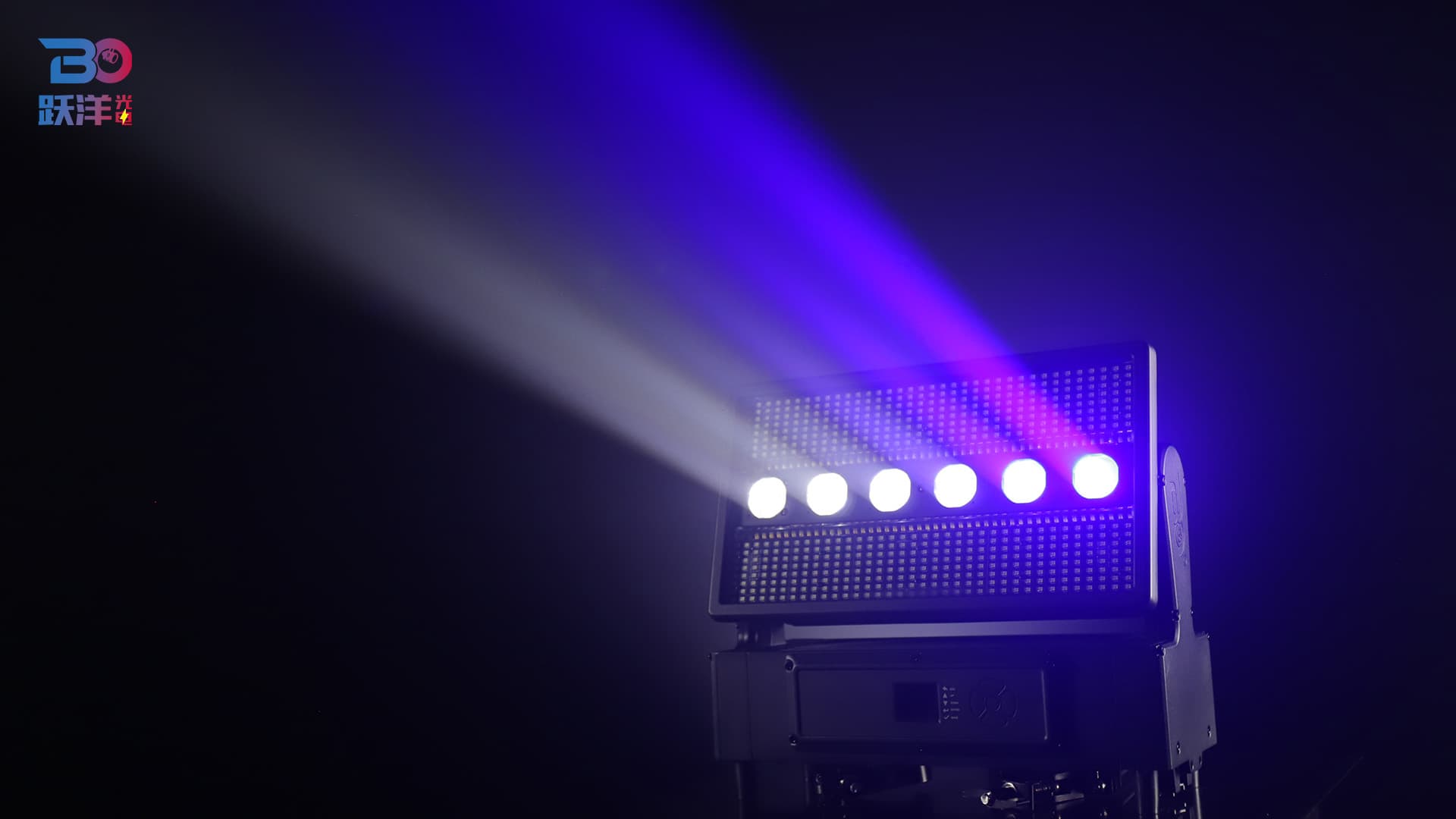

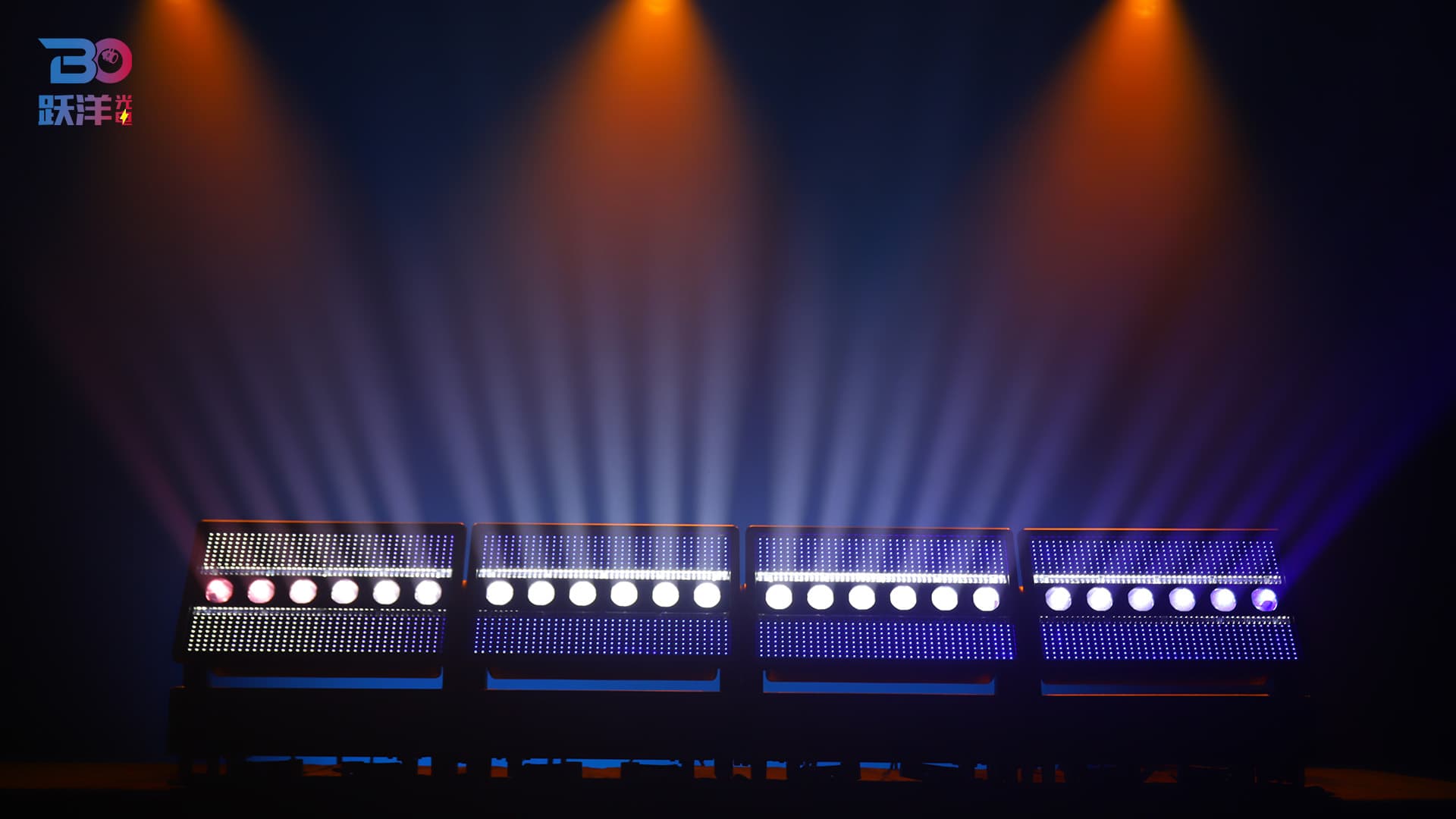

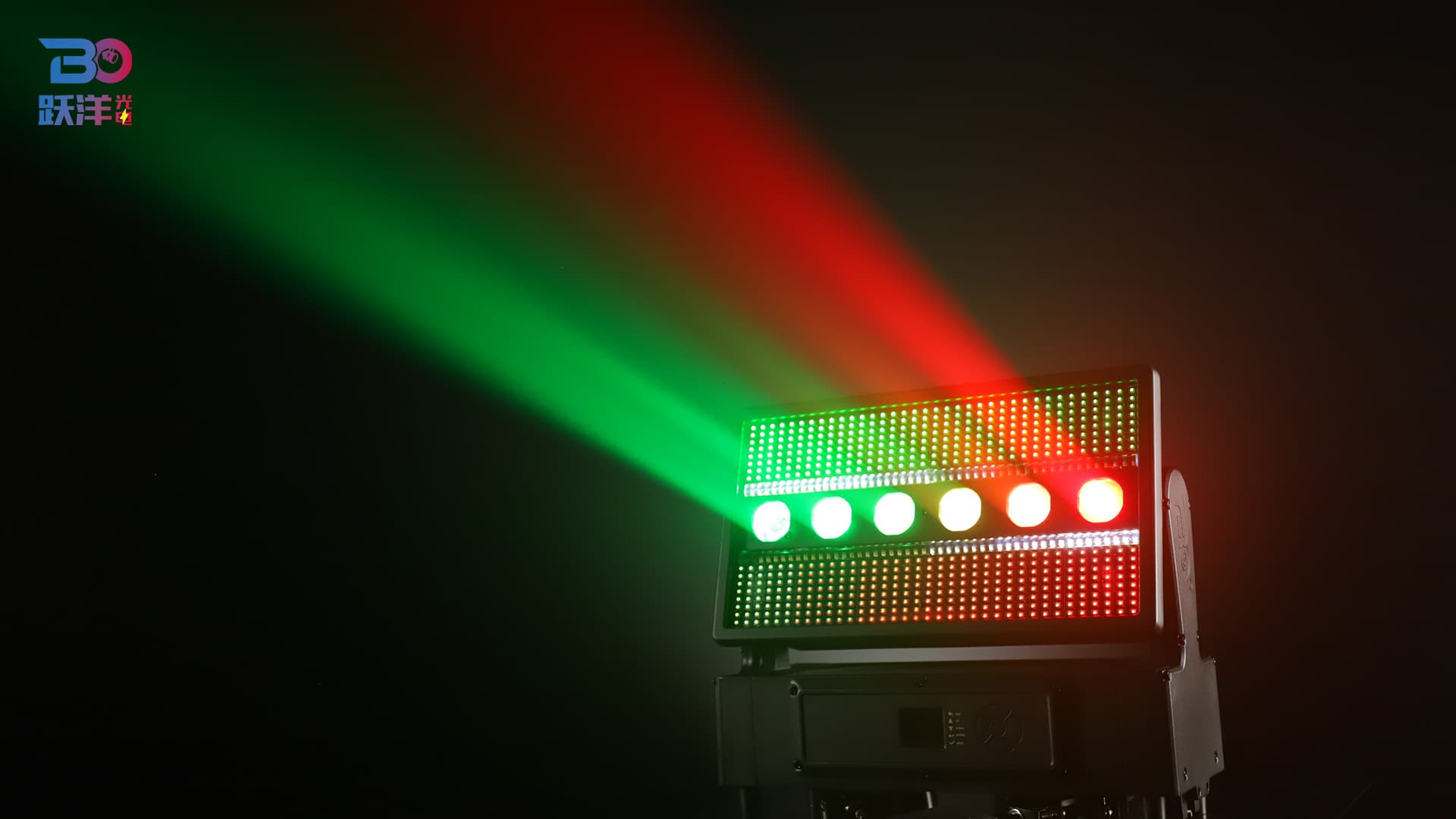

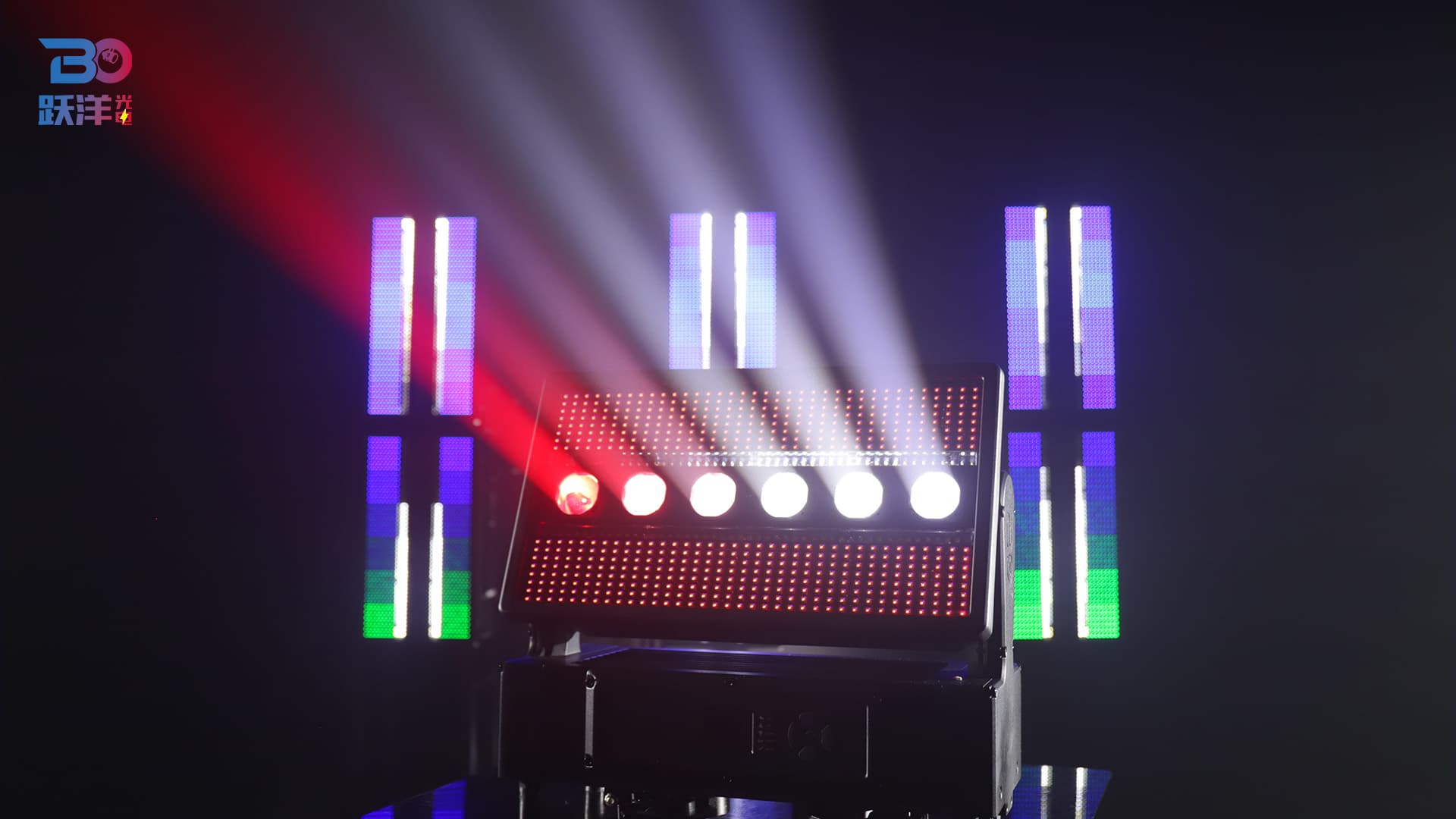

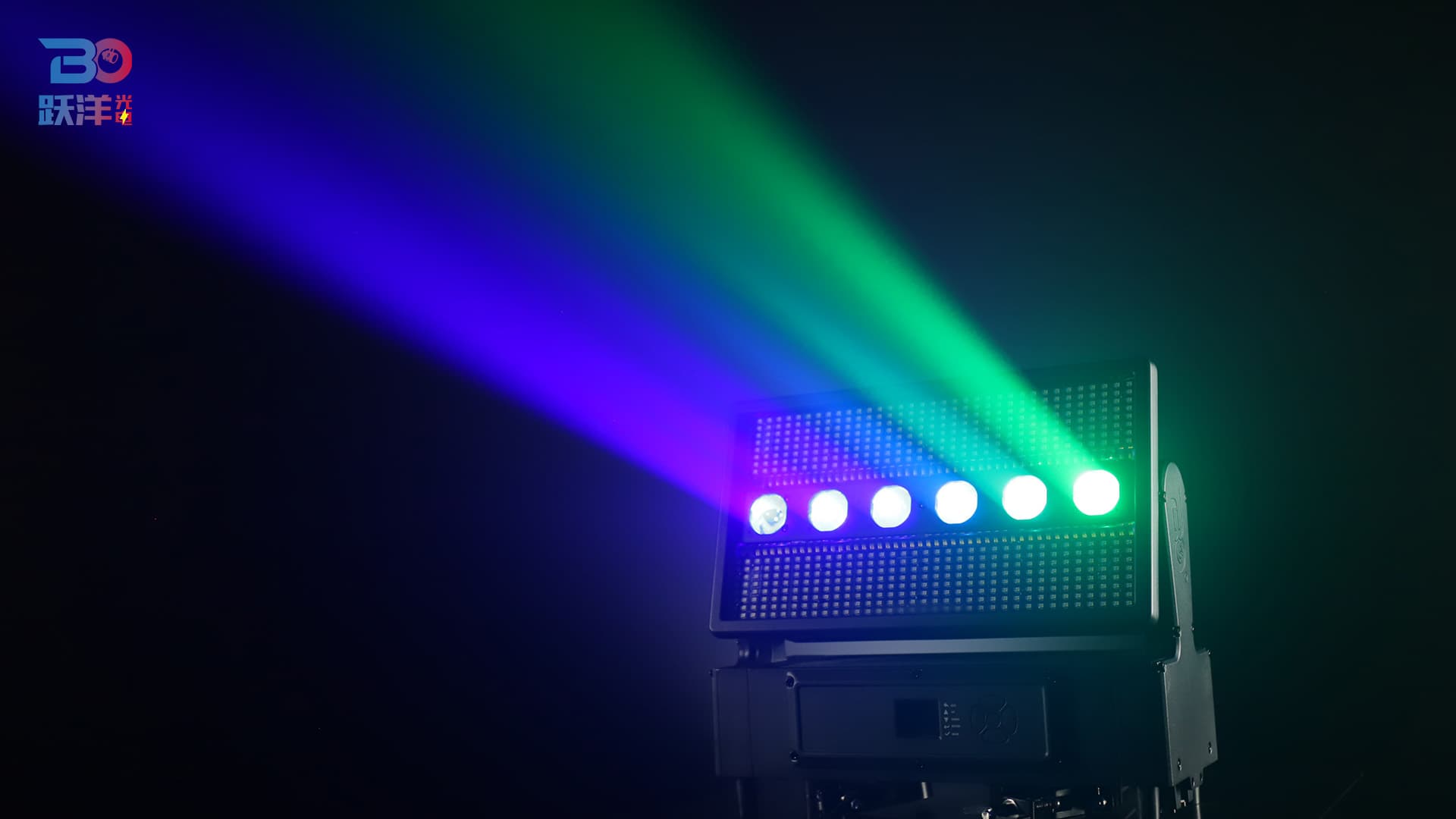

Beyond IP65 Thunderbolt Strobe & Beam

Light Source: 720*1W RGBW LED; 96*10W White LED; 6*40W Amber LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50- 60Hz

Power Consumption: 735W±5%,Power factor PF≥0.95

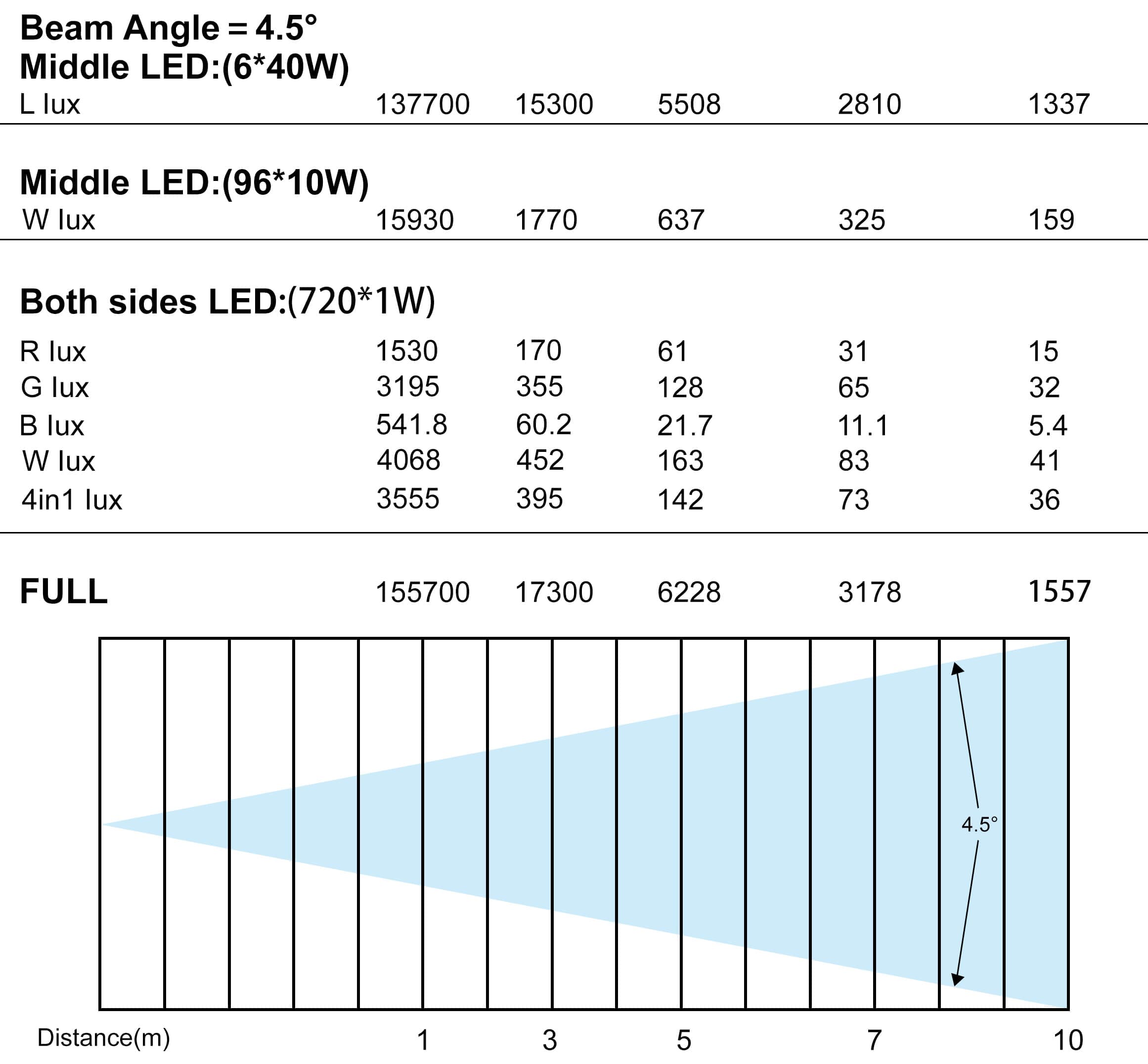

Beam Angle: 4.5°

Control Modes:  DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ ArtNet (optional）

DMX Channel:  Control channels: 13/15/19/30/34/40 six master control modes; 26/47/77/79 four pixel modes: 11+36/11+66/13+66 three DMX ArtNet pixel modes) a total of 13 channel modes

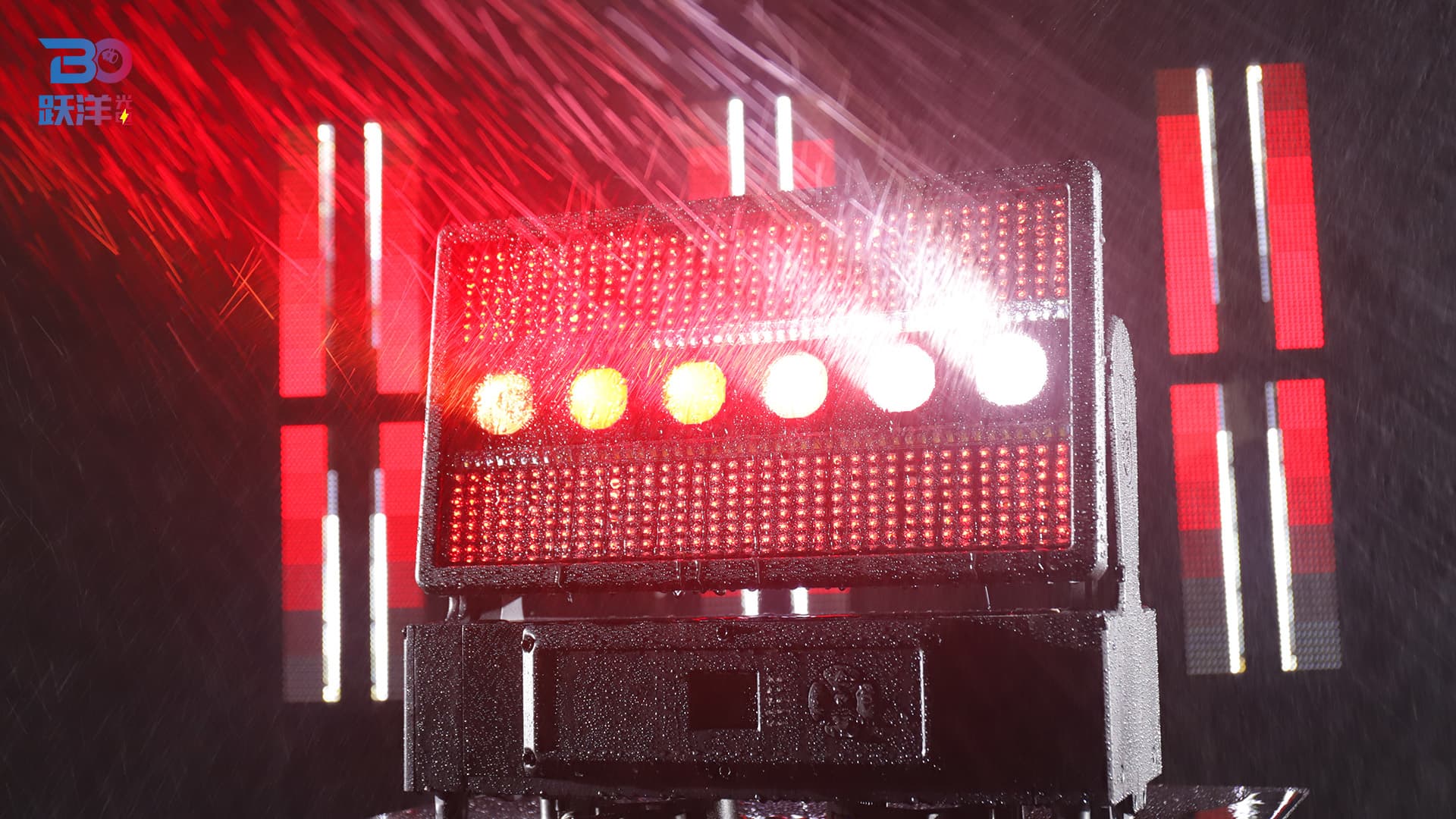

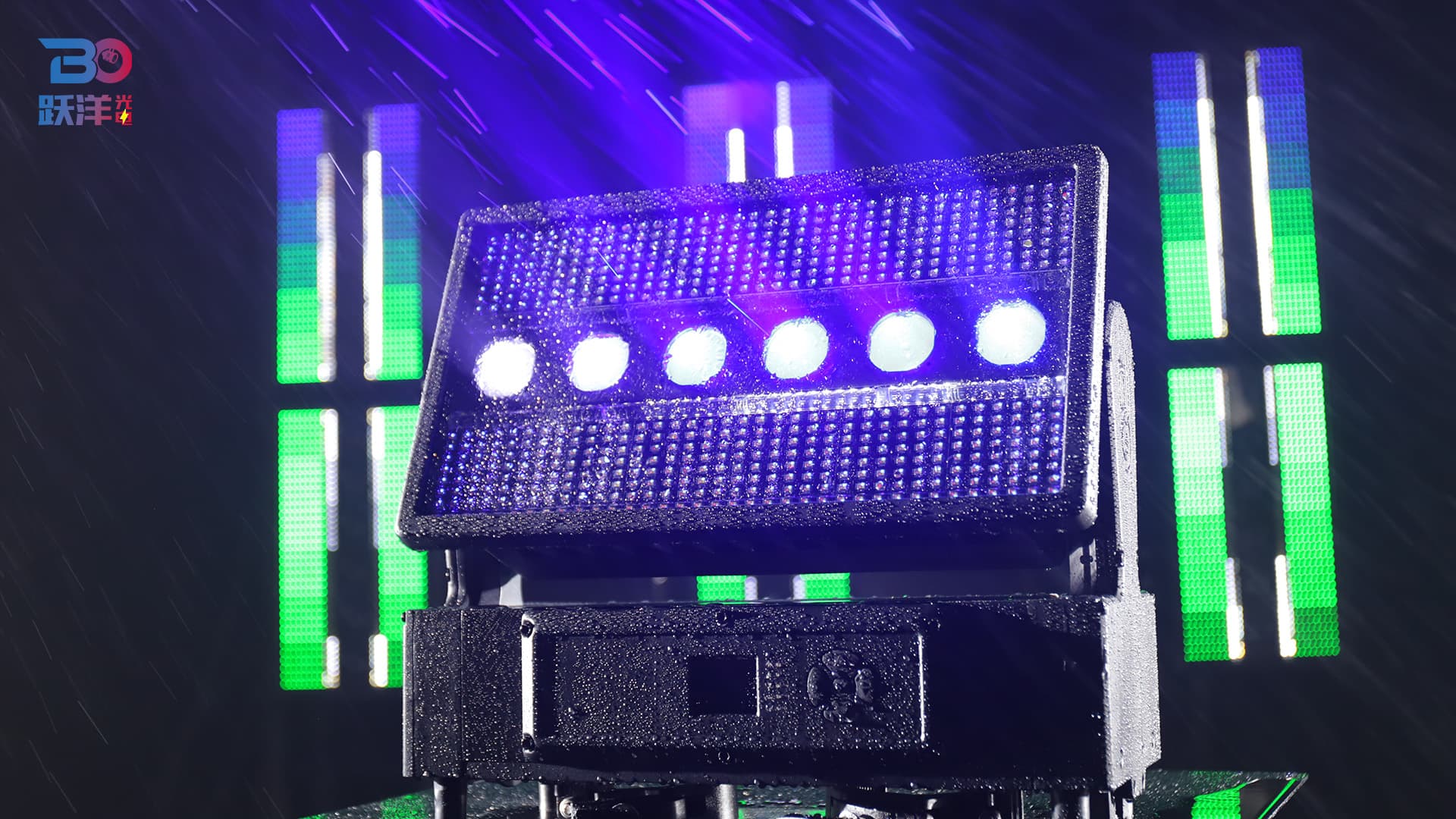

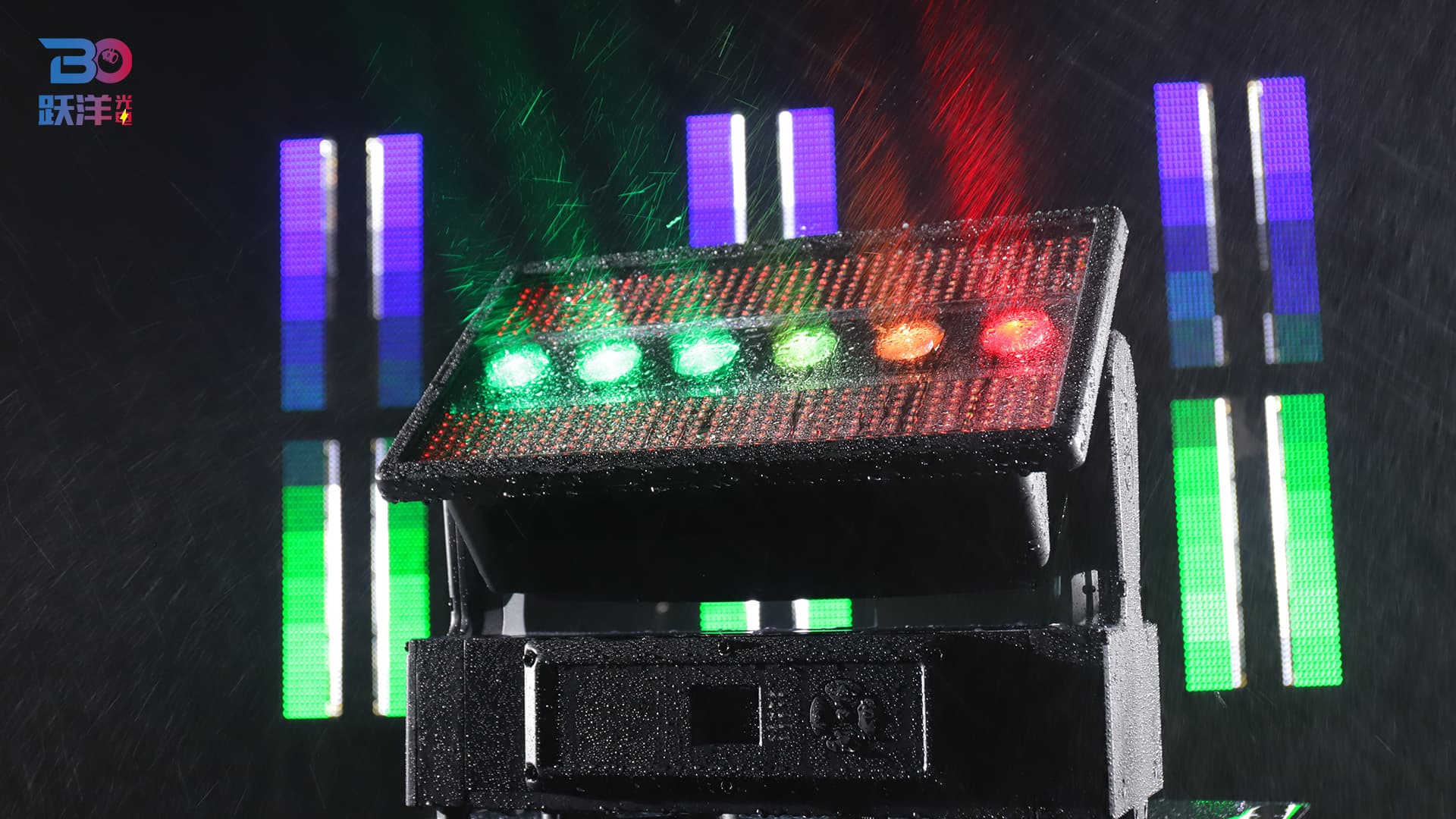

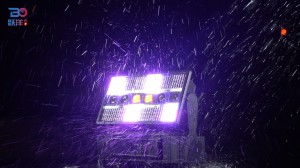

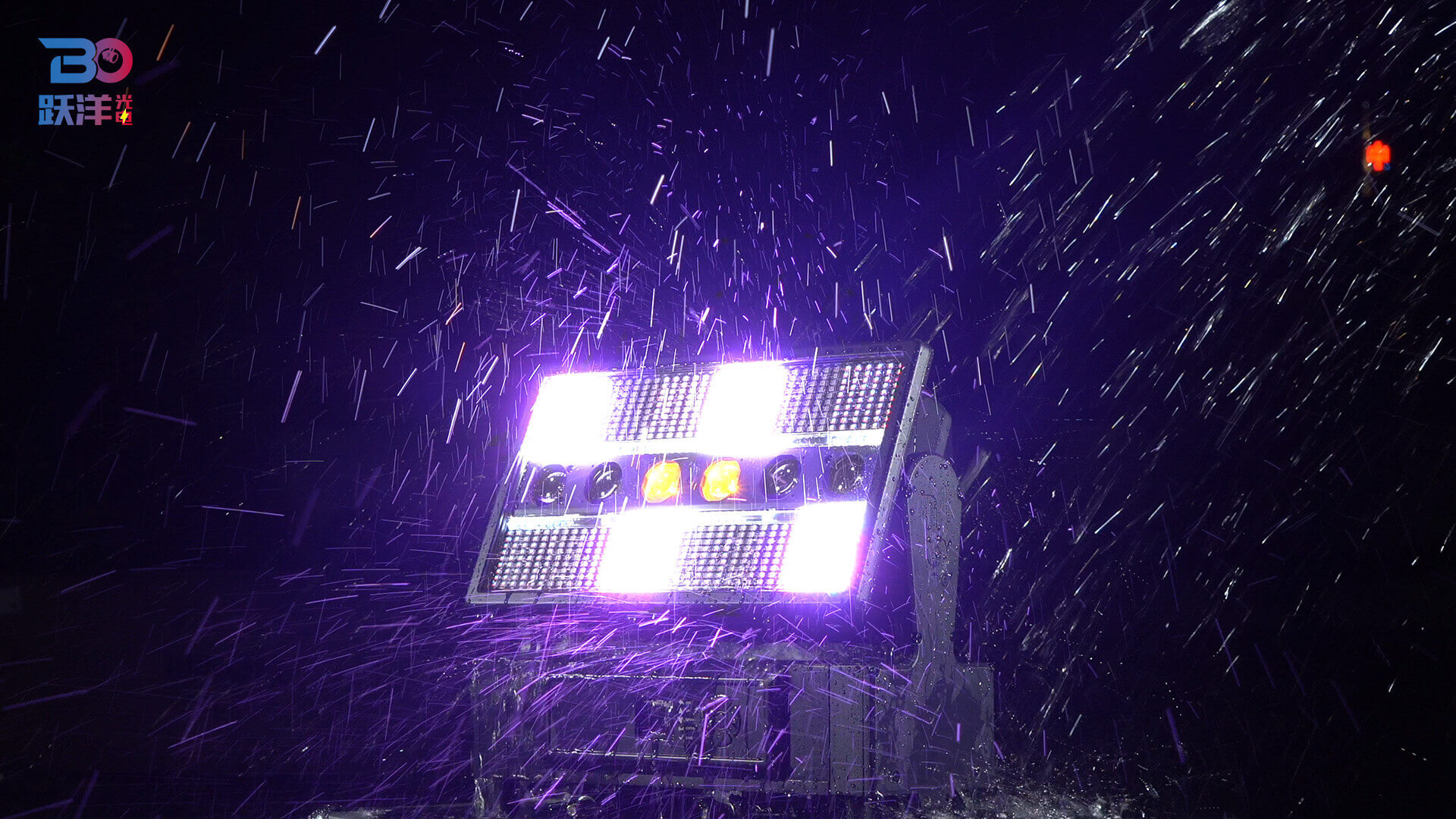

Protection Rating:  IP65

Display: 1.8” TFT reversible Display, EN/CN. The font can be displayed rotated 180°.

Data In/Out Socket: 3-pin / 5-pin XLR sockets

Power Socket:  Power-Con in/ out

Housing Material:  Die-cast aluminum

Tilt: 190°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution:  Automatically correct pan/tilt position

MAX. Connection: 4 units（240V, 50Hz） 2.5mm²  power cable; 2 units（100V, 60Hz） 2.5mm²  power cable

Dimension: 427 mm*238 mm*333 mm

Net Weight: 16 kg

Carton Package: 515mm*420mm*325mm  1in1  GW: 19kg

Flight Case: 950mm*625mm*595mm  4in1  GW: 98 kg

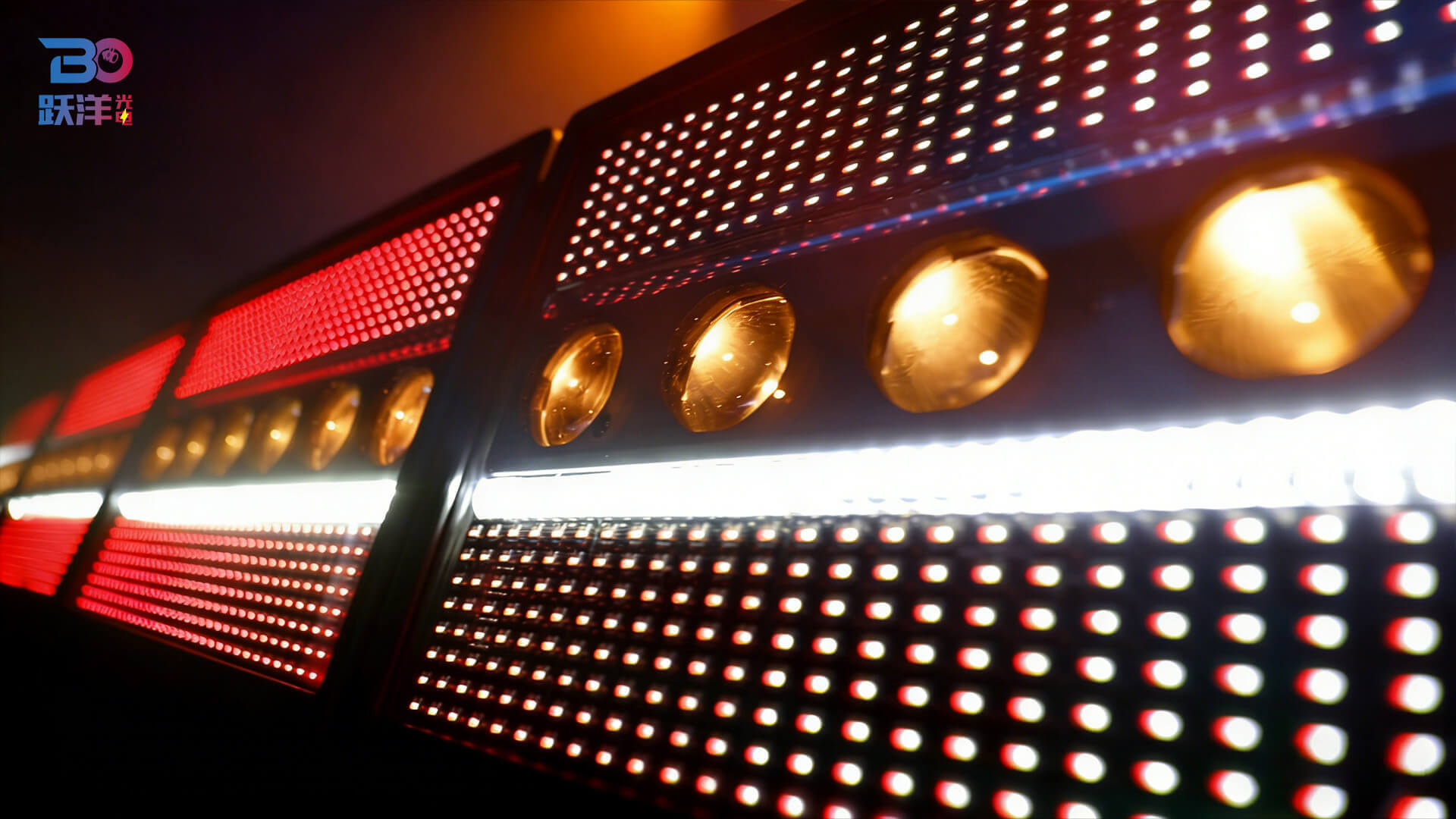

Features:  Full light range dimming, 16Bit dimming accuracy; fast strobe 1~25Hz; 720*1W LED are divided into 12 segments, 96*10W LED are divided into 12 segments, and 6*40W LED are single-point control; preset multiple color macro functions; preset multiple effect (Wash, single control, segment control, strobe) macro functions; effect mirroring options;

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
