IP65 Wash Bar with Side Effect

Short Description:

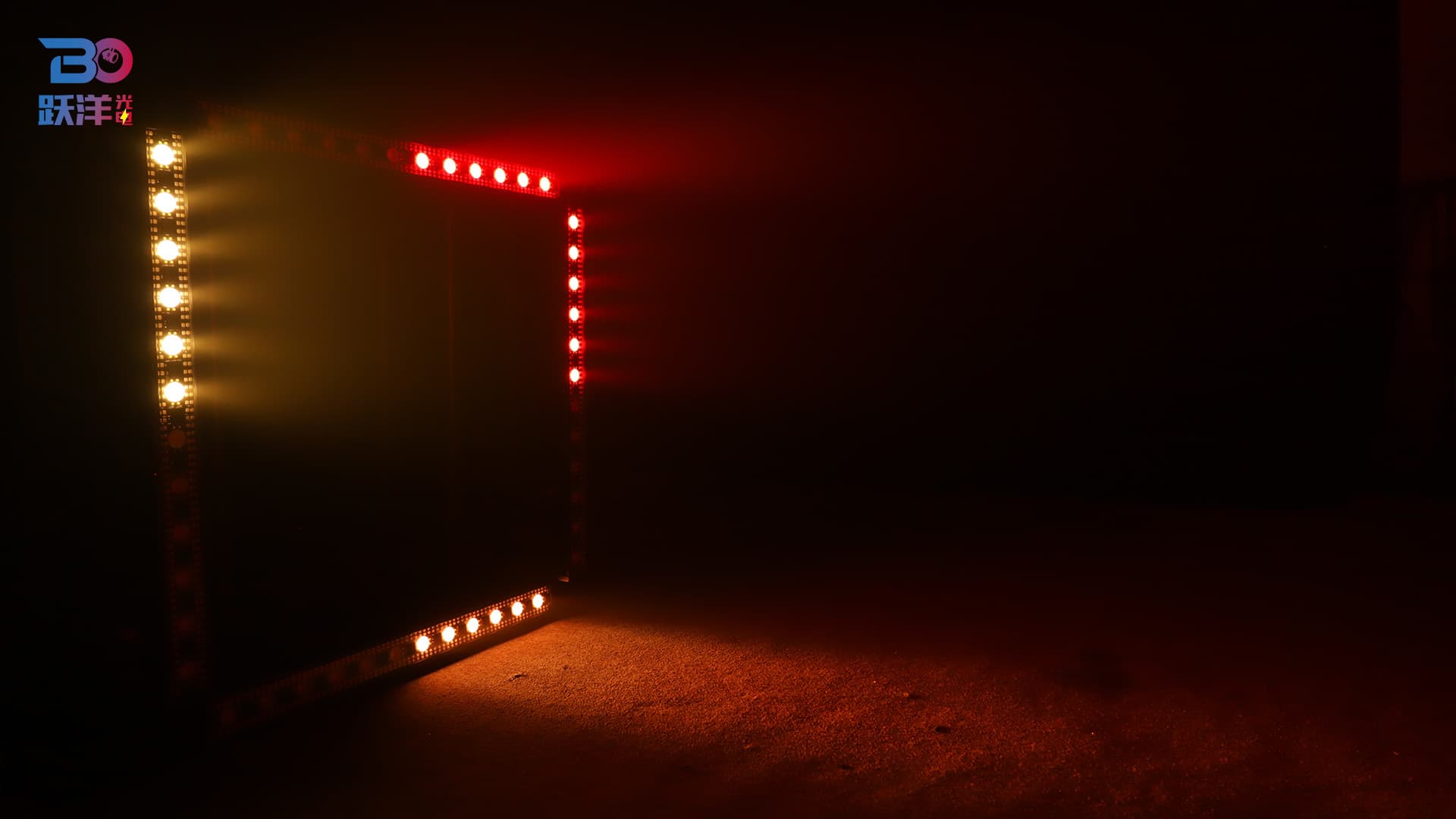

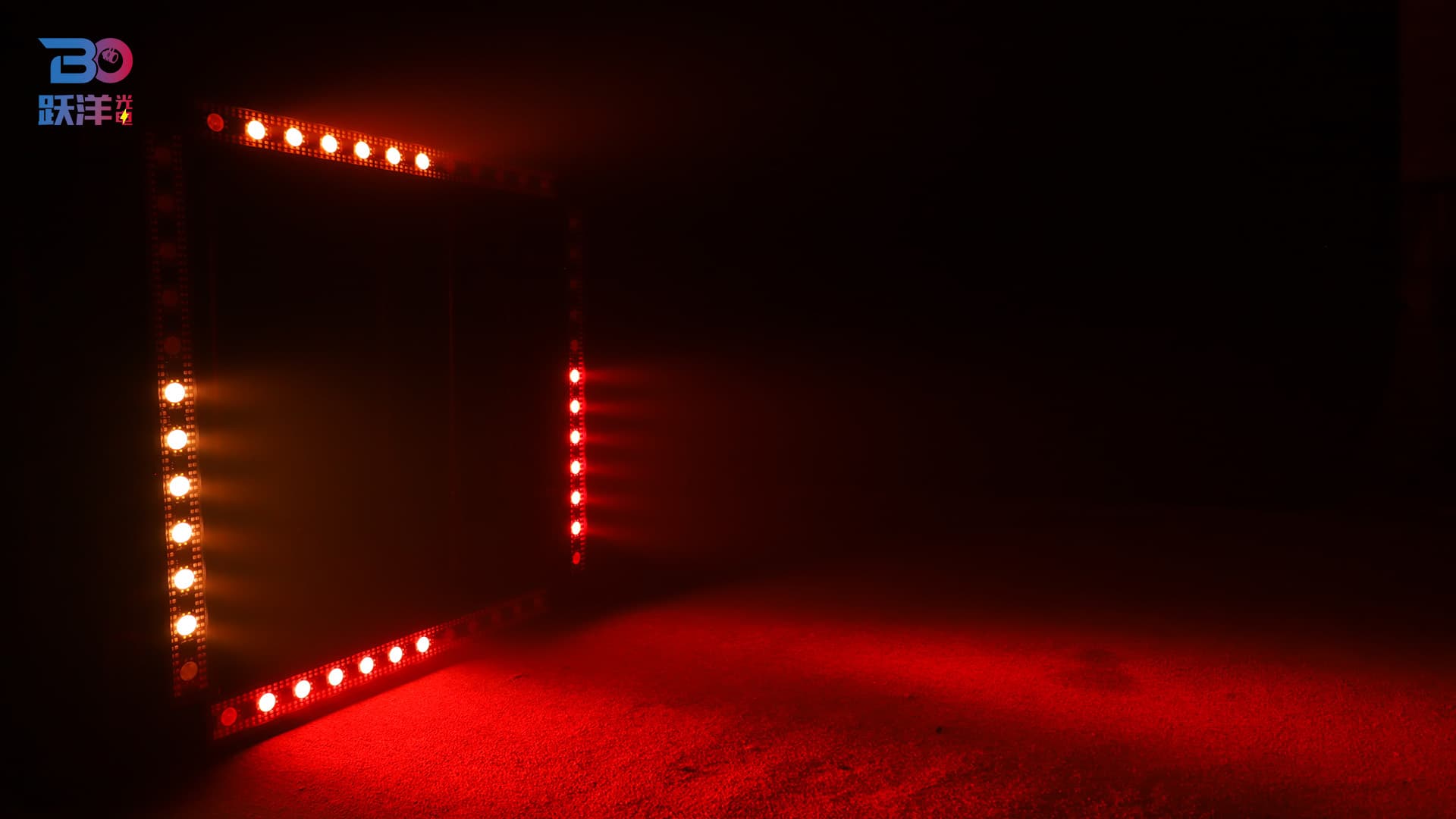

BEYOND S612 IP65 Wash Bar with Side Effect is a Seamless splicable outdoor moving head strobe light,there are splicing pins on both sides, which are easy to use and greatly improve the efficiency of stage construction. An additional tripod can be configured to make it stand firmly on the ground.

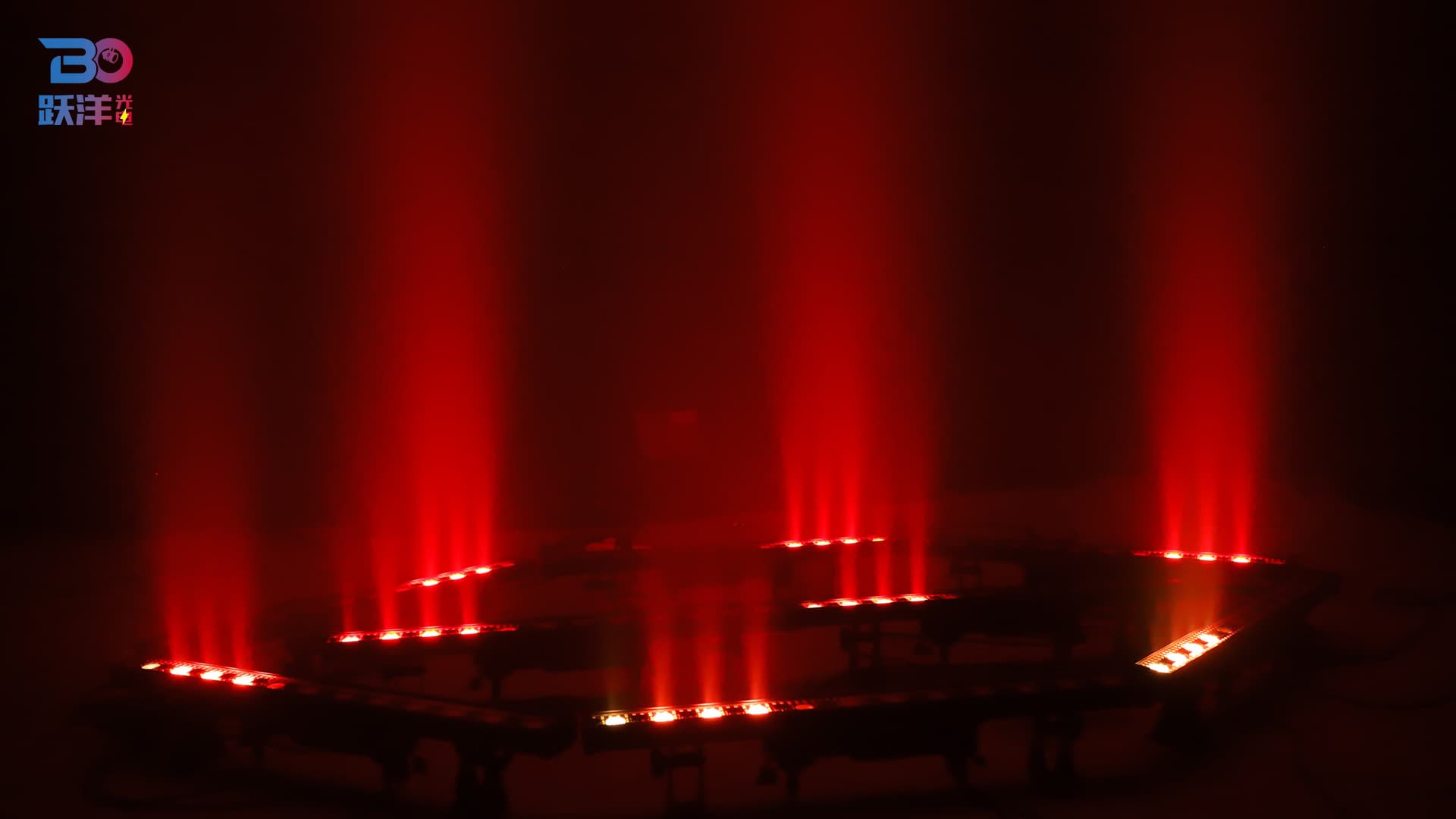

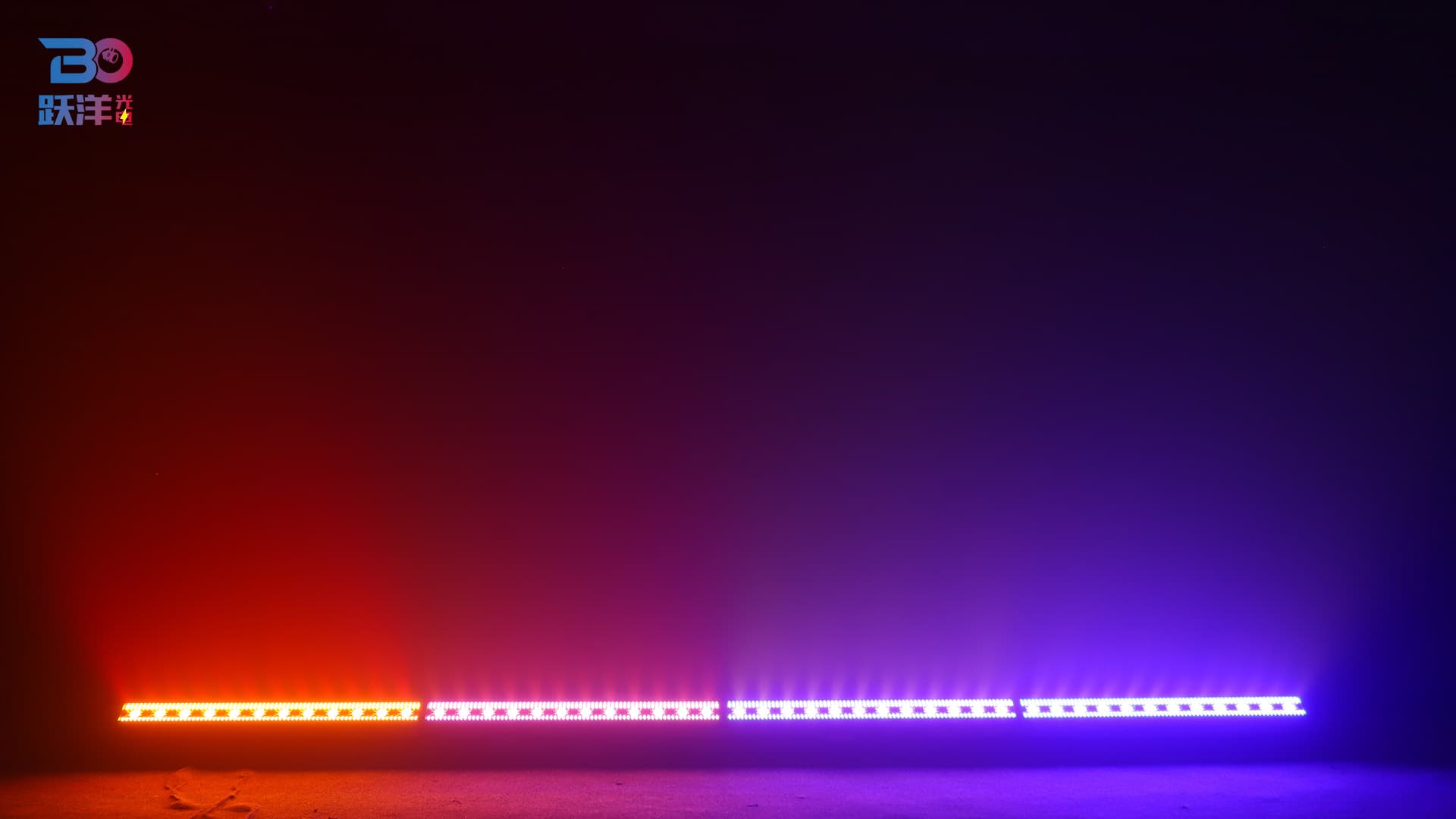

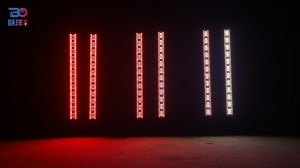

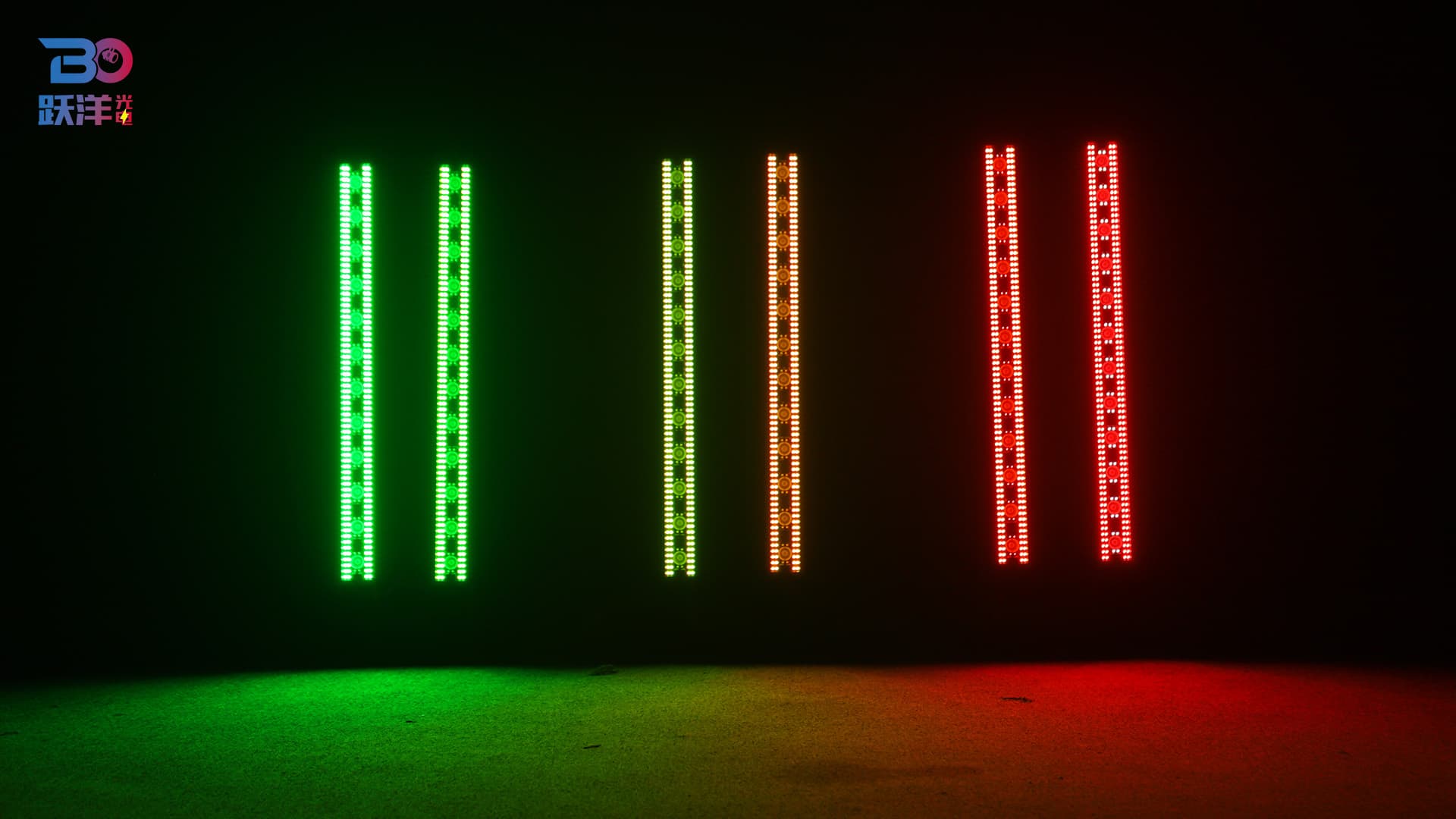

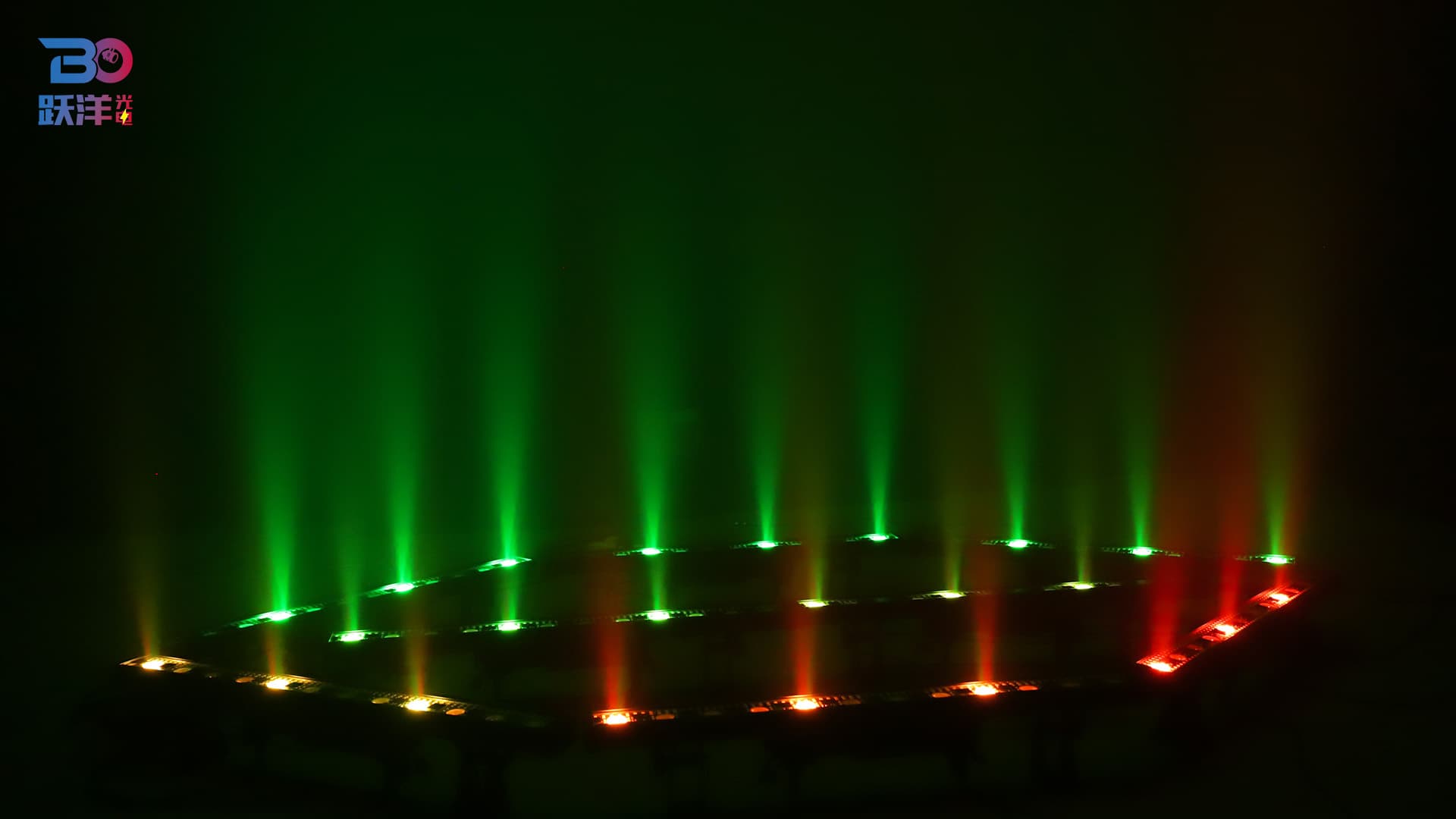

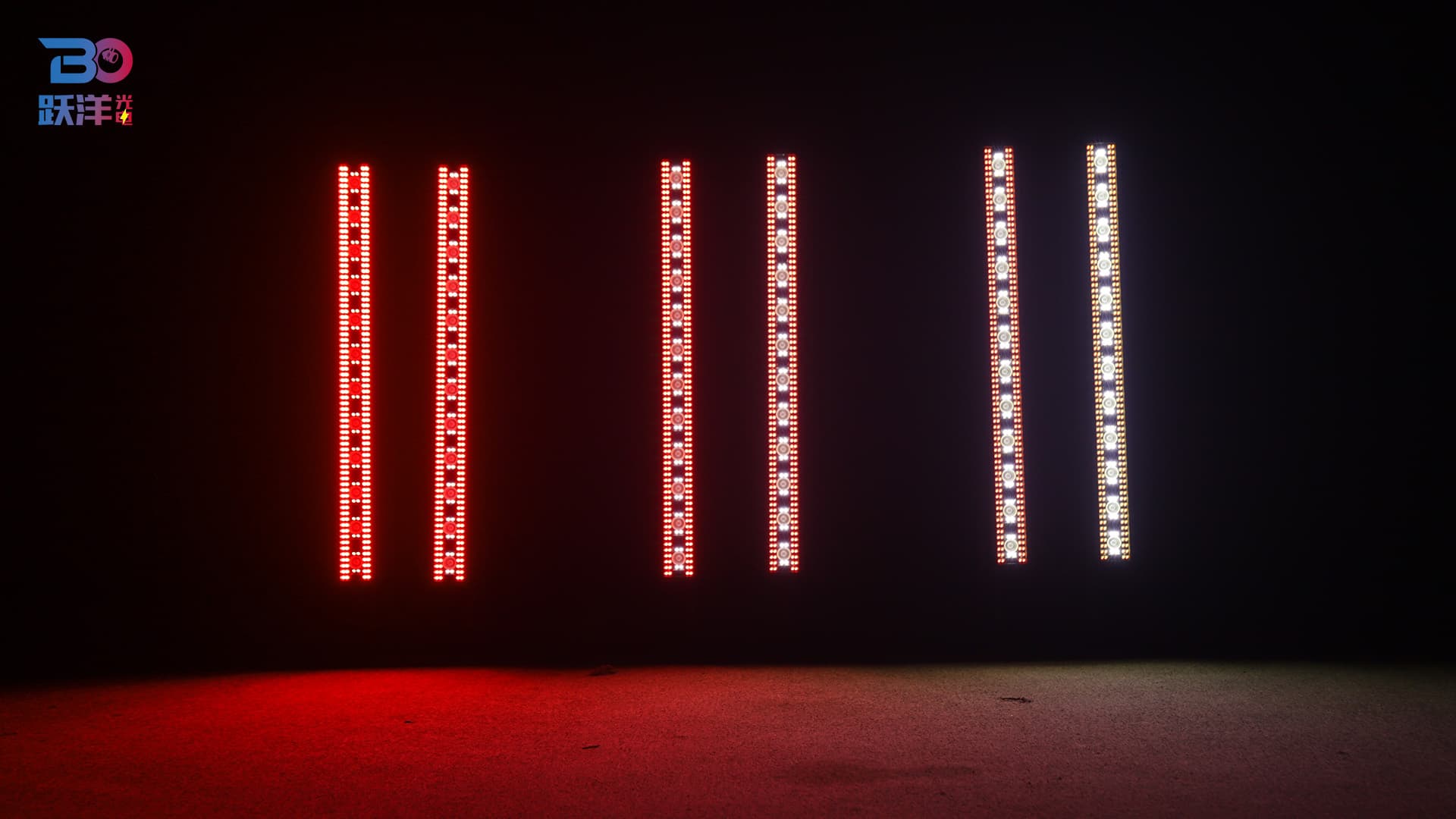

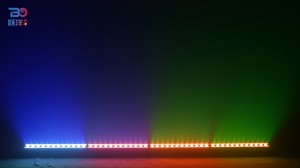

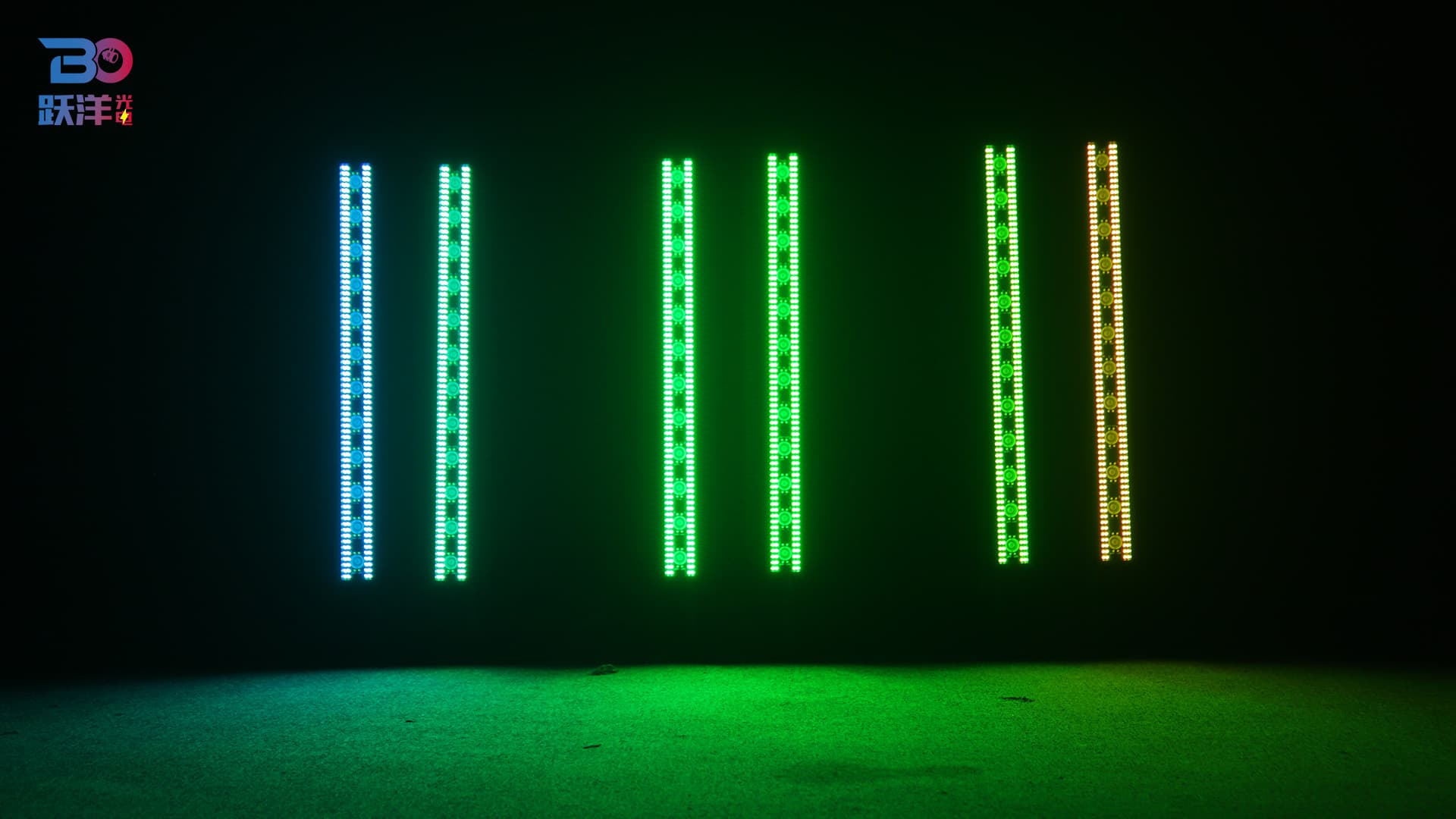

The light middle is composed of 12*8W RGBS 4in1 LED and 48*1W White LED，both sides is 288*1W RGBA 4in1 LED,which combines strobe, pixel, small beam and wall washing effects, and can create various shapes and Marquee effect for the stage.

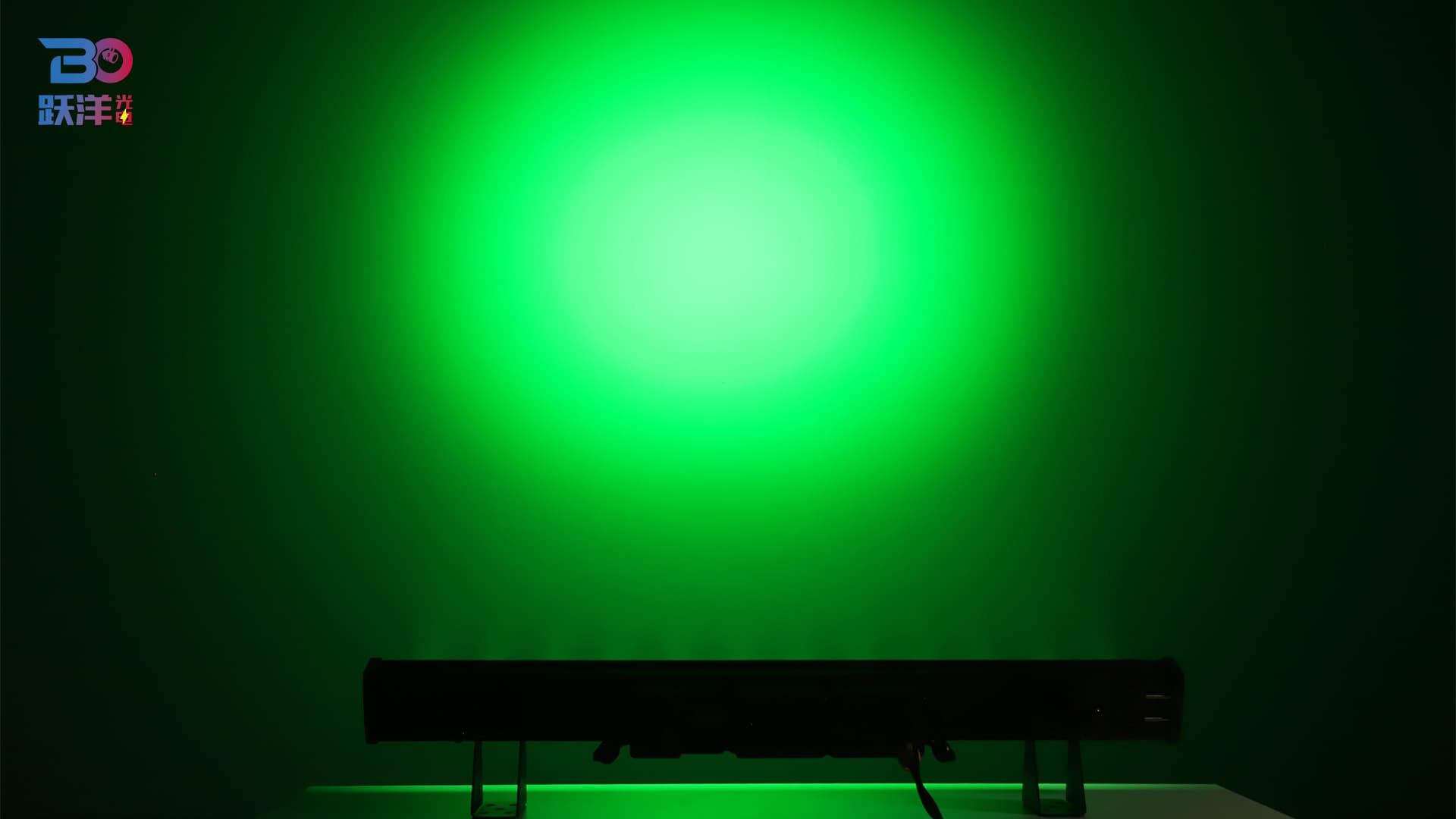

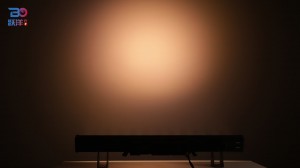

It integrates wash, beam and strobe 3in1 effect, preset multiple effects macro functions, full light range dimming, 256 levels of dimming accuracy, above features make it meet the lighting effects of large-scale stage modeling and outdoor buildings.

Brand : Beyond

Model: S612

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/wechat: 8613922297736

Send email to us Product Manual

Product Detail

Light Source: 12pcs 8W RGBS 4in1 LED chips in the middle + 48pcs 1W white LED; 288pcs 1W RGBA 4in1 LED chips on both sides

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 205W±5%

Strobe power: 350W,PF≥0.95

Standby power: 9W；PowerCon in/out

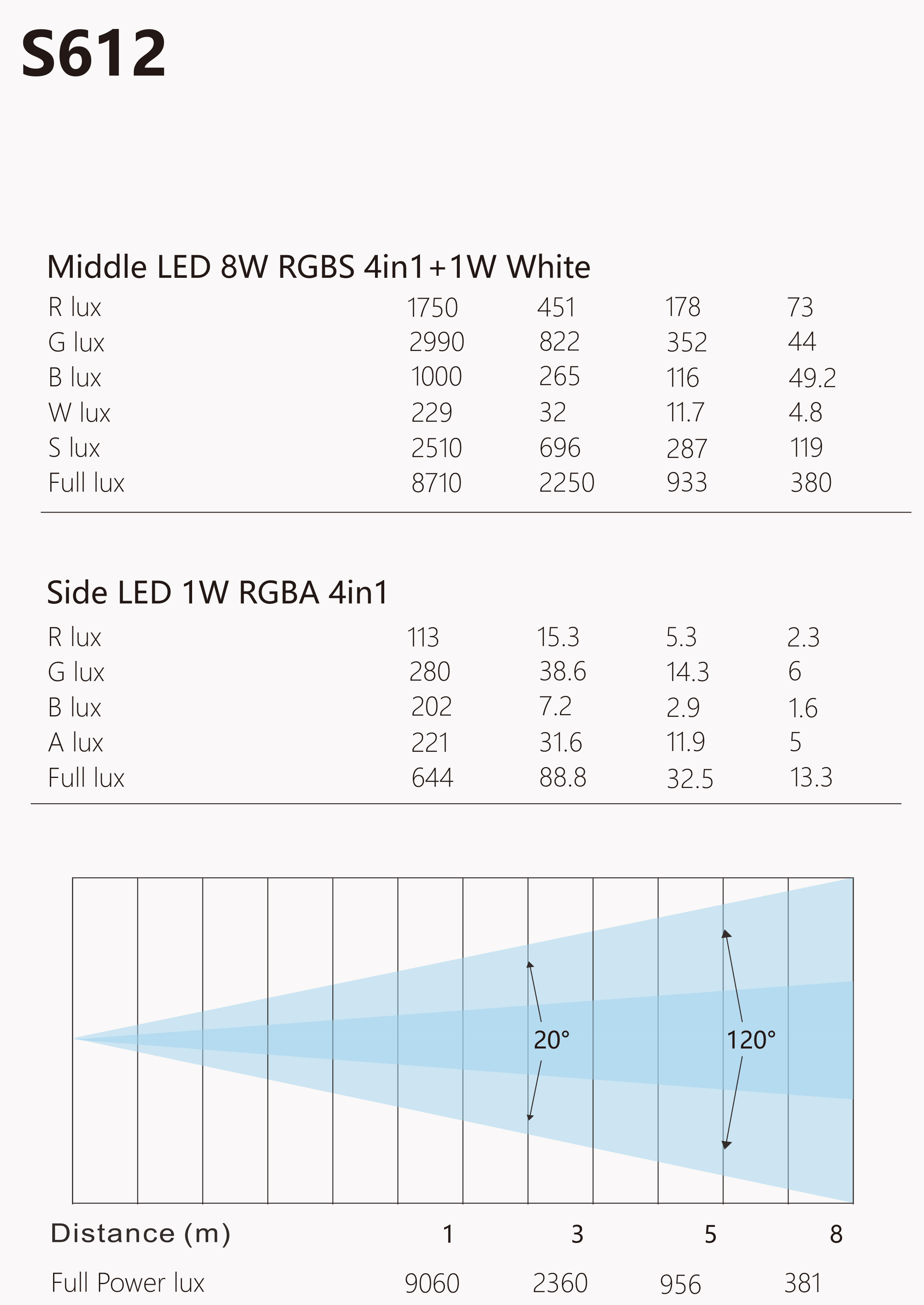

Optical system: Beam angle 12° or 20° optional (12° for normal shipment)

Protection Rating: IP65

Housing Material: Aluminium

Working temperature: -10℃ - 45℃

DMX model: DMX512

DMX Channel: 11/20/22/24/29/30/33/37/38/42/56/60/114/156/162CH

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: IP65 3-pin XLR sockets

MAX. Connection: 10 units（240V，50Hz） 1.5mm² power cable; 5 units（100V，60Hz） 1.5mm² power cable

Electronic control technology: 0-100% dimming; constant current drive mode; temperature sensor detection, intelligent adjustment of light source power; lamp information query

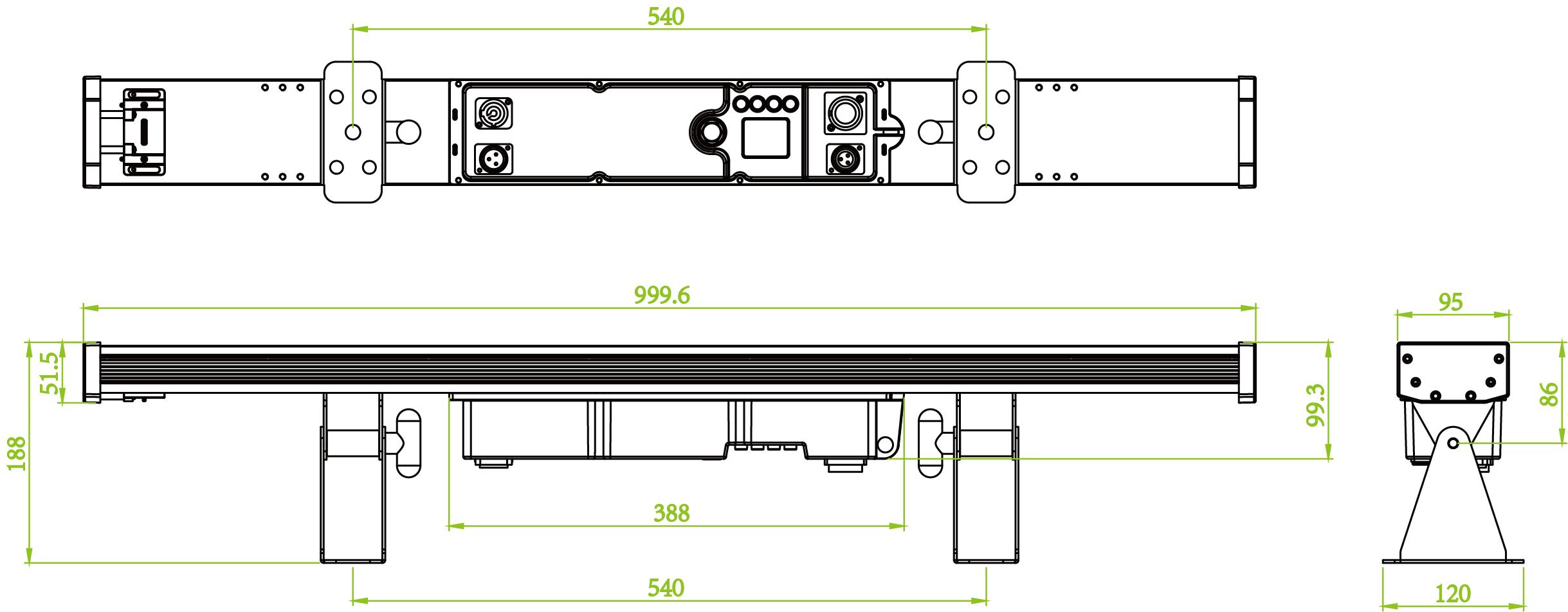

Dimension: 999.6*120*188mm

Net Weight: 7.58kg

Carton Package: 1055*145*175mm 1in1 GW: 9kg; 1075*310*375mm 4in1 GW: 32.32kg

Flight Case: 1080*643*460mm 8in1 GW: 91.16kg

Features: Full light range dimming, 256-level dimming accuracy. fast strobe 1-25Hz. The middle 8W LED chip is controlled by a single point, the white light is controlled in 12 sections, and the two sides are controlled in 24 sections. three-in-one effects of wash, beam, and bee eye. preset multiple color macro and effect functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
