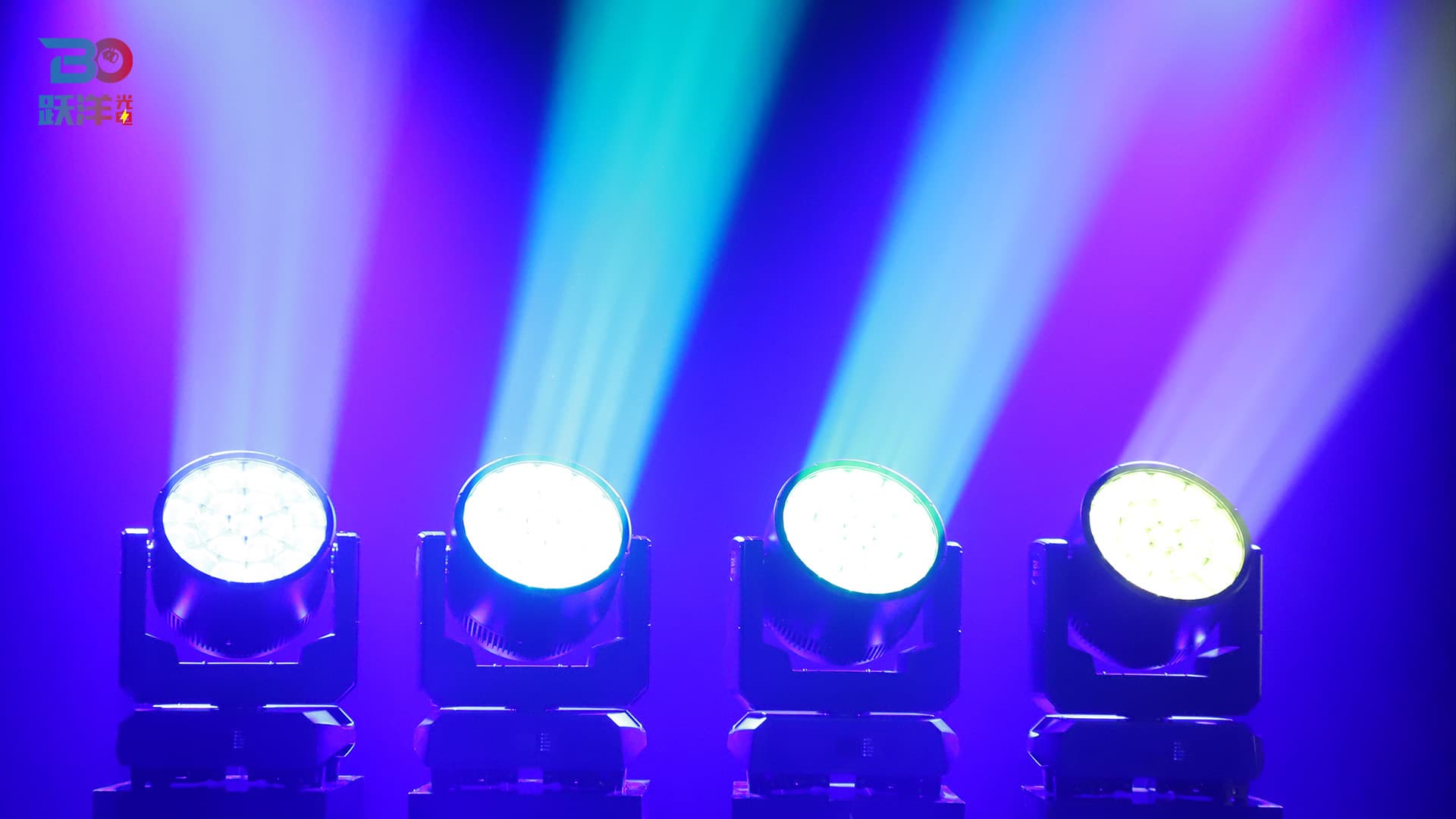

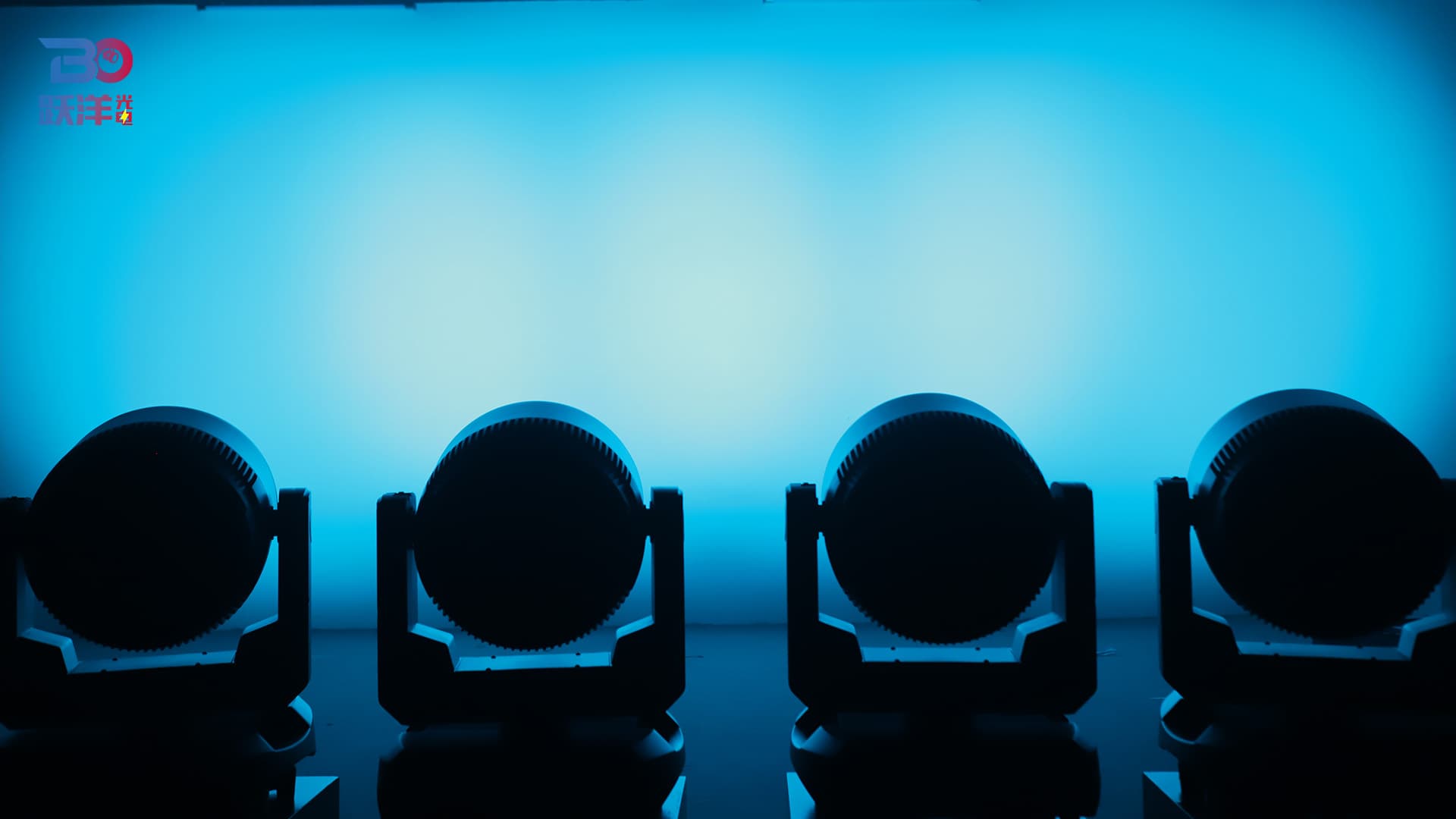

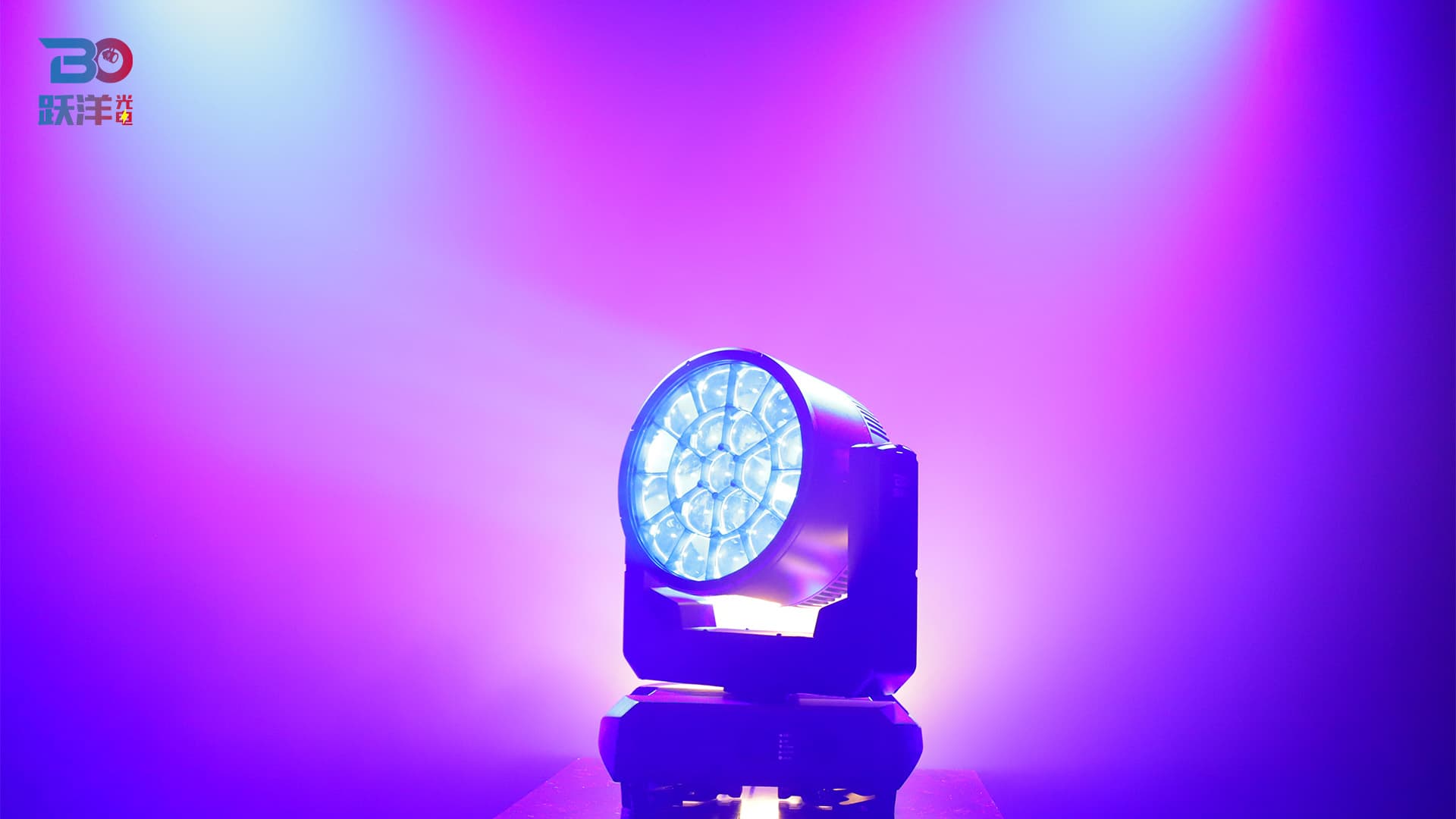

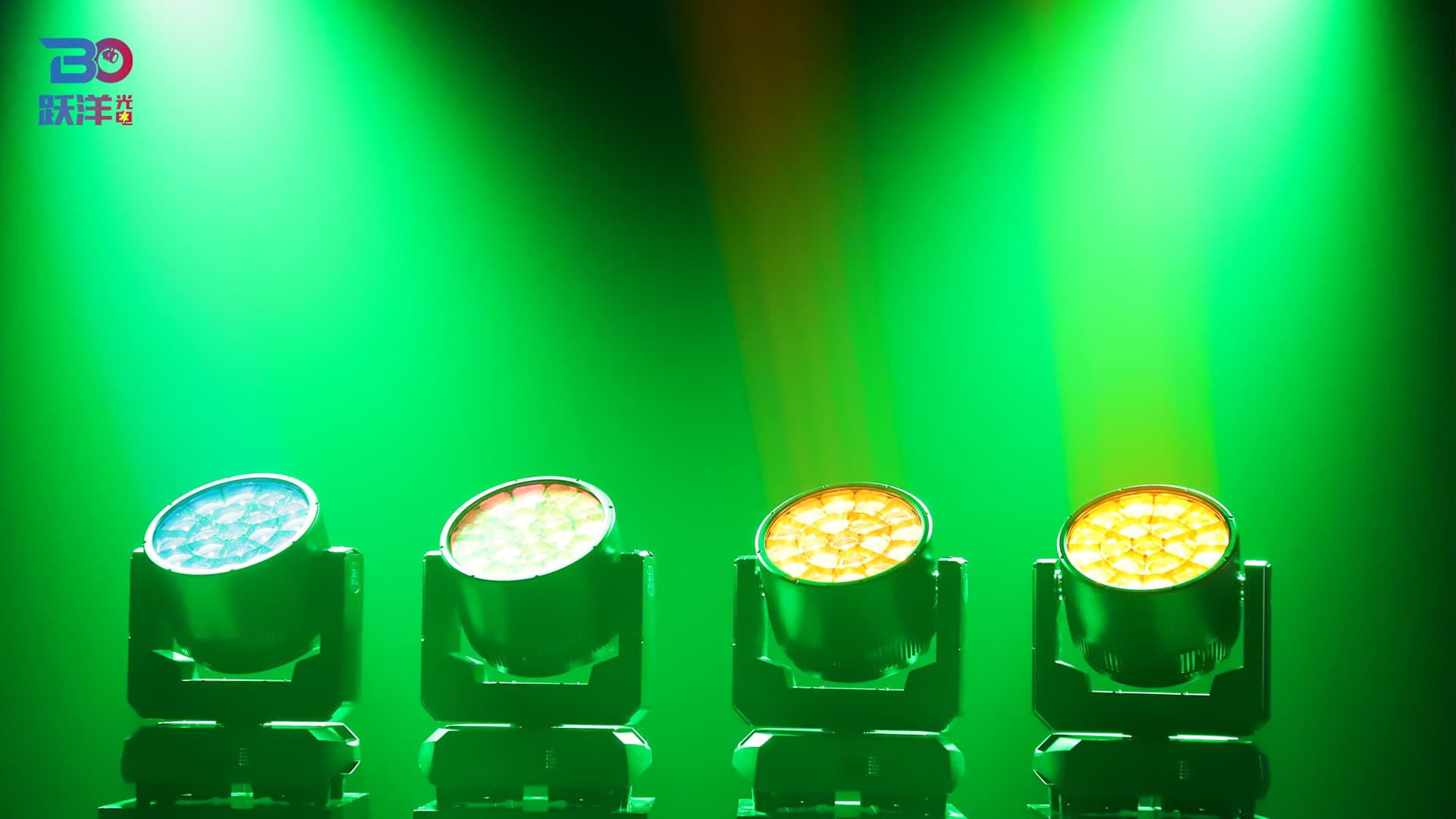

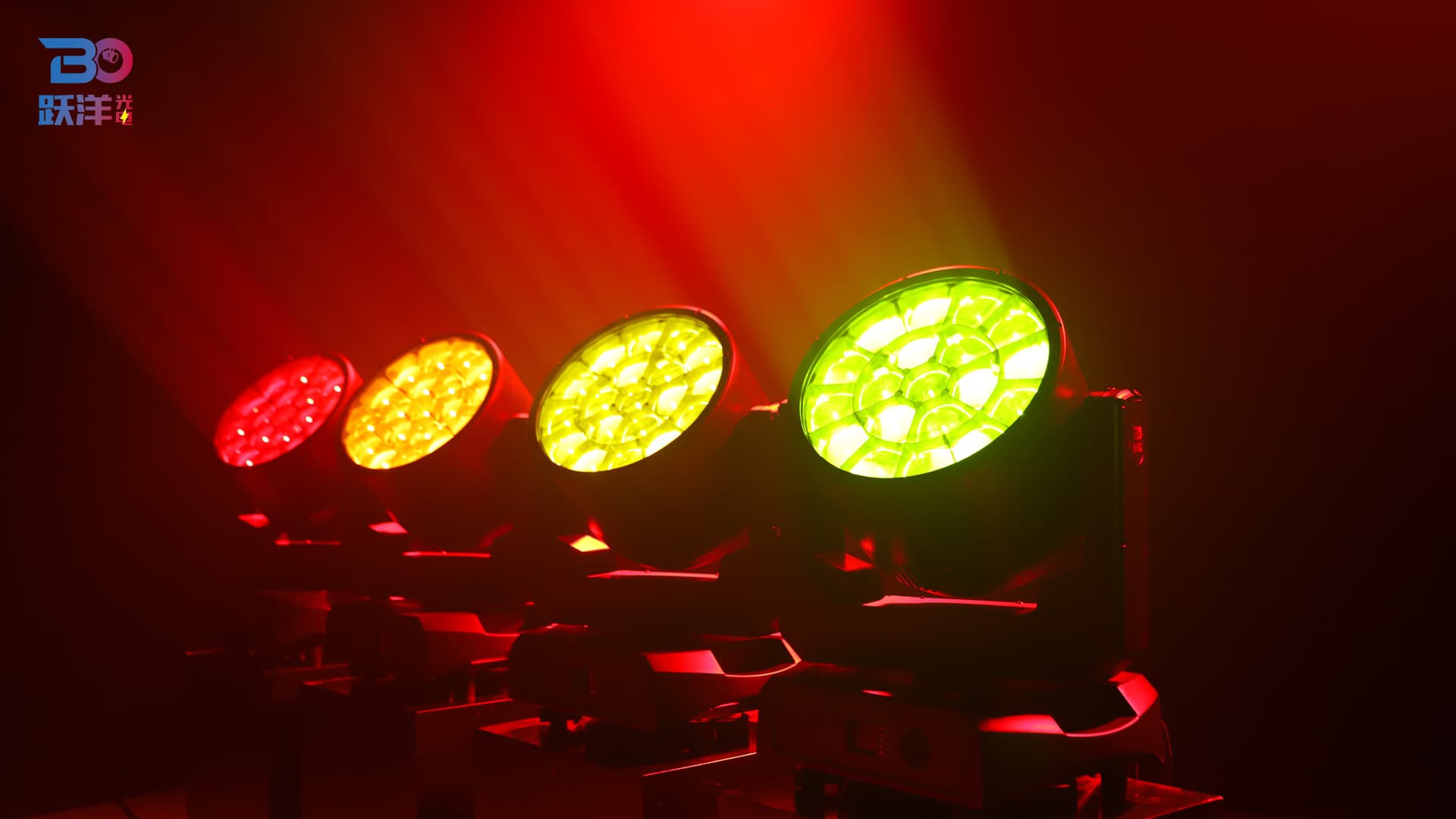

Beyond IP65 19x60W RGBLACP WASH Zoom

Light Source: 19 x 60W 7in1 RGBLACP LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 900W±5%，Power factor PF ≥ 0.95

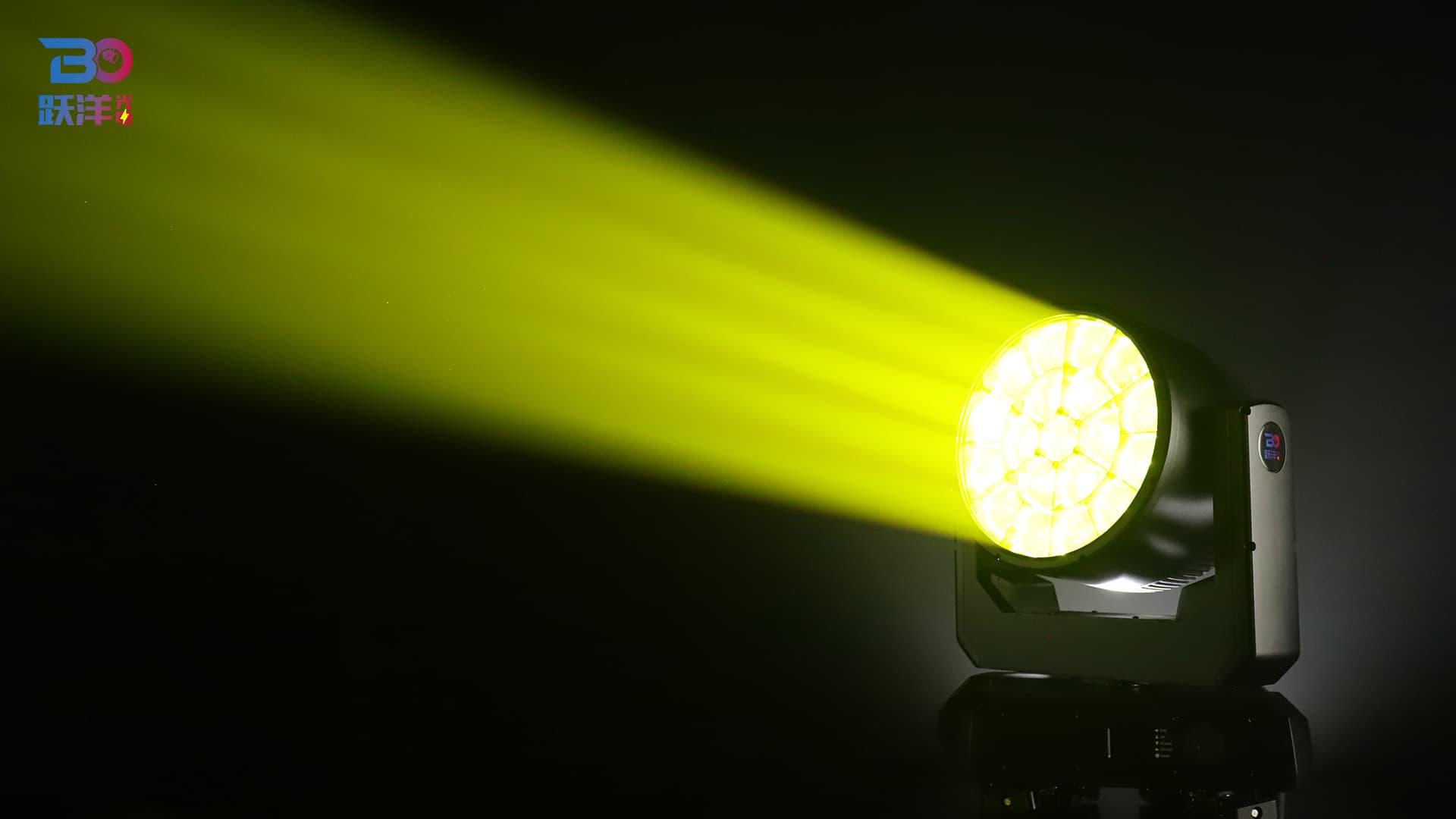

Beam Angle: 4.5°~43°；Glass light guider + PMMA high quality optical lens

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ ArtNet(optional)

DMX Channel: 20/ 28/ 30/ 38/ 39/ 21 Channel

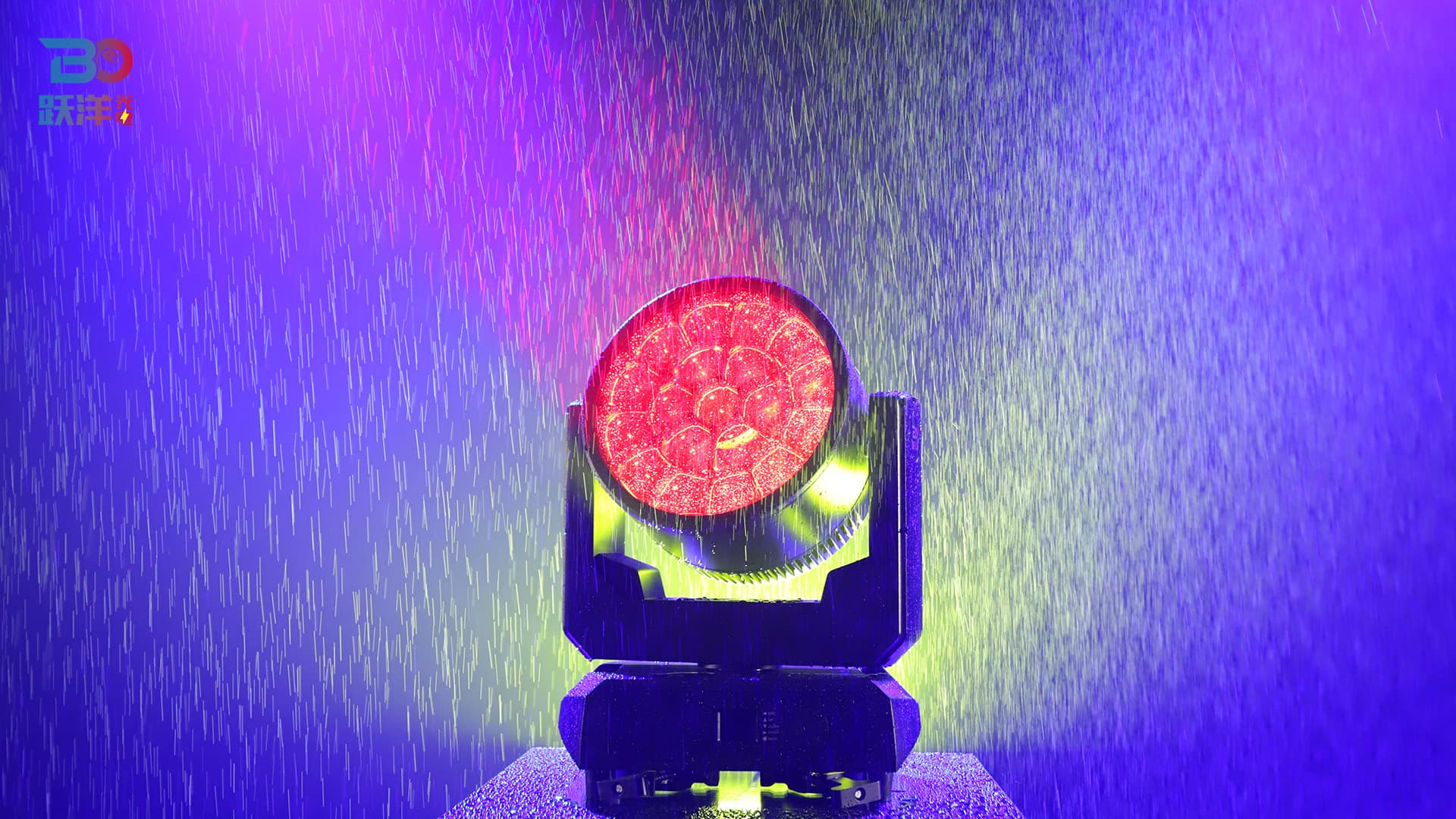

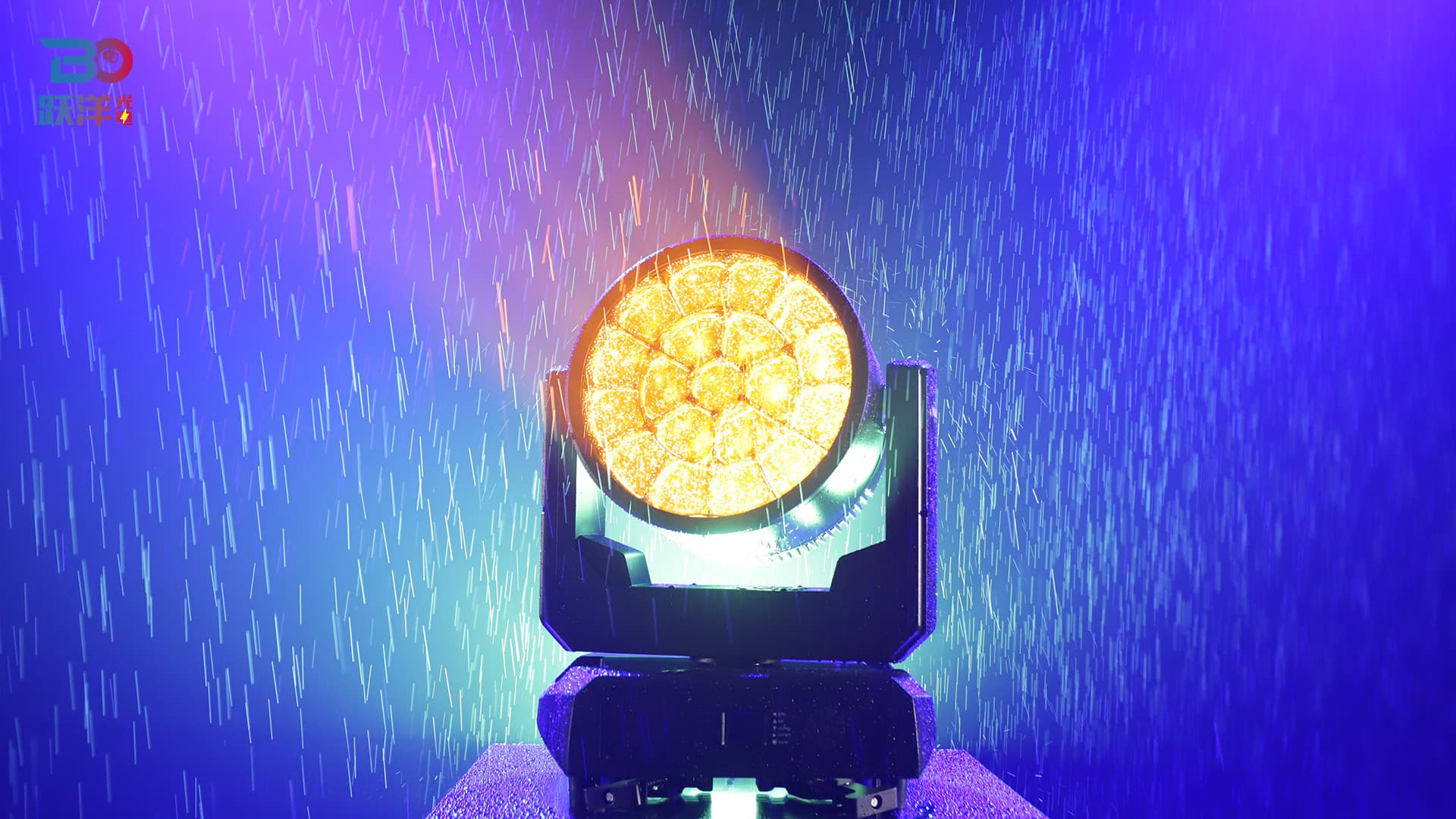

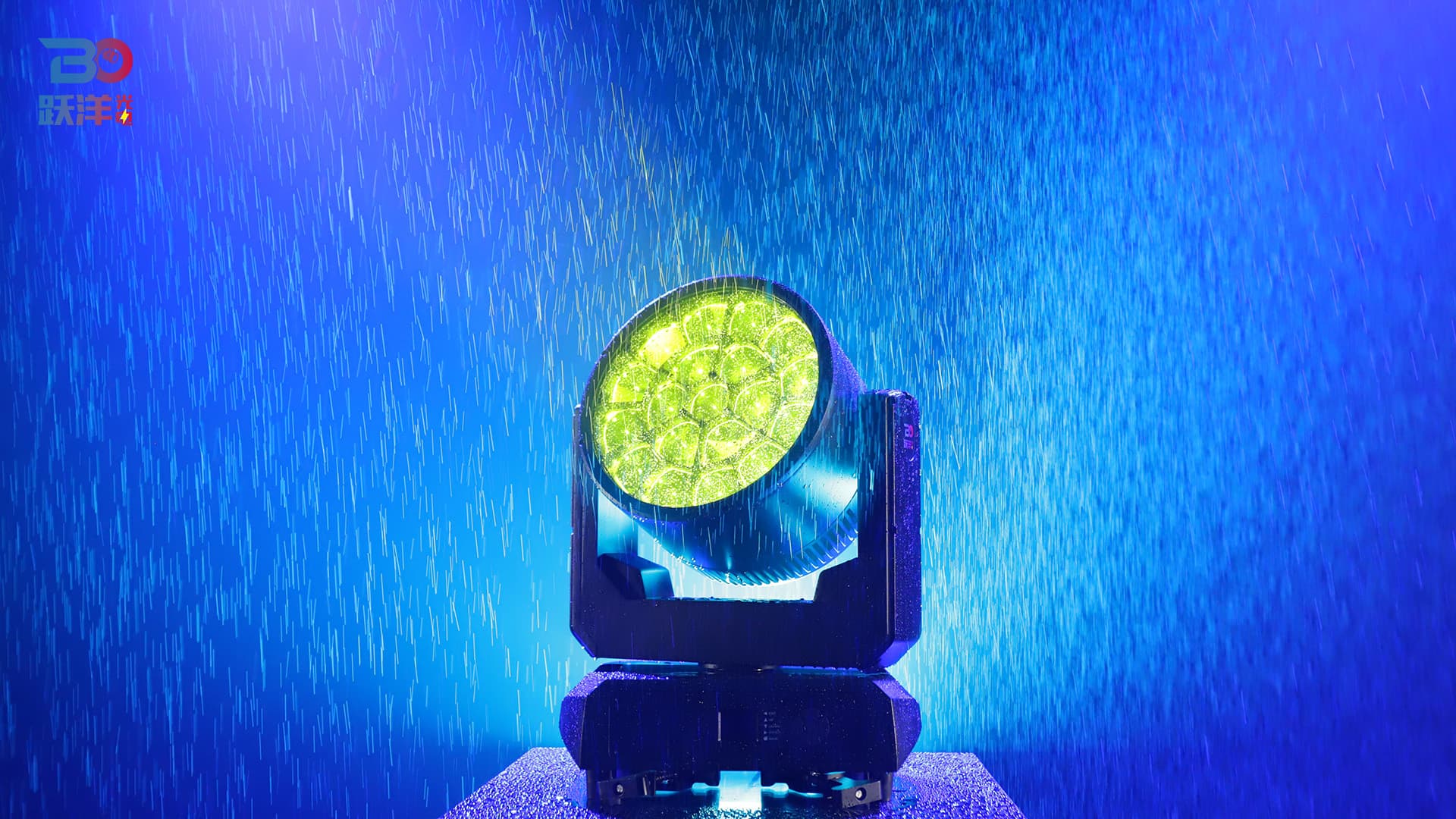

Protection Rating: IP65

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: Aluminum

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

MAX. Connection: 4 units（240V，50Hz） 2.5mm²  power cable; 2 units（100V，60Hz） 2.5mm²  power cable

Dimension: 418*319*522mm

Net Weight: 27kg

Carton Package: 645*405*505mm    1in1  GW: 30.6kg

Flight Case: 845*560*740mm    2in1  GW: 88.15 kg

Features: Full range dimming, 65536 dimming levels; 4 dimming curves to choose. Fast strobe 1~25Hz; LED are divided into 3 circles for control;Integrating WASH and beam effect; Preset multiple color macro function; Preset multiple effect macro function(WASH、Ring control、Strobe)

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
