19x20W RGBW LED Moving Head Wash Zoom

Short Description:

The wash zoom moving head has 19 pieces of 20 watts LEDs, is compact in design, smaller and lighter than other similar models. Its zoom range is 5.8°-55°, not only has a beam, wash, and strobe effect, but also has a circle control effect.


  • Brand: Beyond
  • Model: 1920Z
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

    19x20W LED Wash Zoom Moving Head Light with Ring Control

    Optics
    • Light Source: 19x20W 4IN1 RGBW LED
    • Average Life Span> 50000 Hours

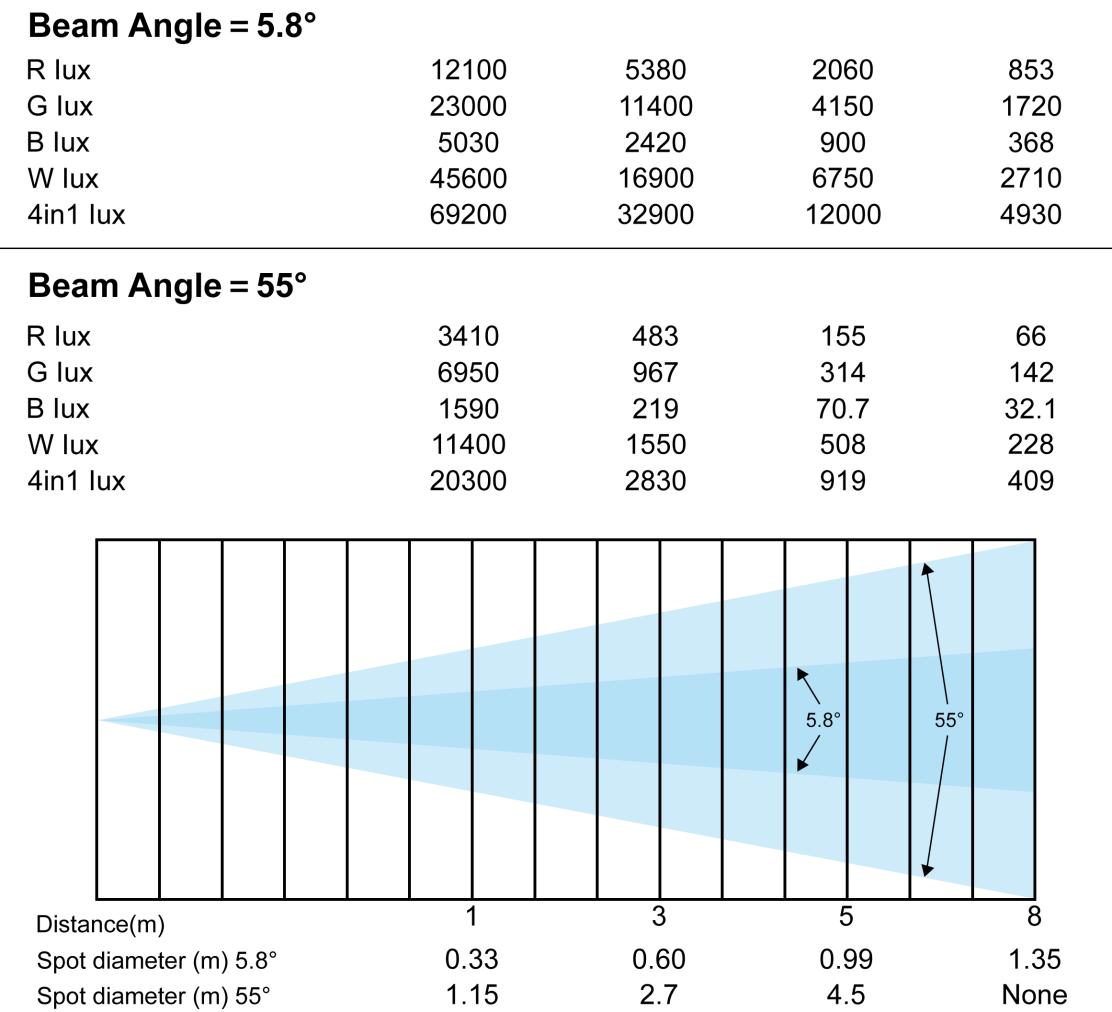

    • Zoom Angle: 5.8°- 55°
    • Glass Light Guide + PMMA High Quality Optical Lens
    • Power Consumption: 350W
    • Power Factor PF≥0.95
    • Working Temperature: -10℃~45℃
    • Power Voltage: AC 100-240V, 50/60Hz

    Control
    •
    DMX Channels: 19/27 Channels

    • Control Modes: DMX512/Master-Slave/Auto Run/Music

    Pan/Tilt
    •
    Pan: 540°/ 360°, Tilt: 270°

    • Pan/Tilt Resolution: 8/16 bit

    Construction
    •
    Display: 180° reversible 1.8 inch TFT colorful Display

    • Data In/Out Socket: 3-pin & 5-pin XLR sockets
    • Power Socket: Power Con in/out
    • Protection Rating: IP20

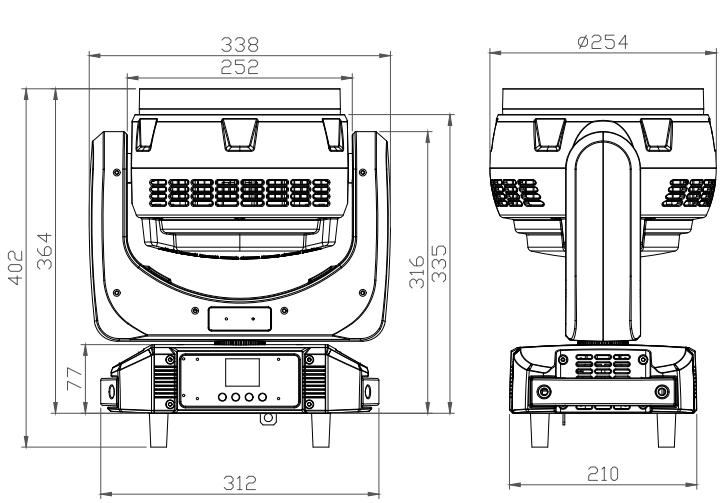

    • Dimension: 338 x 254 x 375 mm

    cad chart

    • Net Weight: 8.5 kg
    • Carton Package 1 in 1 Size: 420 x 340 x 460 mm
    • Gross Weight: 10 kg

    • Carton Package 2 in 1 Size: 690 x 440 x 480 mm
    • Gross Weight: 23 kg

    • Flight Case 4 in 1 Size: 830 x 610 x 510 mm
    • Gross Weight: 66.5 kg

    Features
    •

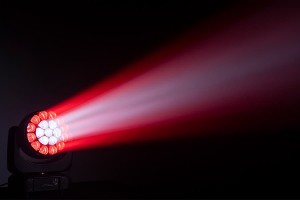

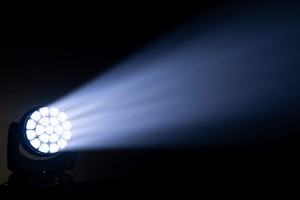

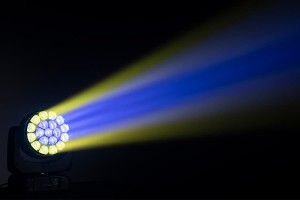

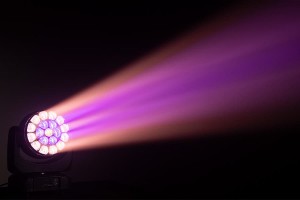

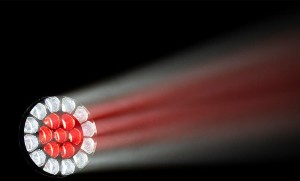

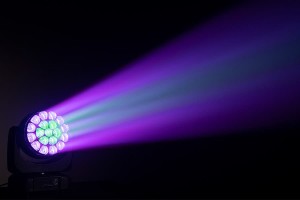

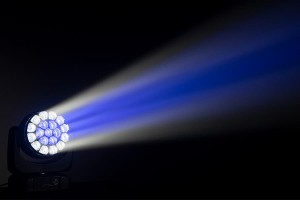

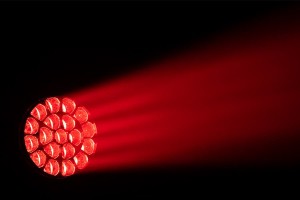

    Circle control effects, 3 circle control.

    • High-efficiency optical system, wonderful flower effect plus zoom
    • Fan work speed auto adjustable with head temperature
