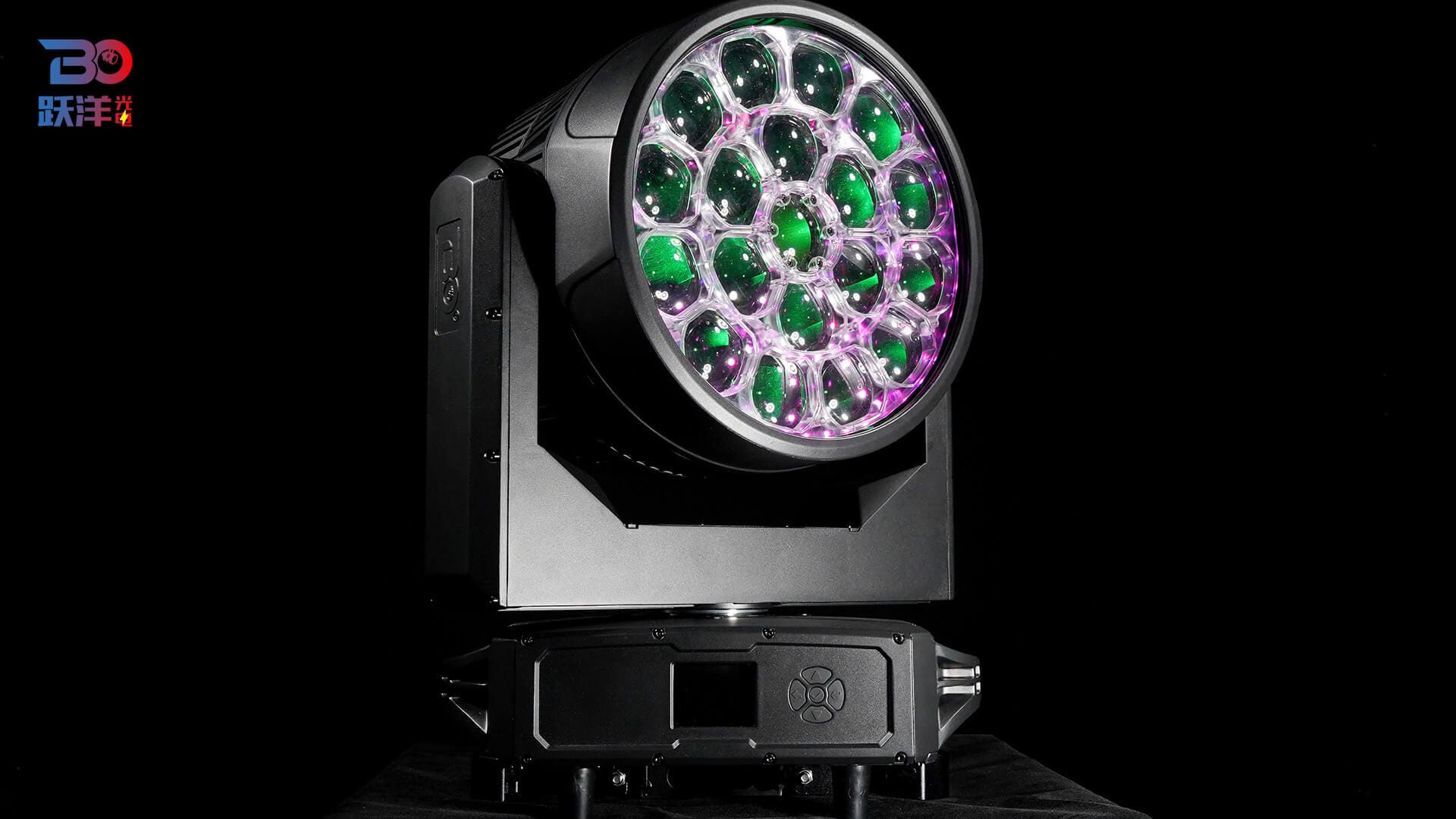

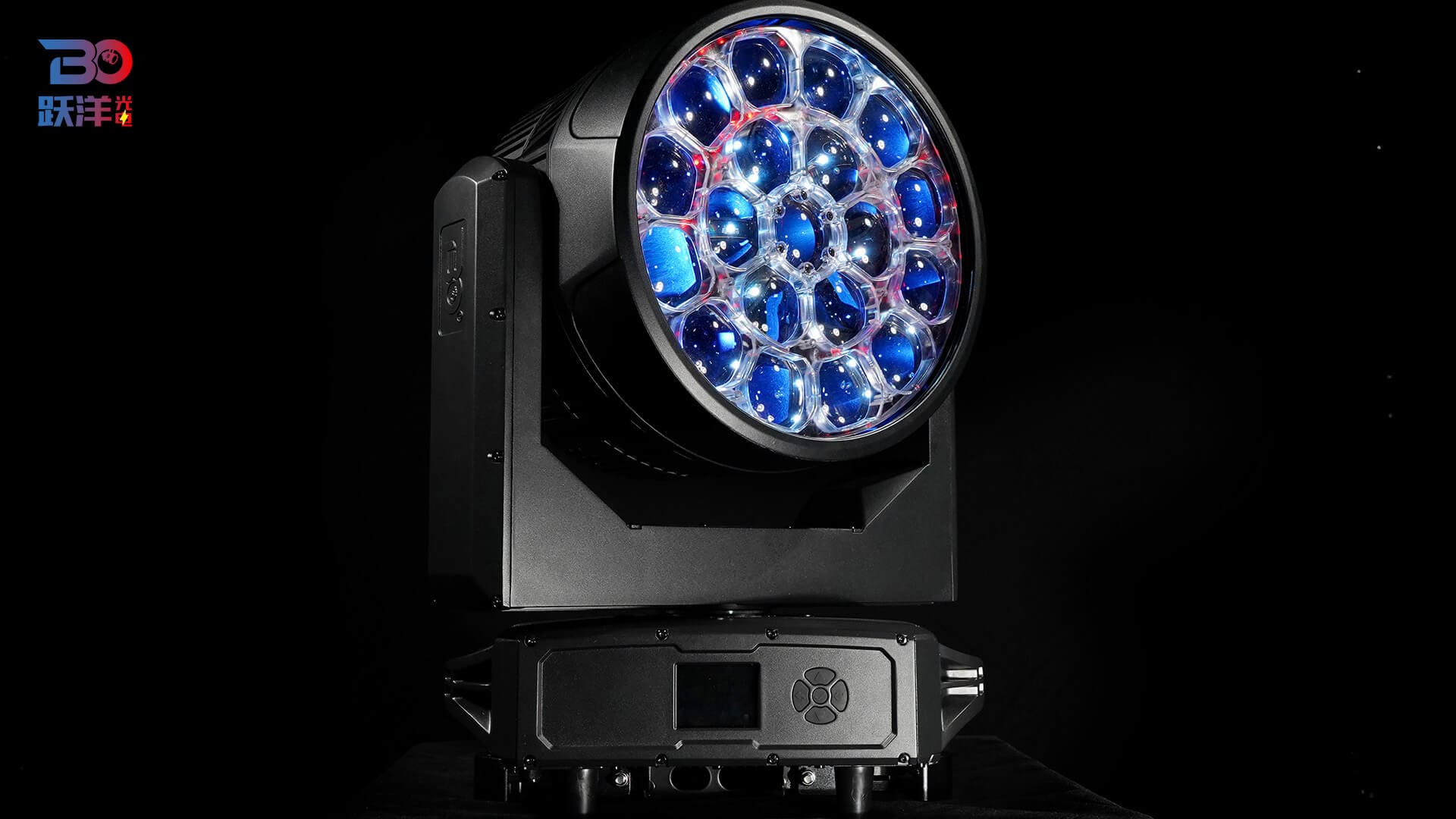

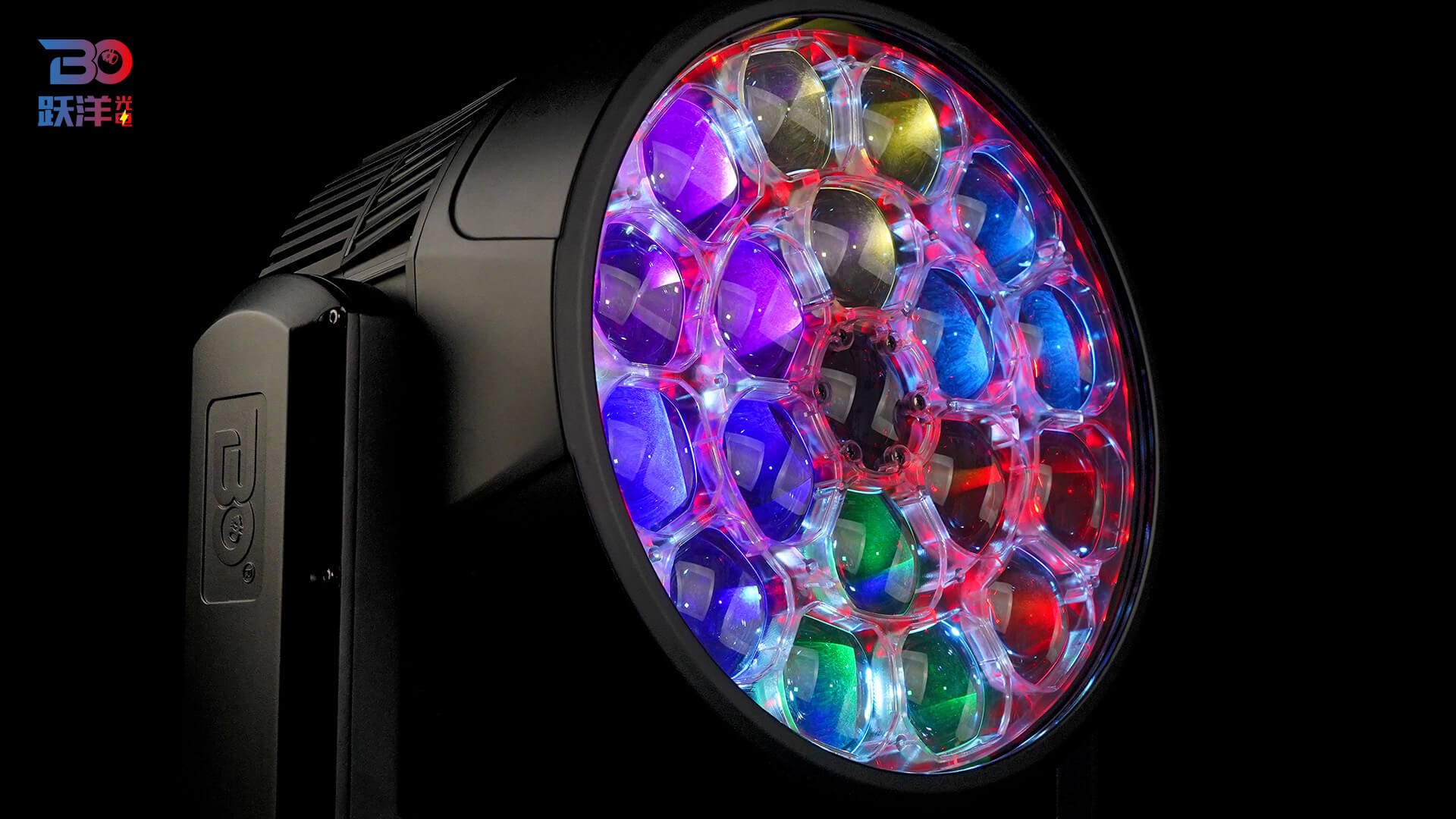

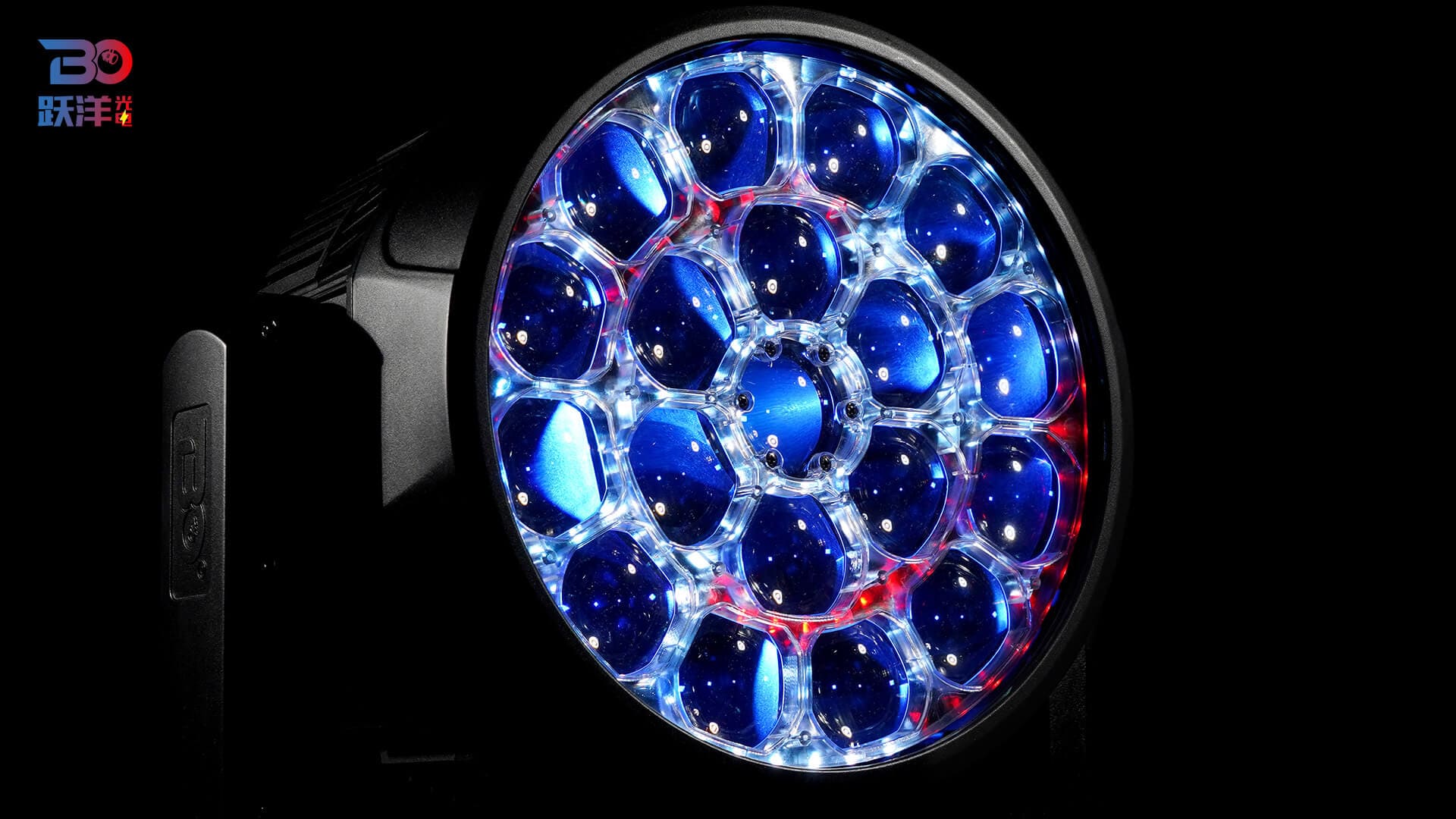

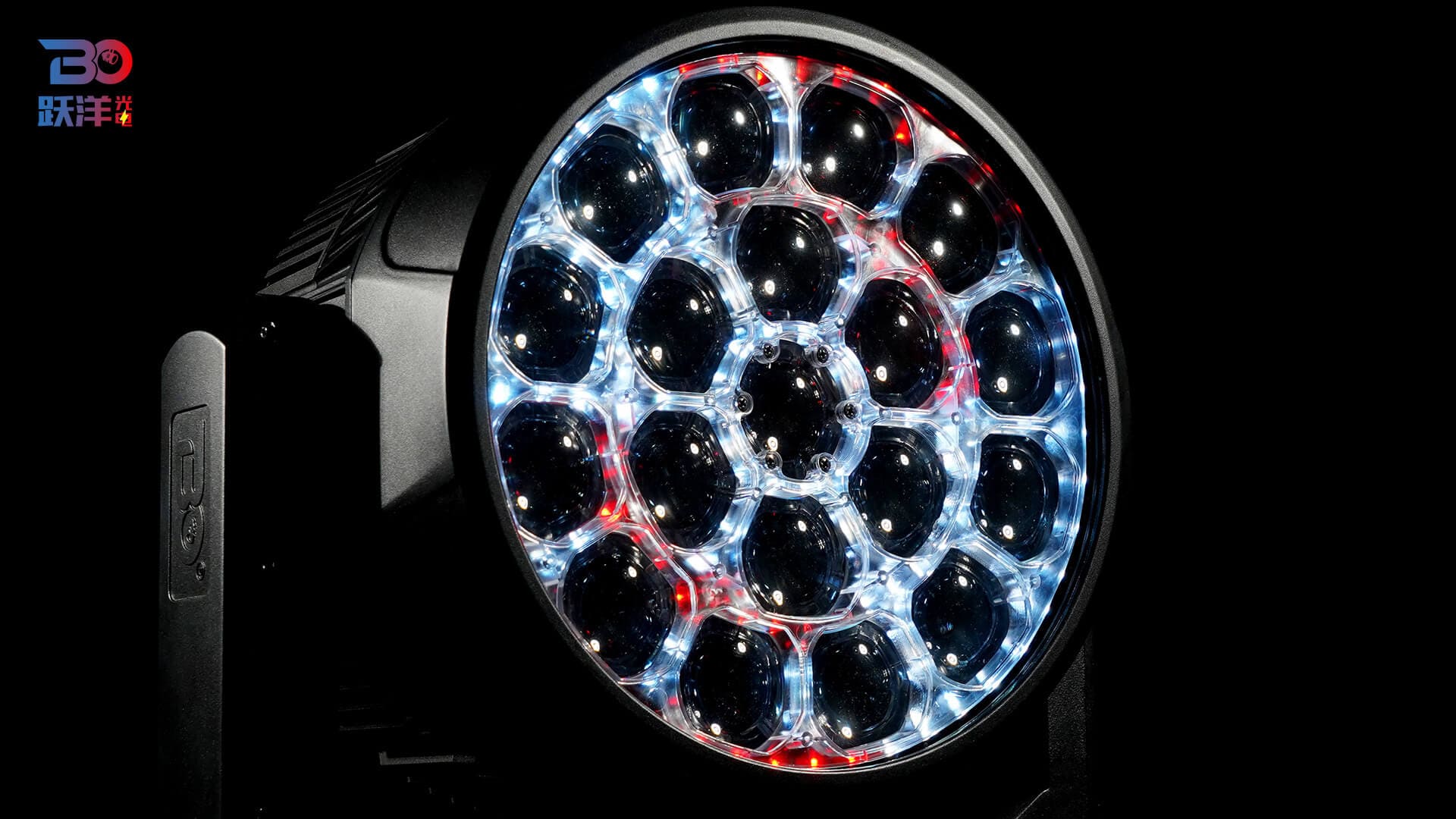

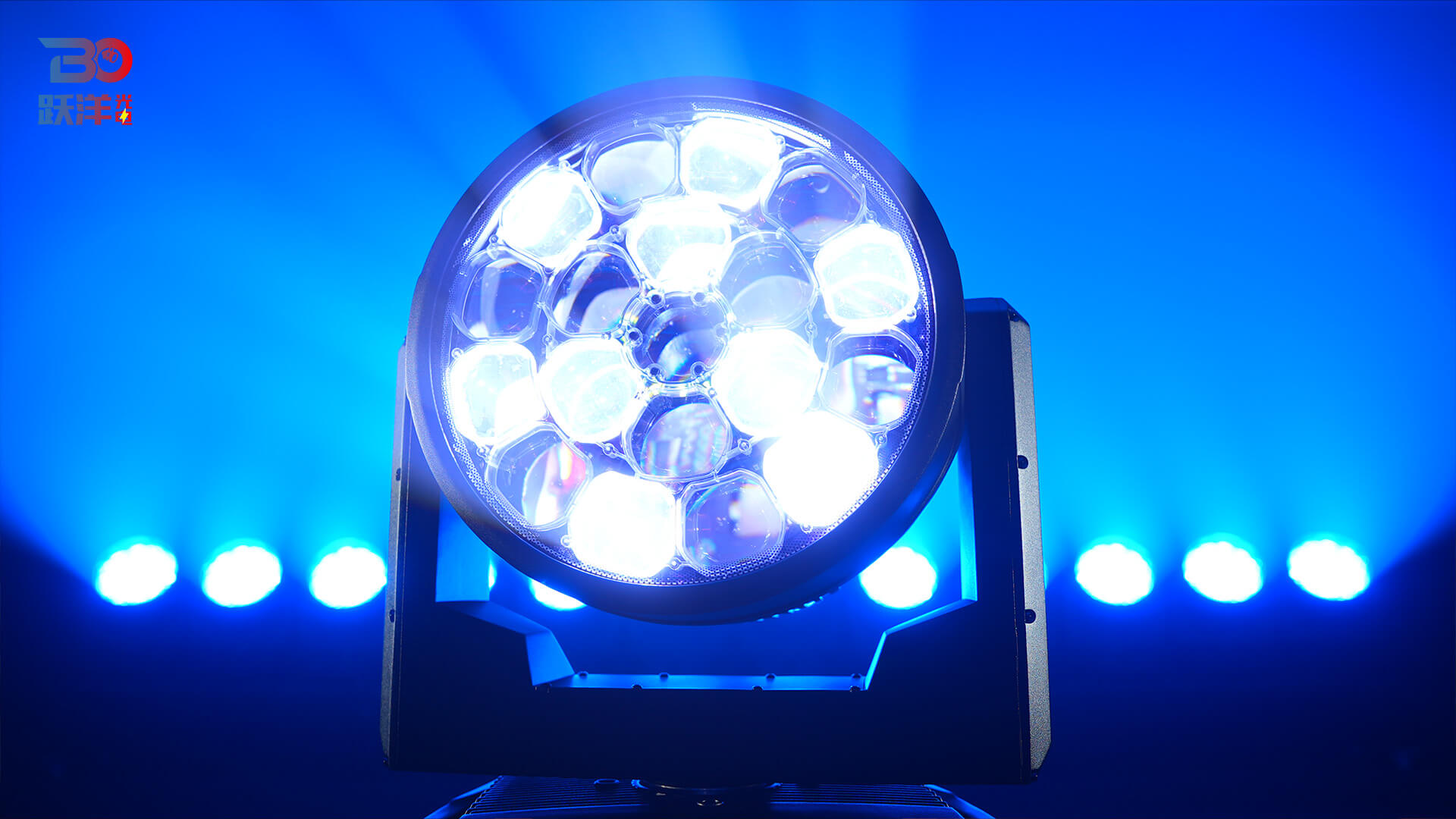

IP66 19x120W Big-Eye with Additive Color Synthesis Moving Wash

Short Description:

“Command the Elements: The IP66 Titan of Pixel Wash Lighting”

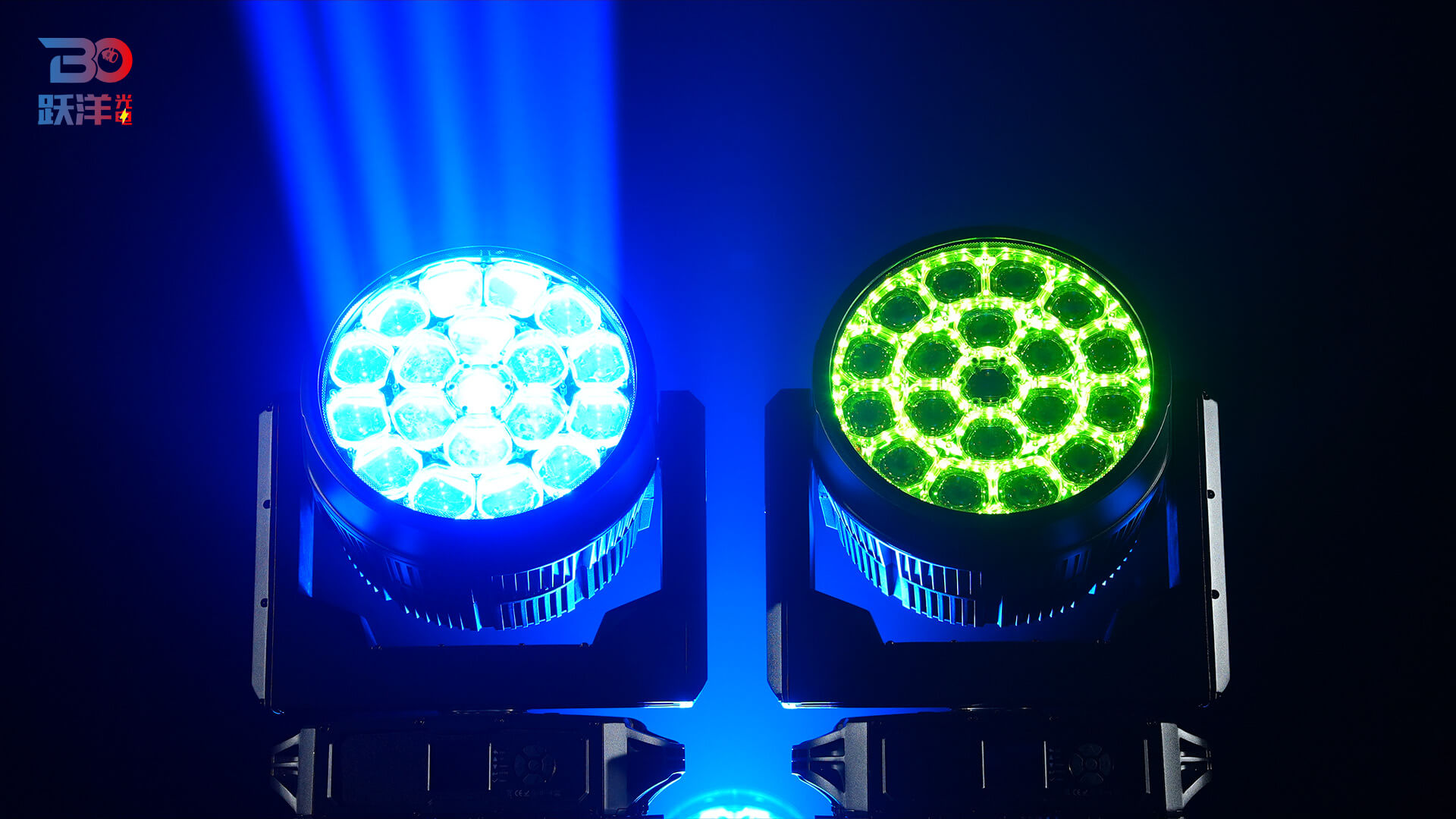

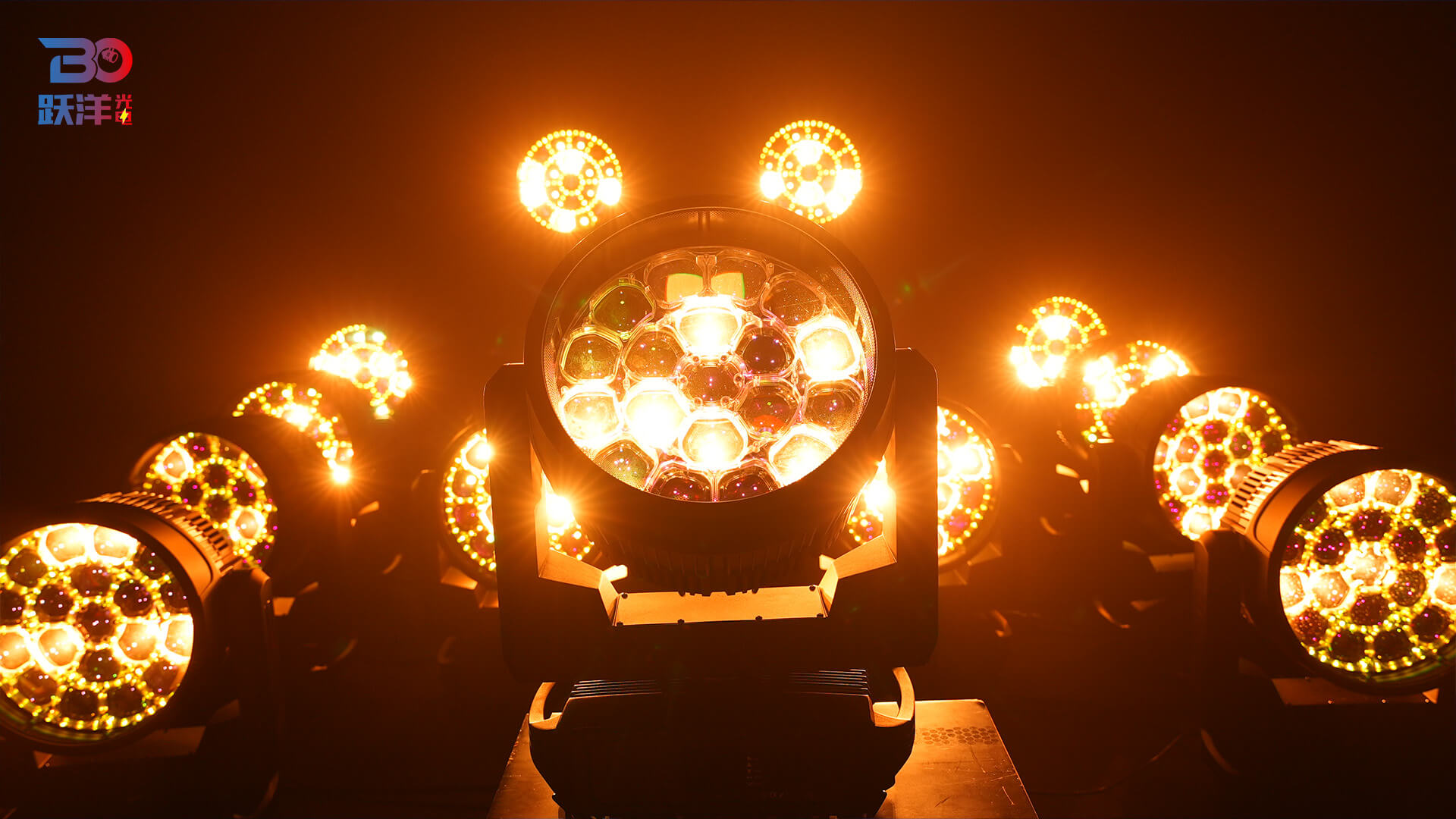

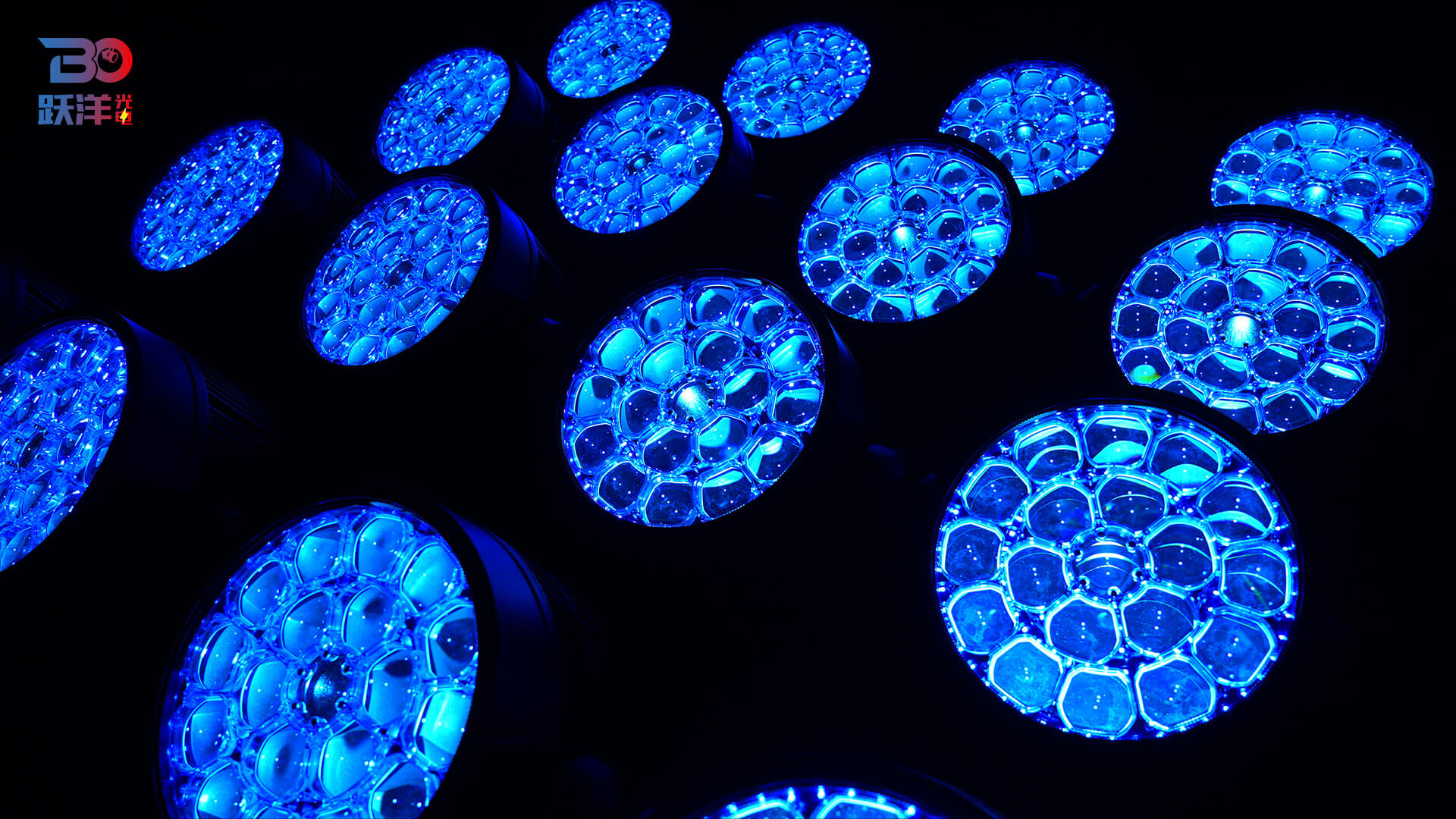

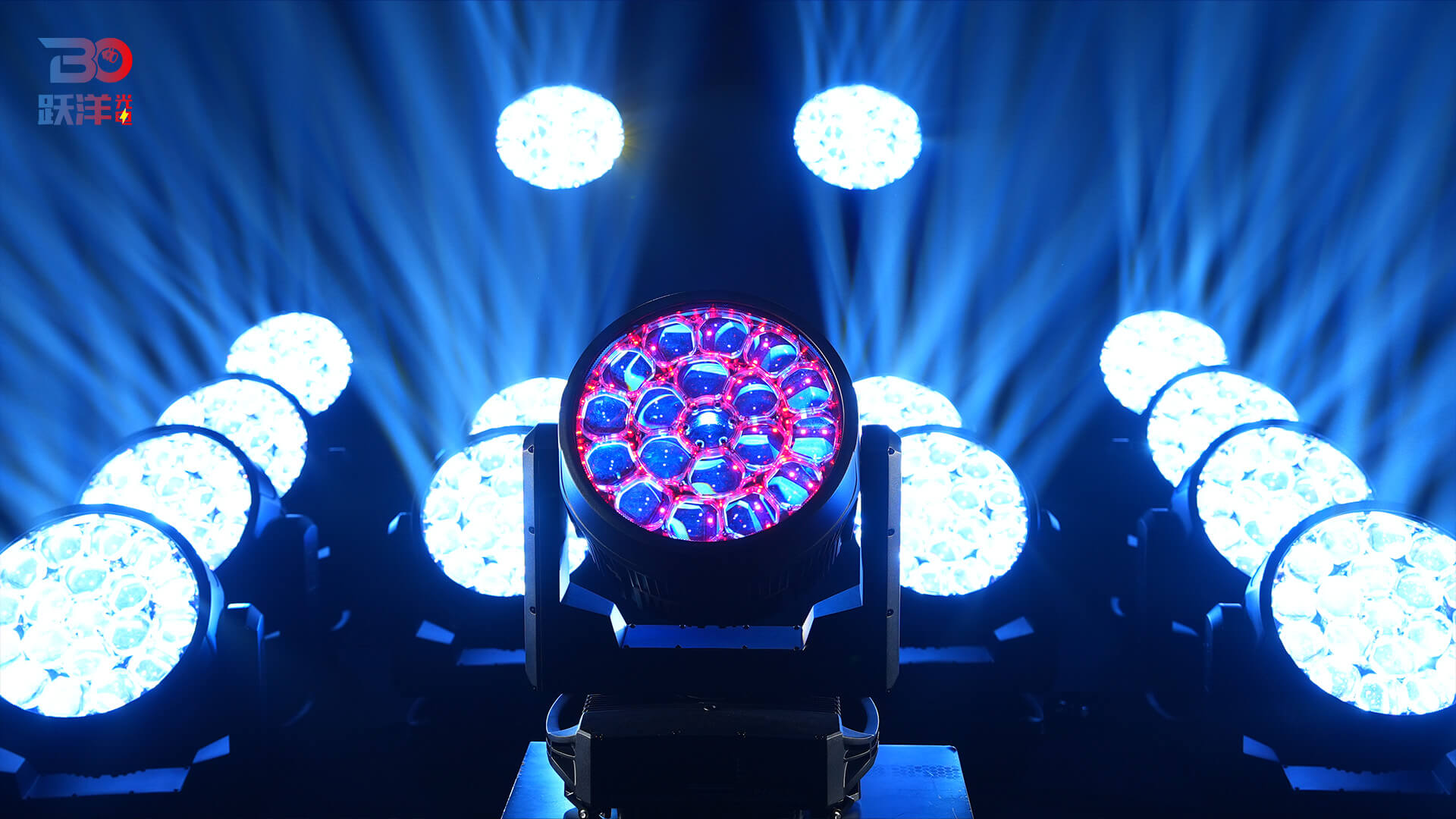

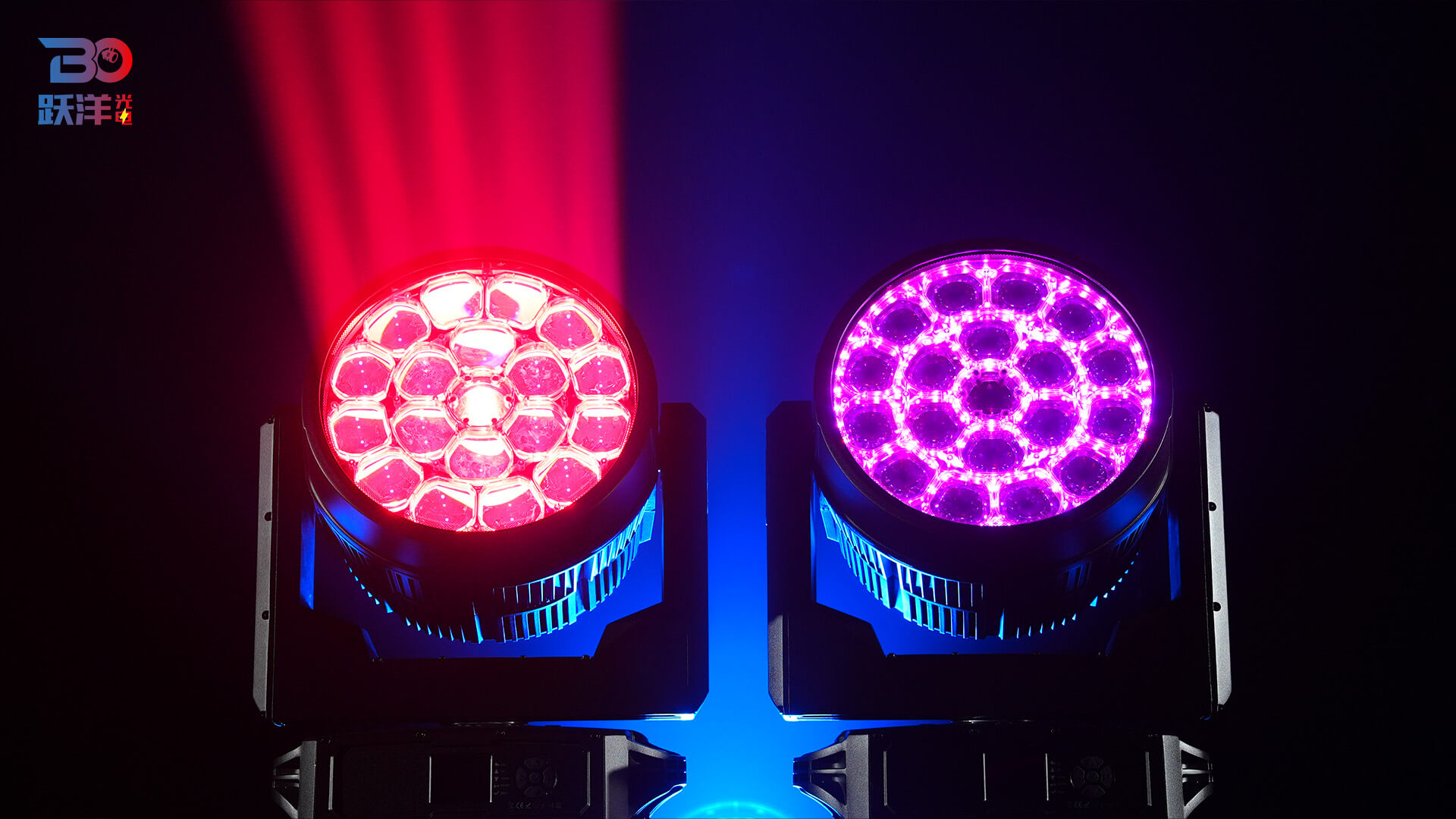

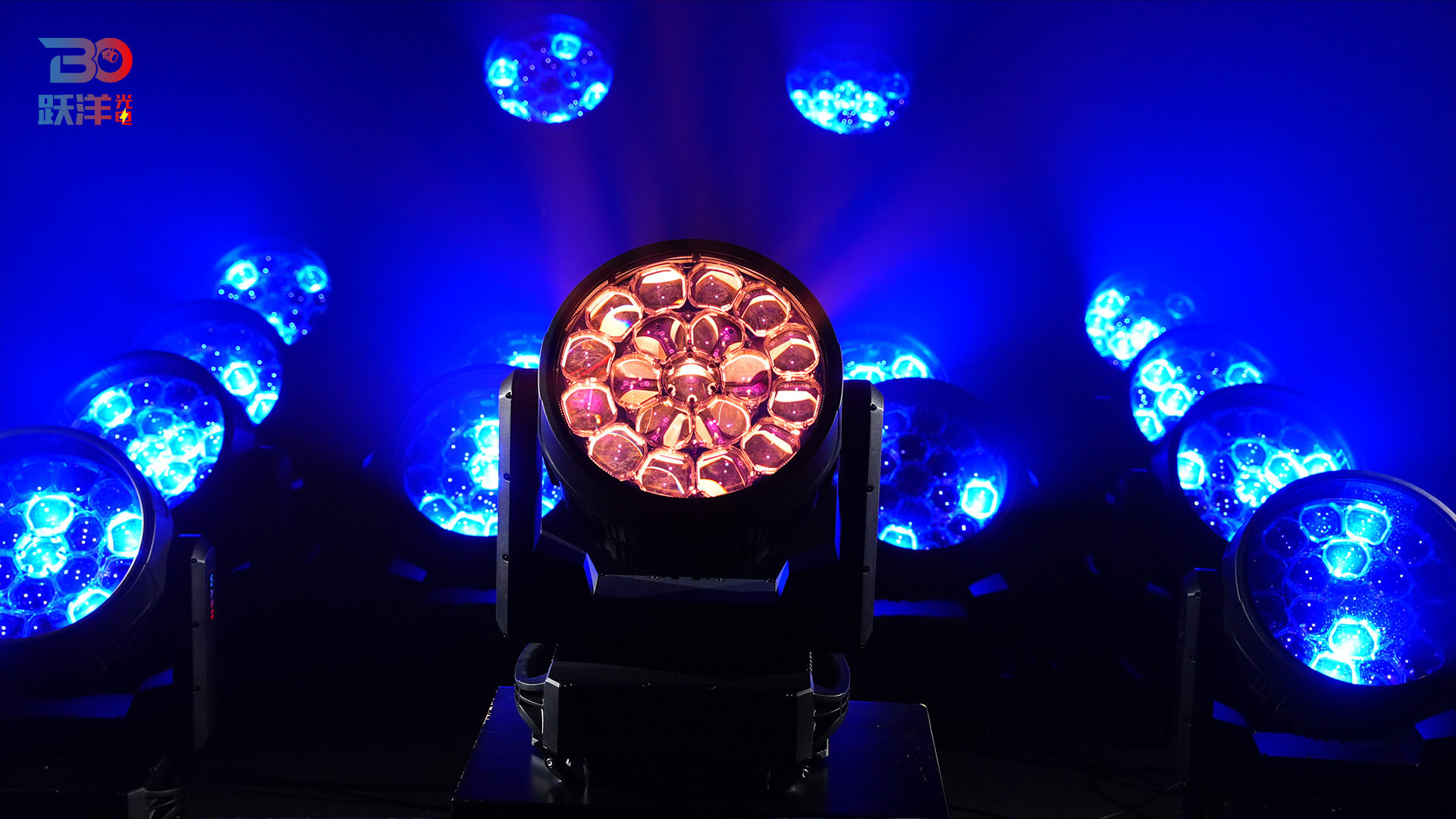

Unleash unrivaled intensity on any stage with our flagship moving head wash. Built to dominate large-scale productions, this fixture merges 19 high-octane 120W LEDs with a stunning 132-LED RGB Aura system, creating a “Bee Eye” depth that is as mesmerizing as it is powerful. From a razor-sharp 2.5° piercing beam to a massive 43° panoramic wash, its rapid optics adapt instantly to your creative vision. With an IP66-rated armored chassis housing a massive 2100W engine, this is the definitive choice for stadium tours and outdoor festivals where failure is not an option. Don’t just light the stage—transform it into a high-definition pixel-mapped masterpiece.

Brand: Beyond

Model: 19120BW

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86-13922297736

Send email to us Product Manual

Product Detail

19120BW Parameter

Power: AC100-240V, 50/60Hz;
Power Consumption: 2100W;
Light Source: 19x120W RGBW LED, 132×0.5W RGB LED;

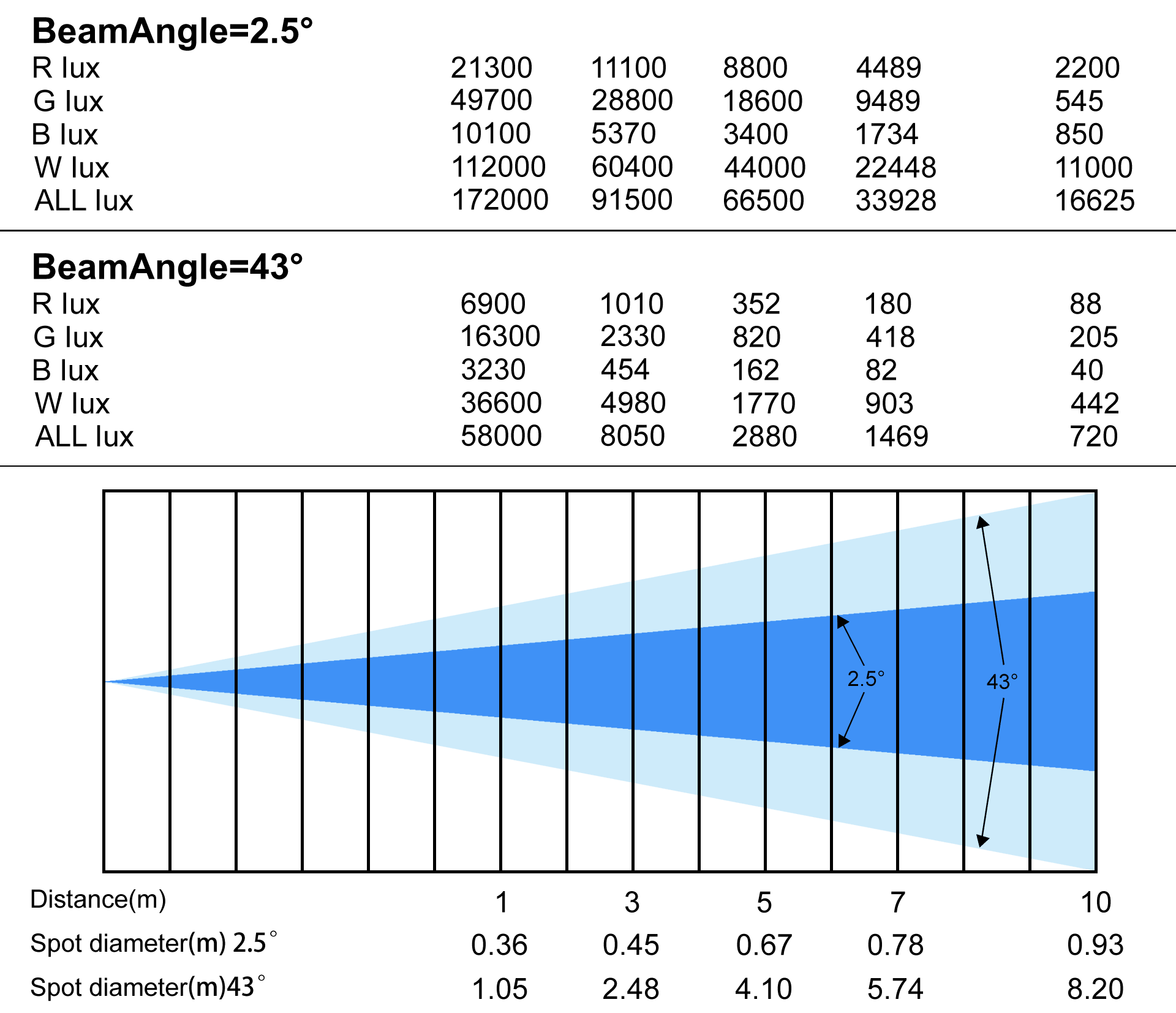

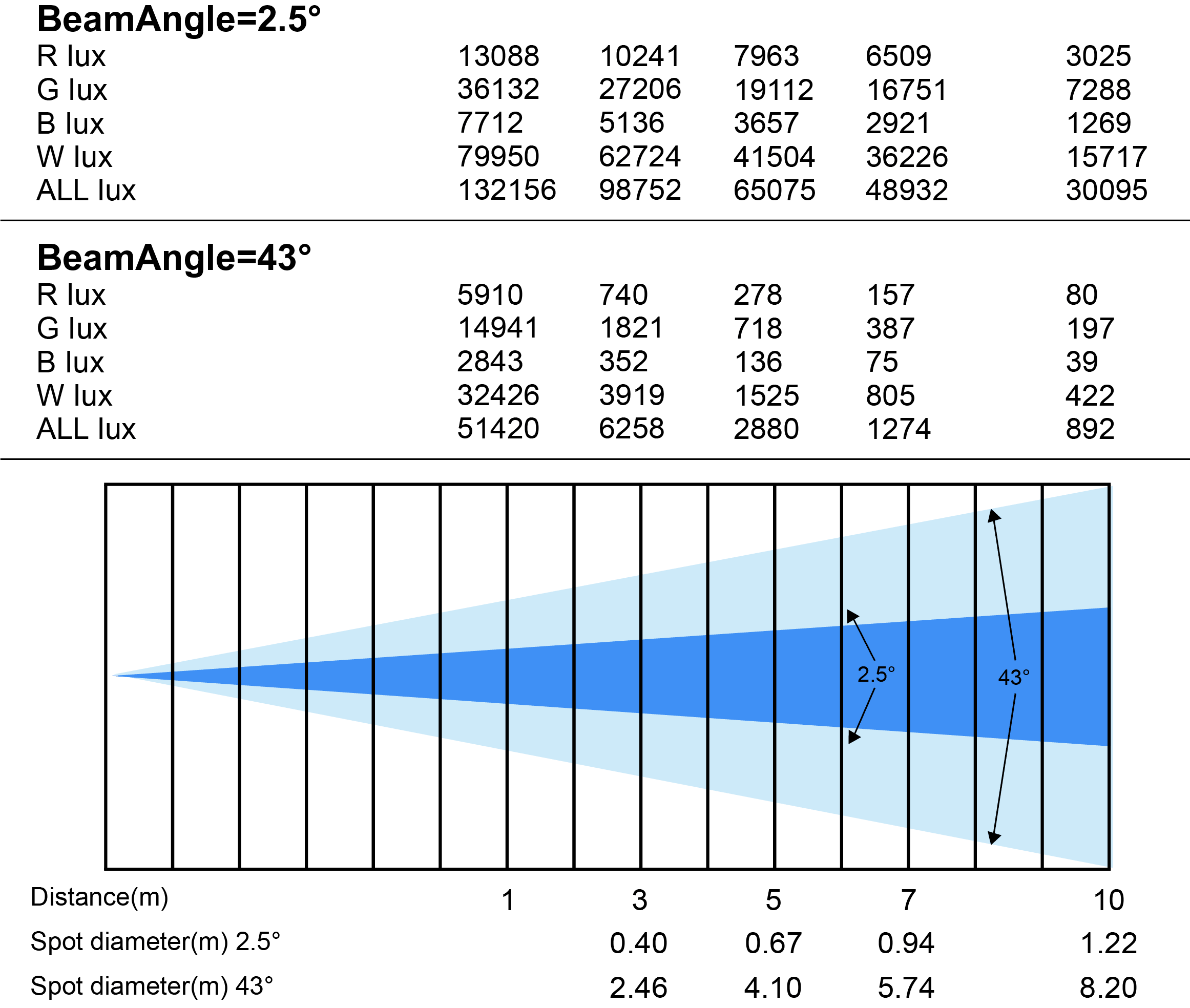

Beam Angle: 2.5°-43°;

Movement:
Pan: 540°;
Tilt: 230°;
Accuracy: 16-bit;
Correction: Automatic position correction after step loss.

Control:
Channel Mode: 21/ 37/ 42/ 100CH, 13+472CH(DMX+Art Net);
Control Protocol: DMX512 / RDM / Art-Net(optional) / sACN(optional);
Software Upgrade: Supports firmware update via DMX

Structure:
Display: Reversible 2.8-inch TFT
Data Connector: 3-pin&5-pin XLR socket / RJ45 optional / Wireless DMX(optional);
Power Connector: PowerCON in/ out, 16A in/ out(optional);

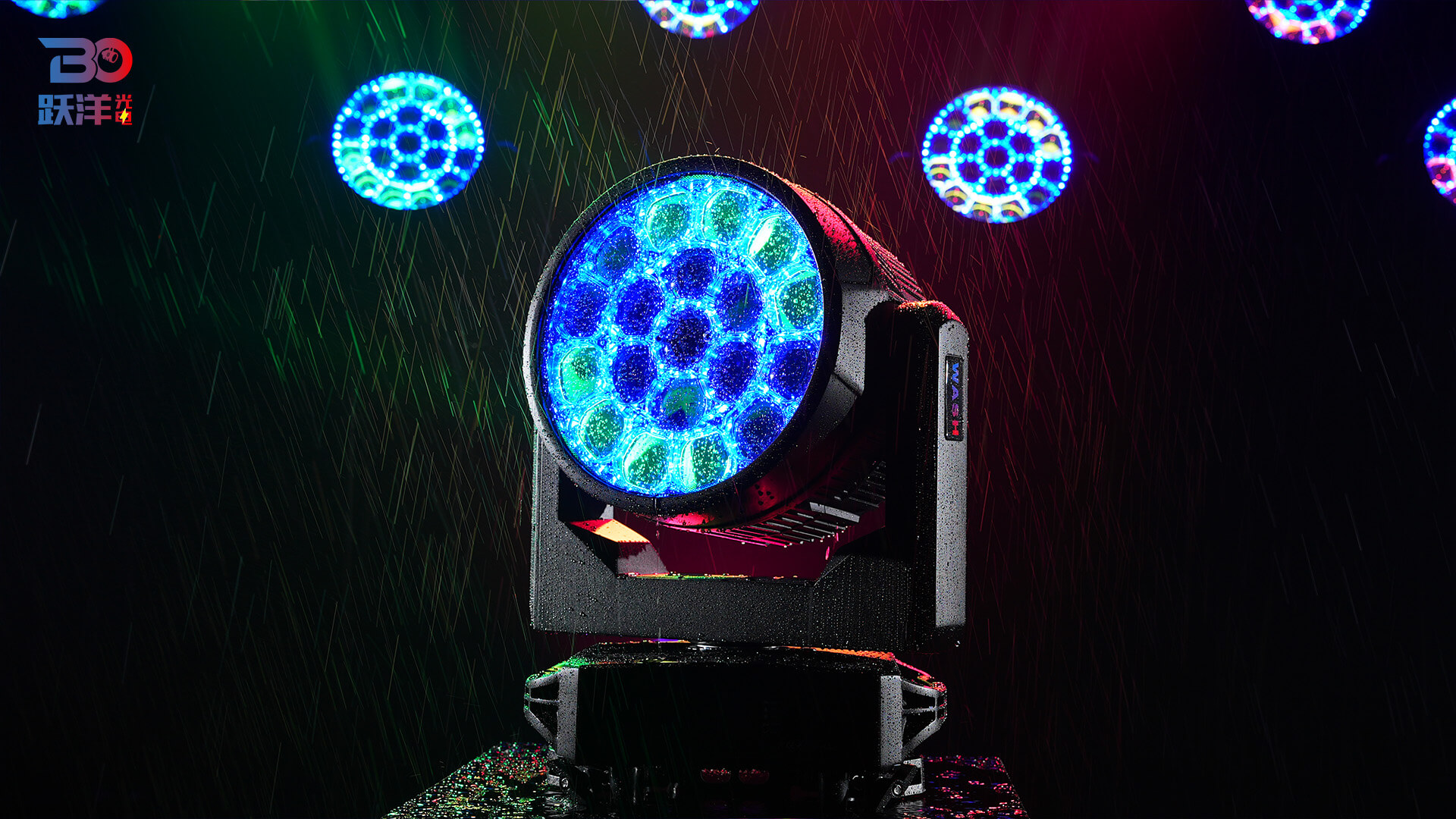

Protection Rate: IP66

Features:

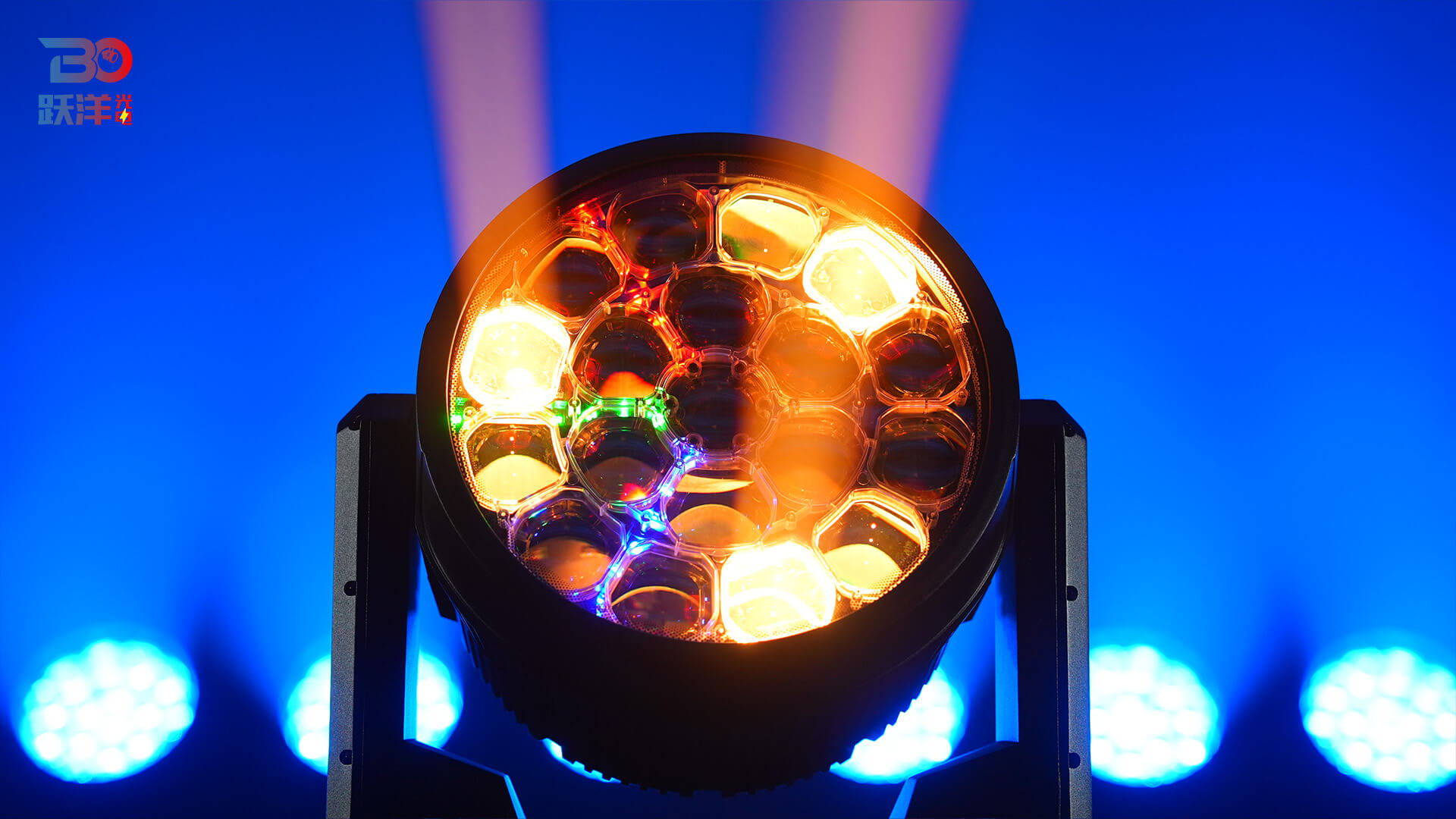

19 × 120W LED with individual pixel control;

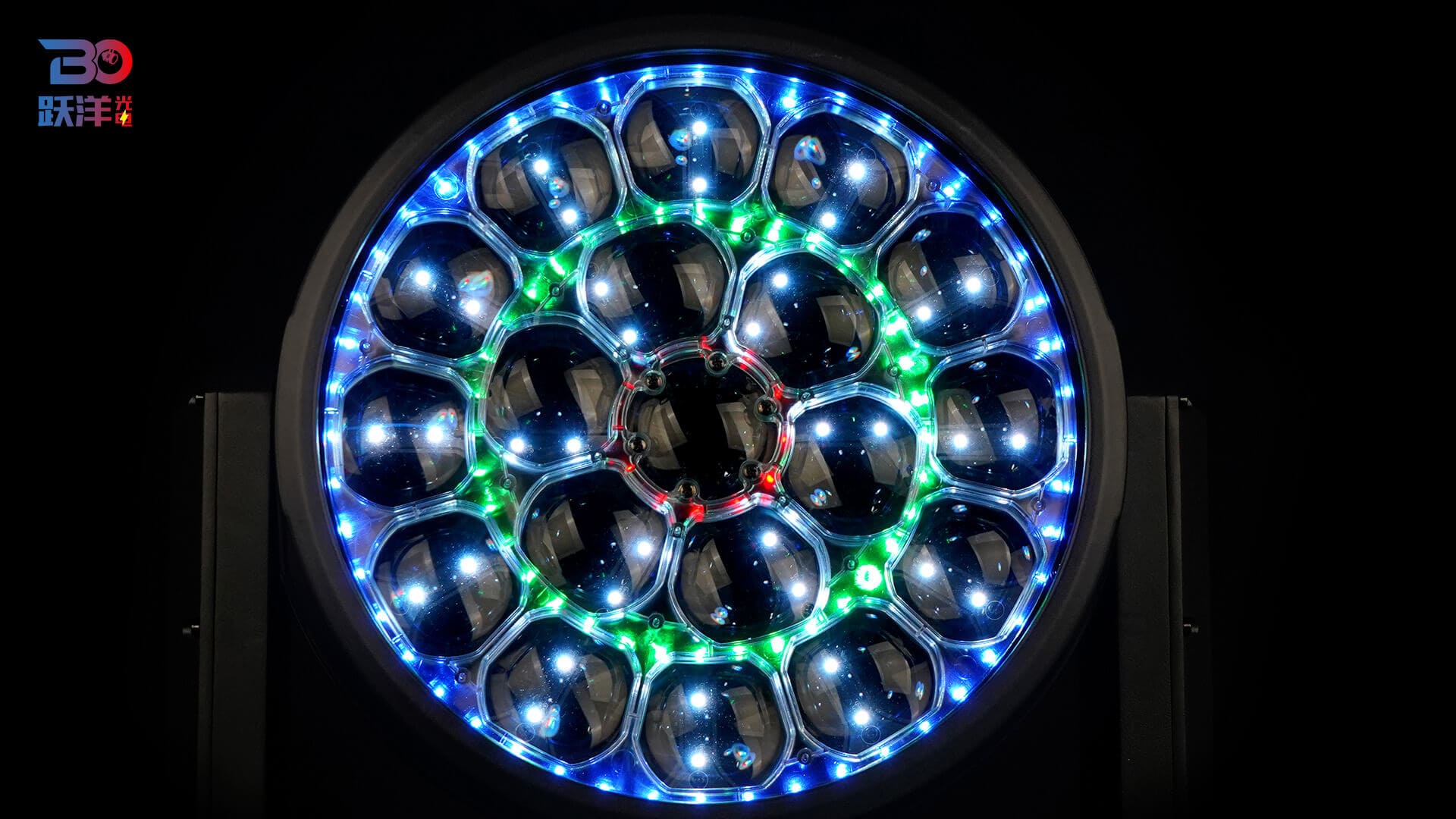

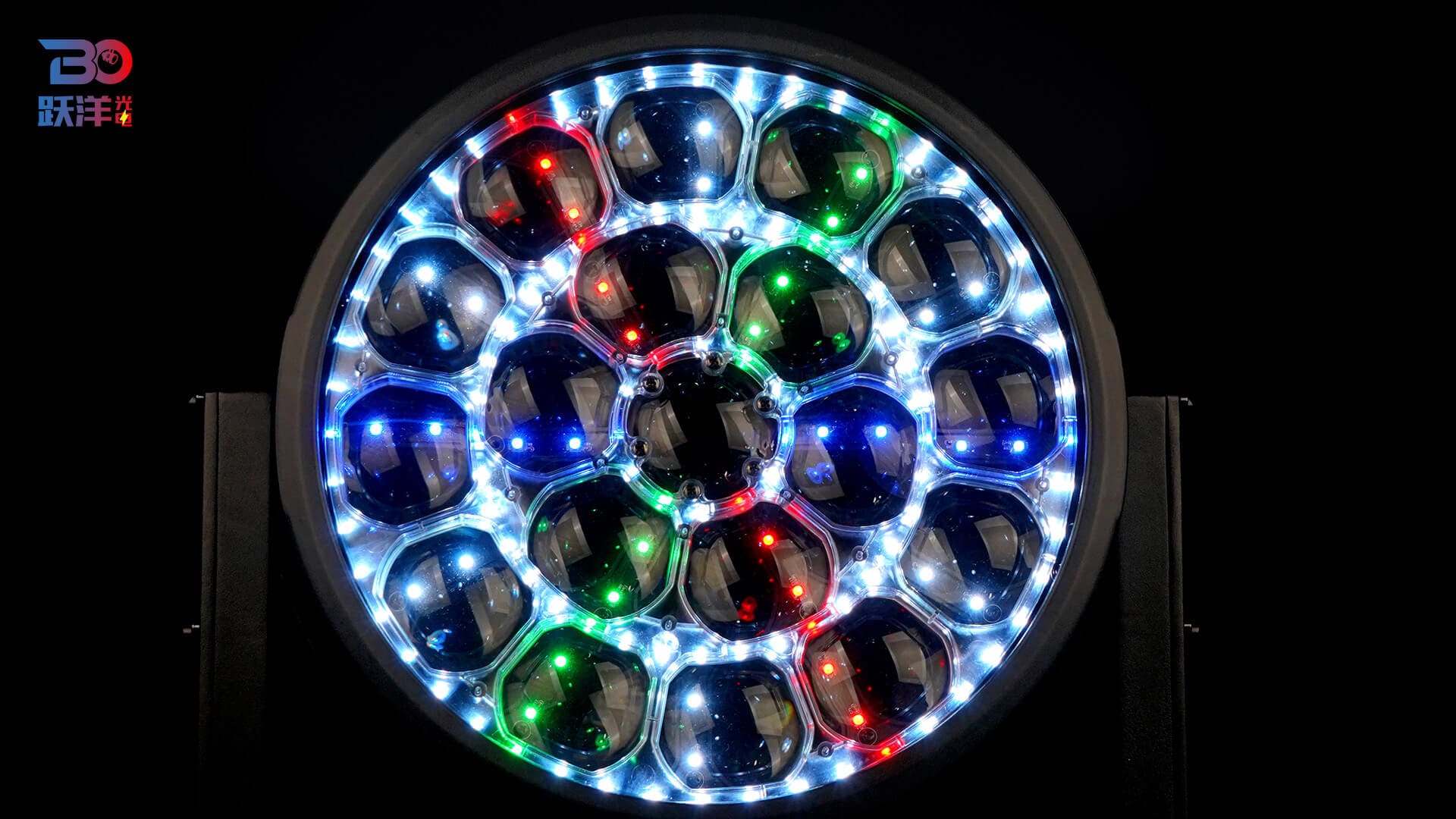

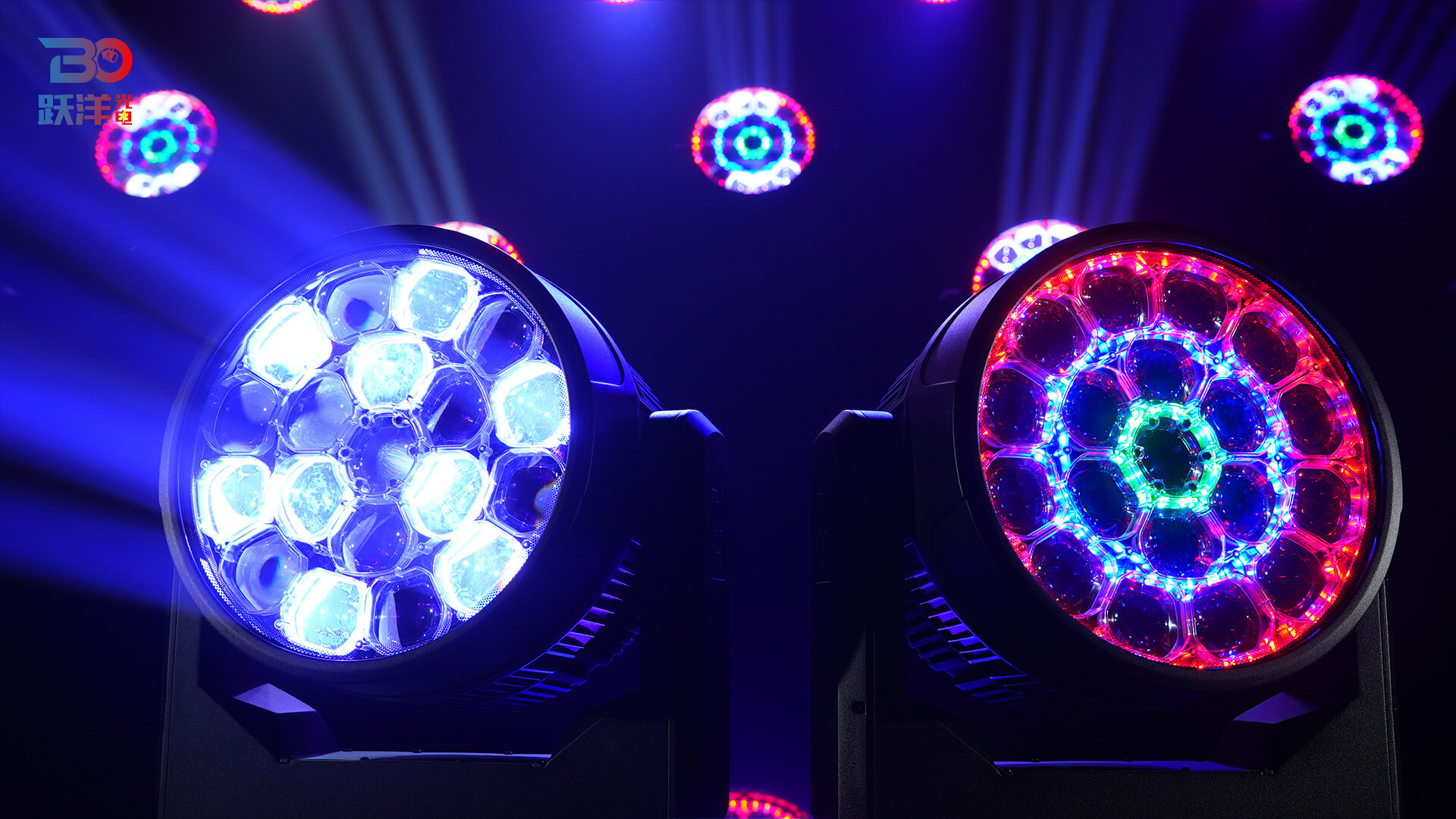

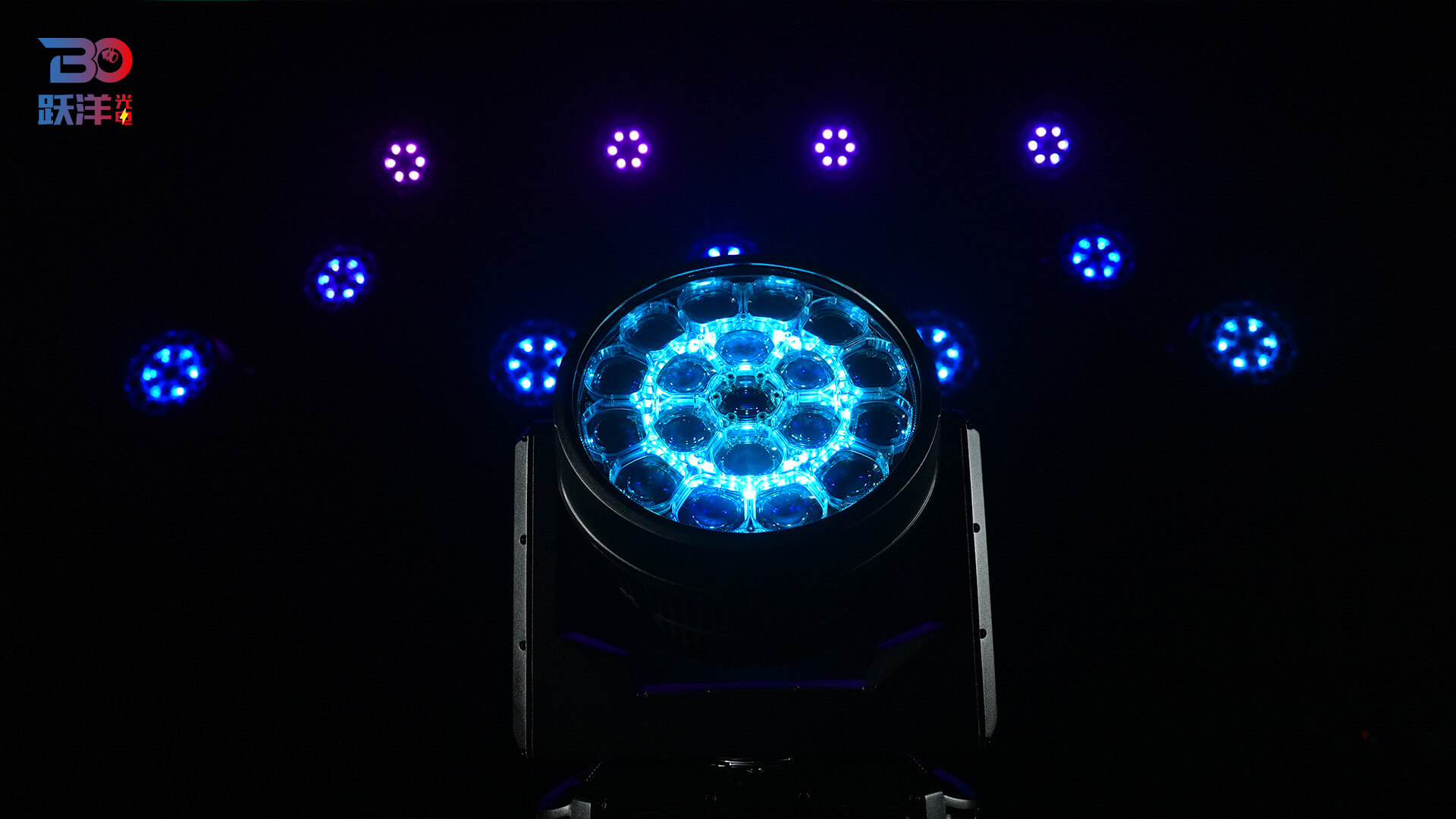

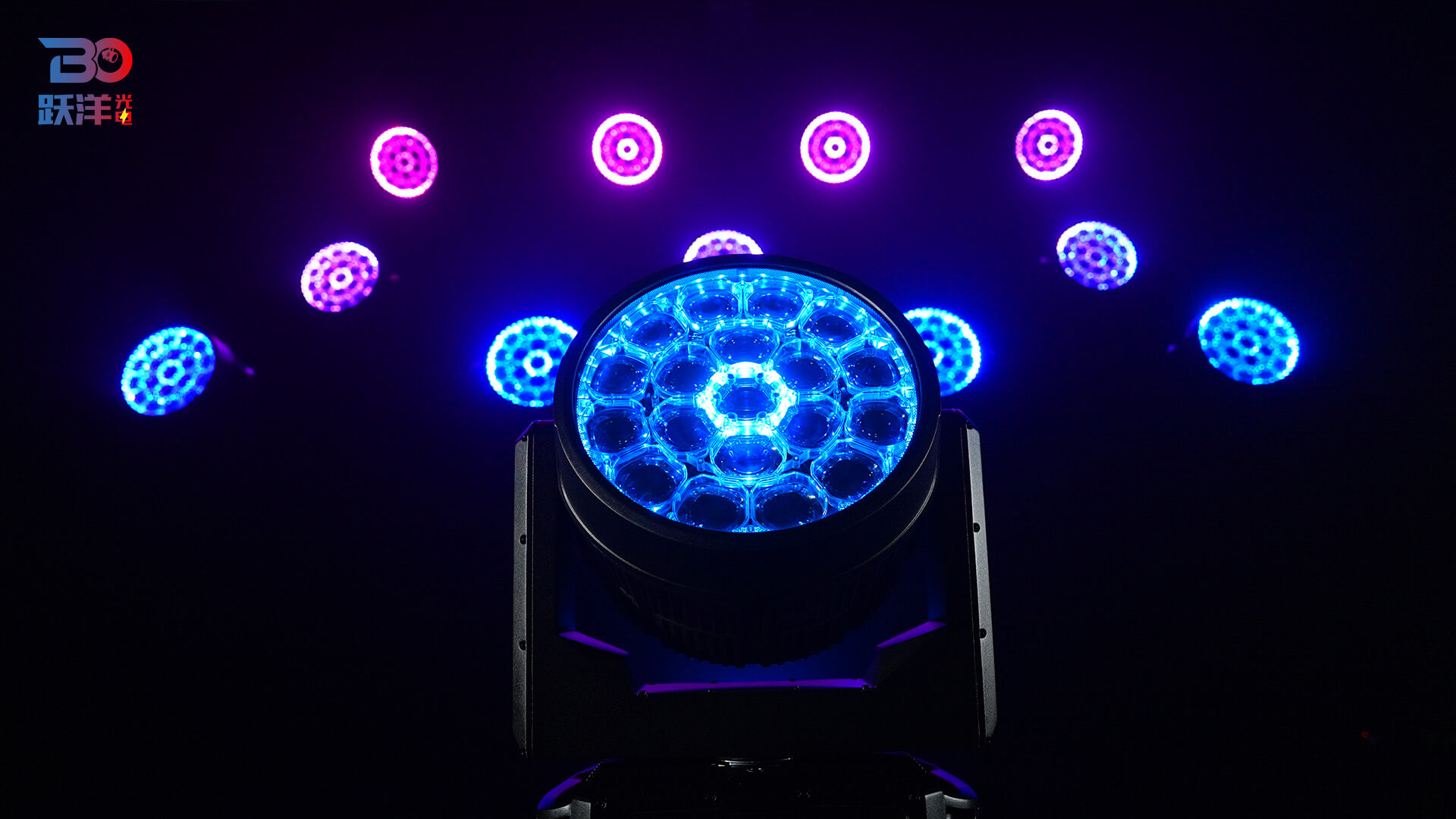

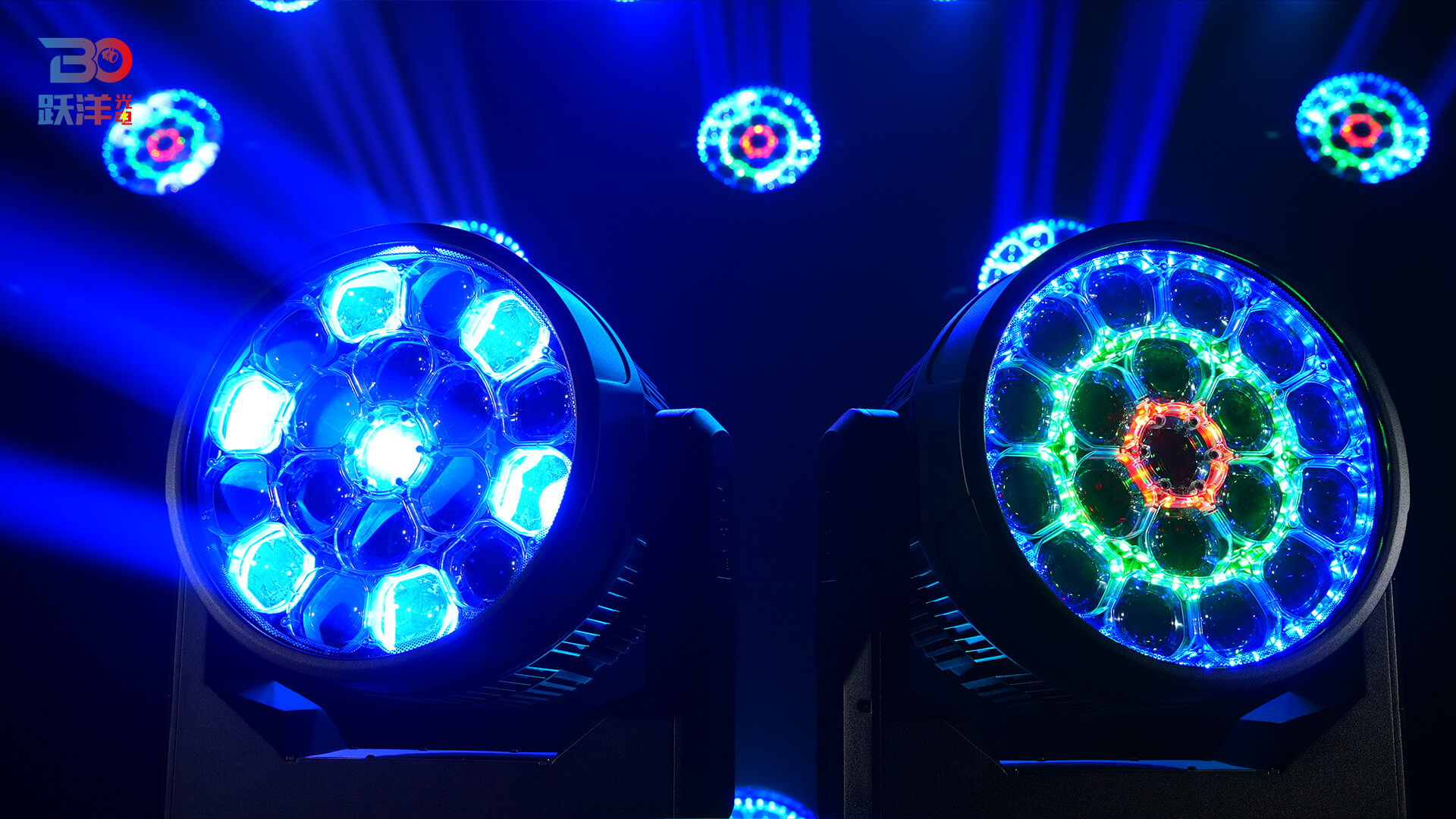

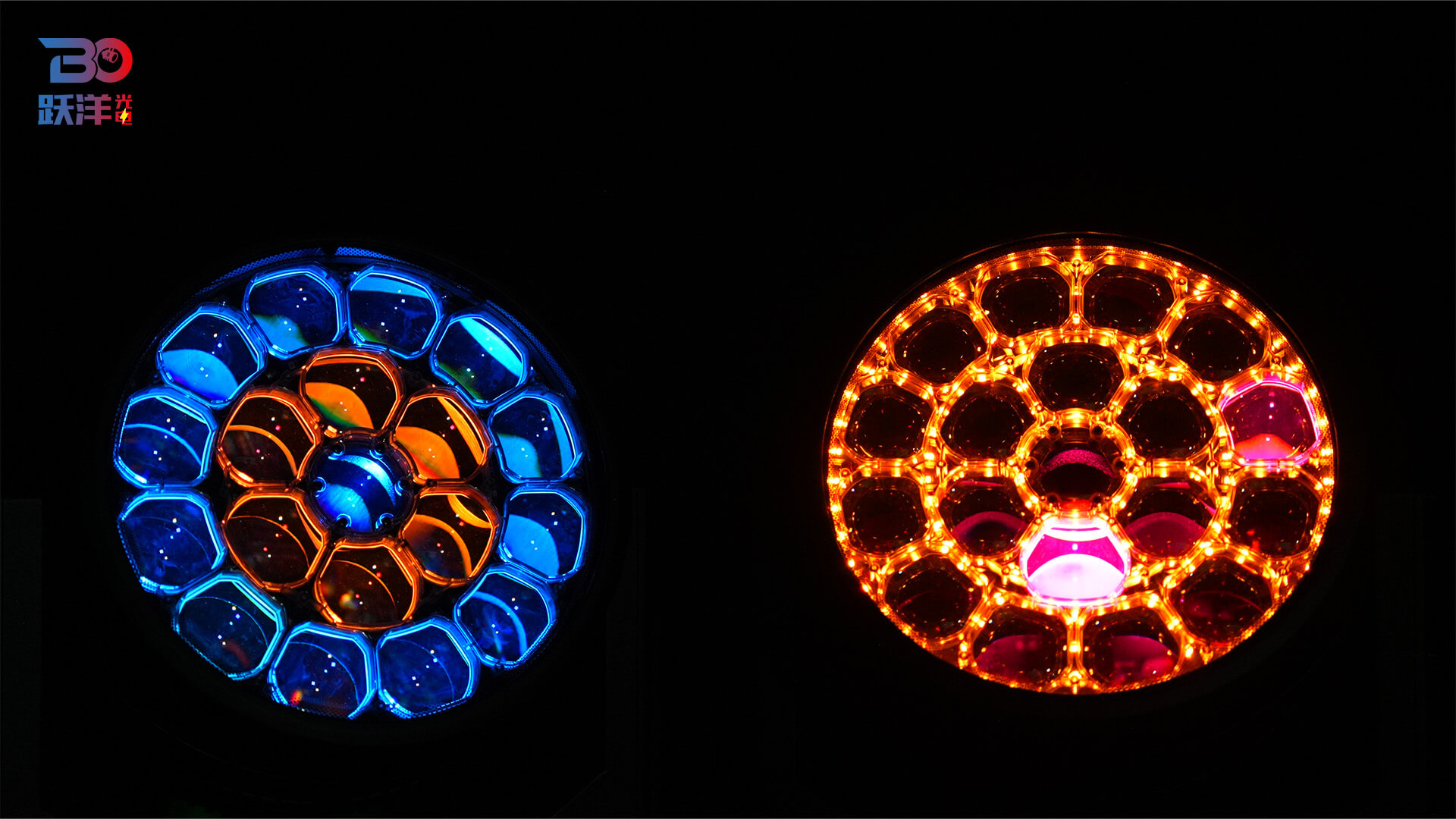

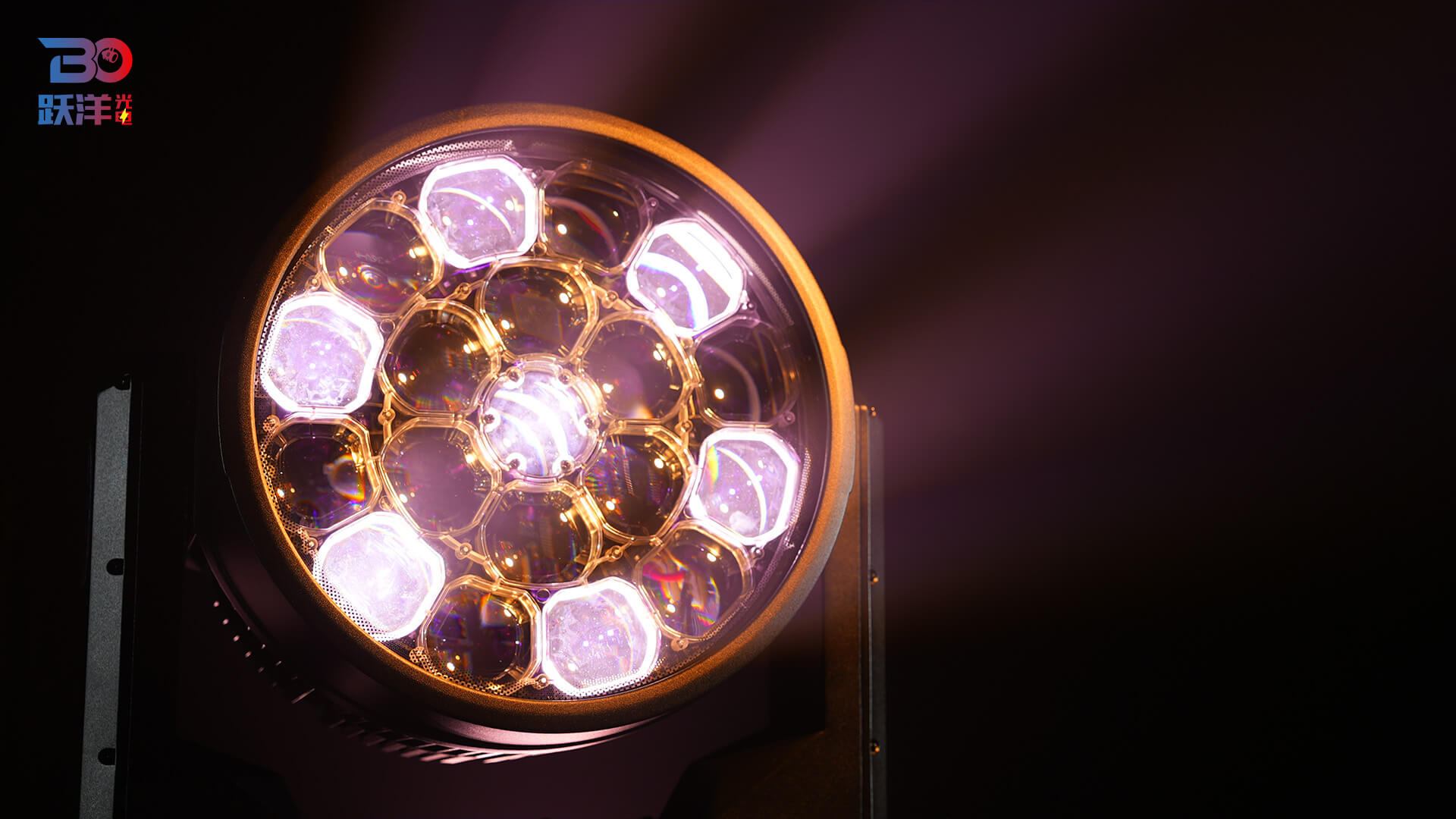

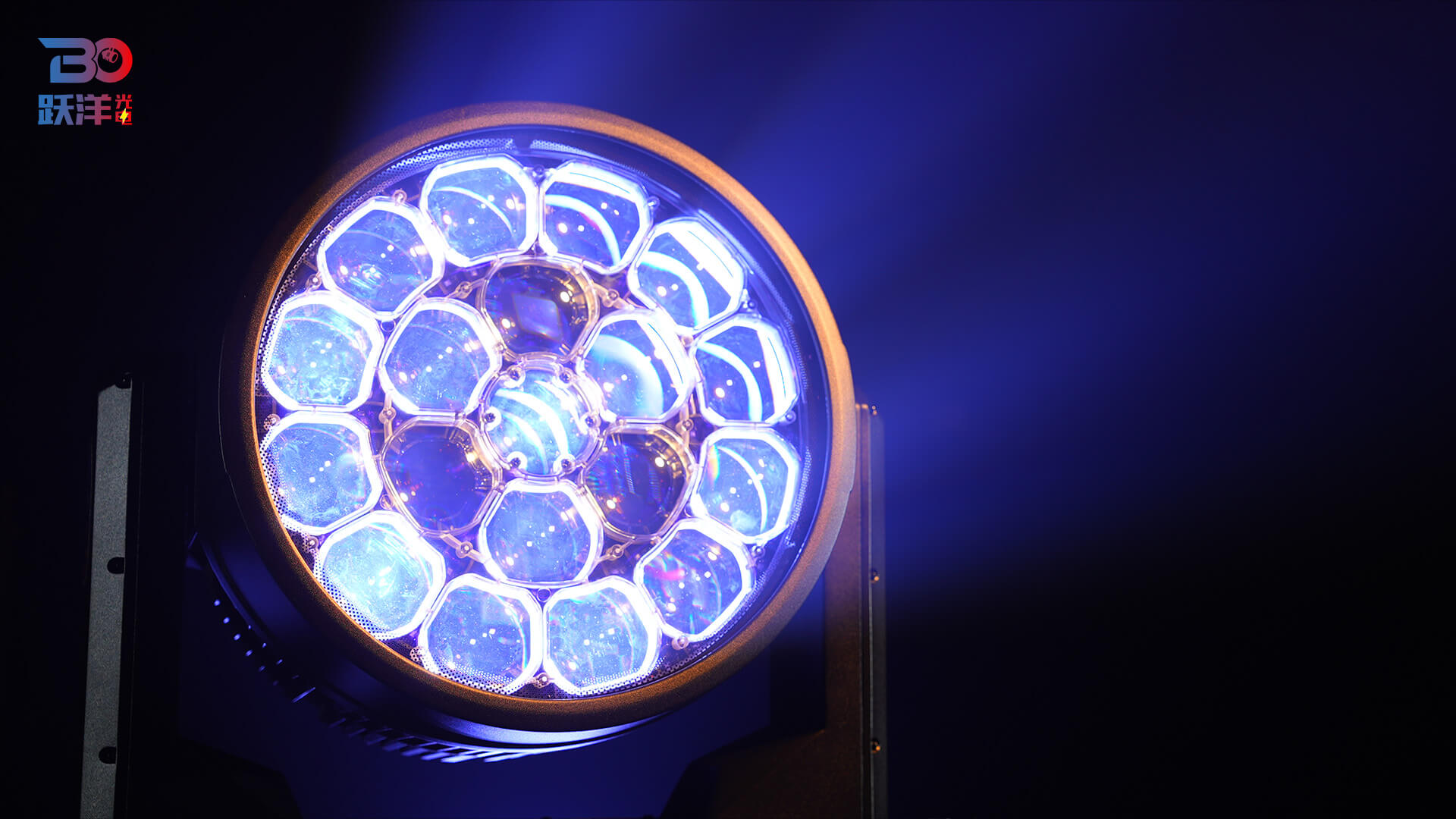

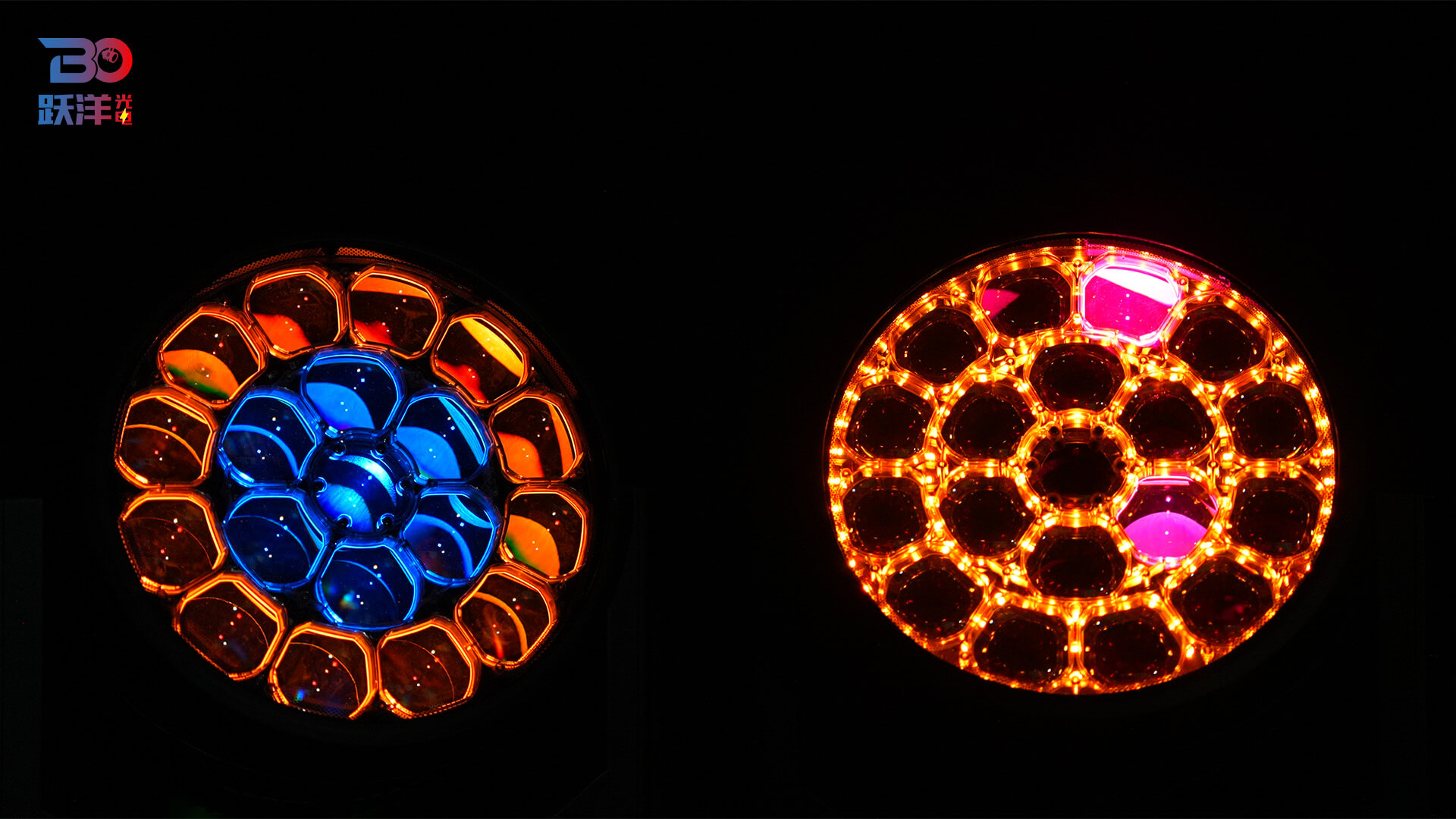

132 RGB LEDs above the 120W LED array as an auxiliary wash light, individually controllable;
Smooth 0–100% dimming with various strobe effects at different speeds;
4 dimming curves;
CTO color temperature: 2300K to 10000K;
Excellent color macro effects;
Motorized zoom system;
Integrated beam, wash, honeycomb, and auxiliary wash effects in one fixture;
Temperature sensor detection with intelligent light source power adjustment and smart fan speed control.

Environment Temperature: operates in ambient temperatures from -20°C to 45°C.

Installation: Can be inverted suspended, horizontally mounted on truss, or placed on a flat horizontal surface. Always use and install a safety cable as a safety precaution

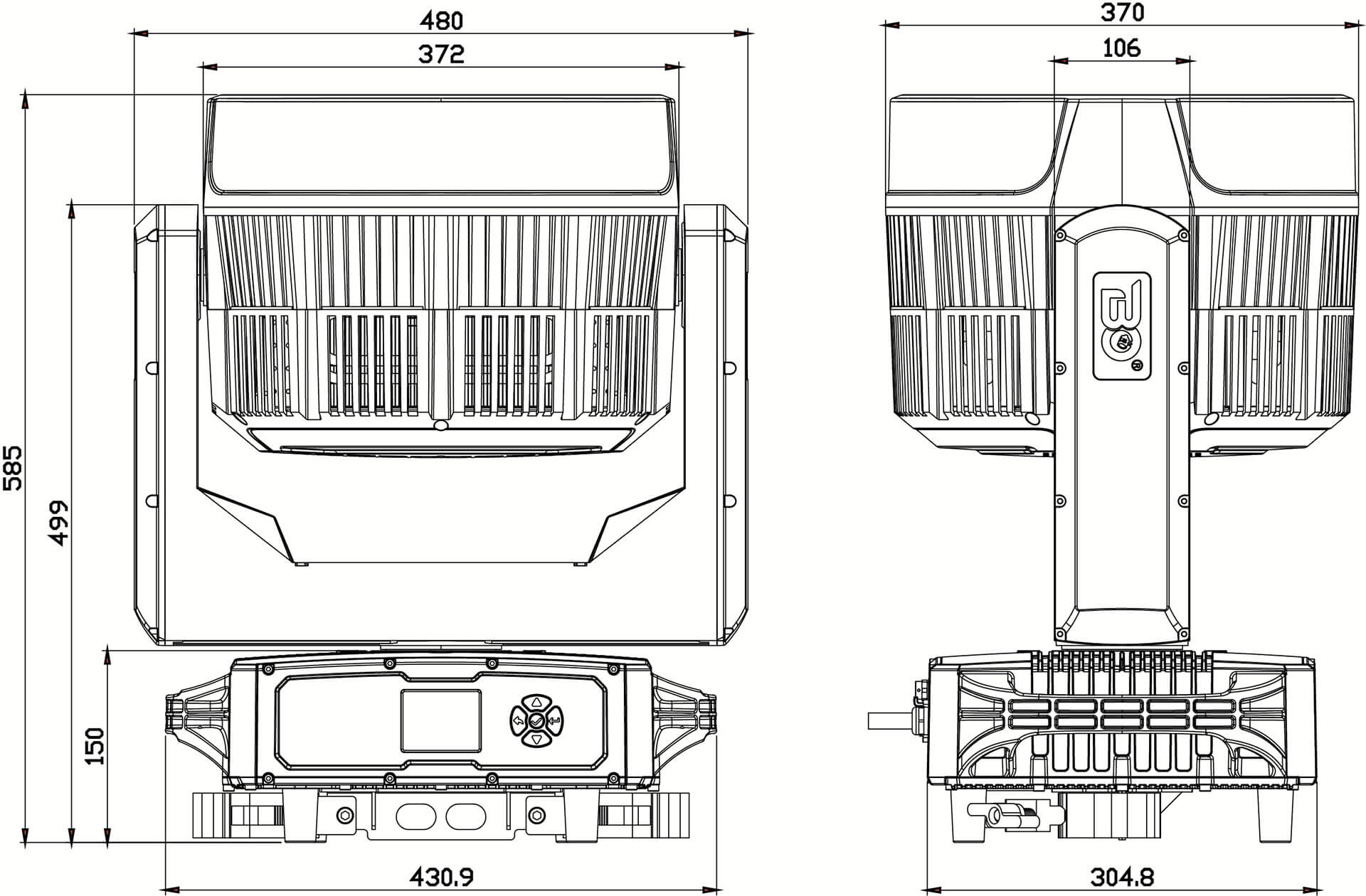

Dimension: 480*370*585mm;

NET Weight: 30KG;

Accessory:
1pc DMX cable;
1pc Power Cable;
1pc User Manual
