Beyond IP65 60W Connected Zoom Par
P60ZLW Technical & Specification
Light Source: 60W RGBW 4in1 LED
LED Lifetime: ≥50000H
Power Voltage: AC100-240V ，50/60Hz
Power Consumption: 500W（8PCS）
Beam Angle: 3.5°—45°
Control Modes: DMX512、Auto、Sound、Master、Manual、RDM
DMX Channel: 23/28/42/50/56 Channel
Light Protection Rating: IP65
Control Box Protection Rating: IP20
Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched
Data In/Out Socket: 3-pin XLR sockets
Power Socket: Power-Con in/ out
Housing Material: Aluminium
Light Dimension: 181x140x140mm
Light Net Weight: 2.55kg
Carton Package: 275*210*345mm 1in1 NW:3.5kg; 890*570*365mm 8in1 NW:31KG
Control Box Net Weight: 2.55kg
Carton Package: 275*210*345mm 1in1 NW:3.5kg; 490*460*155mm 4in1 NW:12kg
Flight Case: 935*498*777mm 16in1 NW:91kg
Effect:
1. Can be installed on a single hanger, can be assembled freely with multiple units, and can control up to 8 lights with one controller;
2. Under 220V, a maximum of 4 control boxes (32 lights) can be connected in series;
3. Under 110V, a maximum of 2 control boxes (16 lights) can be connected in series.
Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc; control cable 8pc(Each light is equipped with 1pc); Each light is equipped 1pc 5-pin 3m waterproof signal cable
P60ZLW Photometrics

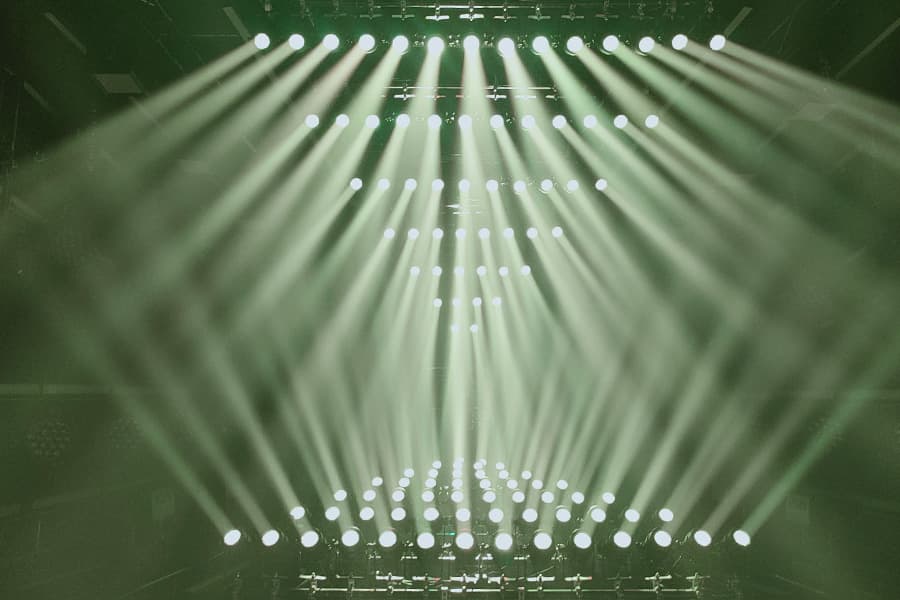

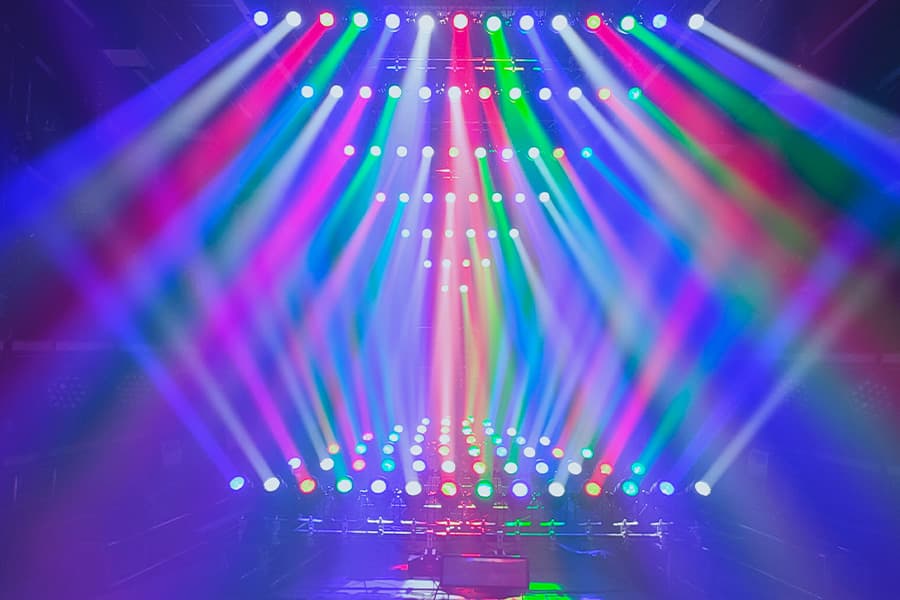

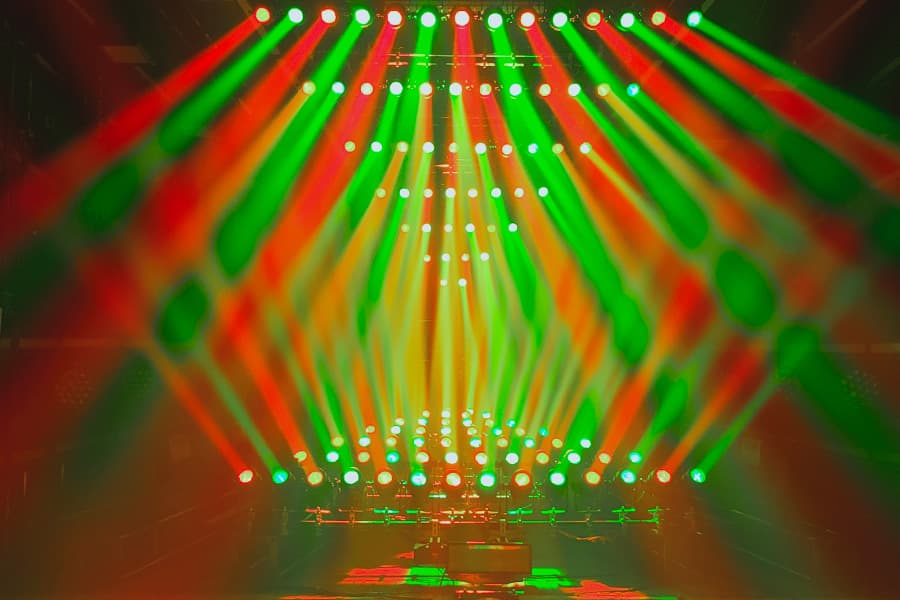

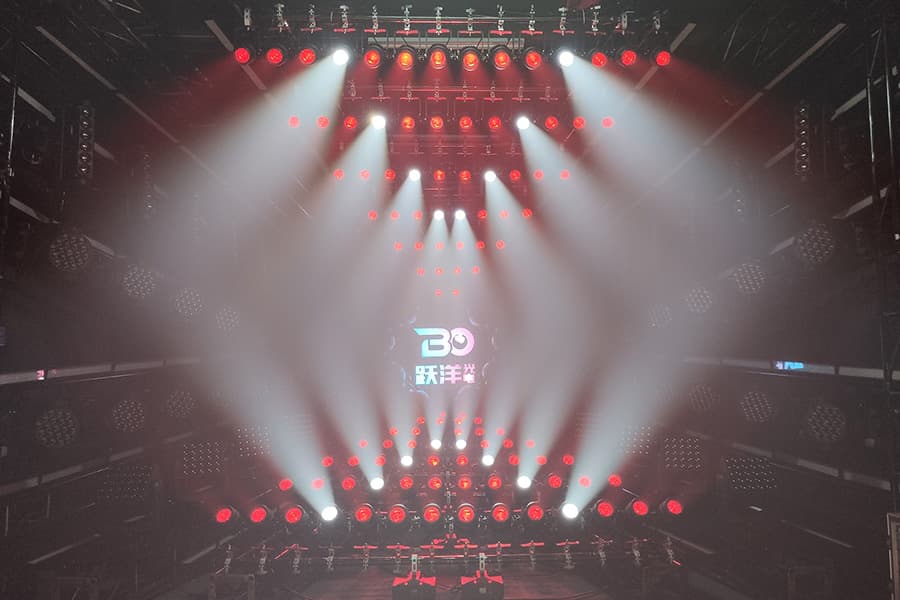

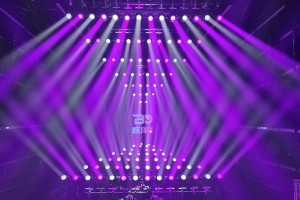

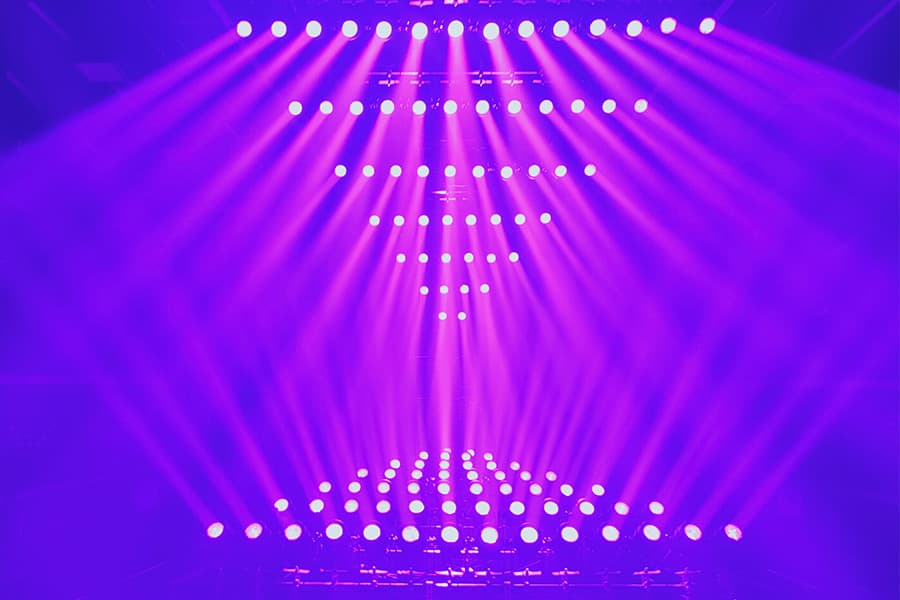

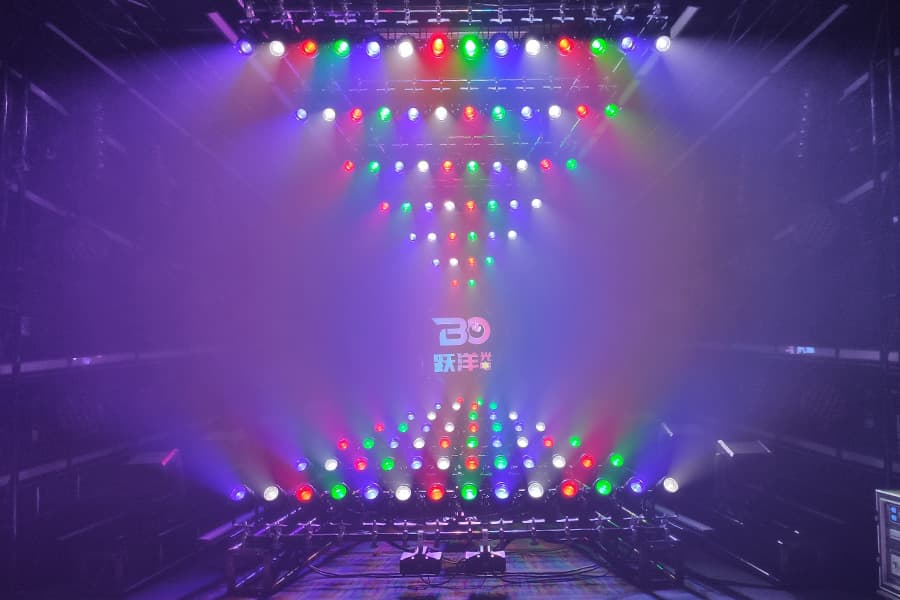

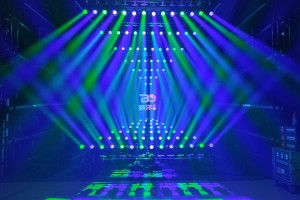

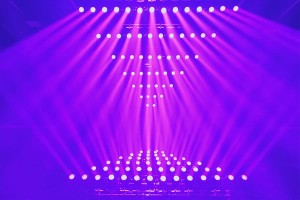

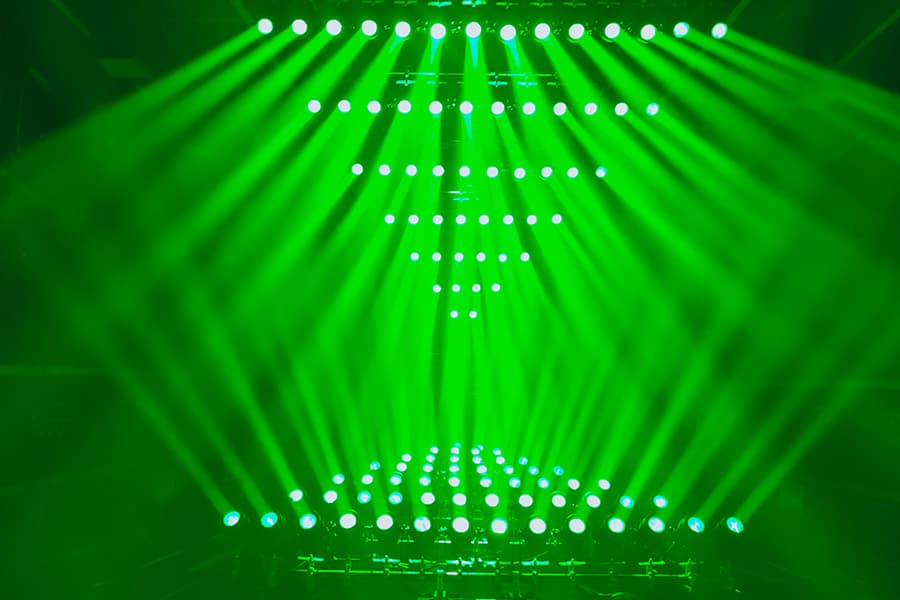

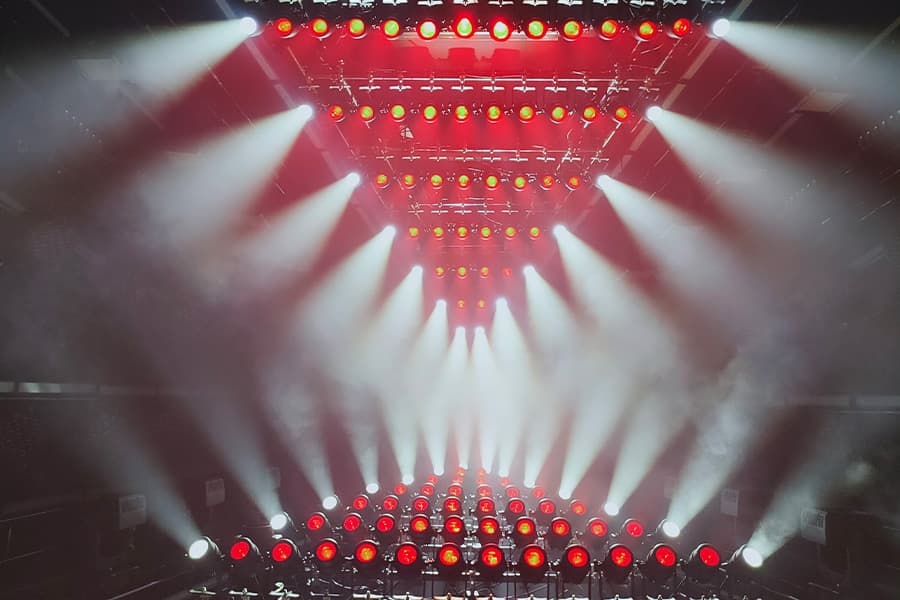

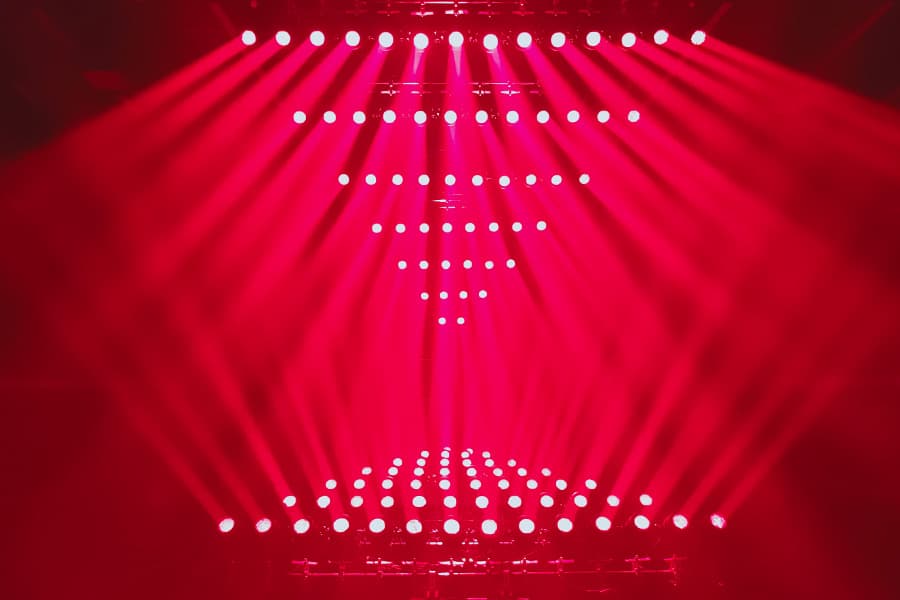

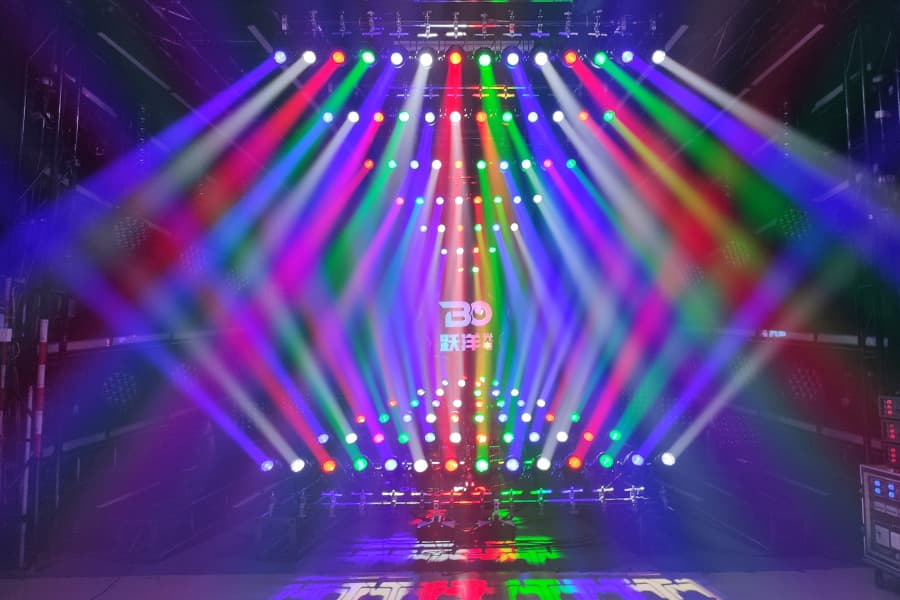

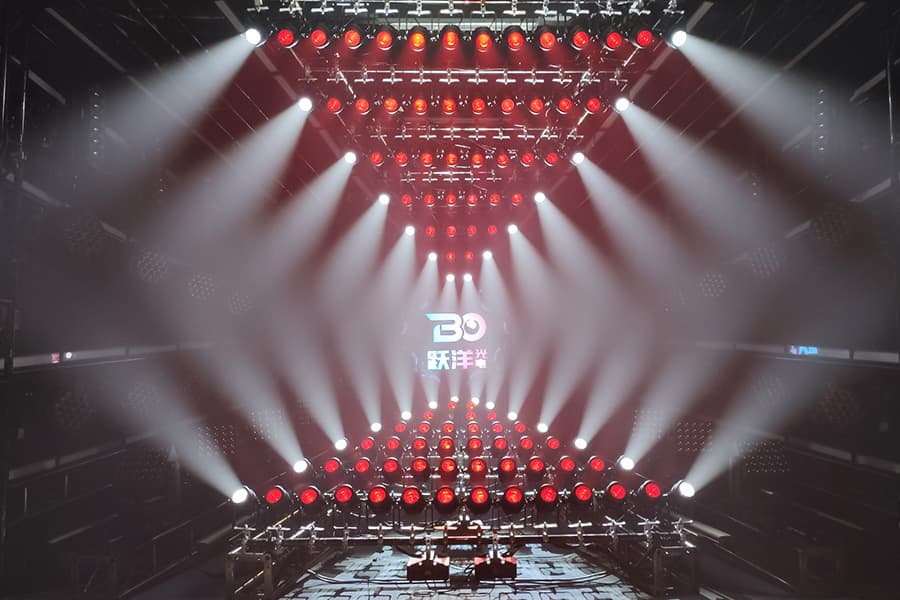

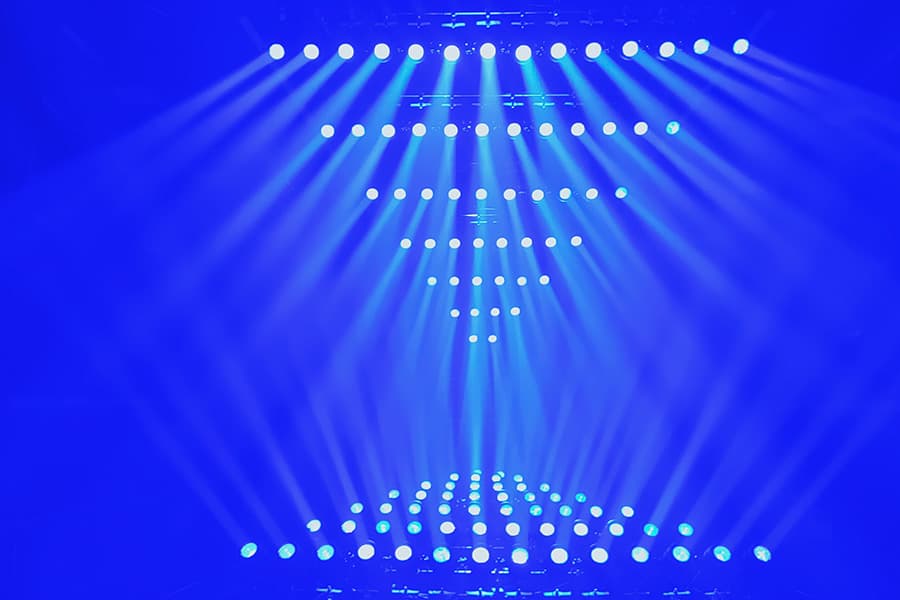

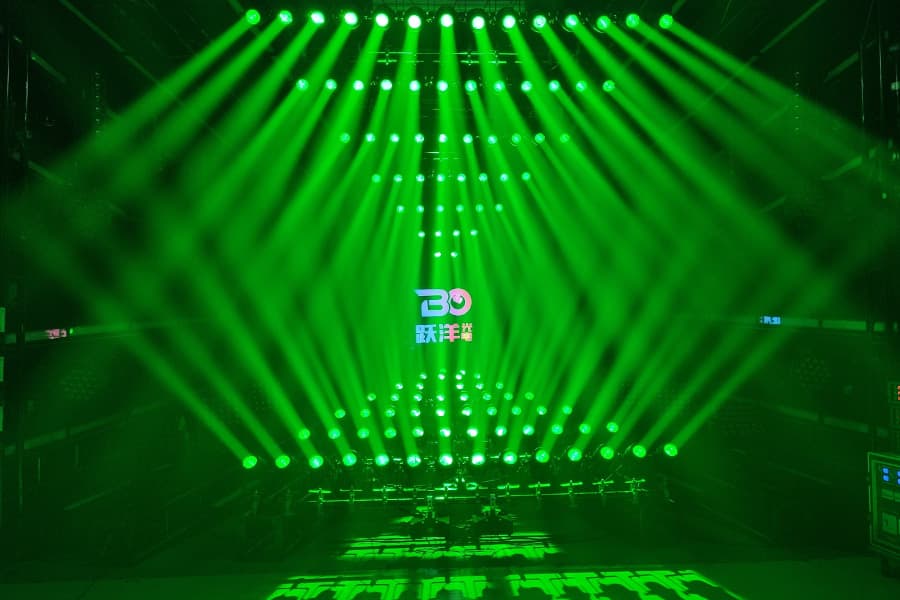

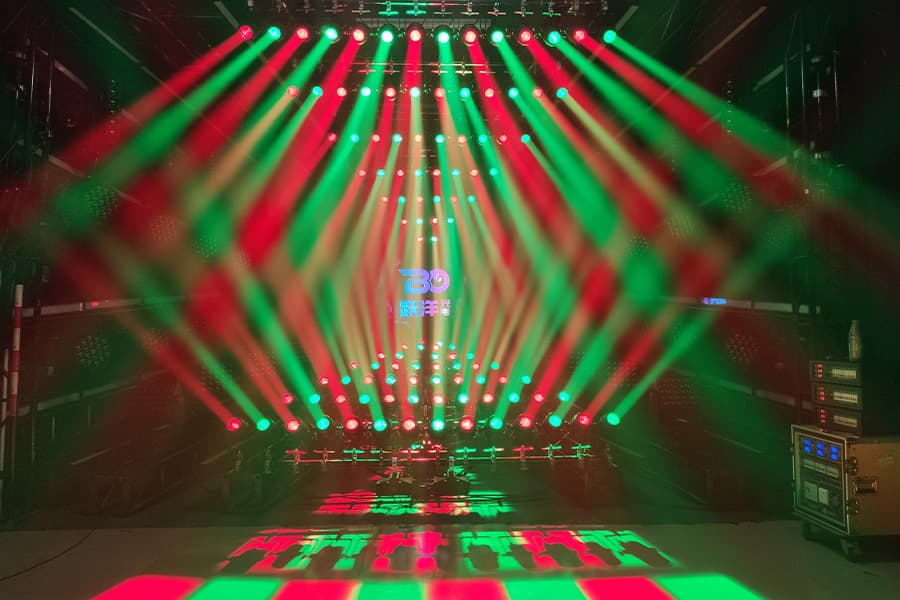

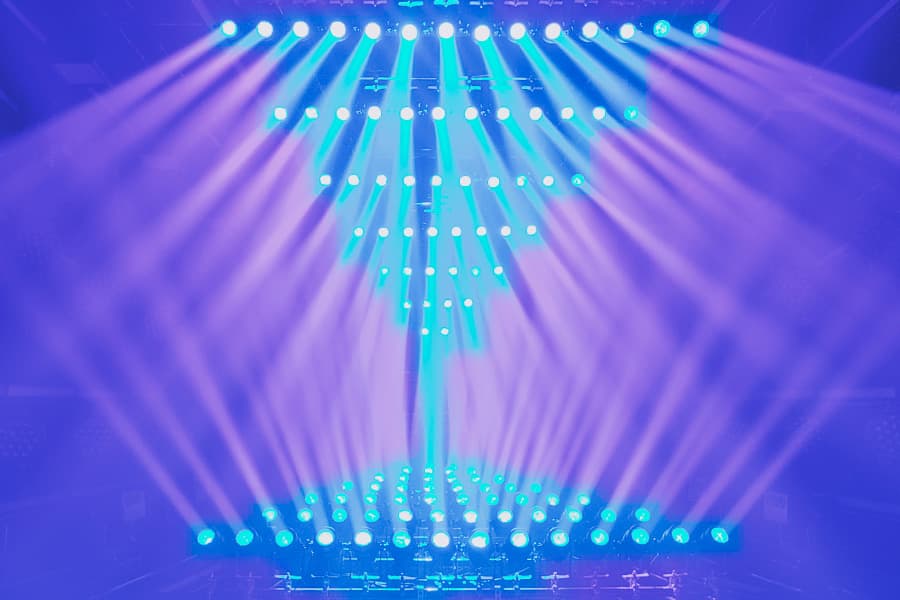

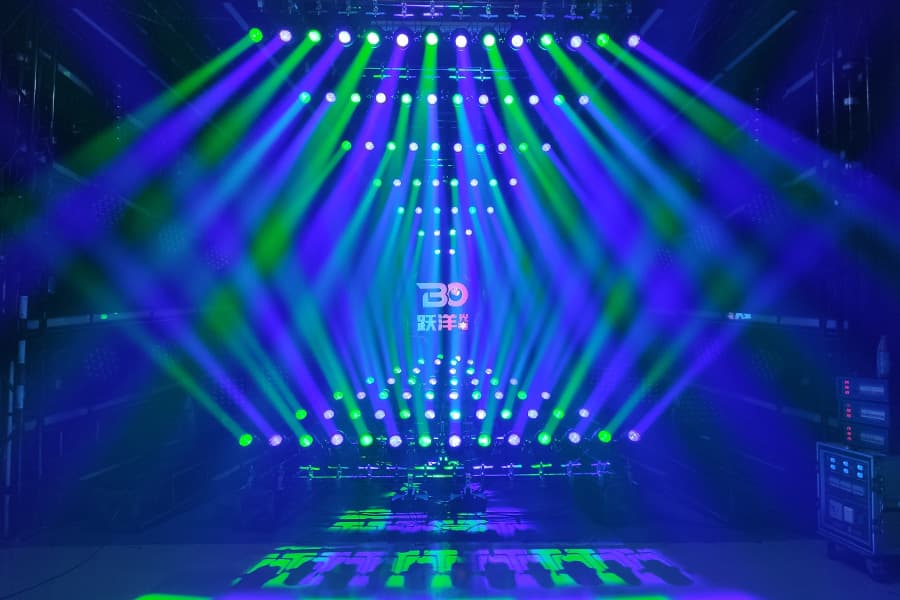

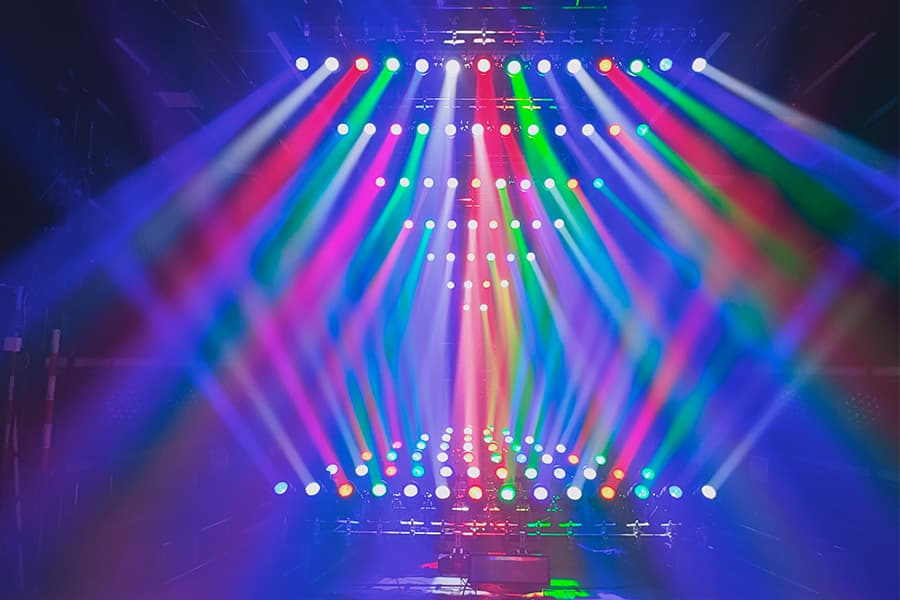

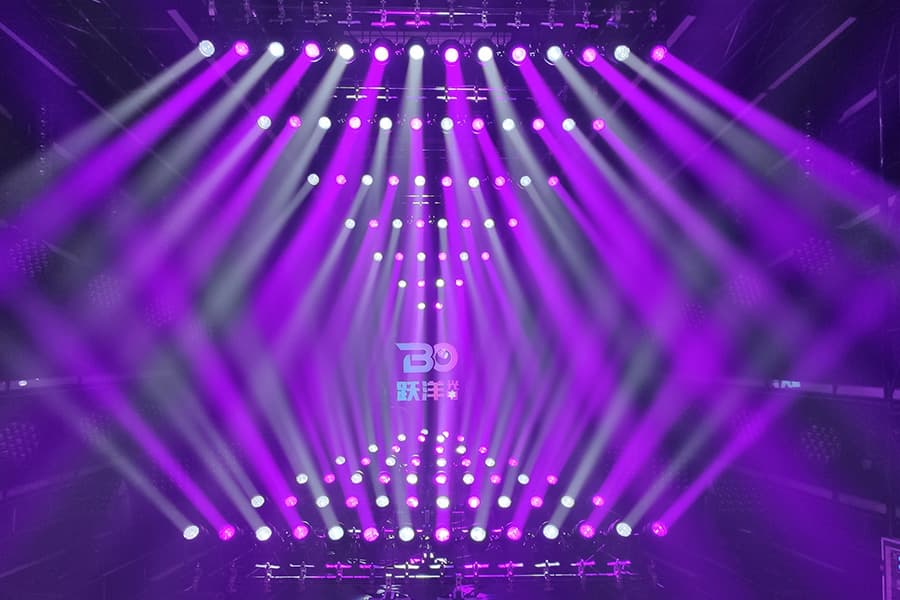

P60ZLW Lighting Show
