Z68-splicing stage lighting outdoor zoom par pixels effect lighting

Short Description:

This splicing stage lighting outdoor zoom par pixels effect lighting is a small and versatile lighting fixture that can push any designer’s creativity to the limit. Each fixture comes with 8x60watt LED’s, 4in1 (RGBW), and can be controlled via DMX or RDM protocol. What really separates this fixture from any other similar products is its ability to automatically zoom. While other products have a fixed beam angle, our Z68 is equipped with an automatic zoom from 3.5º-40º while also being (IP-65) outdoor rated. It also comes with a locking hanger which can join several fixtures together in order to create many different combinations such as a blinder grid, vertical/horizontal array while giving the user pixel mapping capabilities. This makes it a very versatile product that can be used as a blinder, strobe, bar, or pixel mapping spotlight. Lastly, its compact size and rugged build allows the Z68 to be used just about anywhere. Also accept customize with lighting frame.


  • Certification: CE, RoHS
  • Warranty: 2 years
  • MOQ: 1 piece
  • Product Detail

    Video

     Splicing stage lighting outdoor zoom par pixels effect lighting

    One control box can control with 8 unit par light, four side can be easily spliced, can be combined to create a variety of shapes on the stage. Also accept customs lighting frame as in below example photos. Standard configuration is 1 control box+ 8 lights+ connectors and cables.

    led par
    led par

    Technical Parameters

    Optics Construction
    Led source 60W RGBW 4-in-1 LED Display 180°reversible 2.4-inch LCD color display(Chinese or English)
    Beam angle 3.5°- 40° Data In/Out socket waterproof 5-pin XLR sockets(24V power + signal line)
    Power Consumption 550W Power Socket PowerCon in/out 3-pin
    Control Protection Rating IP65
    Control Modes DMX512/mater-Slave/Auto Run/Music/Manual/RDM Specification
    DMX mode 23/28/42/50/56 Channels
    Features Standard package:carton;Flight case in optional
    1>LED single control Single led size: 181x140x140mm
    2>One control box (not waterproof) controls eight belts for focusing,which can be connected 4 units in series at 230V(32PCS lights),and 2 units in series at 120V(16pcs lights). Single led weight: 1.88kgs
    Single led control, zoom effect, ArtNet control , infinite Pan and tilt rotation. Single led with hanger weight: 2.44kg
    3>A control box (not waterproof) controls eight 60W4in1 die-casting heads with focus and waterproof, supporting point control,Can be installed separately by hangers, can be assembled in multiple Control box weight: 2.59kgs
    4>The control line is a 3M long silicone cable, and Seetronic 5-core waterproof connector (the cable connecting the lamp holder to the control box) Certification
    5>High-efficiency optical system ,Super beam effect plus zoom CE,ROHS
    Z68

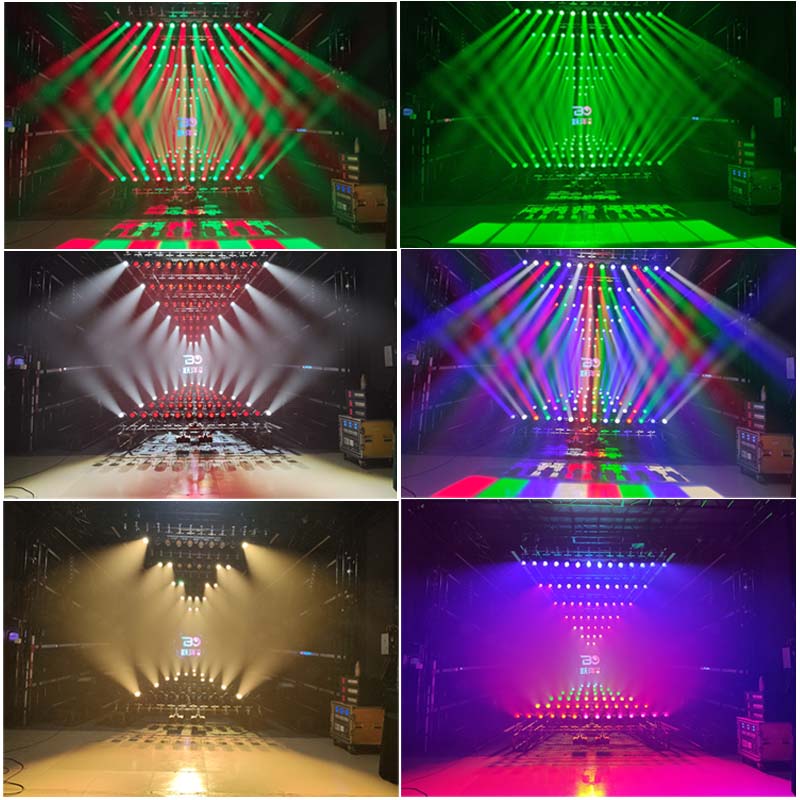

    Product Effect

    FAQ

    Q: How many days usually take on shipping?

    Re: It depends on the shipping way, by express door to door service usually takes 3-7 work days; By air usually take 5-7 days; By sea depends on the area and distance, except Asia, usually takes around 25-40 days.

    Q: What payment way we can choose to transfer money to you?

    Re: TT bank or Western Union.

    Q: How can I track my goods after I sent you deposit?

    Re: During production, we will send you photos or video to show how them assembly in workshop, and send you photos before shipping, then give you tracking No. after sent.
