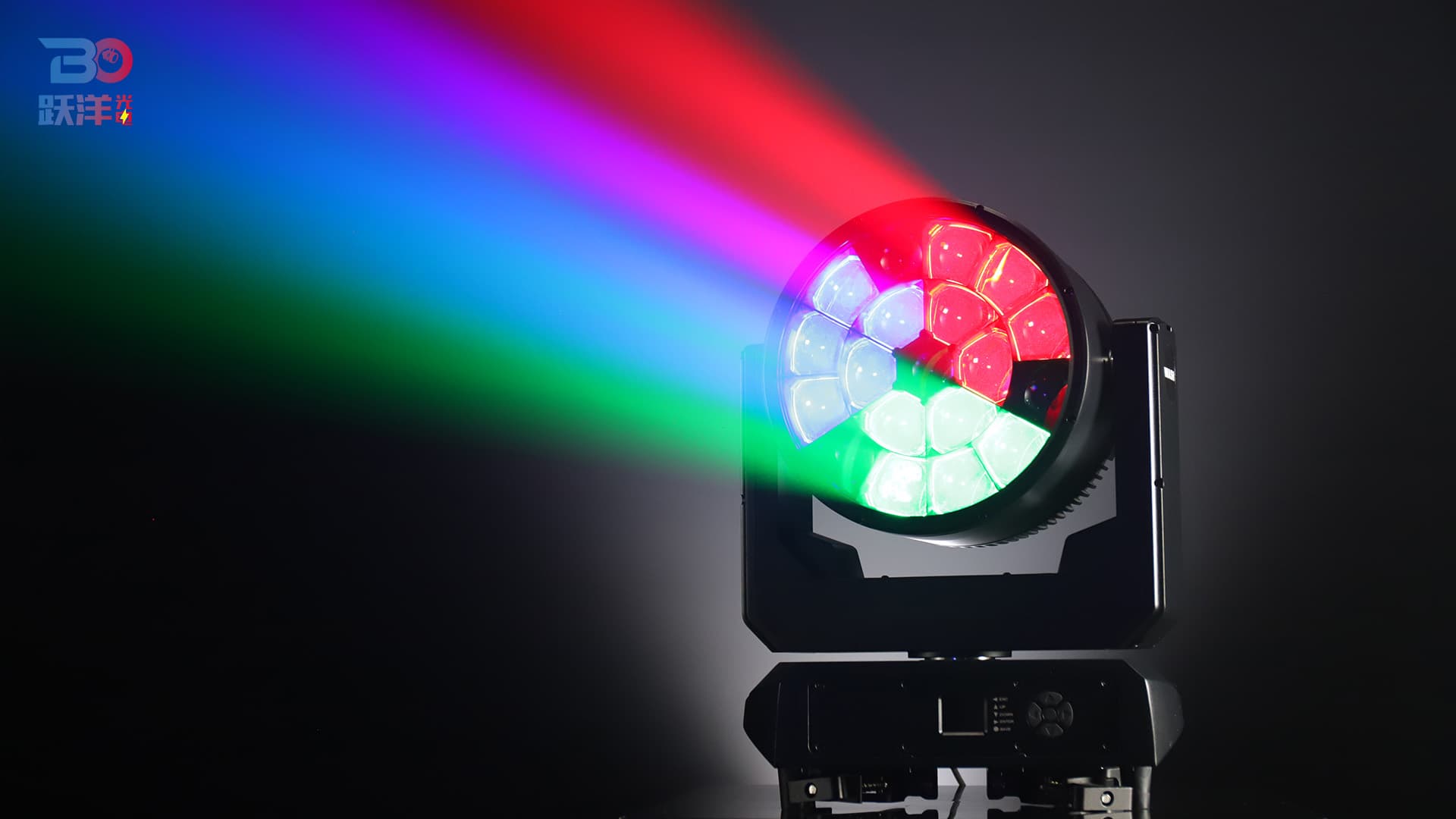

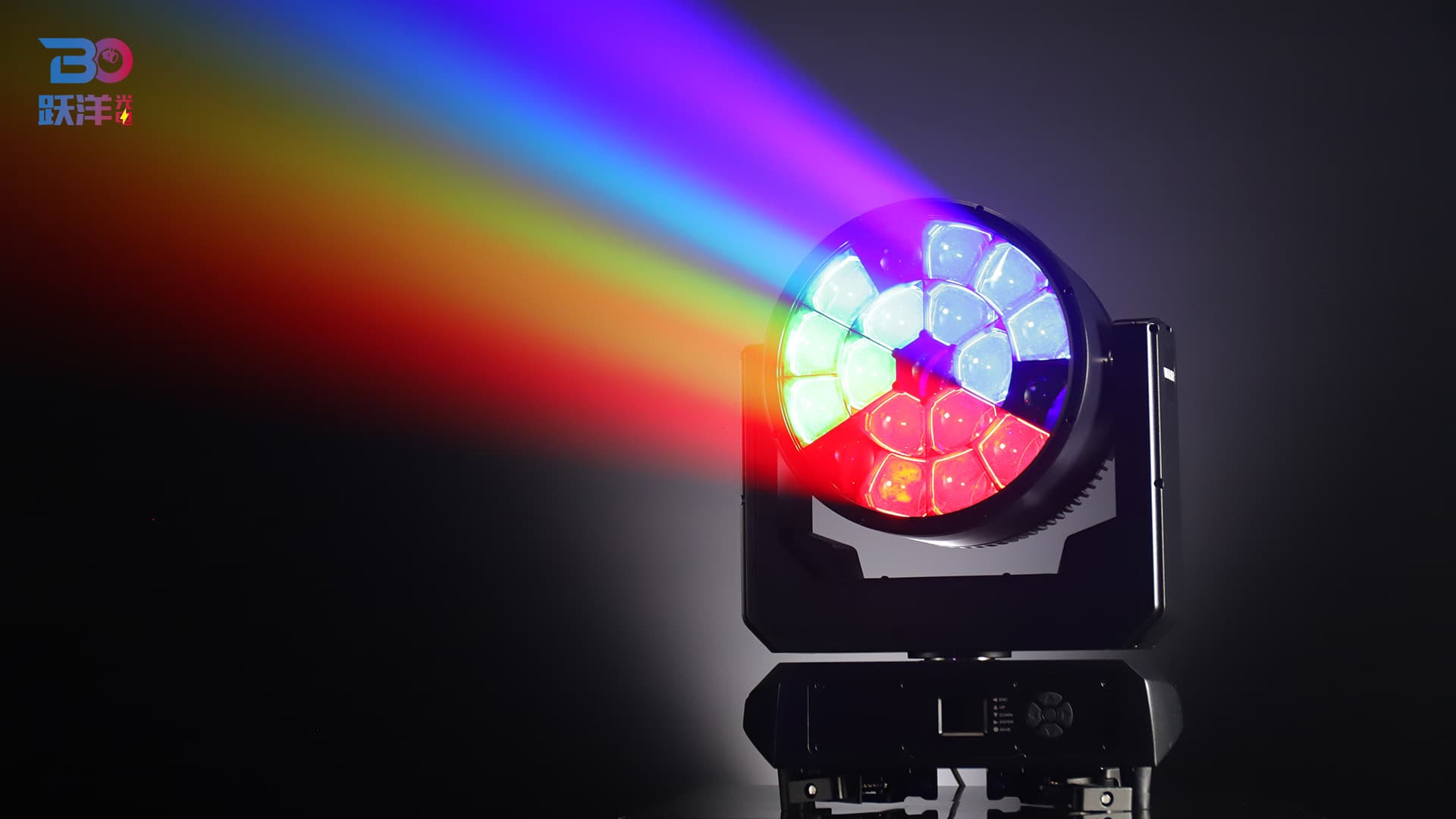

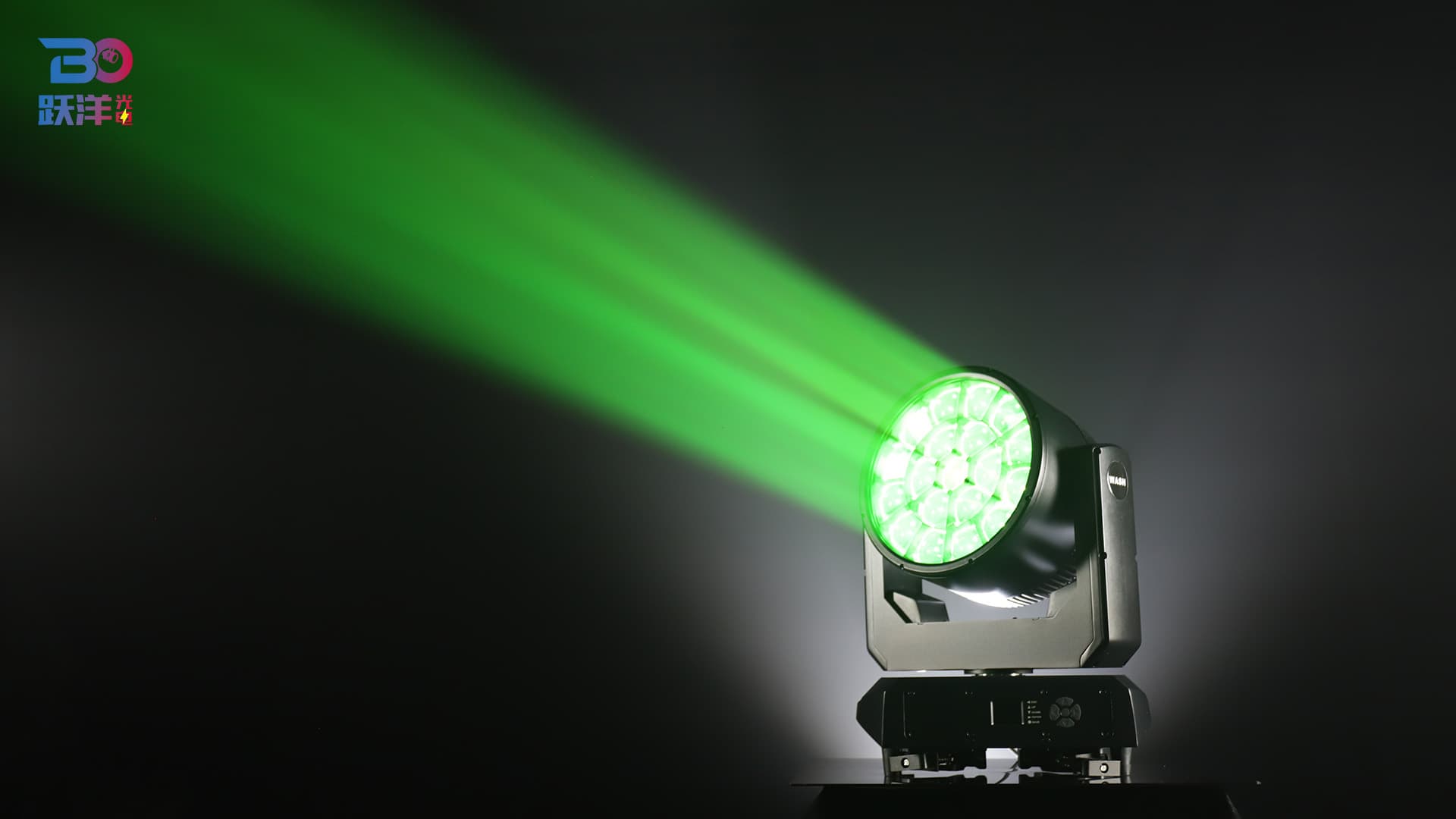

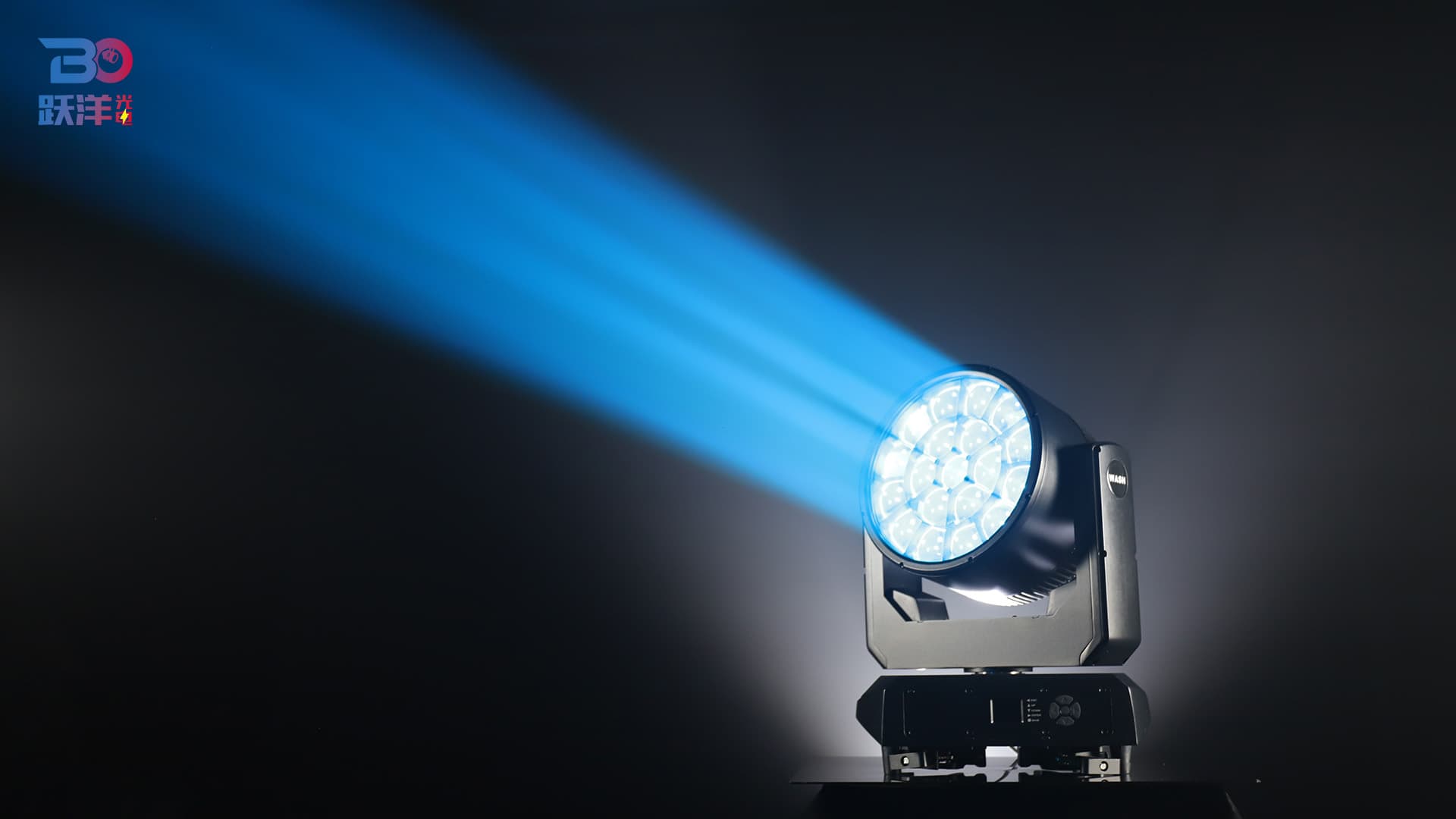

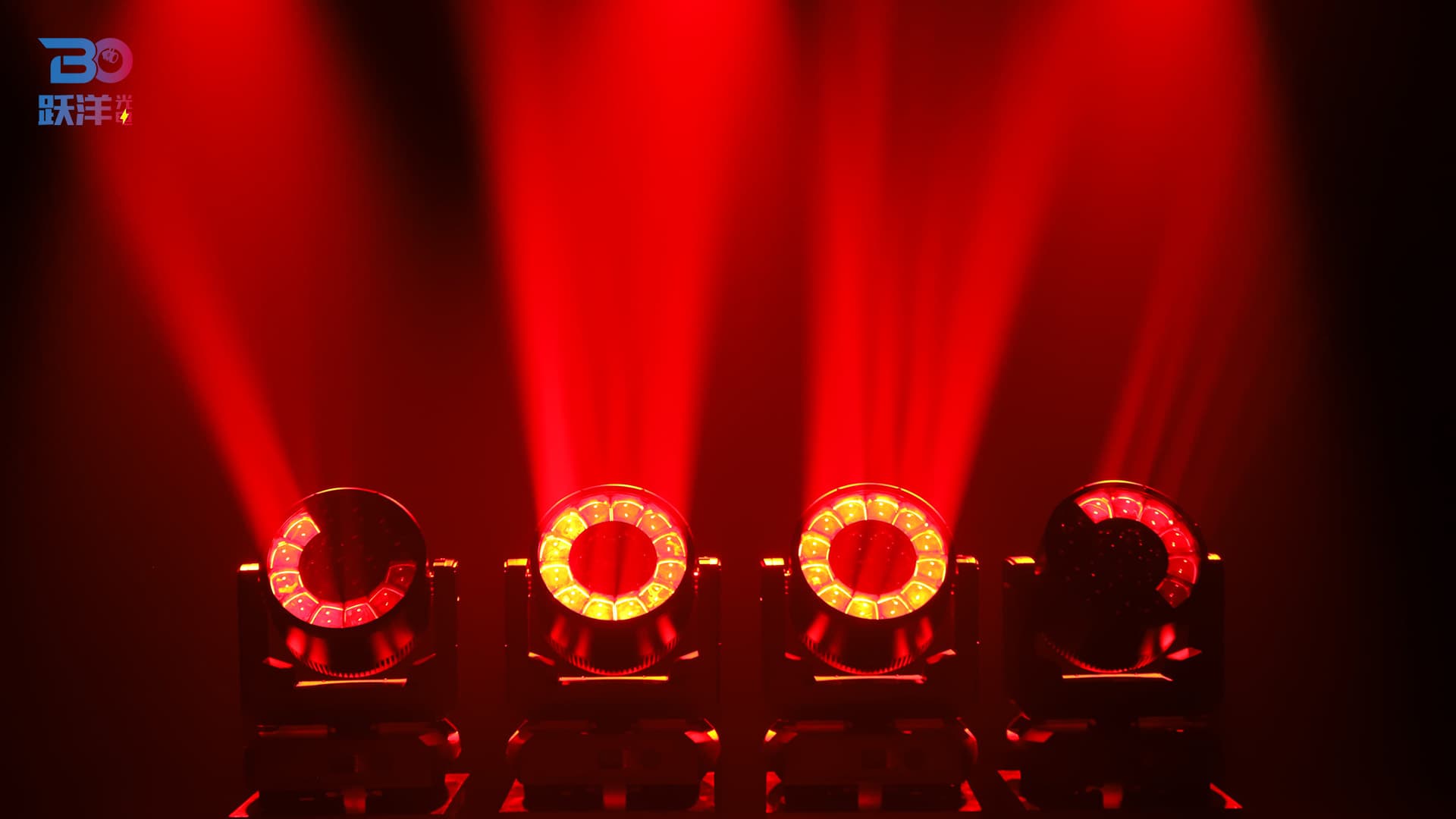

Beyond IP65 19x60W Bee Eye Moving Head
1960BW-4 Technical & Specification
Light Source: 19*60W 4 in 1 RGBW LED
LED Lifetime: ≥ 50000H
Power Voltage: AC90-240V, 50-60Hz
Power Consumption: 1050W±5%
Beam Angle: 4.5°-43°
Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ ArtNet (optional)
DMX Channel: 21/ 23/ 35/ 78/ 92/ 97/ 99Channel; DMX+ArtNet Channel: 11+76

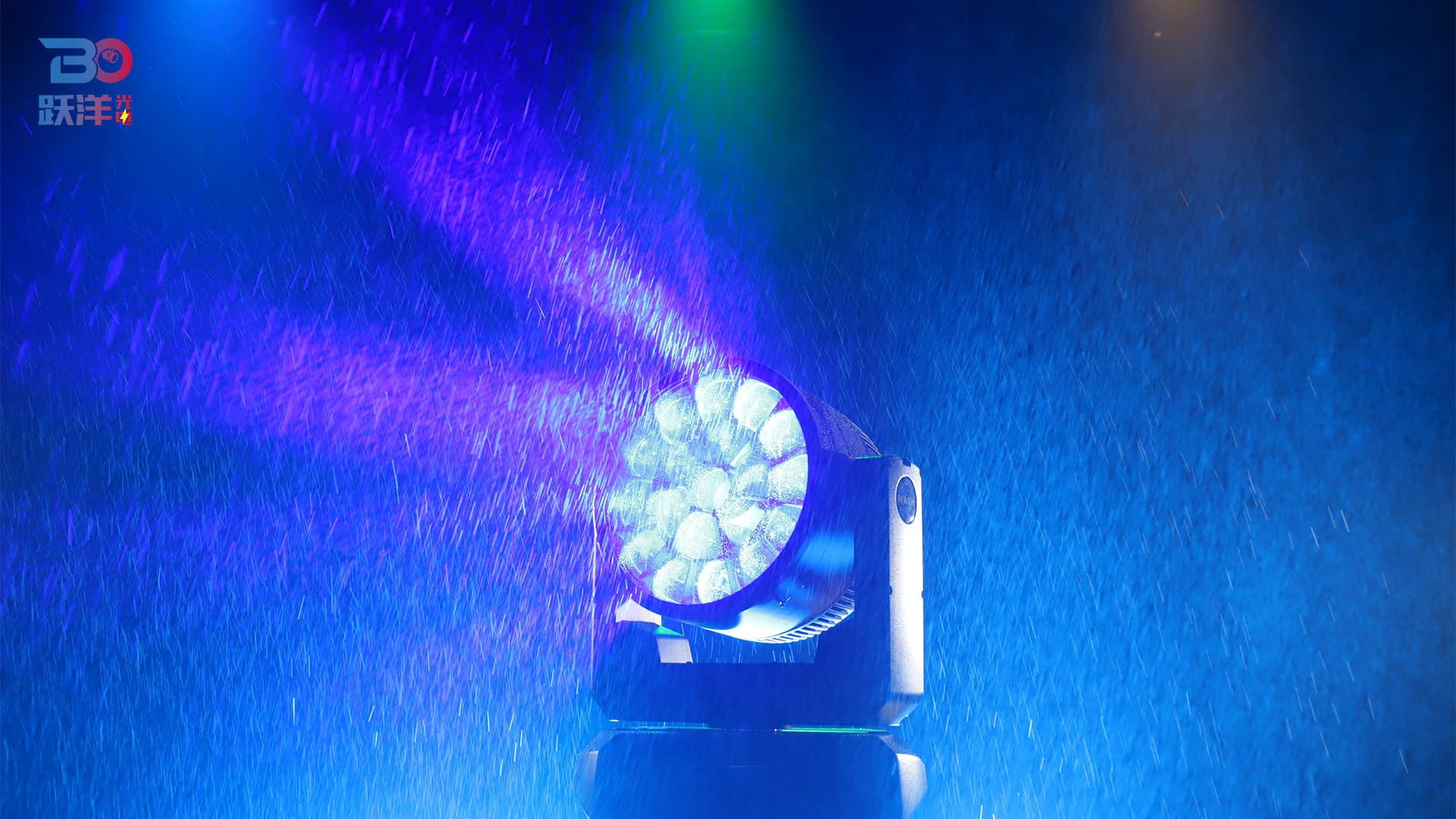

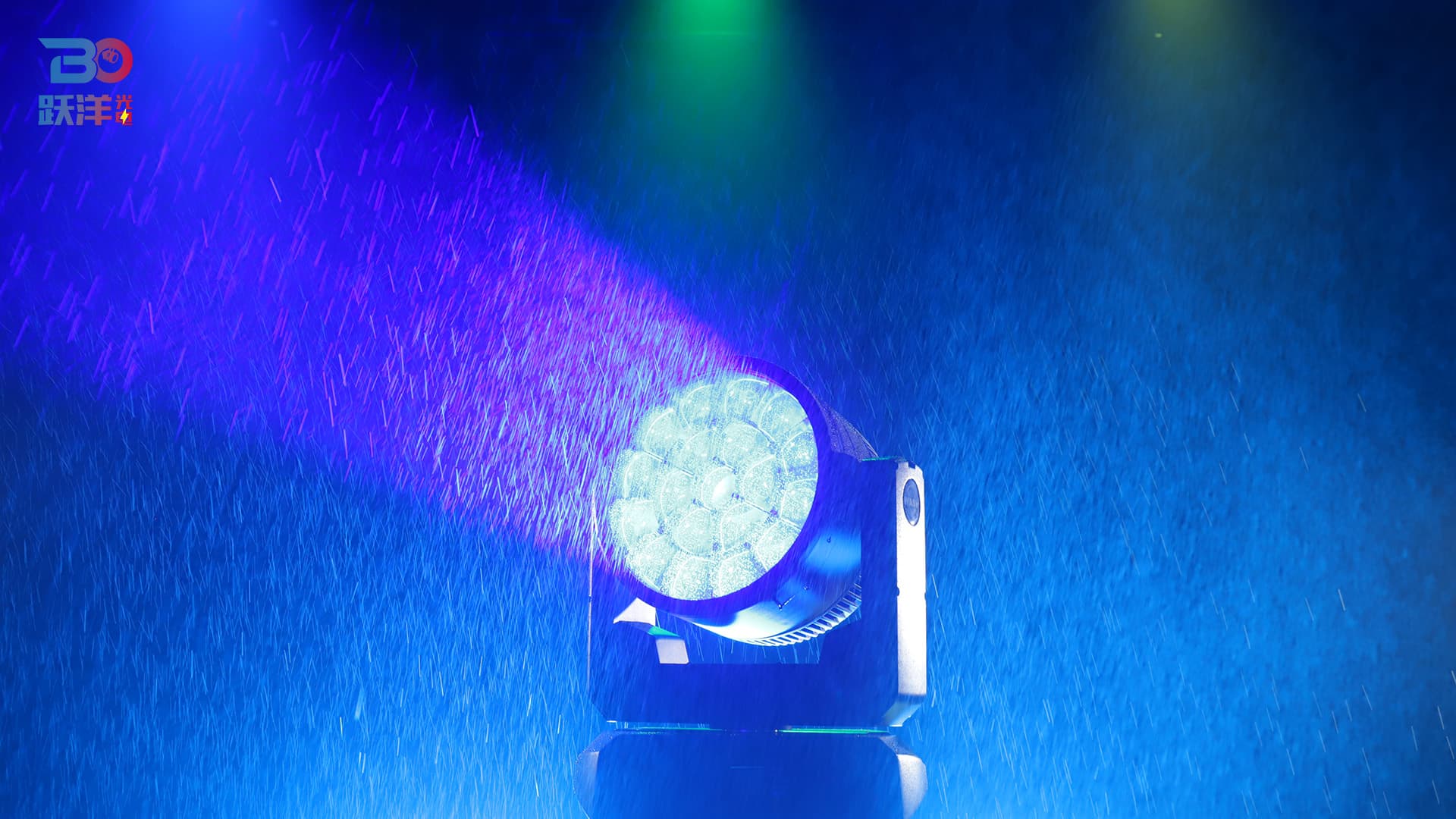

Protection Rating: IP65
Display: TFT Display
Data In/Out Socket: 3-pin XLR sockets
Power Socket: Power-Con in/ out
Housing Material: Aluminum
Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°
Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°
Pan/Tilt Resolution: Automatically correct pan/tilt position
MAX. Connection: 4 units(230V,50Hz) 2.5mm² power cable; 2 units(110V,60Hz) 2.5mm² power cable
Dimension: 418*319*522mm
Net Weight: 27 kg
Carton Package: 645*405*505mm 1in1 GW.: 30.6 kg
Flight Case: 845*560*740mm 2in1 GW.: 89.6 kg

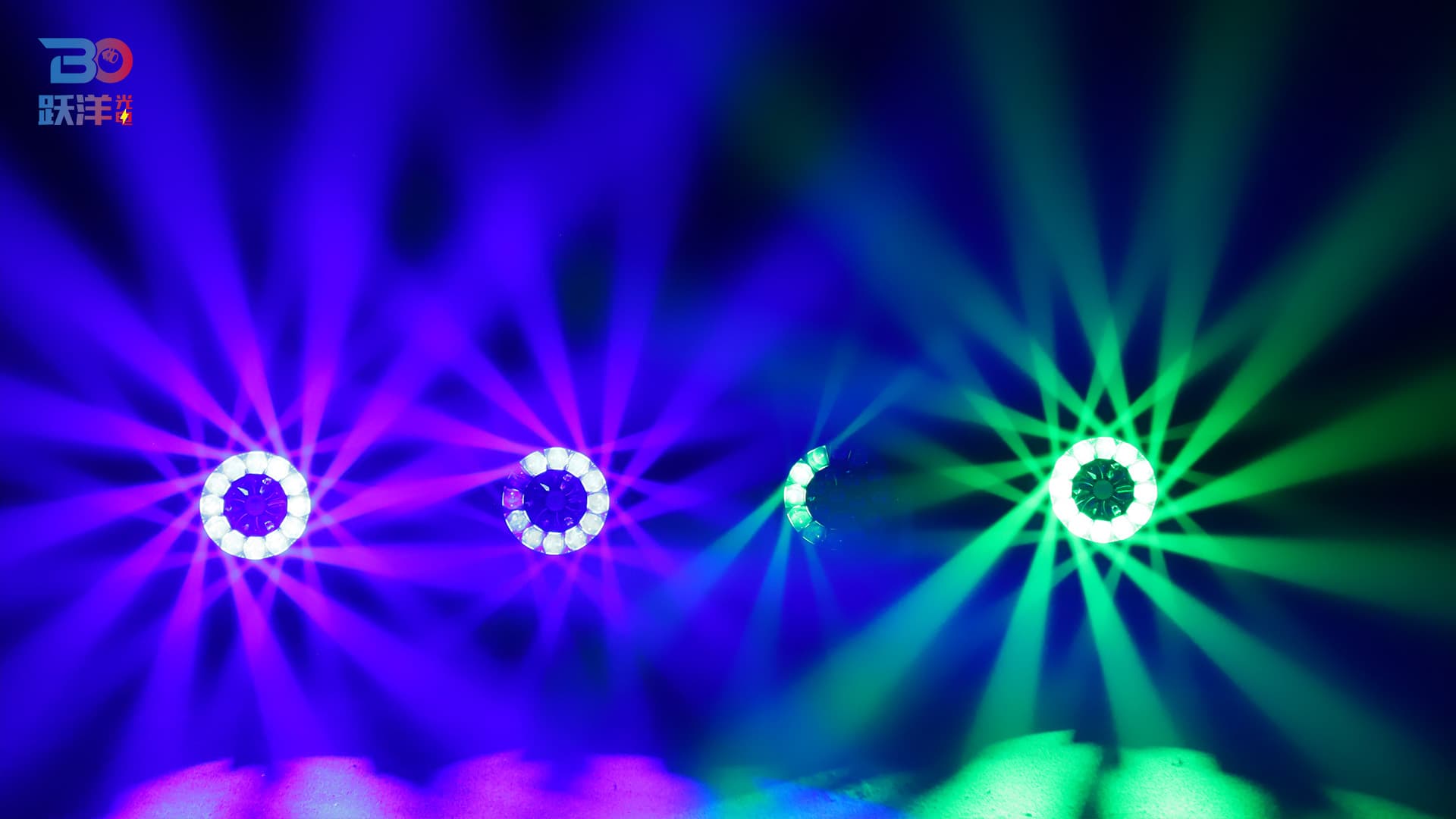

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz. Single control of the LED. three-in-one effects of wash, beam, and bee eye. preset multiple color macro and effect functions
Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
1960BW-4 Photometrics
