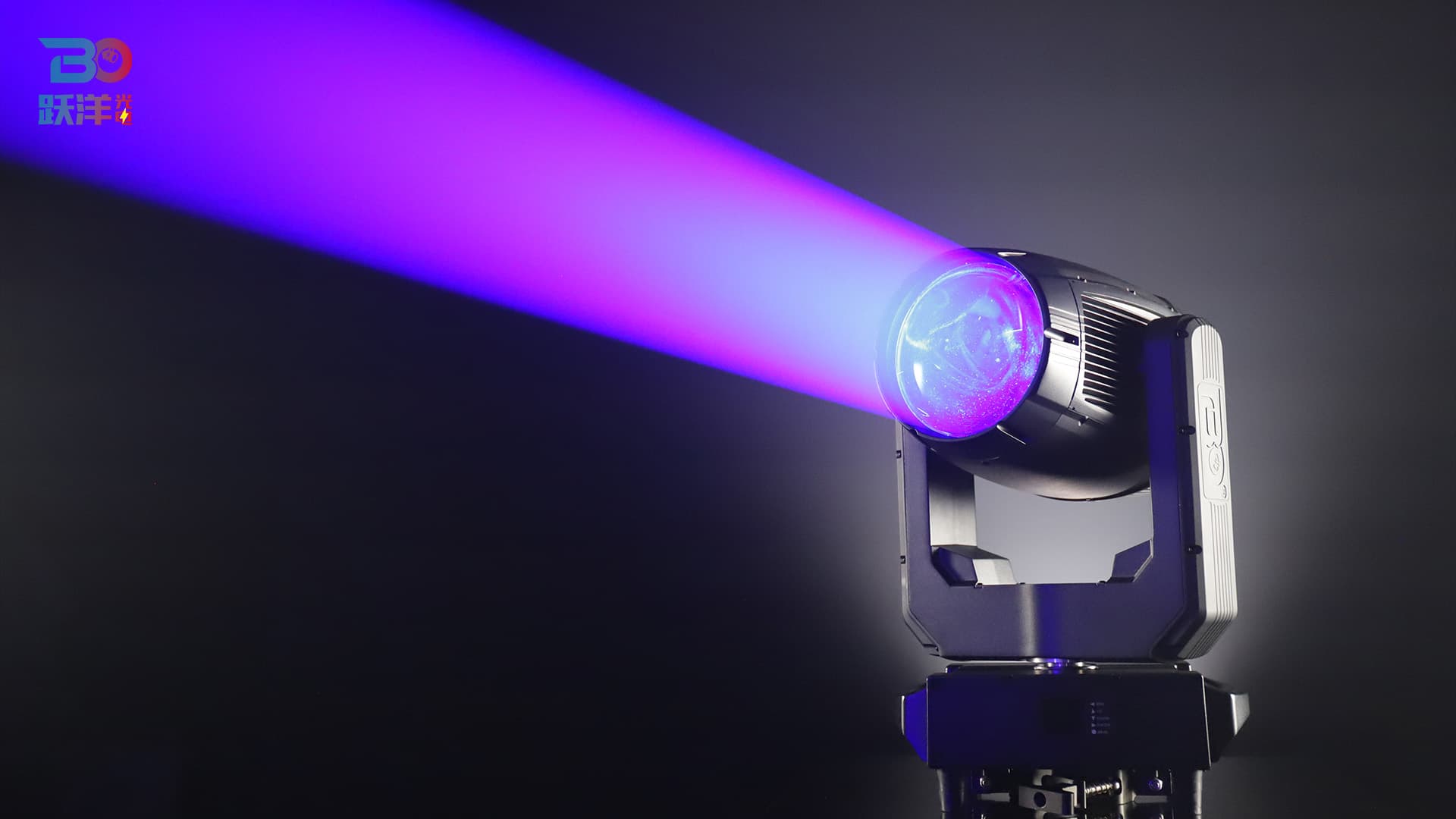

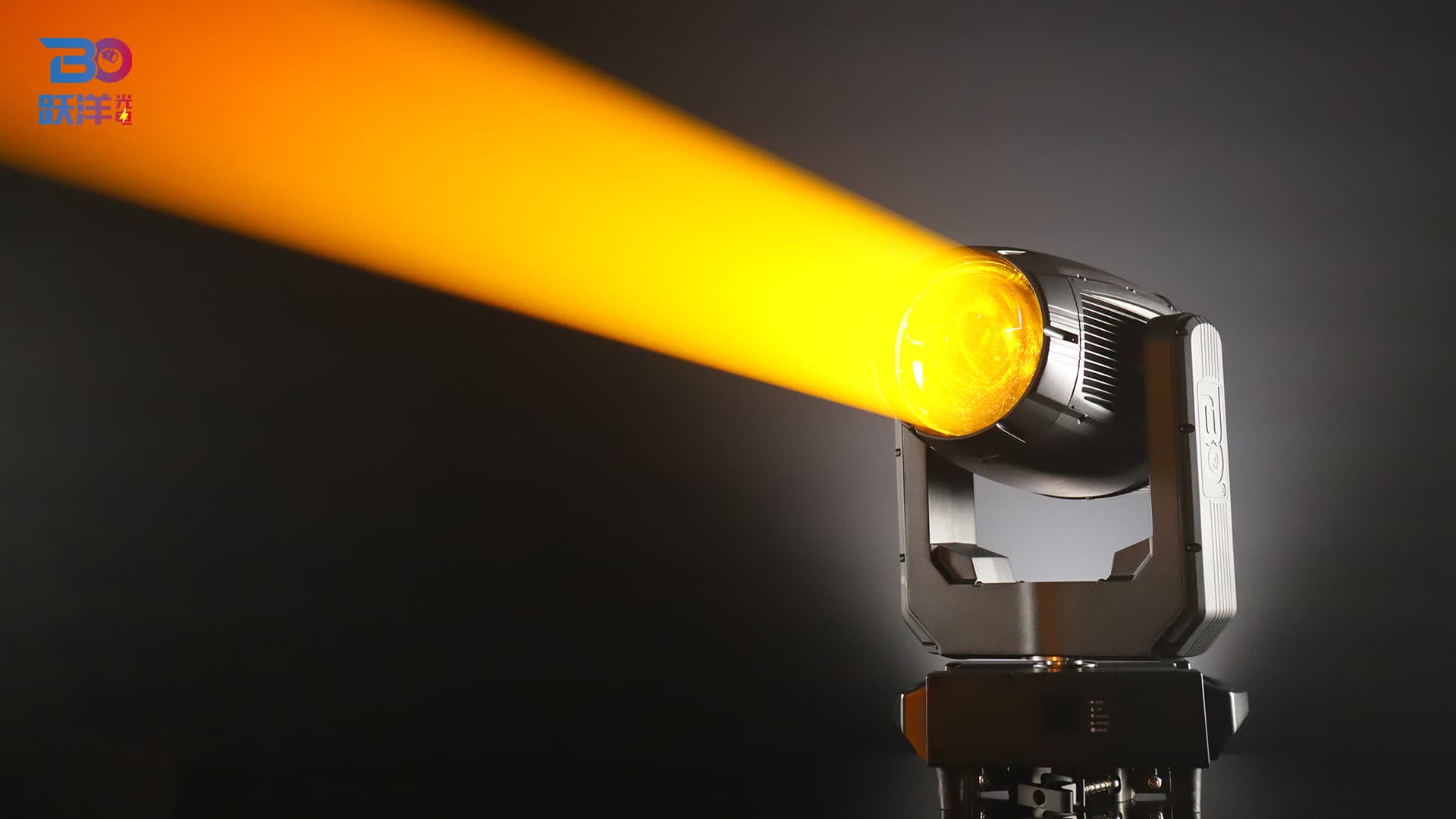

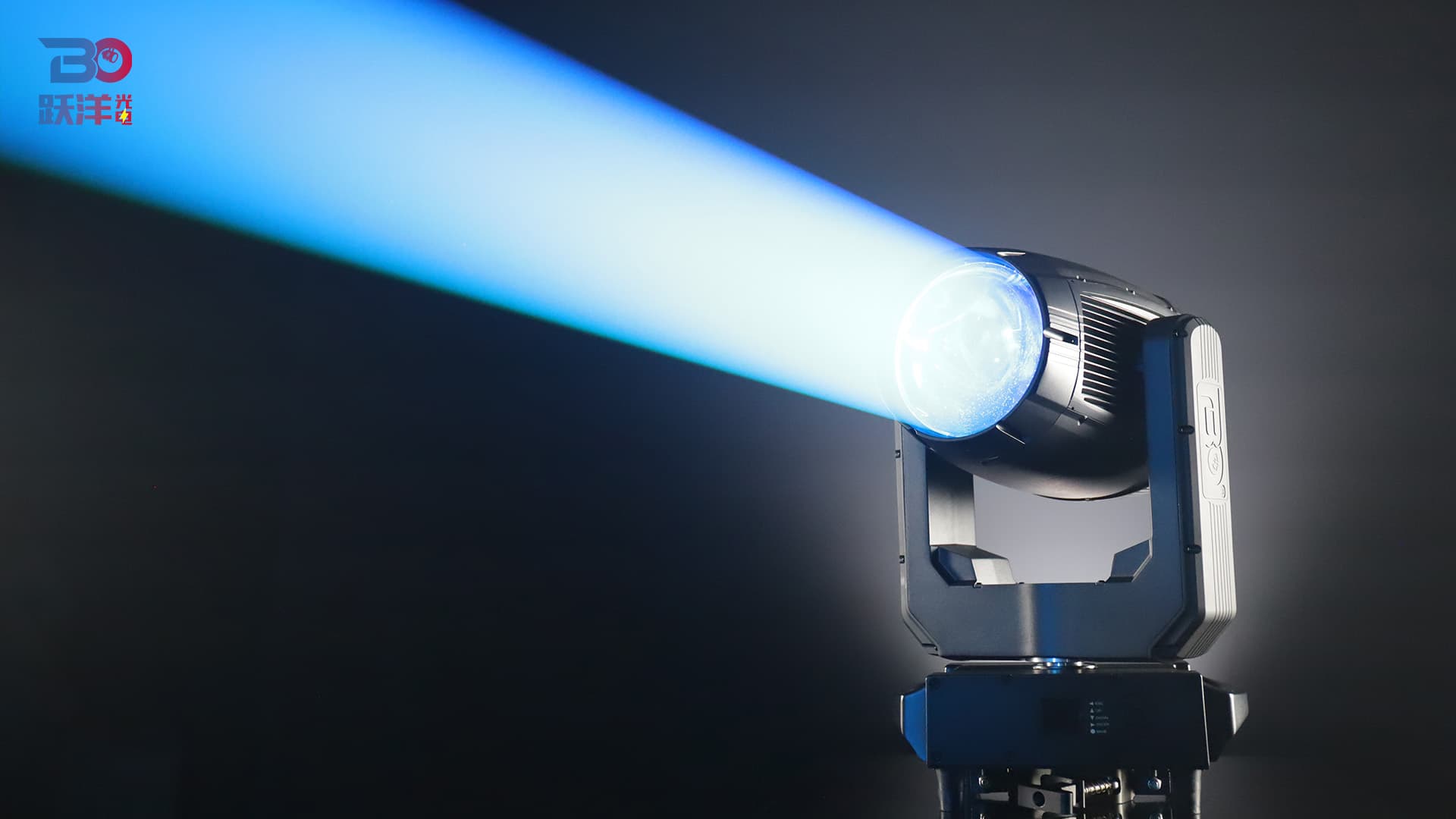

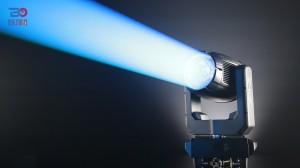

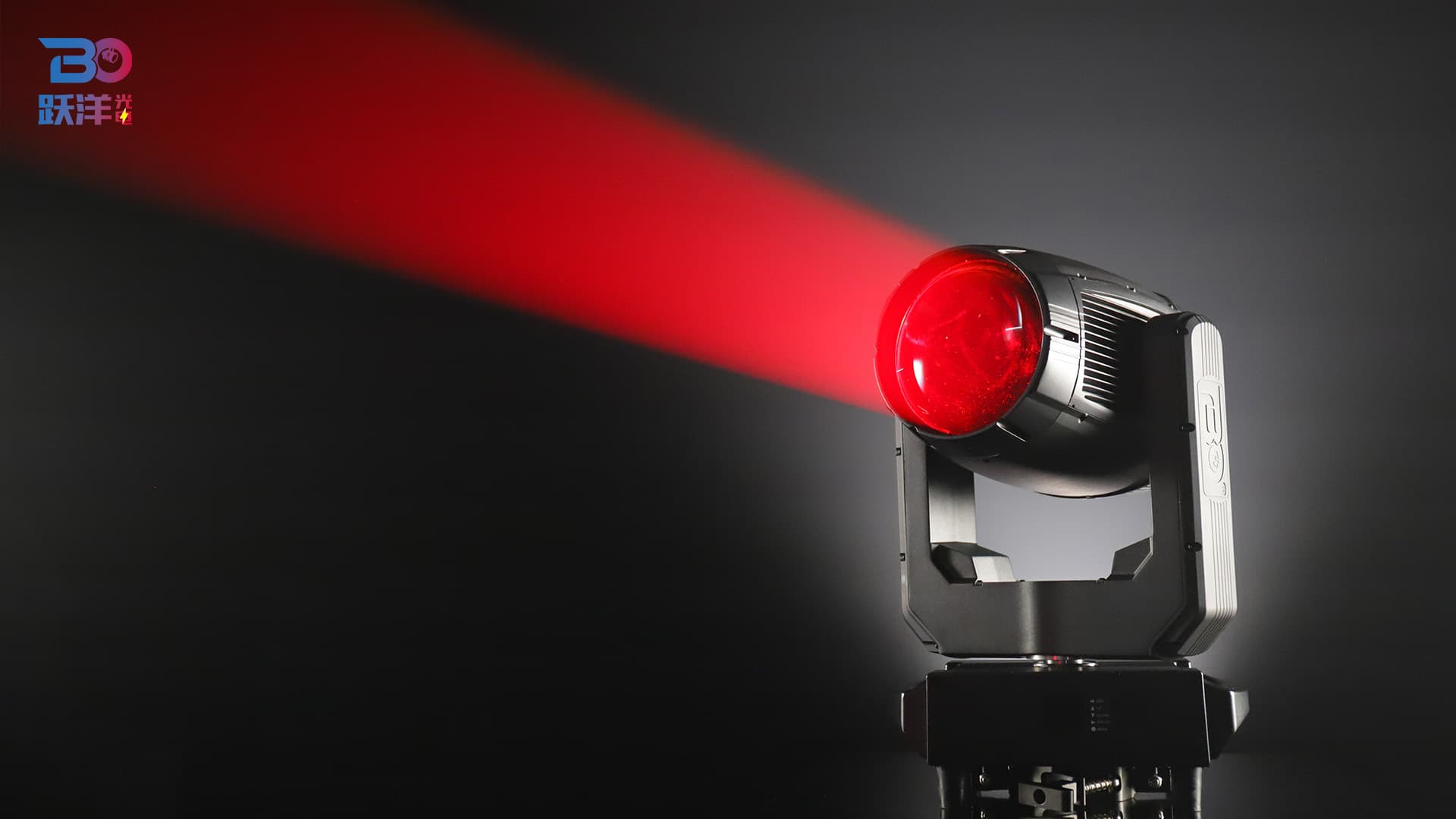

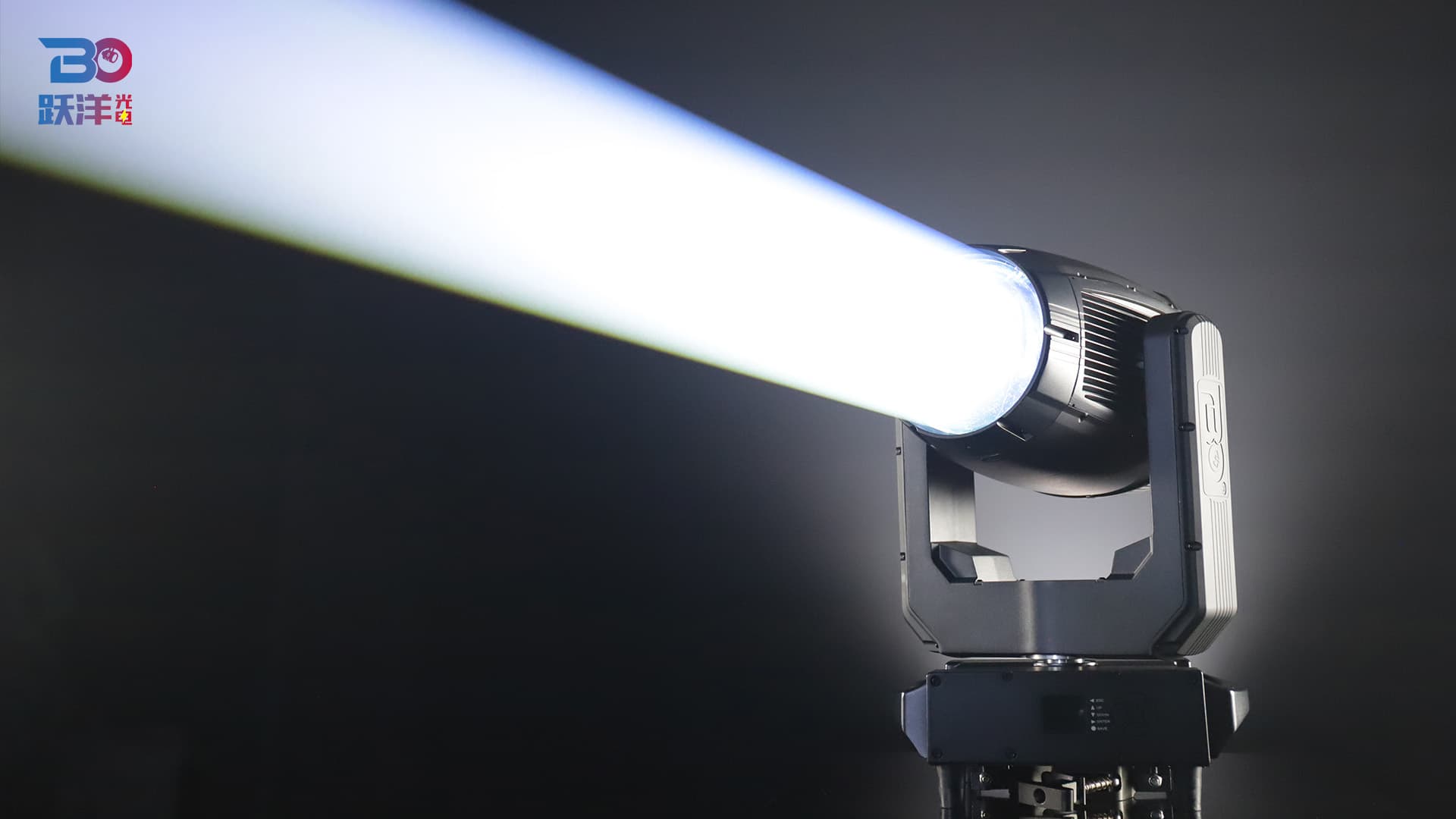

Beyond IP65 100W Laser Lamp Pure Beam

Light Source: 100W laser;color temperature:10000±500K;CRI:70Ra

LED Lifetime: ≥20000H

Power Voltage: 90-240VAC    50/60Hz

Power Consumption: 150W±5%;PF≥0.95;Standby power:21.5W

Optical system:  0.8° (∮3mm white round aperture), 0.7° (∮2.5mm white round aperture), 0.57° (∮2mm white round aperture); high-quality glass optical lens, optical lens: ∮180mm

Color system: 14+1,3200K single color wheel

DMX Channel: 16/19 Channel

Control Modes: DMX512、ArtNet、RDM

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: 3-pin XLR sockets

Electronic control technology: The menu or console controls the reset of the lights;0-100% dimming constant current drive mode temperature sensing detection; Intelligent adjustment of light source power; Lamp information query, Intelligent fan speed regulation; Using magnetic coded reset system

Security protection: Overcurrent, overvoltage, overheat protection, X/Y axis fixed lock, safety rope

Working position: Install in a safe position by lying flat or hanging

Pan: 540°, accuracy 2.11°/step.fine-tuning accuracy:0.008°

Tilt: 270°, accuracy 0.86°/step.fine-tuning accuracy:0.0034°

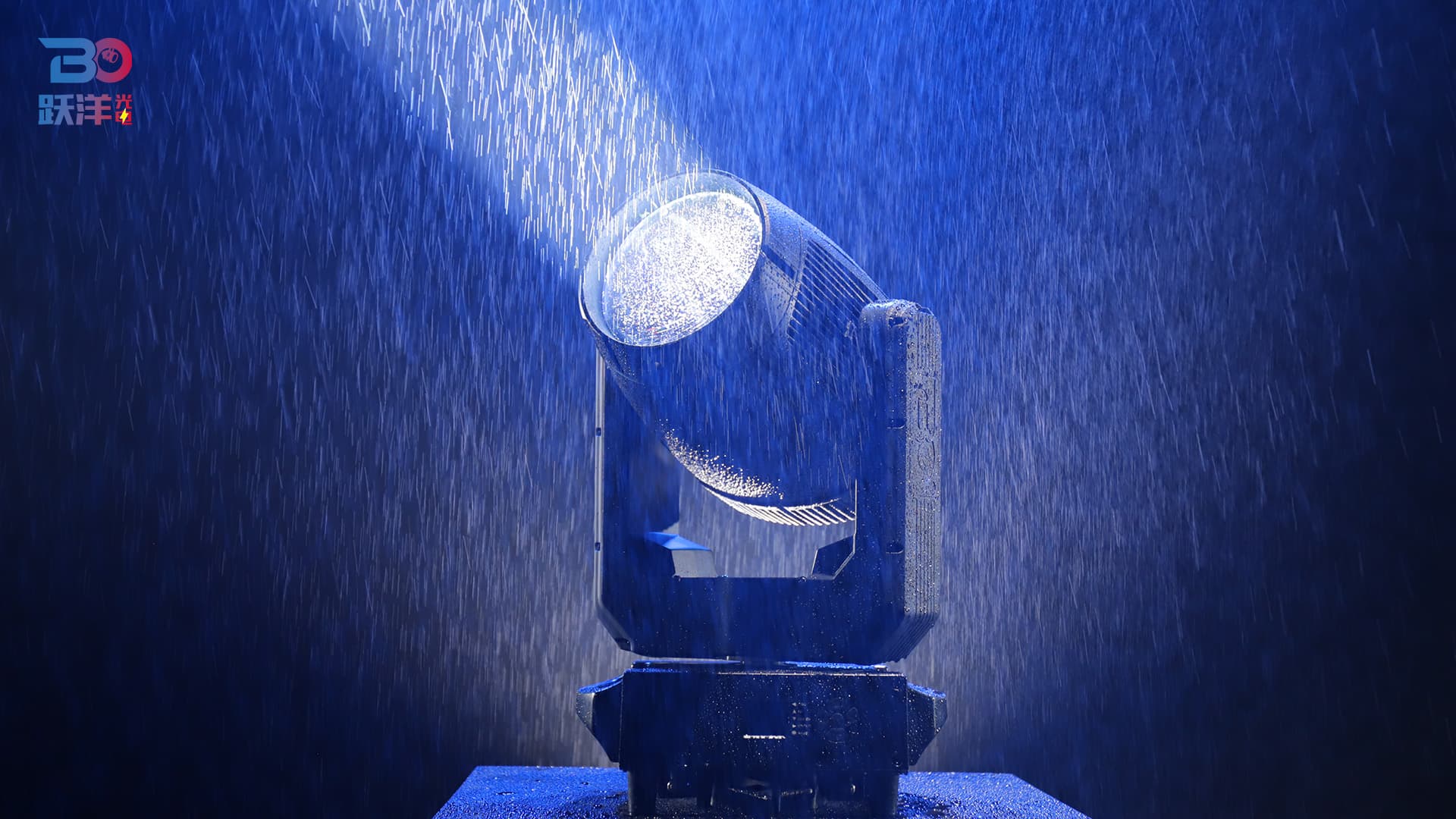

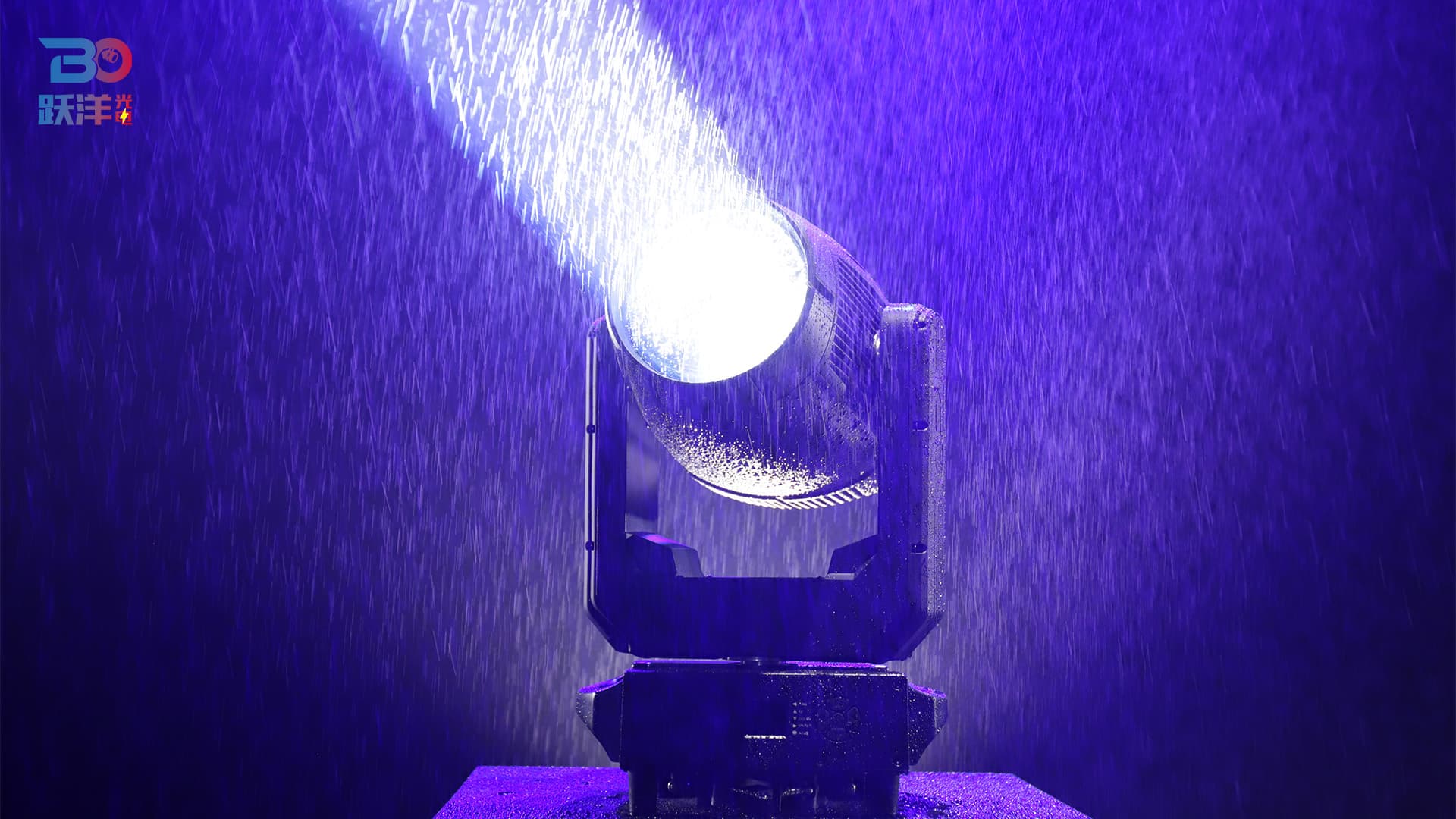

Protection Rating: IP65

Dimension: 360*260*625.6mm

Net Weight: 25kg

Carton Package: 750*375*470mm 1in1 GW: 27.5kg

Flight Case: 790*480*840mm 2in1 GW: 83.6kg

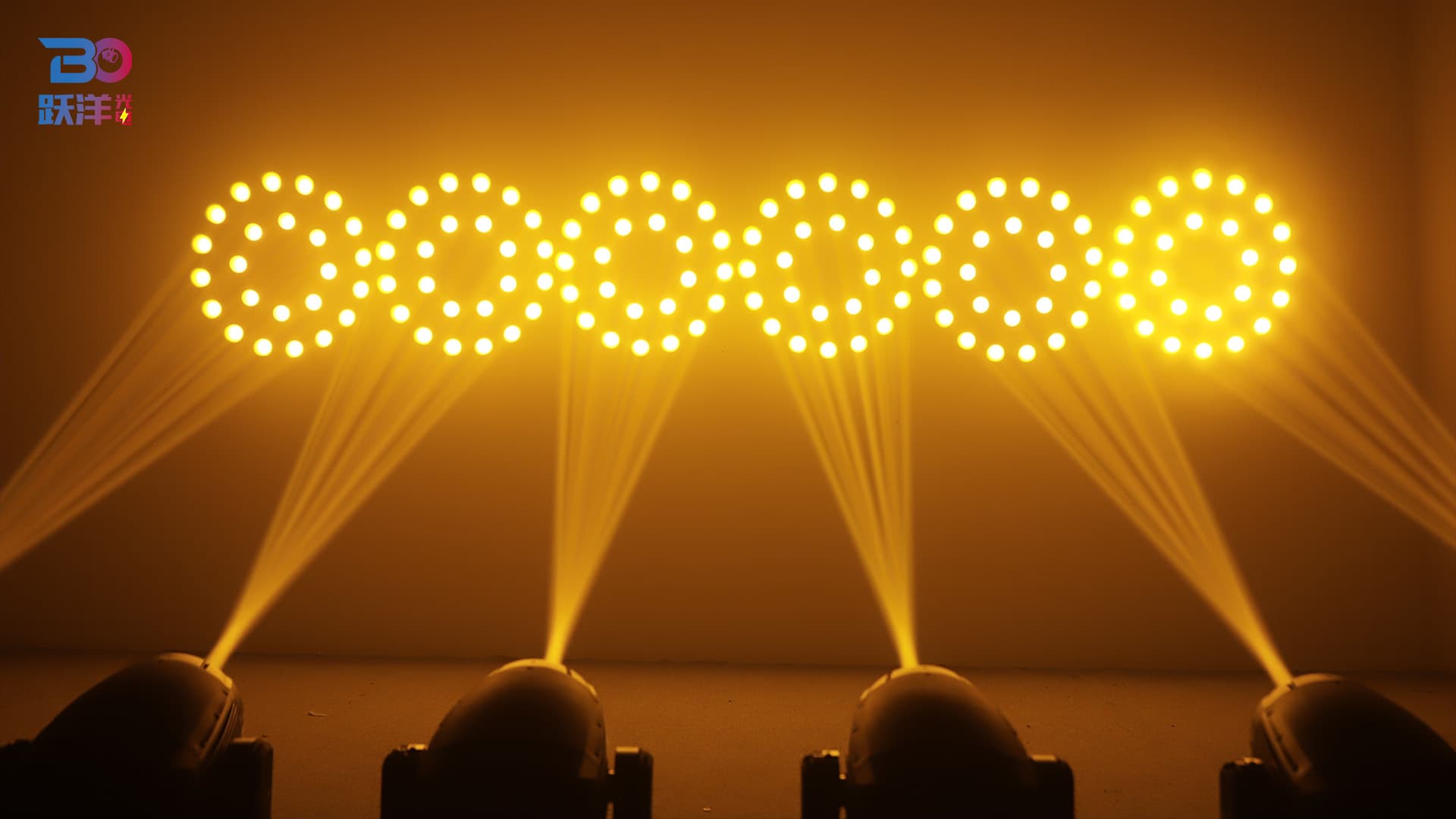

Features: Fast strobe 1-25Hz; Prism 1:24+48+6 rows, Prism 2: 24+6 rows; Color wheel: 14+1, half color can be selected; Static Gobo wheel: 22 kinds of effect,macro effect mode

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
