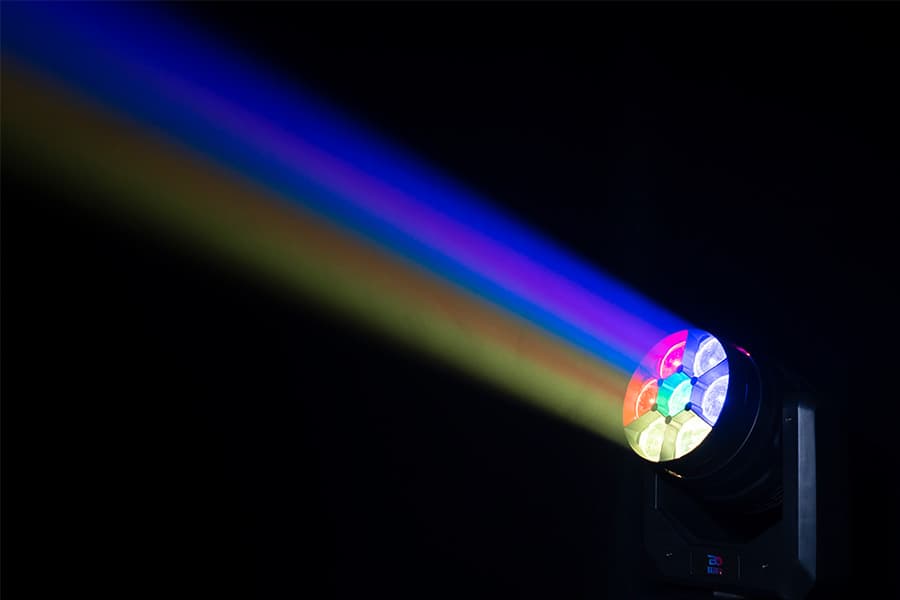

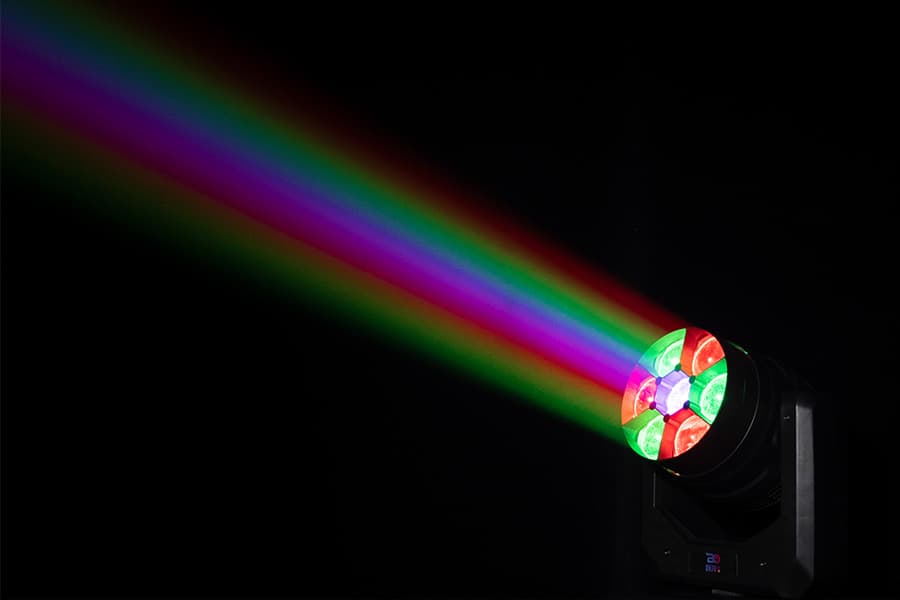

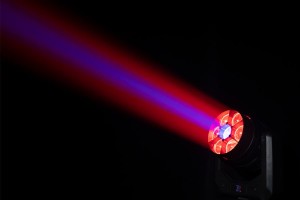

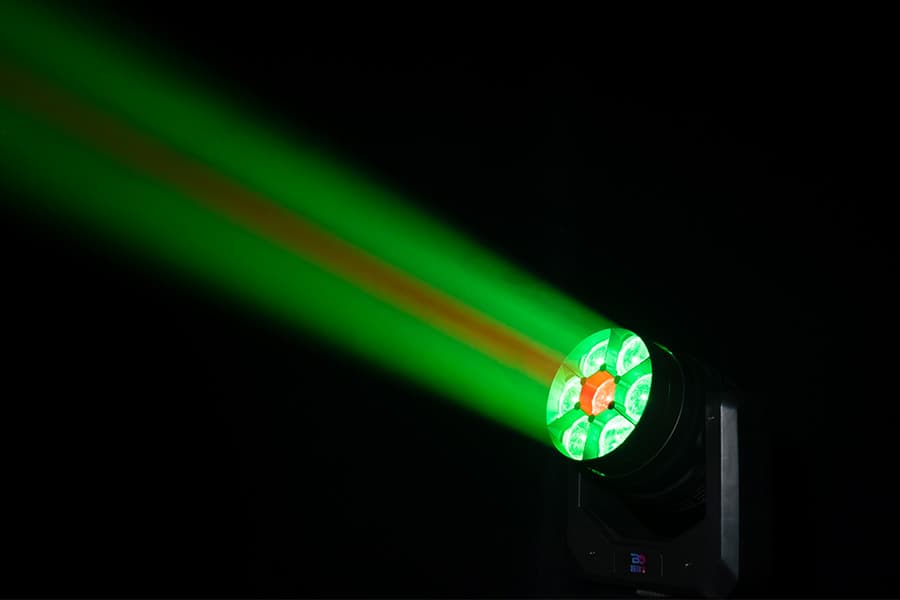

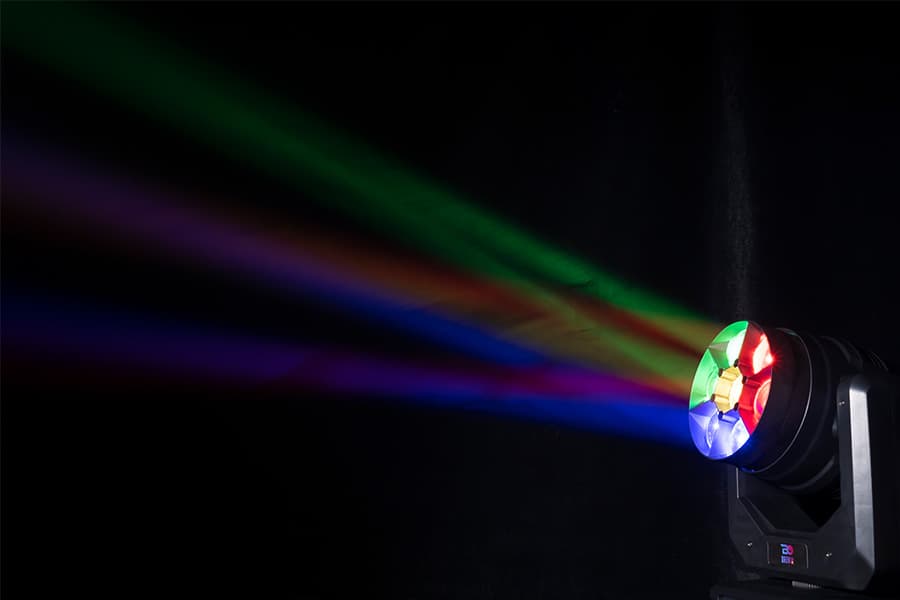

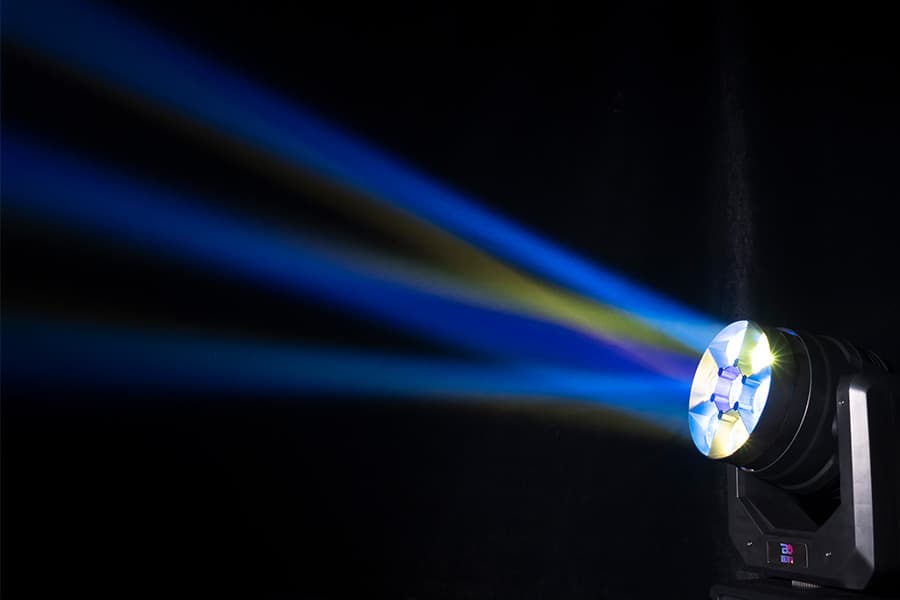

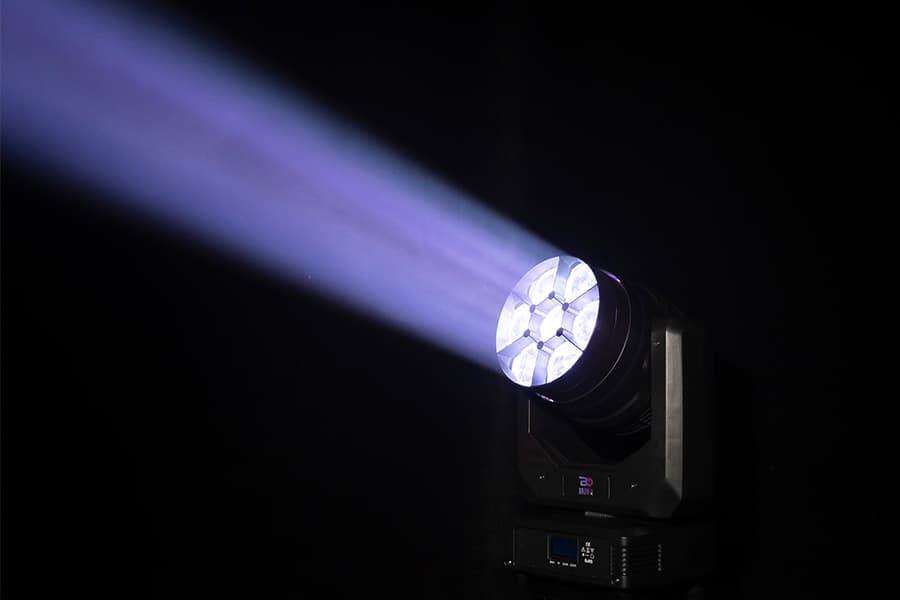

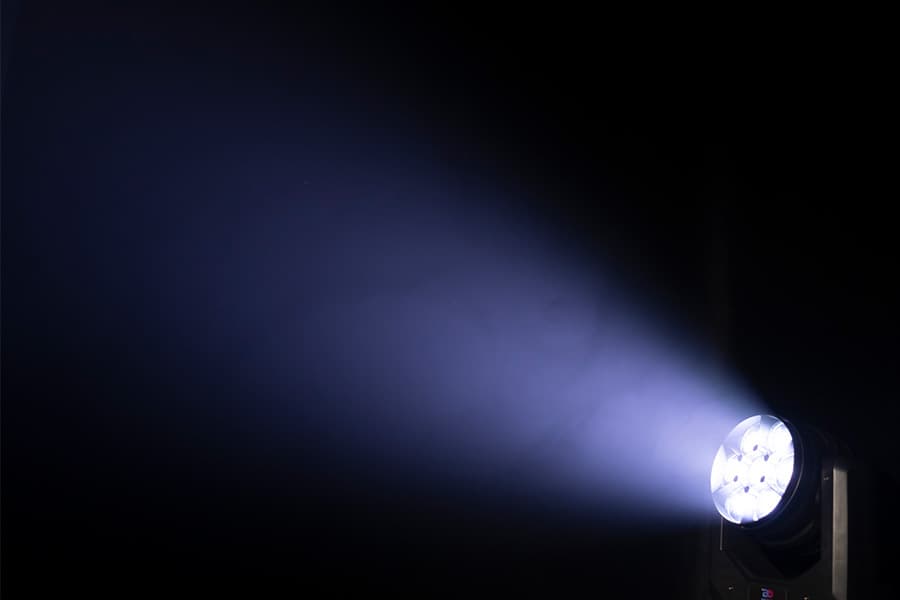

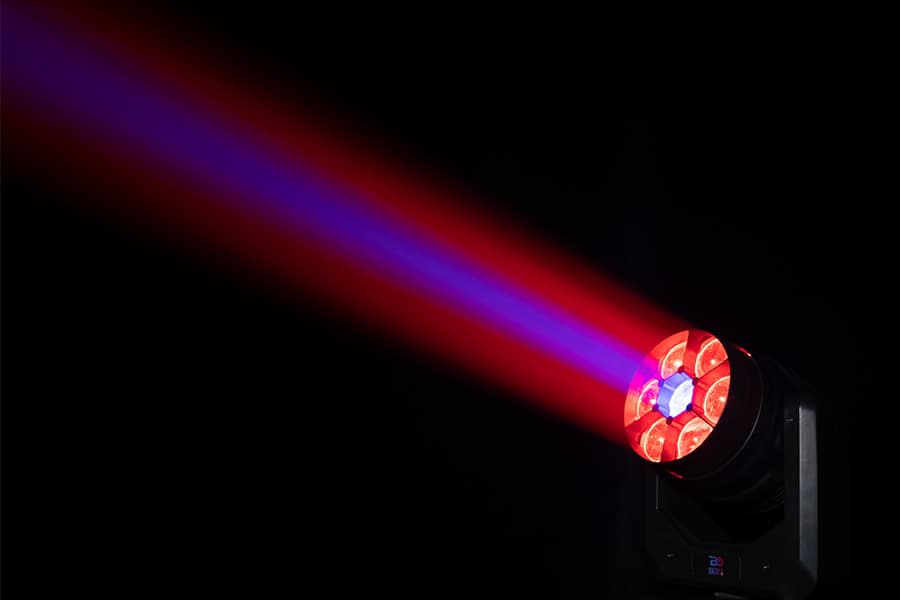

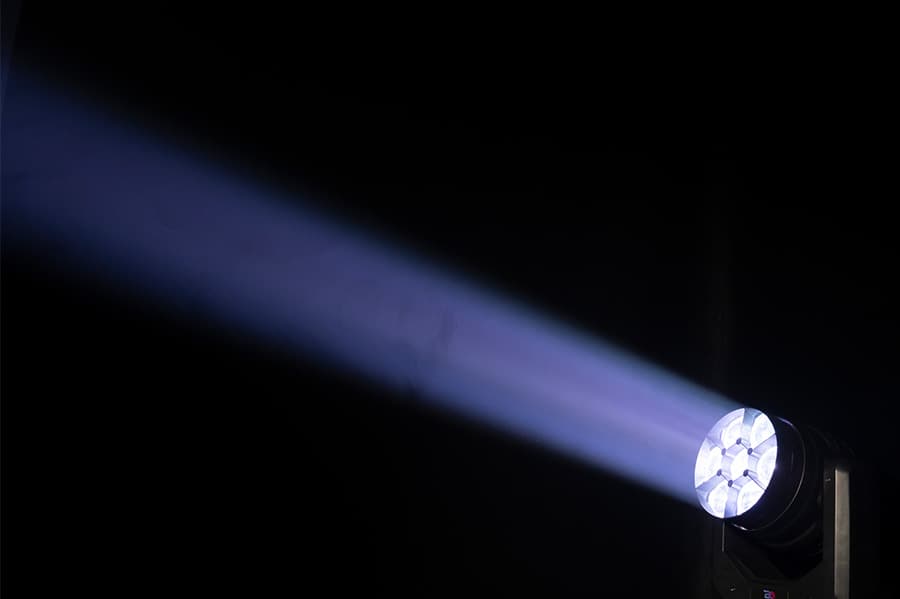

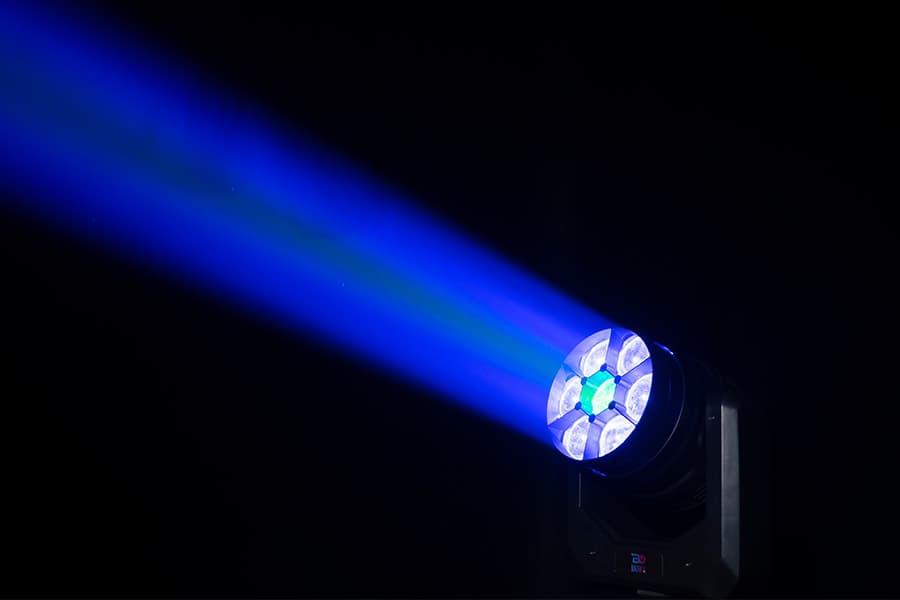

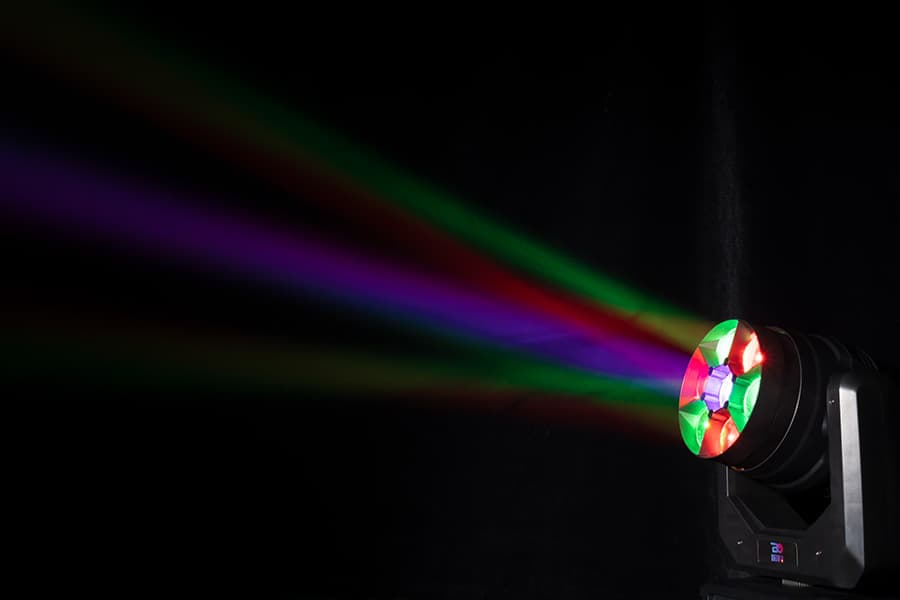

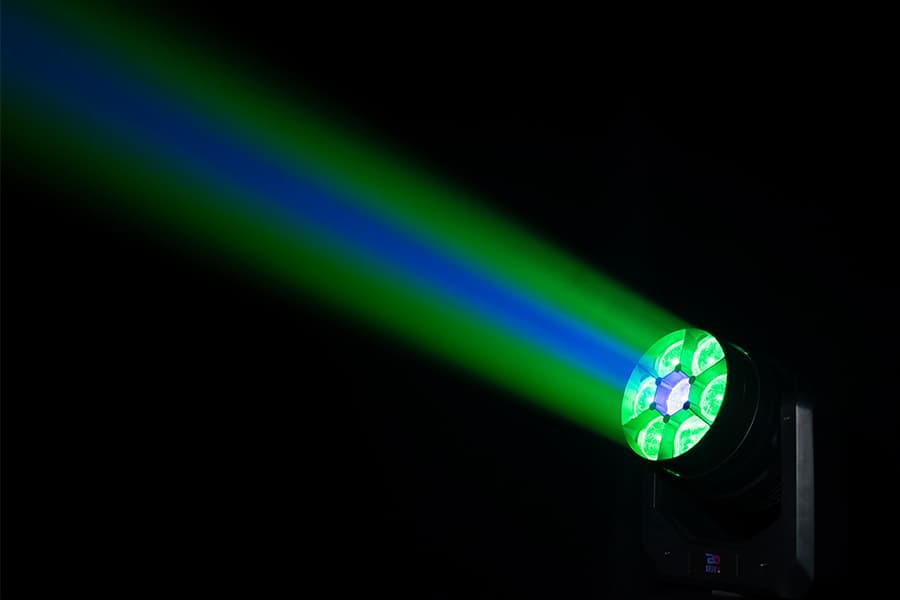

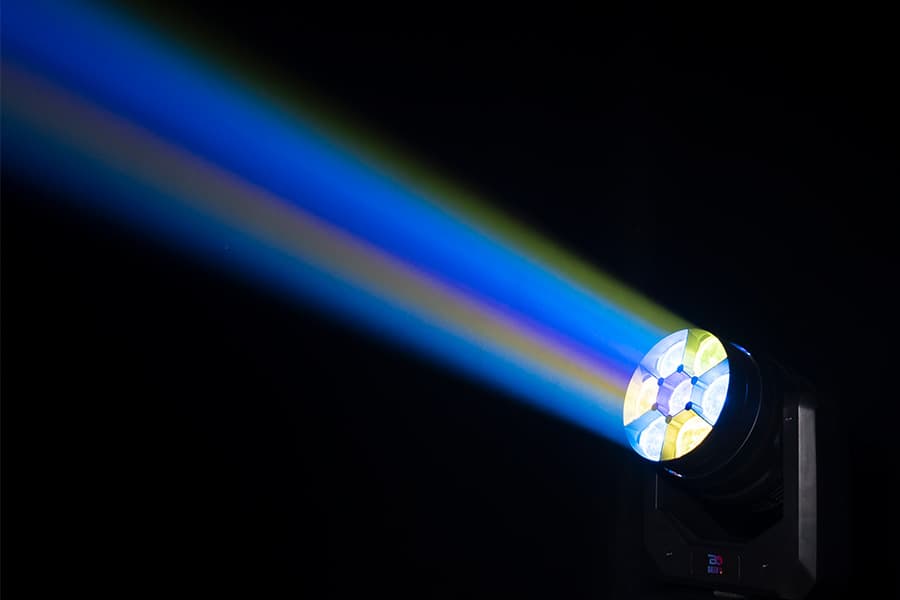

Beyond 740B 7x40W Mini Bee Eye Moving Head

Short Description:

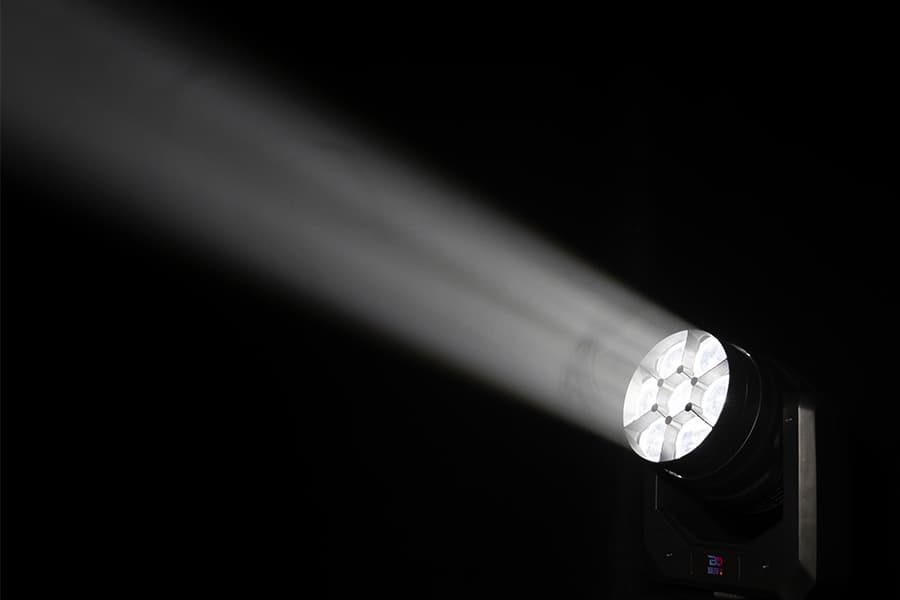

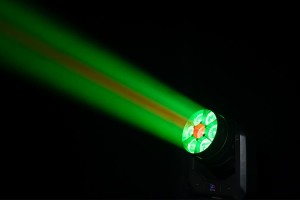

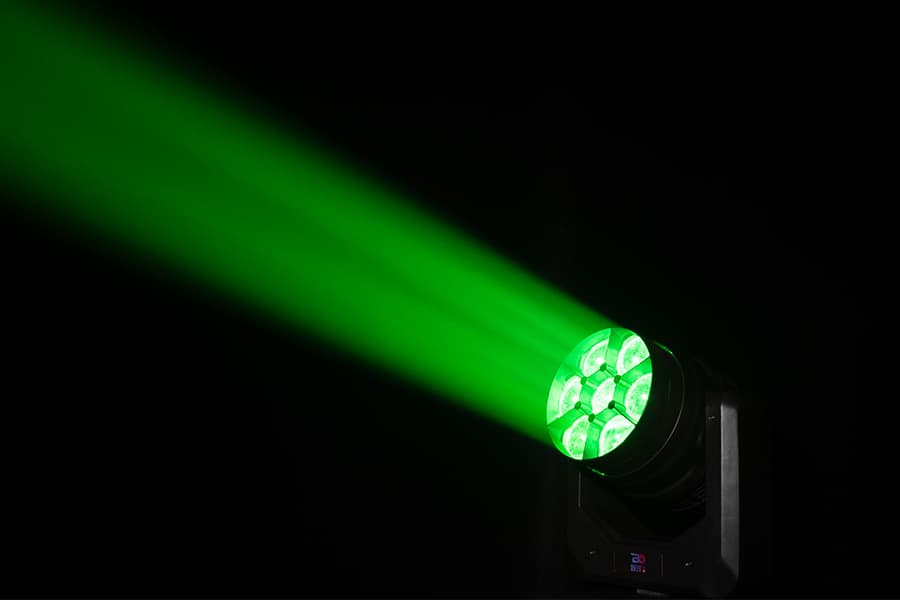

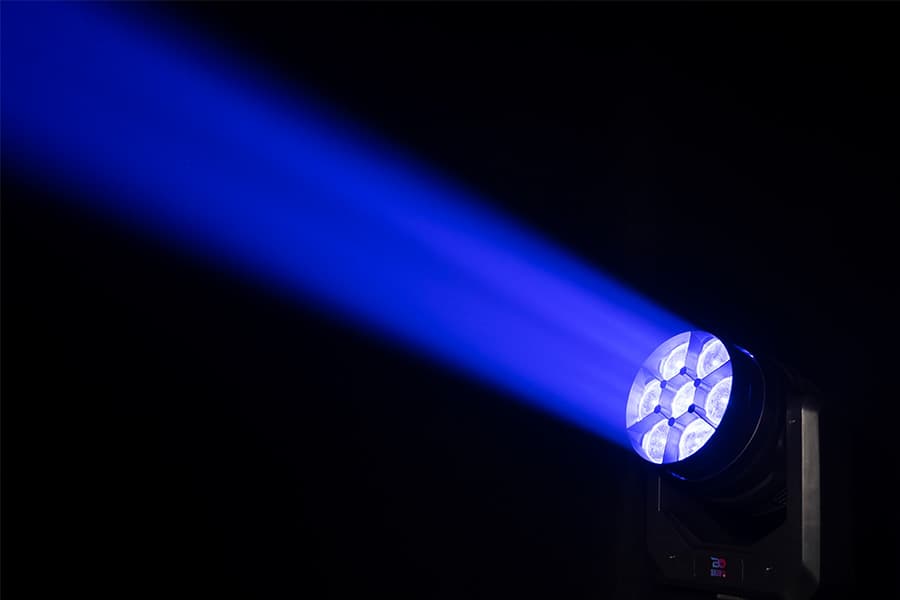

Beyond 740B is an innovative lighting fixture that offers both wash mini LED moving head and bee eye moving head functionalities.

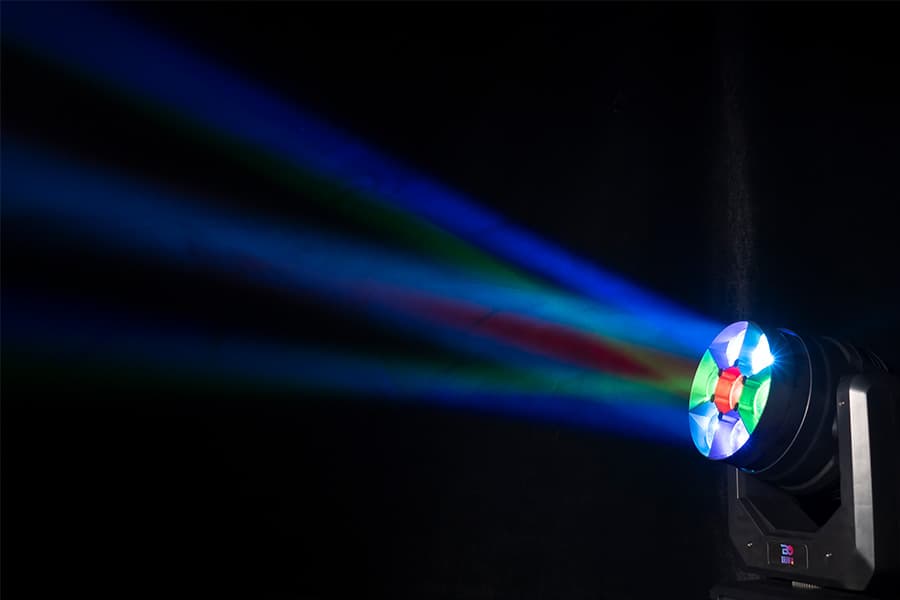

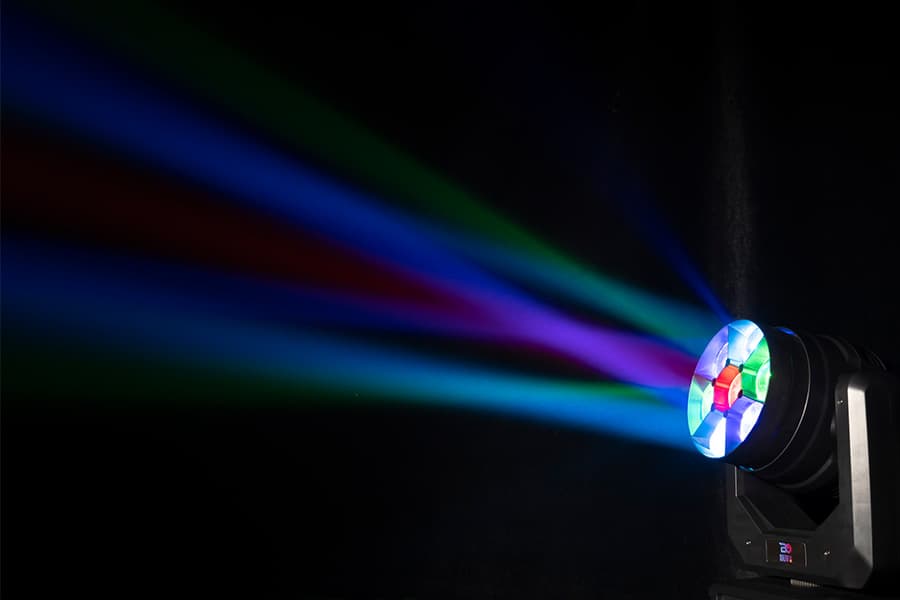

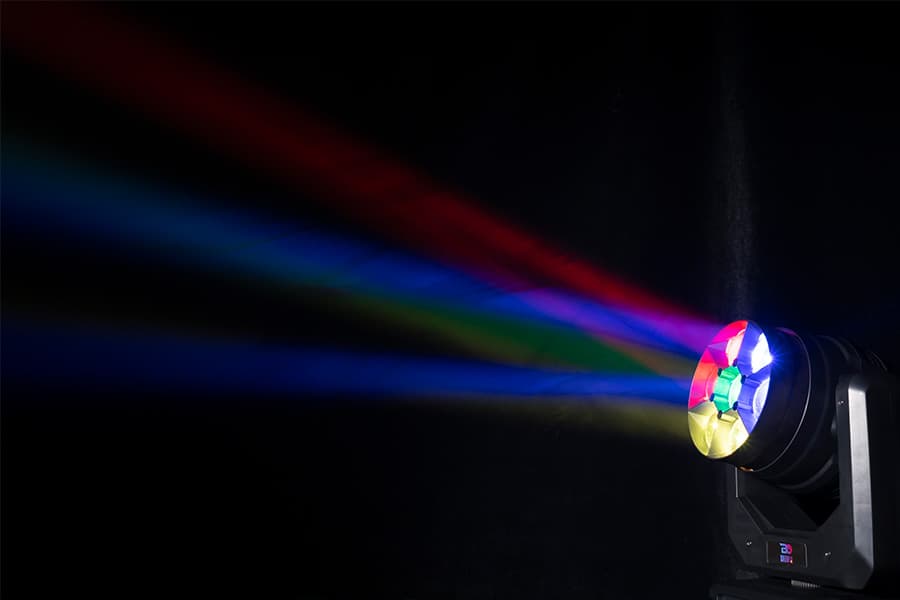

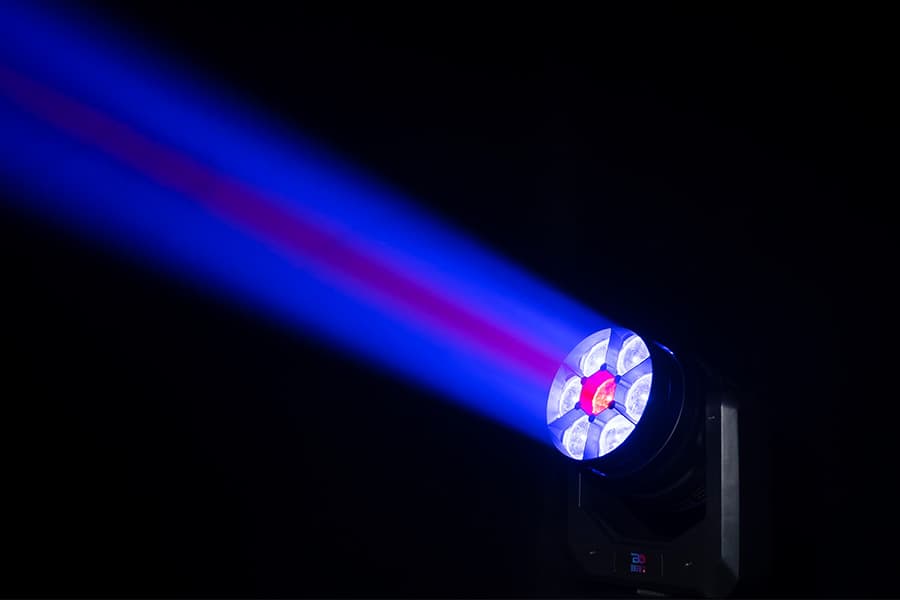

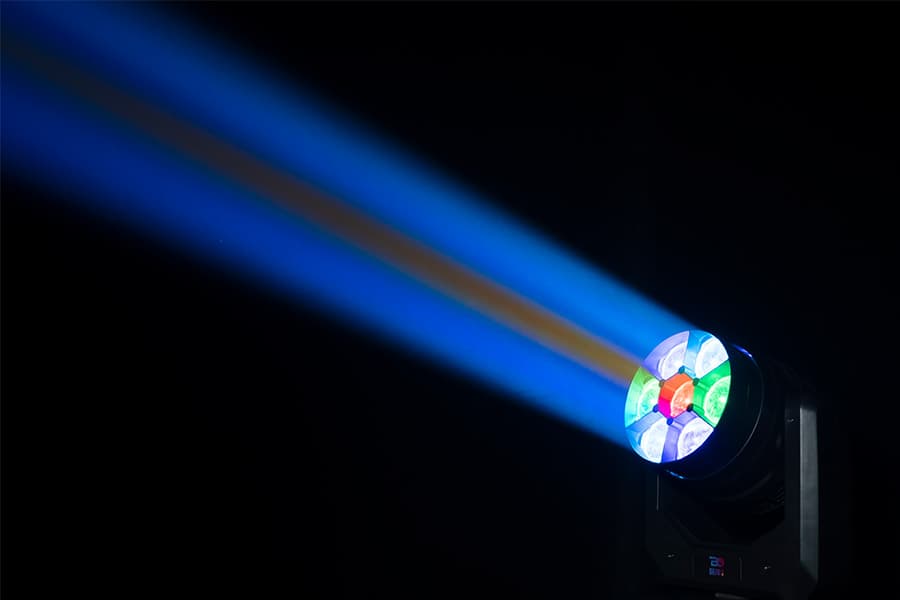

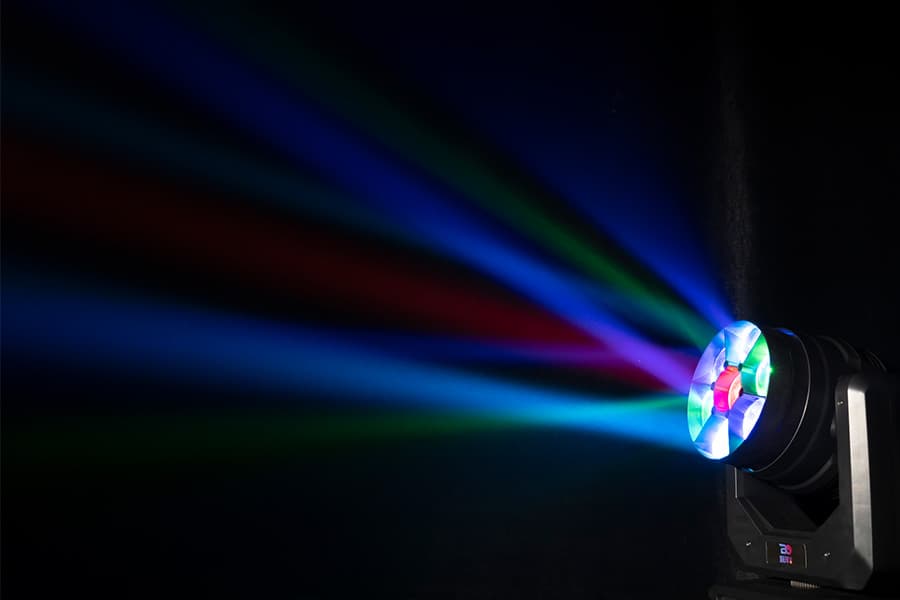

• Features 7 40W RGBW mixed color LEDs, allowing for individual control of each LED and the ability to rotate the front lens, resulting in brilliant light effects. Additionally, the Beyond 740B includes built-in macro functions, providing a wider range of lighting effect choices and automated motion control, enhancing the overall lighting performance.

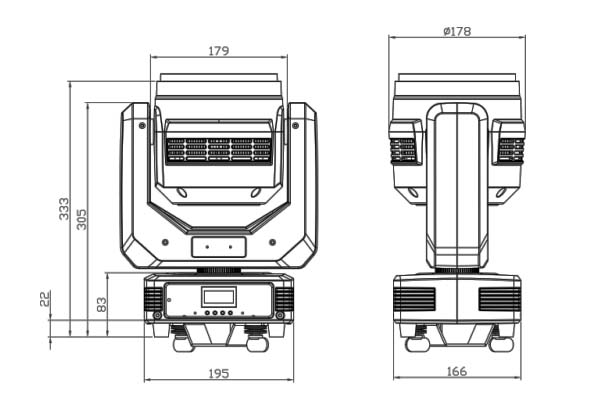

• It has a compact design ( 195x179x333 mm ) and a net weight of only 5.6 kg, which can reduce space occupation and your transportation costs.

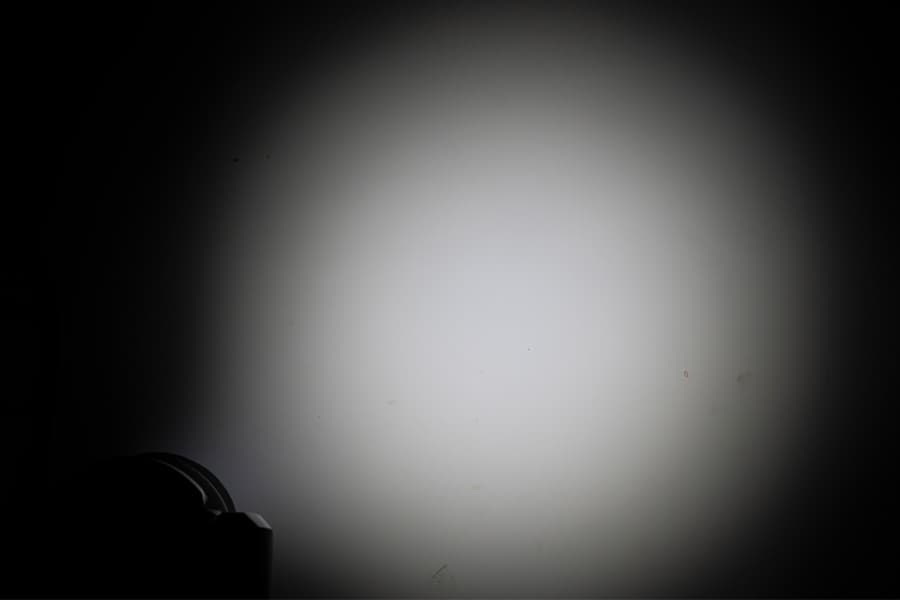

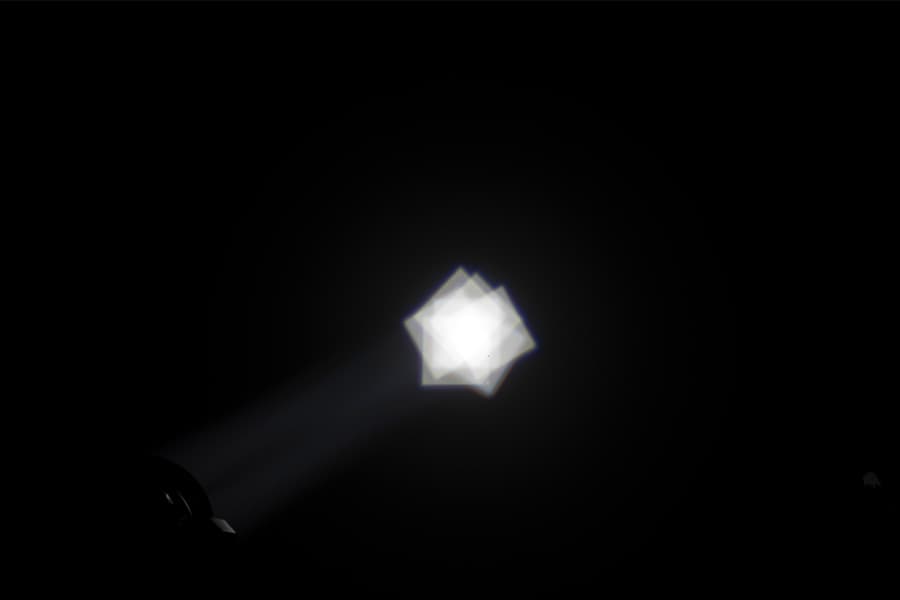

Beyond 740B features a motorized zoom range of 3.5-45°, ensuring a pure and even tint wash on the stage. This narrow beam effect, similar to beam lights, has gained significant popularity in the market.

Brand: Beyond

Model: 740B

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

Beyond 740B 7x40W Mini Bee Eye Moving Head

Light Source: 7*40W 4 in 1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V， 50- 60Hz

Power Consumption: 250W

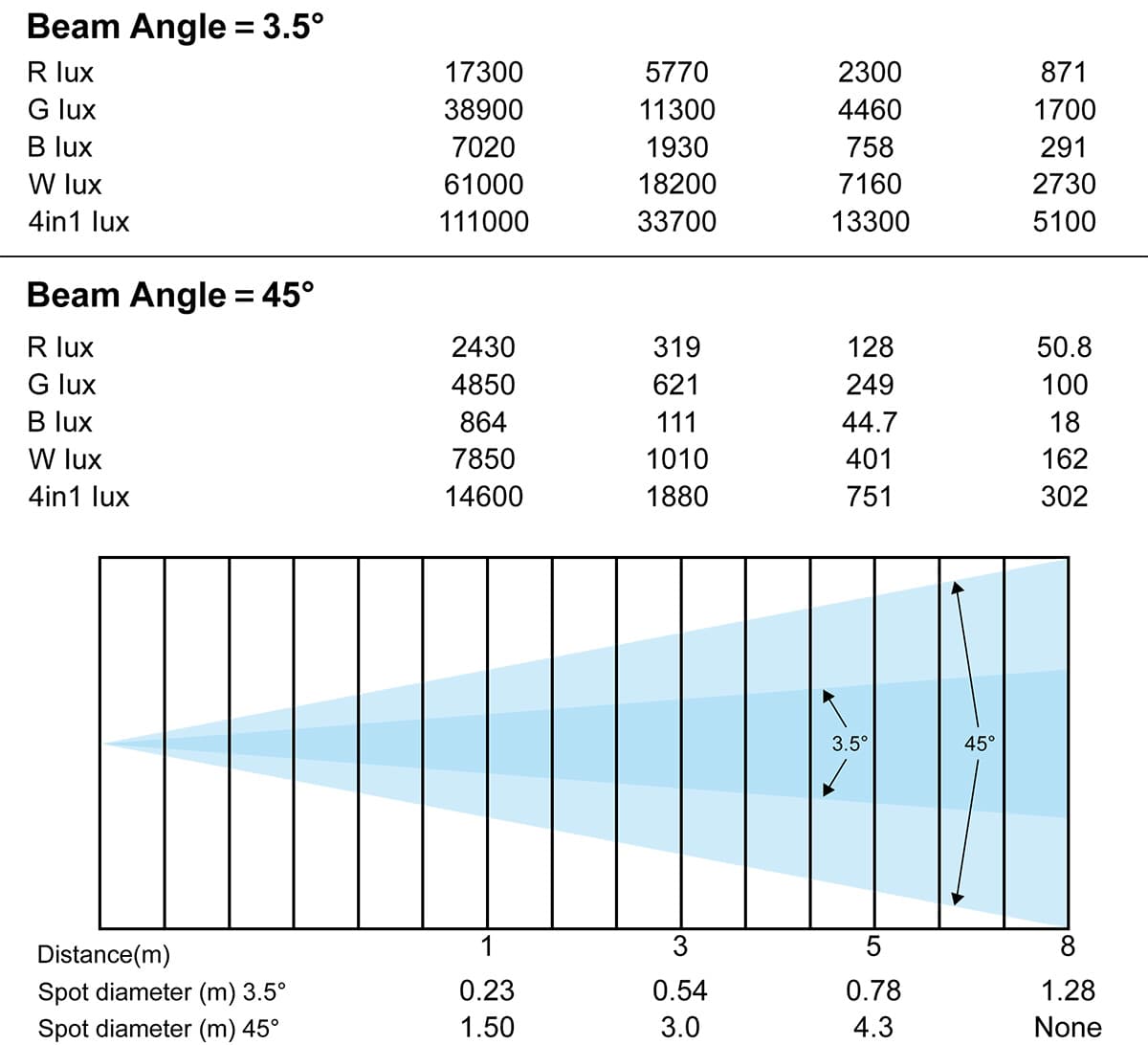

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master-Slave/ Manual/ RDM

DMX Channel: 21/ 24/ 32/ 60 Channel

Protection Rating: IP20

Display: LCD Display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540° accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270° accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 8 units（240V，50Hz） 1.5mm² power cable; 4 units（100V，60Hz） 1.5mm² power cable;

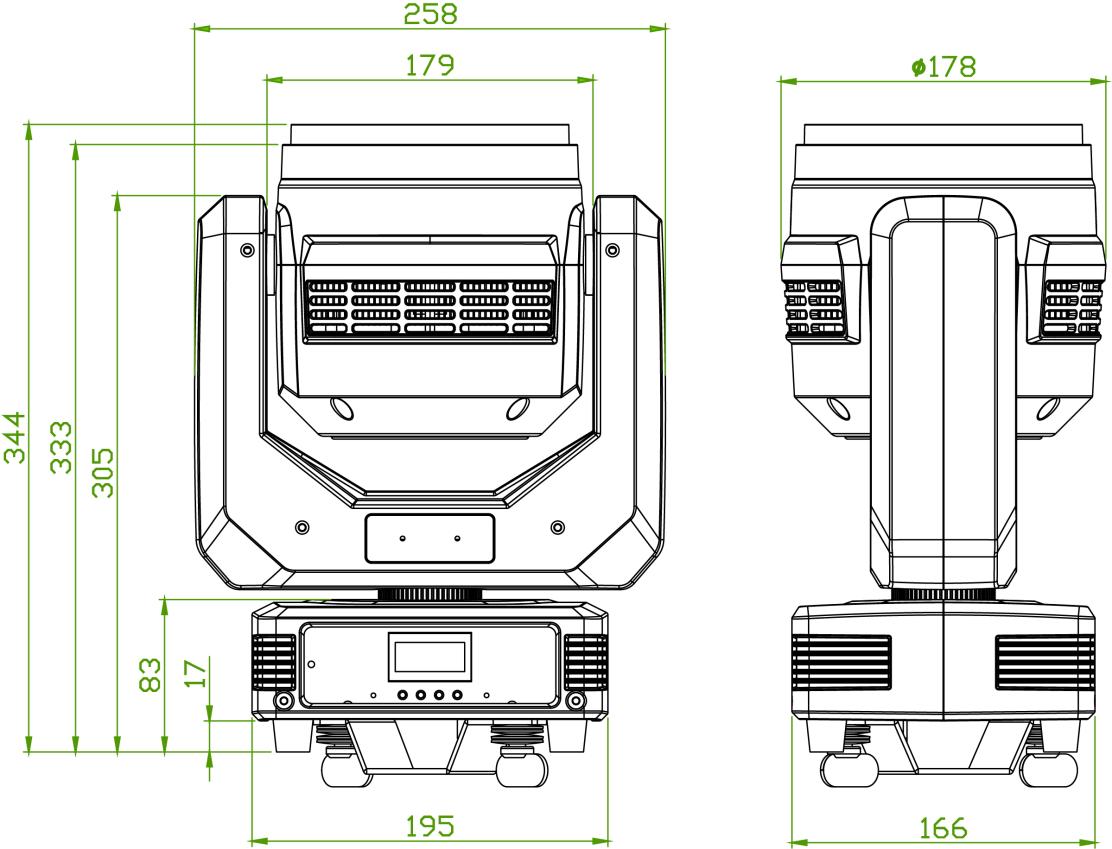

Dimension: 258mm×178mm×343mm

Net Weight: 5.6kg

Carton Package: 320*240*430mm 1in1 G.W.: 6.5kg; 660*500*445mm 4in1 G.W.: 27.5kg

Flight Case: 620*585*655mm 4in1 G.W.: 49.35kg；

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz. Single control of LED. Triple effects of WASH, beam, and bee eye. Preset multiple macro-color and macro-effect functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
