24x60W LED Wash Zoom Moving Head Light

Short Description:

The 2460Z is an ultra-powerful LED wash zoom moving head with a 1500W power output. It features 24x60W RGBW 4 in 1 LED and a motorized zoom range of 3.5-45 degrees. This high-quality wash moving head is perfect for theaters, concerts, and high-end performance events.

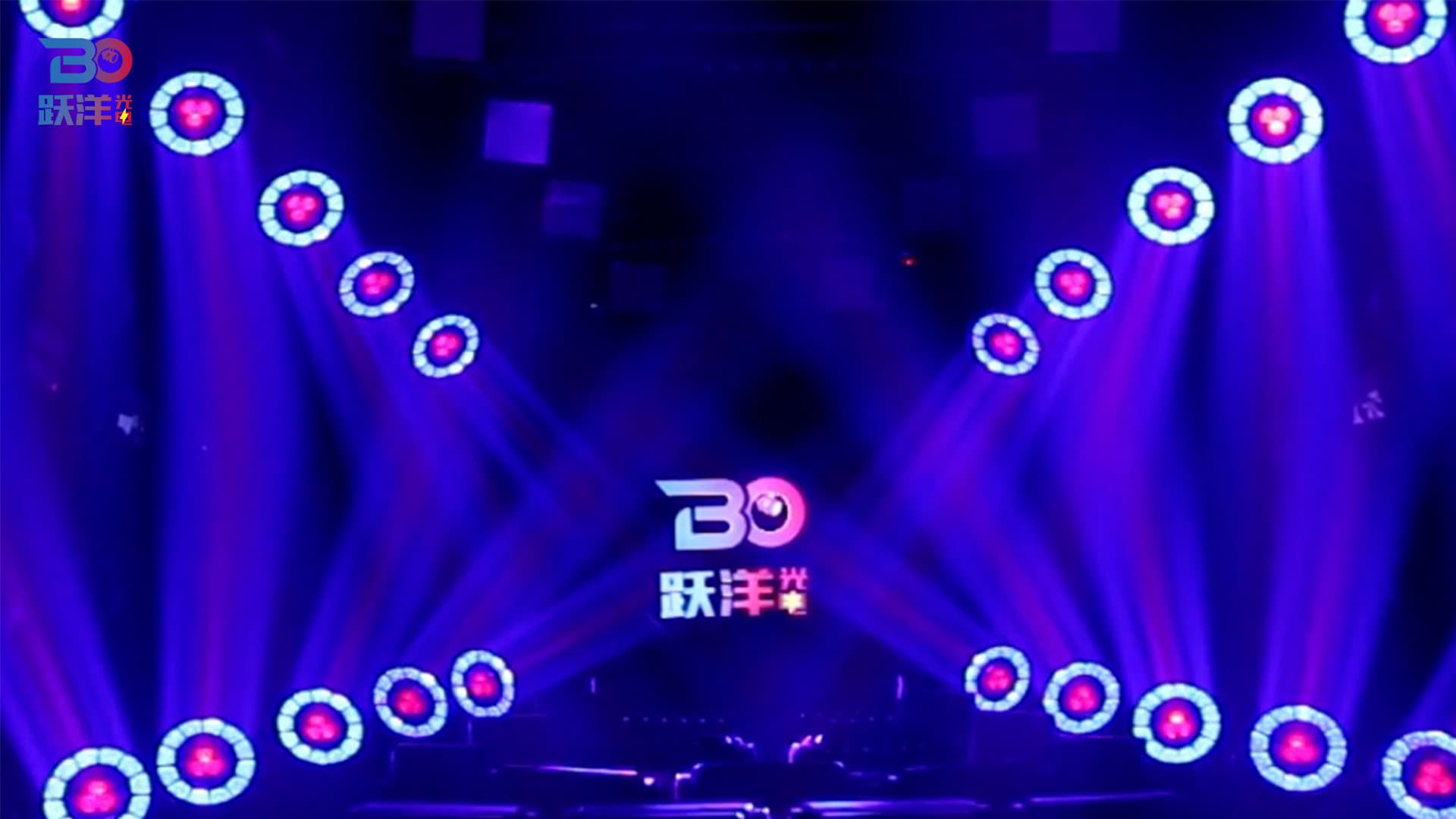

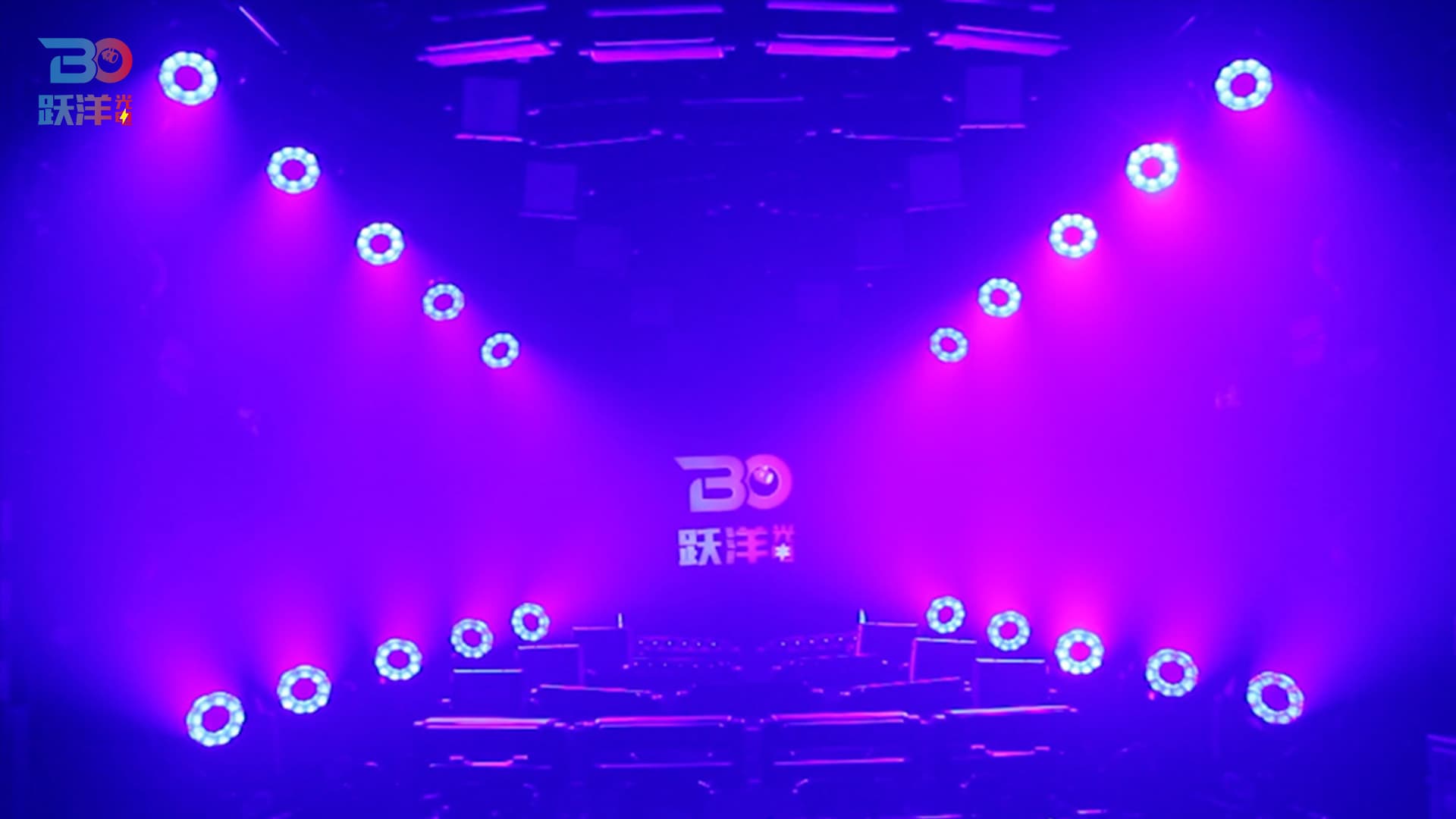

• 3 zones of LED ring control.
• No flicker, 16-bit accuracy, 0-100% smooth dimming control.
• Built-in multiple effect macro functions to make your lighting design more automated and diverse.
• Equipped with magnetic encoding reset system (16-bit Pan & 16-bit Tilt) to improve the quality and stability of lighting effects, making stage performances more exciting and professional.
• Low noise operation, intelligent fan speed adjustment.
• Pan & Tilt fixed lock, safe and easy to install and remove.

Brand: Beyond

Model: 2460Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

Ring Control 24x60W LED Wash Zoom Moving Head

Technical Specifications

Optics
• Light Source: 24x60W 4IN1 RGBW LED
• Zoom Angle: 3.5 - 45 Degrees
• Power Consumption: 1500 W
• Power Factor PF≥0.95
• Power Voltage: AC 100-240 V, 50/60Hz
• Average Lifespan> 50000 Hours
• Working Temperature: -10℃～45℃
• Glass Light Guide + PMMA High Quality Optical Lens

Control
• DMX Channel:20/24/32/44 Channels
• Control Protocol: DMX512/RDM

Pan/Tilt
• Pan : 540° ,accuracy 2.11°/step, fine-tuning accuracy: 0.008°;
• Tilt : 270°,accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
• Using magnetic coded reset system

Construction
• Display:2.4-inch TFT color display; Chinese and English languages can be switched,180° reversible TFT Display
• Data In/Out Socket: 3-pin & 5-pin XLR sockets
• Protection Rating: IP20

• Net Weight: 23.5 kg
• Dimension: 444 mm × 376 mm× 573 mm

• Carton Package 1in1 Size: 610 x 485 x 580 mm
• Gross Weight: 31 kg

• Flight Case 1in2 Size: 920 x 530 x 770 mm
• Gross Weight: 94 kg

Electronic Control Technology:
• Menu or console control lamp reset;
• 0-100% dimming;
• Constant current drive mode;
• Temperature sensor detection, intelligent adjustment of LED power;
• Light work information can be read on menu;
• Intelligent fan speed control
