12X40W 4IN1 RGBW Wash Zoom Moving Head

Short Description:

12x40W 4in1 Wash Zoom Moving Head is a super bright light, which combines small size and light weight to acquire convenient use. 12x40w wash zoom moving head has high output and low energy consumption, with a cost-effective zoom light.The zoom angle of the light is 3.5-45 degrees. The smaller the zoom angle, the more obvious the light beam. When the zoom angle becomes larger, it can provide a wide range of lighting. It not only has a stroboscopic speed of 1-25Hz, but also has a built-in macro function effect. As a professional stage light, it’s incredible to make such small but functional lights.

Brand: Beyond

Model: 1240Z

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

12pcs 40W RGBW LED Wash Moving Head

Light Source: 12*40W 4 in 1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 380W, PF≥0.95

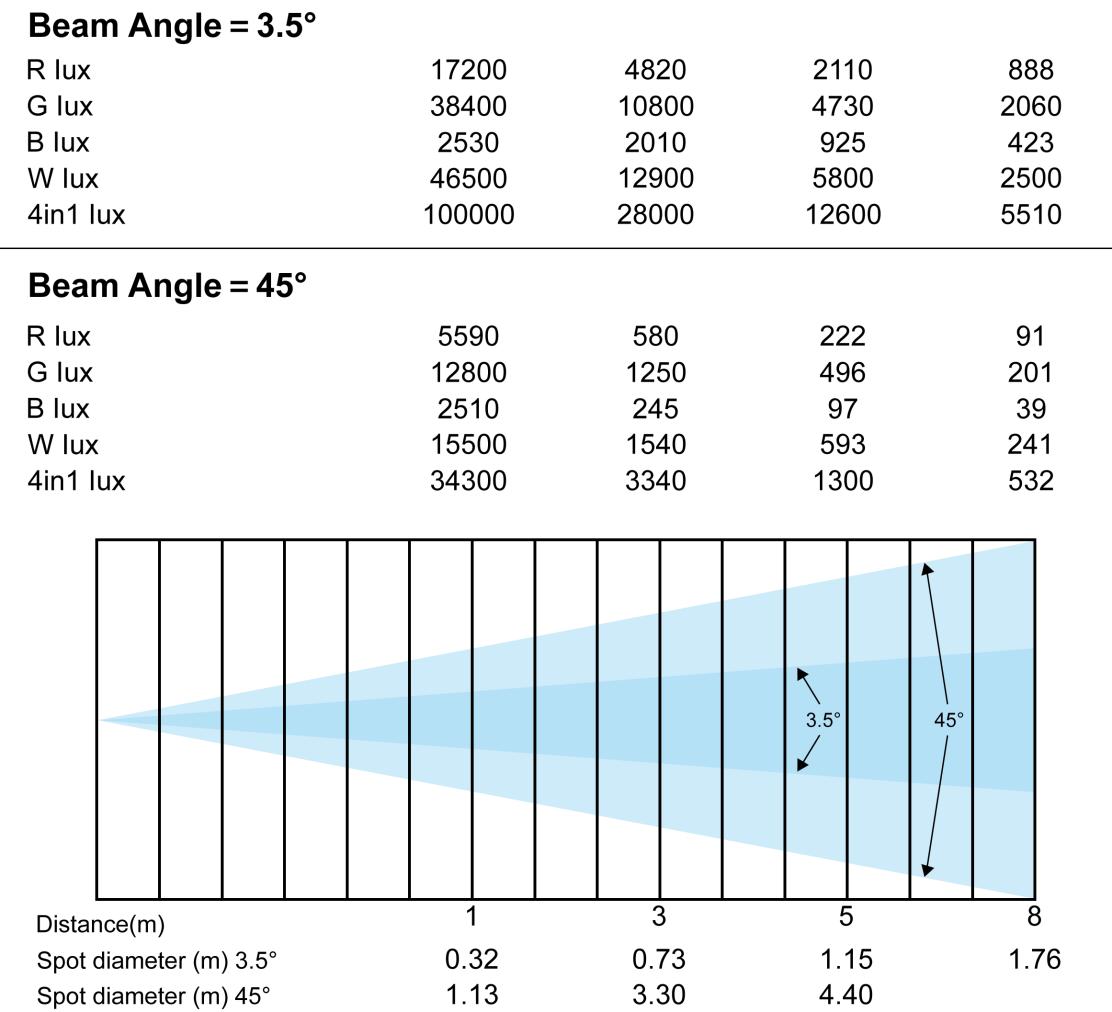

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master-Slave/ Manual/ RDM

DMX Channel: 16/ 21 Channel

Protection Rating: IP20

Display: TFT 1.8' colorful reversible display, CN/ EN language

Data In/Out Socket: 3-pin& 5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Working Temperature: -10℃ - 45℃

Pan: 540° accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270° accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 8 units（230V，50Hz） 1.5mm² power cable; 4 units（110V，60Hz） 1.5mm² power cable

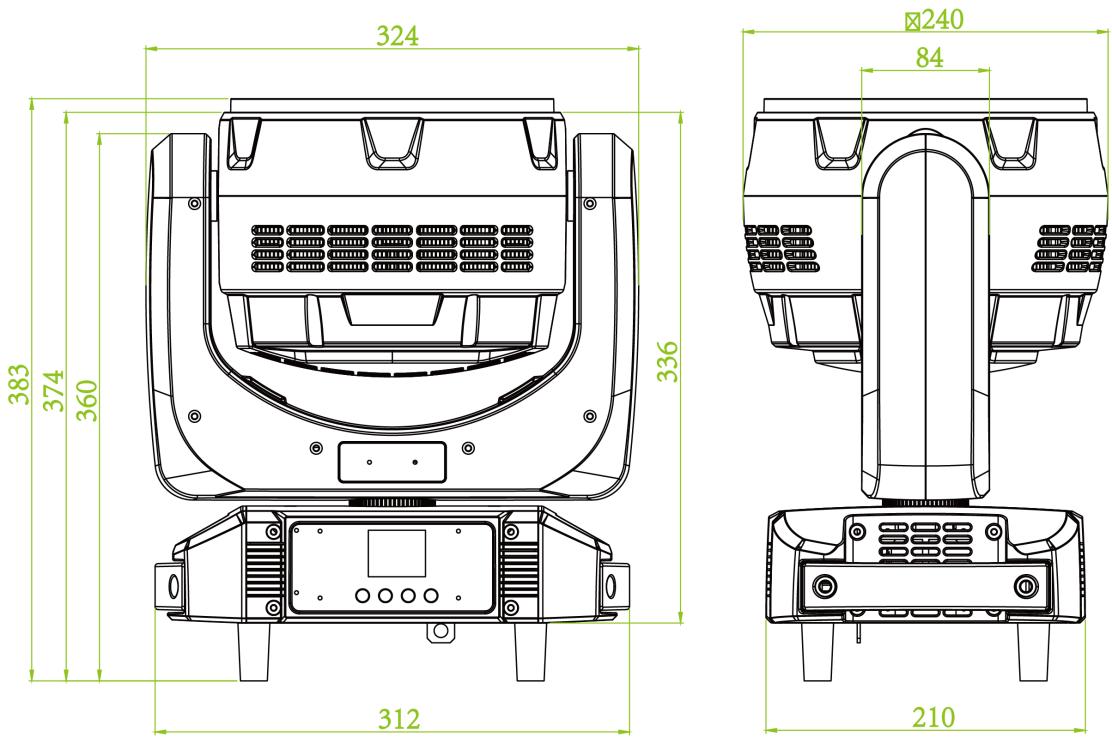

Dimension: 324*240*383mm

Net Weight: 9kg

Carton Package: 397*313*452mm 1in1 G.W.: 12kg; 646*415*472mm 2in1 G.W.: 23kg

Flight Case: 875*608*575mm 4in1 G.W.: 71.6kg

Features: Full light range dimming, 65536-level dimming accuracy. Fast strobe 1~25Hz. Preset multiple macro colors. High brightness. Uniform WASH effect.

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
