49x20W LED Matrix Moving Head

Short Description:

Beyond 4920Z, an upgraded version of the 2540Z LED matrix moving head. This advanced wash moving head fixture offers exceptional performance and versatility.

Featuring 49x20W RGBW LEDs in a matrix configuration, the Beyond 4920Z delivers stunning color mixing capabilities. With a motorized zoom range of 4-46 degrees, it offers an even and soft washing effect.

Adjusting the brightness is effortless with the 0-100% linear dimming feature. The linear color temperature adjustment, ranging from 2800K to 8000K, allows for creating the perfect ambiance.

Each LED can be individually controlled, allowing for showcasing various graphics, such as numbers, letters, and symbols, offering endless creative expression and customization.

Safety is prioritized with overcurrent, overvoltage, and overheat protection. The pan and tilt functions are equipped with fixed locks to ensure stability and prevent accidental movements.

Brand: Beyond

Model: 4920Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

49x20W LED Matrix Moving Head

Light Source: 49 x 20W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 760W±5W

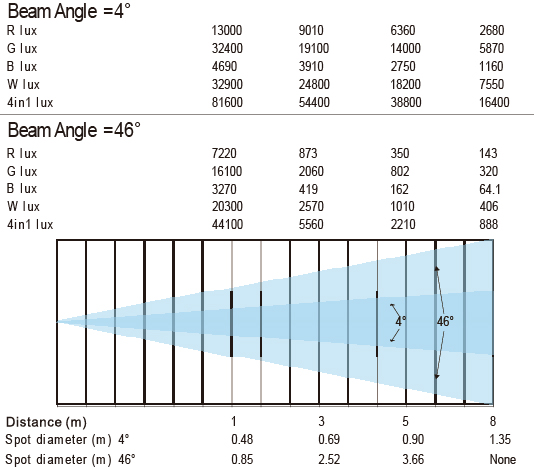

Beam Angle: 4°~46°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ ArtNet（optional）

DMX Channel: 22/ 25/ 33/ 229/ 206 Channel

Protection Rating: IP20

Display: 1.8°TFT Color Display

Data In/Out Socket: 3-pin & 5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540°,Accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°,Accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Photoelectric reset system: Tilt infinite rotation; photoelectric reset system

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

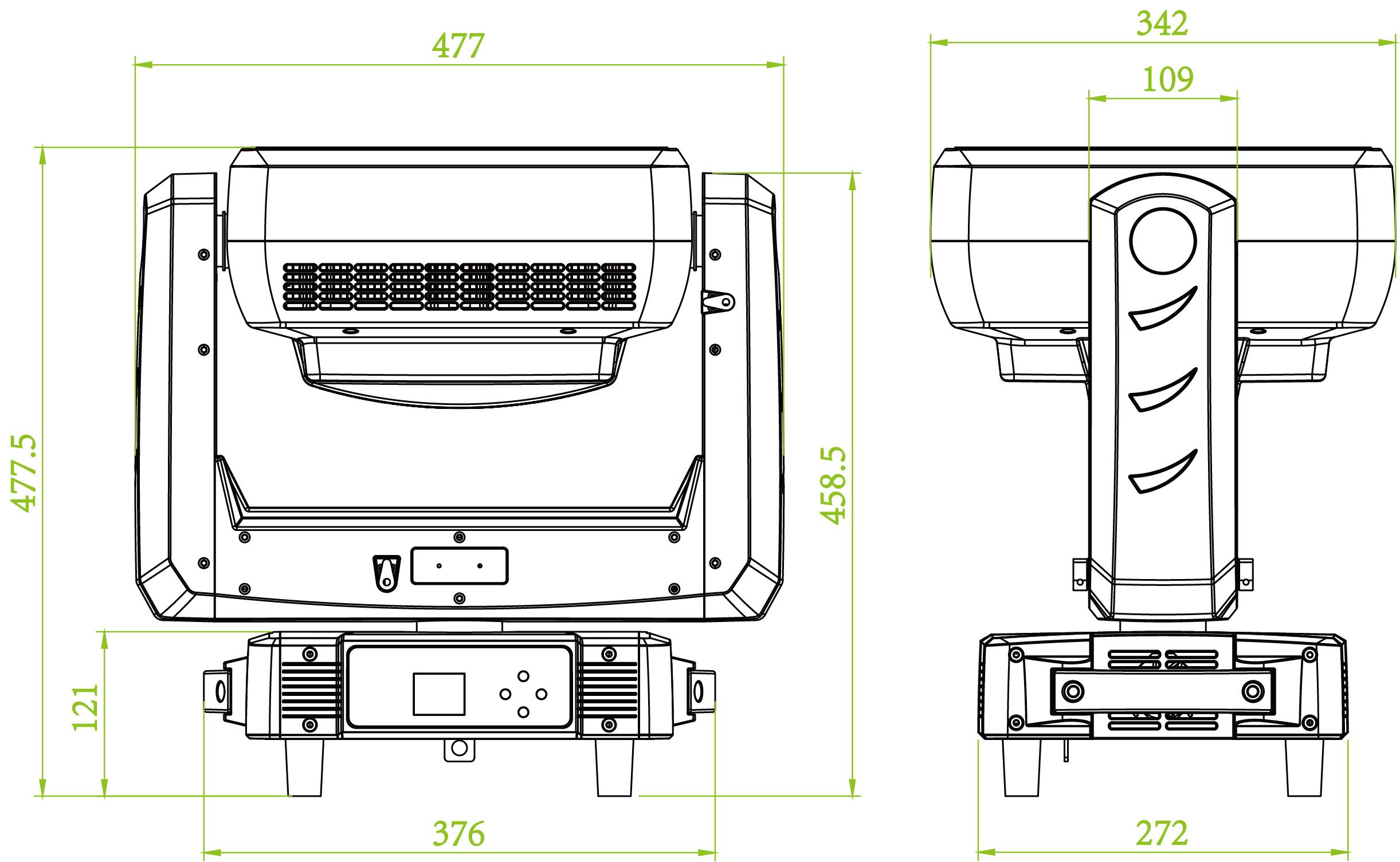

Dimension: 477 mm x 272 mm x 579.5 mm

Net Weight: 23.35kg

Carton Package: 590mm*590mm*445mm 1in1 GW: 27.2kg

Flight Case: 740mm*540mm*775mm 2in1 GW: 80.3kg

Features: Full light range dimming, 65536-level dimming accuracy. Fast strobe 1-25Hz.LED single control, Preset multiple color macro, Preset multiple effect macro

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
