2460B-Latest Stage Lighting Powerful 24x60W LED Bee Eye Moving Head Light

Short Description:

The bee eye moving head is the most powerful LED beam+ wash+ bee eye effect LED moving head in China. We are the first manufacturer in China to start R&D on the 40W and 60W LED source bee eye effect moving head.

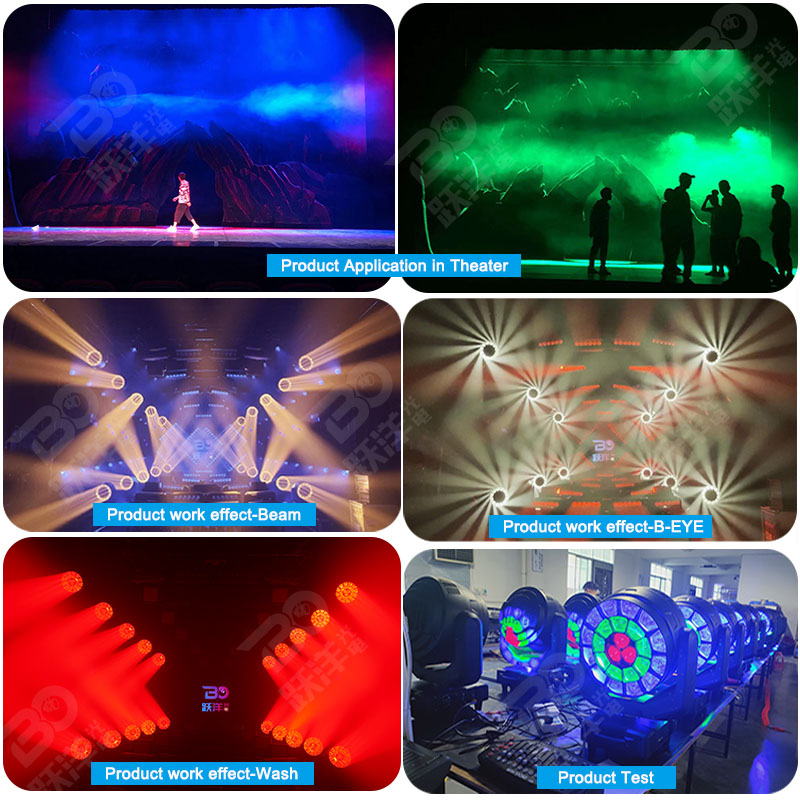

• This model 2460B is suitable for concerts, TV shows, festivals, car shows, theater, sports tournaments, and events in a large venue.
• It is powered by 24 x 60W RGBW high-powered LEDs with the latest designed high light output optics and lenses, featuring LED pixel effects.
• Updated one very important point, making its lighting spot to be round. The optic system offers an adjustment beam angle from 3.5°-45° that can cover a wide performance stage.

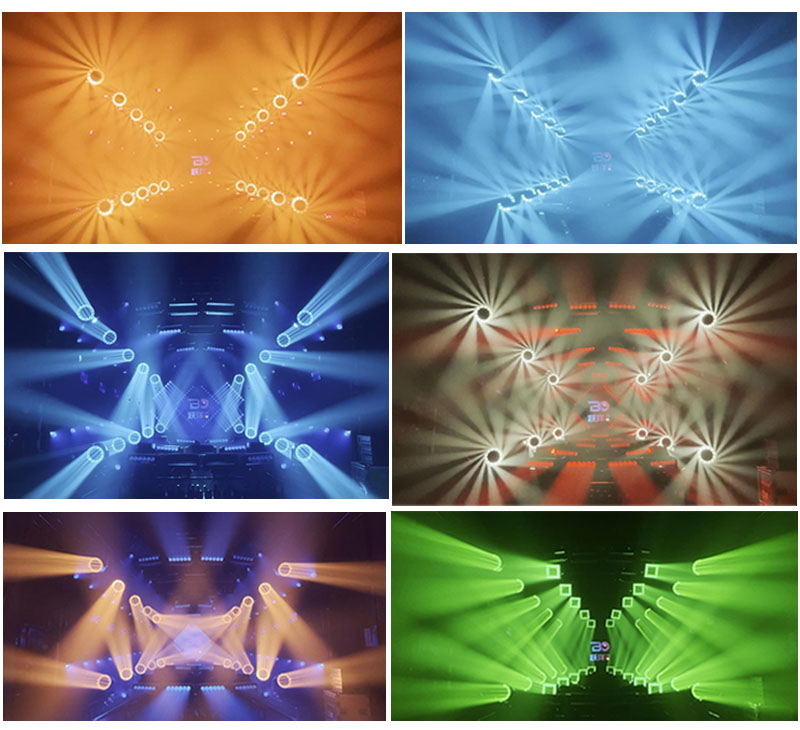

• LED board rotating in either direction with controlled speed creates a dazzling flower effect. Dynamic visual effects are easily achieved by mapping individual pixels controlled by a DMX console.

Brand: Beyond

Model: 2460B

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

24x60W LED Bee Eye Moving Head Wash Light

2460B is undoubtedly a technological innovation, utilizing our latest self-developed optic design. It delivers perfect light output with high brightness and clear colors. Additionally, this new optic design creates a round lighting spot, making it suitable for professional stages.

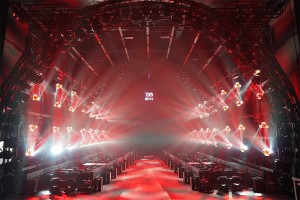

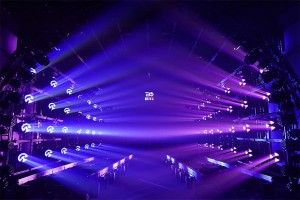

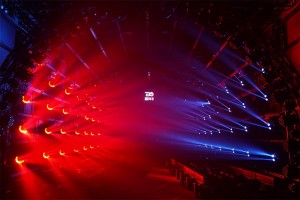

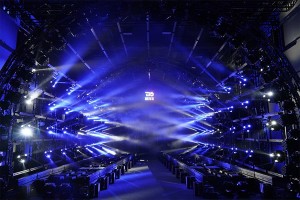

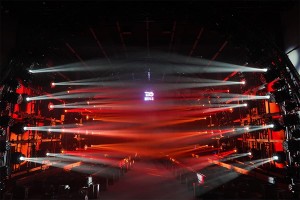

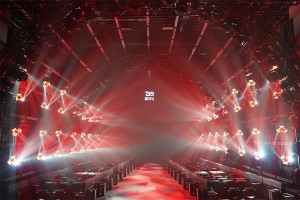

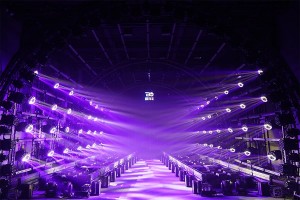

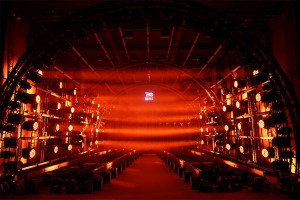

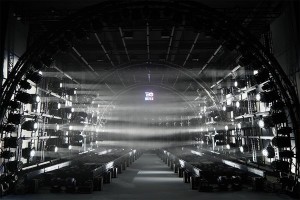

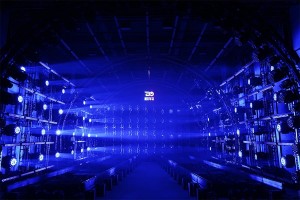

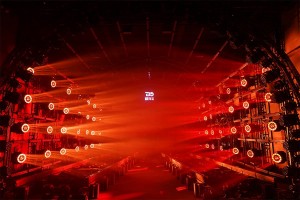

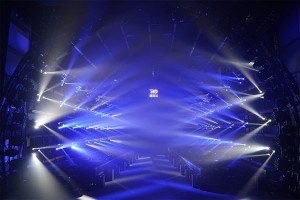

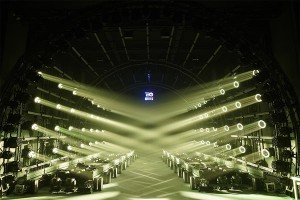

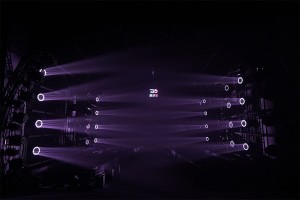

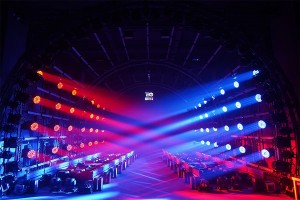

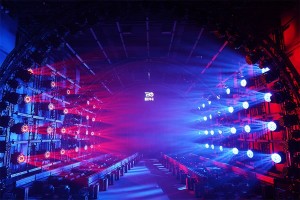

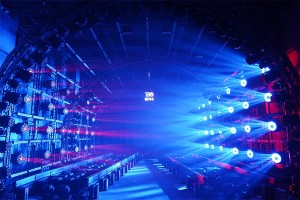

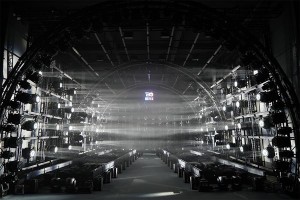

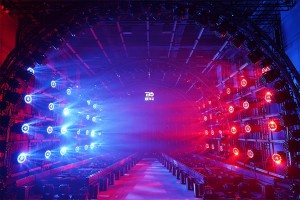

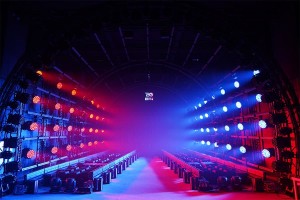

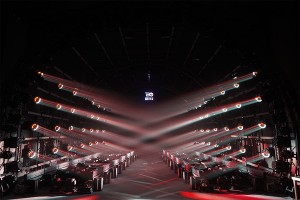

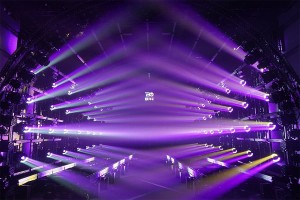

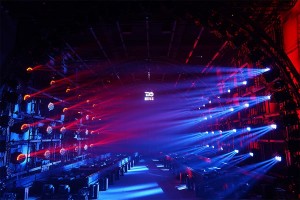

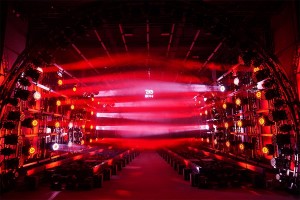

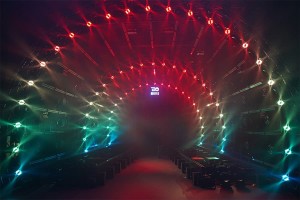

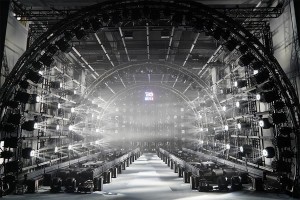

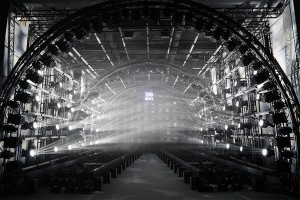

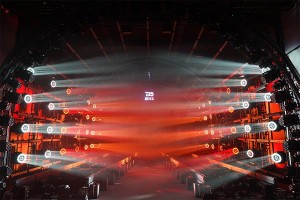

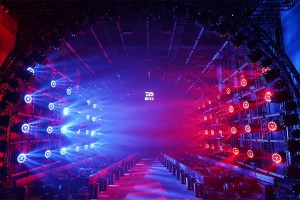

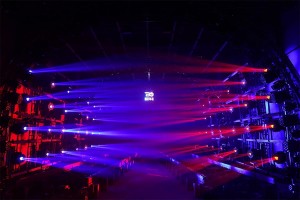

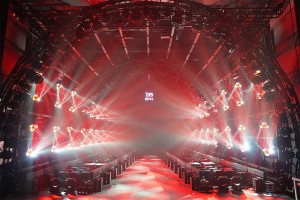

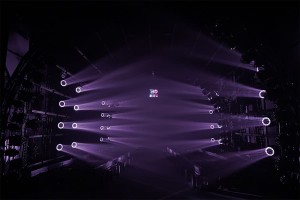

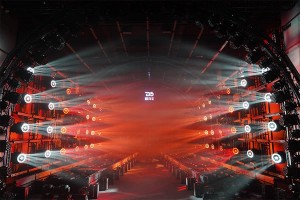

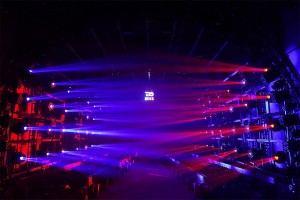

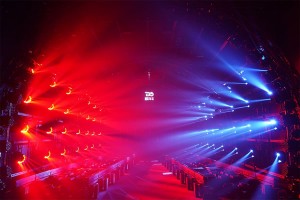

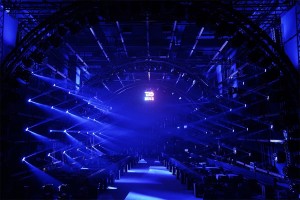

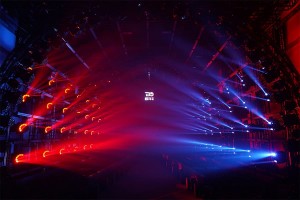

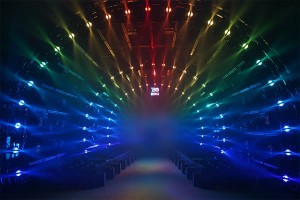

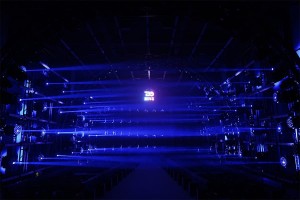

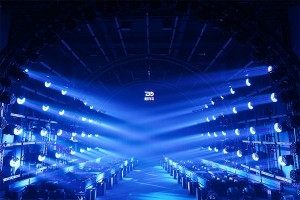

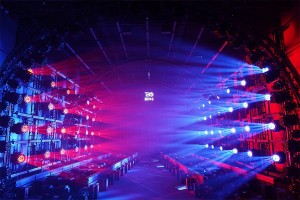

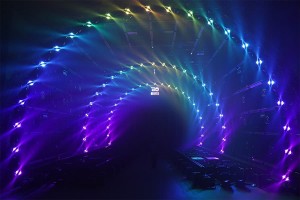

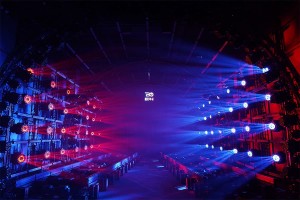

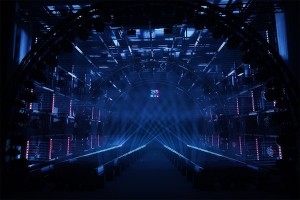

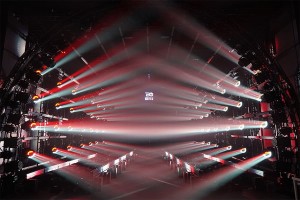

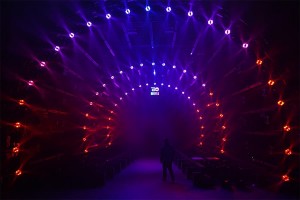

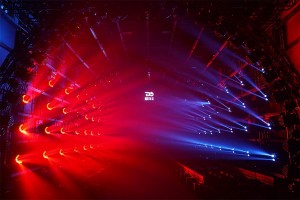

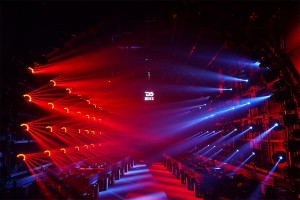

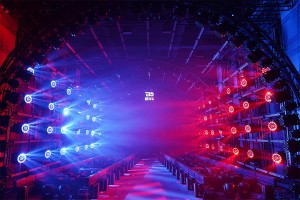

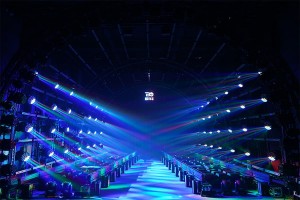

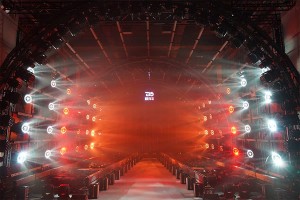

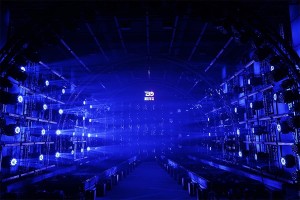

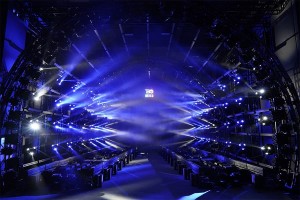

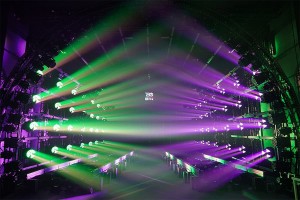

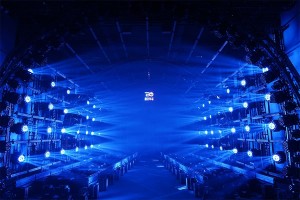

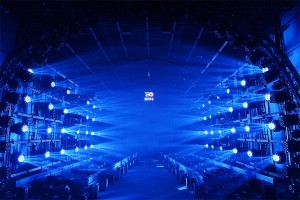

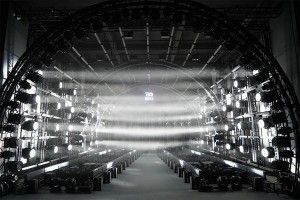

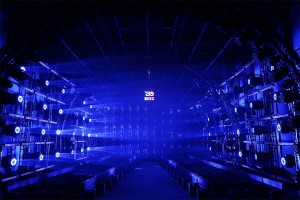

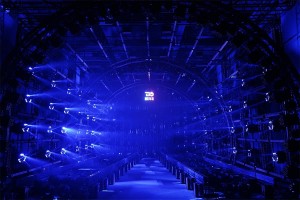

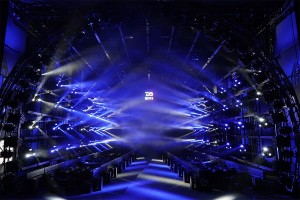

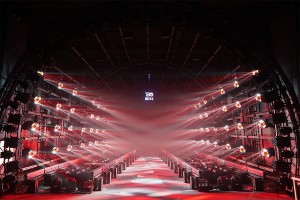

The first station to display this model is the 2021 Guangzhou Get Show lighting exhibition, which received much praise from visitors and stage performance experts. Almost everyone was fascinated by its ultra brightness, its fantastic effects, and its small size(354x 444x 477mm) for such a large power. Proving once again that Beyond has rich experience in the design and production of LED lamps is superior to that of other factories.

The model is equipped with 24 pixels, providing a beam angle ranging from 3.5° to 45°. It supports DMX512 and RDM protocols and offers 5 DMX channel models to cater to different program requirements. The LED has overheating protection, which automatically reduces the brightness if the head temperature becomes too high.

Additionally, it features an easy-to-operate pan/tilt fixed lock, making it more convenient to handle or pack the light. Folding hooks are also included for added convenience.

Technical Parameters

Light Source: 24*60W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 1500W

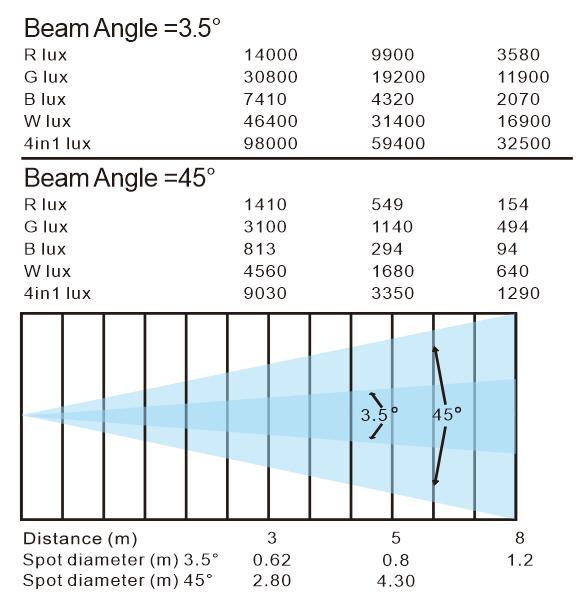

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ Artnet(optional)

DMX Channel: 21/ 25/ 33/ 129/ 106 Channel

Protection Rating: IP20

Display: TFT2.4 display; Chinese and English languages can be switched at will, and the font can be reversed 180°

Data In/Out Socket: 3-pin /5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 2units（230V，50Hz） 2.5mm² power cable; 1 units（110V，60Hz） 2.5mm² power cable

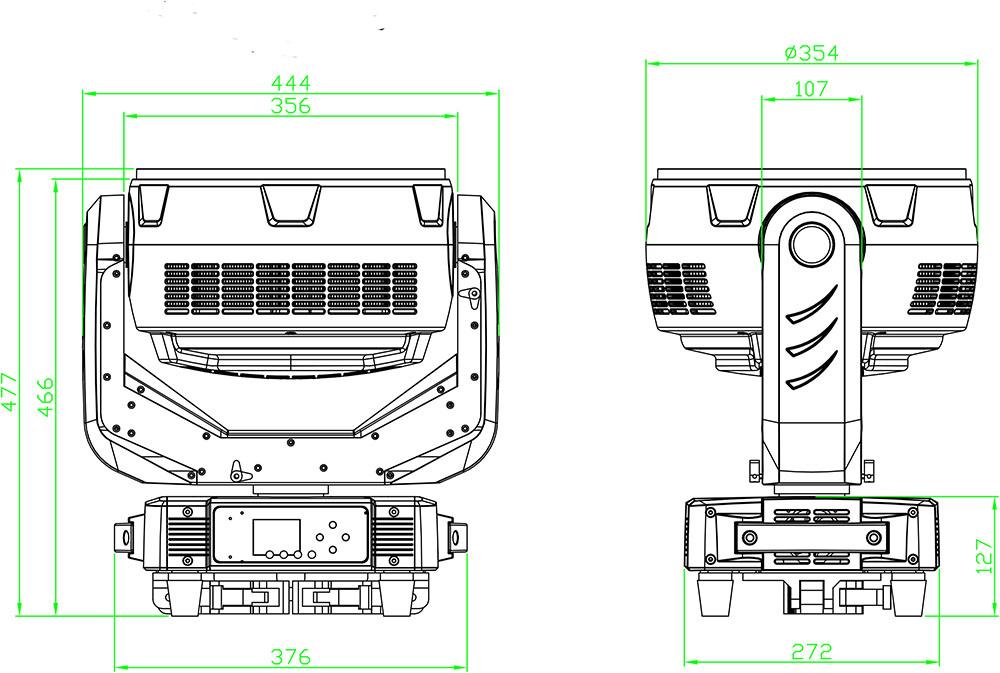

Dimension: 354*444*477mm

Net Weight: 25 kg

Carton Package: 610*485*580mm 1in1 GW: 31 kg

Flight Case: 915*530*755mm 2in1 GW: 90.32 kg

Features: Full light range dimming, 65536-level dimming accuracy; fast strobe 1~25Hz; single-point control of lamp beads; three-in-one effects of dyeing, beam, and bee eye; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
