IP66 7×150W RGBL LED B-Eye Moving Head Wash

Short Description:

The E07 Flagship Edition 7×150W RGBL LED B-Eye Moving Head Wash is a powerful IP66-rated lighting fixture designed for professional concerts, outdoor festivals, theaters, and large-scale stage productions. Equipped with 7×150W RGBL LEDs, a versatile 3.5°–45° zoom range, and individual LED pixel control, it delivers intense beam effects, vibrant color mixing, and smooth, uniform wash lighting.

Featuring an advanced color calibration system, 2800K–8000K CTO adjustment, and high-frequency dimming up to 25,000Hz, the E07 ensures consistent color performance for live events and broadcast applications. With DMX512/RDM control, optional Art-Net and sACN protocols, and precise 16-bit pan/tilt movement, this flagship fixture combines creative lighting effects, reliable outdoor protection, and professional control capabilities.

Brand: Beyond

Model : E07 Flagship Edition

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86-13922297736

Send email to us

Product Detail

E07 Flagship Edition Parameter

Light Source
7*150W RGBL LED;

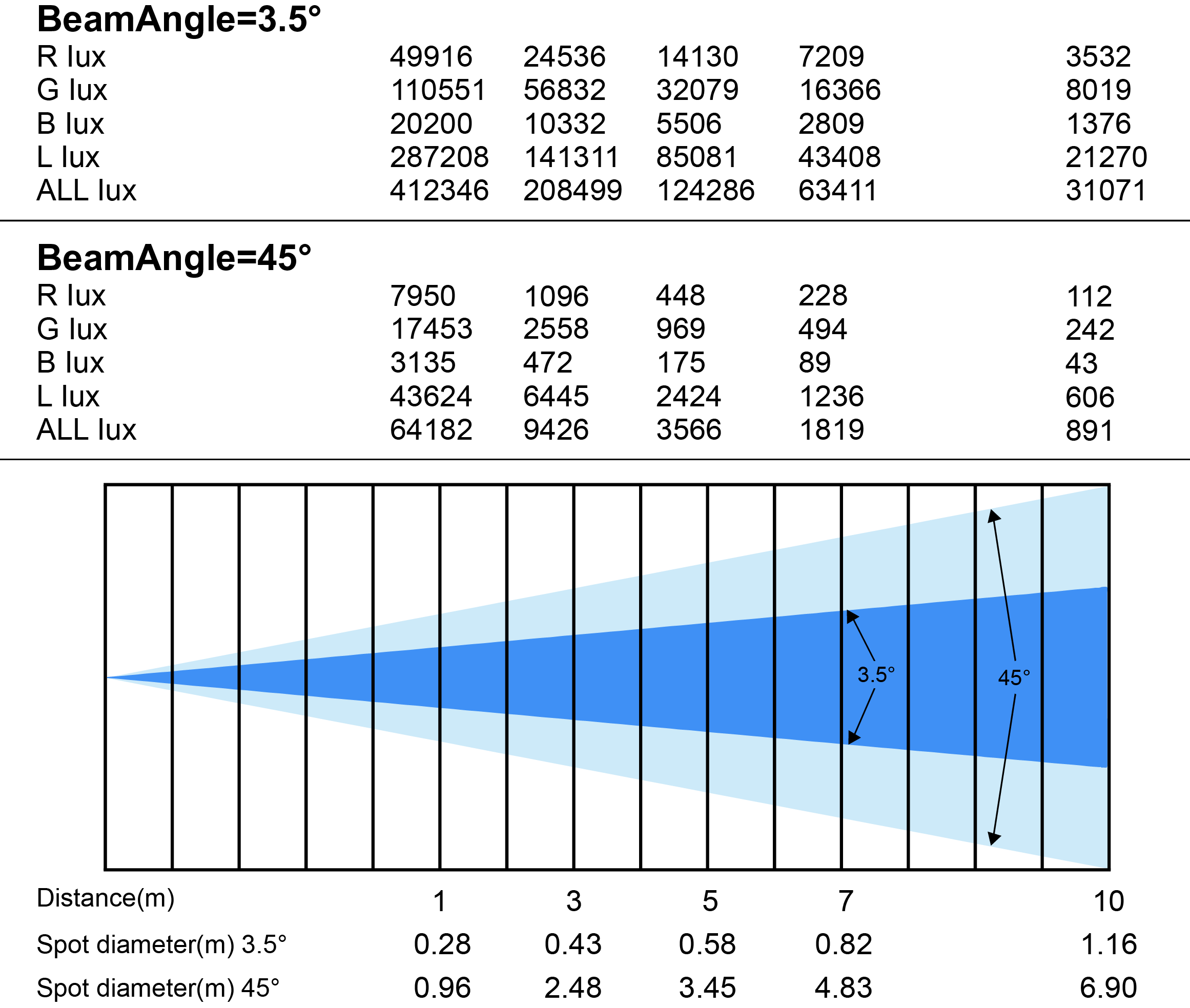

Beam Angle: 3.5°-45°
Power Consumption: 1100W

Control
Control Protocol: DMX512 / RDM / Art-Net(optional)/ sACN(optional)
DMX Channel: 19/ 20/ 21/41/ 42/ 43/ 22/ 44 CH

Structure
Display: 1.8-inch TFT display;
Data In&Out: 3-pin XLR/ 5-pin XLR socket, RJ45 optional
Power Socket: PowerCon In&Out/ built -in cable with 16A connectors
IP Rated: IP66

Features
Built-in color calibration system;
Constant color temperature, independent of dimming level
and operating temperature;
TM-30 Fidelity Index (Rf): 88;
TM-30 Gamut Index (Rg): 95;
Color Quality Scale (CQS, Qa): 90;
Television Lighting Consistency Index (TLCI): 93
Ra≥82, CTO 2800K–8000K;
LED pixel control;
Smooth 0-100% dimming with variable-speed strobe effects
4 selectable dimming curves
Dimming frequency: 900Hz – 25,000Hz
