IP65 19x40W RGBW LED Zoom Moving Head Wash

Short Description:

1940ZW IP65 19x40W zoom moving head wash light, updated from model 1940Z 19x40w zoom moving head, added waterproof function, keeping the advantage of high brightness, aesthetic appearance, and small size.

It is a powerful LED wash light that can meet demands for most shows, including outdoor. It has the following functions: 1. circle control effects,3 circle control. 2. High-efficiency optical system, excellent flower effect plus zoom. 3. Fan work speed auto-adjustable with head temperature.

Brand: Beyond

Model: 1940ZW

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

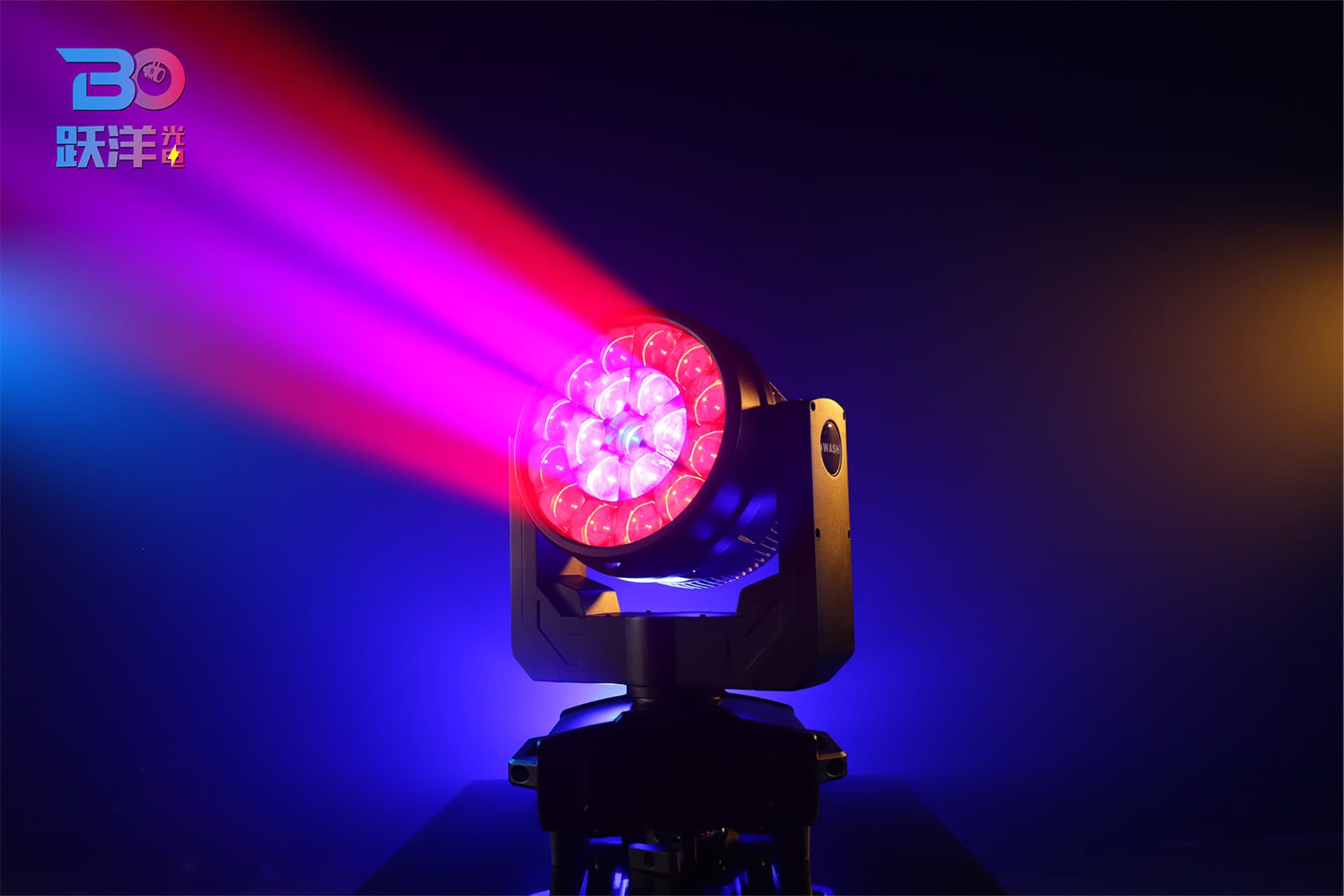

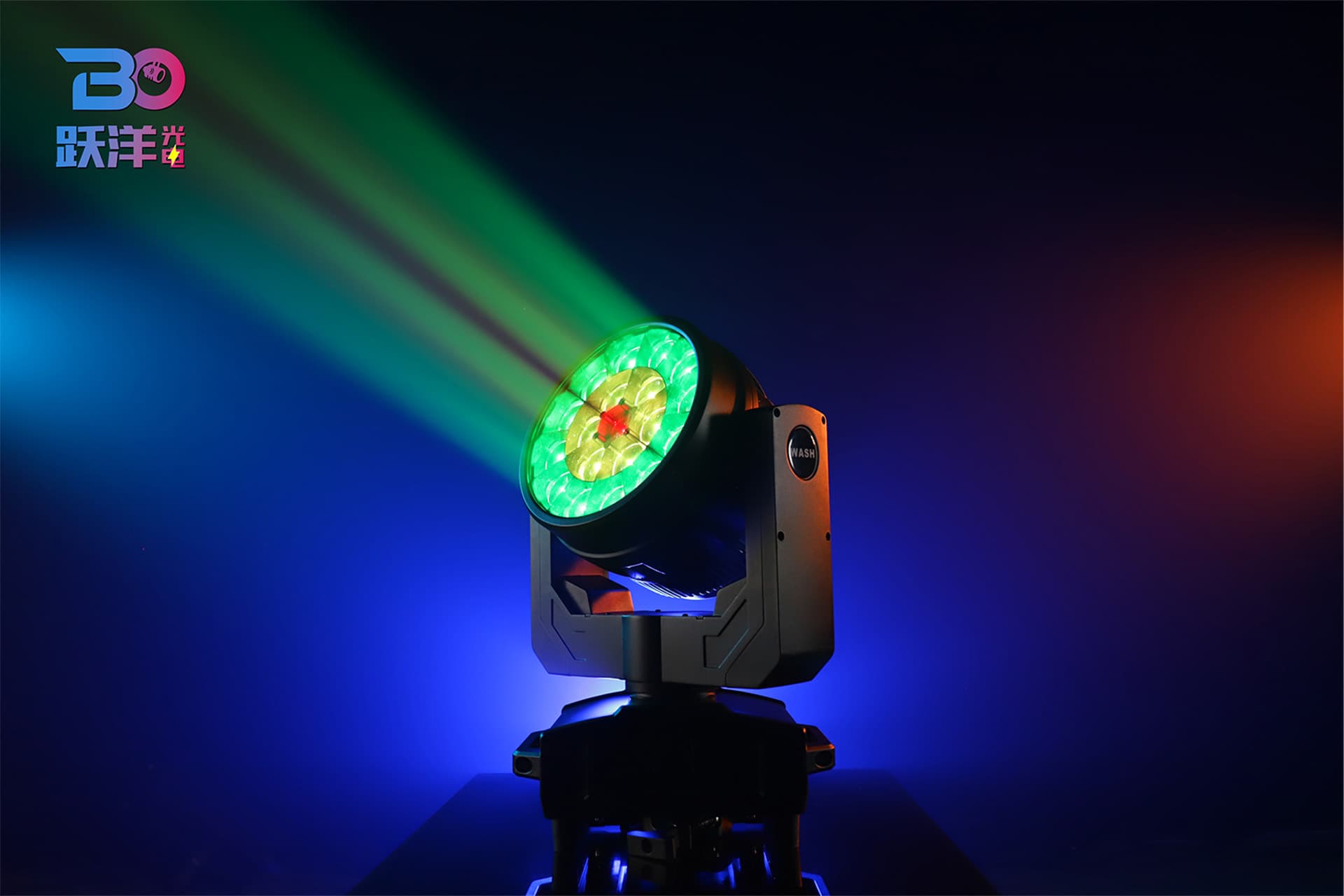

Beyond IP65 1940ZW RGBW LED Zoom Moving Head Wash

Light Source: 19 x 40W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 630W

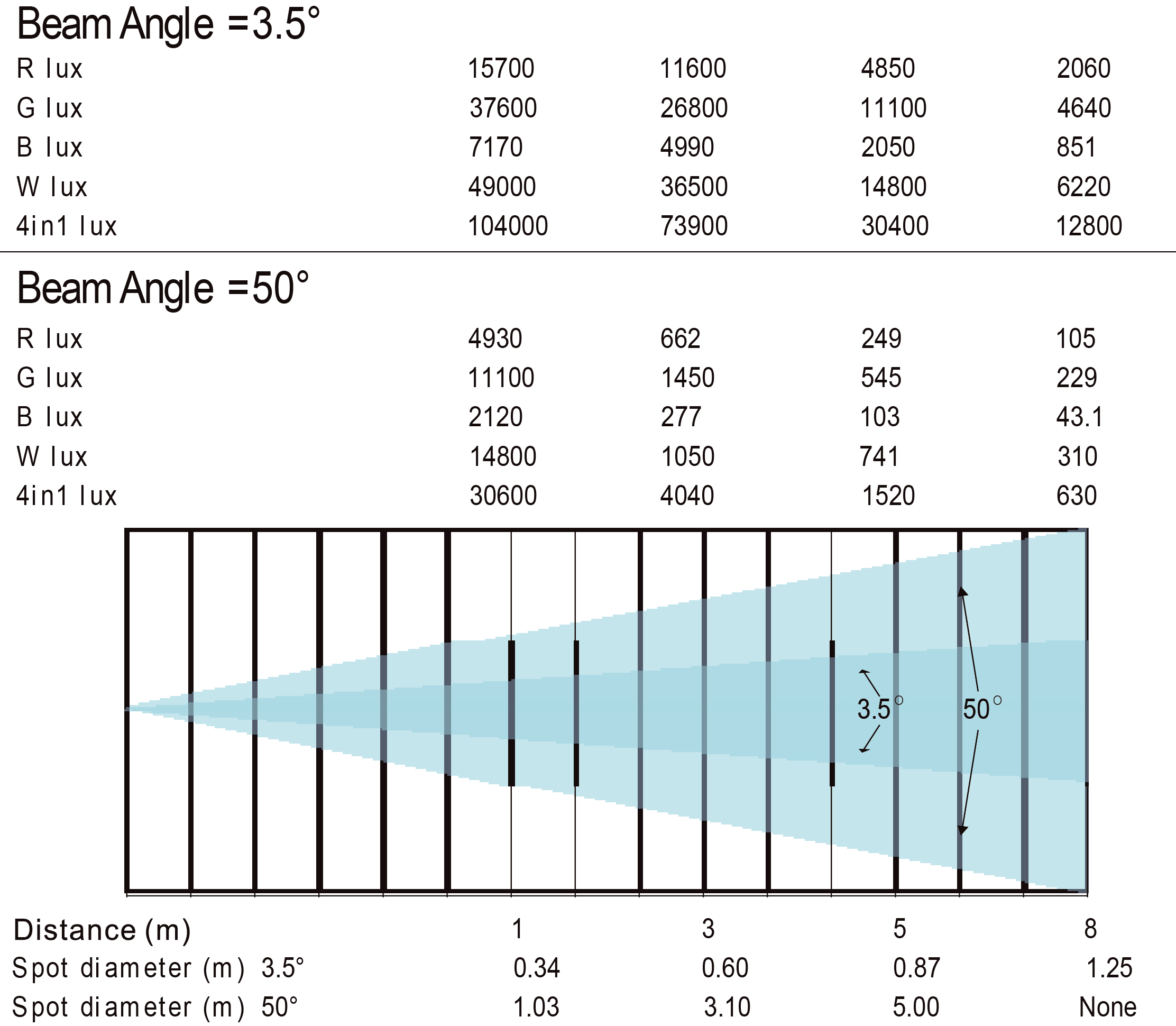

Beam Angle: 4°~45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 19/ 27 Channel

Protection Rating: IP65

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: IP65 3-pin & 5-pin XLR sockets

Power Socket: IP65 Power-Con in/ out

Housing Material: Aluminum

Work temperature: -10℃～45℃

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

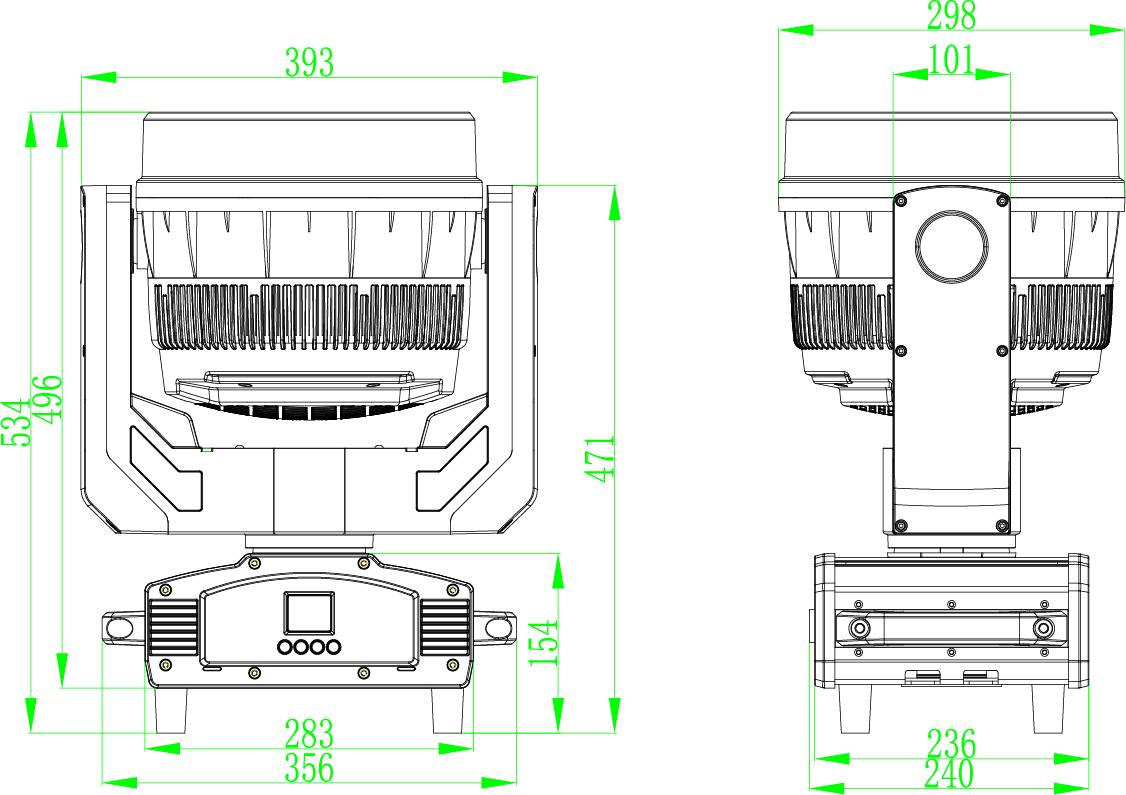

Dimension: 393*298*534mm

Net Weight: 22kg

Carton Package: 530*410*625mm 1in1 GW: 24.5kg

Flight Case: 810*500*720mm 2in1 GW: 74kg

Features: Circle control effect, large zoom range, wide wash area, RGBW color mixing system, full light range dimming; smooth and uniform, low noise and high efficiency fan cooling system; fast strobe 1~25Hz; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
