7x40W LED Mini Moving Head with Beam and Wash Effect

Short Description:

740Z (7x40W Zoom Wash Moving Head) is a wash mini LED moving head with 7 powerful 40W RGBW LEDs and a wide power zoom range of 6-45 degrees.

• Compact design and lightweight construction of only 5.5 kg, with a single omega bracket on the base.

• Pure and uniform light color, no flickering, precise 16-bit dimming, and fast strobe speed of 1-25 Hz.

• Excellent color macro function for automatic effects.

• Accurate positioning with 8/16-bit pan and tilt resolution.

• Multiple control modes including DMX512, master-slave, auto run, sound activation, and RDM.

• Silent operation with adjustable fan speed based on head temperature.

Brand: Beyond

Model: 740Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

Mini Wash LED 7x40W Moving Head RGBW

Technical Specifications

Optics
• Light Source: 7x 40W 4IN1 RGBW LED

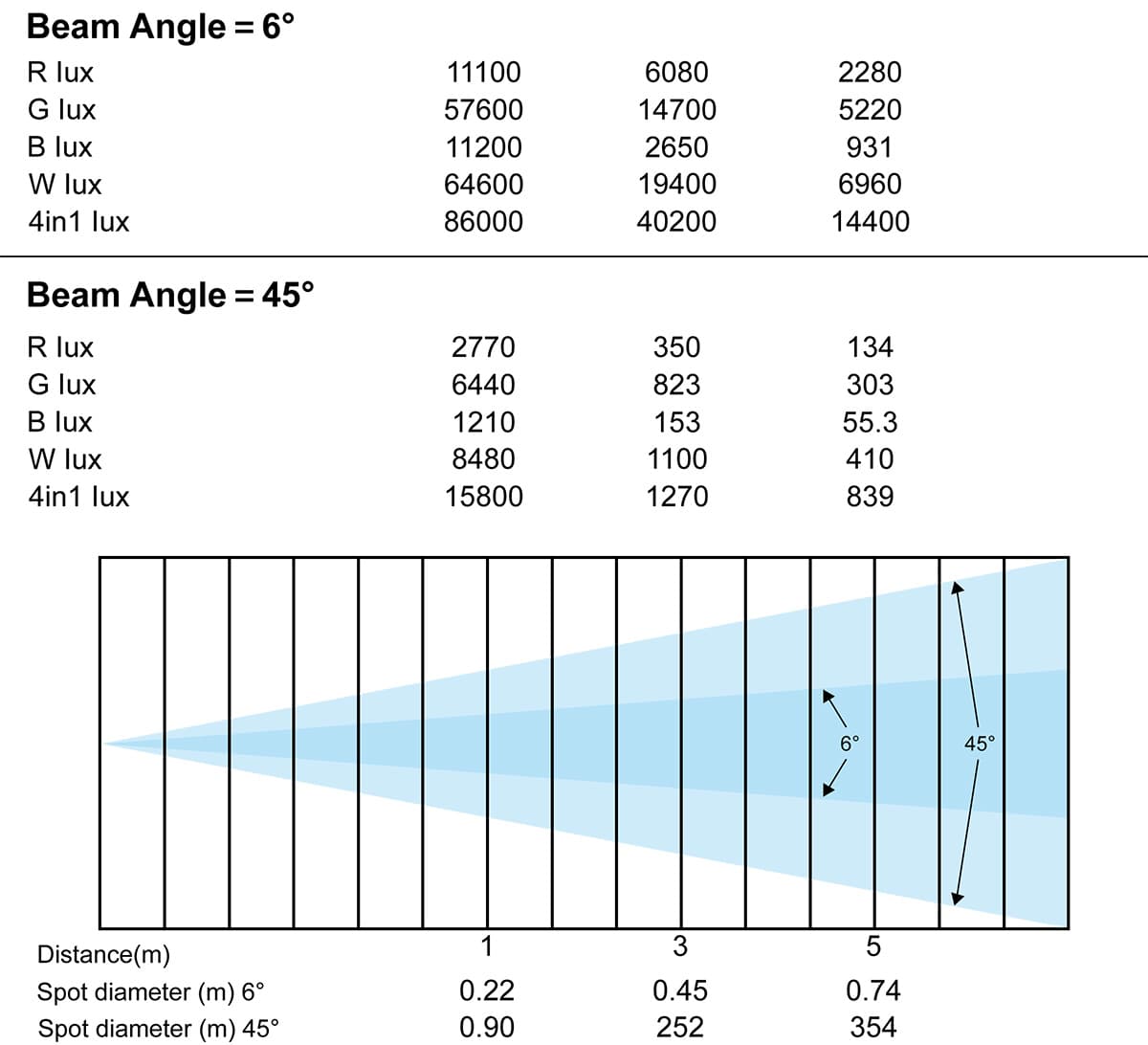

• Zoom Angle: 6 - 45 Degrees
• Power Consumption: 250 W
• Power Voltage: AC 100-240 V, 50/60 Hz

Control
• DMX Channel: 17/22 CH
• Control Modes: DMX512/Master-Slave/AutoRun/Music/RDM

Pan/Tilt
• Pan/Tilt: 540°/ 270°
• Pan/Tilt Resolution: 8/16 bit

Construction
• Display: LCD Display
• Data In/Out Socket: 3-pin XLR sockets
• Power Socket: Power con in/out
• Protection Rating: IP20

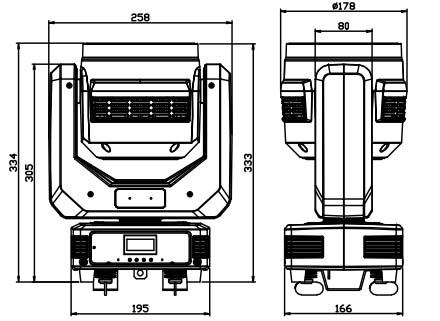

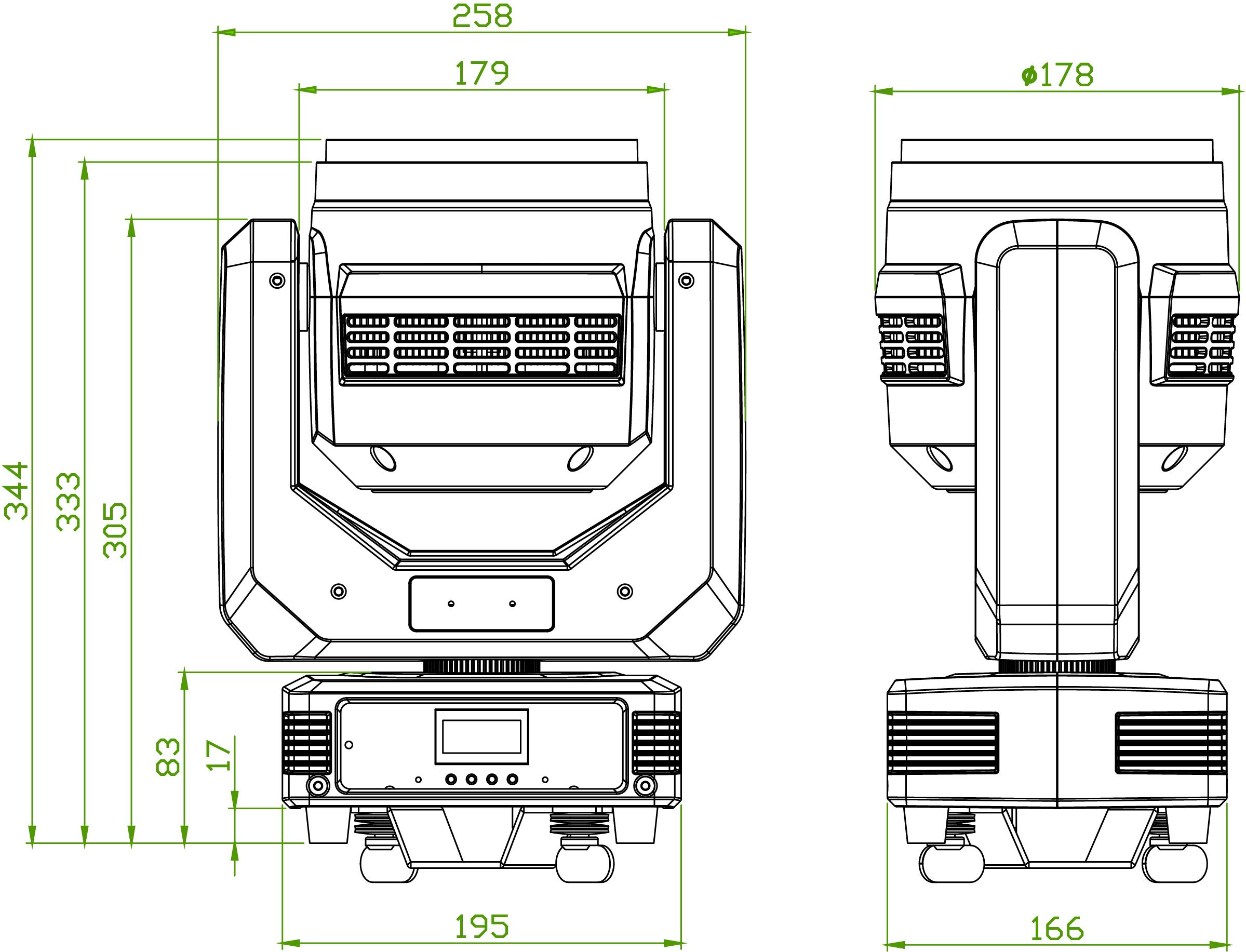

• Dimension: 258 x 178 x 334 mm
• Net Weight: 5.5 kg

• Carton Packing(4 in 1): 655 x 495 x 445 mm
• Gross Weight: 28.5 kg
• Flight Case Packing(6 in 1): 910x570x550 mm
• Gross Weight: 70.5 kg

Features
• Motorized liner zoom system
• Outstanding color macro effect
• Dimmer: 0~100% smooth dimming
• Variable strobe effects
• Fast, quiet operation and flicker-free
