IP65 19x40W RGBW Bee Eye LED Moving Head

Short Description:

The 1940BW is a waterproof bee eye wash moving head developed and designed by Beyond in 2022, making it one of the earliest manufacturers in China to produce waterproof wash moving heads. Previously, waterproof stage lighting fixtures in the market mainly consisted of beam lights, par lights, and blinder lights. The 1940BW is upgraded from the original 1940B to add IP65 protection rating. Through practical testing, it has been proven that the 1940BW can operate normally even when hung upside down, and its internal protective cover does not fog up, eliminating the need for an additional rain cover.

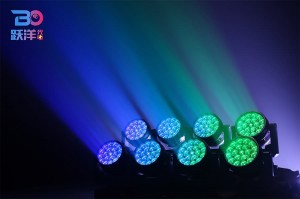

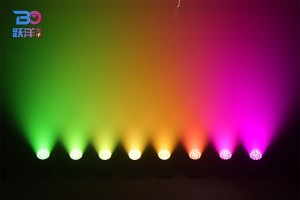

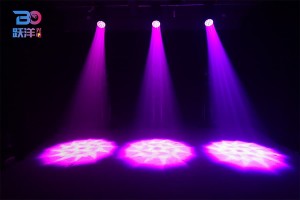

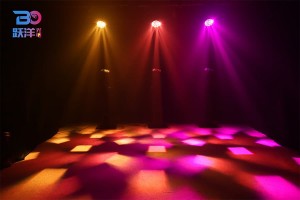

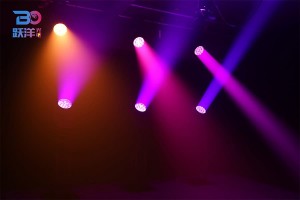

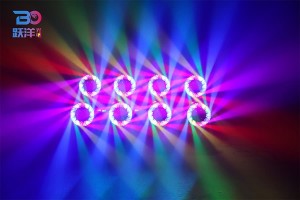

This innovative product features 19 high-intensity RGBW LEDs with a power output of 40 watts each. Each individual LED can be controlled independently, allowing for versatile lighting effects. The lens of the 1940BW is also rotatable, offering a wide range of motorized zoom from 3.5 to 50 degrees. This flexibility enables users to create dynamic and customizable lighting designs for various stage setups and performances.

With its advanced waterproof technology and powerful LED output, 1940BW will be the first choice for outdoor stage lighting.

Brand: Beyond

Model: 1940BW

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

IP65 19x40W RGBW Bee Eye LED Moving Head

Light Source: 19 x 40W 4in1 RGBWW LED, Ra≥93;

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 640W

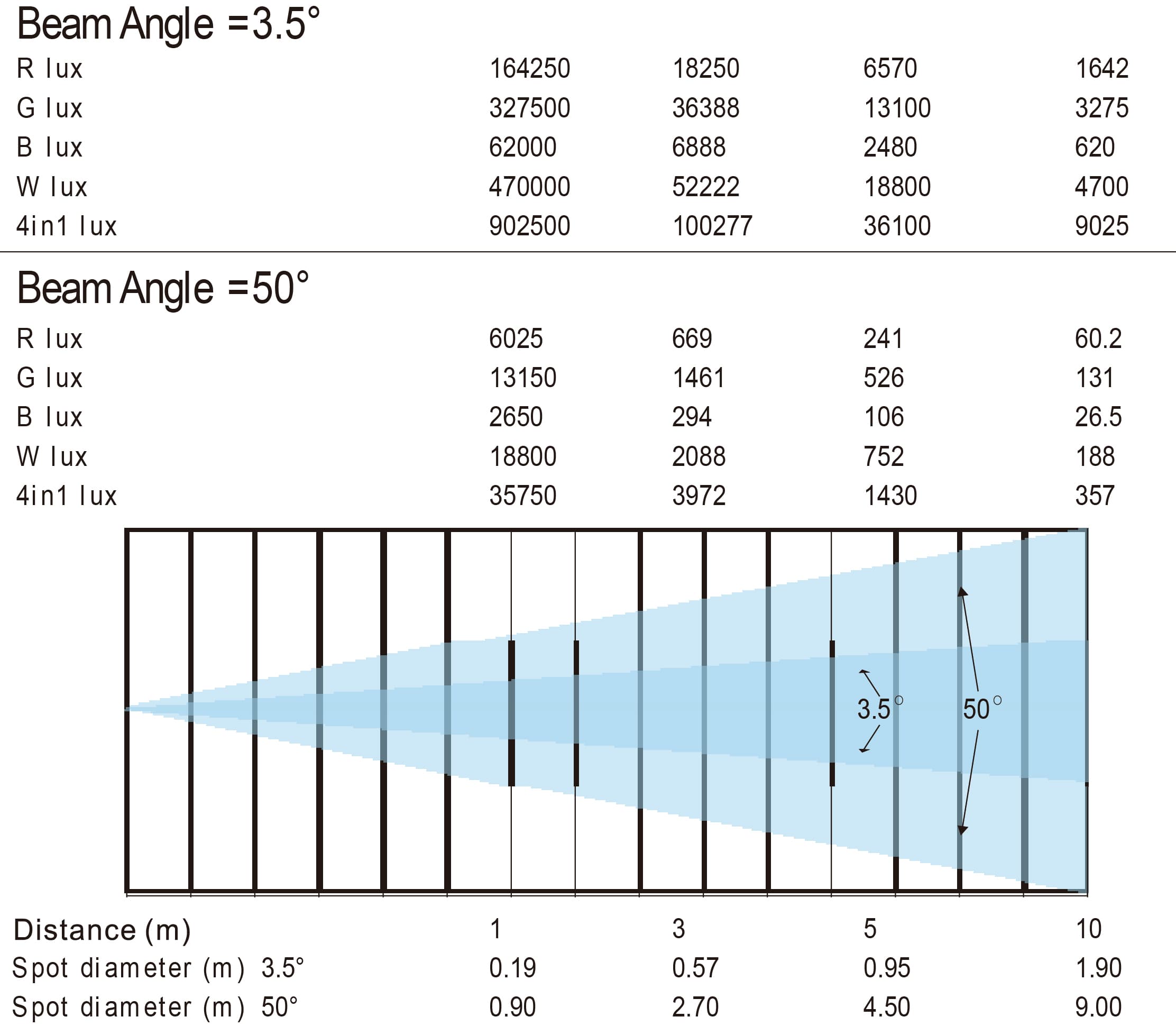

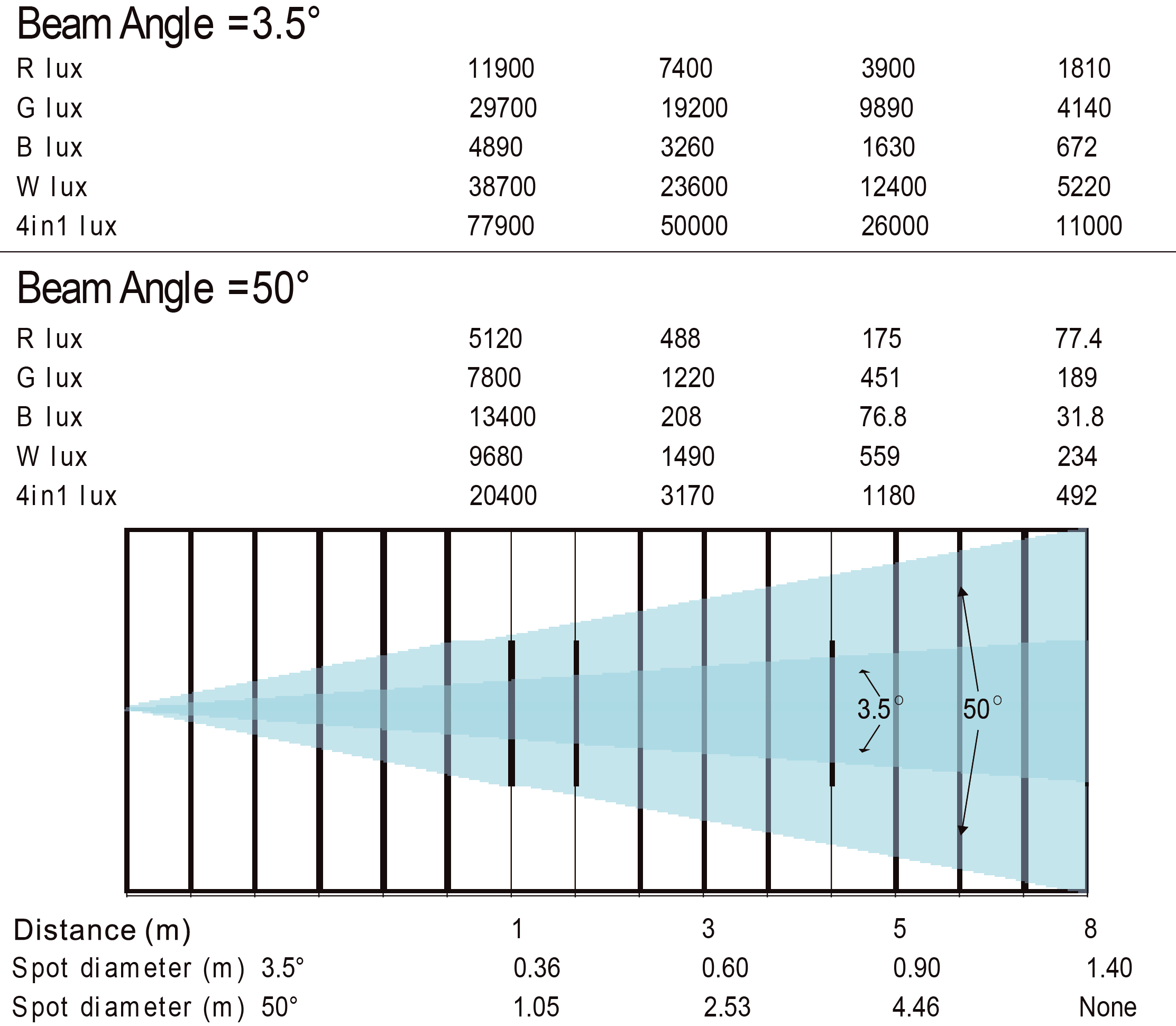

Beam Angle: 3.5°~50°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 21/ 23/ 35/ 78/ 92/ 97/ 99 Channel

Protection Rating: IP65

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: IP65 3-pin & 5-pin XLR sockets

Power Socket: IP65 Power-Con in/ out

Housing Material: Aluminium

Pan: 540° (16bit accurate scanning)

Tilt: 270° (16bit accurate scanning)

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

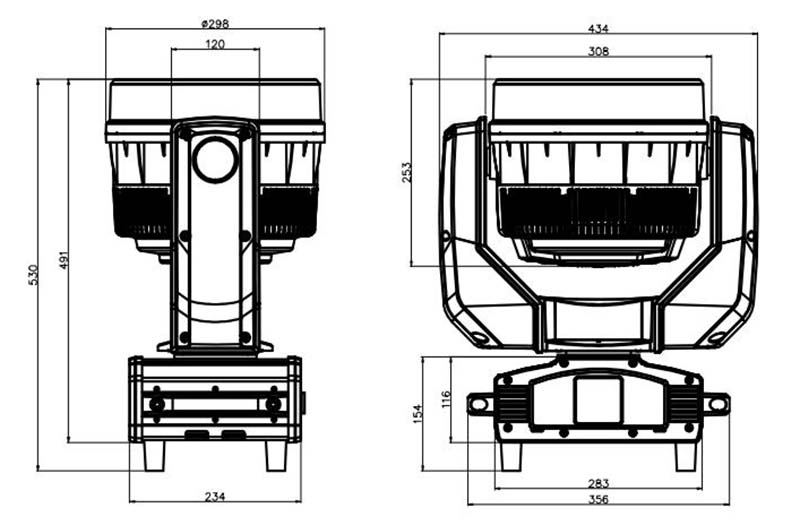

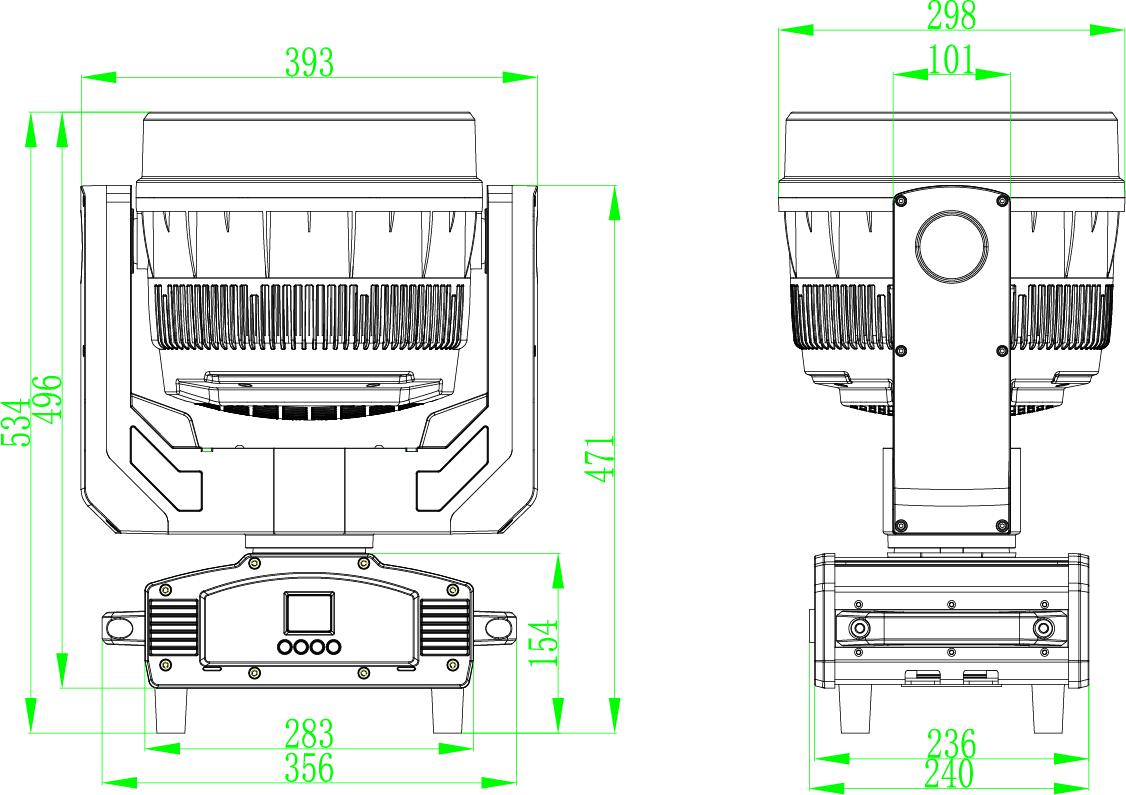

Dimension: 356*393*534mm

Net Weight: 22 kg

Carton Package: 530*410*625mm 1in1 GW: 24.5 kg

Flight Case: 810*500*720mm 2in1 GW: 74 kg

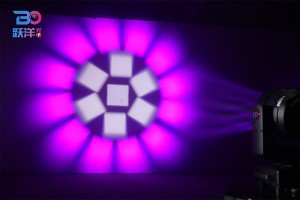

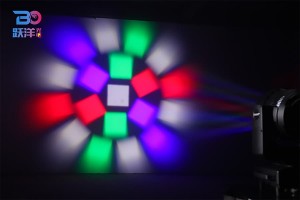

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz.LED single control; three-in-one effects of WASH, Beam, and Bee Eye; Preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
