Beyond IP65 19×40W MINI Wash Zoom

Short Description:

The 1940Z MINI IP delivers powerful and versatile lighting, built to elevate any professional event.

This fixture features 19x 40W 4-in-1 RGBW LEDs and a dynamic 3.5°-48° zoom range, allowing you to create everything from razor-sharp beams to wide, uniform washes. With an advanced color mixing system and a unique circle control effect, you get the creative flexibility to design stunning, multi-layered visuals.

Brand: Beyond

Model: 1940Z MINI IP

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

1940Z MINI IP Parameters

Light Source: 19 x 40W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 650W±5 W

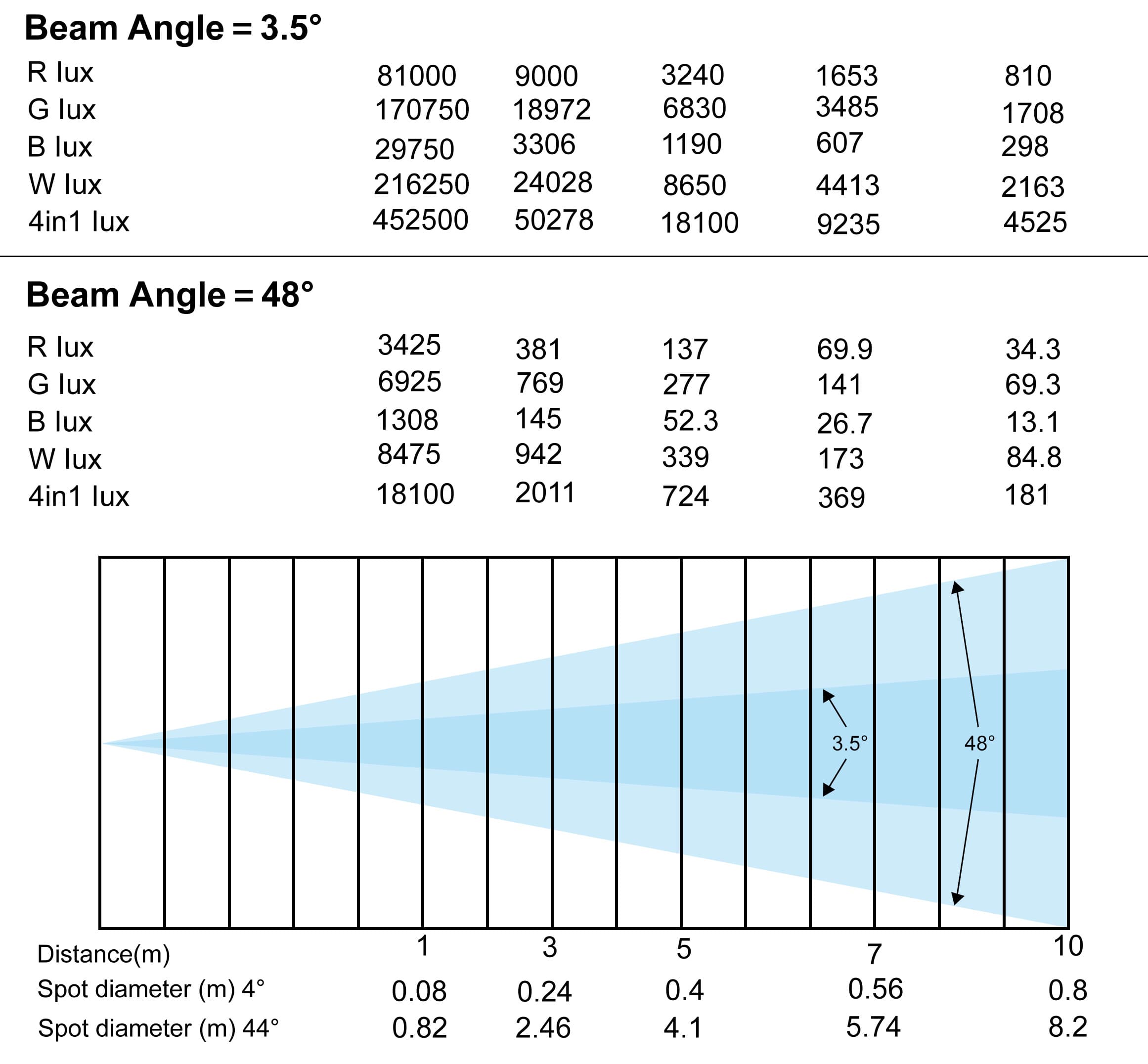

Beam Angle: 3.5°-48°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ArtNet(Optional)

DMX Channel: 17/21/22/27/30/12(DMX+ArtNet) Channel

Protection Rating: IP65

Display: 1.8°TFT Color Display,Can be rotated 180°, Chinese and English can be switched

Data In/Out Socket: IP65 3-pin & 5-pin XLR sockets

Power Socket: IP65 Power-Con in/ out

Housing Material: Die casting + flame-retardant black carbon fiber

Work temperature: -10℃～45℃

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 7 units（240V，50Hz） 1.5mm² power cable; 3 units（100V，60Hz） 1.5mm² power cable

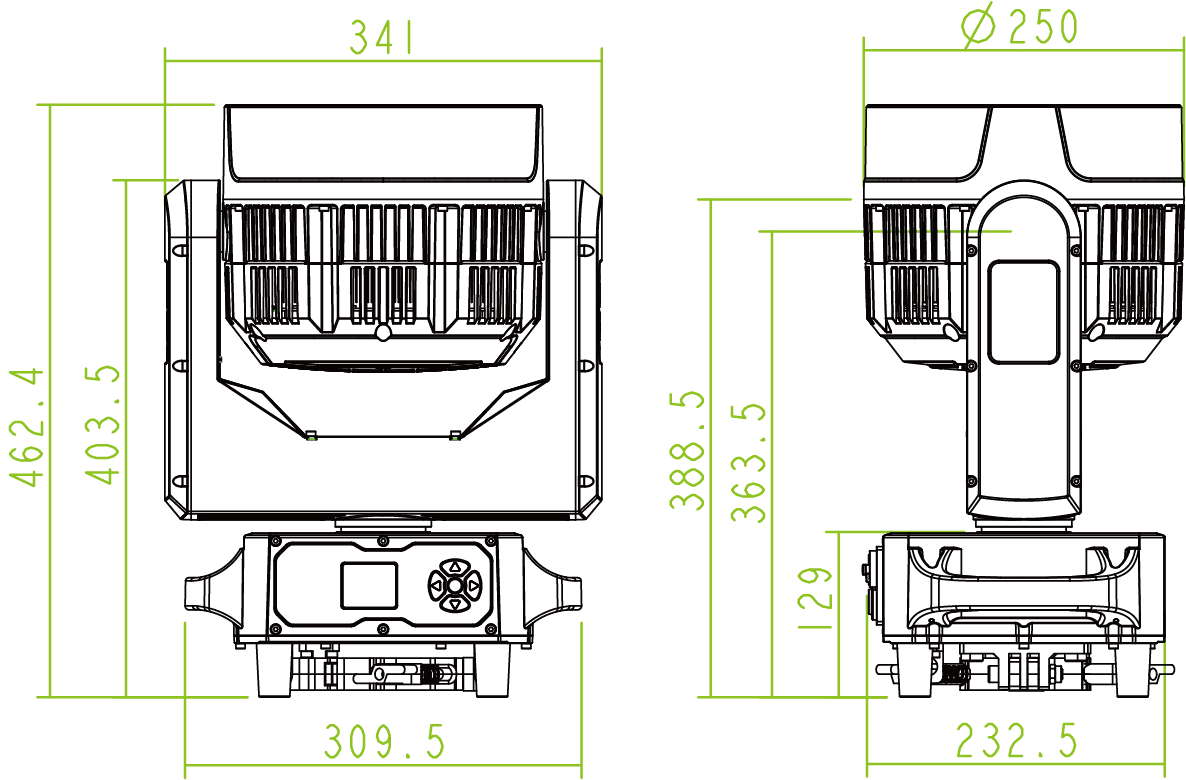

Dimension: 341*250*463 mm

Net Weight: 13.5kg

Carton Package: 580mm*370mm*450mm 1in1 GW: 16.5 kg

Flight Case: 830mm*740mm*670mm 4in1 GW: 94 kg

Features: Circle control effect, large zoom range, wide wash area, RGBW color mixing system, full light range dimming; smooth and uniform, low noise and high efficiency fan cooling system; fast strobe 1~25Hz; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
