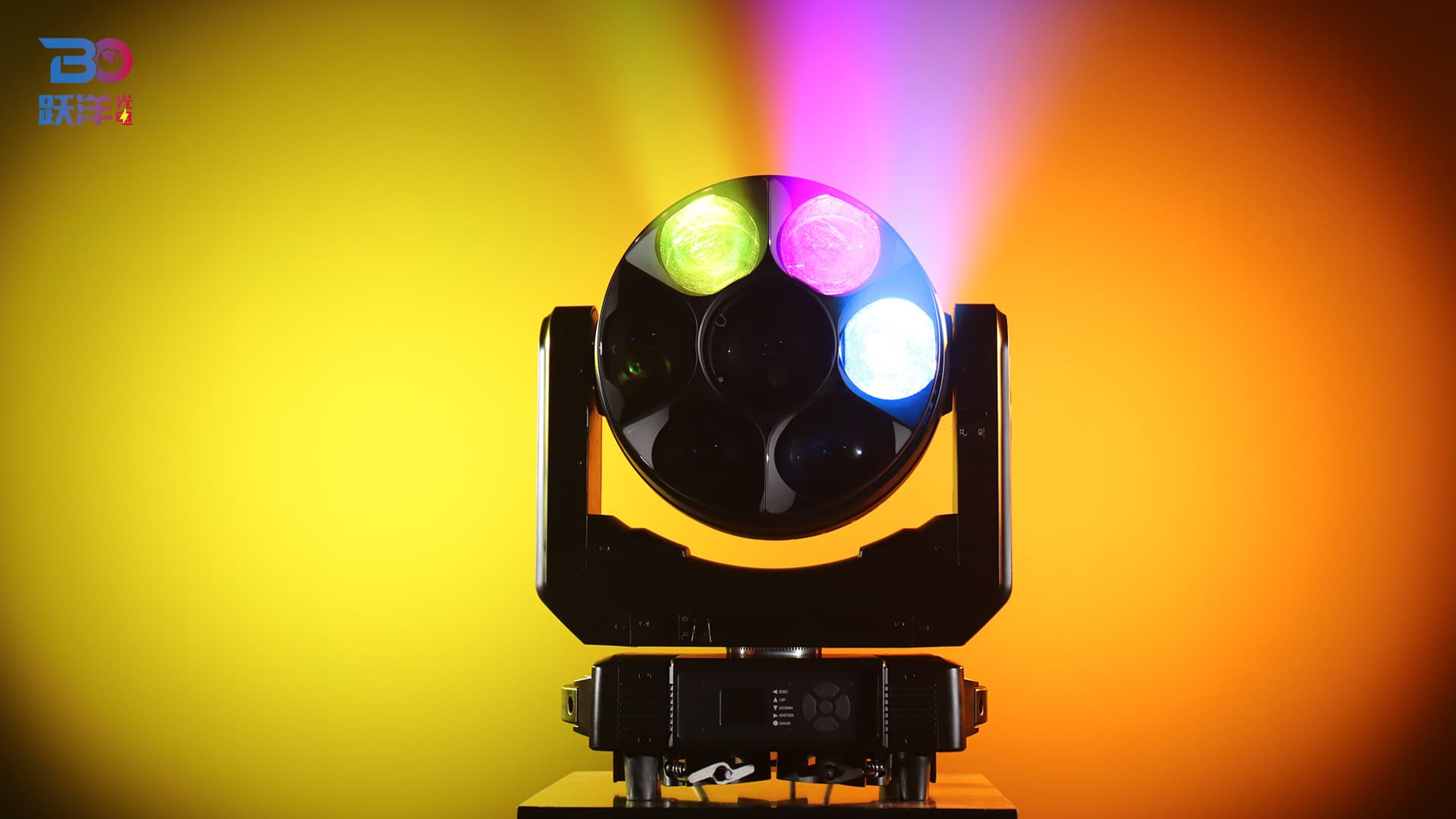

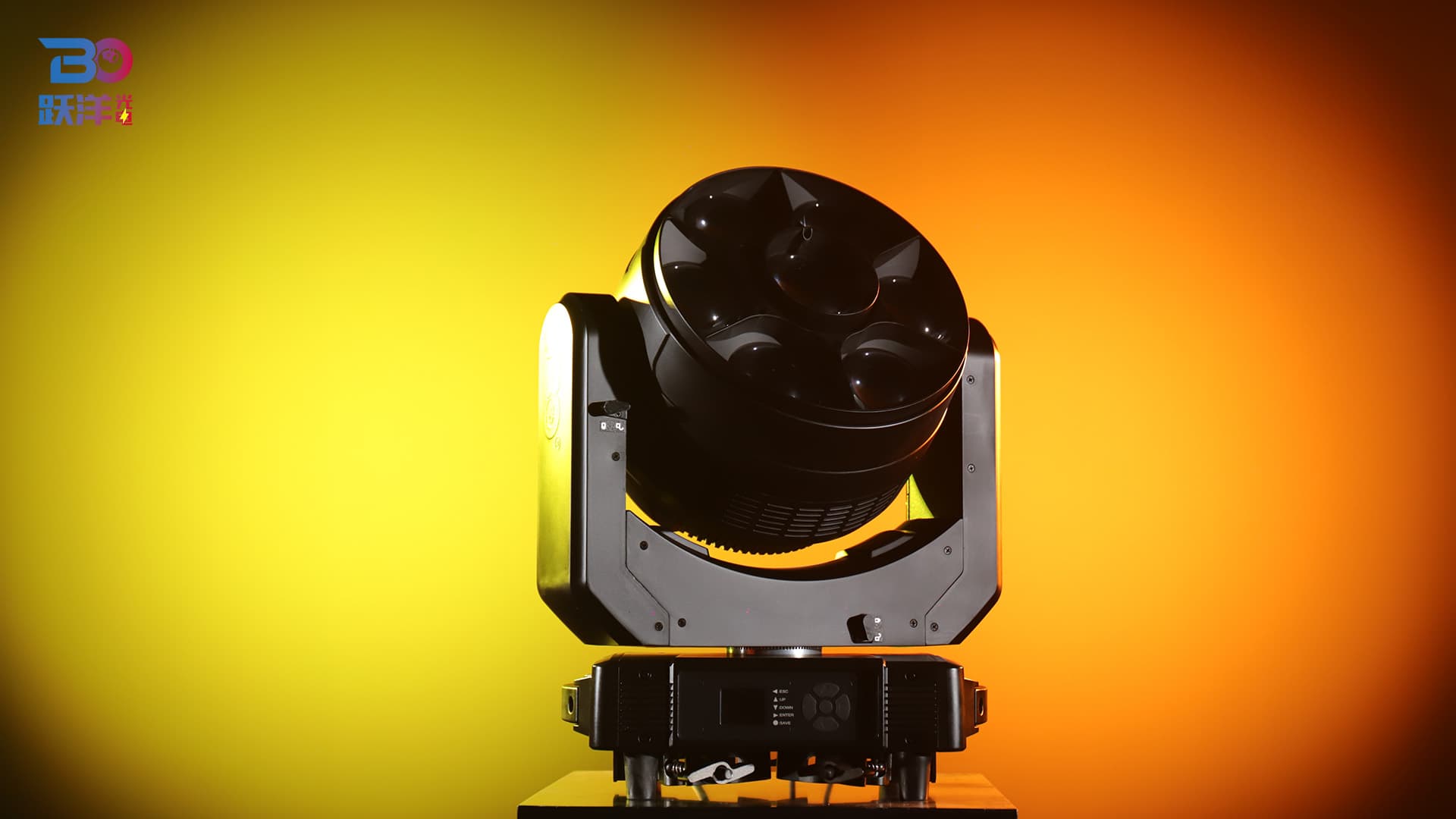

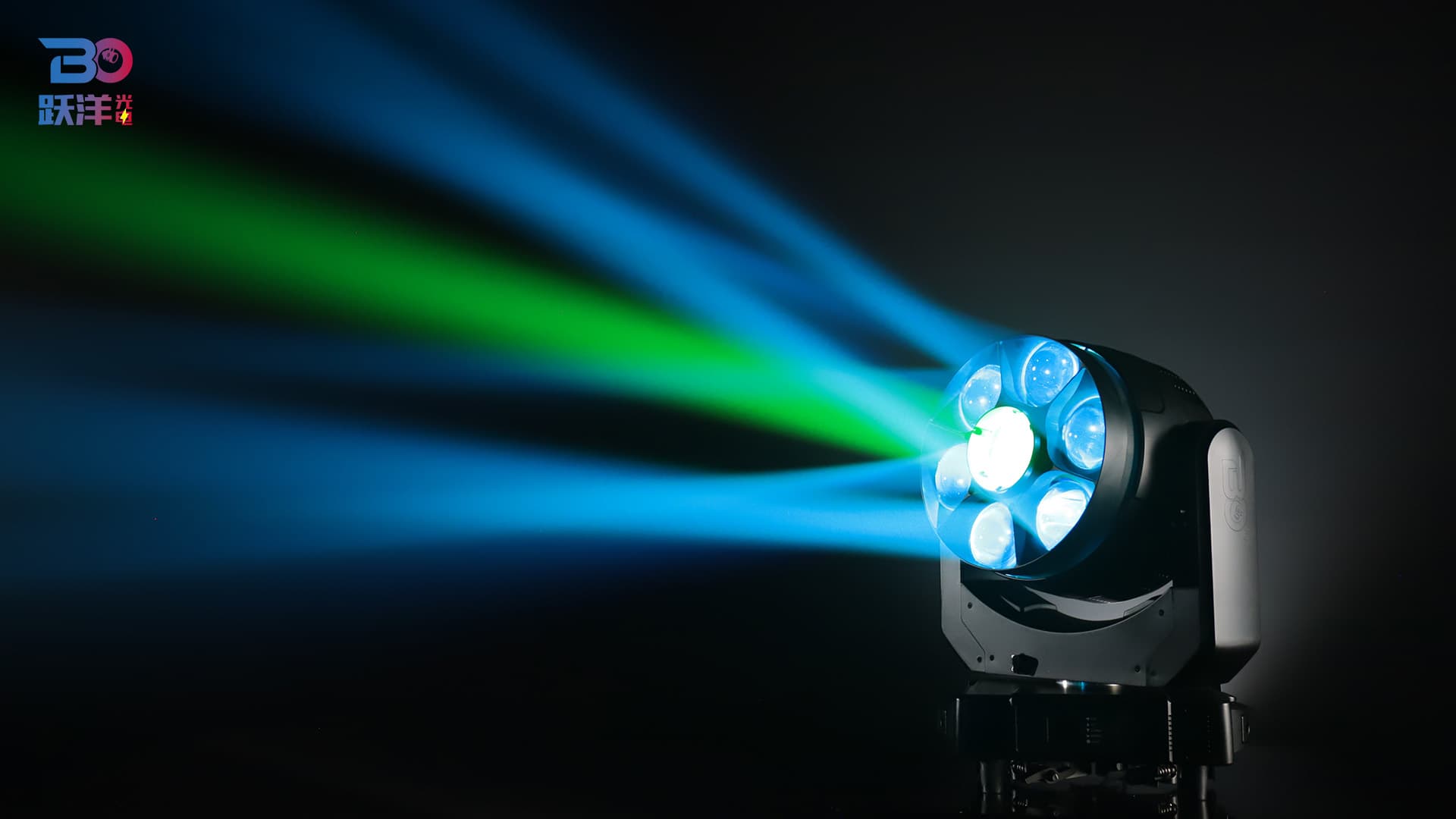

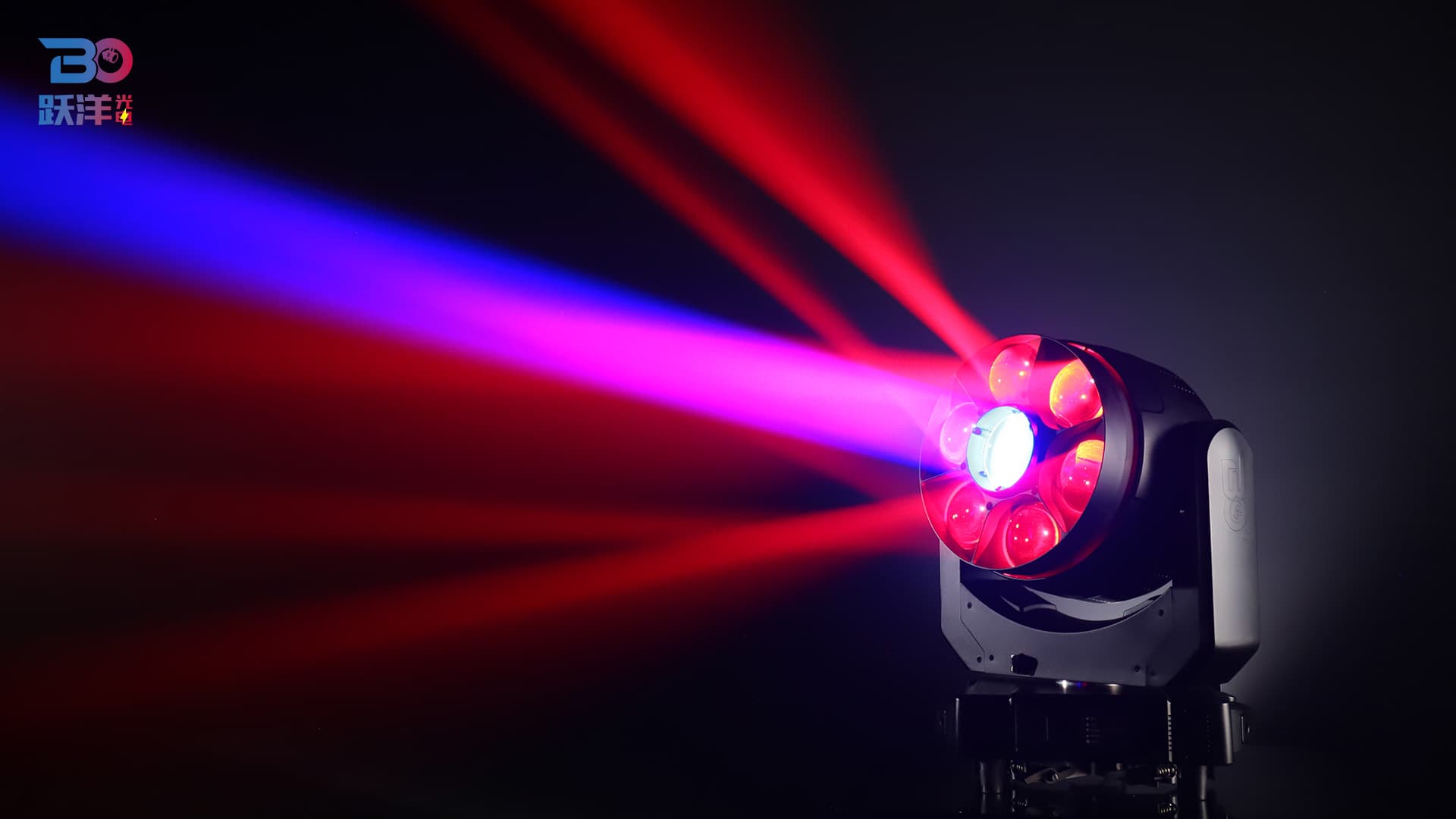

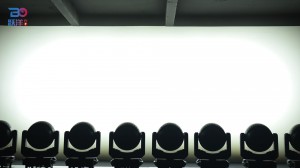

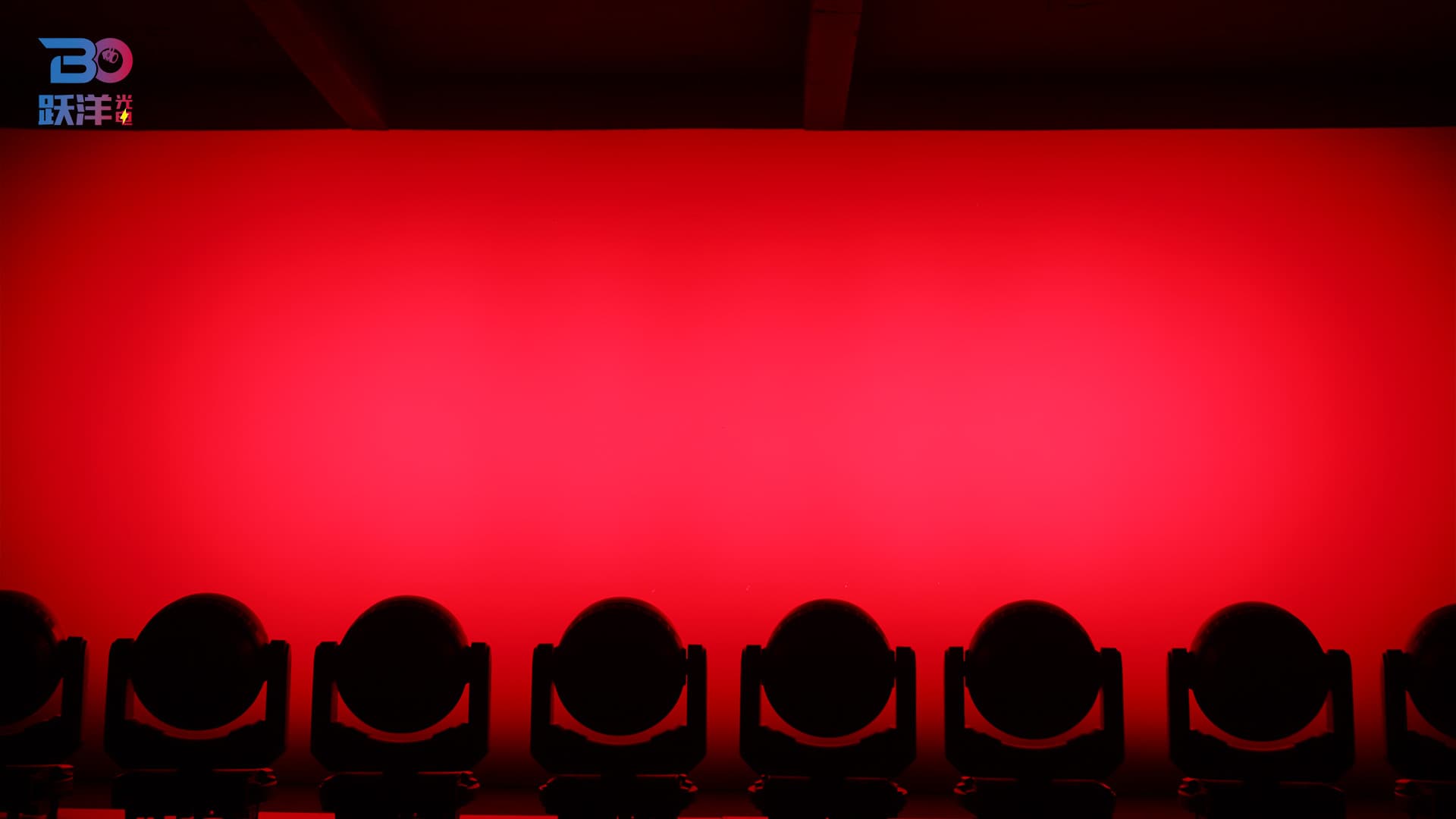

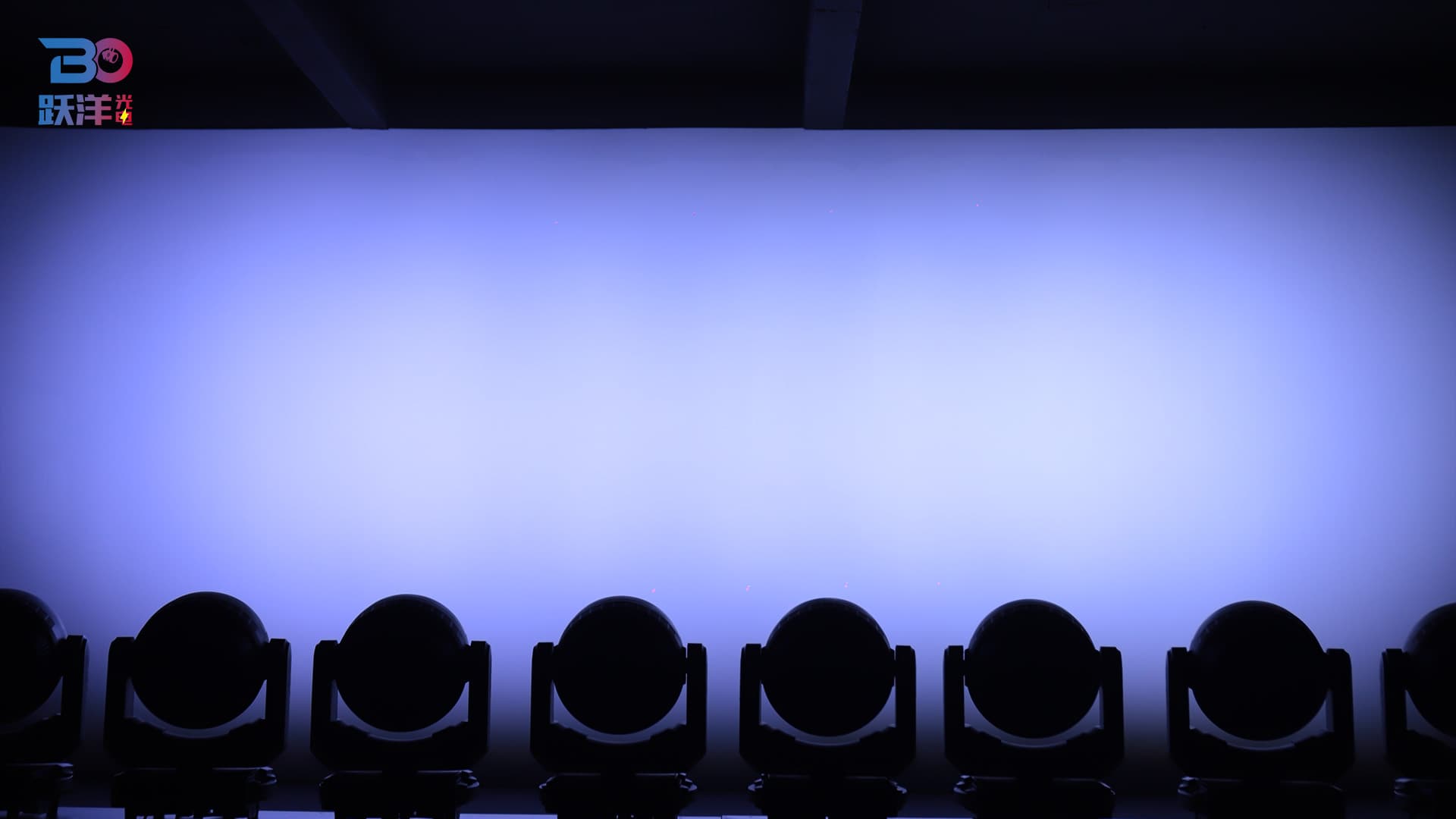

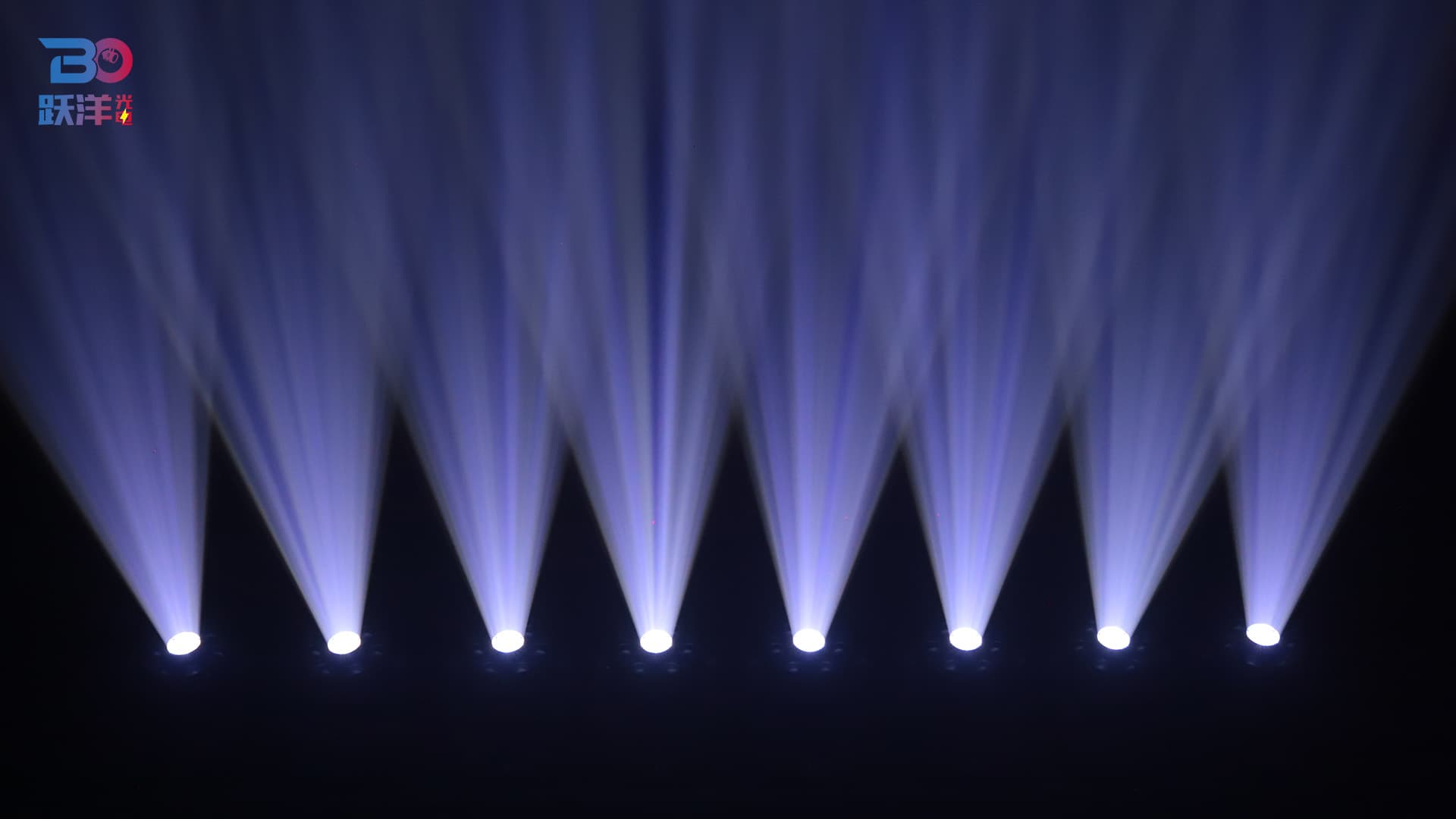

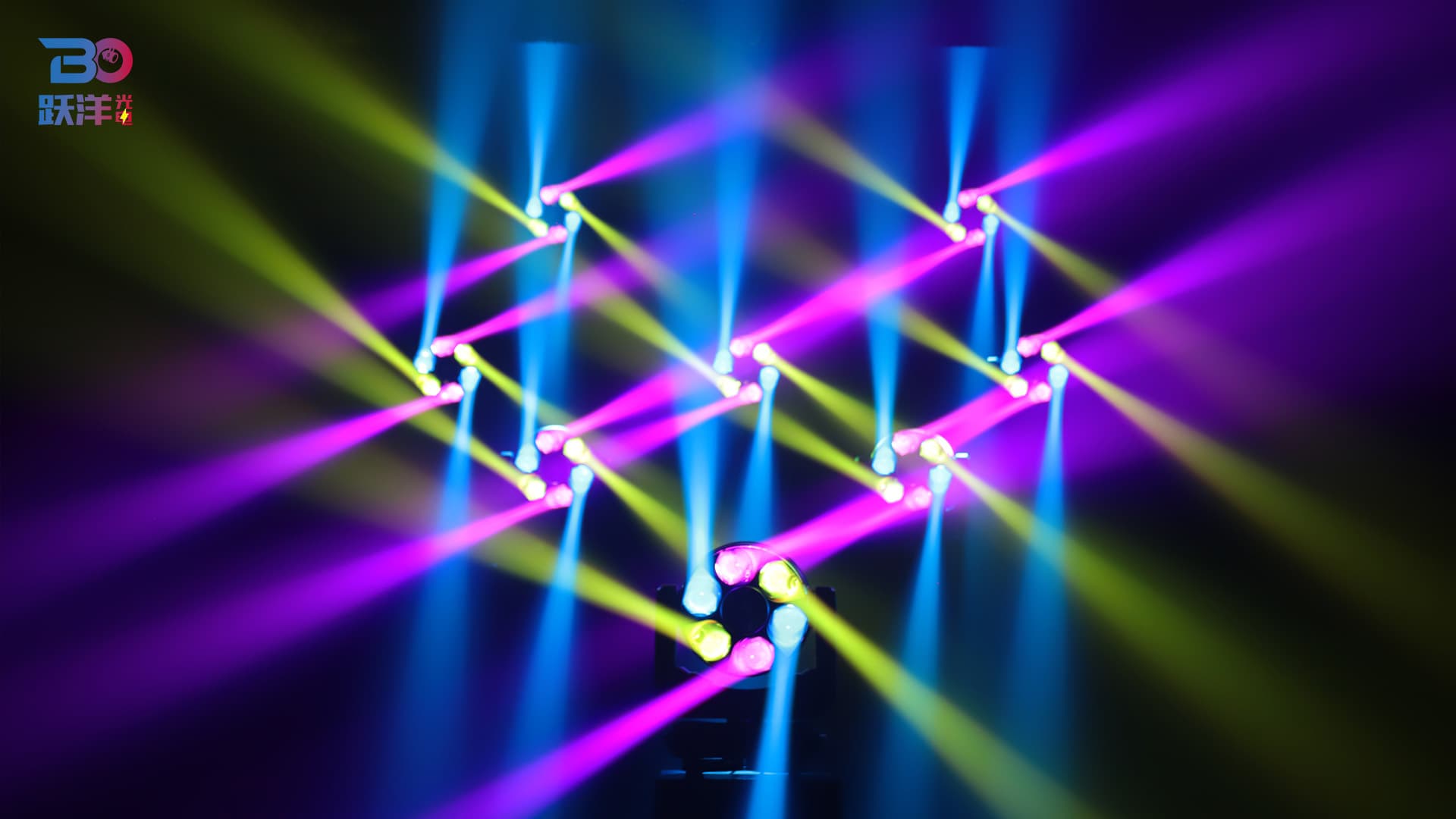

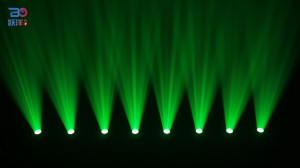

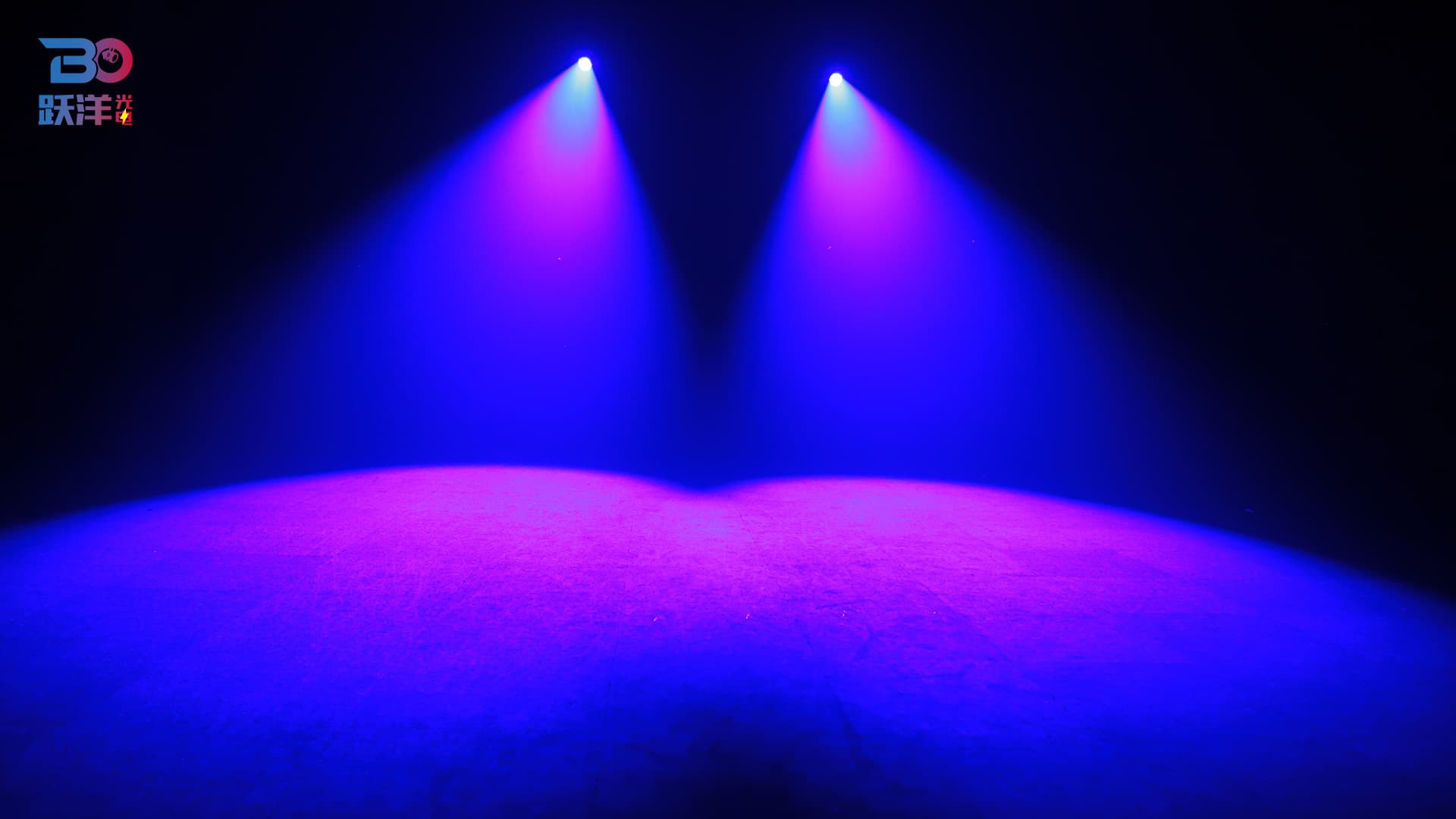

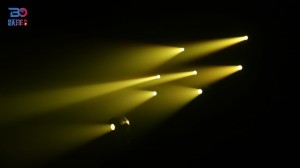

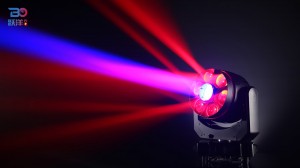

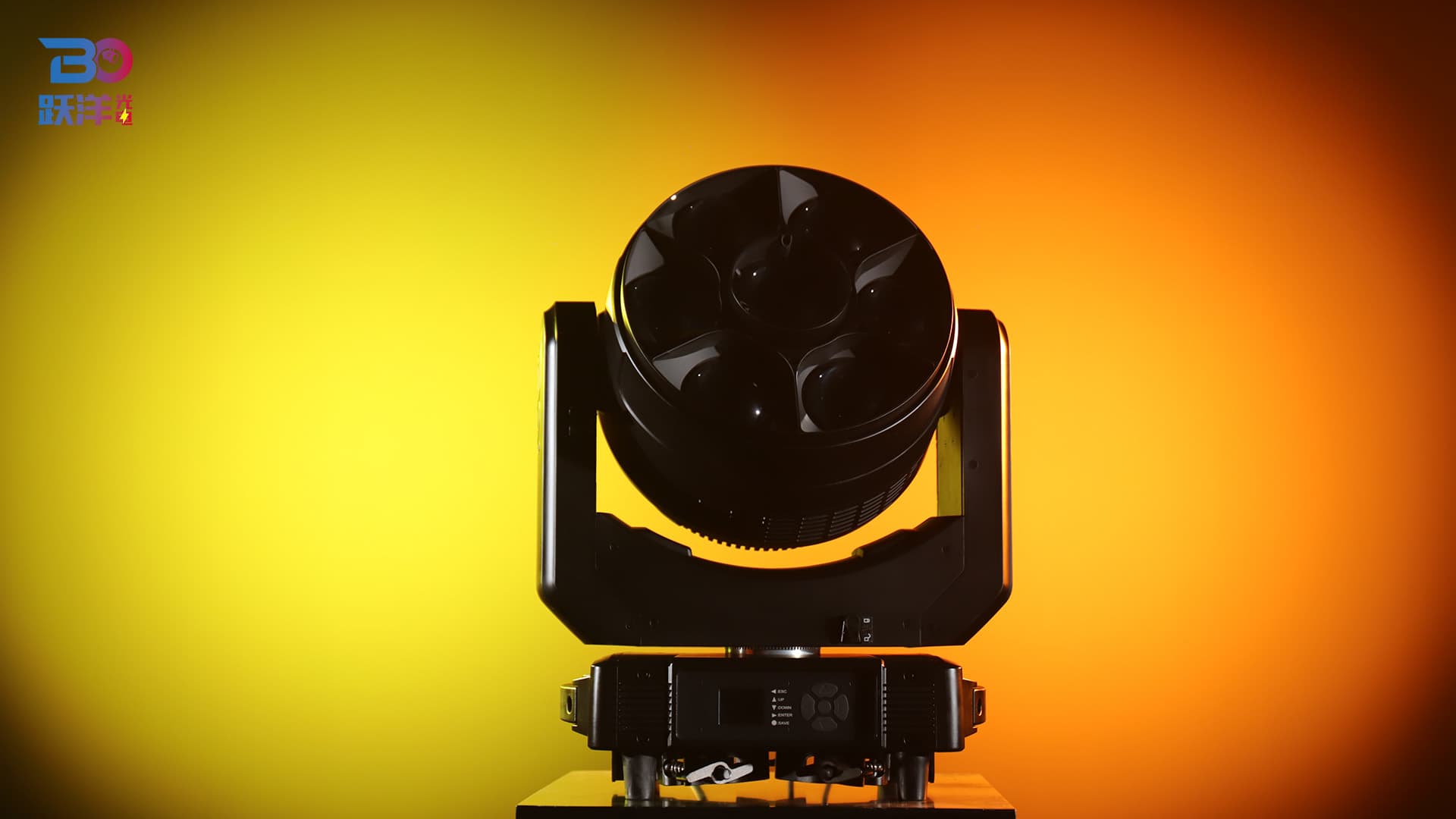

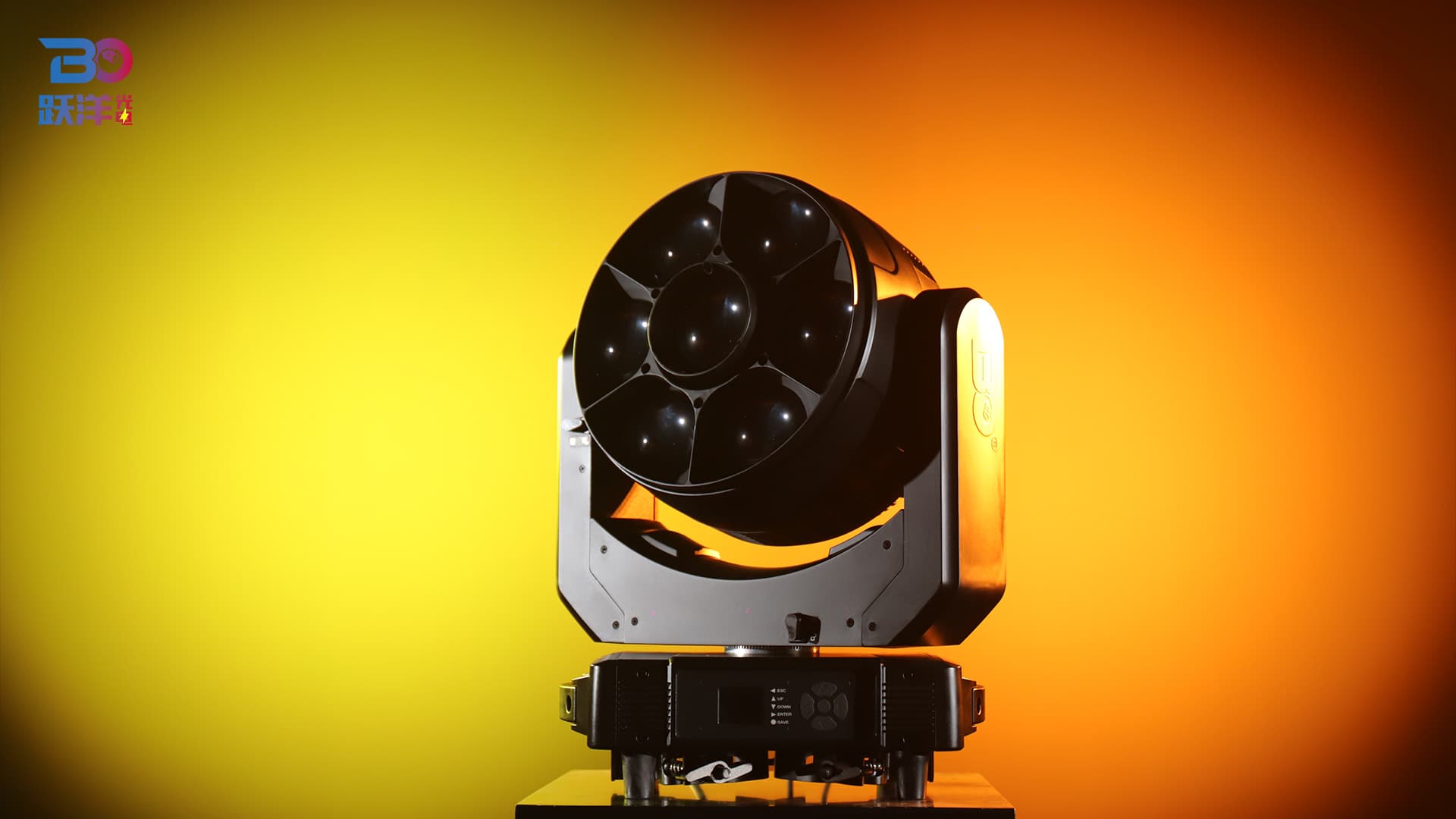

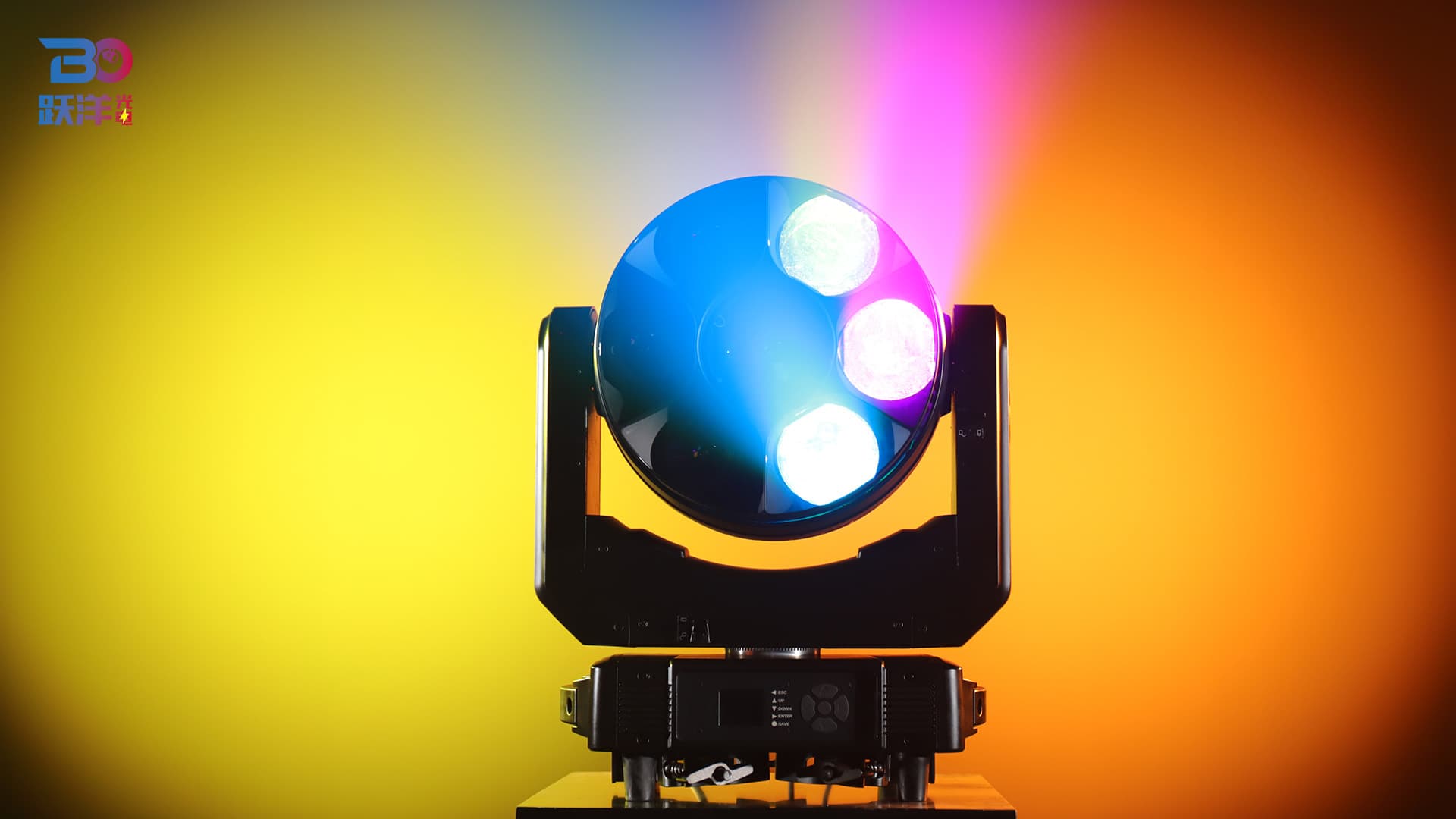

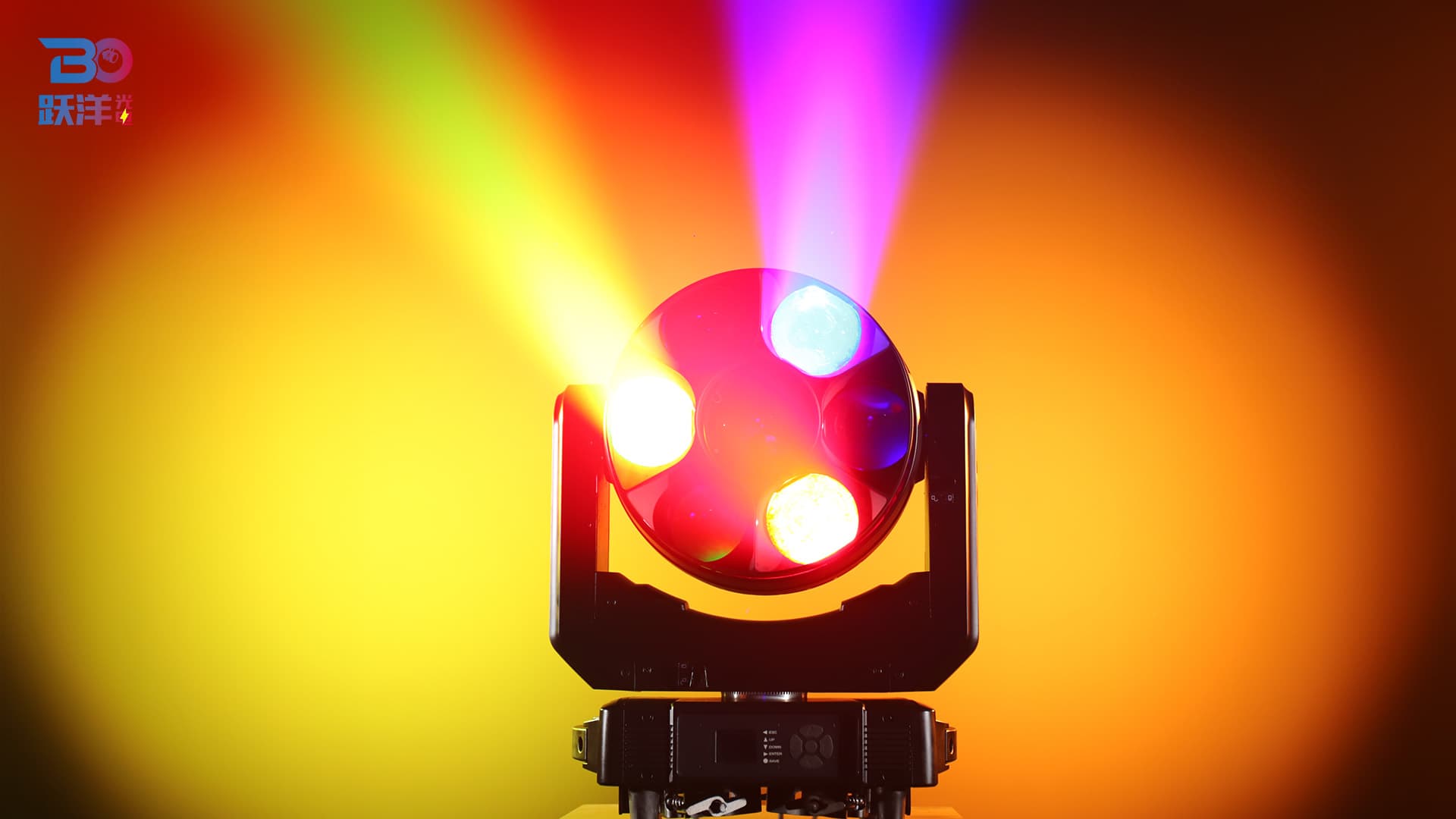

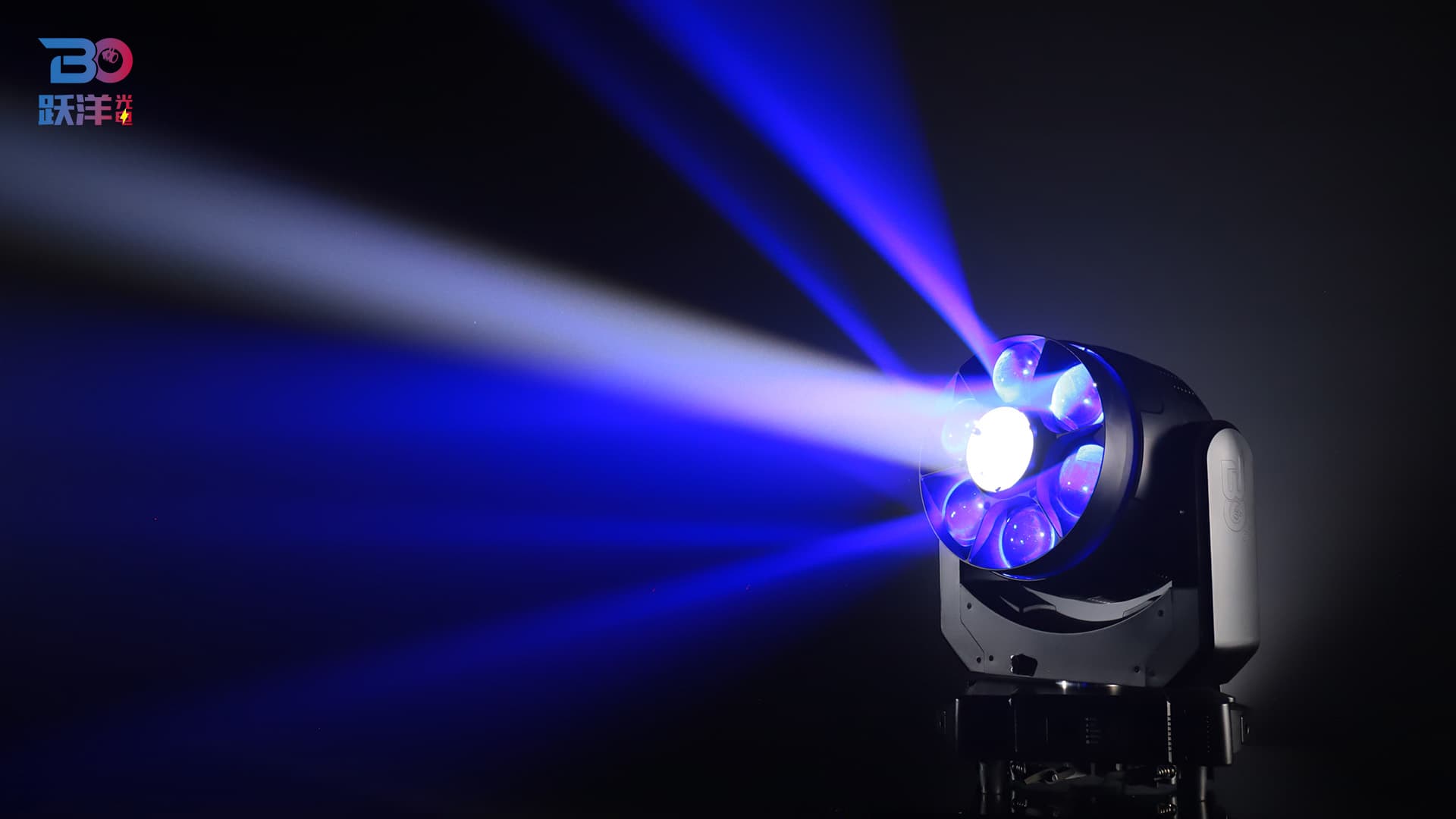

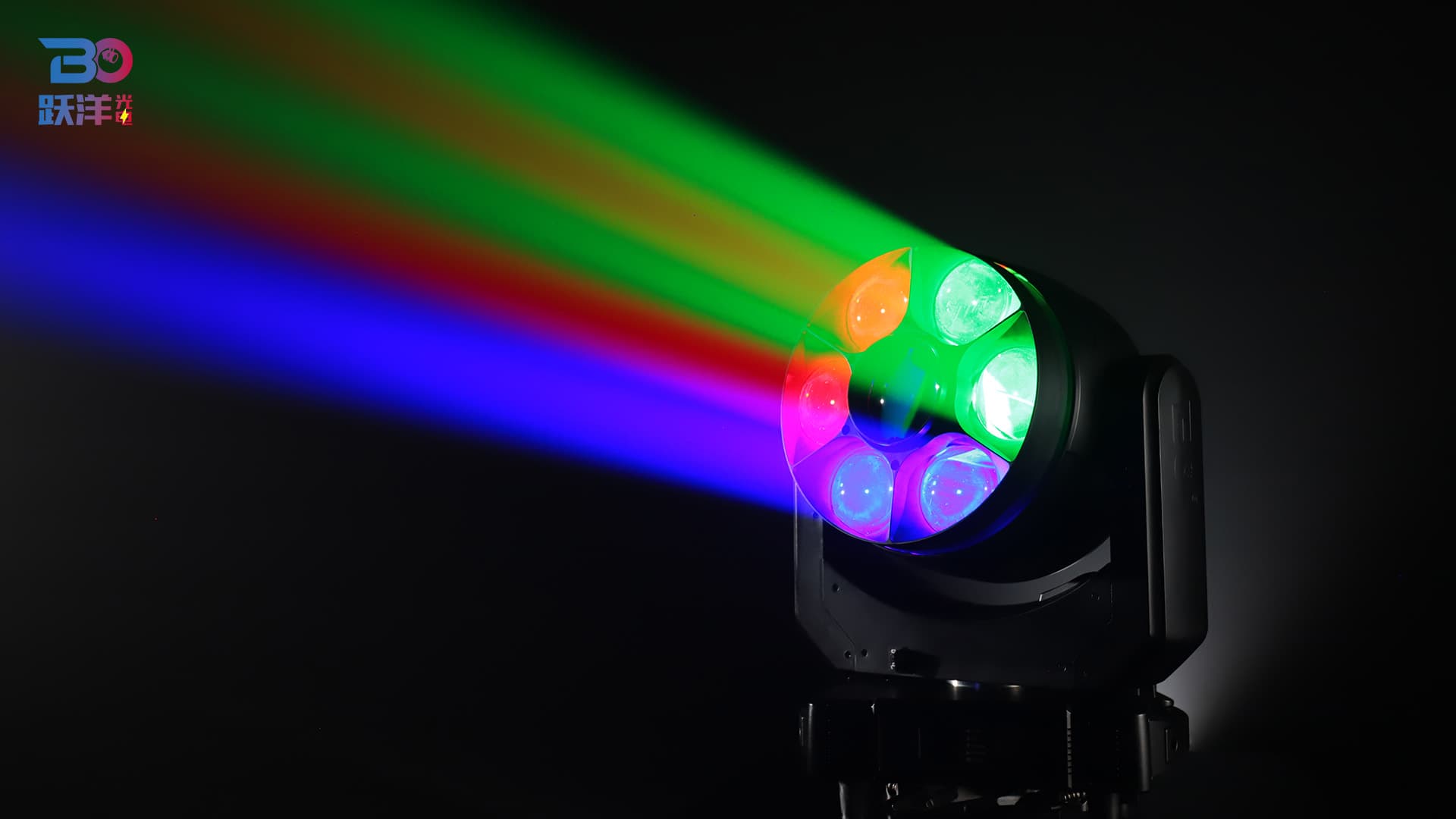

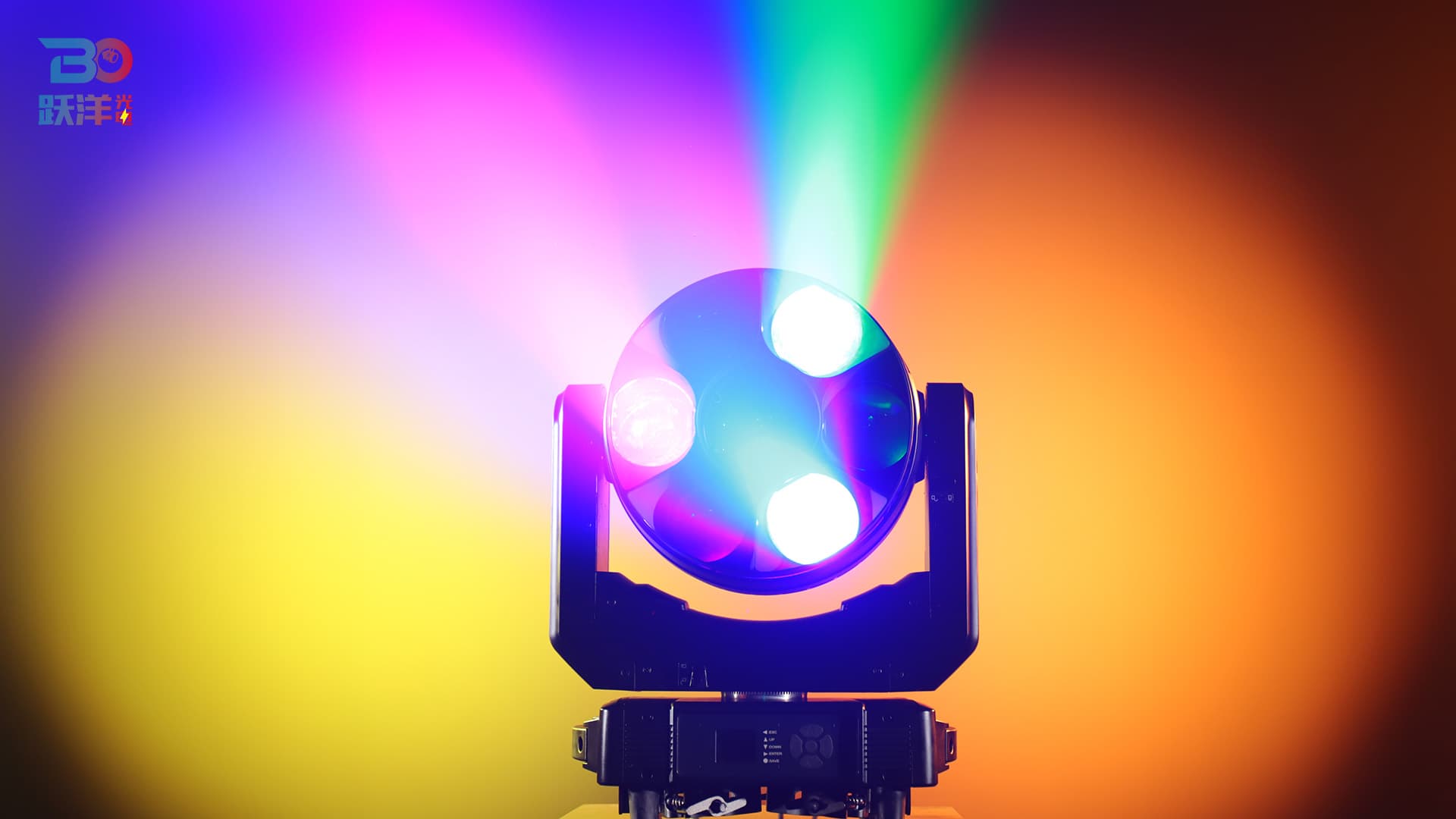

Beyond 800W Wind Fire Wheel

Light Source: 1x 200W 4IN1 RGBW LED; 6x 120W 4IN1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V， 50 - 60Hz

Power Consumption: 900W

Center Beam Angle: 4.5°~ 28°

Ring Beam Angle: 4°~ 47°

Control Modes: DMX512、Auto、Sound、Master、Manual、RDM

DMX Channel: 26/30/34/40/44/28 Channel

Protection Rating: IP20

Display: TFT Display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm²  power cable; 2 units（100V，60Hz） 2.5mm²  power cable

Dimension: 421mm×375mm×525mm

Net Weight: 24.5kg

Carton Package: 615*420*535mm  1in1  G.W.: 28kg；

Flight Case: 800*495*770mm  2in1  G.W.: 83.5kg;

Features: Full light range dimming, 256-level dimming accuracy; fast strobe1~25Hz; single-point control of lamp beads; preset multiple color macro functions,

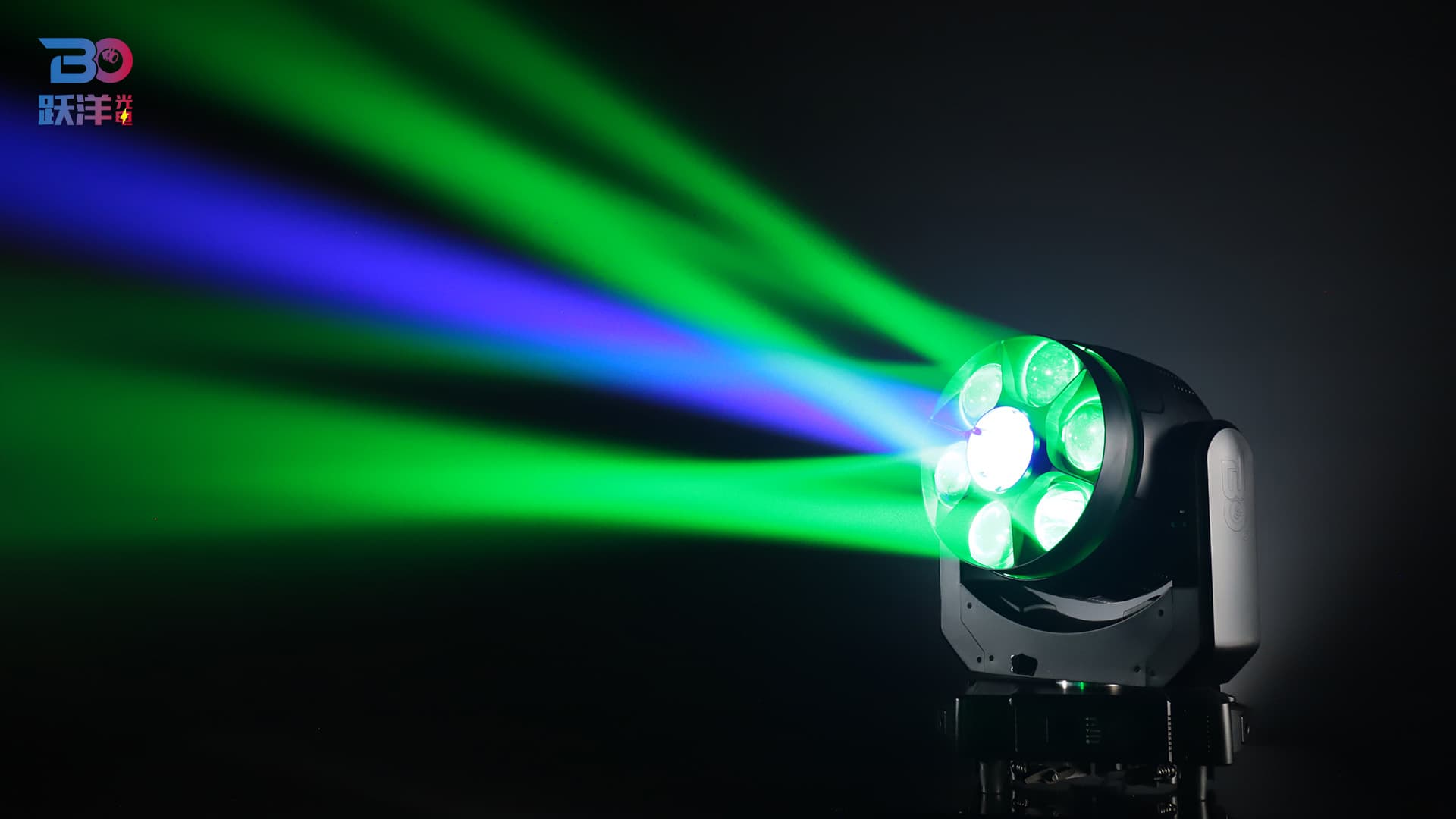

200W lamp beads can be rotated; multiple effects (washing, pixel control, strobe), macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
