Beyond 1240ZW IP65 12*40w 4in1 Wash Zoom Moving Head

Short Description:

Powerful, Versatile, and Built to Perform

The 1240ZW is a high-performance, IP65-rated moving headlight featuring 12x40W 4-in-1 RGBW LEDs for vibrant colors and brightness. Its motorized zoom (3.5°-45°), 540° pan/270° tilt, and 16/21 DMX channels offer precise control for any event.

Designed for indoor and outdoor use, it supports DMX512, Auto Run, and Music Control, and operates globally with 100-240V auto voltage switching.

The 1240ZW is durable, easy to install, and maintenance-friendly, making it the ultimate lighting solution for stunning stage effects.

Light up your show with the 1240ZW!

Brand: Beyond

Model: 1240ZW

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +8613922297736

Send email to us Product Manual

Product Detail

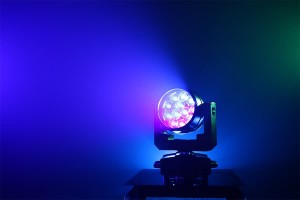

Beyond 1240ZW IP65 12*40w 4in1 Wash Zoom Moving Head

About Beyond 1240ZW

Light Source: 12*40W 4 in 1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 380W

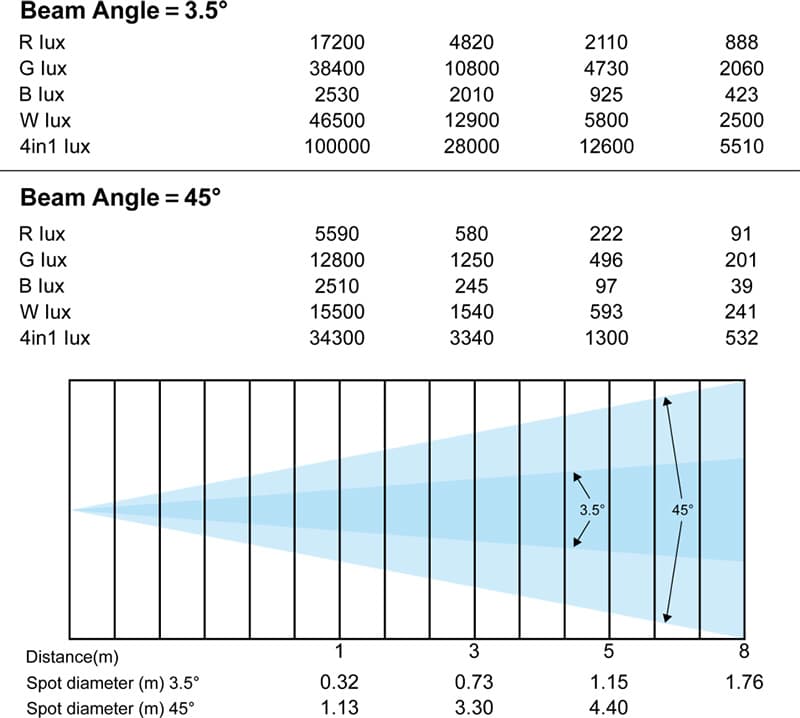

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 16/ 21 Channel

Protection Rating: IP65

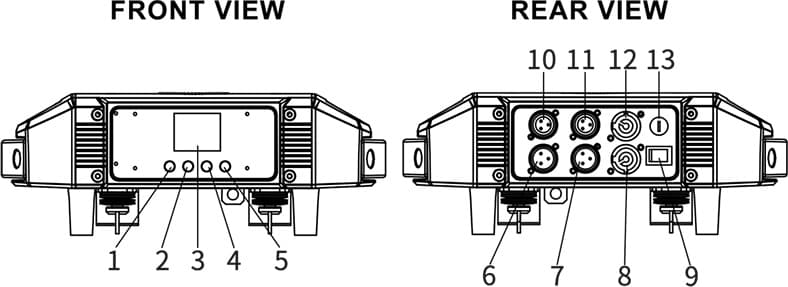

Display: TFT Display

Data In/Out Socket: 3-pin/5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: Aluminum

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 8 units（230V，50Hz） 2.5mm² power cable; 4 units（110V，60Hz） 2.5mm² power cable

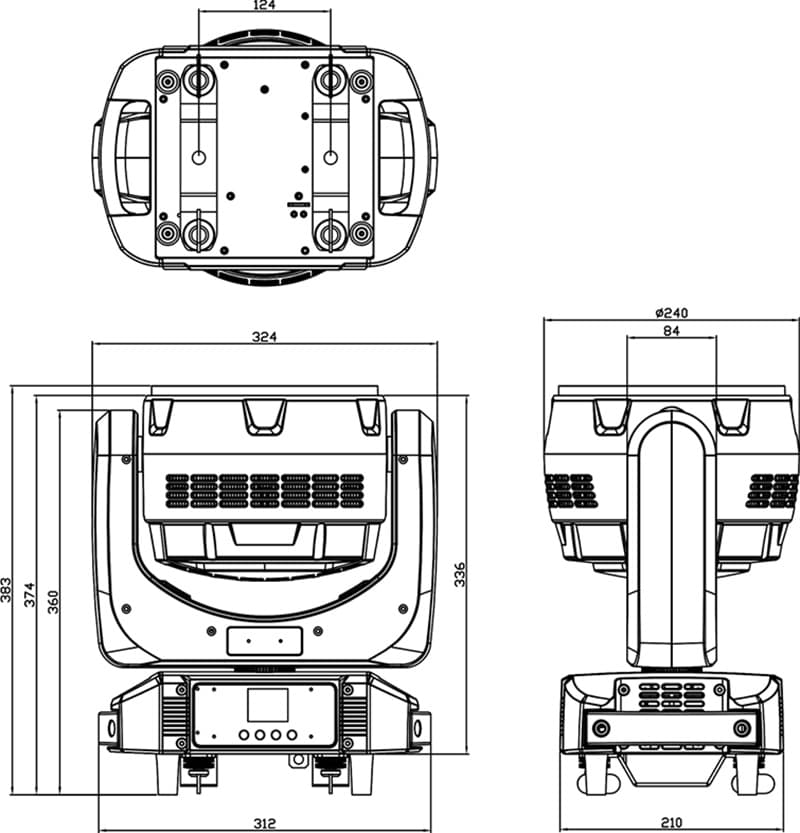

Dimension: 349*259*484mm

Net Weight: 15kg

Carton Package: 445*355*590mm 1in1 GW: 16.7kg

Flight Case: 800*722*665mm 4in1 GW: 96.5kg

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz.. preset multiple color macro and effect functions, dedicated lens design, high brightness,s and uniform color mixing

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
