Beyond 1060ZW IP65 10*60W Zoom+120*1W Moving Bar
Beyond 1060ZW IP65 10*60W Zoom+120*1W Moving Bar
Features:
Full optical domain dimming, 65536-level dimming accuracy;
Fast strobe 1~25Hz;
LED Single Control;
Single control of the LED bead in the middle, 20-section control on both sides; It integrate 3in1 effect of wash, beam, and strobe;
Multiple presets color macro function; preset multiple effect macro functions
Technical Specifications
Light Source: 10*60W 4in1 RGBW LED 120*1W RGBW 4in1 LED
LED Lifetime: ≥ 50000H
Power Voltage: AC100-240V，50-60Hz
Power Consumption: 780W±5W
Beam Angle: 3.5°-45°
Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM
DMX Channel: 26/ 35/ 43/ 91/ 125/ 129 Channel
Protection Rating: IP65
Display: TFT 1.8-inch color display

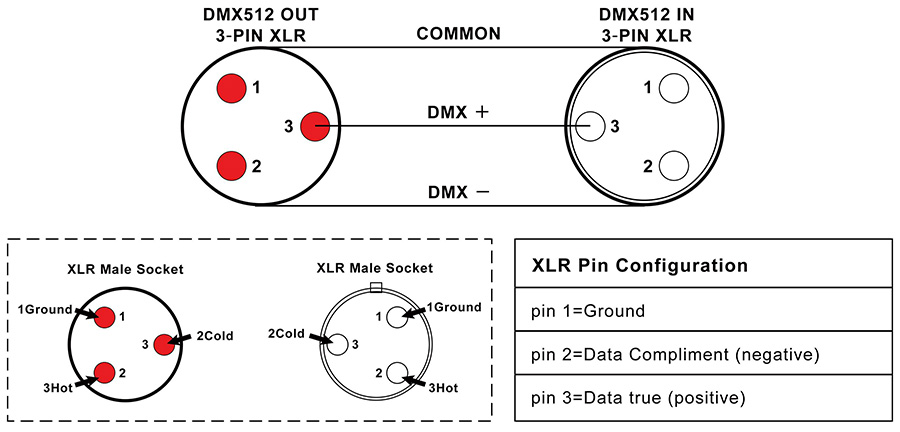

Data In/Out Socket: 3-pin XLR sockets, RJ45 network port (optional)
Power Socket: Power-Con in/ out
Housing Material: Aluminum
Tilt: Tilt 200°, accuracy 1.2°/step, fine-tuning accuracy: 0.0034°;adopts magnetic reset system
Pan/Tilt Resolution: Automatically correct pan/tilt position
MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

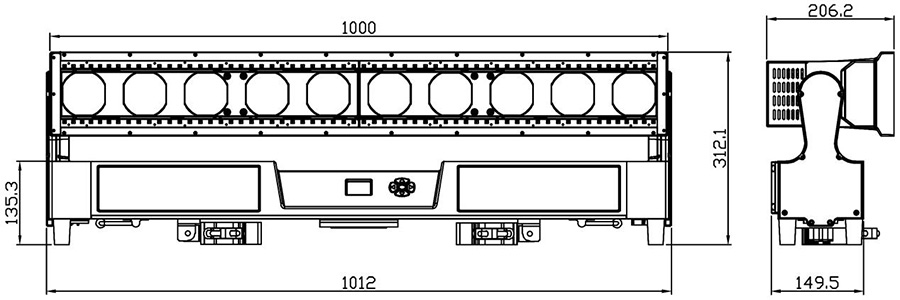

Dimension: 1012 mm*149.5 mm*363 mm
Net Weight: 28.7 kg
Carton Package: 1140*290*495mm 1in1 GW.: 35.7 kg;
Flight Case: 1100*590*580mm 2in1 GW.: 87.1 kg;
Features: Full range dimming, 65536 levels of dimming accuracy; fast strobe 1~25Hz; single-point control of the middle lamp, 20-zone control on both sides; three-in-one effect of dyeing, beam and strobe; preset multiple color macro functions, excellent color mixing effect; preset multiple effect macro functions; CTO--2800K-8000K color temperature adjustment
Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
Beyond 1060ZW LUX Data

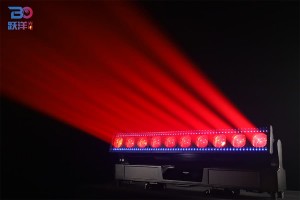

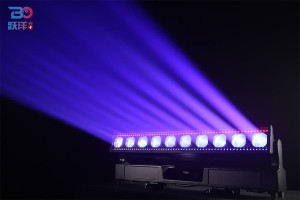

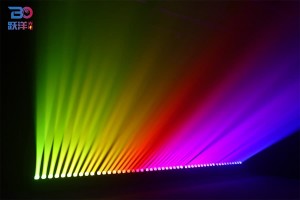

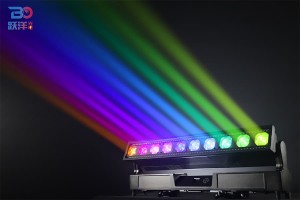

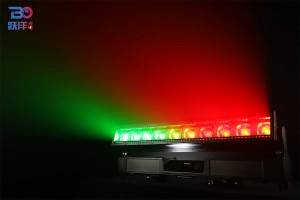

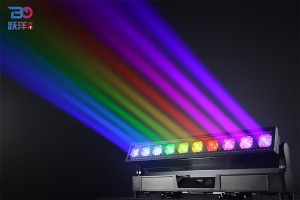

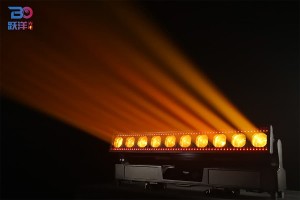

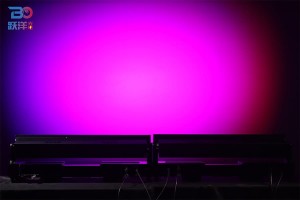

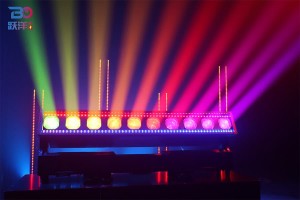

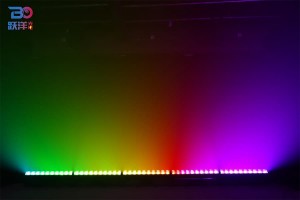

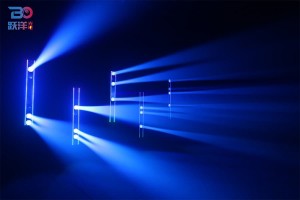

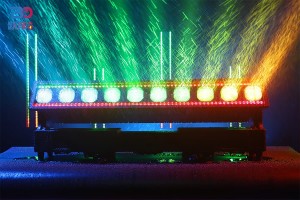

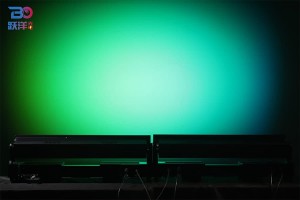

Beyond 1060ZW Lighting Show
