19x40W Big Bee Eye LED Moving Head Wash Light

Short Description:

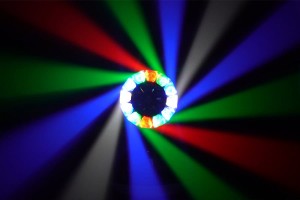

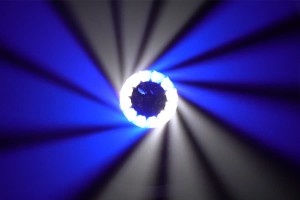

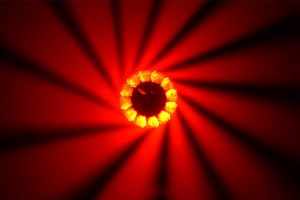

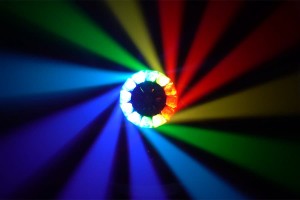

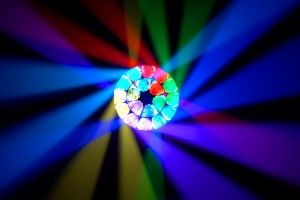

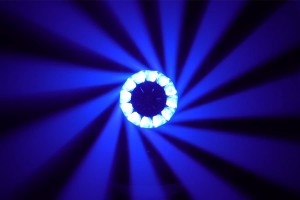

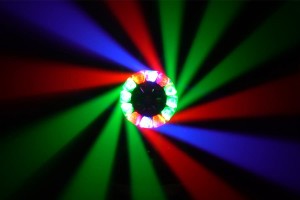

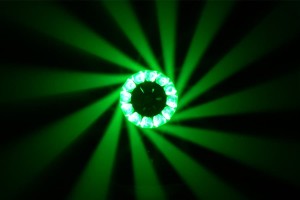

The 1940B professional big bee eye moving head wash fixture is an upgrade from the model 1940Z 19x40W wash zoom and has all the features of the 1940Z. With 19x40W(RGBW / 4-IN-1) LEDs, variable motorized zoom (3.5 – 50 degrees), and individual pixel control, capable of creating a kaleidoscope effect. It not only has a beam zoom wash visual effect but also has built-in various macro function effects. The bee eye LED moving head is also equipped with 3-pin and 5-pin input and output sockets to meet different usage needs.

Brand: Beyond

Model: 1940B

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

19x40W Big Bee Eye LED Moving Head Wash Light

Light Source: 19 x 40W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V ，50-60Hz

Power Consumption: 640W

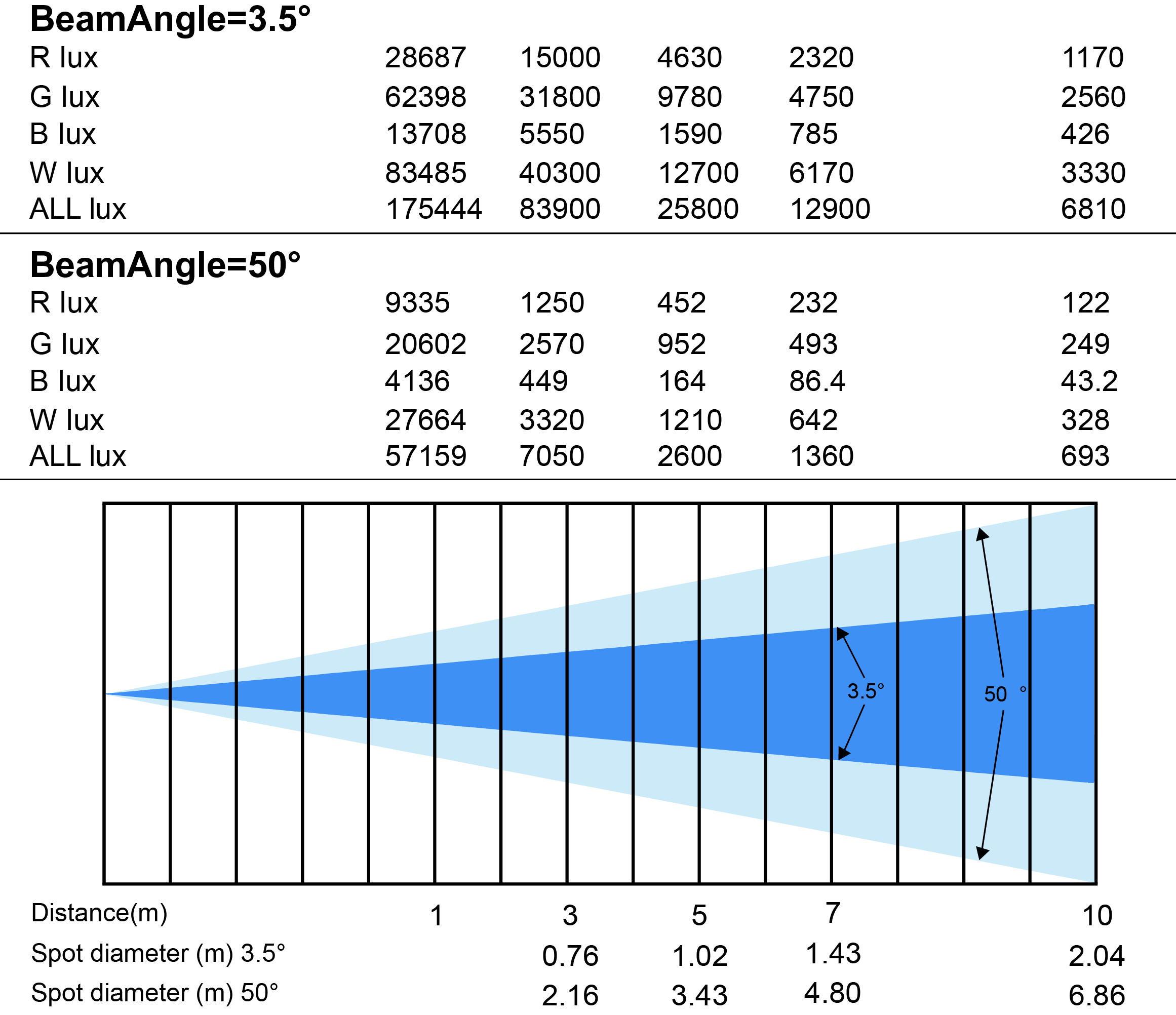

Beam Angle: 3.5°~50°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 21/ 23/ 35/ 78/ 92/ 97/ 99 Channel

Protection Rating: IP20

Display: 1.8°TFT Color Display

Data In/Out Socket: 3-pin & 5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540° (16bit accurate scanning)

Tilt: 270° (16bit accurate scanning)

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

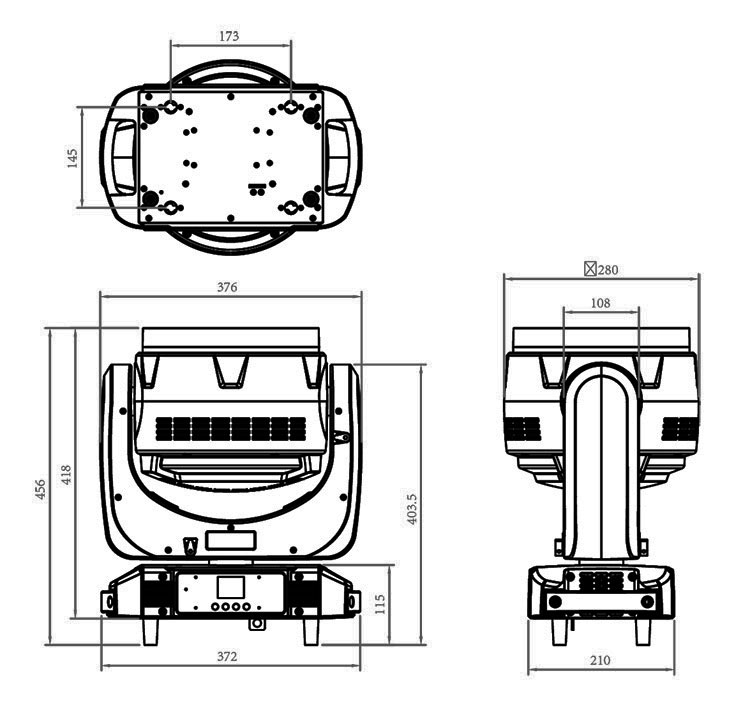

Dimension: 376mm*280mm*456mm

Net Weight: 16.5 kg

Carton Package: 535mm*390mm*495mm 1in1 GW: 17.5 kg

Flight Case: 970mm*460mm*640mm 2in1 GW: 62.12 kg

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz.Each LED single control; the fantasy bee eye effect can be adjusted with Zoom, WASH, and Beam effect

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
