760B-7x60W Beam Wash and Bee Eye Effect LED Moving Head in Hot Sales

Short Description:

760B – 7x60W beam wash and bee eye effect LED moving head in hot sales, the same developing story as 19x40w bee eye, then shared same design, body, product technology. 7x60w benefit of its big lens can give a better beam effect. In a good smoke environment, some clients even said it single led beam effect looks like a 150W beam. As two of the best-selling series products in beyond lighting, their monthly production quantities can reach 800-1000 pieces. Plus our design, technology, and process improvement, have pretty good stability and performance. Also usually are in fast delivery, as most time we keep them stock available.

Brand: Beyond

Model: 760B

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

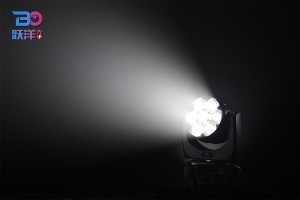

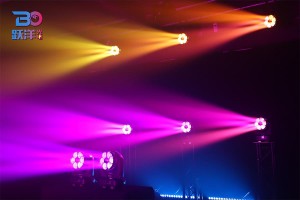

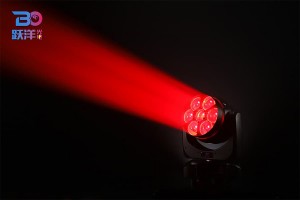

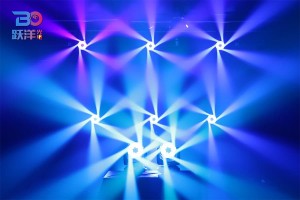

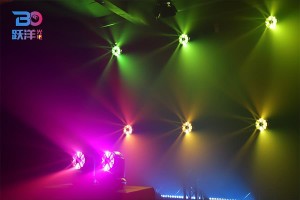

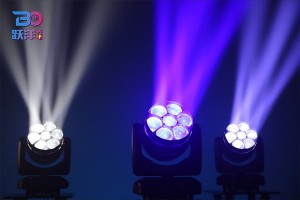

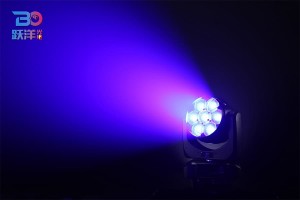

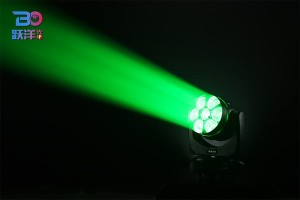

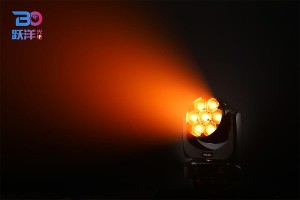

7x60W Big Beam Wash and Bee Eye Effect LED Moving Head

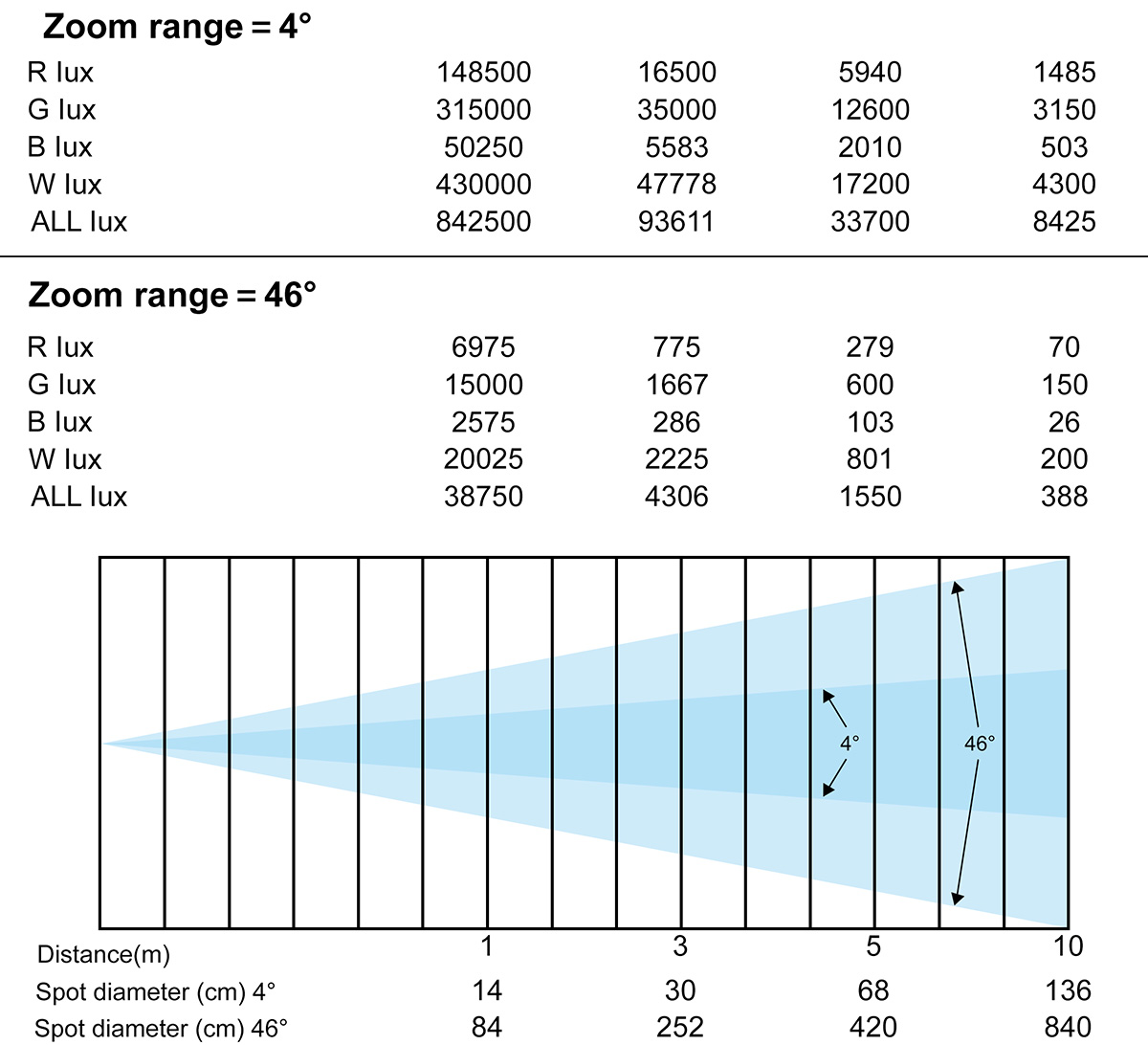

LED single control with a mapping pixel effect, rich build program, and 7 DMX channel modes meet the programming needs of different scenarios. Three phase motors give accurate positioning and fast & quiet operation. 33200 lux @5M in a narrow beam angle of 3.5 degrees. Have practical experience in various large-scale stage performances

Technical Parameters

Light Source: 7*60W 4 in 1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V， 50 - 60Hz

Power Consumption: 420W

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 21/ 23/ 35/ 42/ 49/ 51/ 56 Channel

Protection Rating: IP20

Display: TFT Display

Data In/Out Socket: 3-pin and 5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 8 units（240V，50Hz） 1.5mm² power cable; 4 units（100V，60Hz） 1.5mm² power cable

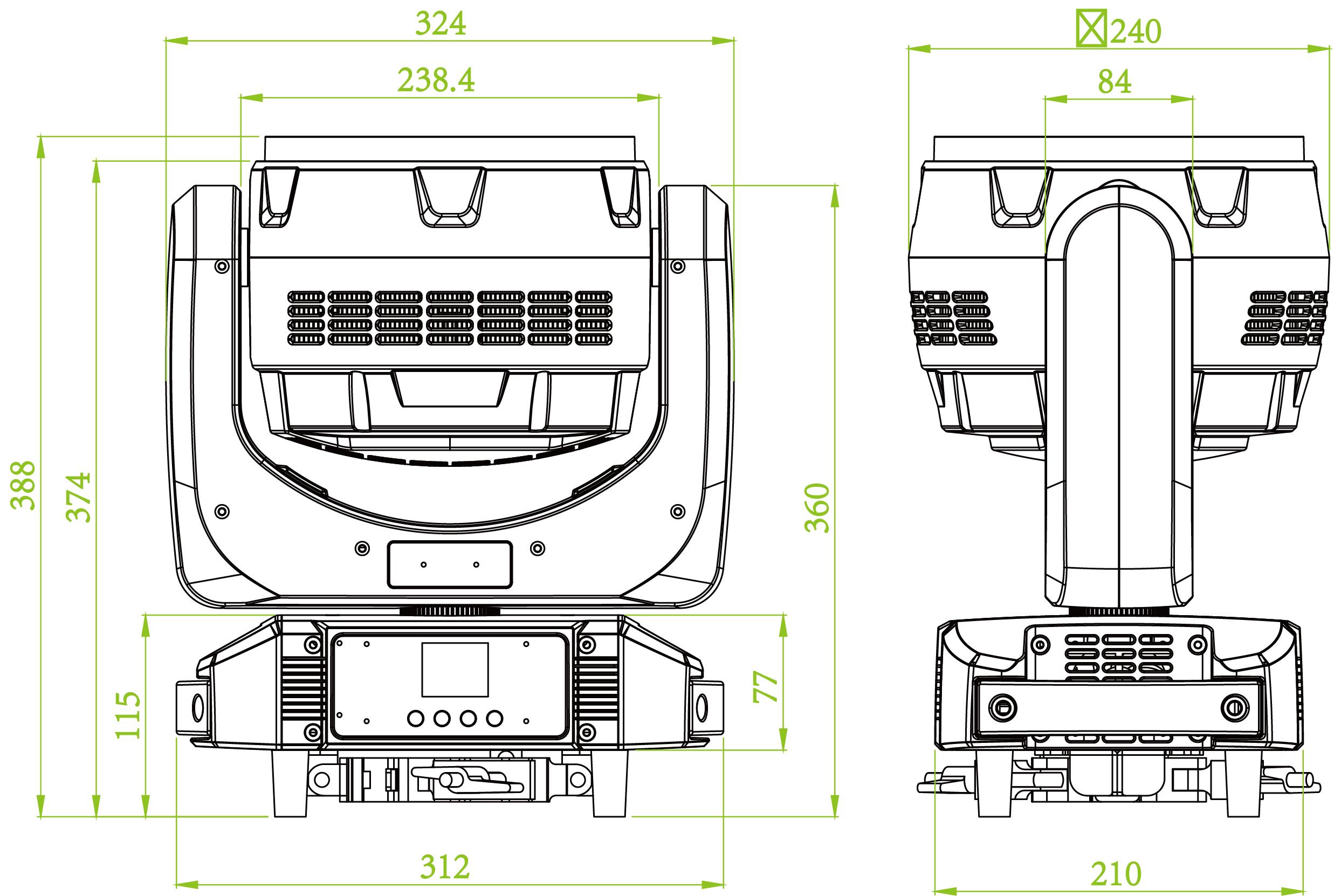

Dimension: 312*210*423.5mm

Net Weight: 10.6 kg

Carton Package: 397*313*452mm 1in1 GW.: 12 kg; 646*415*472mm 2in1 GW.: 22.3 kg;

Flight Case: 875*608*575mm 4in1 GW: 71.1 kg

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1- 25Hz. Single control of the LED. three-in-one effects of wash, beam, and bee eye. preset multiple color macro and effect functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
