19x40W LED Moving Head Wash Zoom

Short Description:

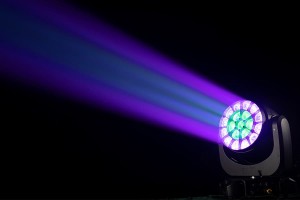

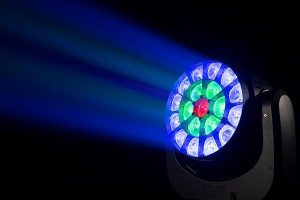

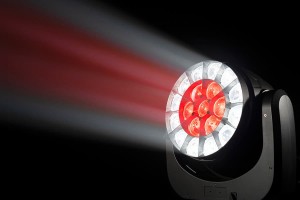

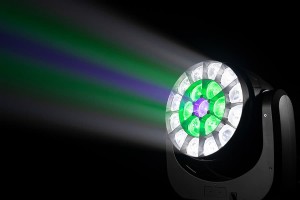

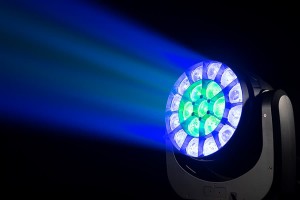

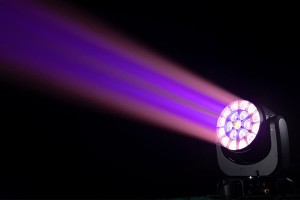

The model 1940Z 19x40W wash zoom moving head is an innovative stage lighting product widely used in various occasions such as stage performances and concerts. Developed and designed by Beyond Lighting, the 1940Z boasts 19 high-brightness LED beads, each with 40 watts, that produce bright white light and a vast array of color effects. With a Zoom range of 3.5 – 50 degrees, it allows for flexible and free adjustment of the light angle to meet the different lighting needs of any occasion, creating a stunning visual experience for the audience. Additionally, it features 3 Circle Control functions, making it highly flexible and creative in creating various lighting modes and effects. Weighing only 14.5 kg, the 19x40W wash zoom moving head is cost-effective in the market and can satisfy the requirements of small to large venues.

Brand: Beyond

Model: 1940Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

19x40W LED Moving Head Wash Zoom

Light Source: 19 x 40W 4in1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 630W

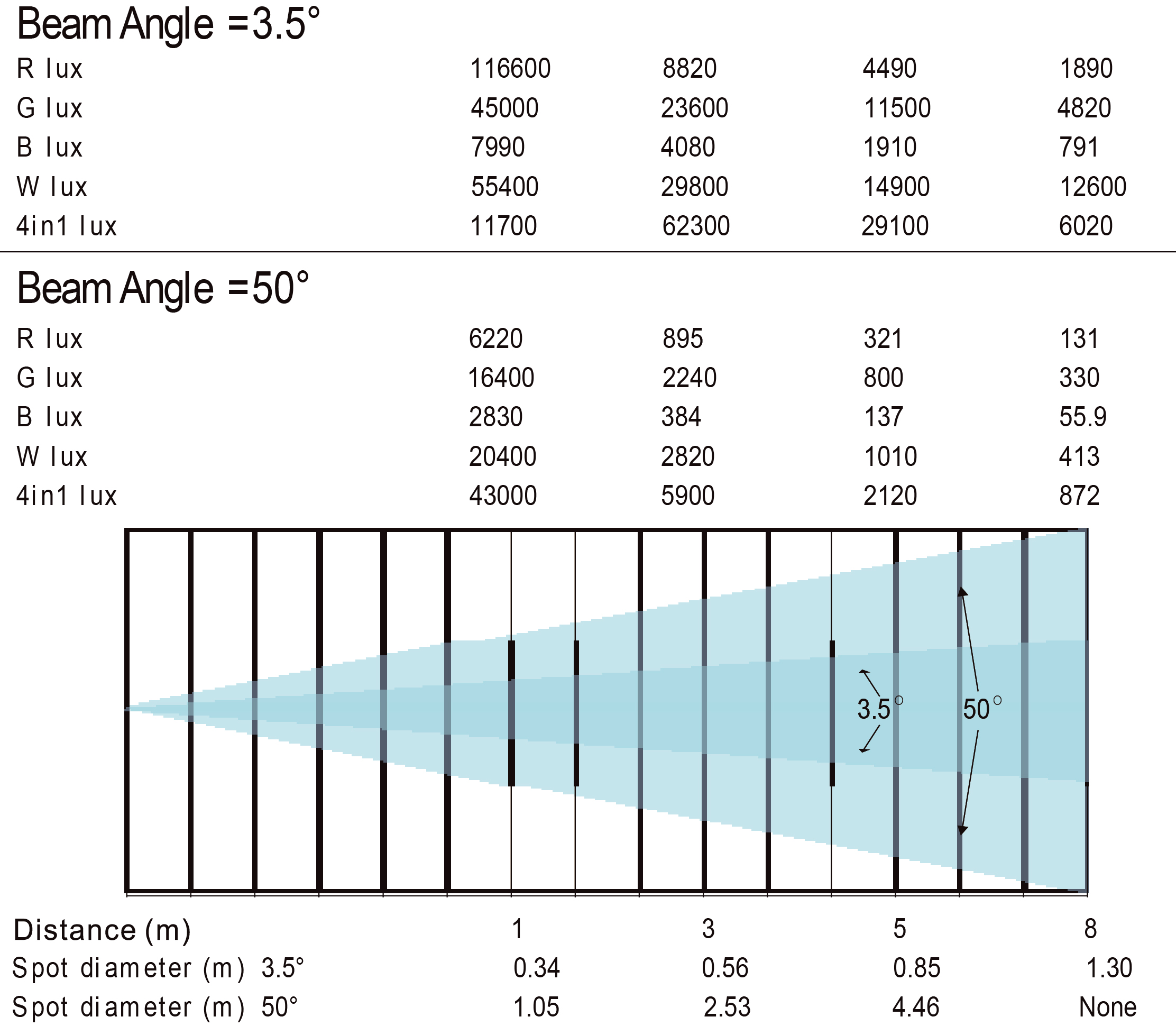

Beam Angle: 3.5°~50°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 19/ 27 Channel

Protection Rating: IP20

Display: 1.8°TFT Color Display,Can be rotated 180°,Chinese and English can be switched

Data In/Out Socket: 3-pin & 5-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Work temperature: -10℃～45℃

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

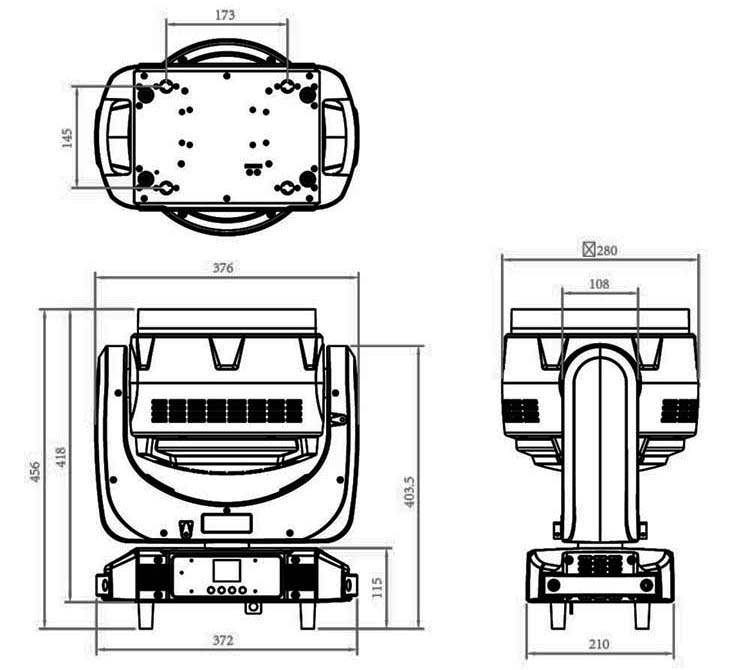

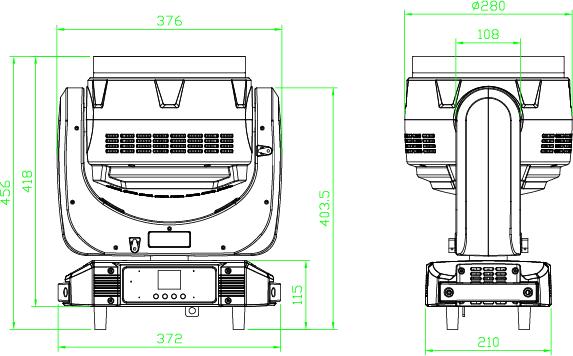

Dimension: 376*280*420.5mm

Net Weight: 15.04kg

Carton Package: 535mm *390mm*495mm 1in1 GW:16.5 kg

Flight Case: 970mm*460mm*640mm 2in1 GW:59.55 kg

Features: Circle control effect, large zoom range, wide wash area, RGBW color mixing system, full light range dimming; smooth and uniform, low noise and high efficiency fan cooling system; fast strobe 1~25Hz; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
