Photoelectric isolation signal amplification, signal conversion, network expansion three in one

Product Detail

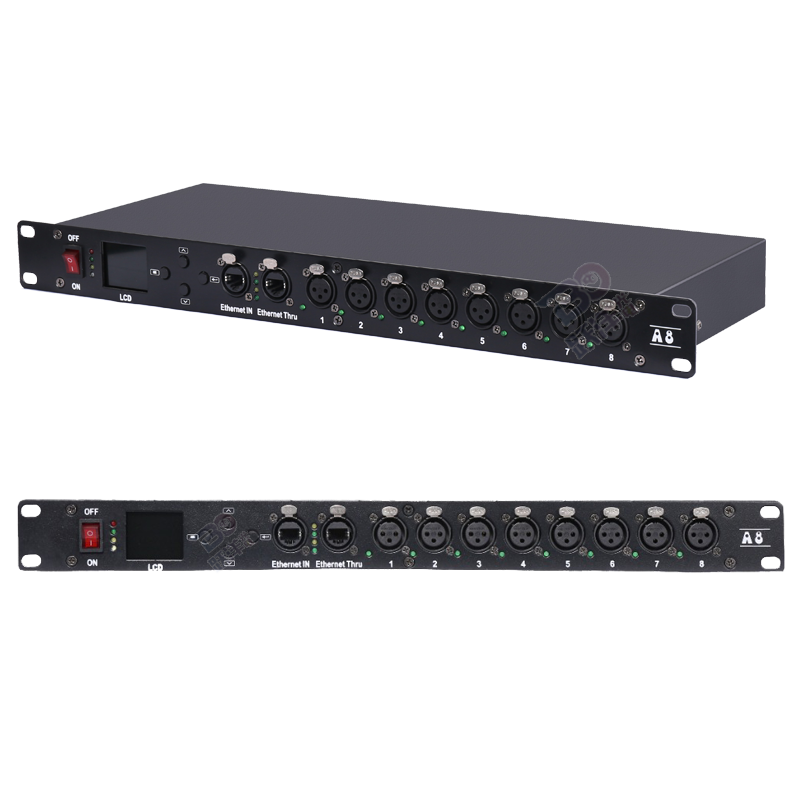

Signal-Amplifier with ArtNet-DMX Signal converter and RDM Network Extend

1RJ45 Ethernet (LAN) interface, 10/100M/1000M adaptive, support TCP/IP protocol
The network interface supports port auto flip (Auto MDI/MDIX)
Support standard DMX-512 and ArtNet protocol, RDM protocol
Support ArtNet←→DMX signal bidirectional conversion
Support ArtNet←→DMX signal bidirectional conversion
DMX input/output can be set as available/disabled
Each DMX output port can be set to five modes: single, zero, HTP and LTPRDM
Each DMX input can be set to normal mode/backup mode
Each channel with a digital signal indicator
It can be used as a DMX splitter/amplifier, 1 input 7 output: 1x7 or 2 input 3 output: 2x3
IP address can be set manually
Multiple user presets
LCD display shows the status of each DMX port
LED indicator indicates the status of the network port
Support software web page upgrade
8 DMX outputs or outputs can be set, all inputs/outputs are optically isolated
Photoelectric isolation signal amplification, signal conversion, network expansion three in one
