Main Features

• Light source:12* 40W rgbw Led
• New type high brightness and light output lens
• Stepless color changing and uniform color mixing
• 3 led as one group with 4 zones
• Use 180°reversed big vision colorful LCD display
• 2 pieces omega quick lock system bracket
• Pan/Tilt: 3 phase motors,strong,fast,quiet and positioning accurate
• Able to fine control of light spot, pieces fixtures can adjust to same spot size
• Flame-resistance material housing
• Dimmer frequency: 2000 Hz

Product Technoloy Details

1.Inside are teflon wires and their colors exactly follow International Standard

2.Wires termination all are connectors type to avoid faulty soldering and easier for repair job

3. Main wires are protected by black flexibility tube

4. Wires termination will be glued after finished to get better fastness

1.Designed led temperature protection in software,when head temperature increase to a certain point, the led power will be reduced slowly

2.Quiet fan : fan only start to work when head temperature increased to a certain point and its work speed will increase only when fixture temperature increased

1. Include the arms position, all cable outlet holes we did protection to avoid wires be broken after long time movement

2. In pan wire outlet hole position each moving head we open a flexible rubber to protect the wires

1. Each product has separately ground screw on rear side

2. Ground wires in standard yellow/green color

3. All the metal parts inside are individually grounded

Technical Parameters

LUX Date

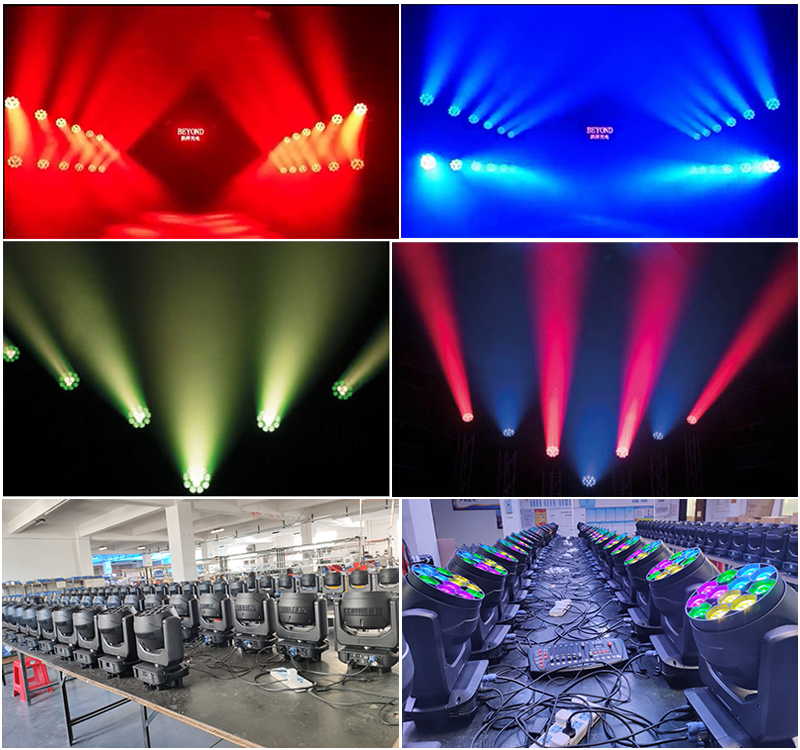

Product Effect
