Beyond IP65 7x40W Zoom WASH with Ring

Short Description:

The 740ZWR is a dynamic IP65 waterproof LED moving head light built for professional productions.

It features 7x 40W RGBW LEDs and a 36x 0.2W LED ring for stunning circle control effects. A wide 4°-44° zoom creates versatile washes, sharp beams, and fast strobes.

With an IP65 protection rating and robust aluminum housing, this light is durable and reliable. Its advanced controls, including precise 65,536-level dimming and support for DMX512 and Art-Net, make it a powerful tool for any lighting designer.

Brand: Beyond

Model: 740ZWR

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

Beyond 740ZWR Parameter

Light Source: 7*40W RGBW 4in1 + 36*0.2W RGB 3in1 LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 250W±5%

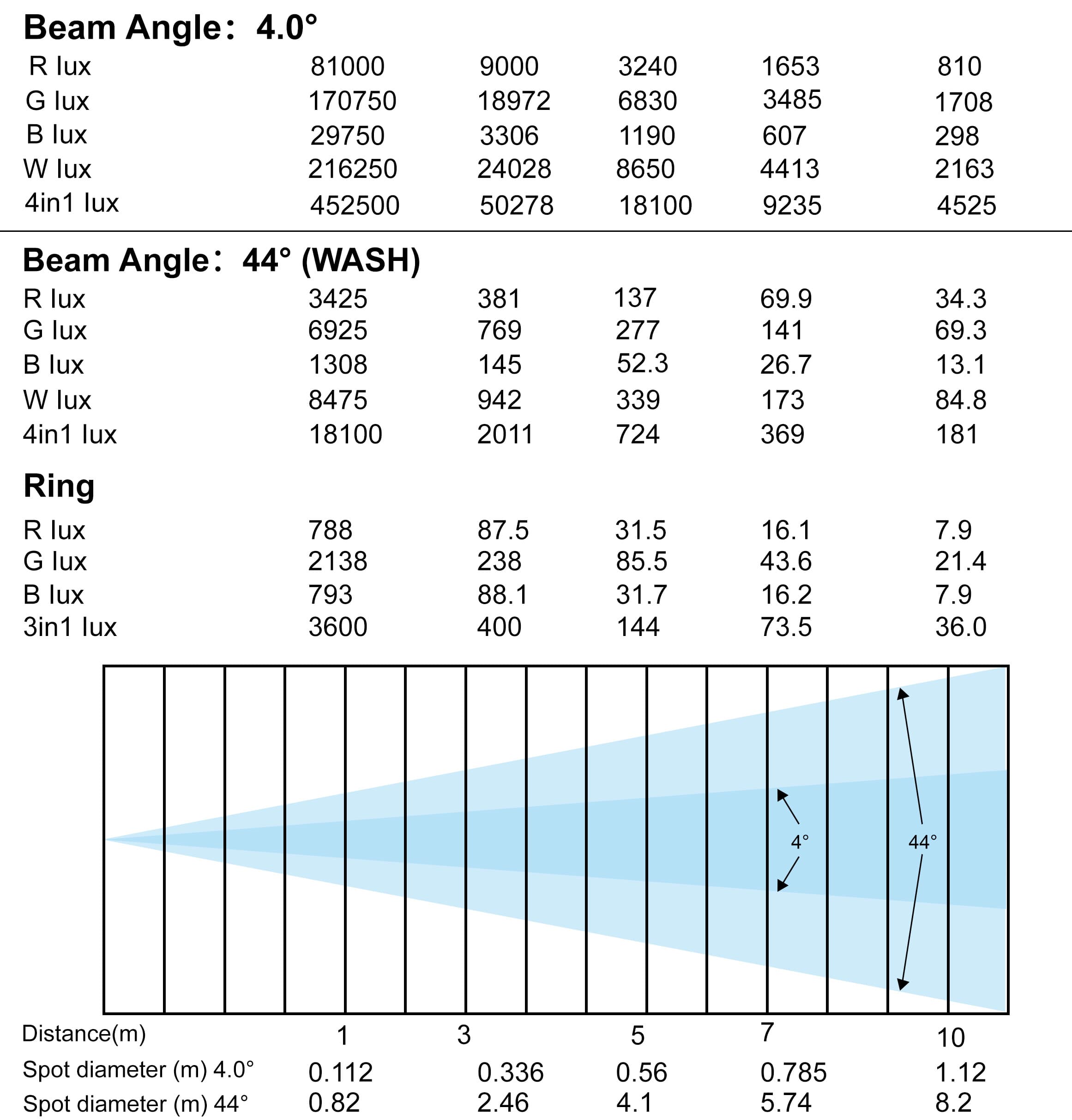

Beam Angle: 4°-44°

Control Modes: DMX512/ Auto/ Sound/ Master-Slave/ Manual/ RDM/ ArtNet(optional)

DMX Channel: 20/ 23/ 24 Channel

Protection Rating: IP65

Display: 1.8-inch TFT Display

Data In/Out Socket: 3-pin XLR sockets (5-pin optional)

Power Socket: Power-Con in/ out

Housing Material: Die-cast aluminum + flame-retardant carbon fiber

Pan: 540° accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270° accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 17 units（240V，50Hz） 1.5mm² power cable; 7 units（100V，60Hz） 1.5mm² power cable

Dimension: 309.5mm×232.5mm×462.3mm

Net Weight: 11kg

Carton Package: 650*535*400mm 2in1 G.W.: 26kg

Flight Case: 825*710*680mm 4in1 G.W.: 86kg

Features: Full light range dimming, 65536-level accuracy; fast strobe 1~25Hz; LED ring control; WASH, beam, and strobe 3in1 effects; Preset multiple color macro functions; Preset multiple effect macro functions; Color temperature 2800-8000K optional

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc
