Beyond IP65 7x40W Mini Bee Eye with Ring

Short Description:

The 740BWR is a powerful, IP65 waterproof LED moving head light for professional applications.

It features 7x 40W RGBW LEDs and a 36x 0.2W RGB LED ring for dynamic circle control effects. A wide 4°-44° zoom range creates versatile washes, sharp beams, and a unique bee-eye effect.

With an IP65 protection rating, 65,536-level dimming, a selectable 2800-8000K color temperature, and RDM support, this light is a reliable and creative tool for any production.

Brand: Beyond

Model: 740BWR

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

740BWR Parameters

Light Source: 7*40W 4 in 1 RGBW LED; 36*0.2W 3in1 RGB LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 250W±5%

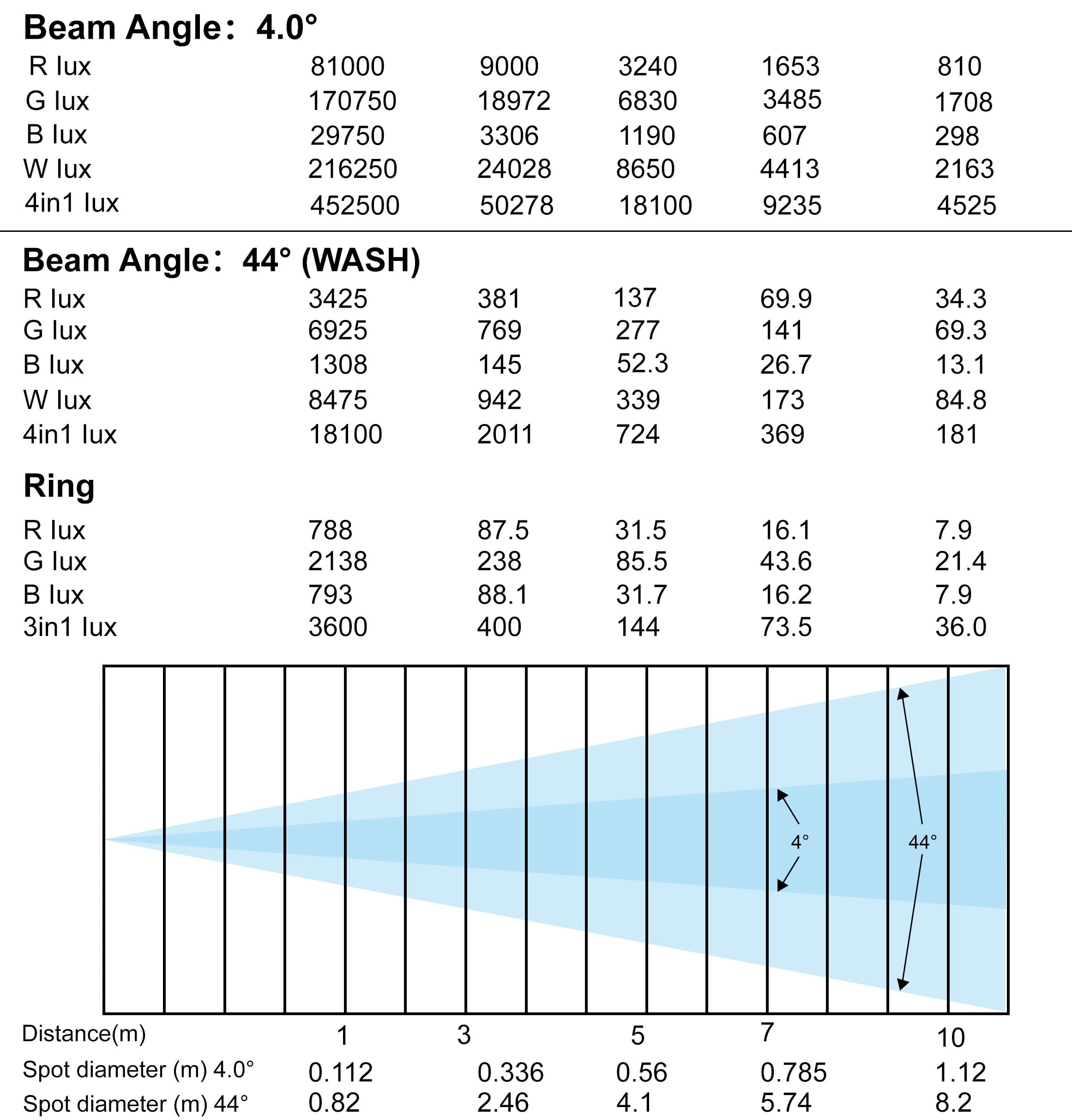

Beam Angle: 4°-44°

Control Modes: DMX512/ Auto/ Sound/ Master-Slave/ Manual/ RDM/ ArtNet (optional)

DMX Channel: 21/ 25/ 27/ 36/ 51/ 28 Channel

Protection Rating: IP65

Display: TFT1.8 Display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: Aluminum + flame-retardant black carbon fiber

Pan: 540° accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270° accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 17 units（240V，50Hz） 1.5mm² power cable; 7units（100V，60Hz） 1.5mm² power cable

Dimension: 341mm×220mm×462.4mm

Net Weight: 11.3 kg

Carton Package: 650*535*400mm 2in1 G.W.: 26.5 kg

Flight Case: 790*710*670mm 4in1 G.W.: 89 kg

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz. Single control of the LED. Triple effects of WASH, beam, and bee eye. Preset multiple macro-color and macro-effect functions. Color temperature 2800-8000K can be freely selected.

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc
