Beyond IP65 19×40W MINI Bee Eye Zoom

Short Description:

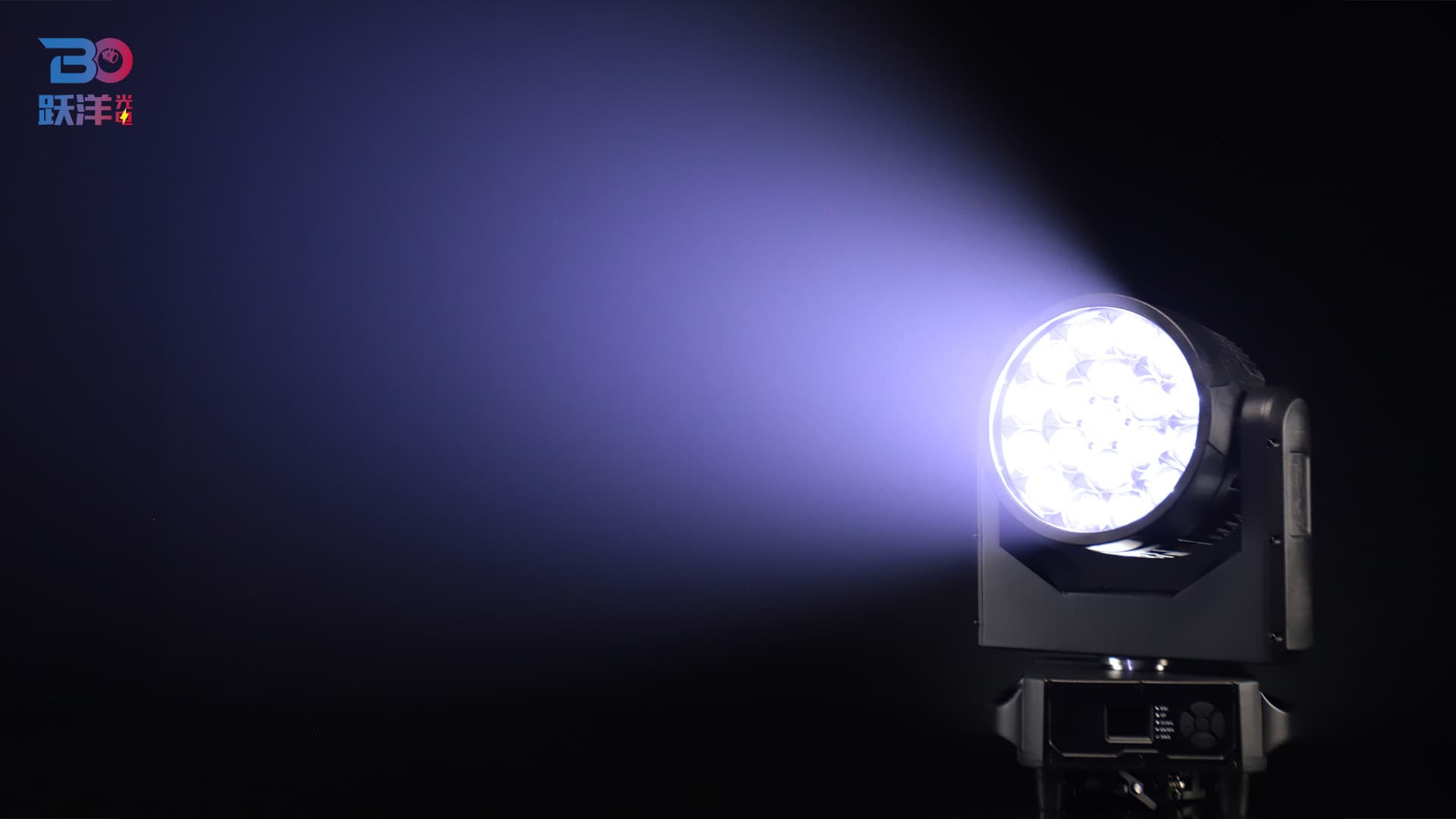

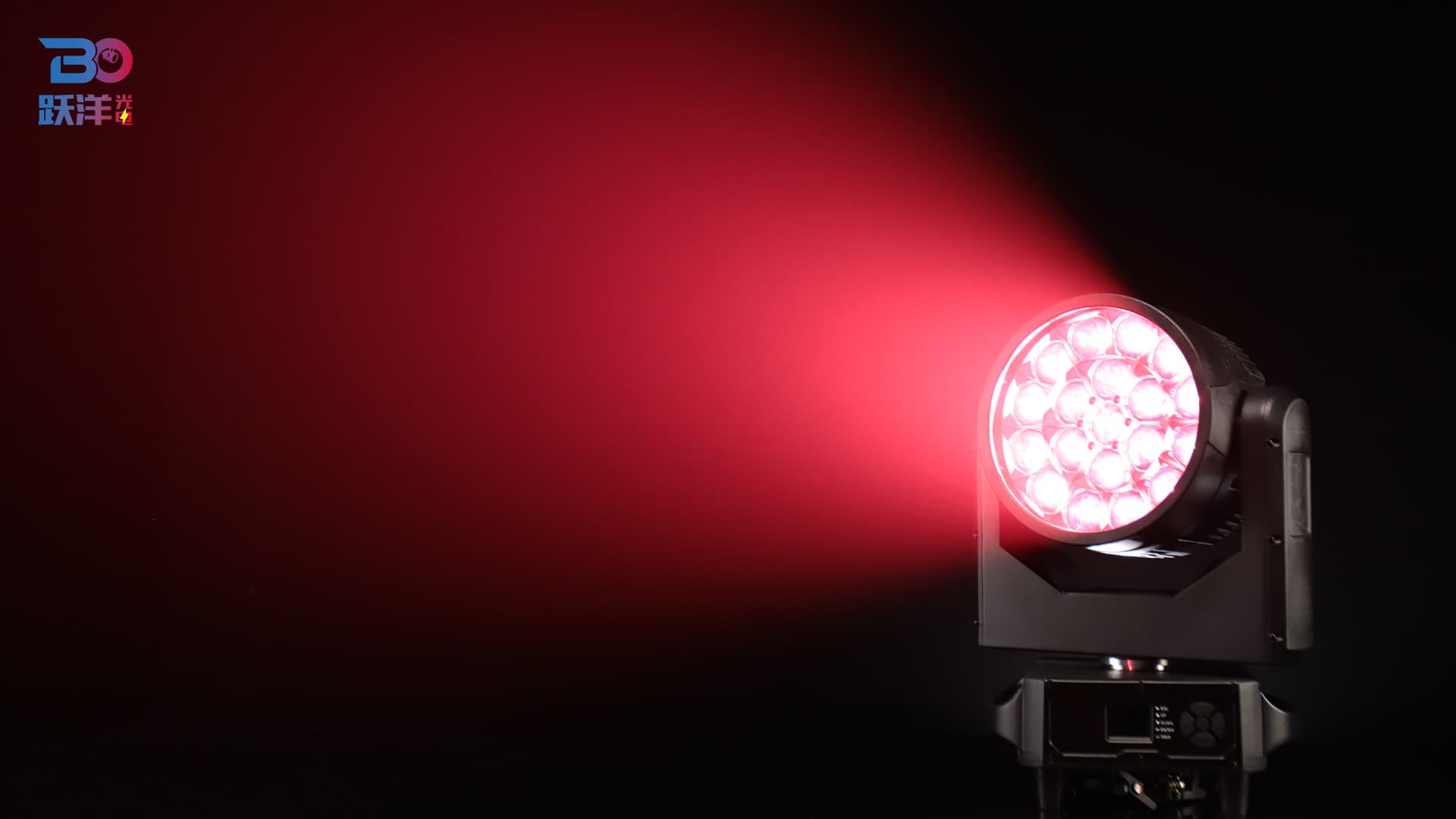

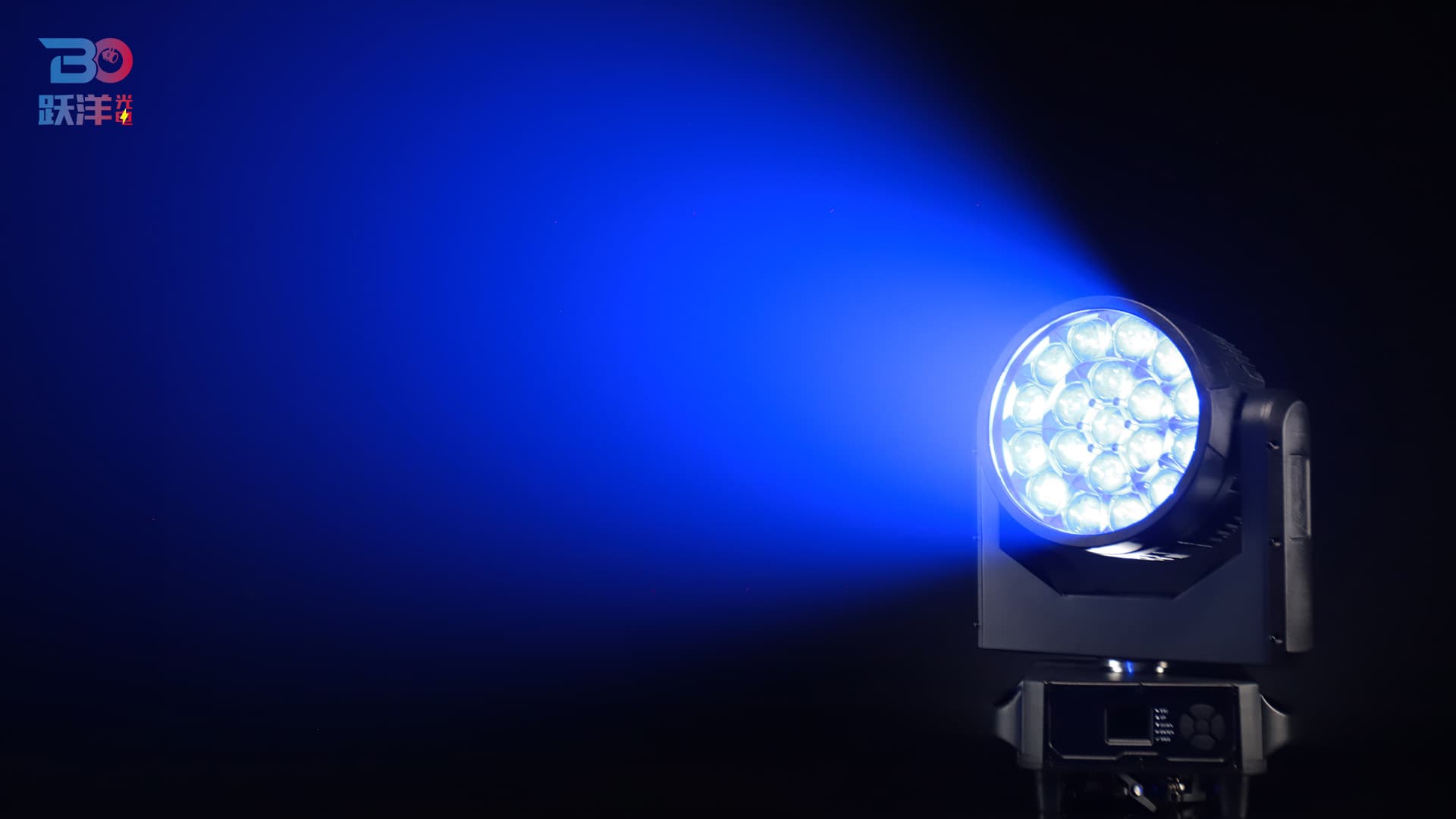

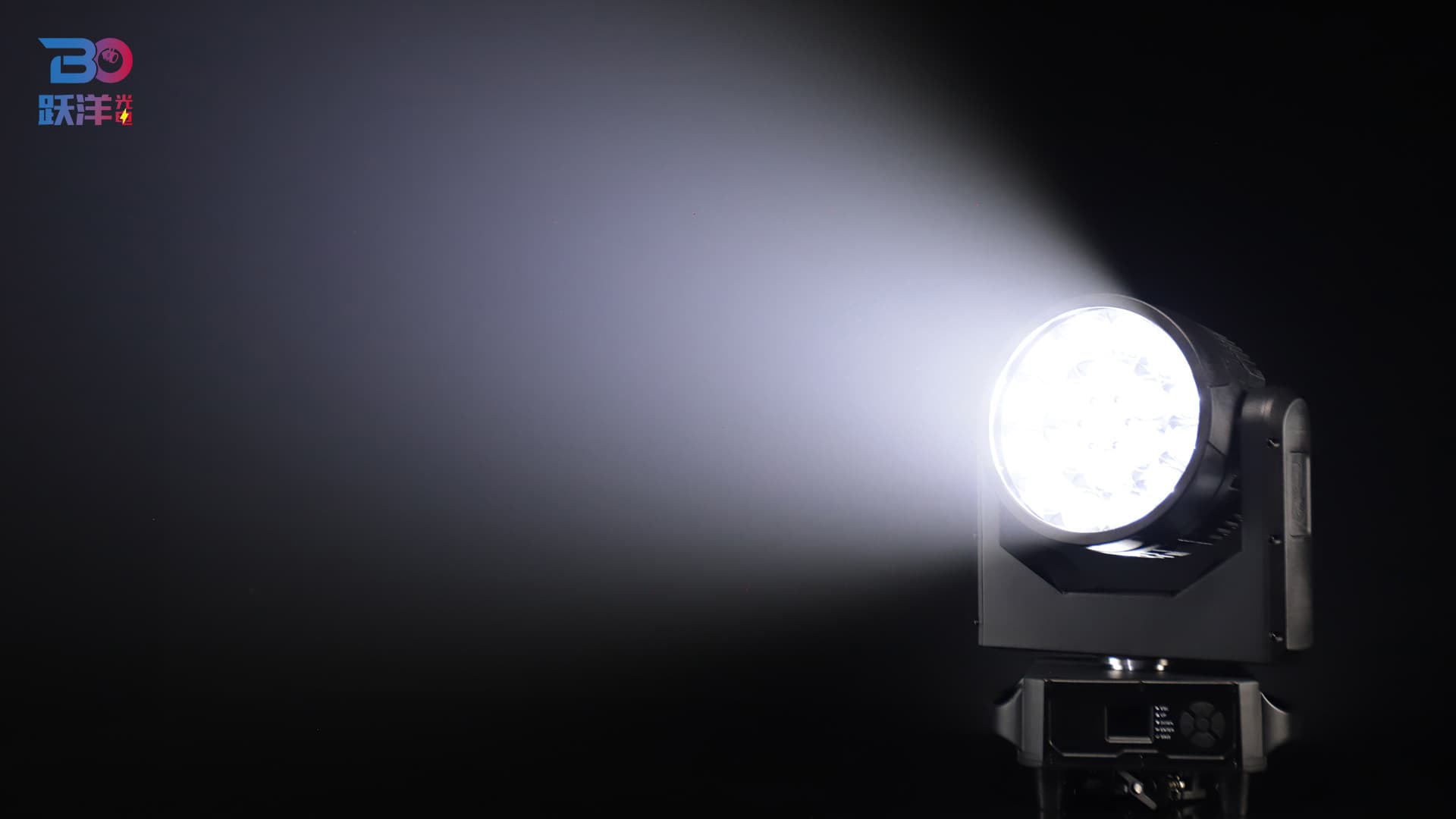

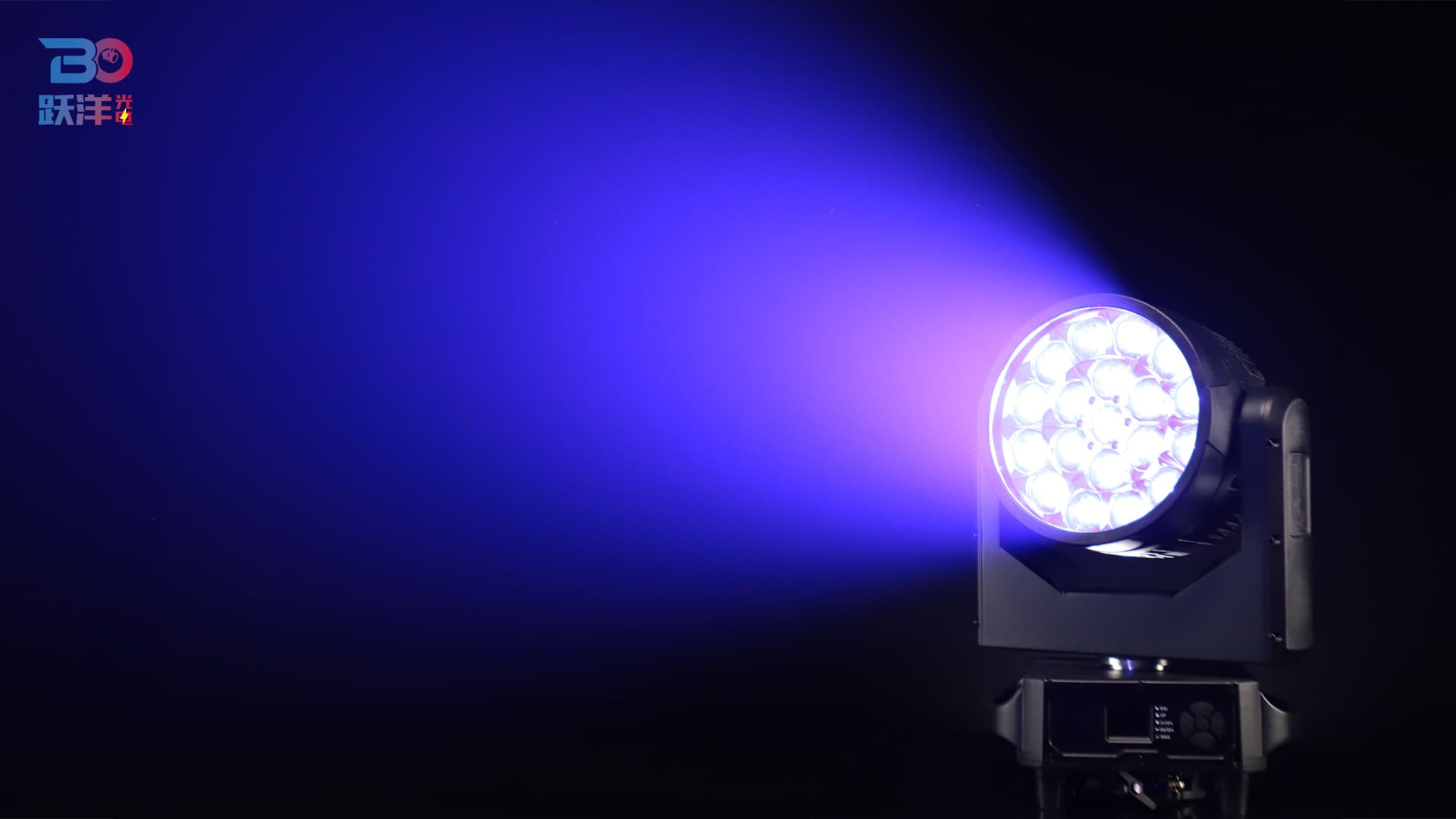

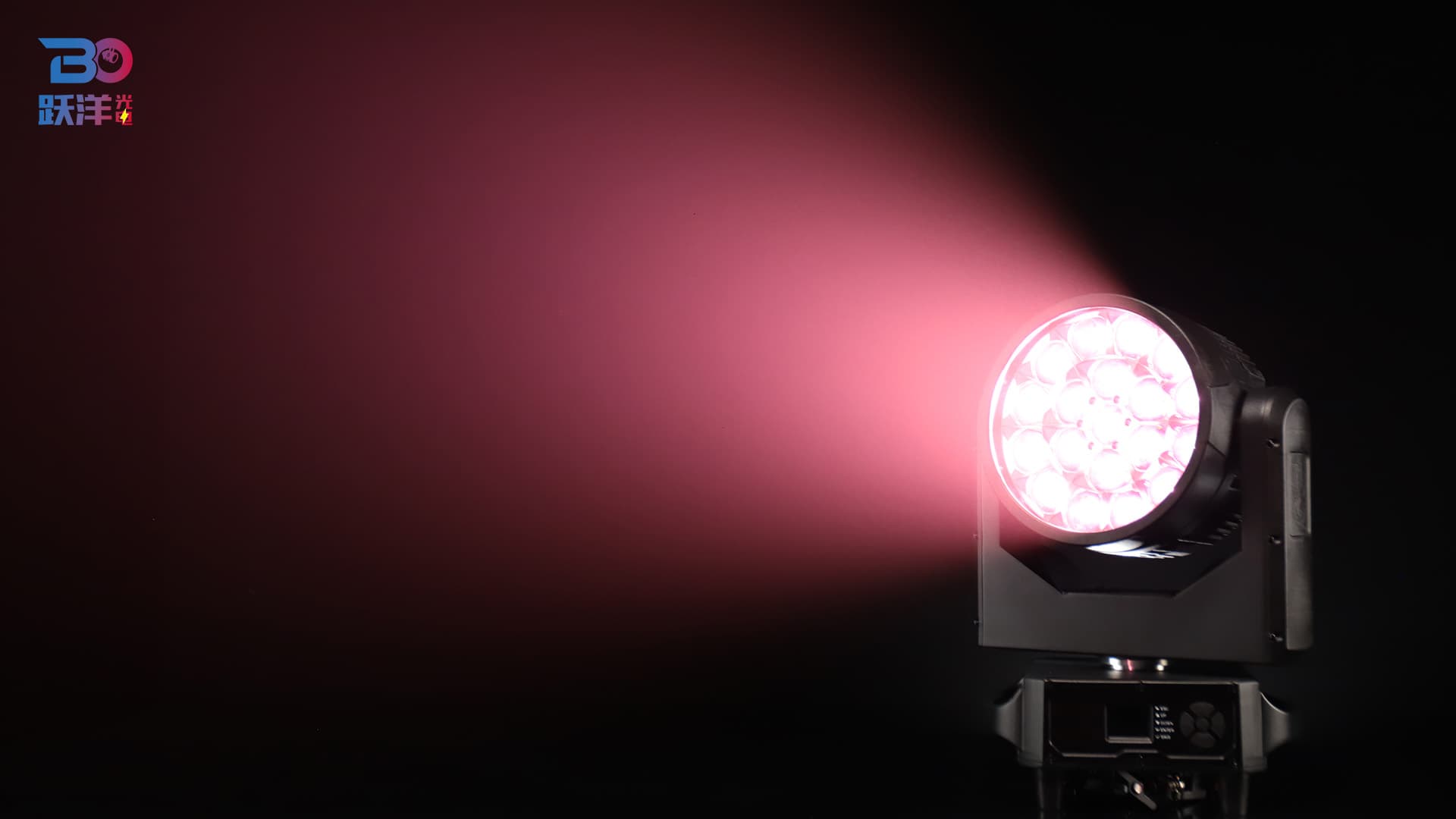

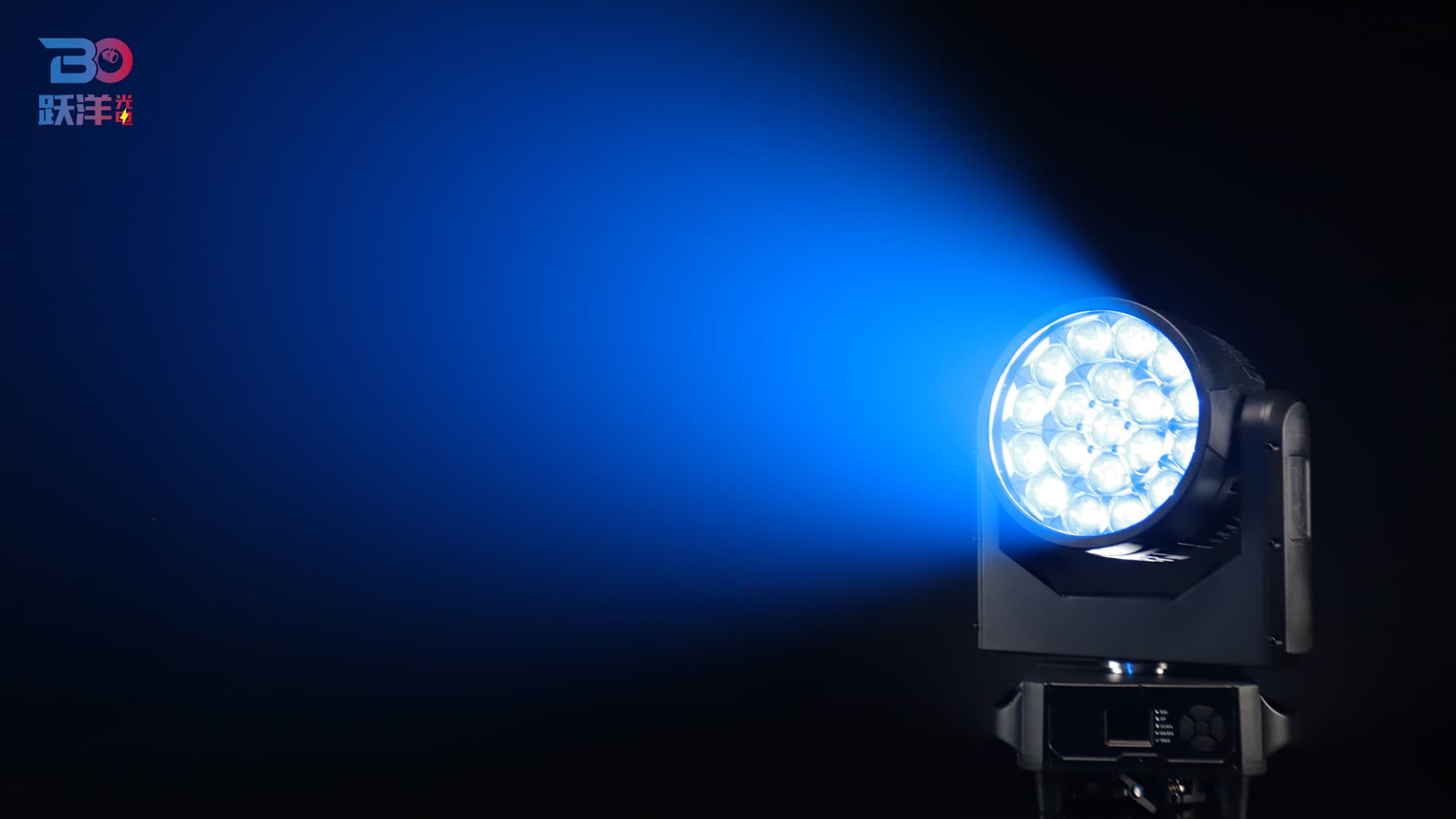

Unleash powerful lighting effects with the 1940B MINI IP, a high-performance IP65 waterproof 3-in-1 LED moving head light.

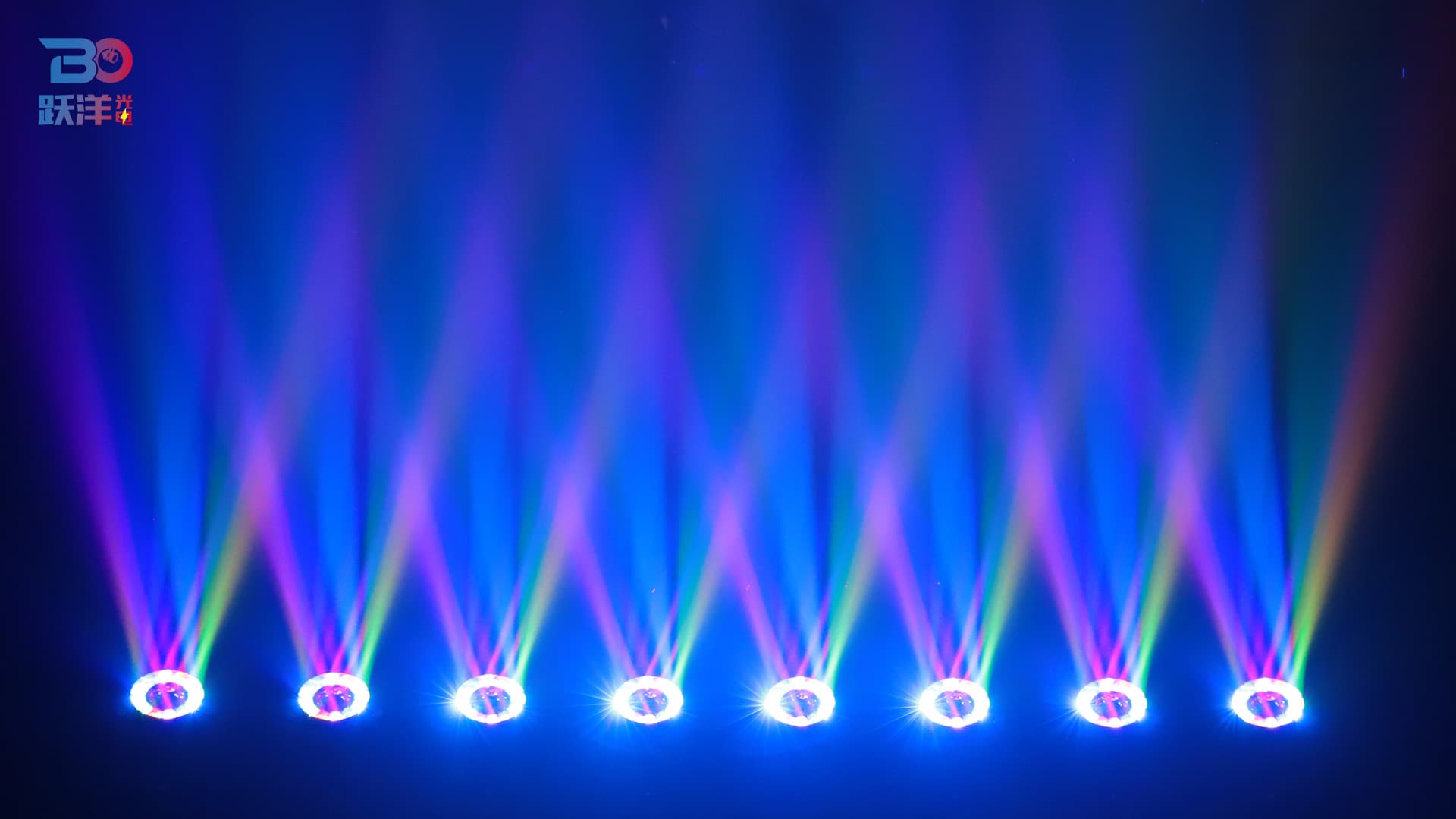

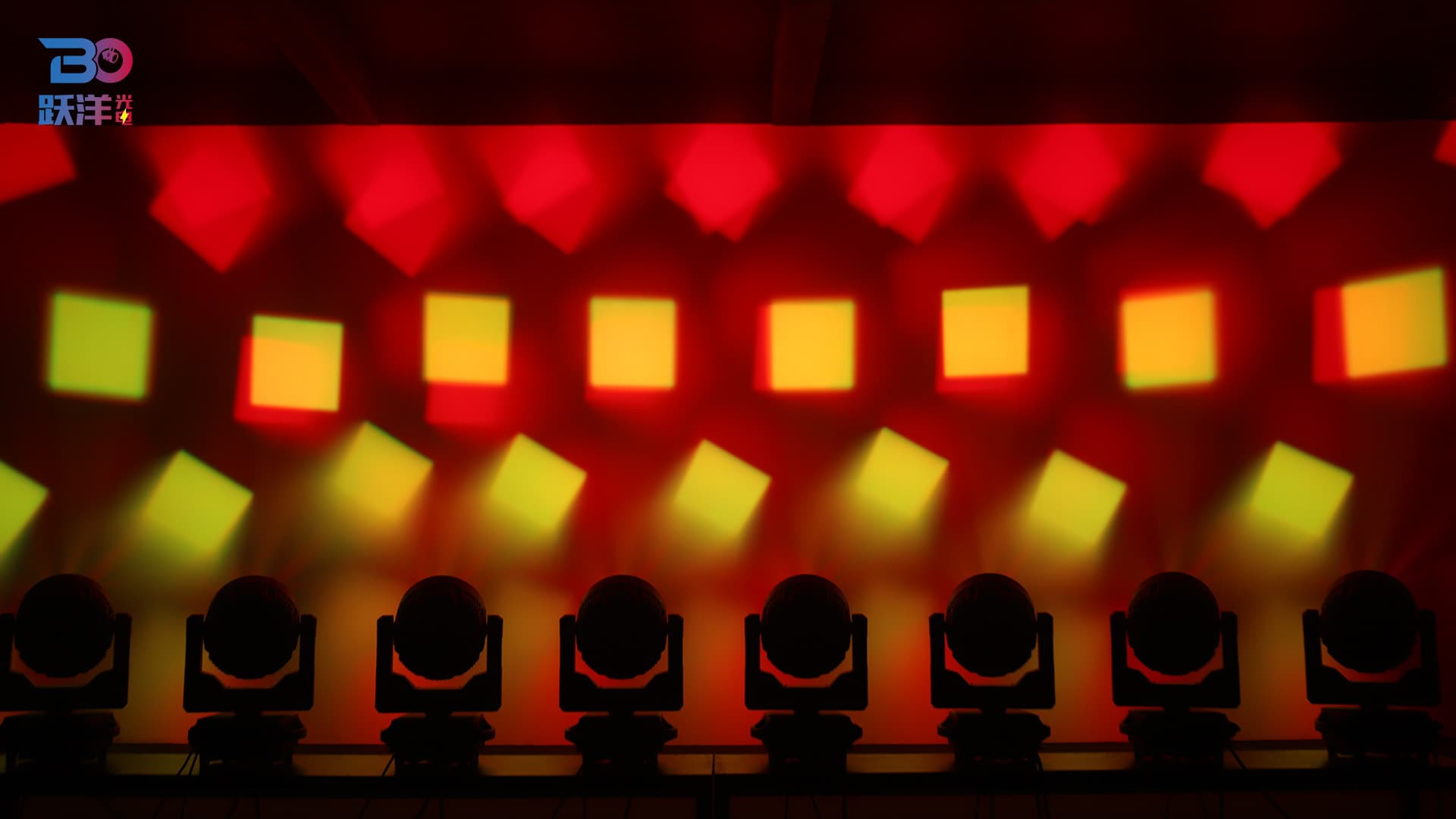

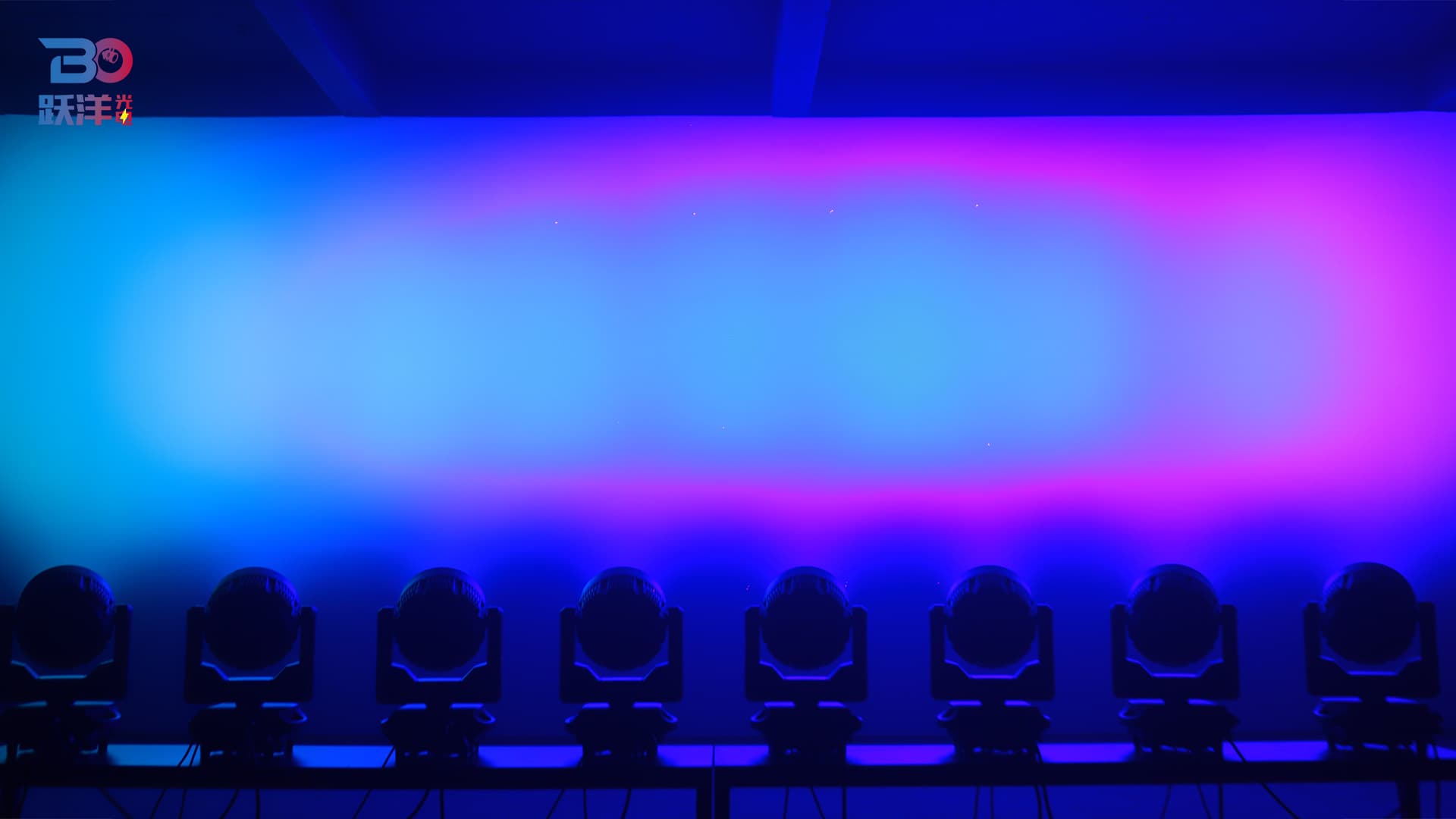

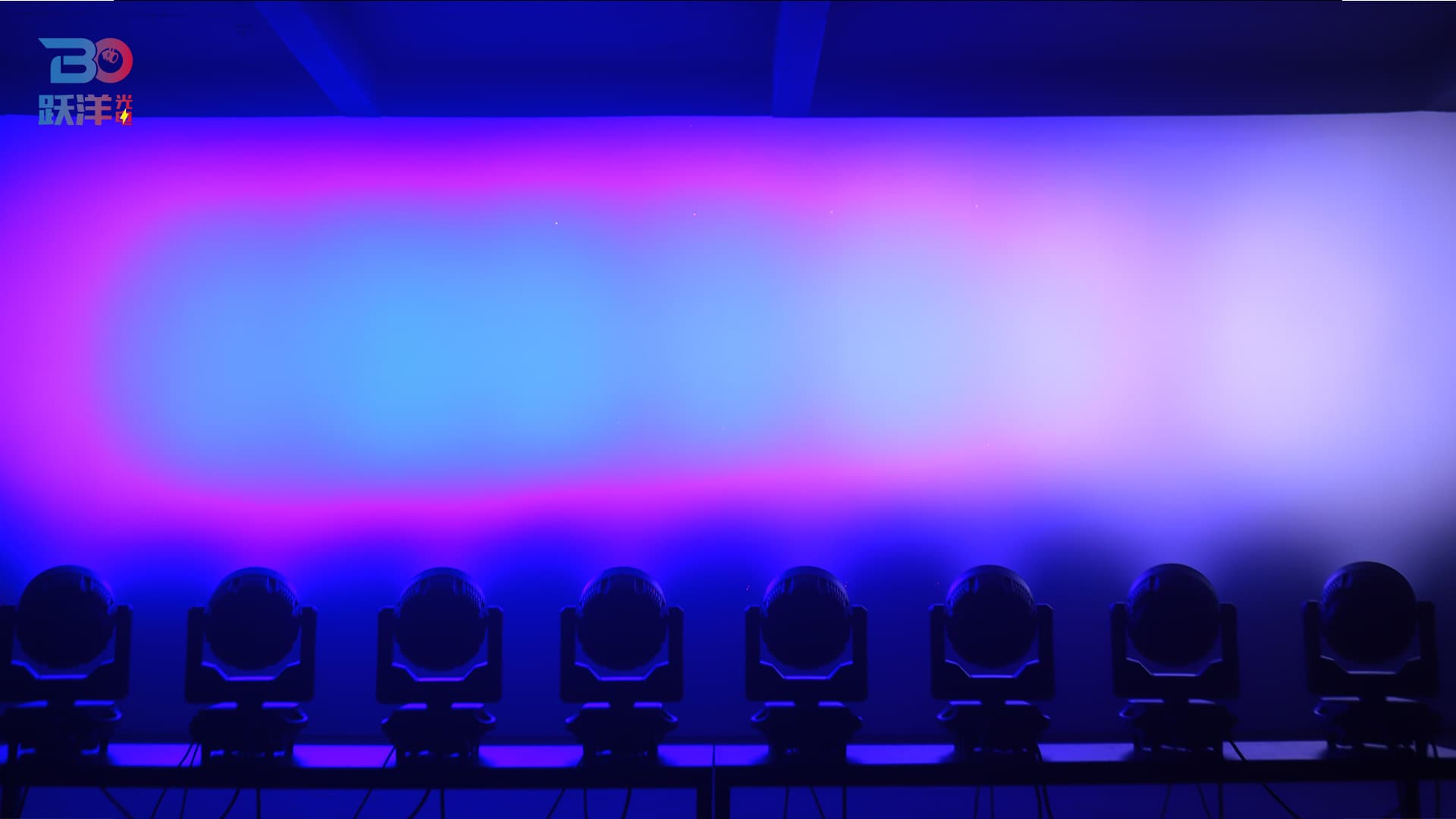

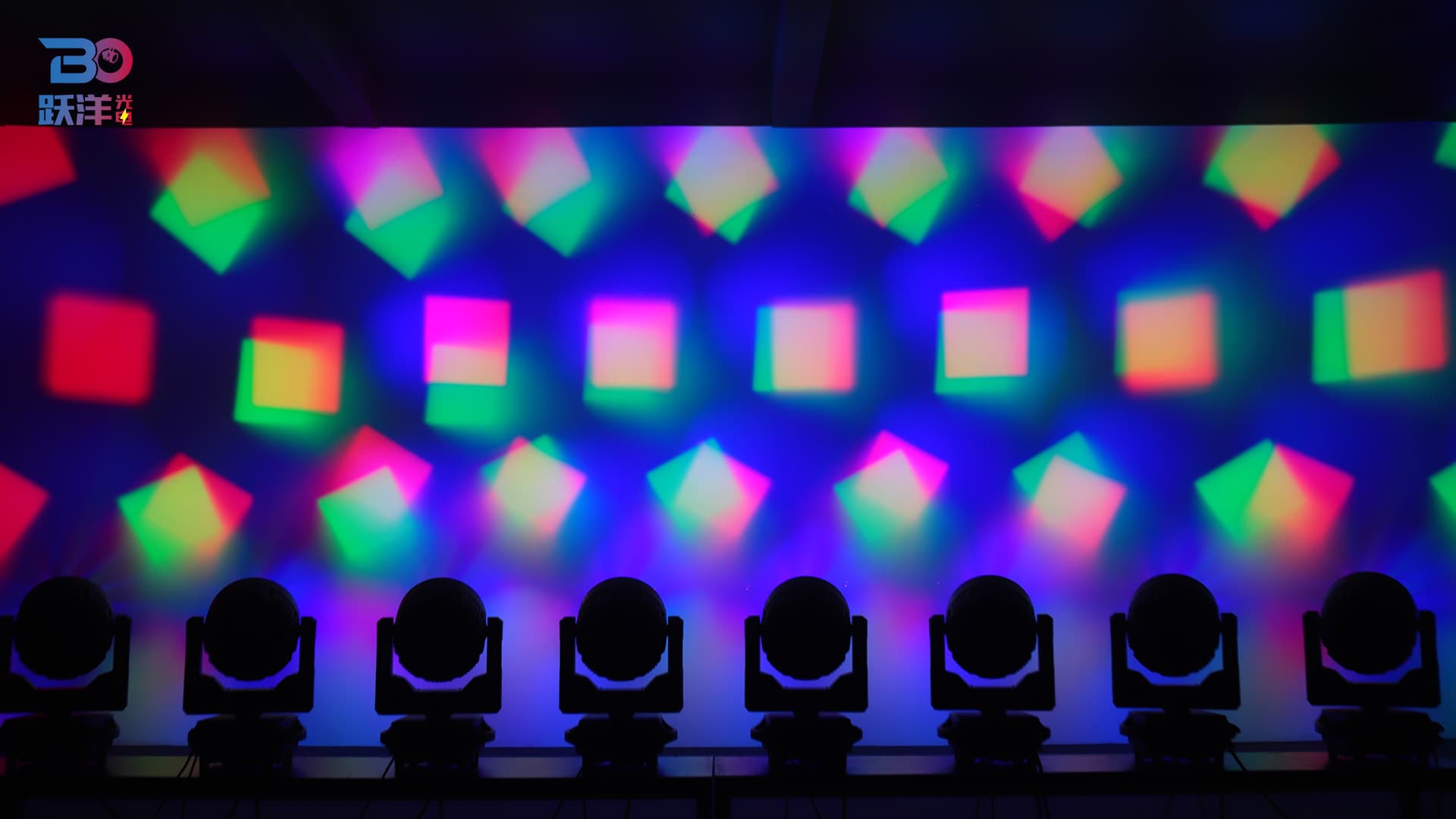

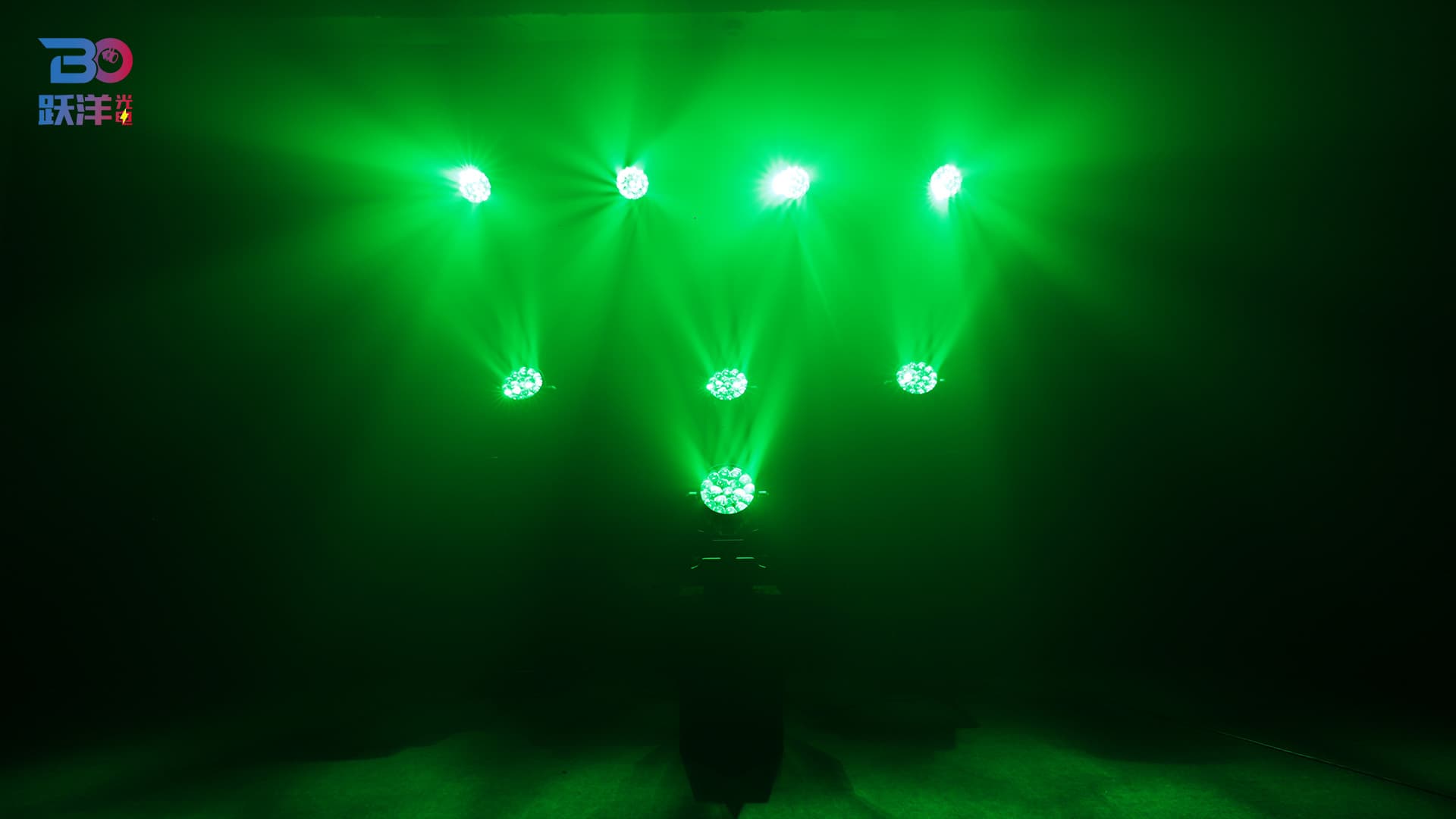

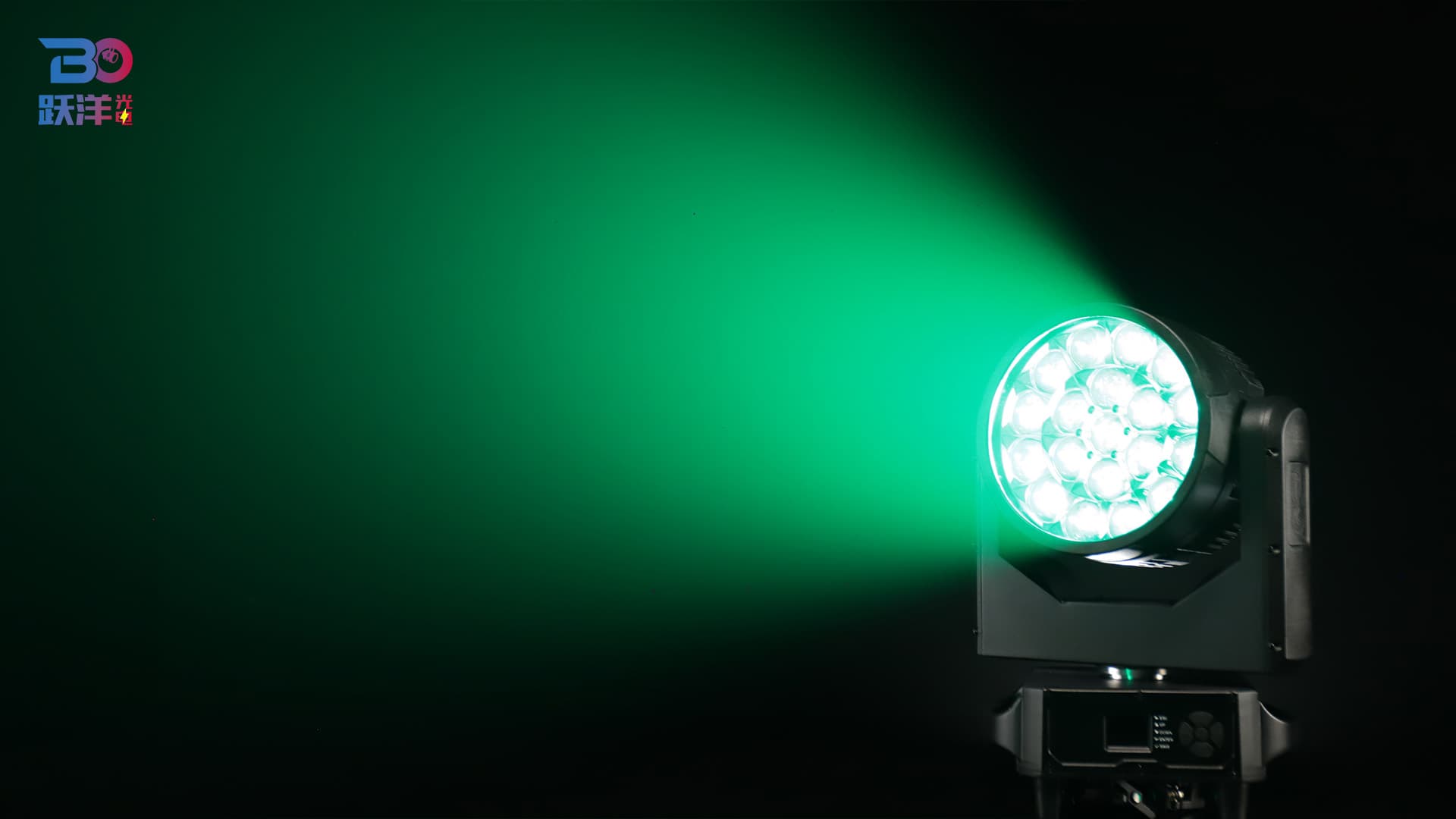

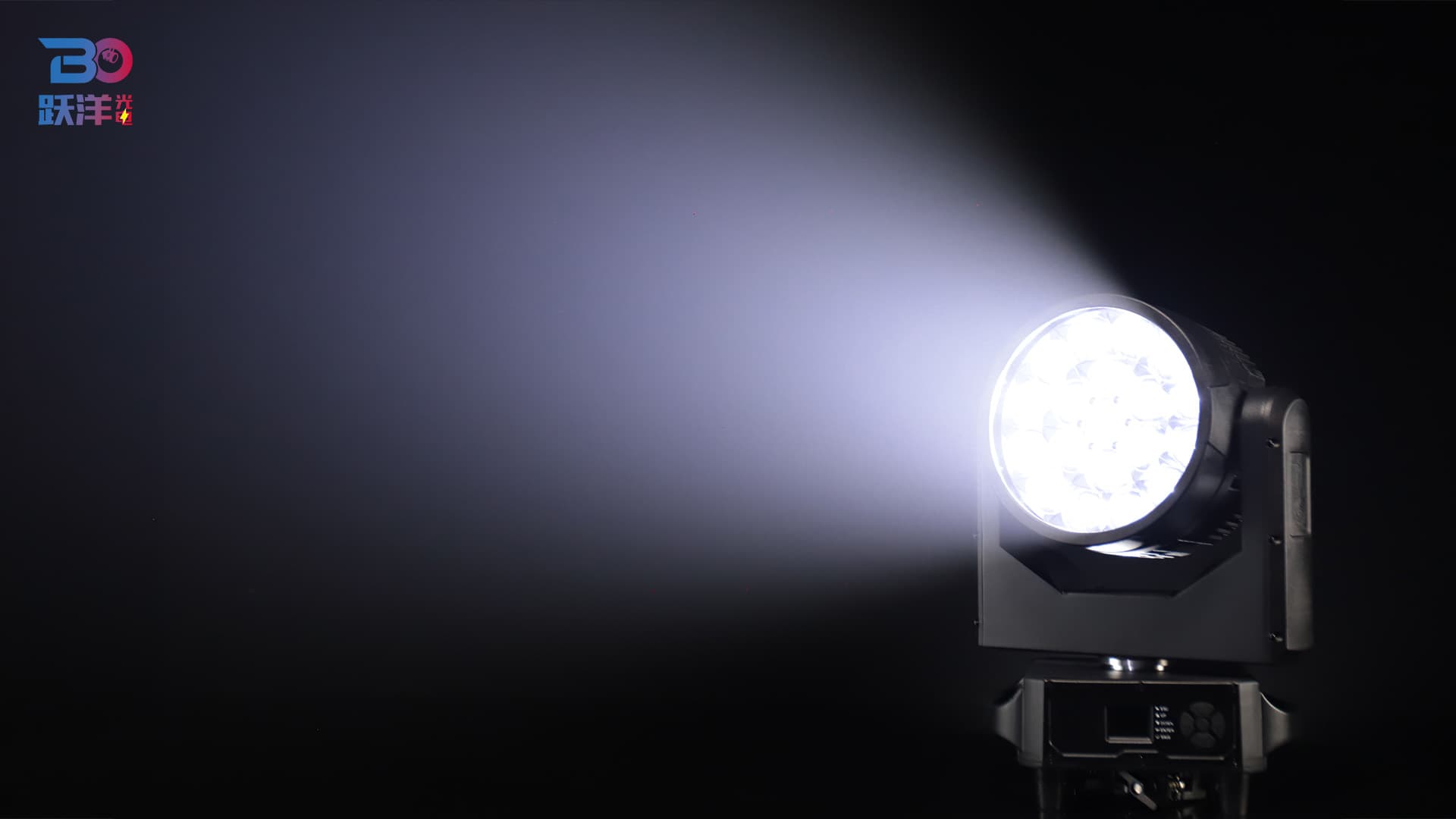

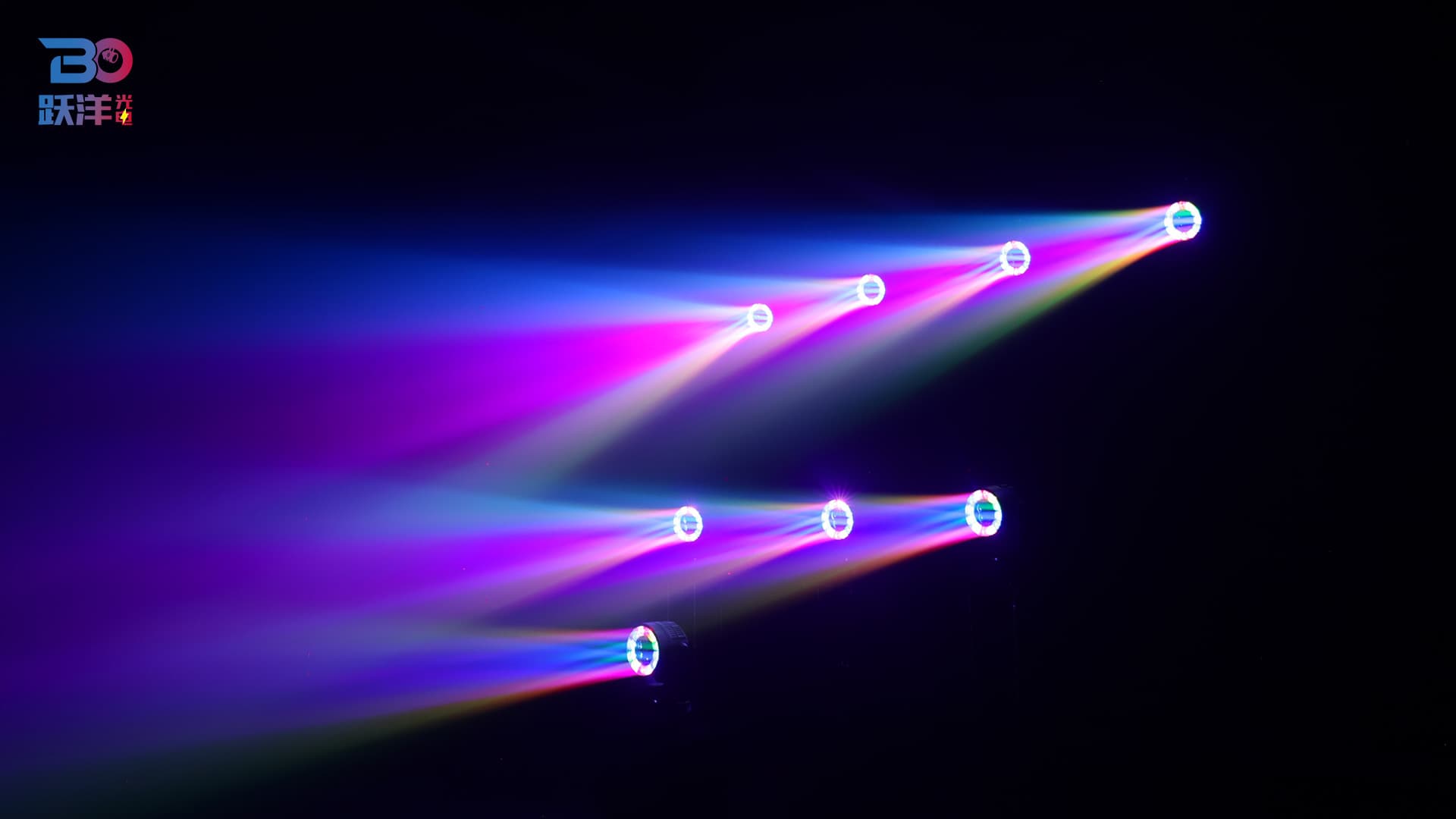

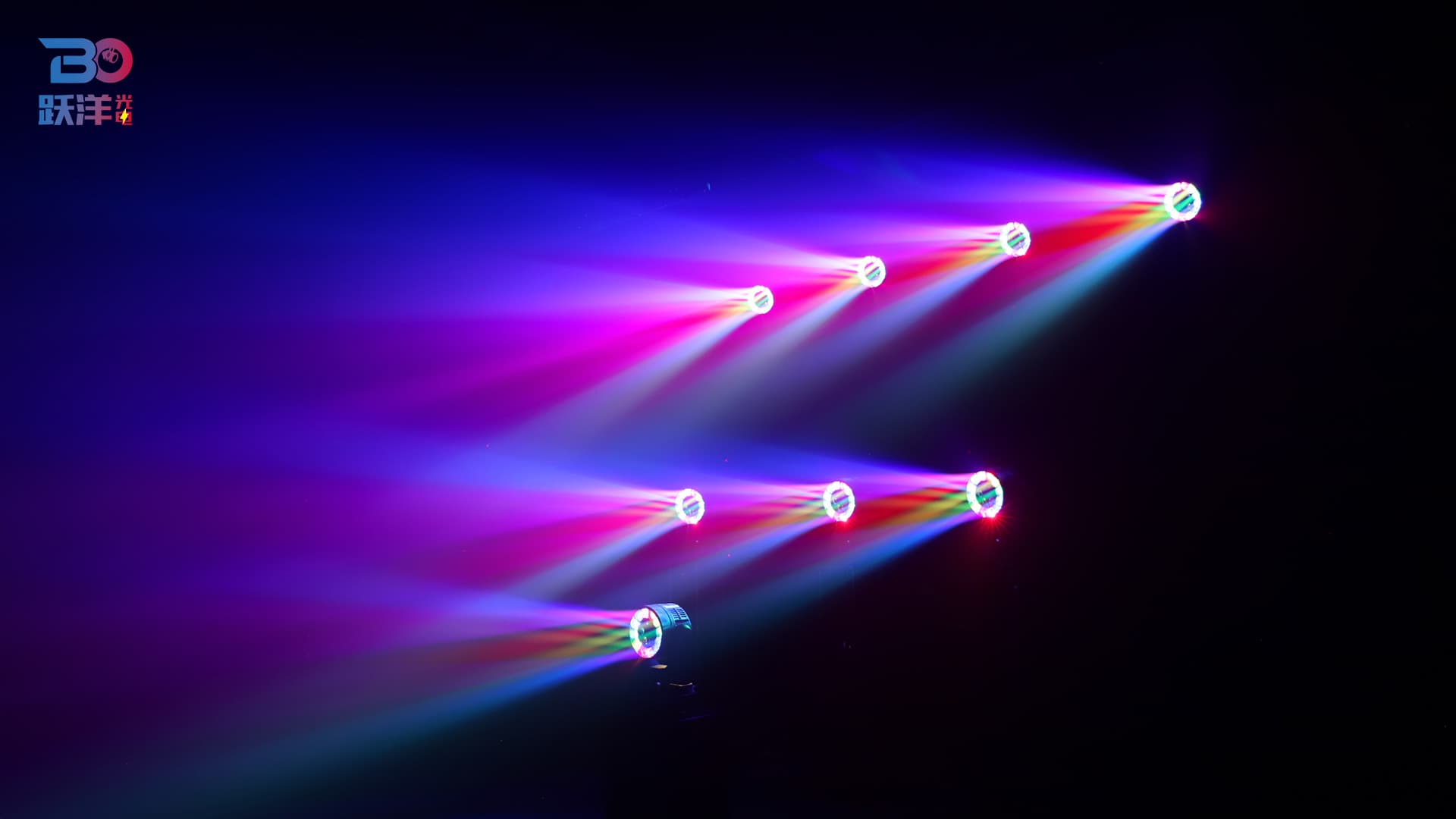

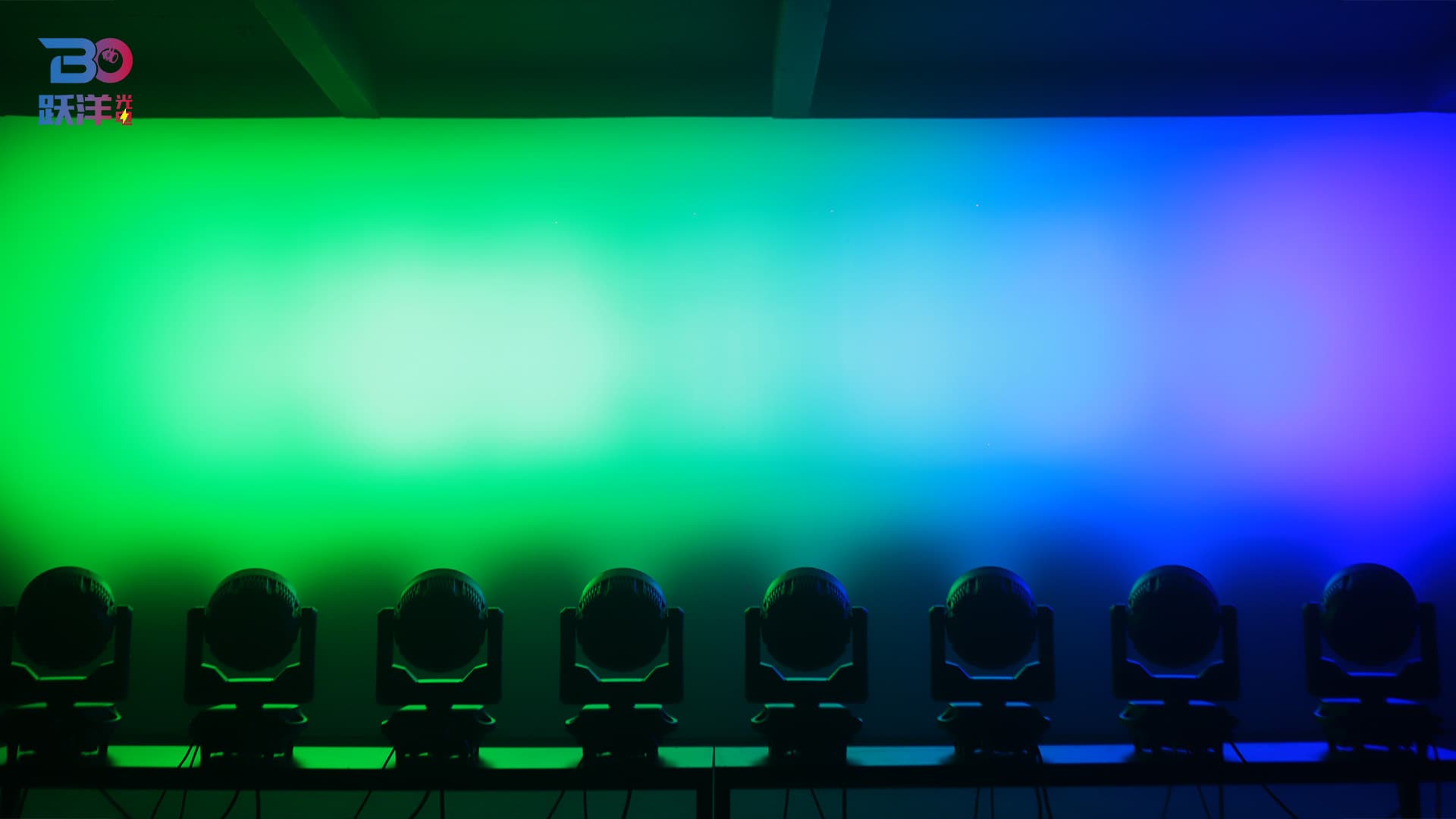

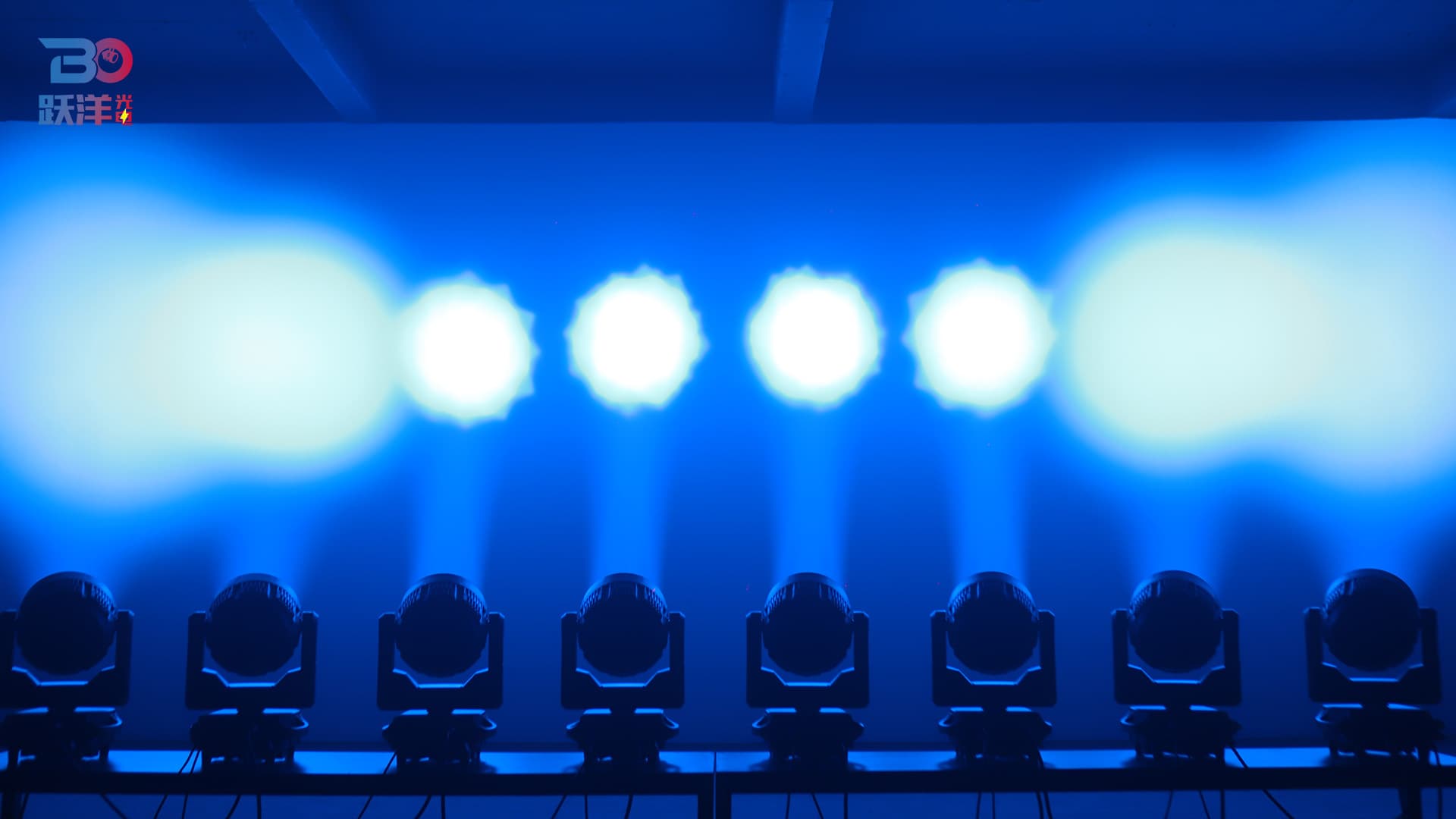

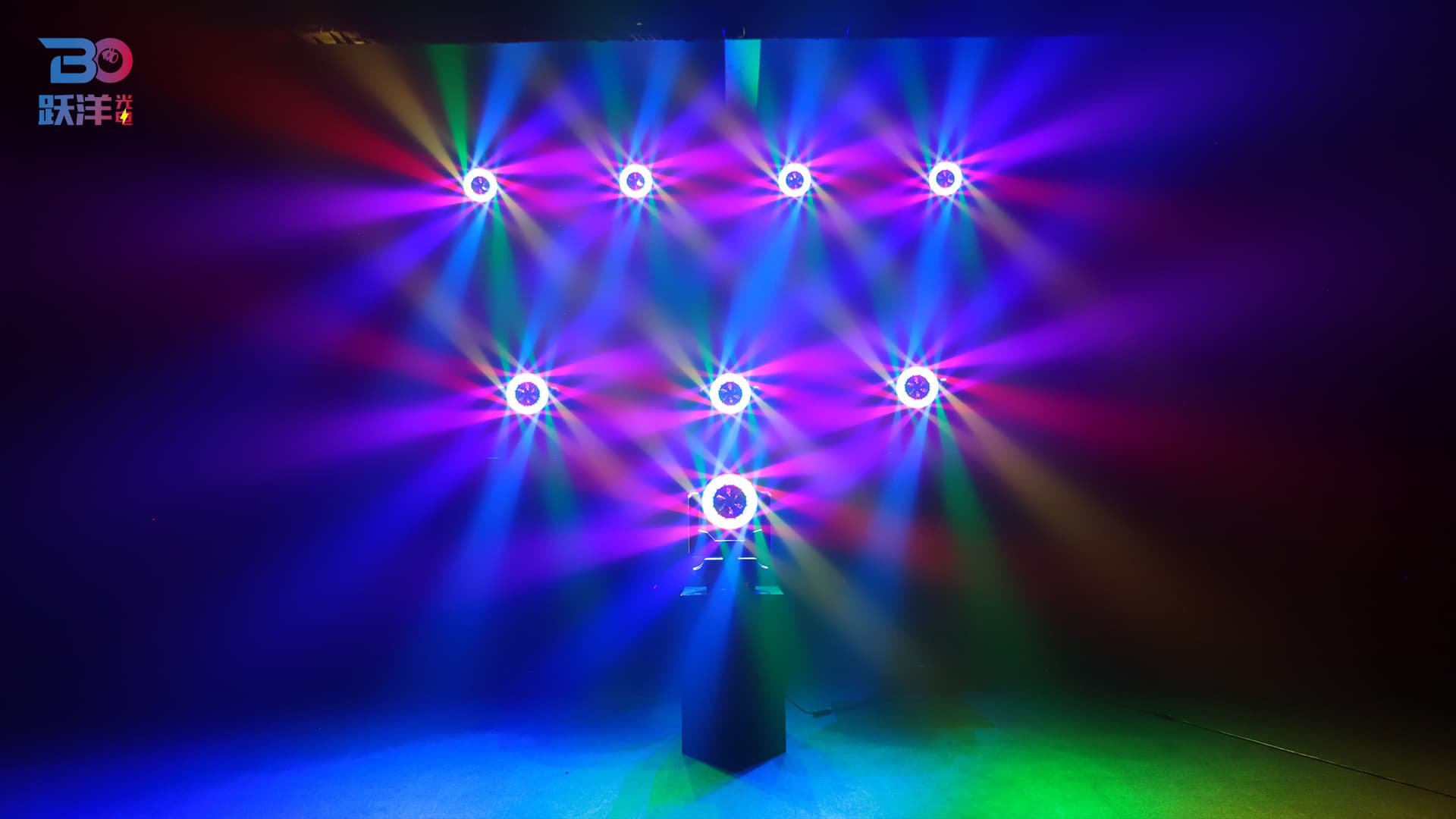

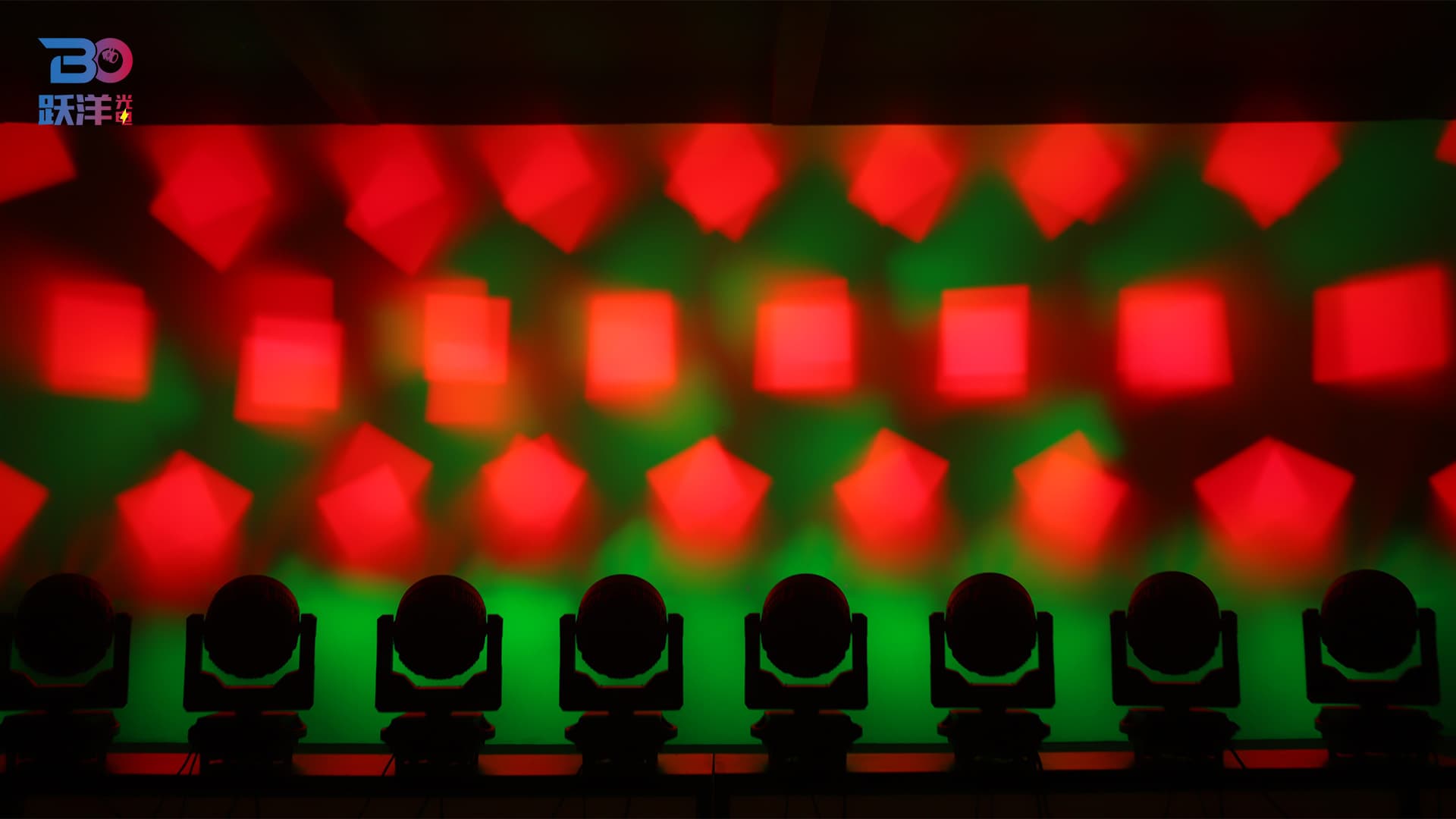

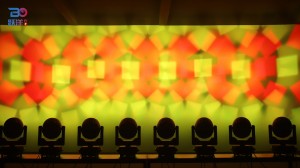

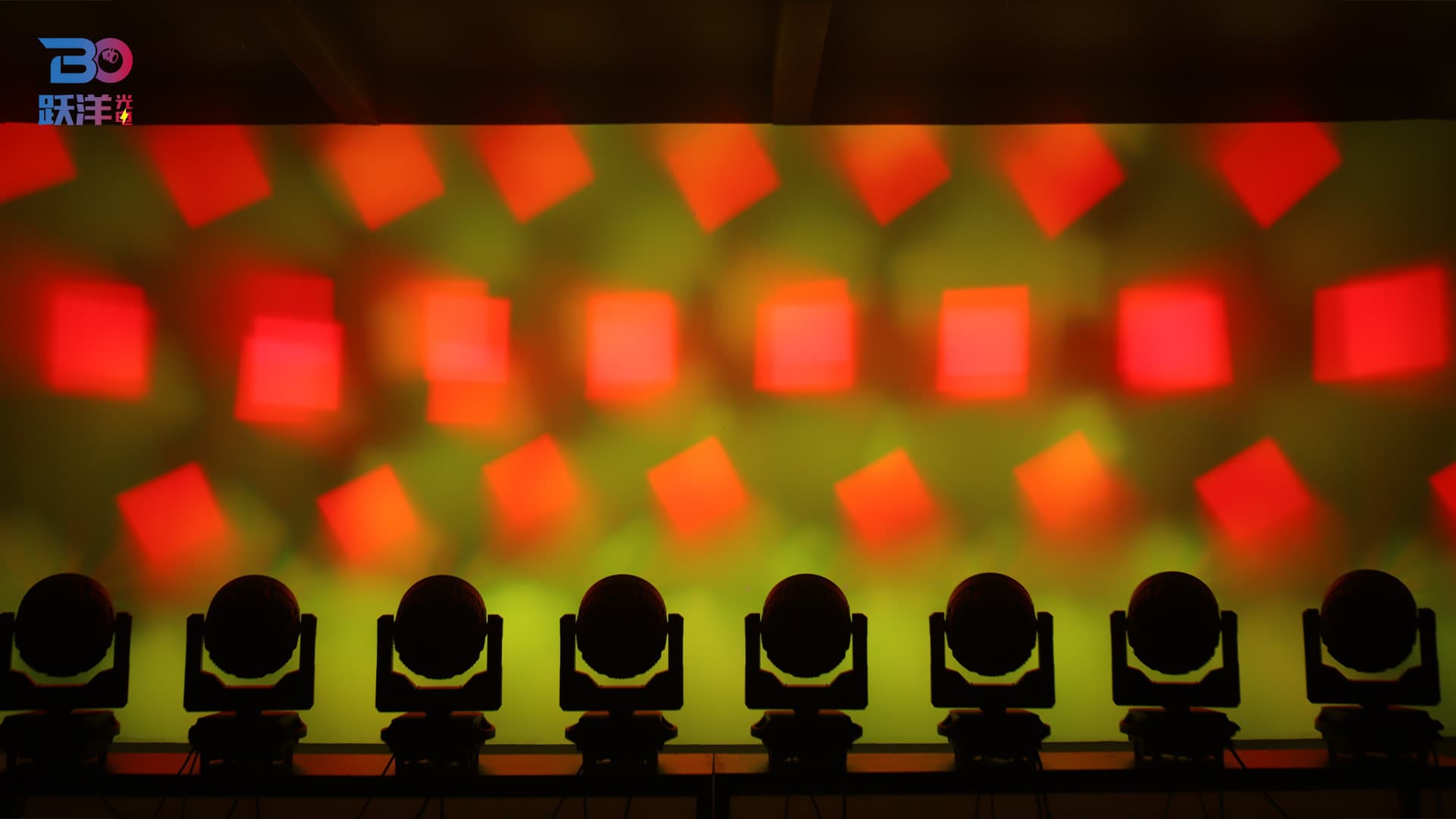

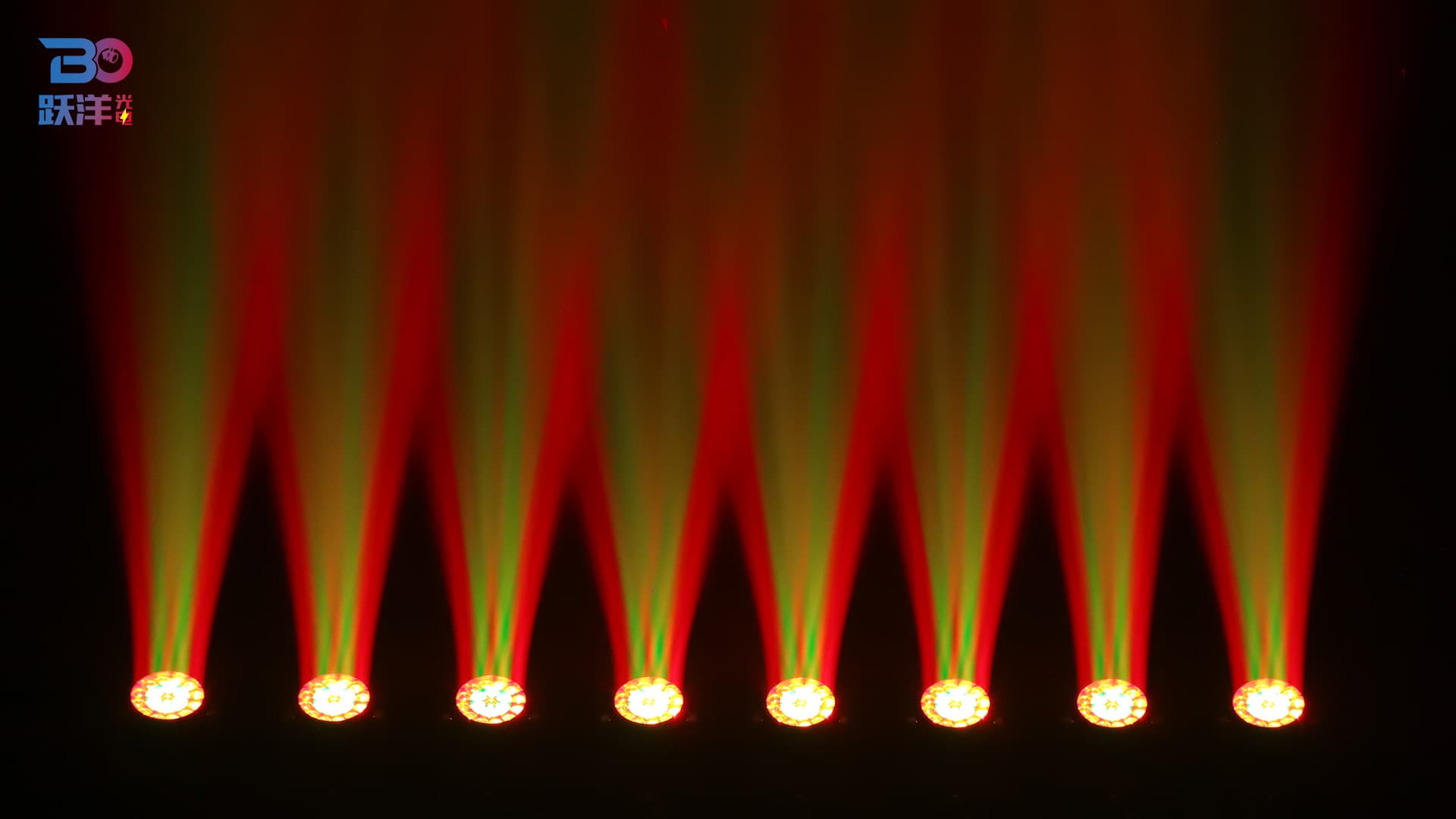

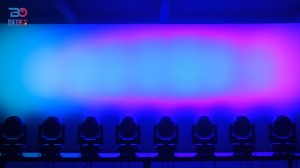

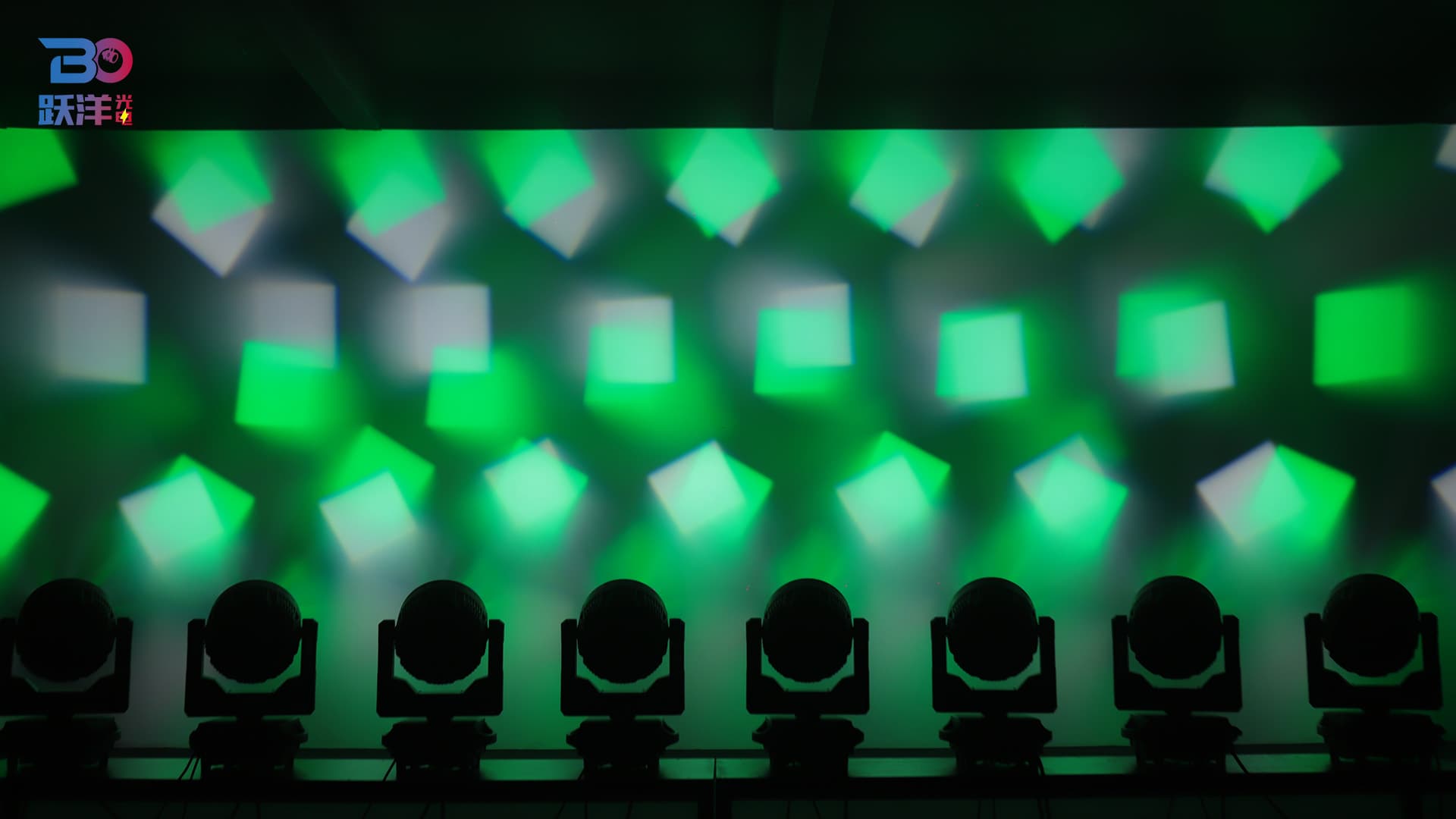

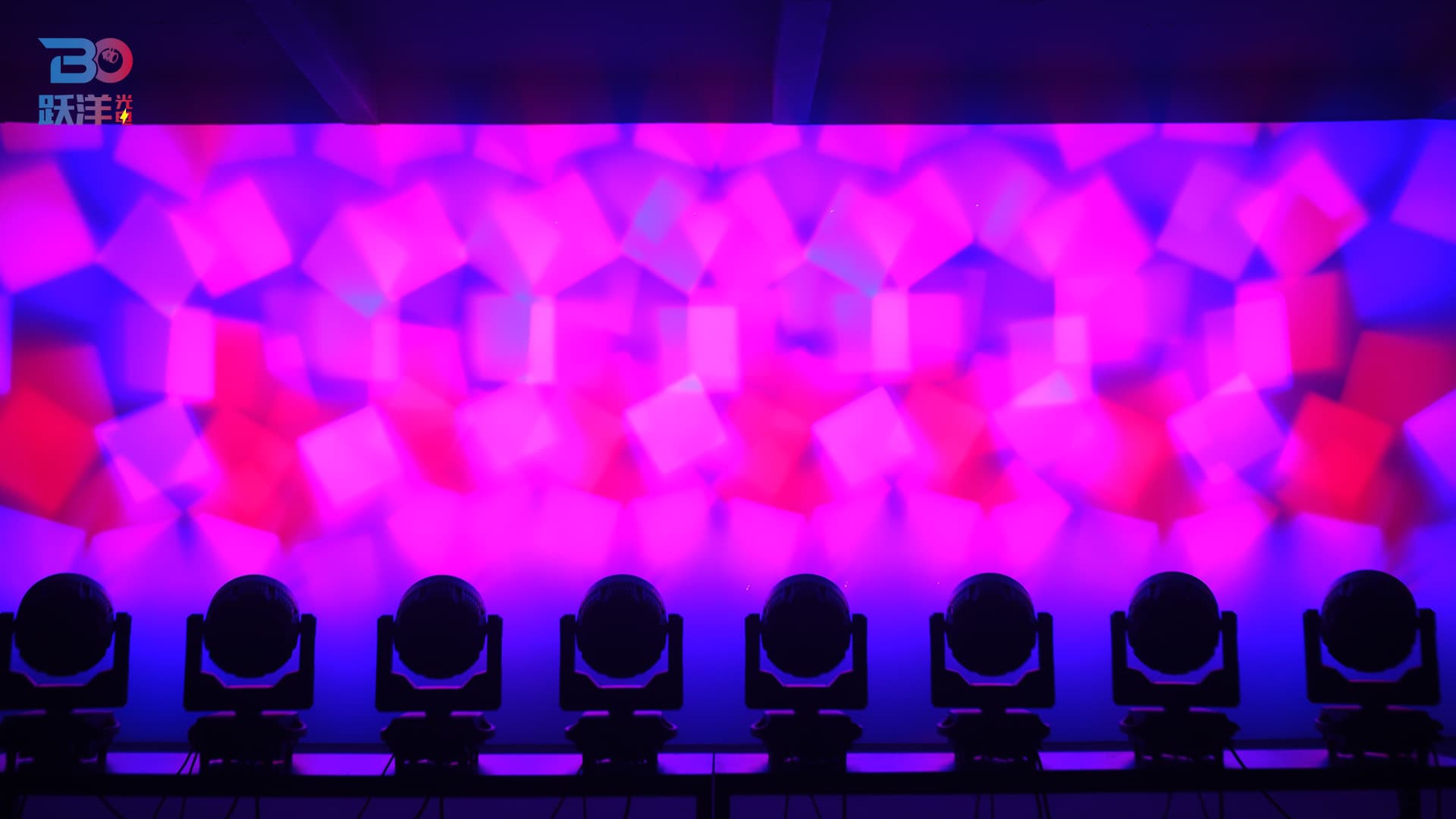

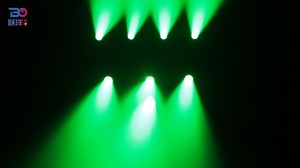

This versatile fixture combines WASH, Beam, and Bee Eye effects in one compact unit. Powered by 19x 40W 4-in-1 RGBW LEDs, it offers a lifetime of over 50,000 hours and a wide 3.5°-48° beam angle, allowing you to effortlessly transition from sharp, focused beams to broad, soft washes.

Brand: Beyond

Model: 1940B MINI IP

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

Beyond 1940B MINI IP Video

Beyond 1940B MINI IP Parameters

Light Source: 19*40W 4 in 1 RGBW LED (W-Ra≥88)

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V，50-60Hz

Power Consumption: 650W

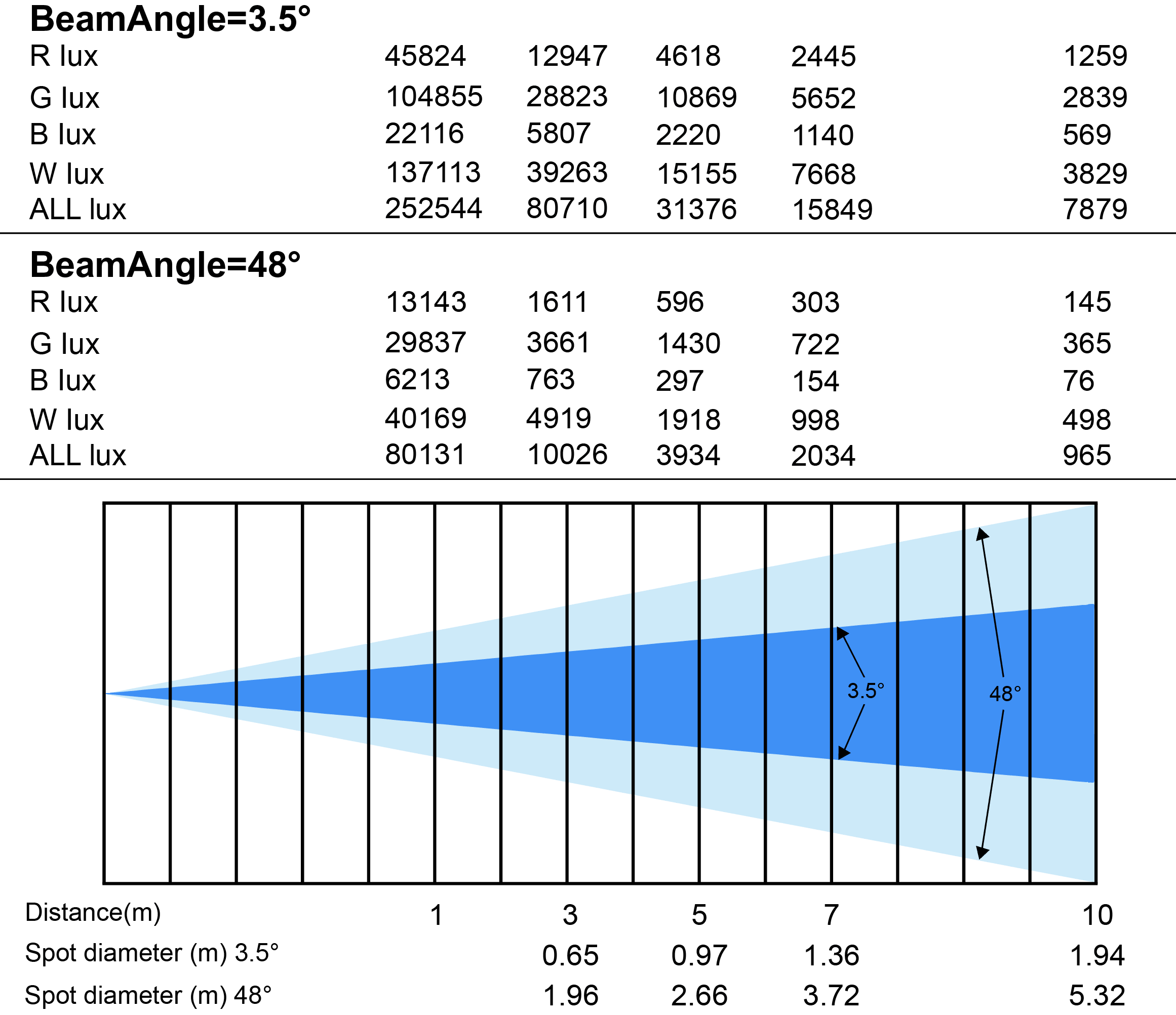

Beam Angle: 3.5°-48°

Control Modes: DMX512 \ Auto \ Sound \ Master \ Manual \ RDM \ ArtNet(Optional)

DMX Channel: 21/ 23/ 35/ 78/ 92/ 97/ 99 /76(DMX+ArtNet) Channel

Protection Rating: IP65

Display: TFT 1.8-inch Display

Data In/Out Socket: IP65 3-pin XLR sockets

Power Socket: IP65 Power-Con in/ out

Housing Material: Die casting + flame-retardant black carbon fiber

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 5 units（240V，50Hz） 2.5mm² power cable; 3 units（100V，60Hz） 2.5mm² power cable

Dimension: 341*250*463 mm

Net Weight: 14kg

Carton Package: 58*37*45cm 1in1 GW: 17kg

Flight Case: 83*74*67cm 4in1 GW: 96kg

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz.LED single control; three-in-one effects of WASH, Beam, and Bee Eye; Preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc
