6x40W Bee Eye Wash Mini LED Moving Head

Short Description:

640B mini bee eye moving head is a wash mini LED moving head. This compact design but powerful wash moving head with 6 x 40W infinite rotating RGBW LED sources. The motorized zoom is 3.5- 45 degrees. Each individual LED can be controlled independently, allowing for kaleidoscope effects. The net weight is only 6KG, which is very convenient for installation and transportation.

From the internal structure, it has a three-phase motor and a high-speed silent fan, which can run smoothly. 640B mini bee eye moving head has a built-in temperature control protection system, and its housing is made of ABS high-temperature heat-resistant plastic.




  • Brand: Beyond
  • Model: 640B
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

    6x40W Bee Eye Wash Mini LED Moving Head

    Beyond 640B Technical Parameters

    Light Source: 6*40W 4 in 1 RGBW LED

    LED Lifetime: ≥ 50000H

    Power Voltage: AC100-240V, 50- 60Hz

    Power Consumption: 220W

    Beam Angle: 3.5°-45°

    Control Modes:  DMX512/ Auto/ Sound/ Master/ Manual/ RDM

    DMX Channel: 21/ 24/ 32/ 60 Channel

    Protection Rating:  IP20

    Display: LCD 0802 Display

    Data In/Out Socket: 3-pin XLR sockets

    Power Socket:  Power-Con in/ out

    Housing Material:  ABS High temperature resistant plastics

    Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

    Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

    Pan/Tilt Resolution: Automatically correct pan/tilt position

    MAX. Connection: 12 units(240V,50Hz) 1.5mm²  power cable; 6 units(100V,60Hz) 1.5mm²  power cable

    Dimension: 258mm*178mm*334mm

    Net Weight: 5.68kg

    Carton Package: 310*230*420mm  1in1  GW: 7kg; 655*495*445mm  4in1  GW: 28.5kg

    Flight Case: 620*585*655mm  4in1  GW: 49.5kg;

    Features:  Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25Hz. Single control of LED. three-in-one effects of wash, beam, and bee eye. preset multiple color macro and effect functions

    Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;

    640B线条图

    Beyond 640B LUX

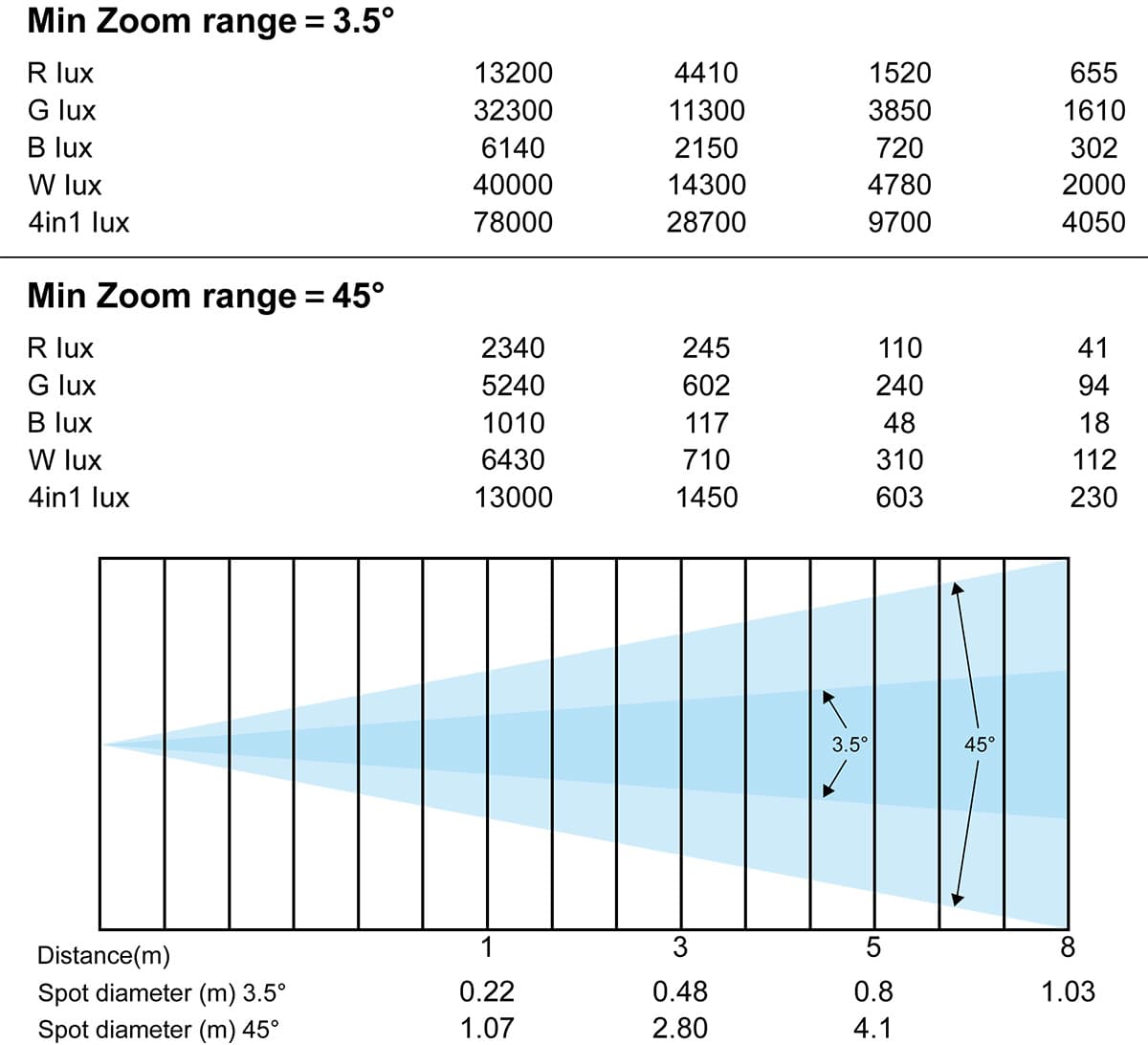

    Beyond 640B LUX Data

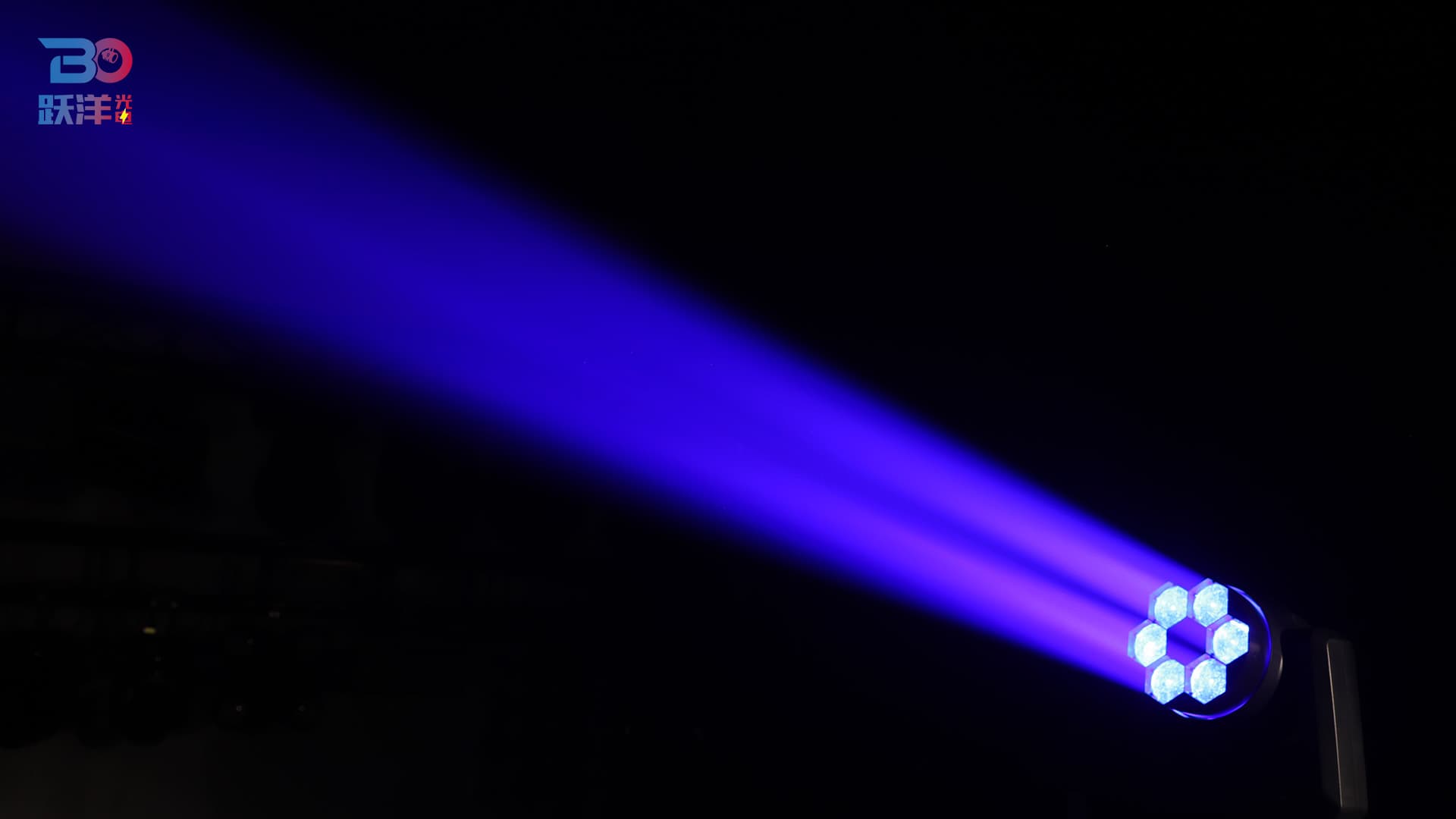

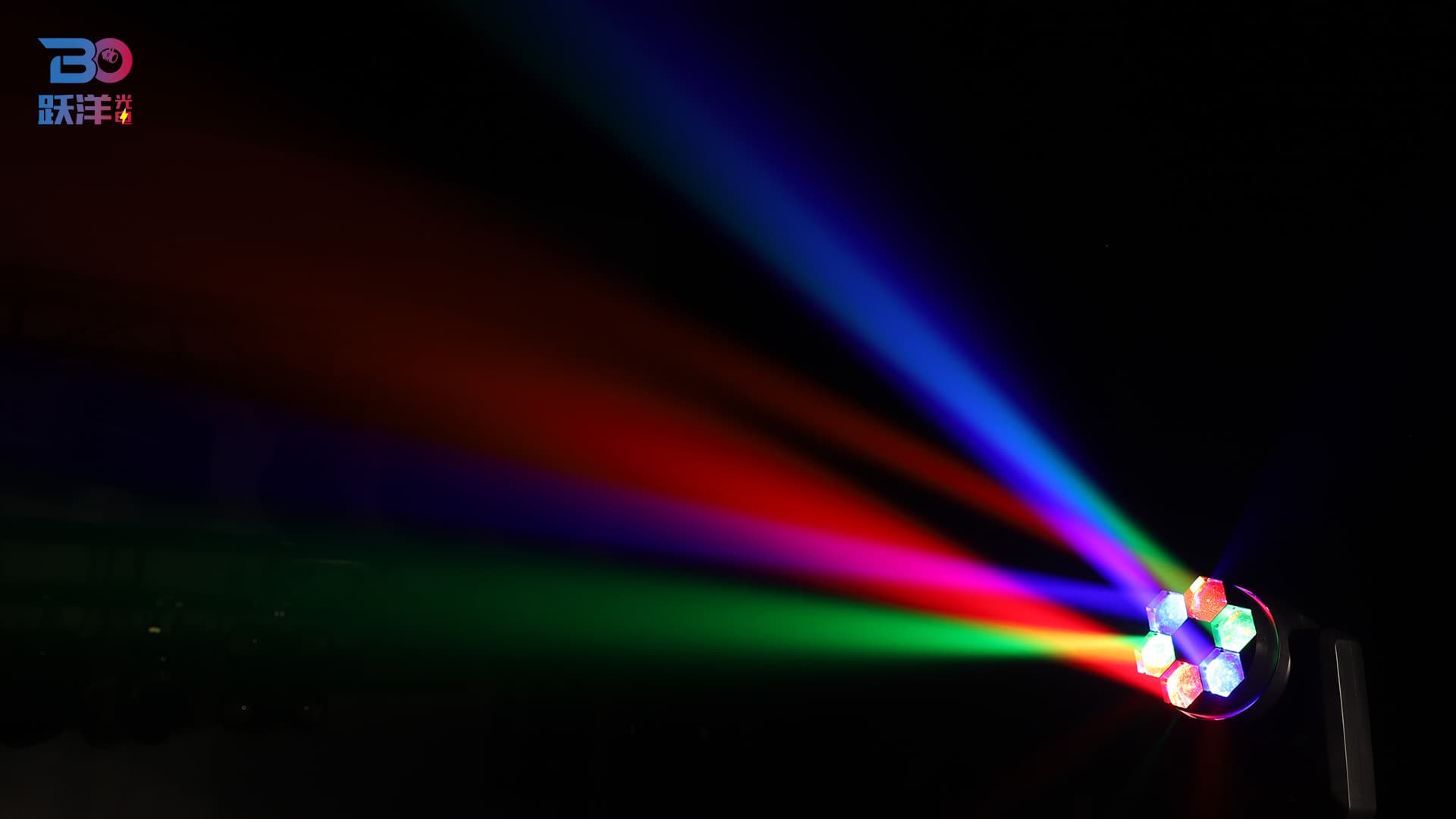

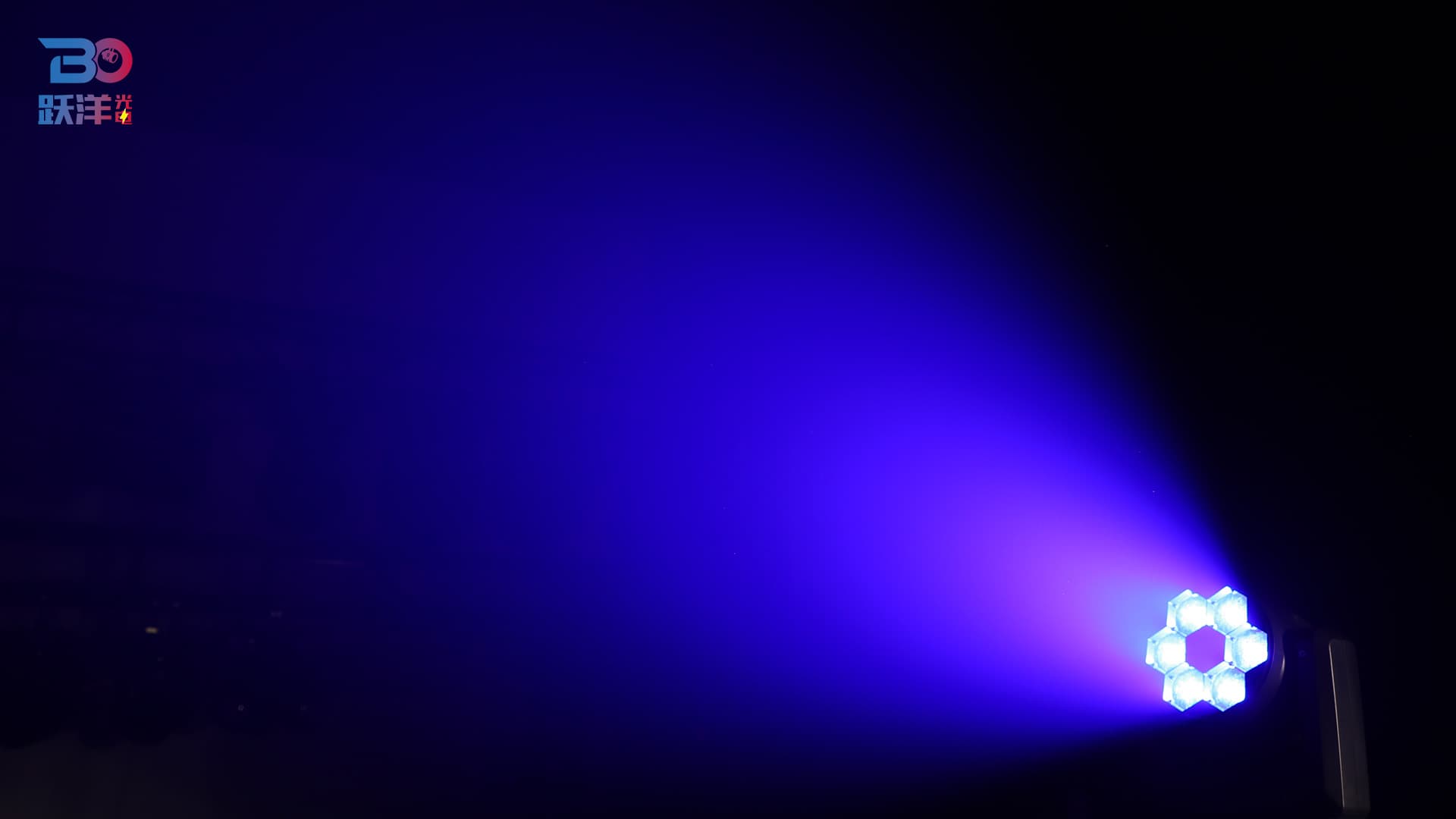

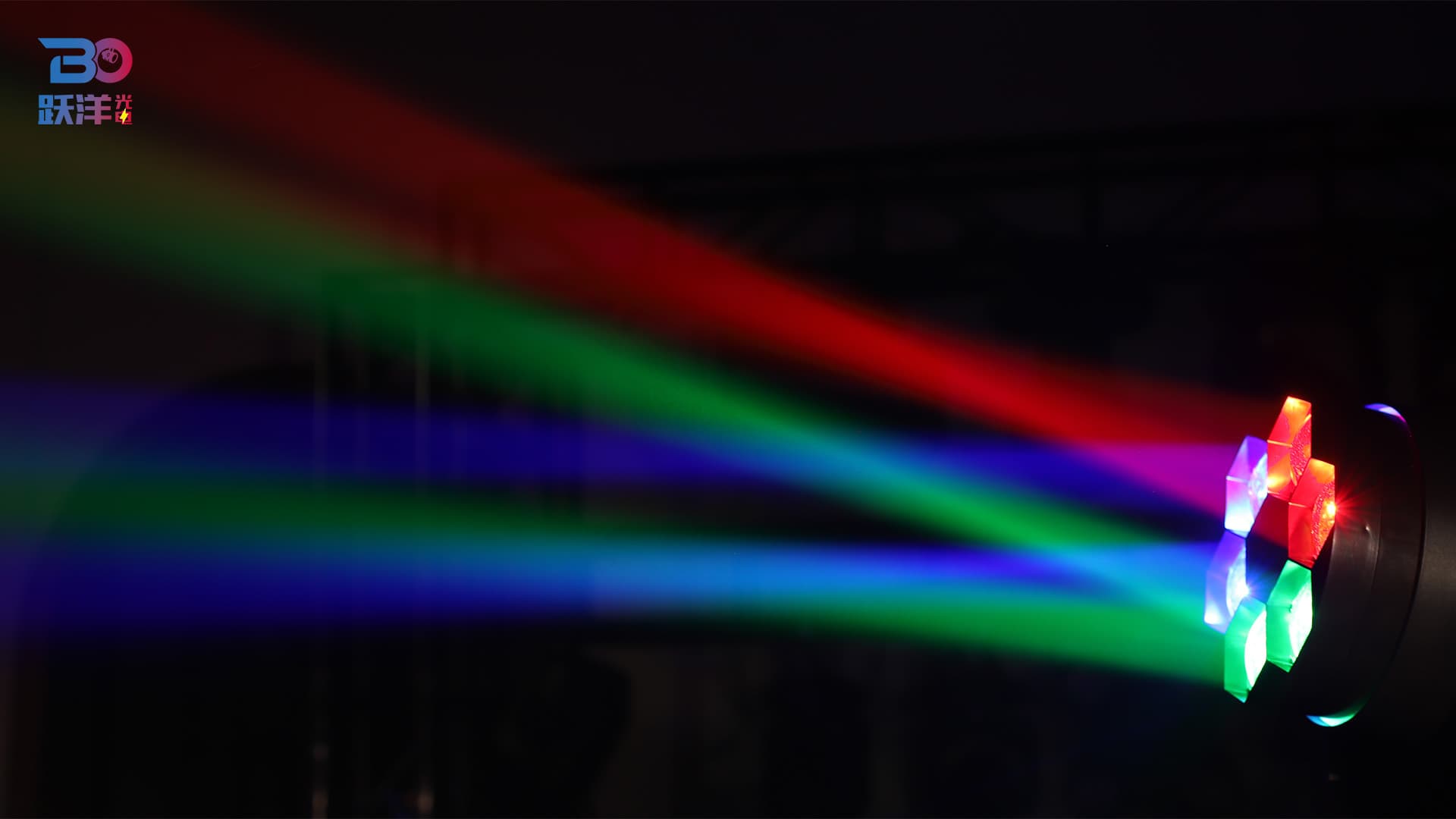

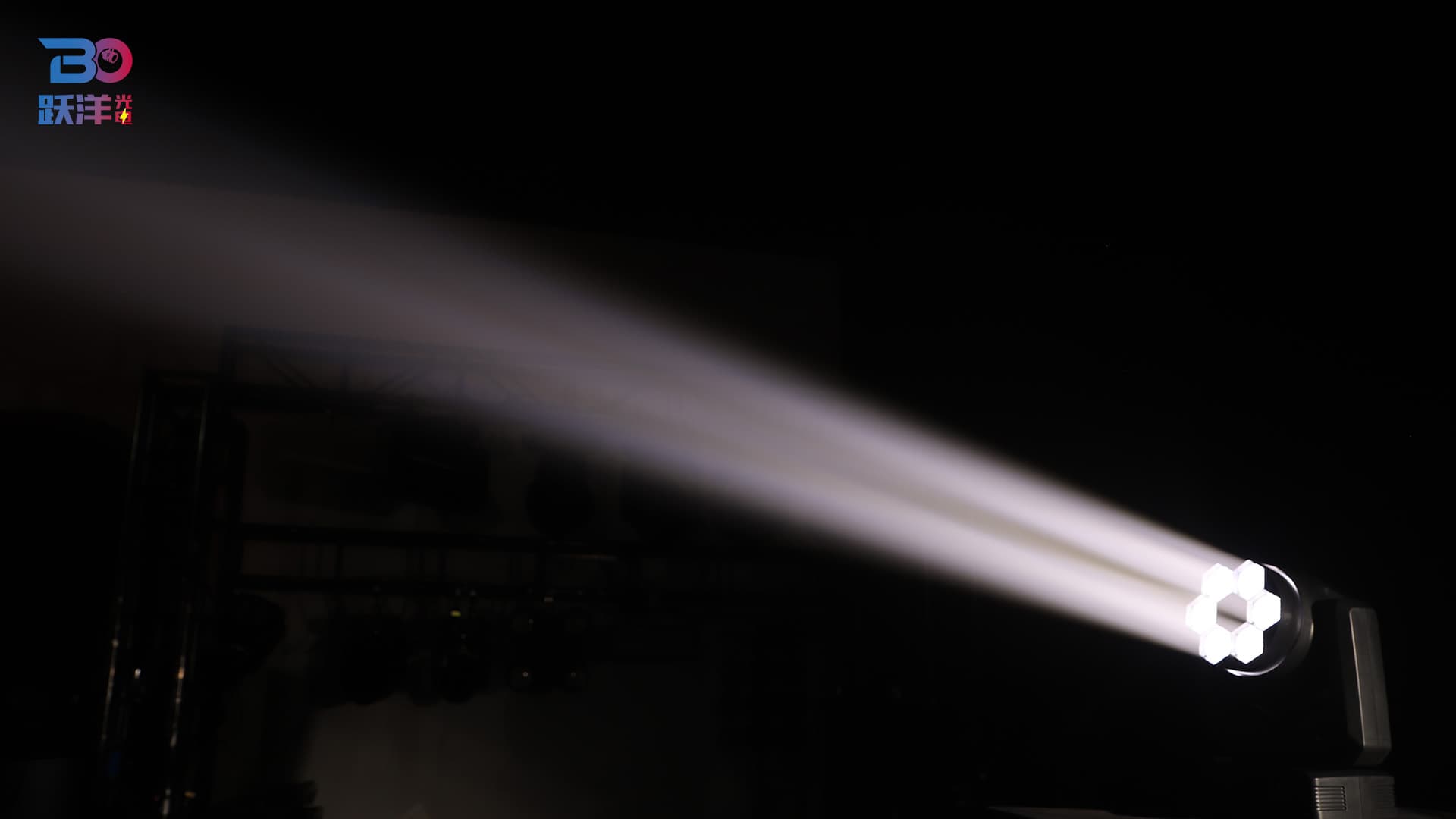

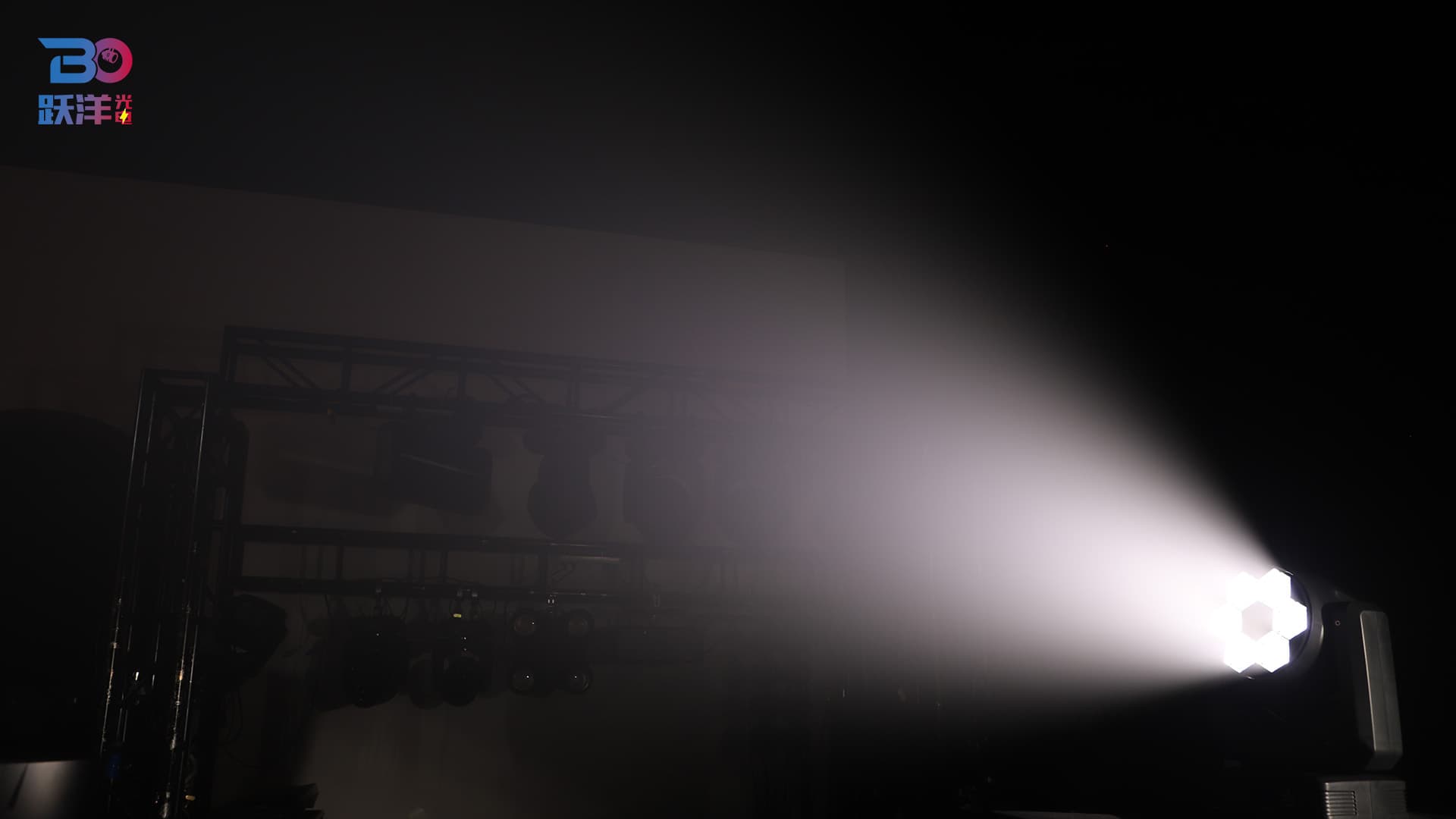

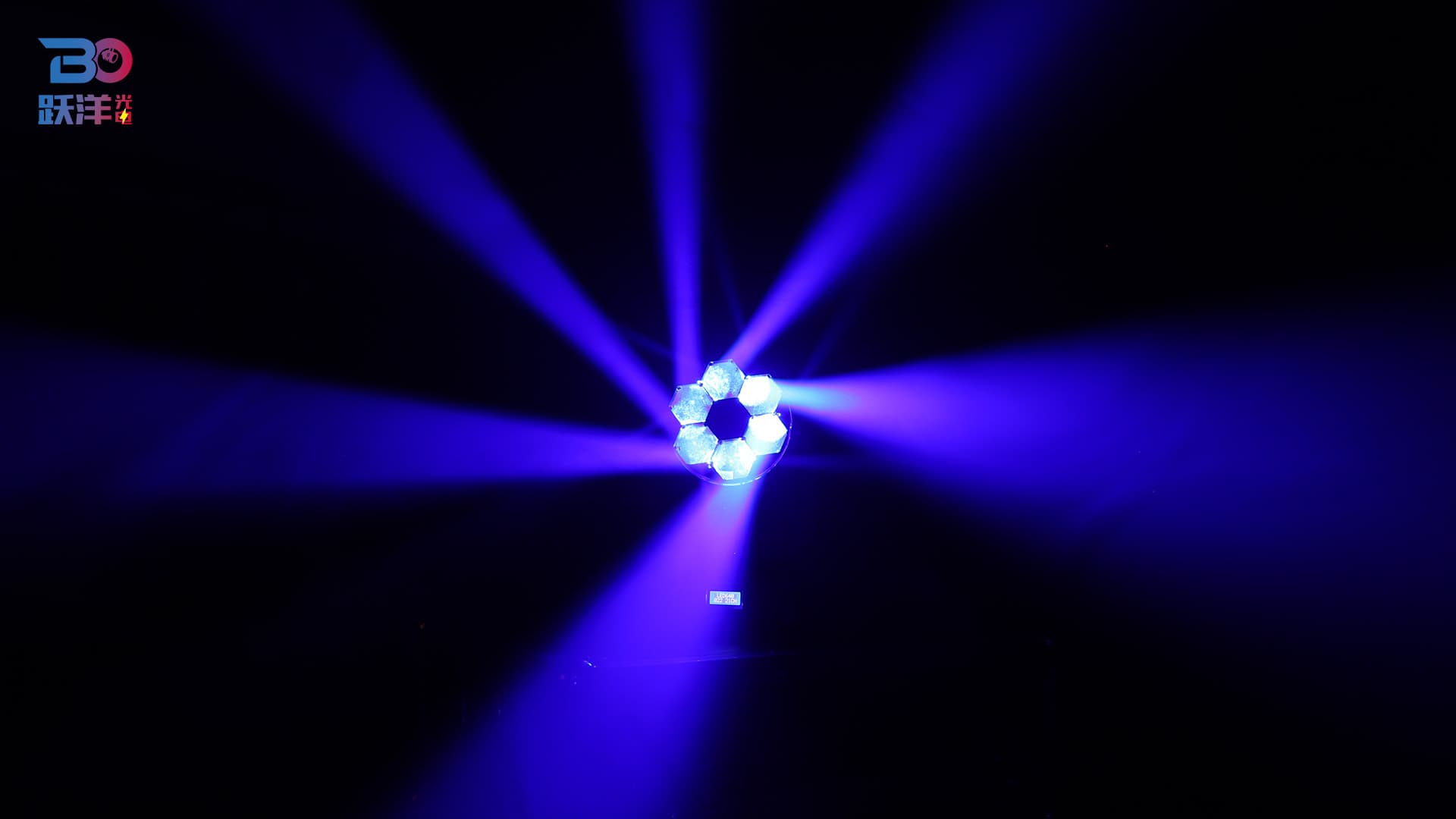

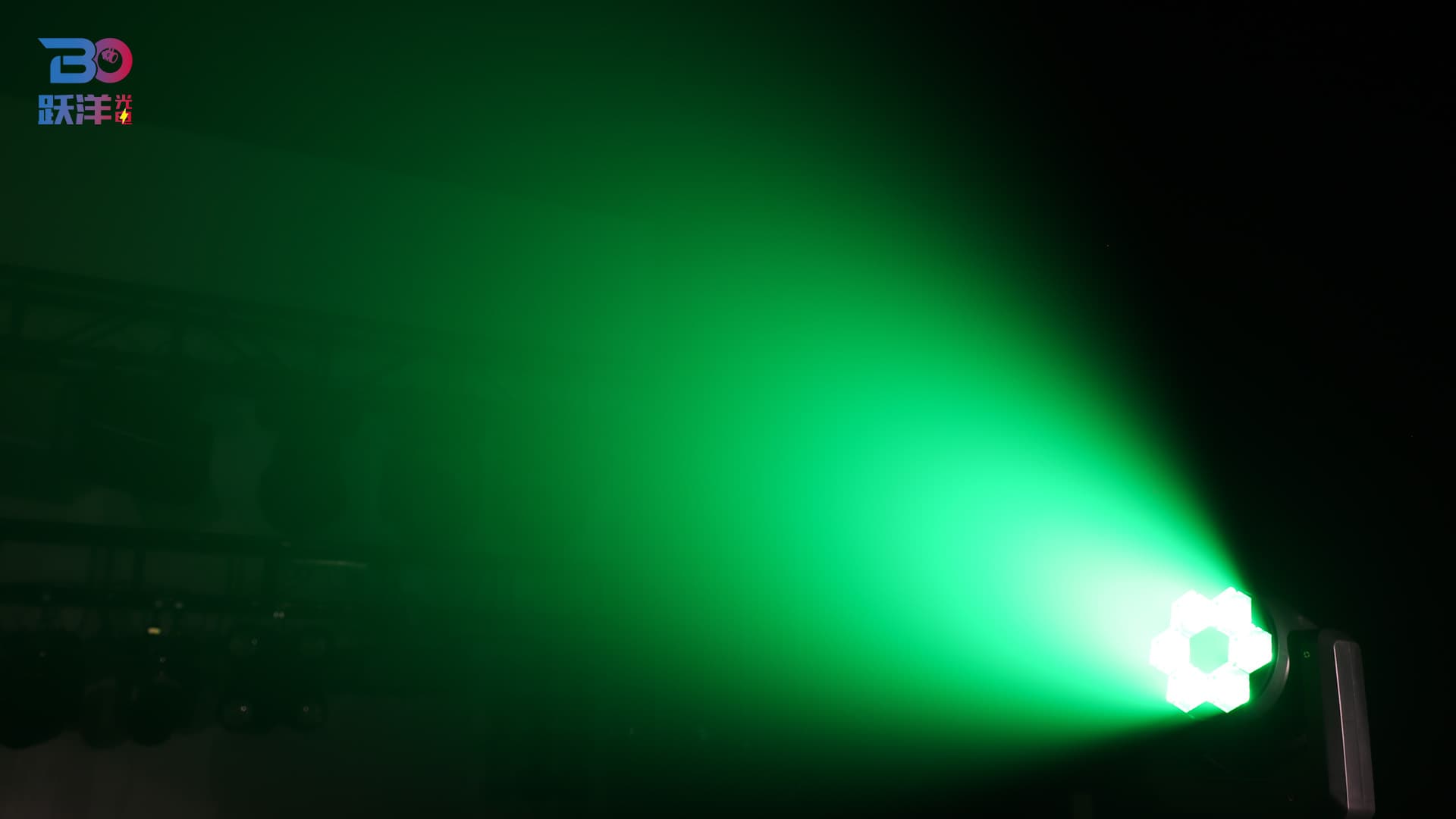

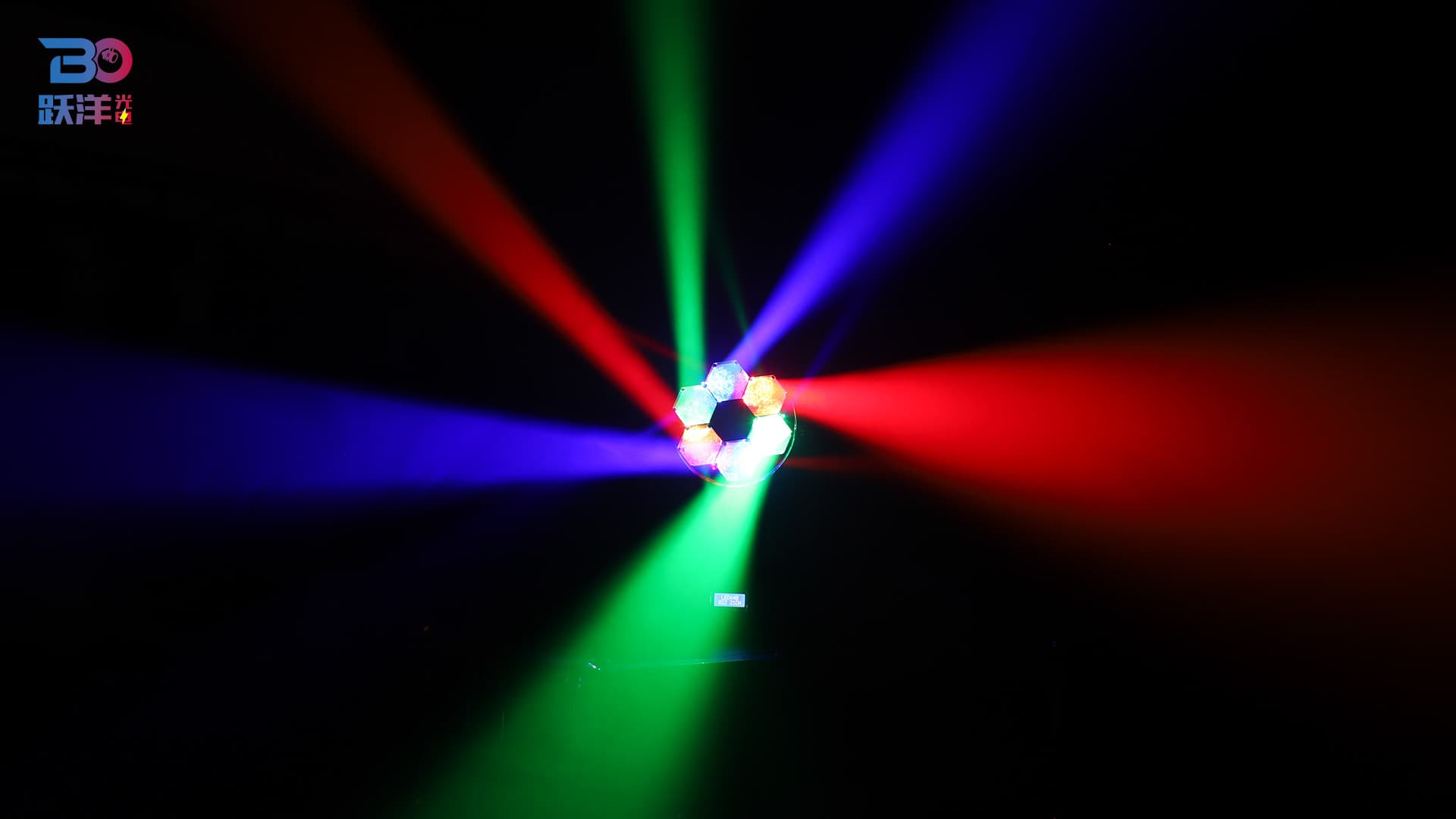

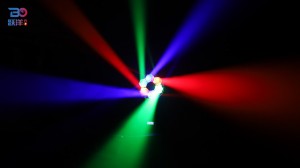

    Beyond 640B Lighting Show
