3240G4 32x40W RGBW LED City Color Light

Short Description:

City Color Lights are powerful outdoor lighting fixtures commonly used for architectural and large-scale lighting in cities. They produce a wide beam of light, illuminating buildings, monuments, and stadiums from a distance. City Color Lights come in variations like LED or metal halide and are known for projecting vibrant, saturated colors.

The 3240G4 is a high-brightness, waterproof city color light designed for outdoor use. It boasts 32pcs of 40W RGBW 4 in 1 LEDs organized in a matrix. With a beam angle of 38 degrees and full-light dimming, it offers precise dimming control at 65536 levels (16-bit) and comes with preset color macros. The 514 x 222 x 324 mm sized and 15 kg lightweight construction of this product is complemented by a durable die-cast aluminum alloy housing, ensuring exceptional heat dissipation.

Brand: Beyond

Model: 3240G4

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

3240G4 32x40W RGBW LED City Color Light

Light Source: 32*60W Wall Washer RGBW 4in1 LED Light

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50-60Hz

Power Consumption: 1050W

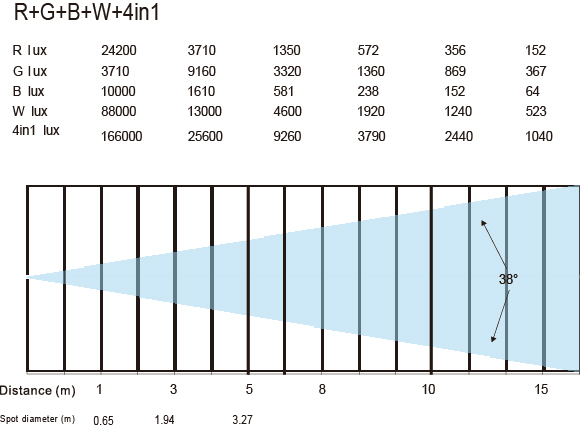

Beam Angle: 38°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM

DMX Channel: 9/ 14Channel

Protection Rating: IP65

Display: TFT Display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: Aluminum

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（240V，50Hz） 2.5mm² power cable; 2 units（100V，60Hz） 2.5mm² power cable

Dimension: 514 mm*222 mm*324 mm

Net Weight: 15.15 kg

Carton Package: 620mm*430mm*345mm 1in1 GW.：20 kg

Flight Case: 790mm*670mm*530mm 3in1 GW.：73.2 kg

Features: Full optical domain dimming, with 65536 level dimming accuracy; Fast strobe 1-25Hz; Preset multiple color macro effect; Dimmer: 0~100% smooth dimming.

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
